headlamp CADILLAC ESCALADE ESV 2009 Owner's Guide

Bulb Replacement For the proper type of replacement bulbs, see
Replacement Bulbs on page 6-53 .
For any bulb changing procedure not listed in this
section, contact your dealer/retailer.
High Intensity Discharge (HID)
Lighting
{ CAUTION: The low beam high intensity discharge lighting
system operates at a very high voltage. If you try to
service any of the system components, you could
be seriously injured. Have your dealer/retailer or a
qualied technician service them.
The vehicle may have HID headlamps. After an HID
headlamp bulb has been replaced, you may notice that
the beam is a slightly different shade than it was
originally. This is normal. LED Lighting The vehicle may have LED headlamps. For replacement
of the LED lighting assembly contact your dealer/retailer.
Back-Up Lamps To replace this bulb:
1. Open the liftgate.
See Power Liftgate
on page 2-14 for more
information.
6-51

Wheel Alignment and Tire Balance The tires and wheels on your vehicle were aligned and
balanced carefully at the factory to give you the longest
tire life and best overall performance. Adjustments to
wheel alignment and tire balancing will not be necessary
on a regular basis. However, if you notice unusual tire
wear or your vehicle pulling to one side or the other, the
alignment might need to be checked. If you notice your
vehicle vibrating when driving on a smooth road, the tires
and wheels might need to be rebalanced. See your
dealer/retailer for proper diagnosis.
Wheel Replacement Replace any wheel that is bent, cracked, or badly rusted
or corroded. If wheel nuts keep coming loose, the
wheel, wheel bolts, and wheel nuts should be replaced.
If the wheel leaks air, replace it (except some
aluminum wheels, which can sometimes be repaired).
See your dealer/retailer if any of these conditions exist.
Your dealer/retailer will know the kind of wheel you need.
Each new wheel should have the same load-carrying
capacity, diameter, width, offset, and be mounted
the same way as the one it replaces. If you need to replace any of your wheels, wheel bolts,
wheel nuts, or Tire Pressure Monitor System (TPMS)
sensors, replace them only with new GM original
equipment parts. This way, you will be sure to have the
right wheel, wheel bolts, wheel nuts, and TPMS
sensors for your vehicle.
{ CAUTION: Using the wrong replacement wheels, wheel bolts,
or wheel nuts on your vehicle can be dangerous.
It could affect the braking and handling of your
vehicle, make your tires lose air and make you
lose control. You could have a collision in which
you or others could be injured. Always use the
correct wheel, wheel bolts, and wheel nuts for
replacement.
Notice: The wrong wheel can also cause problems
with bearing life, brake cooling, speedometer or
odometer calibration, headlamp aim, bumper height,
vehicle ground clearance, and tire or tire chain
clearance to the body and chassis.
See Changing a Flat Tire on page 6-78 for more
information.
6-75

Fuses Usage
1 Right Trailer Stop/Turn Lamp
2 Electronic Stability Suspension
Control, Automatic Level Control
Exhaust
3 Left Trailer Stop/Turn Lamp
4 Engine Controls Fuses Usage
5 Engine Control Module, Throttle
Control
6 Trailer Brake Controller
7 Front Washer
8 Oxygen Sensors
9 Antilock Brakes System 2
10 Trailer Back-up Lamps
11 Driver Side Low-Beam Headlamp
12 Engine Control Module (Battery)
13 Fuel Injectors, Ignition Coils
(Right Side)
14 Transmission Control Module
(Battery)
15 Vehicle Back-up Lamps
16 Passenger Side Low-Beam
Headlamp
17 Air Conditioning Compressor
18 Oxygen Sensors
19 Transmission Controls (Ignition)
20 Fuel Pump
21 Fuel System Control Module
22 Headlamp Washer
23 Rear Windshield Washer
6-110

Fuses Usage
24 Fuel Injectors, Ignition Coils
(Left Side)
25 Trailer Park Lamps
26 Driver Side Park Lamps
27 Passenger Side Park Lamps
28 Fog Lamps
29 Horn
30 Passenger Side High-Beam
Headlamp
31 Daytime Running Lamps (DRL)
32 Driver Side High-Beam Headlamp
33 Daytime Running Lamps 2
34 Sunroof
35 Key Ignition System, Theft Deterrent
System
36 Windshield Wiper
37 SEO B2 Uptter Usage (Battery)
38 Electric Adjustable Pedals
39 Climate Controls (Battery)
40 Airbag System (Ignition)
41 Amplier
42 Audio System
43 Miscellaneous (Ignition), Cruise
Control Fuses Usage
44 Liftgate Release
45 Airbag System (Battery)
46 Instrument Panel Cluster
47 Not Used
48 Auxiliary Climate Control (Ignition)
49 Center High-Mounted Stoplamp
(CHMSL)
50 Rear Defogger
51 Heated Mirrors
52 SEO B1 Uptter Usage (Battery)
53 Cigarette Lighter, Auxiliary Power
Outlet
54 Automatic Level Control Compressor
Relay
55 Climate Controls (Ignition)
56 Engine Control Module, Secondary
Fuel Pump (Ignition)
J-Case Fuses Usage
57 Cooling Fan 1
58 Automatic Level Control Compressor
59 Heavy Duty Antilock Braking System
60 Cooling Fan 2
61 Antilock Brake System 1
6-111

J-Case Fuses Usage
62 Starter
63 Stud 2 (Trailer Brakes)
64 Left Bussed Electrical Center 1
65 Electric Running Boards
66 Heated Windshield Washer System
67 Transfer Case
68 Stud 1 (Trailer Connector Battery
Power)
69 Mid-Bussed Electrical Center 1
70 Climate Control Blower
71 Power Liftgate Module
72 Left Bussed Electrical Center 2 Relays Usage
FAN HI Cooling Fan High Speed
FAN LO Cooling Fan Low Speed
FAN CNTRL Cooling Fan Control
HDLP LO/HID Low-Beam Headlamp
FOG LAMP Front Fog Lamps
A/C CMPRSR Air Conditioning Compressor
STRTR Starter
PWR/TRN Powertrain
FUEL PMP Fuel Pump
PRK LAMP Parking Lamps
REAR DEFOG Rear Defogger
RUN/CRANK Switched Power
6-112

Appearance Care (cont.)
Weatherstrips ............................................ 6-100
Windshield, Backglass, and Wiper Blades ...... 6-102
Wood Panels ............................................ 6-100
Ashtray ......................................................... 3-26
Assist Handles ............................................... 2-63
Audio System ................................................. 3-75
Audio Steering Wheel Controls .................... 3-115
Radio ........................................................ 4-62
XM™ Satellite Radio Antenna System ........... 3-117
Audio Systems
Radio Reception ........................................ 3-116
Rear Seat (RSA) ....................................... 3-113
Theft-Deterrent Feature ............................... 3-115
Automatic Headlamp System ............................ 3-21
Automatic Transmission
Fluid .......................................................... 6-20
Operation ................................................... 2-29
Autoride ®
....................................................... 5-44
Axle, Rear ..................................................... 6-46B Back-Up Lamps - Ambulance Body
Bulb Replacement ....................................... 6-51
Battery .......................................................... 6-39
Electric Power Management .......................... 3-24
Run-Down Protection ................................... 3-25
Belt Routing, Engine ....................................... 7-16
Bench Seat, Split (60/40) ................................. 1-11
Bluetooth ®
..................................................... 3-75
Brake
Emergencies ................................................ 5-6
Pedal and Adjustable Throttle ........................ 2-27
Brakes .......................................................... 6-36
Antilock ....................................................... 5-5
Parking ...................................................... 2-34
System Warning Light .................................. 3-39
Braking ........................................................... 5-4
Braking in Emergencies ..................................... 5-6
Break-In, New Vehicle ..................................... 2-24
Bucket Seats, Rear ......................................... 1-17
2

Bulb Replacement ........................................... 6-53
Back-Up Lamps - Ambulance Body ................ 6-51
Fog Lamps ................................................. 3-22
Headlamp Aiming ........................................ 6-48
Headlamps ................................................. 6-51
High Intensity Discharge (HID) Lighting ........... 6-51
License Plate Lamps .................................... 6-53
Buying New Tires ........................................... 6-71
CCalibration ..................................................... 3-53
California
Perchlorate Materials Requirements ................. 6-4
Warning ....................................................... 6-4
California Fuel .................................................. 6-6
Camera, Rear Vision ....................................... 2-48
Canadian Owners ............................................... iii
Capacities and Specications .......................... 6-113
Carbon Monoxide ................................... 2-12, 2-14
Engine Exhaust ........................................... 2-38
Winter Driving ............................................. 5-29
Care of
Safety Belts .............................................. 6-100
Center Console Storage ................................... 2-63
Center Seat ................................................... 1-10
Chains, Tire ................................................... 6-76
Charging System Light .................................... 3-38
Check Engine Lamp ........................................ 3-42 Checking Things Under the Hood ...................... 6-12
Chemical Paint Spotting ................................. 6-104
Child Restraints
Infants and Young Children ........................... 1-55
Lower Anchors and Tethers for Children .......... 1-63
Older Children ............................................. 1-52
Securing a Child Restraint in a Rear
Seat Position ........................................... 1-71
Securing a Child Restraint in the Center
Front Seat Position ................................... 1-75
Securing a Child Restraint in the Right
Front Seat Position ................................... 1-76
Systems ..................................................... 1-59
Where to Put the Restraint ........................... 1-61
Cigarette Lighter ............................................. 3-26
Circuit Breakers ............................................ 6-106
Cleaning
Aluminum or Chrome-Plated Wheels ............. 6-102
Exterior Lamps/Lenses ................................ 6-101
Fabric/Carpet .............................................. 6-98
Finish Care ............................................... 6-101
Instrument Panel, Vinyl, and Other Plastic
Surfaces ................................................. 6-99
Interior ....................................................... 6-96
Leather ...................................................... 6-98
Speaker
Covers ......................................... 6-100
Tires ........................................................ 6-103
Underbody Maintenance ............................. 6-104
Washing Your Vehicle ................................. 6-100
3

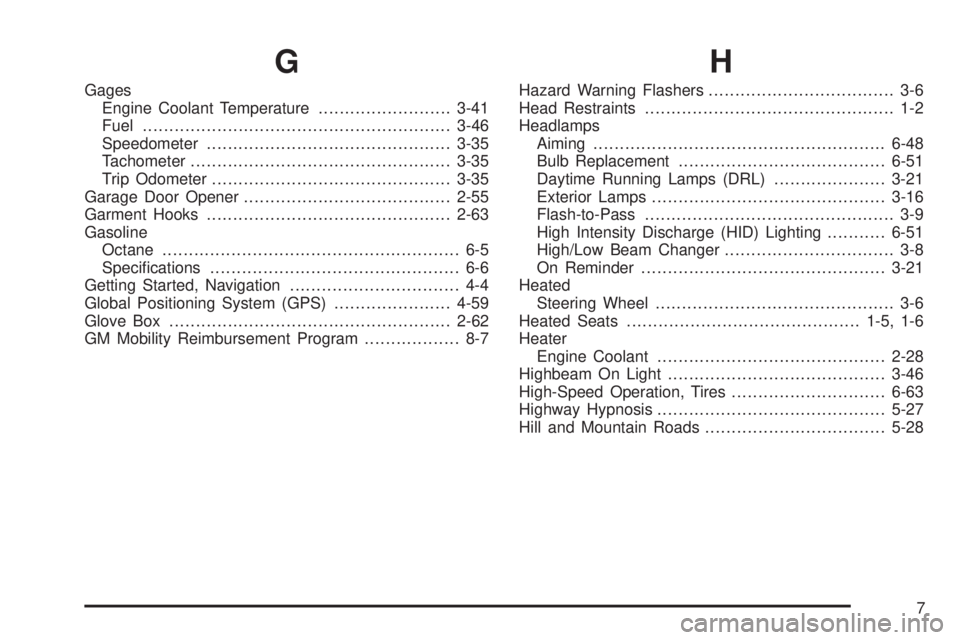

GGages
Engine Coolant Temperature ......................... 3-41
Fuel .......................................................... 3-46
Speedometer .............................................. 3-35
Tachometer ................................................. 3-35
Trip Odometer ............................................. 3-35
Garage Door Opener ....................................... 2-55
Garment Hooks .............................................. 2-63
Gasoline
Octane ........................................................ 6-5
Specications ............................................... 6-6
Getting Started, Navigation ................................ 4-4
Global Positioning System (GPS) ...................... 4-59
Glove Box ..................................................... 2-62
GM Mobility Reimbursement Program .................. 8-7
H Hazard Warning Flashers ................................... 3-6
Head Restraints ............................................... 1-2
Headlamps
Aiming ....................................................... 6-48
Bulb Replacement ....................................... 6-51
Daytime Running Lamps (DRL) ..................... 3-21
Exterior Lamps ............................................ 3-16
Flash-to-Pass ............................................... 3-9
High Intensity Discharge (HID) Lighting ........... 6-51
High/Low Beam Changer ................................ 3-8
On Reminder .............................................. 3-21
Heated
Steering Wheel ............................................. 3-6
Heated Seats ............................................ 1-5, 1-6
Heater
Engine Coolant ........................................... 2-28
Highbeam On Light ......................................... 3-46
High-Speed Operation, Tires ............................. 6-63
Highway Hypnosis ........................................... 5-27
Hill and Mountain Roads .................................. 5-28
7
