The main components of the instrument panel are the following:
A. Outlet Adjustment on page 4 ‑ 25 .
B. Turn Signal/Multifunction Lever on page 4 ‑ 4 .
C. Instrument Panel Cluster on page 4 ‑ 28 .
D. Hazard Warning Flashers on page 4 ‑ 3 .
E. Shift Lever and Range Selection Mode. See
Automatic Transmission Operation on page 3 ‑ 32 .
F. Tow/Haul Mode on page 3 ‑ 36 .
G. Driver Information Center (DIC) Buttons. See
Driver Information Center (DIC) on page 4 ‑ 41 .
H. Analog Clock on page 4 ‑ 20 .
I. Audio System(s) on page 4 ‑ 68 .
J. StabiliTrak ®
System on page 6 ‑ 6 . Rear Park Aid
Disable Button. See Ultrasonic Rear Parking Assist
(URPA) on page 3 ‑ 46 .
K. Tilt Wheel on page 4 ‑ 3 . L. Exterior Lamps on page 4 ‑ 11 .
M. Dome Lamp Override on page 4 ‑ 17 . Instrument
Panel Brightness on page 4 ‑ 16 . Fog Lamps on
page 4 ‑ 16 .
N. Automatic Transfer Case Control. See Escalade
Two ‐ Mode Hybrid Supplement for more
information.
O. Cruise Control
on page 4 ‑ 8 . Heated Steering
Wheel on page 4 ‑ 4 (If Equipped).
P. Horn on page 4 ‑ 3 .
Q. Audio Steering Wheel Controls on page 4 ‑ 106 .
R. Dual Automatic Climate Control System
on
page 4 ‑ 20 .
S. Pedal Adjust Button. See Adjustable Throttle and
Brake Pedal on page 3 ‑ 30 . Power Assist Steps
on page 3 ‑ 17 (If Equipped).
T. Glove Box on page 3 ‑ 62 .
1-3

Black plate (4,1)Cadillac Escalade/Escalade ESV Owner Manual - 2010
Initial Drive Information This section provides a brief overview about some of
the important features that may or may not be on your
specific vehicle.
For more detailed information, refer to each of the
features which can be found later in this owner manual.
Remote Keyless Entry (RKE) System The RKE transmitter is used to remotely lock and
unlock the doors from up to 60 m (195 feet) away from
the vehicle.
Press
K to unlock the
driver door. Press
Kagain within five seconds
to unlock all remaining
doors.
Press
Q to lock all doors. Lock and unlock feedback can be personalized.
Press and hold
& to open or close the liftgate.
Press and hold
m to open the liftglass.
Press
L and release to locate the vehicle.
Press
L and hold for three seconds to sound the panic
alarm.
Press
L again to cancel the panic alarm.
See Keys
on page 3 ‑ 3 and Remote Keyless Entry
(RKE) System Operation on page 3 ‑ 4 .
Remote Vehicle Start With this feature the engine can be started from outside
of the vehicle.
Starting the Vehicle 1. Aim the RKE transmitter at the vehicle.
2. Press
Q .
3. Immediately after completing Step 2, press and
hold
/ until the turn signal lamps flash.
When the vehicle starts, the parking lamps will turn on
and remain on as long as the engine is running. The
doors will be locked and the climate control system may
come on.
1-4

Black plate (5,1)Cadillac Escalade/Escalade ESV Owner Manual - 2010
The following functions may be available if this vehicle
has the RKE system:
Q (Lock): Press to lock all the doors.
If enabled through the Driver Information Center (DIC),
the turn signal lamps flash once to indicate locking has
occurred. If enabled through the DIC, the horn chirps
when
Q is pressed again within three seconds. See DIC
Vehicle Customization on page 4 ‑ 58 for additional
information.
Pressing
Q arms the content theft ‐ deterrent system.
See Content Theft-Deterrent on page 3 ‑ 22 .
K (Unlock): Press once to unlock only the driver door.
If
K is pressed again within three seconds, all
remaining doors unlock. The interior lamps may come
on and stay on for 20 seconds or until the ignition is
turned on.
If enabled through the DIC, the turn signal lamps flash
twice to indicate unlocking has occurred. See DIC
Vehicle Customization on page 4 ‑ 58 . If enabled
through the DIC, the exterior lights turn on briefly if it is
dark enough outside. See “ APPROACH LIGHTING ”
under DIC Vehicle Customization
on page 4 ‑ 58 . Pressing
K on the RKE transmitter disarms the content
theft ‐ deterrent system. See Content Theft-Deterrent
on
page 3 ‑ 22 .
/ (Remote Vehicle Start): For vehicles with this
feature, press
/ to start the engine from outside the
vehicle using the RKE transmitter. See Remote Vehicle
Start
on page 3 ‑ 7 for additional information.
& (Power Liftgate): Press and hold to open and
close the liftgate. The taillamps flash and a chime
sounds to indicate when the liftgate is opening and
closing.
m (Liftglass): Press and hold to open the liftglass.
L (Vehicle Locator/Panic Alarm): Press and release
to locate the vehicle. The turn signal lamps flash and
the horn sounds three times.
Press and hold
L for more than two seconds to
activate the panic alarm. The turn signal lamps flash
and the horn sounds repeatedly for 30 seconds.
The alarm turns off when the ignition is moved to
ON/RUN or
L is pressed again. The ignition must
be in LOCK/OFF for the panic alarm to work.
3-5

Black plate (8,1)Cadillac Escalade/Escalade ESV Owner Manual - 2010
If your vehicle has the remote start feature, the RKE
transmitter functions will have an increased range of
operation. However, the range may be less while the
vehicle is running.
There are other conditions which can affect the
performance of the transmitter, see Remote Keyless
Entry (RKE) System
on page 3 ‑ 4 for additional
information.
/ (Remote Start): This button will be on the RKE
transmitter if you have remote start.
To start the vehicle using the remote start feature:
1. Aim the transmitter at the vehicle.
2. Press and release the transmitter's lock button.
The vehicle's doors will lock. Immediately press
and hold the transmitter's remote start button until
the turn signal lights flash. If you cannot see the
vehicle's lights, press and hold the remote start
button for two to four seconds. Pressing the remote
start button again after the vehicle has started will
turn the engine off.
When the vehicle starts, the parking lamps will turn
on and remain on while the vehicle is running.
If the vehicle is left running it will automatically shut
off after 10 minutes unless a time extension has
been done. 3. If it is the first remote start since the vehicle has
been driven, repeat these steps, while the engine
is still running, to extend the engine running time
by 10 minutes. Remote start can be extended
one time.
After entering the vehicle during a remote start, insert
and turn the key to ON/RUN to drive the vehicle.
To manually shut off a remote start, do any of the
following: .
Aim the RKE transmitter at the vehicle and press
the remote start button until the parking lamps
turn off. .
Turn on the hazard warning flashers. .
Turn the ignition switch on and then off.
The vehicle can be remote started two separate times
between driving sequences. The engine will run for
10 minutes after each remote start.
Or, you can extend the engine run time by another
10 minutes within the first 10 minute remote start time
frame, and before the engine stops.
3-8

Black plate (11,1)Cadillac Escalade/Escalade ESV Owner Manual - 2010
Delayed Locking When locking the doors with the power lock switch and
a door or the liftgate is open, the doors will lock
five seconds after the last door is closed. You will hear
three chimes to signal that the delayed locking feature
is in use.
Pressing the power lock switch twice will override the
delayed locking feature and immediately lock all the
doors.
This feature will not operate if the key is in the ignition.
You can program this feature using the Driver
Information Center (DIC). See DELAY DOOR LOCK
under DIC Vehicle Customization on page 4 ‑ 58 .
Programmable Automatic Door
Locks Vehicles with an automatic lock/unlock feature enable
you to program the vehicle's power door locks. You can
program this feature through the Driver Information
Center (DIC). See DIC Vehicle Customization
on
page 4 ‑ 58 for more information on DIC programming. Rear Door Security Locks Your vehicle has rear door security locks. These
prevent passengers from opening the rear doors from
the inside.
The rear door security
locks are located on the
inside edge of each
rear door.
The rear doors must be open to access them. The label
showing lock and unlock positions is located near
the lock.
To set the locks, do the following:
1. Insert the key into the security lock slot and turn it
so the slot is in the horizontal position.
2. Close the door.
3-11

Black plate (44,1)Cadillac Escalade/Escalade ESV Owner Manual - 2010
Resetting the Power Foldaway Mirrors Reset the power foldaway mirrors if: .
The mirrors are accidentally obstructed while
folding. .
They are accidentally manually folded/unfolded. .
The mirrors will not stay in the unfolded position. .
The mirrors vibrate at normal driving speeds.
Fold and unfold the mirrors one time using the mirror
controls to reset them to their normal position.
A popping noise may be heard during the resetting of
the power foldaway mirrors. This sound is normal after
a manual folding operation.
Automatic Dimming Adjust the driver outside mirror for the glare of the
headlamps behind your vehicle. See Automatic
Dimming Rearview Mirror
on page 3 ‑ 43 for more
information.
Turn Signal Indicator The vehicle has a turn signal indicator on the mirror. An
arrow on the mirror flashes in the direction of the turn or
lane change. Ground Illumination Lamps The mirrors may also include ground illumination lamps
in the base of the mirror. These lamps help to see the
area near the base of the front doors when it is
dark out.
Park Tilt Mirrors If the vehicle has the memory package, the passenger
and/or driver mirror tilts to a preselected position when
the vehicle is in R (Reverse). This feature lets the driver
view the curb when parallel parking. The mirror(s) return
to the original position when the vehicle is shifted out of
R (Reverse), or the ignition is turned off or to
OFF/LOCK.
Turn this feature on or off through the Driver Information
Center (DIC). See DIC Vehicle Customization
on
page 4 ‑ 58
for more information.
3-44

Black plate (48,1)Cadillac Escalade/Escalade ESV Owner Manual - 2010
Side Blind Zone Alert (SBZA) The vehicle may have a Side Blind Zone Alert (SBZA)
system. Read this entire section before using the
system.
{ WARNING: SBZA is only a lane changing aid and does not
replace driver vision. SBZA does not detect: .
Vehicles outside the side blind zones which
may be rapidly approaching. .
Pedestrians, bicyclists, or animals.
Failure to use proper care when changing lanes
may result in damage to the vehicle, injury,
or death. Always check the outside and rearview
mirrors, glance over your shoulder, and use the
turn signal before changing lanes. When the system detects a vehicle in the side blind
zone, amber SBZA displays light up in the side mirrors.
This indicates that it may be unsafe to change lanes.
Before making a lane change, always check the SBZA
display, check the outside and rearview mirrors, look
over your shoulder for vehicles and hazards, and use
the turn signal.
3-48

Black plate (49,1)Cadillac Escalade/Escalade ESV Owner Manual - 2010
SBZA Detection Zones The SBZA sensor covers a zone of approximately one
lane over from both sides of the vehicle, 3.5 m (11 ft).
This zone starts at each side mirror and goes back
approximately 16 ft. (5.0 m). The height of the zone is
approximately between 0.5 m (1.5 ft) and 2.0 m (6 ft) off
the ground.
Use caution while changing lanes when towing a trailer,
as the SBZA detection zones do not change when a
trailer is towed.
How the System Works
Left Side Mirror Display Right Side Mirror Display
When the vehicle is started, both outside mirror
displays will briefly come on to indicate that the system
is operating. When the vehicle is moving forward, the
left or right side mirror SBZA display will light up if a
vehicle is detected in that blind zone. If the turn signal is activated and a vehicle is also
detected on the same side, the SBZA display will flash
to give you extra warning not to change lanes.
SBZA displays do not come on while the vehicle is
approaching or passing other vehicles. At speeds
greater then 32 km/h (20 mph), SBZA displays may
come on when a vehicle you have passed remains in or
drops back into the detection zone.
SBZA can be disabled through the Driver Information
Center (DIC). See Driver Information Center (DIC)
on
page 4 ‑ 41 for more information. If the SBZA is disabled
by the driver, the SBZA mirror displays will not light up
during normal driving.
When the System Does Not Seem To Work
Properly Occasional missed alerts can occur under normal
circumstances and will increase in wet conditions.
The system does not need to be serviced due to an
occasional missed alert. The number of missed alerts
will increase with increased rainfall or road spray.
If the SBZA displays do not light up when the system is
on and vehicles are in the blind zone, the system may
need service. Take the vehicle to your dealer.
3-49

Black plate (1,1)Cadillac Escalade/Escalade ESV Owner Manual - 2010
Section 4 Instrument PanelInstrument Panel Overview . . . . . . . . . . . . . . . . . . . . . . . . 4-3
Hazard Warning Flashers . . . . . . . . . . . . . . . . . . . . . . . 4-3
Horn . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-3
Tilt Wheel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-3
Heated Steering Wheel . . . . . . . . . . . . . . . . . . . . . . . . . 4-4
Turn Signal/Multifunction Lever . . . . . . . . . . . . . . . . . . 4-4
Turn and Lane-Change Signals . . . . . . . . . . . . . . . . . 4-5
Headlamp High/Low-Beam Changer . . . . . . . . . . . . 4-5
Flash-to-Pass . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-6
Windshield Wipers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-6
Windshield Washer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-7
Rear Window Wiper/Washer . . . . . . . . . . . . . . . . . . . . 4-7
Cruise Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-8
Exterior Lamps . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-11
Headlamps on Reminder . . . . . . . . . . . . . . . . . . . . . . 4-15
Daytime Running Lamps (DRL) . . . . . . . . . . . . . . . . 4-15
Automatic Headlamp System . . . . . . . . . . . . . . . . . . 4-15
Fog Lamps . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-16
Instrument Panel Brightness . . . . . . . . . . . . . . . . . . . 4-16
Dome Lamps . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-17
Dome Lamp Override . . . . . . . . . . . . . . . . . . . . . . . . . . 4-17
Entry Lighting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-17
Exit Lighting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-17 Reading Lamps . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-17
Electric Power Management . . . . . . . . . . . . . . . . . . . 4-18
Battery Run-Down Protection . . . . . . . . . . . . . . . . . . 4-18
Accessory Power Outlet(s) . . . . . . . . . . . . . . . . . . . . . 4-19
Ashtray(s) and Cigarette Lighter . . . . . . . . . . . . . . . 4-20
Analog Clock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-20
Climate Controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-20
Dual Automatic Climate Control System . . . . . . . 4-20
Outlet Adjustment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-25
Rear Air Conditioning and Heating System and
Electronic Climate Controls . . . . . . . . . . . . . . . . . . 4-26
Warning Lights, Gauges, and Indicators . . . . . . . . 4-27
Instrument Panel Cluster . . . . . . . . . . . . . . . . . . . . . . . 4-28
Speedometer and Odometer . . . . . . . . . . . . . . . . . . . 4-29
Trip Odometer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-29
Tachometer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-29
Safety Belt Reminders . . . . . . . . . . . . . . . . . . . . . . . . . 4-29
Airbag Readiness Light . . . . . . . . . . . . . . . . . . . . . . . . 4-30
Passenger Airbag Status Indicator . . . . . . . . . . . . . 4-31
Charging System Light . . . . . . . . . . . . . . . . . . . . . . . . 4-32
Brake System Warning Light . . . . . . . . . . . . . . . . . . . 4-33
4-1

Black plate (3,1)Cadillac Escalade/Escalade ESV Owner Manual - 2010

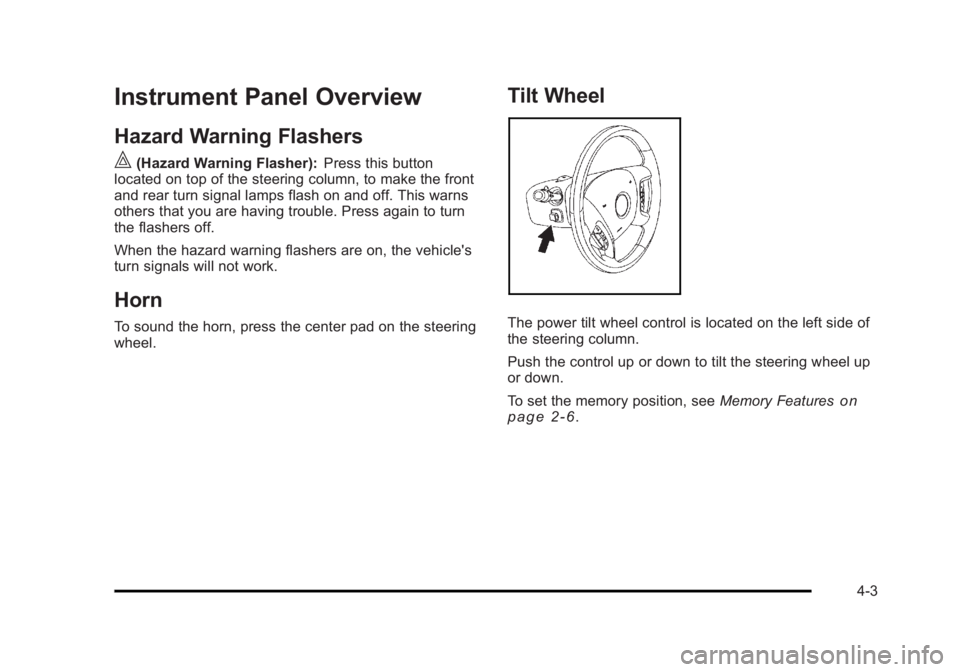

Instrument Panel Overview Hazard Warning Flashers | (Hazard Warning Flasher): Press this button
located on top of the steering column, to make the front
and rear turn signal lamps flash on and off. This warns
others that you are having trouble. Press again to turn
the flashers off.
When the hazard warning flashers are on, the vehicle's
turn signals will not work.
Horn To sound the horn, press the center pad on the steering
wheel. Tilt Wheel
The power tilt wheel control is located on the left side of
the steering column.
Push the control up or down to tilt the steering wheel up
or down.
To set the memory position, see Memory Features
on
page 2 ‑ 6 .
4-3
