Black plate (21,1)Cadillac Escalade/Escalade ESV Owner Manual - 2011

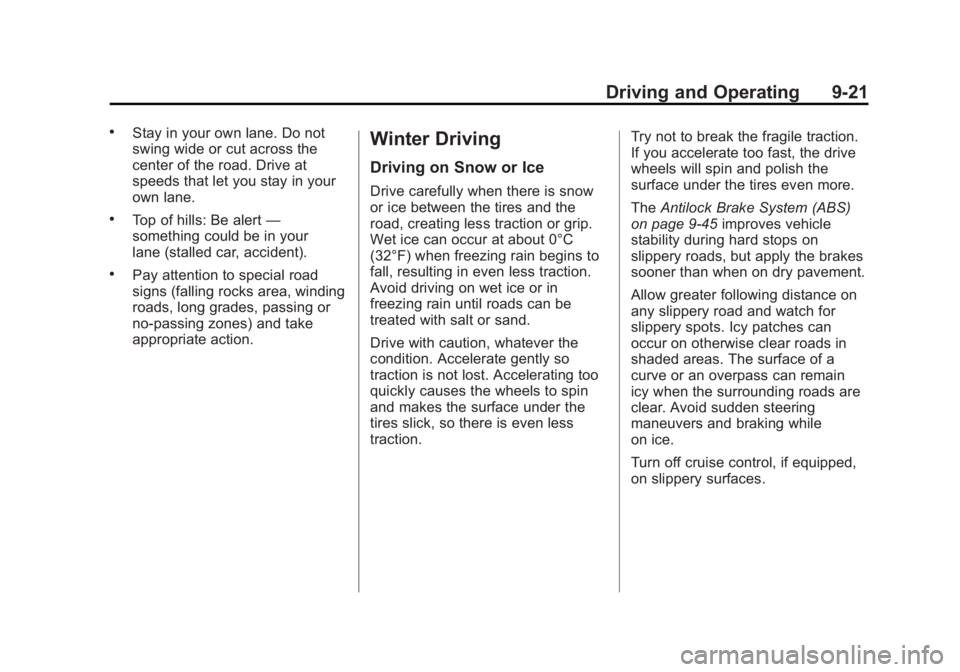

Driving and Operating 9-21.
Stay in your own lane. Do not
swing wide or cut across the
center of the road. Drive at
speeds that let you stay in your
own lane. .
Top of hills: Be alert —
something could be in your
lane (stalled car, accident). .
Pay attention to special road
signs (falling rocks area, winding
roads, long grades, passing or
no-passing zones) and take
appropriate action. Winter Driving Driving on Snow or Ice Drive carefully when there is snow
or ice between the tires and the
road, creating less traction or grip.
Wet ice can occur at about 0°C
(32°F) when freezing rain begins to
fall, resulting in even less traction.
Avoid driving on wet ice or in
freezing rain until roads can be
treated with salt or sand.
Drive with caution, whatever the
condition. Accelerate gently so
traction is not lost. Accelerating too
quickly causes the wheels to spin
and makes the surface under the
tires slick, so there is even less
traction. Try not to break the fragile traction.
If you accelerate too fast, the drive
wheels will spin and polish the
surface under the tires even more.
The Antilock Brake System (ABS)
on page 9 ‑ 45 improves vehicle
stability during hard stops on
slippery roads, but apply the brakes
sooner than when on dry pavement.
Allow greater following distance on
any slippery road and watch for
slippery spots. Icy patches can
occur on otherwise clear roads in
shaded areas. The surface of a
curve or an overpass can remain
icy when the surrounding roads are
clear. Avoid sudden steering
maneuvers and braking while
on ice.
Turn off cruise control, if equipped,
on slippery surfaces.

Black plate (22,1)Cadillac Escalade/Escalade ESV Owner Manual - 2011

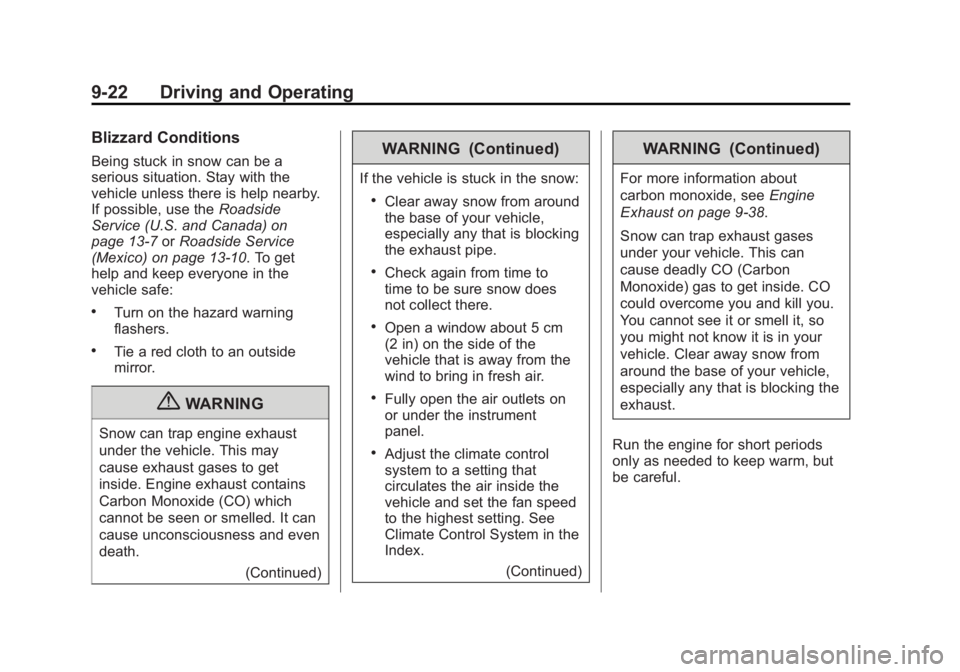

9-22 Driving and Operating Blizzard Conditions Being stuck in snow can be a
serious situation. Stay with the
vehicle unless there is help nearby.
If possible, use the Roadside
Service (U.S. and Canada) on
page 13 ‑ 7 or Roadside Service
(Mexico) on page 13 ‑ 10 . To get
help and keep everyone in the
vehicle safe: .
Turn on the hazard warning
flashers. .
Tie a red cloth to an outside
mirror.
{ WARNING
Snow can trap engine exhaust
under the vehicle. This may
cause exhaust gases to get
inside. Engine exhaust contains
Carbon Monoxide (CO) which
cannot be seen or smelled. It can
cause unconsciousness and even
death.
(Continued) WARNING (Continued) If the vehicle is stuck in the snow: .
Clear away snow from around
the base of your vehicle,
especially any that is blocking
the exhaust pipe. .
Check again from time to
time to be sure snow does
not collect there. .
Open a window about 5 cm
(2 in) on the side of the
vehicle that is away from the
wind to bring in fresh air. .
Fully open the air outlets on
or under the instrument
panel. .
Adjust the climate control
system to a setting that
circulates the air inside the
vehicle and set the fan speed
to the highest setting. See
Climate Control System in the
Index.
(Continued) WARNING (Continued) For more information about
carbon monoxide, see Engine
Exhaust on page 9 ‑ 38 .
Snow can trap exhaust gases
under your vehicle. This can
cause deadly CO (Carbon
Monoxide) gas to get inside. CO
could overcome you and kill you.
You cannot see it or smell it, so
you might not know it is in your
vehicle. Clear away snow from
around the base of your vehicle,
especially any that is blocking the
exhaust.
Run the engine for short periods
only as needed to keep warm, but
be careful.

Black plate (23,1)Cadillac Escalade/Escalade ESV Owner Manual - 2011
Driving and Operating 9-23To save fuel, run the engine for only
short periods as needed to warm
the vehicle and then shut the engine
off and close the window most of
the way to save heat. Repeat this
until help arrives but only when you
feel really uncomfortable from the
cold. Moving about to keep warm
also helps.
If it takes some time for help to
arrive, now and then when you run
the engine, push the accelerator
pedal slightly so the engine runs
faster than the idle speed. This
keeps the battery charged to restart
the vehicle and to signal for help
with the headlamps. Do this as little
as possible to save fuel.
If the Vehicle is Stuck Slowly and cautiously spin the
wheels to free the vehicle when
stuck in sand, mud, ice, or snow.
See “ Rocking Your Vehicle to Get
It Out ” later in this section. If the vehicle has a traction system,
it can often help to free a stuck
vehicle. Refer to the vehicle's
traction system in the Index. If
stuck too severely for the traction
system to free the vehicle, turn the
traction system off and use the
rocking method.
{ WARNINGIf the vehicle's tires spin at high
speed, they can explode, and you
or others could be injured. The
vehicle can overheat, causing an
engine compartment fire or other
damage. Spin the wheels as little
as possible and avoid going
above 55 km/h (35 mph).
For information about using tire
chains on the vehicle, see Tire
Chains on page 10 ‑ 66 . Rocking Your Vehicle to Get
It Out Turn the steering wheel left and
right to clear the area around the
front wheels. Turn off any traction or
stability system. Shift back and forth
between R (Reverse) and a forward
gear, spinning the wheels as little as
possible. To prevent transmission
wear, wait until the wheels stop
spinning before shifting gears.
Release the accelerator pedal while
shifting, and press lightly on the
accelerator pedal when the
transmission is in gear. Slowly
spinning the wheels in the forward
and reverse directions causes a
rocking motion that could free the
vehicle. If that does not get the
vehicle out after a few tries, it might
need to be towed out. Recovery
hooks can be used, if the vehicle
has them. If the vehicle does need
to be towed out, see Towing the
Vehicle on page 10 ‑ 87 .

Black plate (24,1)Cadillac Escalade/Escalade ESV Owner Manual - 2011
9-24 Driving and Operating Recovery Hooks
{ WARNINGThese hooks, when used, are
under a lot of force. Always pull
the vehicle straight out. Never pull
on the hooks at a sideways angle.
The hooks could break off and
you or others could be injured
from the chain or cable
snapping back.
Notice: Never use recovery
hooks to tow the vehicle. Your
vehicle could be damaged and
it would not be covered by
warranty.
For vehicles with recovery hooks at
the front of the vehicle, you can use
them if you are stuck off-road and
need to be pulled to some place
where you can continue driving. Vehicle Load Limits It is very important to know how
much weight your vehicle can
carry. This weight is called the
vehicle capacity weight and
includes the weight of all
occupants, cargo, and all
nonfactory-installed options.
Two labels on your vehicle
show how much weight it was
designed to carry, the Tire and
Loading Information label and
the Certification/Tire label.

Black plate (25,1)Cadillac Escalade/Escalade ESV Owner Manual - 2011
Driving and Operating 9-25
{ WARNING
Do not load the vehicle
any heavier than the Gross
Vehicle Weight Rating
(GVWR), or either the
maximum front or rear Gross
Axle Weight Rating (GAWR).
This can cause systems to
break and change the way the
vehicle handles. This could
cause loss of control and a
crash. Overloading can also
shorten the life of the vehicle. Tire and Loading Information
Label
Label Example
A vehicle specific Tire and
Loading Information label is
attached to the center pillar
(B-pillar). With the driver door
open, you will find the label
attached below the door lock
post (striker). The tire and
loading information label shows
the number of occupant seating positions (A), and the maximum
vehicle capacity weight (B) in
kilograms and pounds.
The Tire and Loading
Information label also shows
the size of the original
equipment tires (C) and the
recommended cold tire inflation
pressures (D). For more
information on tires and inflation
see Tires on page 10 ‑ 46 and
Tire Pressure on page 10 ‑ 52 .
There is also important loading
information on the vehicle
Certification/Tire label. It tells
you the Gross Vehicle Weight
Rating (GVWR) and the Gross
Axle Weight Rating (GAWR) for
the front and rear axles. See
“ Certification/Tire Label ” later in
this section.

Black plate (26,1)Cadillac Escalade/Escalade ESV Owner Manual - 2011
9-26 Driving and Operating Steps for Determining Correct
Load Limit
1.
Locate the statement
“ The combined weight of
occupants and cargo should
never exceed XXX kg or
XXX lbs ” on your vehicle's
placard.2.
Determine the combined
weight of the driver and
passengers that will be
riding in your vehicle.3.
Subtract the combined
weight of the driver and
passengers from XXX kg or
XXX lbs.4.
The resulting figure equals
the available amount of cargo
and luggage load capacity.
For example, if the “ XXX ”
amount equals 1400 lbs and
there will be five 150 lb
passengers in your vehicle, the amount of available cargo
and luggage load capacity
is 650 lbs (1400 − 750
(5 x 150) = 650 lbs). 5.
Determine the combined
weight of luggage and cargo
being loaded on the vehicle.
That weight may not safely
exceed the available cargo
and luggage load capacity
calculated in Step 4. 6.
If your vehicle will be towing
a trailer, the load from your
trailer will be transferred to
your vehicle. Consult this
manual to determine how this
reduces the available cargo
and luggage load capacity of
your vehicle. See Trailer
Towing on page 9 ‑ 74 for
important information on
towing a trailer, towing safety
rules and trailering tips. Example 1
A. Maximum Vehicle Capacity
Weight for Example 1 = 453 kg
(1,000 lbs)
B. Subtract Occupant Weight @
68 kg (150 lbs) × 2 = 136 kg
(300 lbs)
C. Available Occupant and Cargo
Weight = 317 kg (700 lbs)

Black plate (27,1)Cadillac Escalade/Escalade ESV Owner Manual - 2011
Driving and Operating 9-27
Example 2
A. Vehicle Capacity Weight for
Example 2 = 453 kg (1,000 lbs)
B. Subtract Occupant Weight @
68 kg (150 lbs) × 5 = 136 kg
(750 lbs)
C. Available Cargo
Weight = 113 kg (250 lbs) Example 3
A. Maximum Vehicle Capacity
Weight for Example 3 = 453 kg
(1,000 lbs)
B. Subtract Occupant Weight @
91 kg (200 lbs) × 5 = 453 kg
(1,000 lbs)
C. Available Cargo
Weight = 0 kg (0 lbs) Refer to your vehicle's tire and
loading information label for
specific information about your
vehicle's capacity weight and
seating positions. The combined
weight of the driver, passengers,
and cargo should never exceed
your vehicle's capacity weight.

Black plate (28,1)Cadillac Escalade/Escalade ESV Owner Manual - 2011
9-28 Driving and Operating Certification/Tire Label
A vehicle specific Certification/
Tire label is attached to the
rear edge of the driver door.
The label shows the size of
your vehicle's original tires
and the inflation pressures
needed to obtain the gross
weight capacity of your vehicle.
This is called Gross Vehicle
Weight Rating (GVWR). The
GVWR includes the weight of
the vehicle, all occupants, fuel,
and cargo. The Certification/Tire label also
tells you the maximum weights
for the front and rear axles,
called Gross Axle Weight
Rating (GAWR). To find out the
actual loads on your front and
rear axles, you need to go to a
weigh station and weigh your
vehicle. Your dealer can help
you with this. Be sure to spread
out your load equally on both
sides of the center line.
Never exceed the GVWR for
your vehicle, or the GAWR for
either the front or rear axle.
And, if you do have a heavy
load, you should spread it out.
{ WARNING
Do not load the vehicle any
heavier than the Gross
Vehicle Weight Rating
(GVWR), or either the
(Continued) WARNING (Continued)
maximum front or rear Gross
Axle Weight Rating (GAWR).
This can cause systems to
break and change the way the
vehicle handles. This could
cause loss of control and a
crash. Overloading can also
shorten the life of the vehicle.
Your warranty does not cover
parts or components that fail
because of overloading.
The label will help you decide
how much cargo and installed
equipment your truck can carry.
Using heavier suspension
components to get added
durability might not change
your weight ratings. Ask your
dealer to help you load your
vehicle the right way.

Black plate (29,1)Cadillac Escalade/Escalade ESV Owner Manual - 2011

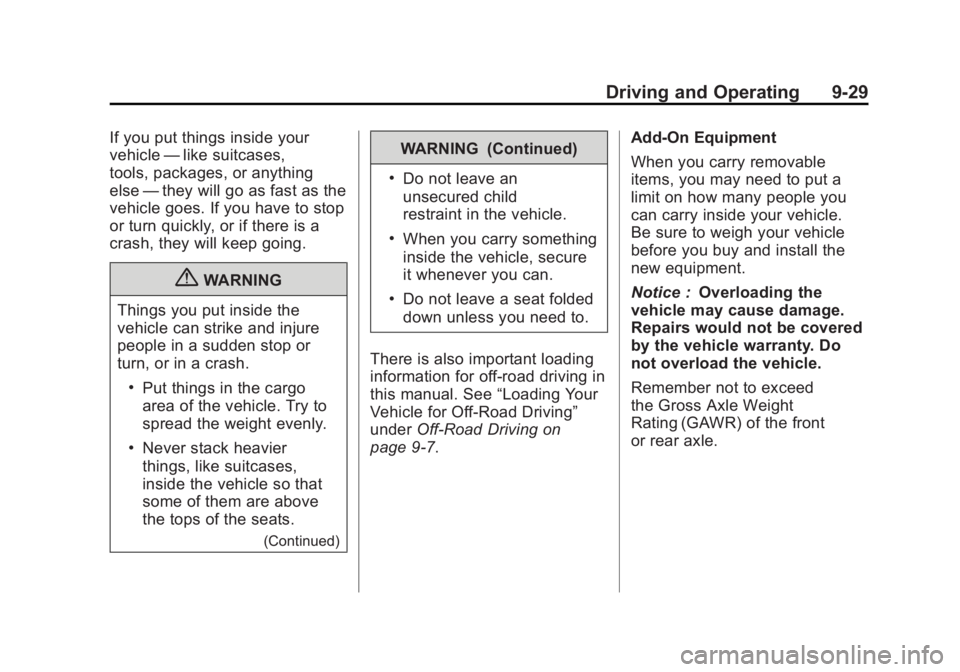

Driving and Operating 9-29If you put things inside your
vehicle — like suitcases,
tools, packages, or anything
else — they will go as fast as the
vehicle goes. If you have to stop
or turn quickly, or if there is a
crash, they will keep going.
{ WARNING
Things you put inside the
vehicle can strike and injure
people in a sudden stop or
turn, or in a crash. .
Put things in the cargo
area of the vehicle. Try to
spread the weight evenly. .
Never stack heavier
things, like suitcases,
inside the vehicle so that
some of them are above
the tops of the seats.
(Continued) WARNING (Continued) .
Do not leave an
unsecured child
restraint in the vehicle. .
When you carry something
inside the vehicle, secure
it whenever you can. .
Do not leave a seat folded
down unless you need to.
There is also important loading
information for off-road driving in
this manual. See “ Loading Your
Vehicle for Off-Road Driving ”
under Off-Road Driving on
page 9 ‑ 7 . Add-On Equipment
When you carry removable
items, you may need to put a
limit on how many people you
can carry inside your vehicle.
Be sure to weigh your vehicle
before you buy and install the
new equipment.
Notice : Overloading the
vehicle may cause damage.
Repairs would not be covered
by the vehicle warranty. Do
not overload the vehicle.
Remember not to exceed
the Gross Axle Weight
Rating (GAWR) of the front
or rear axle.

Black plate (30,1)Cadillac Escalade/Escalade ESV Owner Manual - 2011
9-30 Driving and Operating Automatic Level Control
The automatic level control rear
suspension comes as a part of
the Road Sensing Suspension.
See Road Sensing Suspension
on page 9 ‑ 50 .
This type of level control is fully
automatic and will provide a
better leveled riding position as
well as better handling under a
variety of passenger and loading
conditions. An air compressor
connected to the rear shocks
will raise or lower the rear of
the vehicle to maintain proper
vehicle height. The system
is activated when the ignition
key is turned to RUN and will automatically adjust vehicle
height thereafter. The system
may exhaust (lower vehicle
height) for up to 10 minutes
after the ignition key has been
turned to LOCK. You may hear
the air compressor operating
when the height is being
adjusted.
If a weight-distributing hitch is
being used, it is recommended
to allow the shocks to inflate,
thereby leveling the vehicle
prior to adjusting the height.
See “ Weight distributing Hitches
and Weight Carrying Hitches ”
under Towing Equipment on
page 9 ‑ 78 .Starting and
Operating New Vehicle Break-In Notice: The vehicle does not
need an elaborate break-in. But it
will perform better in the long run
if you follow these guidelines: .
Keep the vehicle speed at
88 km/h (55 mph) or less for
the first 805 km (500 miles). .
Do not drive at any one
constant speed, fast or
slow, for the first 805 km
(500 miles). Do not make
full-throttle starts. Avoid
downshifting to brake or
slow the vehicle.
