Black plate (1,1)Cadillac Escalade/Escalade ESV Owner Manual - 2011
In Brief 1-1
In Brief Instrument Panel Instrument Panel . . . . . . . . . . . . . . 1-2
Initial Drive Information Initial Drive Information . . . . . . . . 1-4
Remote Keyless Entry (RKE)
System . . . . . . . . . . . . . . . . . . . . . . 1-4
Remote Vehicle Start . . . . . . . . . 1-5
Door Locks . . . . . . . . . . . . . . . . . . . 1-5
Liftgate . . . . . . . . . . . . . . . . . . . . . . . . 1-6
Windows . . . . . . . . . . . . . . . . . . . . . . 1-6
Seat Adjustment . . . . . . . . . . . . . . 1-7
Memory Features . . . . . . . . . . . . . 1-8
Second Row Seats . . . . . . . . . . . 1-9
Third Row Seats . . . . . . . . . . . . . . 1-9
Heated and Ventilated
Seats . . . . . . . . . . . . . . . . . . . . . . . . 1-9 Head Restraint
Adjustment . . . . . . . . . . . . . . . . . 1-10
Safety Belts . . . . . . . . . . . . . . . . . . 1-10
Sensing System for
Passenger Airbag . . . . . . . . . . 1-10
Mirror Adjustment . . . . . . . . . . . . 1-11
Steering Wheel
Adjustment . . . . . . . . . . . . . . . . . 1-12
Throttle and Brake Pedal
Adjustment . . . . . . . . . . . . . . . . . 1-12
Interior Lighting . . . . . . . . . . . . . . 1-12
Exterior Lighting . . . . . . . . . . . . . 1-13
Windshield Wiper/Washer . . . . 1-14
Climate Controls . . . . . . . . . . . . . 1-15
Transmission . . . . . . . . . . . . . . . . 1-15
Vehicle Features Radio(s) . . . . . . . . . . . . . . . . . . . . . 1-16
Satellite Radio . . . . . . . . . . . . . . . 1-16
Portable Audio Devices . . . . . . 1-16
Bluetooth ®
. . . . . . . . . . . . . . . . . . . 1-17
Steering Wheel Controls . . . . . 1-17 Cruise Control . . . . . . . . . . . . . . . 1-18
Navigation System . . . . . . . . . . . 1-18
Driver Information
Center (DIC) . . . . . . . . . . . . . . . 1-19
Side Blind Zone
Alert (SBZA) . . . . . . . . . . . . . . . 1-20
Rear Vision
Camera (RVC) . . . . . . . . . . . . . 1-20
Ultrasonic Parking Assist . . . . 1-20
Power Outlets . . . . . . . . . . . . . . . 1-21
Universal Remote System . . . 1-21
Performance and Maintenance StabiliTrak ®
System . . . . . . . . . 1-21
Tire Pressure Monitor . . . . . . . . 1-22
Engine Oil Life System . . . . . . 1-22
Fuel E85 (85% Ethanol) . . . . . 1-23
Driving for Better Fuel
Economy . . . . . . . . . . . . . . . . . . . 1-23
Roadside Service . . . . . . . . . . . . 1-23
OnStar ®
. . . . . . . . . . . . . . . . . . . . . 1-24

Black plate (4,1)Cadillac Escalade/Escalade ESV Owner Manual - 2011
1-4 In Brief
Initial Drive
Information This section provides a brief
overview about some of the
important features that may or may
not be on your specific vehicle.
For more detailed information, refer
to each of the features which can be
found later in this owner manual.
Remote Keyless Entry
(RKE) System The RKE transmitter is used to
remotely lock and unlock the doors
from up to 60 m (195 ft) away from
the vehicle. Press
K to unlock the driver door.
Press
K again within 3 seconds to
unlock all remaining doors.
Press
Q to lock all doors.
Lock and unlock feedback can be
personalized. See Vehicle
Personalization on page 5 ‑ 40 . Press and hold
& to open or
close the liftgate.
Press and hold
m to open the
liftglass.
Press
L and release to locate the
vehicle.
Press
L and hold for
three seconds to sound the panic
alarm.
Press
L again to cancel the panic
alarm.
See Keys on page 2 ‑ 2 and Remote
Keyless Entry (RKE) System
Operation on page 2 ‑ 3 .

Black plate (5,1)Cadillac Escalade/Escalade ESV Owner Manual - 2011
In Brief 1-5
Remote Vehicle Start With this feature the engine can be
started from outside of the vehicle.
Starting the Vehicle 1. Aim the RKE transmitter at the
vehicle.
2. Press
Q .
3. Immediately after completing
Step 2, press and hold
/ until
the turn signal lamps flash.
When the vehicle starts, the parking
lamps will turn on and remain on as
long as the engine is running. The
doors will be locked and the climate
control system may come on. The engine will continue to run for
10 minutes. Repeat the steps for a
10-minute time extension. Remote
start can be extended only once.
Canceling a Remote Start To cancel a remote start: .
Aim the RKE transmitter at the
vehicle and press and hold
/until the parking lamps turn off. .
Turn on the hazard warning
flashers. .
Turn the ignition on and then
back off.
See Remote Vehicle Start on
page 2 ‑ 5 . Door Locks There are several ways to lock and
unlock the vehicle.
From outside, use the Remote
Keyless Entry (RKE) transmitter or
the key in the driver door. From
inside, use the power door locks or
the manual door locks. To lock or
unlock the door with the manual
locks, push down or pull up on the
manual lock knob.
Power Door Locks If available, these switches are on
the front doors.
K : Press to unlock the doors.
Q : Press to lock the doors.
See Door Locks on page 2 ‑ 7 .

Black plate (6,1)Cadillac Escalade/Escalade ESV Owner Manual - 2011
1-6 In Brief

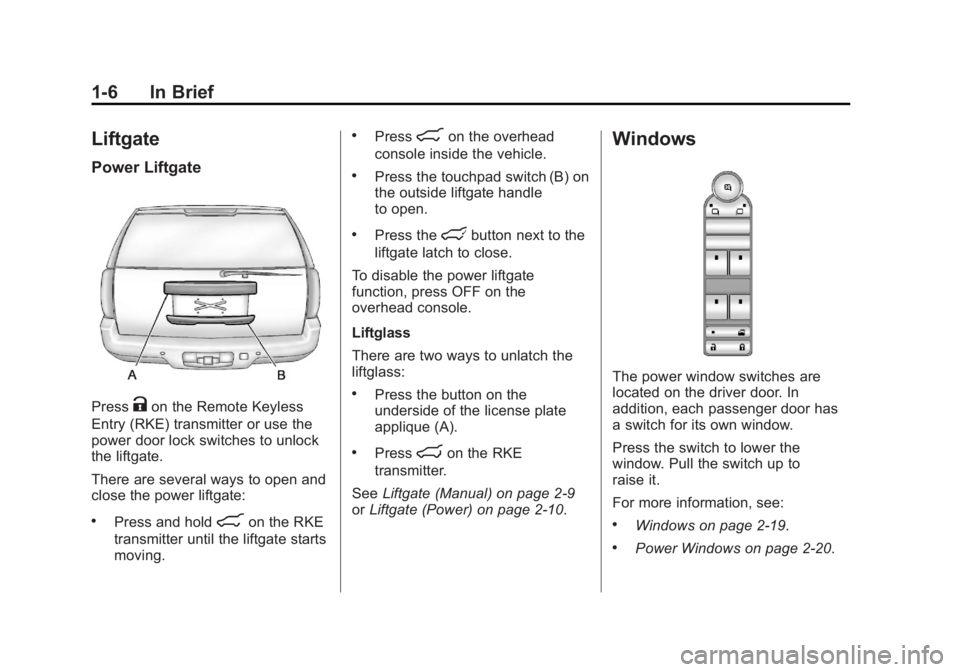

Liftgate Power Liftgate
Press
K on the Remote Keyless
Entry (RKE) transmitter or use the
power door lock switches to unlock
the liftgate.
There are several ways to open and
close the power liftgate: .
Press and hold
& on the RKE
transmitter until the liftgate starts
moving. .
Press
& on the overhead
console inside the vehicle. .
Press the touchpad switch (B) on
the outside liftgate handle
to open. .
Press the
l button next to the
liftgate latch to close.
To disable the power liftgate
function, press OFF on the
overhead console.
Liftglass
There are two ways to unlatch the
liftglass: .
Press the button on the
underside of the license plate
applique (A). .
Press
m on the RKE
transmitter.
See Liftgate (Manual) on page 2 ‑ 9
or Liftgate (Power) on page 2 ‑ 10 .Windows
The power window switches are
located on the driver door. In
addition, each passenger door has
a switch for its own window.
Press the switch to lower the
window. Pull the switch up to
raise it.
For more information, see: .
Windows on page 2 ‑ 19 . .
Power Windows on page 2 ‑ 20 .

Black plate (1,1)Cadillac Escalade/Escalade ESV Owner Manual - 2011
Keys, Doors and Windows 2-1
Keys, Doors and
Windows Keys and Locks Keys . . . . . . . . . . . . . . . . . . . . . . . . . . 2-2
Remote Keyless Entry (RKE)
System . . . . . . . . . . . . . . . . . . . . . . 2-2
Remote Keyless Entry (RKE)
System Operation . . . . . . . . . . . 2-3
Remote Vehicle Start . . . . . . . . . 2-5
Door Locks . . . . . . . . . . . . . . . . . . . 2-7
Power Door Locks . . . . . . . . . . . . 2-7
Delayed Locking . . . . . . . . . . . . . . 2-8
Automatic Door Locks . . . . . . . . . 2-8
Lockout Protection . . . . . . . . . . . . 2-8
Safety Locks . . . . . . . . . . . . . . . . . . 2-8 Doors Liftgate (Manual) . . . . . . . . . . . . . . 2-9
Liftgate (Power) . . . . . . . . . . . . . . 2-10
Power Assist Steps . . . . . . . . . . 2-13
Vehicle Security Vehicle Security . . . . . . . . . . . . . . 2-13
Anti-Theft Alarm System . . . . . 2-13
Immobilizer . . . . . . . . . . . . . . . . . . 2-14
Immobilizer Operation . . . . . . . 2-15
Exterior Mirrors Convex Mirrors . . . . . . . . . . . . . . 2-16
Power Mirrors . . . . . . . . . . . . . . . . 2-16
Heated Mirrors . . . . . . . . . . . . . . . 2-17
Automatic Dimming Mirror . . . 2-18
Park Tilt Mirrors . . . . . . . . . . . . . . 2-18 Interior Mirrors Automatic Dimming Rearview
Mirror . . . . . . . . . . . . . . . . . . . . . . . 2-18
Windows Windows . . . . . . . . . . . . . . . . . . . . . 2-19
Power Windows . . . . . . . . . . . . . 2-20
Sun Visors . . . . . . . . . . . . . . . . . . . 2-22
Roof Sunroof . . . . . . . . . . . . . . . . . . . . . . 2-22

Black plate (2,1)Cadillac Escalade/Escalade ESV Owner Manual - 2011
2-2 Keys, Doors and Windows
Keys and Locks Keys
{ WARNINGLeaving children in a vehicle with
the ignition key is dangerous for
many reasons. Children or others
could be badly injured or even
killed. They could operate the
power windows or other controls
or even make the vehicle move.
The windows will function with the
keys in the ignition and children
could be seriously injured or killed
if caught in the path of a closing
window. Do not leave the keys in
a vehicle with children. The key can be used for the ignition
and door locks.
See your dealer if a replacement
key or additional key is needed.
Notice: If the keys get locked in
the vehicle, it may have to be
damaged to get them out. Always
carry a spare key.
If you are locked out of your vehicle,
contact Roadside Service. See
Roadside Service (U.S. and
Canada) on page 13 ‑ 7 or Roadside
Service (Mexico) on page 13 ‑ 10 for
more information. Remote Keyless Entry
(RKE) System See Radio Frequency Statement on
page 13 ‑ 19 for information
regarding Part 15 of the Federal
Communications Commission (FCC)
rules and Industry Canada
Standards RSS-210/220/310.
If there is a decrease in the RKE
operating range: .
Check the distance. The
transmitter may be too far from
the vehicle. .
Check the location. Other
vehicles or objects may be
blocking the signal. .
Check the transmitter's battery.
See “ Battery Replacement ” later
in this section. .
If the transmitter is still not
working correctly, see your
dealer or a qualified technician
for service.

Black plate (3,1)Cadillac Escalade/Escalade ESV Owner Manual - 2011
Keys, Doors and Windows 2-3
Remote Keyless Entry
(RKE) System Operation The Remote Keyless Entry (RKE)
transmitter functions work up to
60 m (195 ft) away from the vehicle.
There are other conditions which
can affect the performance of the
transmitter. See Remote Keyless
Entry (RKE) System on page 2 ‑ 2 .
With Remote Start and Power
Liftgate and Liftglass (Without
Remote Start Similar)
The following functions may be
available if this vehicle has the
RKE system:
Q (Lock): Press to lock all the
doors. If enabled through the Driver
Information Center (DIC), the turn
signal lamps flash once to indicate
locking has occurred. If enabled
through the DIC, the horn chirps
when
Q is pressed again within
three seconds. See Vehicle
Personalization on page 5 ‑ 40 for
additional information.
Pressing
Q arms the content
theft ‐ deterrent system. See
Anti-Theft Alarm System on
page 2 ‑ 13 .
K (Unlock): Press once to unlock
only the driver door. If
K is pressed
again within three seconds, all
remaining doors unlock. The interior
lamps may come on and stay on for
20 seconds or until the ignition is
turned on.

Black plate (5,1)Cadillac Escalade/Escalade ESV Owner Manual - 2011
Keys, Doors and Windows 2-5Notice: When replacing the
battery, do not touch any of the
circuitry on the transmitter. Static
from your body could damage the
transmitter.
To replace the battery:
1. Separate the transmitter with
a flat, thin object inserted into
the notch, located above the
metal base.
2. Remove the old battery. Do not
use a metal object. 3. Insert the new battery, positive
side facing up. Replace with a
CR2032 or equivalent battery.
4. Snap the transmitter back
together.
Remote Vehicle Start This feature allows you to start the
engine from outside of the vehicle.
It may also start up the vehicle's
heating or air conditioning systems
and rear window defogger. Normal
operation of the system will return
after the key is turned to the ON/
RUN position.
During a remote start, the climate
control system will default to a
heating or cooling mode depending
on the outside temperatures.
During a remote start, if the vehicle
has an automatic climate control
system and heated seats, the
heated seats will turn on during
colder outside temperatures and will
shut off when the key is turned to
ON/RUN. If the vehicle does not
have an automatic climate control system, during remote start, you will
need to manually turn the heated
seats on and off. See Heated and
Ventilated Front Seats on page 3 ‑ 8
for additional information.
Laws in some communities may
restrict the use of remote starters.
For example, some laws may
require a person using the remote
start to have the vehicle in view
when doing so. Check local
regulations for any requirements
on remote starting of vehicles.
Do not use the remote start feature
if the vehicle is low on fuel. The
vehicle may run out of fuel.
If the vehicle has the remote
start feature, the RKE transmitter
functions will have an increased
range of operation. However, the
range may be less while the vehicle
is running.
There are other conditions which
can affect the performance of the
transmitter, see Remote Keyless
Entry (RKE) System on page 2 ‑ 2 for
additional information.

Black plate (7,1)Cadillac Escalade/Escalade ESV Owner Manual - 2011
Keys, Doors and Windows 2-7Also, the engine will turn off during a
remote vehicle start if the coolant
temperature gets too high or if the
oil pressure gets low.
Door Locks
{ WARNINGUnlocked doors can be
dangerous. .
Passengers, especially
children, can easily open
the doors and fall out of a
moving vehicle. When a door
is locked, the handle will not
open it. The chance of being
thrown out of the vehicle
in a crash is increased if the
doors are not locked. So, all
passengers should wear
safety belts properly and
the doors should be locked
whenever the vehicle is
driven.
(Continued) WARNING (Continued) .
Young children who get into
unlocked vehicles may be
unable to get out. A child can
be overcome by extreme heat
and can suffer permanent
injuries or even death from
heat stroke. Always lock the
vehicle whenever leaving it. .
Outsiders can easily enter
through an unlocked door
when you slow down or stop
the vehicle. Locking the doors
can help prevent this from
happening.
There are several ways to lock and
unlock the vehicle.
From outside, use the Remote
Keyless Entry (RKE) transmitter or
the key in the driver door. From inside, use the power door
locks or manual door locks. To lock
or unlock the door with the manual
locks, push down or pull up on the
manual lock knob.
Power Door Locks With power door locks, the switches
on the front doors can be used to
lock and unlock the vehicle.
K (Unlock): Press to unlock the
doors.
Q (Lock): Press to lock the doors.

Black plate (9,1)Cadillac Escalade/Escalade ESV Owner Manual - 2011
Keys, Doors and Windows 2-9
Doors Liftgate (Manual)
{ WARNINGIt can be dangerous to drive with
the liftglass or liftgate open
because carbon monoxide (CO)
gas can come into your vehicle.
You cannot see or smell CO.
It can cause unconsciousness
and even death.
If you must drive with the liftglass
or liftgate open, or if electrical
wiring or other cable connections
must pass through the seal
between the body and the
liftglass or liftgate: .
Make sure all other windows
are shut. .
Turn the fan on your heating
or cooling system to its
highest speed with the
(Continued) WARNING (Continued) recirculation mode off. That
will force outside air into your
vehicle. See Dual Automatic
Climate Control System on
page 8 ‑ 1 . .
If you have air outlets on or
under the instrument panel,
open them all the way. .
If your vehicle is equipped
with a power liftgate, disable
the power liftgate function.
See Engine Exhaust on
page 9 ‑ 38 .
To unlock the liftgate, use the power
door lock switch or press
K on the
Remote Keyless Entry (RKE)
transmitter twice. See Remote
Keyless Entry (RKE) System
Operation on page 2 ‑ 3 . On vehicles with a liftglass, press
the button on the underside of the
license pocket applique (A) to open
it. The liftglass can also be opened
by pressing
m on the RKE.
To open the entire liftgate, press
& on the RKE or in the vehicle.
See “ Power Liftgate Operation ” in
this section. You can also press the
touchpad on the underside of the
liftgate handle (B). The liftgate
will open after a slight delay. The
vehicle must be in P (Park) to open
the liftgate. To close the liftgate, use
the pull cup or pull strap as an aid.
