immobilizer CADILLAC ESCALADE ESV 2015 4.G Owners Manual

Black plate (1,1)Cadillac 2015i Escalade Owner Manual (GMNA-Localizing-U.S./Canada/
Mexico-8431501) - 2015 - CRC - 2/10/15
Keys, Doors, and Windows 2-1
Keys, Doors, and
Windows
Keys and Locks
Keys . . . . . . . . . . . . . . . . . . . . . . . . . . 2-1
Remote Keyless Entry (RKE)System . . . . . . . . . . . . . . . . . . . . . . 2-2
Remote Keyless Entry (RKE) System Operation . . . . . . . . . . . 2-3
Remote Vehicle Start . . . . . . . . 2-10
Door Locks . . . . . . . . . . . . . . . . . . 2-11
Power Door Locks . . . . . . . . . . . 2-12
Delayed Locking . . . . . . . . . . . . . 2-13
Automatic Door Locks . . . . . . . 2-13
Lockout Protection . . . . . . . . . . . 2-13
Safety Locks . . . . . . . . . . . . . . . . . 2-14
Doors
Liftgate . . . . . . . . . . . . . . . . . . . . . . 2-14
Power Assist Steps . . . . . . . . . . 2-19
Vehicle Security
Vehicle Security . . . . . . . . . . . . . . 2-19
Vehicle Alarm System . . . . . . . 2-19
Immobilizer . . . . . . . . . . . . . . . . . . 2-22
Immobilizer Operation . . . . . . . 2-22
Exterior Mirrors
Convex Mirrors . . . . . . . . . . . . . . 2-23
Power Mirrors . . . . . . . . . . . . . . . . 2-23
Folding Mirrors . . . . . . . . . . . . . . . 2-24
Heated Mirrors . . . . . . . . . . . . . . . 2-24
Reverse Tilt Mirrors . . . . . . . . . . 2-24
Interior Mirrors
Interior Rearview Mirrors . . . . . 2-25
Automatic Dimming Rearview Mirror . . . . . . . . . . . . . . . . . . . . . . . 2-25
Child-View Mirror . . . . . . . . . . . . 2-25
Windows
Windows . . . . . . . . . . . . . . . . . . . . . 2-25
Power Windows . . . . . . . . . . . . . 2-26
Sun Visors . . . . . . . . . . . . . . . . . . . 2-28
Roof
Sunroof . . . . . . . . . . . . . . . . . . . . . . 2-28
Keys and Locks
Keys
{Warning
Leaving children in a vehicle with
a Remote Keyless Entry (RKE)
transmitter is dangerous and
children or others could be
seriously injured or killed. They
could operate the power windows
or other controls or make the
vehicle move. The windows will
function with the RKE transmitter
in the vehicle, and children or
others could be caught in the path
of a closing window. Do not leave
children in a vehicle with an RKE
transmitter.

Black plate (22,1)Cadillac 2015i Escalade Owner Manual (GMNA-Localizing-U.S./Canada/
Mexico-8431501) - 2015 - CRC - 2/10/15
2-22 Keys, Doors, and Windows
Immobilizer
SeeRadio Frequency Statement on
page 13-12.
Immobilizer Operation
This vehicle has a passive
theft-deterrent system.
The system does not have to be
manually armed or disarmed.
The vehicle is automatically
immobilized when the transmitter
leaves the vehicle.
The immobilization system is
disarmed when the ignition button is
pressed in and a valid transmitter is
found in the vehicle.
The security light in the instrument
cluster comes on if there is a
problem with arming or disarming
the theft-deterrent system.
The system has one or more
transmitters matched to an
immobilizer control unit in the
vehicle. Only a correctly matched
transmitter will start the vehicle.
If the transmitter is ever damaged,
you may not be able to start the
vehicle.
If the engine does not start and the
security light stays on, there is a
problem with the system. Turn the
vehicle off and try again.
If the RKE transmitter appears to be
undamaged, try another transmitter
or place the transmitter in the
transmitter pocket/insert next to the
center console storage area
between the driver and front
passenger seats. See “Starting the
Vehicle with a Low Transmitter
Battery” underRemote Keyless
Entry (RKE) System Operation on
page 2-3. If the engine does not start with the
other transmitter or when the
transmitter is in the pocket/insert,
the vehicle needs service. See your
dealer who can service the
theft-deterrent system and have a
new transmitter programmed to the
vehicle.
Do not leave the transmitter or
device that disarms or deactivates
the theft-deterrent system in the
vehicle.

Black plate (26,1)Cadillac 2015i Escalade Owner Manual (GMNA-Localizing-U.S./Canada/
Mexico-8431501) - 2015 - CRC - 2/10/15
5-26 Instruments and Controls

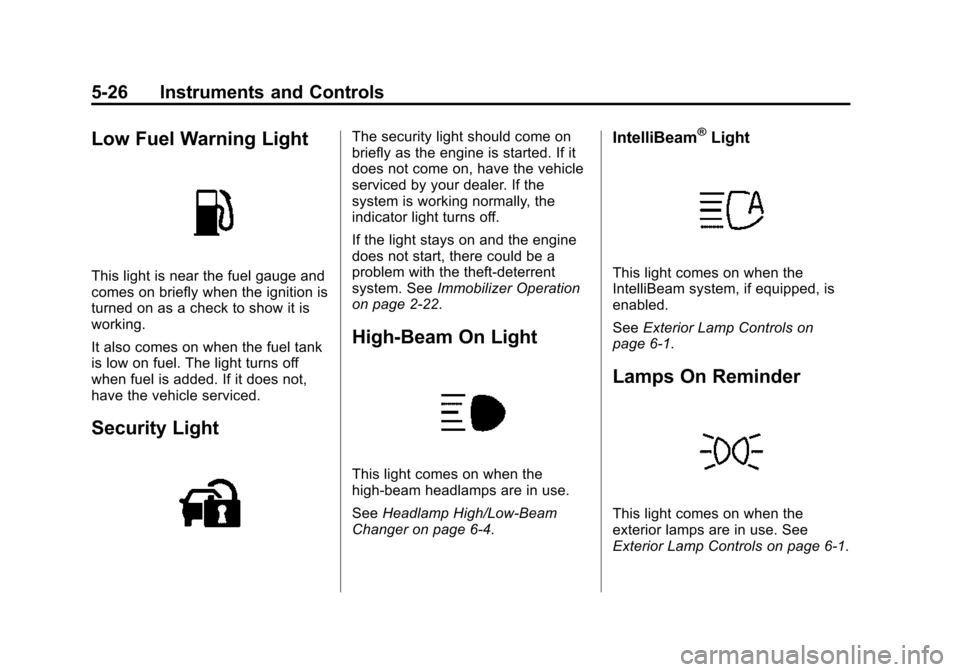

Low Fuel Warning Light
This light is near the fuel gauge and
comes on briefly when the ignition is
turned on as a check to show it is
working.
It also comes on when the fuel tank
is low on fuel. The light turns off
when fuel is added. If it does not,
have the vehicle serviced.
Security Light
The security light should come on
briefly as the engine is started. If it
does not come on, have the vehicle
serviced by your dealer. If the
system is working normally, the
indicator light turns off.
If the light stays on and the engine
does not start, there could be a
problem with the theft-deterrent
system. SeeImmobilizer Operation
on page 2-22.
High-Beam On Light
This light comes on when the
high-beam headlamps are in use.
See Headlamp High/Low-Beam
Changer on page 6-4.
IntelliBeam®Light
This light comes on when the
IntelliBeam system, if equipped, is
enabled.
See Exterior Lamp Controls on
page 6-1.
Lamps On Reminder
This light comes on when the
exterior lamps are in use. See
Exterior Lamp Controls on page 6-1.

Black plate (6,1)Cadillac 2015i Escalade Owner Manual (GMNA-Localizing-U.S./Canada/
Mexico-8431501) - 2015 - CRC - 2/10/15
i-6 INDEX
Heated Mirrors . . . . . . . . . . . . . . . . . 2-24
HeaterEngine . . . . . . . . . . . . . . . . . . . . . . . . 9-23
High-Beam On Light . . . . . . . . . . . 5-26
High-Speed Operation . . . . . . . . 10-47
Hill and Mountain Roads . . . . . . . 9-11
Hill Start Assist (HSA) . . . . . . . . . 9-41
Hood . . . . . . . . . . . . . . . . . . . . . . . . . . 10-4
Horn . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-3
How to Wear Safety Belts Properly . . . . . . . . . . . . . . . . . . . . . . 3-19
I
Ignition Positions . . . . . . . . . . . . . . 9-20
Immobilizer . . . . . . . . . . . . . . . . . . . . 2-22
Indicator
Vehicle Ahead . . . . . . . . . . . . . . . . 5-23
Infants and Young Children,
Restraints . . . . . . . . . . . . . . . . . . . . 3-43
Infotainment . . . . . . . . . . . . . . . . . . . . 7-1
Infotainment System . . . . . . . . . . 13-15
Instrument Cluster . . . . . . . . . . . . . 5-11
Instrument Panel Storage Area . . . . . . . . . . . . . . . . . . 4-1
Interior Rearview Mirrors . . . . . . . 2-25
Introduction . . . . . . . . . . . . . . . . . . . . . . . iii
J
Jump Starting - North America . . . . . . . . . . . . . . . . . . . . . 10-71
K
Key and Lock Messages . . . . . . . 5-38
Keyless EntryRemote (RKE) System . . . . . . . . 2-3
Keys . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-1
L
Labeling, Tire Sidewall . . . . . . . . 10-40
Lamps
Cornering . . . . . . . . . . . . . . . . . . . . . . 6-7
Daytime Running (DRL) . . . . . . . 6-4
Dome . . . . . . . . . . . . . . . . . . . . . . . . . . 6-7
Exterior Controls . . . . . . . . . . . . . . . 6-1
Exterior Lamps OffReminder . . . . . . . . . . . . . . . . . . . . 6-3
License Plate . . . . . . . . . . . . . . . 10-26
Malfunction Indicator . . . . . . . . . 5-18 Lamps (cont'd)
Messages . . . . . . . . . . . . . . . . . . . . 5-39
On Reminder . . . . . . . . . . . . . . . . . 5-26
Reading . . . . . . . . . . . . . . . . . . . . . . . 6-8
Lane Change Alert . . . . . . . . . . . . 9-66
Lane Departure Warning (LDW) . . . . . . . . . . . . . . . 9-68
Lane Departure Warning Light . . . . . . . . . . . . . . . . . . . . . . . . . 5-23
Lap-Shoulder Belt . . . . . . . . . . . . . 3-20
LATCH System Replacing Parts after aCrash . . . . . . . . . . . . . . . . . . . . . . . 3-57
LATCH, Lower Anchors and
Tethers for Children . . . . . . . . . . 3-48
LED Lighting . . . . . . . . . . . . . . . . . . 10-26
Level Control Automatic . . . . . . . . . . . . . . . . . . . . . 9-44
Liftgate . . . . . . . . . . . . . . . . . . . . . . . . 2-14
Lighter, Cigarette . . . . . . . . . . . . . . . 5-9
Lighting Entry . . . . . . . . . . . . . . . . . . . . . . . . . . 6-8
Exit . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-9
Illumination Control . . . . . . . . . . . . 6-7
LED . . . . . . . . . . . . . . . . . . . . . . . . 10-26

Black plate (11,1)Cadillac 2015i Escalade Owner Manual (GMNA-Localizing-U.S./Canada/
Mexico-8431501) - 2015 - CRC - 2/10/15
INDEX i-11
Signals, Turn andLane-Change . . . . . . . . . . . . . . . . . 6-6
Special Application Services . . . 11-9
Specifications and Capacities . . . . . . . . . . . . . . . . . . . . 12-2
Speedometer . . . . . . . . . . . . . . . . . . 5-14
StabiliTrak OFF Light . . . . . . . . . . . . . . . . . . . . . 5-23
Start Assist, Hills . . . . . . . . . . . . . . 9-41
Start Vehicle, Remote . . . . . . . . . 2-10
Starter Switch Check . . . . . . . . . 10-23
Starting the Engine . . . . . . . . . . . . 9-22
Starting the Vehicle Messages . . . . . . . . . . . . . . . . . . . . 5-43
Steering . . . . . . . . . . . . . . . . . . . . . . . . 9-4 Heated Wheel . . . . . . . . . . . . . . . . . 5-2
Wheel Adjustment . . . . . . . . . . . . . 5-2
Wheel Controls . . . . . . . . . . . . . . . . 5-2
Steering System Messages . . . . 5-43
Steps Power Assist . . . . . . . . . . . . . . . . . 2-19
Storage Rear . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-3 Storage Areas
Armrest . . . . . . . . . . . . . . . . . . . . . . . . 4-3
Cargo Cover . . . . . . . . . . . . . . . . . . . 4-3
Center Console . . . . . . . . . . . . . . . . 4-3
Glove Box . . . . . . . . . . . . . . . . . . . . . 4-2
Instrument Panel . . . . . . . . . . . . . . 4-1
Roof Rack System . . . . . . . . . . . . . 4-4
Sunglasses . . . . . . . . . . . . . . . . . . . . 4-2
Storage Compartments . . . . . . . . . 4-1
Stuck Vehicle . . . . . . . . . . . . . . . . . . 9-13
Sun Visors . . . . . . . . . . . . . . . . . . . . . 2-28
Sunglass Storage . . . . . . . . . . . . . . . 4-2
Sunroof . . . . . . . . . . . . . . . . . . . . . . . . 2-28
Symbols . . . . . . . . . . . . . . . . . . . . . . . . . . iv
System Active Emergency Braking . . . . 9-64
Forward Collision
Alert (FCA) . . . . . . . . . . . . . . . . . . 9-62
Infotainment . . . . . . . . . . . . 7-1, 13-15
Roof Rack . . . . . . . . . . . . . . . . . . . . . 4-4
Systems
Driver Assistance . . . . . . . . . . . . . 9-56T
Tachometer . . . . . . . . . . . . . . . . . . . . 5-14
Text Telephone (TTY) Users . . . 13-4
Theft-Deterrent Systems . . . . . . . 2-22Immobilizer . . . . . . . . . . . . . . . . . . . 2-22
Third-Row Seats . . . . . . . . . . . . . . . 3-16
Throttle, Adjustable . . . . . . . . . . . . 9-19
Time . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-6
Tires . . . . . . . . . . . . . . . . . . . . . . . . . . 10-38 All-Season . . . . . . . . . . . . . . . . . . 10-39
All-Terrain . . . . . . . . . . . . . . . . . . 10-40
Buying New Tires . . . . . . . . . . . 10-54
Chains . . . . . . . . . . . . . . . . . . . . . . 10-59
Changing . . . . . . . . . . . . . . . . . . . 10-61
Designations . . . . . . . . . . . . . . . 10-42
Different Size . . . . . . . . . . . . . . . 10-56
Full-Size Spare . . . . . . . . . . . . . 10-70
If a Tire Goes Flat . . . . . . . . . . 10-59
Inflation Monitor System . . . . 10-48
Inspection . . . . . . . . . . . . . . . . . . 10-51
Low Profile . . . . . . . . . . . . . . . . . 10-40
Messages . . . . . . . . . . . . . . . . . . . . 5-43
Pressure . . . . . . . . . . . . . . . . . . . . 10-47
Pressure Light . . . . . . . . . . . . . . . . 5-25
Pressure Monitor System . . . 10-47
Rotation . . . . . . . . . . . . . . . . . . . . 10-52
