3. Take the short strap and surround the folded
webbing, forming a package.
4. Take the long strap and wrap it around the package
Finally, attach the hooks to the webbing.
Cargo Tie Downs
There are cargo tie downs in the rear cargo area that
you can use to strap cargo in. The tie downs are
also used to secure the cargo cover panel storage bag.
For more information see “Cargo Cover Panels”
earlier in this section.
2-67

All-Weather Cargo Area
Your vehicle has the ability to operate in many different
congurations—cargo panels on or off, midgate up
or down, rear glass in or out. To allow the vehicle to
operate in these congurations, it is equipped with
features to help it resist the elements and protect cargo
inside the cargo area. Parts of the water management
system, which is designed to quickly direct water out of
the cargo box, are the top drain grates, side rail
channels, catch cups, midgate drain, cargo area oor
drains and the rubber cargo mat.
Even when the water management system is working
properly and the cover system is on, there may be some
instances (heavy rains, automated car washes, etc.)
when water may be present in the following areas:
A. Top drain grates
B. Removable front drain grate
(midgate drain grate)
C. Side rail channels and
catch cups
D. Front drains
E. Water drainage area
(around both sides of the
cargo box and tailgate side)F. Rear drains
G. Cargo oor
H. Cargo mat
(central area of
mat is intended
to be dry)
2-68

Maintenance and Cleaning
To ensure that the water management system performs
properly, be sure that the midgate, tailgate and cover
system are fully closed and that each element of the
water management system is clean and not blocked
with debris. Follow the instructions given next in this
section for the proper procedures on cleaning each item
of the water management system.
Top Drain Grates – Removal and
Cleaning
The top drain grates are located near the rear glass on
both sides of the vehicle. You may need to clean the
grates and drains if there seems to be blockage.To remove each drain grate, do the following:
1. Remove the cargo panels. SeeCargo Cover Panels
on page 2-55for more information.
2. Grasp the edges of the grate and pull it out from
the vehicle. Flush the drain with clean water.
2-69

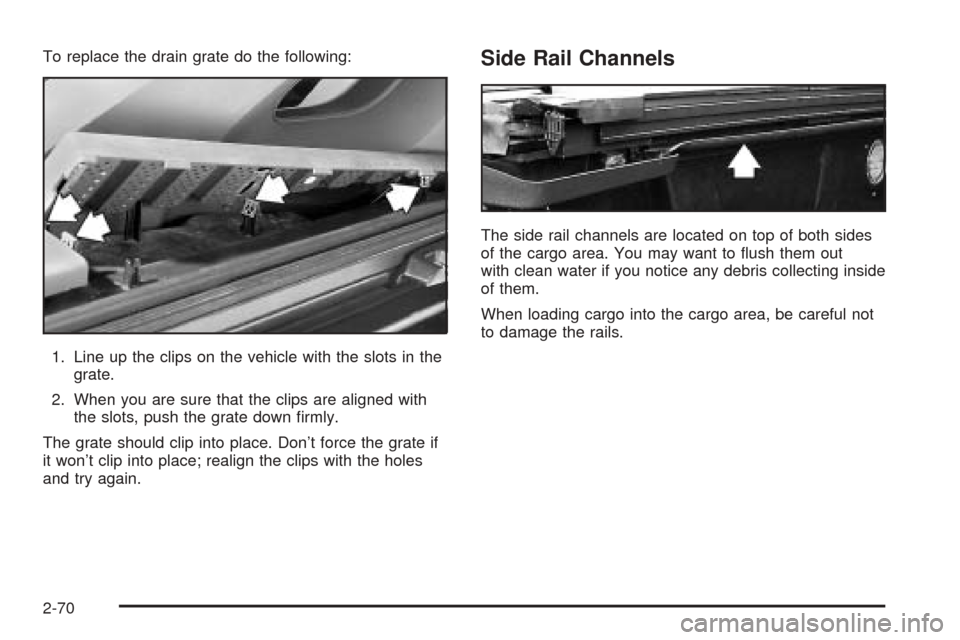

To replace the drain grate do the following:
1. Line up the clips on the vehicle with the slots in the
grate.
2. When you are sure that the clips are aligned with
the slots, push the grate down rmly.
The grate should clip into place. Don’t force the grate if
it won’t clip into place; realign the clips with the holes
and try again.Side Rail Channels
The side rail channels are located on top of both sides
of the cargo area. You may want to ush them out
with clean water if you notice any debris collecting inside
of them.
When loading cargo into the cargo area, be careful not
to damage the rails.
2-70

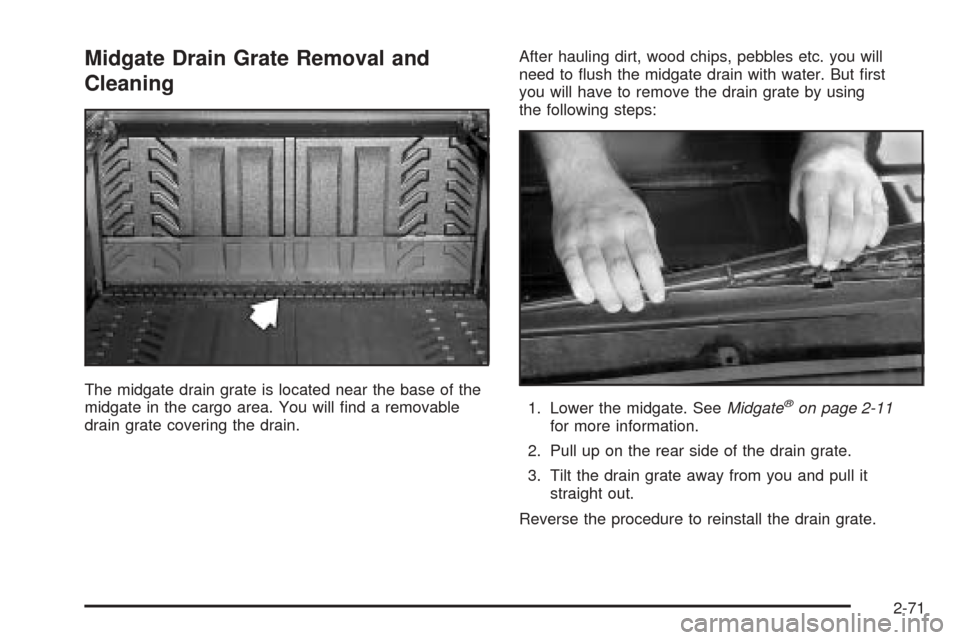

Midgate Drain Grate Removal and
Cleaning
The midgate drain grate is located near the base of the
midgate in the cargo area. You will nd a removable
drain grate covering the drain.After hauling dirt, wood chips, pebbles etc. you will
need to ush the midgate drain with water. But rst
you will have to remove the drain grate by using
the following steps:
1. Lower the midgate. SeeMidgate®on page 2-11
for more information.
2. Pull up on the rear side of the drain grate.
3. Tilt the drain grate away from you and pull it
straight out.
Reverse the procedure to reinstall the drain grate.
2-71

Cargo Area Floor Drains
Your vehicle also has four cargo-area oor drains
located under the cargo mat near the sides of the cargo
area. These drains should be cleaned periodically to
allow water to exit the cargo area.
The cargo mat has cutouts for the drains. You can ush
the drains through the cutouts, but if the cargo area
is extremely dirty you can lift up the edges of the cargo
oor mat or take the whole mat out and ush the drains
with water.
Top-Box Storage
Your vehicle is equipped with top-box storage units on
both side of the vehicle. The passenger side top box
contains the tools you will need to change a at tire.
Use the ignition/door key to unlock/lock it. Press the key
cylinder button and swing the lid open. Turn on the
cargo lamps, if equipped, if you need more light inside.
SeeExterior Cargo Lamps on page 3-17for more
information.
2-72

Sunroof
Your vehicle may be equipped with a power sliding
sunroof. To open or close your sunroof, the ignition
needs to be on or Retained Accessory Power (RAP)
needs to be active. SeeRetained Accessory Power
(RAP) on page 2-26.
Press and release the rear side of the button located in
the front overhead console to express-open the glass
panel and sunshade. To stop the express-open motion,
press the front or rear of the button again. To close
the glass panel, press and hold the front of the button.
The glass will not be fully seated unless the button
is held until the glass stops moving. With the sunroof
closed, press the forward side of the button to open the
sunroof to the vent position.The sunroof is also equipped with a sunshade which
you can pull forward to block sun rays.
If a hand, arm, or other object is blocking the sunroof
glass panel as it is closing, the glass panel will stop
at the obstruction. After the obstruction is removed, the
glass panel can be closed or opened.
Use care not to leave the sunroof open for long periods
of time as debris may collect in the tracks.
If the battery has been recharged, disconnected or is
not working, you may need to reprogram the sunroof.
To do this, start the vehicle and press the forward
side of the sunroof button until the glass panel moves to
a fully closed position. Release, and press again to
move to the vent position, which occurs when the
sunroof is fully tilted upward and the button is held for
an additional twenty seconds. This will reset the memory
and enable the sunroof to function properly.
2-73

Vehicle Personalization
In addition to the following features, your vehicle may
also have features that can be programmed through the
Driver Information Center (DIC). SeeDIC Vehicle
Customization on page 3-57for more information.
Memory Seat
If your vehicle has this
feature, the controls for
the memory function
are located on the
driver’s door.
These buttons are used to program and recall memory
settings for the driver’s seat, both the driver’s and
passenger’s outside mirrors, and the throttle and brake
pedals for vehicles with the adjustable throttle and
brake pedal feature. The settings for these features can
be saved for up to two drivers.To store the settings, do the following:
1. While the vehicle is in PARK (P), adjust the driver’s
seat, including the seatback recliner, lumbar, and
side wing area, both of the outside mirrors, and the
throttle and brake pedals to your preference.
2. Press and hold the 1 or 2 button of the memory
control for three seconds. A double chime will
sound to let you know that the position has been
stored.
To repeat the procedure for a second driver, follow the
preceding steps, but press the other numbered
memory control button.
Each time button 1 or 2 is pressed and released while
the vehicle is in PARK (P), a single chime will sound and
the memory position will be recalled.
To stop recall movement of the memory seat feature at
any time, press one of the memory buttons or power
seat controls.
2-74

Easy Exit Seat
The controls for this memory function are located on
the driver’s door.
B(Easy Exit Seat):This button is used to program
and recall the desired driver’s seat position when exiting
or entering the vehicle. The seat position can be
saved for up to two drivers.
To store the seat exit position, do the following:
1. Press and release the 1 or 2 button. The seat will
move to the stored memory position.
2. Adjust the seat to the desired exit position.
3. Press and hold the exit button of the memory
control for three seconds. A double chime will sound
to let you know that the position has been stored
for the selected button (1 or 2).To repeat the procedure for a second driver,
follow the preceding steps, but press the other
numbered memory control button.
To use the seat exit position, do one of the following:Press the exit button on the memory control.
If this feature is activated in the Driver Information
Center (DIC), removing the key from the ignition
will move the seat to the exit position.
See “Easy Exit Seat” underDIC Vehicle Customization
on page 3-57for more information on activating this
feature in the DIC.
2-75
