4. Remove cargo panel 2 in the same way and
set it aside.5. Remove cargo panel 1, but notice that there
are four latches to release (two left-side and
two right-side latches). Set the panel aside.
After you have removed each cargo panel you can store
it within the cargo storage area using the cargo panel
storage system.
2-57

Cargo Panel Storage System
The three cargo panels can be stored in the cargo area
using the storage strap system. To store the panels,
do the following:1. Secure the storage
strap system in the
cargo storage area by
attaching the six clips
included on the
cargo strap system to
the tie down locations
on either side of
the storage area.
Always use the storage strap system to store the
cargo panels during driving.
Before storing the cargo panels, be sure that the
latches are in the locked position. The latches are in
the locked position when they are parallel to the
front and back edge of the panel.
2-58

Use the following instructions for the proper storage
sequence and location for each panel:
A. Secure the rst secondary strap.
B. Secure the last secondary strap.
C. Put the rest of the strap system towards the
top of the lid and tray.2. Starting with cargo panel 1, load the cargo panel
with latches up and facing away from you.
2-59

3. Store cargo panel 2 by loading the cargo panel with
latches down and facing toward you.4. Store cargo panel 3 by loading the cargo panel with
latches up and facing away from you.
2-60

5. Move the rest of the strap system inside the
cargo box, covering the three cargo covers (A).
Fasten the four strap clips (B).6. Tighten all straps by pulling on the free end of
each strap.
2-61

7. Close both cross locks at the center of the strap
system to secure tightly.
Panels 3, 2, 1 Loaded
2-62

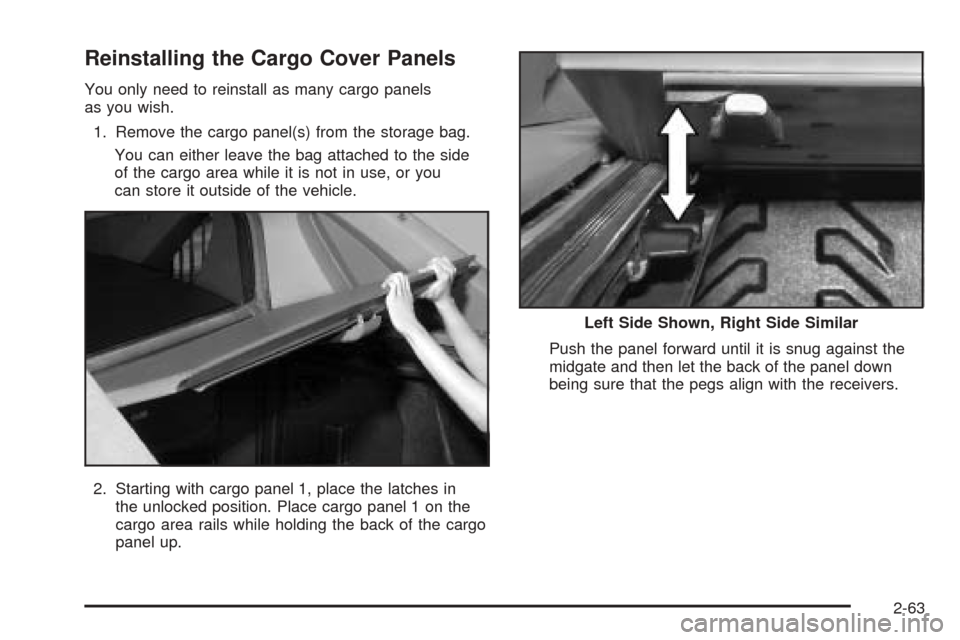

Reinstalling the Cargo Cover Panels
You only need to reinstall as many cargo panels
as you wish.
1. Remove the cargo panel(s) from the storage bag.
You can either leave the bag attached to the side
of the cargo area while it is not in use, or you
can store it outside of the vehicle.
2. Starting with cargo panel 1, place the latches in
the unlocked position. Place cargo panel 1 on the
cargo area rails while holding the back of the cargo
panel up.Push the panel forward until it is snug against the
midgate and then let the back of the panel down
being sure that the pegs align with the receivers.
Left Side Shown, Right Side Similar
2-63

3. Push both left latches away from you to lock the
latches (remember that there are two latches on
each side for panel 1). You should hear a click
when each latch locks correctly. Lock the remaining
two right latches on panel 1.
For any cargo cover panel you must lock the left
latch in place before you can lock the right latch.
If you do not follow this exactly, the cargo cover
panels may not lock in place correctly.4. Install cargo cover 2 next. Place the latches in the
unlocked position. Place the cargo cover panel on
the cargo area rails while holding the back of
the cargo panel up.
Push the panel forward until it is snug against the
other panel and then let the back of the panel down
being sure that the pegs align with the receivers.
Left Side Shown, Right Side Similar
2-64

5. Push the latches away from you, starting with the
left latch, to lock the panel in place. You should
hear a click when each latch locks correctly.6. Install cargo cover 3 next. Place the latches in the
unlocked position. Place the cargo cover panel on
the cargo area rails while holding the back of
the cargo panel up.
Push the panel forward until it is snug against the
other panel and then let the back of the panel down
being sure that the pegs align with the receivers.
Left Side Shown, Right Side Similar
2-65

7. Push the latches away from you, starting with the
left latch, to lock the panel in place. You should
hear a click when each latch locks correctly.
Folding and Storage of Straps
To store the folding straps do the following:
1. Extend the six strap ends on a at surface.
2. Fold the four strap ends towards the center as shown.
