CADILLAC ESCALADE EXT 2007 3.G Owners Manual

Doors and Locks
Door Locks
{CAUTION:
Unlocked doors can be dangerous.
Passengers, especially children, can
easily open the doors and fall out of a
moving vehicle. When a door is
locked, the handle will not open it.
You increase the chance of being
thrown out of the vehicle in a crash if
the doors are not locked. So, wear
safety belts properly and lock the
doors whenever you drive.
Young children who get into unlocked
vehicles may be unable to get out.
A child can be overcome by extreme
heat and can suffer permanent injuries
or even death from heat stroke.
Always lock your vehicle whenever
you leave it.
CAUTION: (Continued)
CAUTION: (Continued)

Outsiders can easily enter through an
unlocked door when you slow down
or stop your vehicle. Locking your
doors can help prevent this from
happening.
There are several ways to lock and unlock the
doors.
To lock or unlock the door from the outside, use
the remote keyless entry (RKE) transmitter or
the key.
To lock or unlock the door from the inside, slide
the manual lever up or down, or use the power
door locks switch.
101

Power Door Locks
The power door lock switches are located on the
armrest on the front doors.
K(Unlock):Press the side of the switch with the
unlock symbol to unlock the doors and tailgate.
Q(Lock):Press the side of the switch with
the lock symbol to lock the doors and tailgate.
Delayed Locking
When locking the doors with the power lock switch
or the Remote Keyless Entry (RKE) transmitter
and a door or the liftgate is open, the doors
will lock ve seconds after the last door is closed.
You will hear three chimes to signal that the
delayed locking feature is in use.
Pressing the power lock switch or the lock button
on the RKE transmitter twice will override the
delayed locking feature and immediately lock all
the doors.You can turn the delayed locking feature off or
back on again by doing the following:
1. Press and hold the power door lock switch in
the lock position.
2. Press unlock twice on the RKE transmitter.
This feature will not operate if the key is in
the ignition.
You can also program this feature using the Driver
Information Center (DIC). See “Door Lock
Delay” underDIC Vehicle Customization on
page 257.
Programmable Automatic Door
Locks
Your vehicle has an automatic lock/unlock feature
which enables you to program the vehicle’s
power door locks. You can program this feature
through the Driver Information Center (DIC).
SeeDIC Vehicle Customization on page 257for
more information on DIC programming.
102

Rear Door Security Locks
Your vehicle has rear door security locks. These
prevent passengers from opening the rear
doors from the inside.
The rear door security
locks are located on the
inside edge of each
rear door. You
must open the rear
doors to access them.
The label depicting
lock and unlock
positions is located near
the lock.
To set the locks, do the following:
1. Insert the key into the security lock slot and
turn it so the slot is in the horizontal position.
2. Close the door.When you want to open a rear door when the
security lock is on, do the following:
1. Unlock the door using the remote keyless
entry transmitter, if the vehicle has one, the
power door lock switch, or by lifting the
rear door manual lock.
2. Open the door from the outside.
To cancel the rear door security lock, do the
following:
1. Unlock the door and open it from the outside.
2. Insert the key into the security lock slot
and turn it so the slot is in the vertical position.
Lockout Protection
This feature protects you from locking your key in
the vehicle when the key is in the ignition and
a door is open.
If the power lock switch is pressed when a door is
open and the key is in the ignition, all of the
doors will lock and then the driver’s door will
unlock.Security Lock Label
shown
103

Midgate®
{CAUTION:
It can be dangerous to drive with the
cargo area covered and the tailgate and
the Midgate
®open because carbon
monoxide (CO) gas can come into your
vehicle. You can not see or smell CO. It
can cause unconsciousness and even
death. If you must drive with the cargo
covers on and the tailgate and Midgate
®
open or if electrical wiring or other cable
CAUTION: (Continued)
CAUTION: (Continued)
connections must pass through the seal
between the body and the Midgate®:
Make sure all windows are shut.
Turn the fan on your heating or
cooling system to its highest speed
on the setting that brings in outside
air. This will force outside air into your
vehicle. SeeDual Automatic Climate
Control System on page 219.
If you have air outlets on or under the
instrument panel, open them all the
way. SeeEngine Exhaust on page 141.
Midgate®Operation
Your vehicle is equipped with a Midgate®and a
removable rear glass panel. The Midgate®
allows you to extend the length of your vehicle’s
cargo area.
104

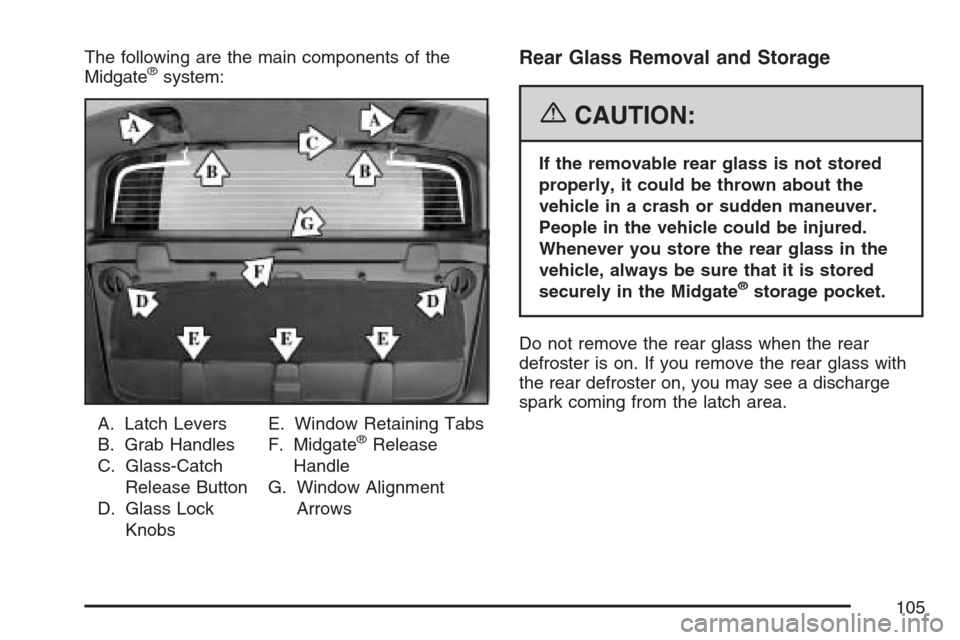

The following are the main components of the
Midgate®system:
A. Latch Levers
B. Grab Handles
C. Glass-Catch
Release Button
D. Glass Lock
KnobsE. Window Retaining Tabs
F. Midgate
®Release
Handle
G. Window Alignment
Arrows
Rear Glass Removal and Storage
{CAUTION:
If the removable rear glass is not stored
properly, it could be thrown about the
vehicle in a crash or sudden maneuver.
People in the vehicle could be injured.
Whenever you store the rear glass in the
vehicle, always be sure that it is stored
securely in the Midgate
®storage pocket.
Do not remove the rear glass when the rear
defroster is on. If you remove the rear glass with
the rear defroster on, you may see a discharge
spark coming from the latch area.
105

To remove the rear glass do the following:
1. Fold the rear seats. SeeRear Seat Operation
on page 16for more information. The front
seats may have to be moved forward slightly
to allow the rear seats to fold completely.
Although the rear glass can be removed
without folding the rear seats, you will not be
able to access the rear glass storage
pocket. Be sure to fold the seats before
removing the rear glass.2. Squeeze and pull down the latch levers (A),
located near the upper corners of the rear
glass, to unlatch. Once unlatched, the
glass-catch release button (C) will catch the
rear glass and prevent it from falling forward.
3. While holding the rear glass in place, press
the glass-catch release button (C) and pull
the top of the rear glass toward you using the
grab handle(s) (B) located at the top of the
rear glass.
106

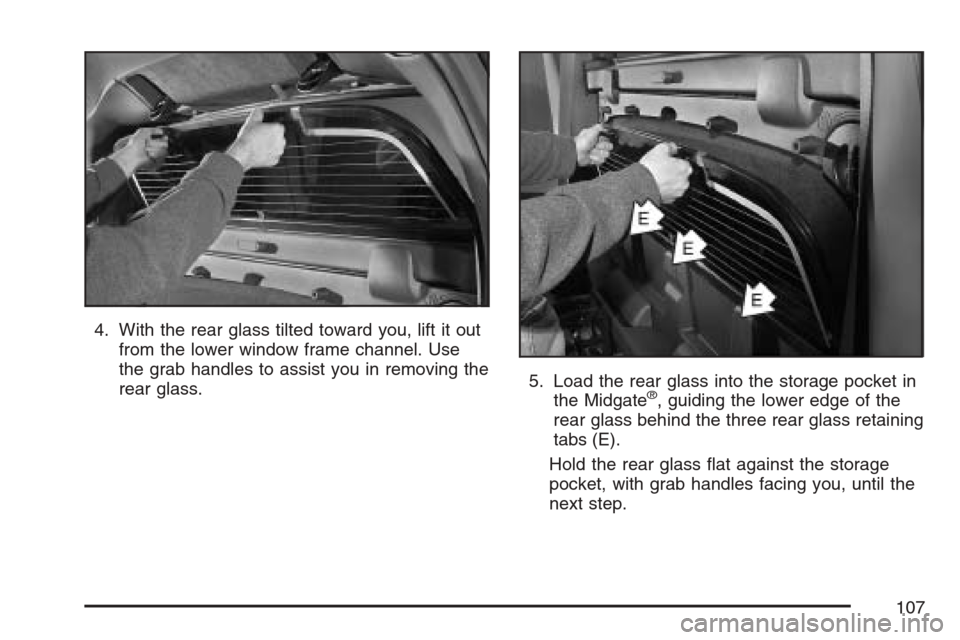

4. With the rear glass tilted toward you, lift it out
from the lower window frame channel. Use
the grab handles to assist you in removing the
rear glass.5. Load the rear glass into the storage pocket in
the Midgate
®, guiding the lower edge of the
rear glass behind the three rear glass retaining
tabs (E).
Hold the rear glass at against the storage
pocket, with grab handles facing you, until the
next step.
107

6. Turn both glass lock knobs (D), located at
both top corners of the storage pocket, to
the locked position. Push in on the corner of
the rear glass to allow the lock knob to
engage more easily.Once both glass lock knobs are in the locked
position, the rear glass is securely stored.
7. Push both latch levers up to the locked
position. You should hear a click when
each latch lever locks correctly.
The rear seats can be returned to the normal
position when the rear glass is out and
stored properly in the storage pocket.
108

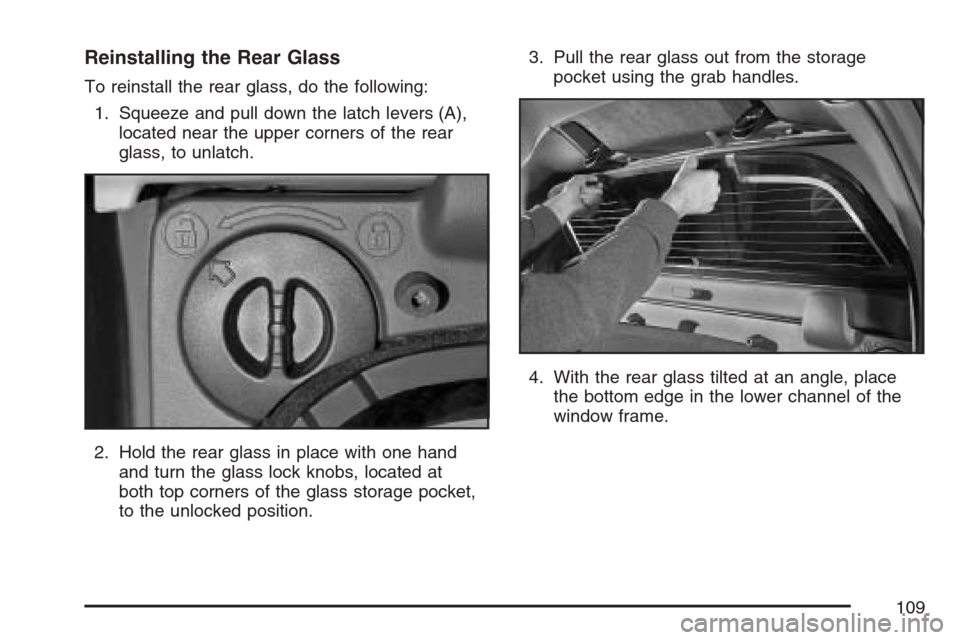

Reinstalling the Rear Glass
To reinstall the rear glass, do the following:
1. Squeeze and pull down the latch levers (A),
located near the upper corners of the rear
glass, to unlatch.
2. Hold the rear glass in place with one hand
and turn the glass lock knobs, located at
both top corners of the glass storage pocket,
to the unlocked position.3. Pull the rear glass out from the storage
pocket using the grab handles.
4. With the rear glass tilted at an angle, place
the bottom edge in the lower channel of the
window frame.
109

Be sure to align the rear
glass side-to-side using
the alignment
arrows (G).
5. Apply a rm downward pressure and then
push the rear glass at against the window
frame. Use the grab handles at the top of the
rear glass to assist you.6. Push the rear glass at against the window
frame and push each latch lever up until it
locks. You should hear a click when each latch
lever locks correctly.
110
