The right front passenger’s airbag is in the
instrument panel on the passenger’s side.The roof-mounted rollover airbag for the driver and
the person seated directly behind the driver is
located in the ceiling above the side windows.
71
Page 72 of 580
The roof-mounted rollover airbag for the right front
passenger and the person directly behind that
passenger is located in the ceiling above the side
windows.
{CAUTION:
If something is between an occupant and
an airbag, the bag might not in ate
properly or it might force the object into
that person causing severe injury or even
death. The path of an in ating airbag
must be kept clear. Do not put anything
between an occupant and an airbag, and
do not attach or put anything on the
steering wheel hub or on or near any
other airbag covering. And, if your vehicle
has roof-mounted side impact airbags,
never secure anything to the roof of your
vehicle by routing the rope or tie down
through any door or window opening. If
you do, the path of an in ating side
impact airbag will be blocked. The path of
an in ating airbag must be kept clear.
72
Page 73 of 580
When Should an Airbag In ate?
The driver’s and right front passenger’s frontal
airbags are designed to in ate in moderate to
severe frontal or near-frontal crashes. But they are
designed to in ate only if the impact exceeds a
predetermined deployment threshold. Deployment
thresholds take into account a variety of desired
deployment and non-deployment events and are
used to predict how severe a crash is likely to be in
time for the airbags to in ate and help restrain the
occupants. Whether your frontal airbags will or
should deploy is not based on how fast your vehicle
is traveling. It depends largely on what you hit, the
direction of the impact and how quickly your vehicle
slows down.In addition, your vehicle has “dual stage” frontal
airbags, which adjust the restraint according to
crash severity. Your vehicle has electronic frontal
sensors, which help the sensing system distinguish
between a moderate frontal impact and a more
severe frontal impact. For moderate frontal impacts,
these airbags in ate at a level less than full
deployment. For more severe frontal impacts, full
deployment occurs. If the front of your vehicle goes
straight into a wall that does not move or deform,
the threshold level for the reduced deployment
is about 9 to 16 mph (14 to 26 km/h), and the
threshold level for a full deployment is about
18 to 25 mph (29 to 40 km/h). The threshold level
can vary, however, with speci c vehicle design, so
that it can be somewhat above or below this range.
73
Page 74 of 580
Frontal airbags may in ate at different crash
speeds. For example:
If the vehicle hits a stationary object, the
airbags could in ate at a different crash speed
than if the vehicle hits a moving object.
If the vehicle hits an object that deforms, the
airbags could in ate at a different crash
speed than if the vehicle hits an object that
does not deform.
If the vehicle hits a narrow object (like a pole)
the airbags could in ate at a different crash
speed than if the vehicle hits a wide object
(like a wall).
If the vehicle goes into an object at an angle
the airbags could in ate at a different crash
speed than if the vehicle goes straight into the
object.
The frontal airbags (driver and right front
passenger) are not intended to in ate during
vehicle rollovers, rear impacts, or in many side
impacts.Your vehicle has a seat position sensor which
enables the sensing system to monitor the
fore and aft position of the driver’s seat. Seat
position sensors provide information that is used
to determine if the airbags should deploy at a
reduced level or at full deployment.
Your vehicle has roof-mounted rollover airbags
and a rollover sensor. SeeAirbag System on
page 67. These “rollover capable” airbags
are intended to in ate in moderate to severe side
crashes, during a rollover or in a severe frontal
impact. A roof-mounted rollover airbag will in ate if
the crash severity is above the system’s designed
“threshold level.” The threshold level can vary
with speci c vehicle design. Roof-mounted rollover
airbags are not intended to in ate in rear
impacts. Both roof-mounted rollover airbags will
deploy when either side of the vehicle is struck or
during a rollover, or in a severe frontal impact.
74
Page 75 of 580
In any particular crash, no one can say whether
an airbag should have in ated simply because
of the damage to a vehicle or because of what the
repair costs were. For frontal airbags, in ation is
determined by what the vehicle hits, the angle
of the impact, and how quickly the vehicle
slows down. For roof-mounted rollover airbags,
in ation is determined by the location and severity
of the impact or a rollover event.
The airbag system is designed to work properly
under a wide range of conditions, including off-road
usage. Observe safe driving speeds, especially
on rough terrain. As always, wear your safety belt.
SeeOff-Road Driving on page 339for tips on
off-road driving.What Makes an Airbag In ate?
In an impact of sufficient severity, the airbag
sensing system detects that the vehicle is
in a crash. In the case of a roof-mounted rollover
airbag, the sensing system detects that the
vehicle is about to roll over or has been in a severe
frontal impact or a moderate to severe side
impact. The sensing system triggers a release of
gas from the in ator, which in ates the airbag.
The in ator, airbag, and related hardware are all
part of the airbag modules inside the steering
wheel and in the instrument panel in front of
the right front passenger. For vehicles with
roof-mounted rollover airbags, the airbag modules
are located in the ceiling of the vehicle, near
the side windows.
75
Page 76 of 580
How Does an Airbag Restrain?
In moderate to severe frontal or near frontal
collisions, even belted occupants can contact
the steering wheel or the instrument panel.
In moderate to severe side collisions, even belted
occupants can contact the inside of the vehicle.
The airbag supplements the protection provided by
safety belts. Airbags distribute the force of the
impact more evenly over the occupant’s upper
body, stopping the occupant more gradually. But
the frontal airbags would not help you in many
types of collisions, including rollovers, rear
impacts, and many side impacts, primarily because
an occupant’s motion is not toward the airbag.
Roof-mounted rollover airbags would not help
you in many types of collisions, including many
frontal or near frontal collisions, and rear impacts,
primarily because an occupant’s motion is not
toward the airbag. Airbags should never be
regarded as anything more than a supplement
to safety belts, and then only in moderate to
severe frontal or near-frontal collisions for the
driver’s and right front passenger’s frontal airbags,
and only in moderate to severe side collisions
for roof-mounted rollover airbags.
What Will You See After an Airbag
In ates?
After a frontal airbag in ates, it quickly de ates, so
quickly that some people may not even realize
an airbag in ated. Roof-mounted rollover airbags
are designed to de ate more slowly and may
still be at least partially in ated minutes after the
vehicle comes to rest. Some components of
the airbag module — the steering wheel hub for
the driver’s airbag, the instrument panel for
the right front passenger’s airbag, and the area
along the ceiling of the vehicle near the side
windows for vehicles with roof–mounted side
impact airbags — may be hot for a short time.
The parts of the airbag that come into contact with
you may be warm, but not too hot to touch.
There will be some smoke and dust coming from
the vents in the de ated airbags. Airbag in ation
does not prevent the driver from seeing out of the
windshield or being able to steer the vehicle,
nor does it prevent people from leaving the vehicle.
76
Page 77 of 580

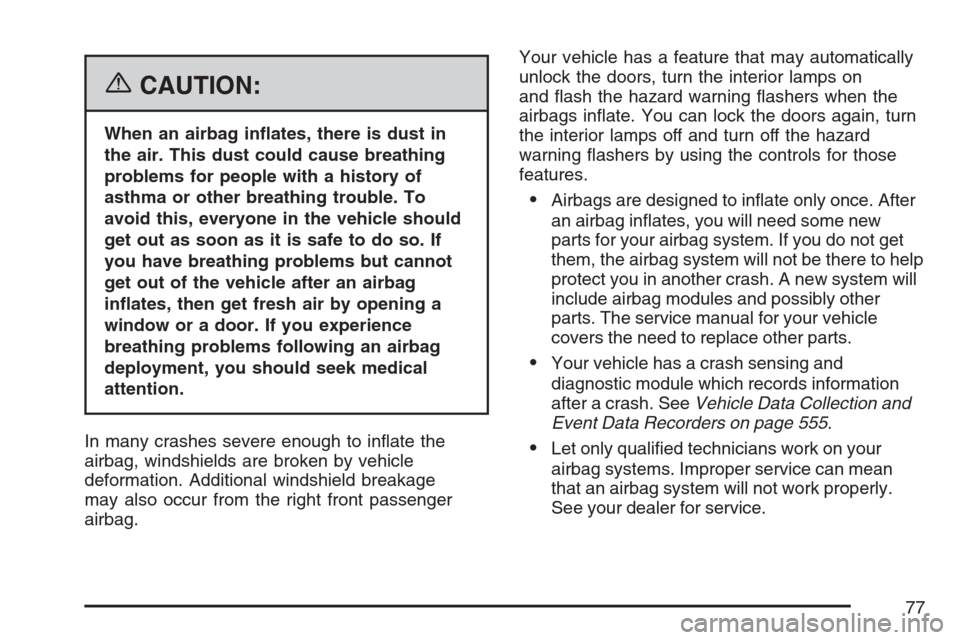

{CAUTION:
When an airbag in ates, there is dust in
the air. This dust could cause breathing
problems for people with a history of
asthma or other breathing trouble. To
avoid this, everyone in the vehicle should
get out as soon as it is safe to do so. If
you have breathing problems but cannot
get out of the vehicle after an airbag
in ates, then get fresh air by opening a
window or a door. If you experience
breathing problems following an airbag
deployment, you should seek medical
attention.
In many crashes severe enough to in ate the
airbag, windshields are broken by vehicle
deformation. Additional windshield breakage
may also occur from the right front passenger
airbag.Your vehicle has a feature that may automatically
unlock the doors, turn the interior lamps on
and ash the hazard warning ashers when the
airbags in ate. You can lock the doors again, turn
the interior lamps off and turn off the hazard
warning ashers by using the controls for those
features.
Airbags are designed to in ate only once. After
an airbag in ates, you will need some new
parts for your airbag system. If you do not get
them, the airbag system will not be there to help
protect you in another crash. A new system will
include airbag modules and possibly other
parts. The service manual for your vehicle
covers the need to replace other parts.
Your vehicle has a crash sensing and
diagnostic module which records information
after a crash. SeeVehicle Data Collection and
Event Data Recorders on page 555.
Let only quali ed technicians work on your
airbag systems. Improper service can mean
that an airbag system will not work properly.
See your dealer for service.
77
Page 78 of 580
Passenger Sensing System
Your vehicle has a passenger sensing system.
The passenger airbag status indicator on the
overhead console will be visible when you turn
your ignition key to RUN or START. The words ON
and OFF or the symbol for on and off, will be
visible during the system check. When the system
check is complete, either the word ON or the
word OFF, or the symbol for on or the symbol for
off will be visible. SeePassenger Airbag Status
Indicator on page 230.The passenger sensing system will turn off the
right front passenger’s frontal airbag under certain
conditions. The driver’s airbags are not part of
the passenger sensing system.
The passenger sensing system works with
sensors that are part of the right front passenger’s
seat and safety belt. The sensors are designed
to detect the presence of a properly-seated
occupant and determine if the passenger’s airbag
should be enabled (may in ate) or not.
United StatesCanada
78
Page 79 of 580

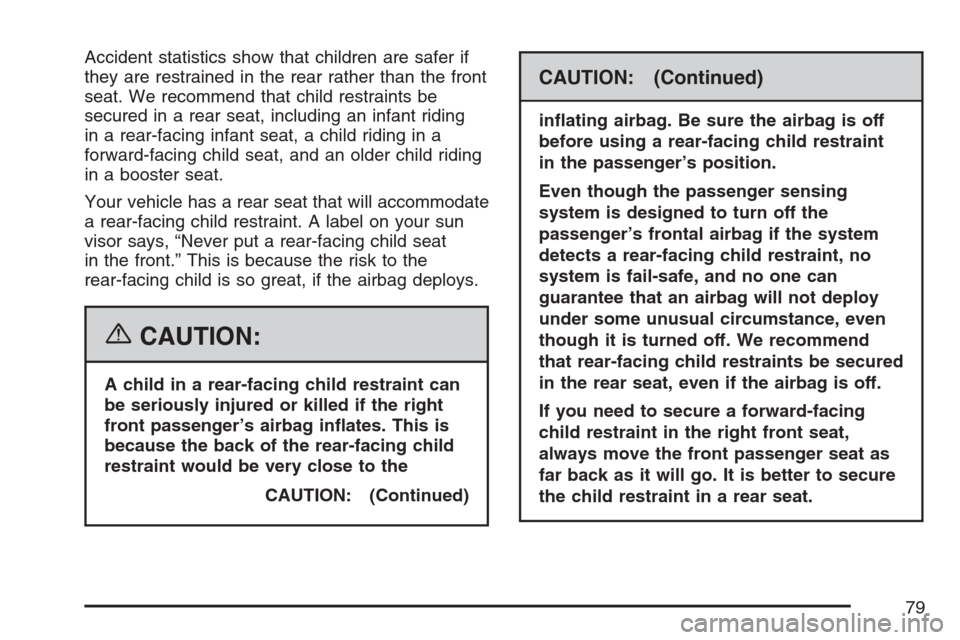

Accident statistics show that children are safer if
they are restrained in the rear rather than the front
seat. We recommend that child restraints be
secured in a rear seat, including an infant riding
in a rear-facing infant seat, a child riding in a
forward-facing child seat, and an older child riding
in a booster seat.
Your vehicle has a rear seat that will accommodate
a rear-facing child restraint. A label on your sun
visor says, “Never put a rear-facing child seat
in the front.” This is because the risk to the
rear-facing child is so great, if the airbag deploys.
{CAUTION:
A child in a rear-facing child restraint can
be seriously injured or killed if the right
front passenger’s airbag in ates. This is
because the back of the rear-facing child
restraint would be very close to the
CAUTION: (Continued)
CAUTION: (Continued)
in ating airbag. Be sure the airbag is off
before using a rear-facing child restraint
in the passenger’s position.
Even though the passenger sensing
system is designed to turn off the
passenger’s frontal airbag if the system
detects a rear-facing child restraint, no
system is fail-safe, and no one can
guarantee that an airbag will not deploy
under some unusual circumstance, even
though it is turned off. We recommend
that rear-facing child restraints be secured
in the rear seat, even if the airbag is off.
If you need to secure a forward-facing
child restraint in the right front seat,
always move the front passenger seat as
far back as it will go. It is better to secure
the child restraint in a rear seat.
79
Page 80 of 580
The passenger sensing system is designed to turn
off the right front passenger’s airbag if:
the right front passenger seat is unoccupied
the system determines that an infant is present
in a rear-facing infant seat
the system determines that a small child is
present in a forward-facing child restraint
the system determines that a small child is
present in a booster seat
a right front passenger takes his/her weight off
of the seat for a period of time
the right front passenger seat is occupied by a
smaller person, such as a child who has
outgrown child restraints
or if there is a critical problem with the airbag
system or the passenger sensing system.
When the passenger sensing system has turned
off the passenger’s airbag, the off indicator will light
and stay lit to remind you that the airbag is off.
If a child restraint has been installed and the
on indicator is lit, turn the vehicle off. Remove the
child restraint from the vehicle and reinstall
the child restraint following the child restraint
manufacturer’s directions and refer toSecuring a
Child Restraint in the Right Front Seat Position
on page 62.
80
