seat adjustment CADILLAC ESCALADE EXT 2007 3.G Owners Manual

Front Seats..................................................... 8
Power Seats................................................. 8
Power Lumbar.............................................. 9
Heated Seats.............................................. 10
Heated and Cooled Seats........................... 11
Memory Seat, Mirrors, and Pedals.............. 12
Power Reclining Seatbacks......................... 14
Head Restraints.......................................... 15
Rear Seats.................................................... 16
Rear Seat Operation................................... 16
Safety Belts.................................................. 18
Safety Belts: They Are for Everyone........... 18
Questions and Answers About Safety Belts.... 22
How to Wear Safety Belts Properly............. 23
Driver Position............................................. 23
Shoulder Belt Height Adjustment................. 30
Safety Belt Use During Pregnancy.............. 31
Right Front Passenger Position................... 31
Rear Seat Passengers................................ 32
Rear Safety Belt Comfort Guides................ 35
Safety Belt Pretensioners............................ 38
Safety Belt Extender................................... 38
Child Restraints............................................ 39
Older Children............................................. 39
Infants and Young Children......................... 42Child Restraint Systems.............................. 45
Where to Put the Restraint.......................... 50
Lower Anchors and Tethers for
Children (LATCH).................................... 51
Securing a Child Restraint in a Rear
Seat Position........................................... 60
Securing a Child Restraint in the Right
Front Seat Position.................................. 62
Airbag System.............................................. 67
Where Are the Airbags?.............................. 70
When Should an Airbag Inate?.................. 73
What Makes an Airbag Inate?................... 75
How Does an Airbag Restrain?................... 76
What Will You See After an Airbag
Inates?................................................... 76
Passenger Sensing System......................... 78
Servicing Your Airbag-Equipped Vehicle...... 84
Adding Equipment to Your
Airbag-Equipped Vehicle.......................... 85
Restraint System Check............................... 86
Checking the Restraint Systems.................. 86
Replacing Restraint System Parts
After a Crash........................................... 87
Section 1 Seats and Restraint Systems
7

Tire Pressure Light.................................... 236
Malfunction Indicator Lamp........................ 236
Oil Pressure Light..................................... 240
Security Light............................................ 240
Fog Lamp Light......................................... 241
Lights On Reminder.................................. 241
Cruise Control Light.................................. 241
Highbeam On Light................................... 241
Tow/Haul Mode Light................................ 242
Fuel Gage................................................. 242
Driver Information Center (DIC).................. 243
DIC Operation and Displays...................... 243
DIC Warnings and Messages.................... 248
DIC Vehicle Customization........................ 257Audio System(s)......................................... 267
Setting the Time........................................ 269
Radio with CD and DVD........................... 270
XM Radio Messages................................. 300
Navigation/Radio System........................... 302
Rear Seat Entertainment System............... 302
Rear Seat Audio (RSA)............................. 313
Theft-Deterrent Feature............................. 315
Audio Steering Wheel Controls.................. 316
Radio Reception........................................ 317
Care of Your CDs and DVDs.................... 318
Care of the CD and DVD Player............... 318
Fixed Mast Antenna.................................. 318
XM™ Satellite Radio Antenna System....... 319
Chime Level Adjustment............................ 319
Section 3 Instrument Panel
190

The main components of your instrument panel are the following:
A. Air Outlets. SeeOutlet Adjustment on
page 224.
B. Turn Signal/Multifunction Lever. SeeTurn
Signal/Multifunction Lever on page 196.
C. Hazard Warning Flasher Button. SeeHazard
Warning Flashers on page 194.
D. Instrument Panel Cluster. SeeInstrument
Panel Cluster on page 226.
E. Shift Lever/Tow/Haul Selector Button. See
Automatic Transmission Operation on
page 129andTow/Haul Mode on page 135.
F. Analog Clock. SeeAnalog Clock on page 218.
G. Audio System. SeeAudio System(s) on
page 267. Navigation/Radio System (if
equipped). SeeNavigation/Radio System on
page 302.
H. Exterior Lamps Control. SeeExterior Lamps on
page 204.
I. Dome Override Button. SeeDome Lamp
Override on page 212.
J. Cruise Control Buttons. SeeCruise Control on
page 201.
K. Tilt Lever. SeeTilt Wheel on page 195.L. Horn. SeeHorn on page 194.
M. Audio Steering Wheel Buttons. SeeAudio
Steering Wheel Controls on page 316.
N. Driver Information Center (DIC) Buttons. See
Driver Information Center (DIC) on page 243.
O. Pedal Adjust Button. SeeAdjustable Throttle
and Brake Pedal on page 128. Heated
Windshield Washer Fluid Button (If Equipped).
SeeWindshield Washer on page 200. Power
Running Boards Disable Button (If Equipped).
SeePower Running Boards on page 114.
P. Dual Automatic Climate Controls. SeeDual
Automatic Climate Control System on
page 219. Heated Seats (If Equipped). See
Heated Seats on page 10. Heated and Cooled
Seats (If Equipped). SeeHeated and Cooled
Seats on page 11.
Q. StabiliTrak
®Disable Button. See.StabiliTrak®
System on page 330.Ultrasonic Rear Parking
Assist Disable Button. See.Ultrasonic Rear
Parking Assist (URPA) on page 213.
R. Glove Box. SeeGlove Box on page 165.
193

0(Defrost):This mode directs a portion of the
air to the windshield, side window vents and
some to the oor vents. In this mode, the system
will automatically force outside air into your
vehicle. The recirculation mode cannot be selected
while in the defrost mode. The air conditioning
compressor will run automatically in this setting,
unless the outside temperature is close to freezing.
Do not drive the vehicle until all the windows
are clear.
Rear Window Defogger
The rear window defogger uses a warming grid to
remove fog from the rear window.
<(Rear Window Defogger):The rear window
defogger will turn off automatically after it has
been activated. The defogger can also be turned
off by pressing the button again or by turning
off the engine. Do not drive the vehicle until all
the windows are clear.
If your vehicle has heated outside rearview
mirrors, the mirrors will heat to help clear fog or
frost from the surface of the mirror when the
rear window defog button is pressed. SeeOutside
Power Foldaway Mirrors on page 149.Notice:Do not use a razor blade or sharp
object to clear the inside rear window. Do not
adhere anything to the defogger grid lines
in the rear glass. These actions may damage
the rear defogger. Repairs would not be
covered by your warranty.
Outlet Adjustment
Your vehicle has air outlets located in the center
and on the side of the instrument panel that
allow you to adjust the direction and amount of
airow inside the vehicle. There are also air outlets
on the rear of the center console for rear seat
passenger use. Move the louvers up or down. Use
the rotary knob next to or underneath the outlet
to close the louvers. For the most efficient airow
and temperature control, keep the outlet in the
fully opened position.
Operation Tips

Keep the hood and front air inlets free of ice,
snow, or any other obstruction, such as
leaves. The heater and defroster will work far
better, reducing the chance of fogging the
inside of your windows.
224

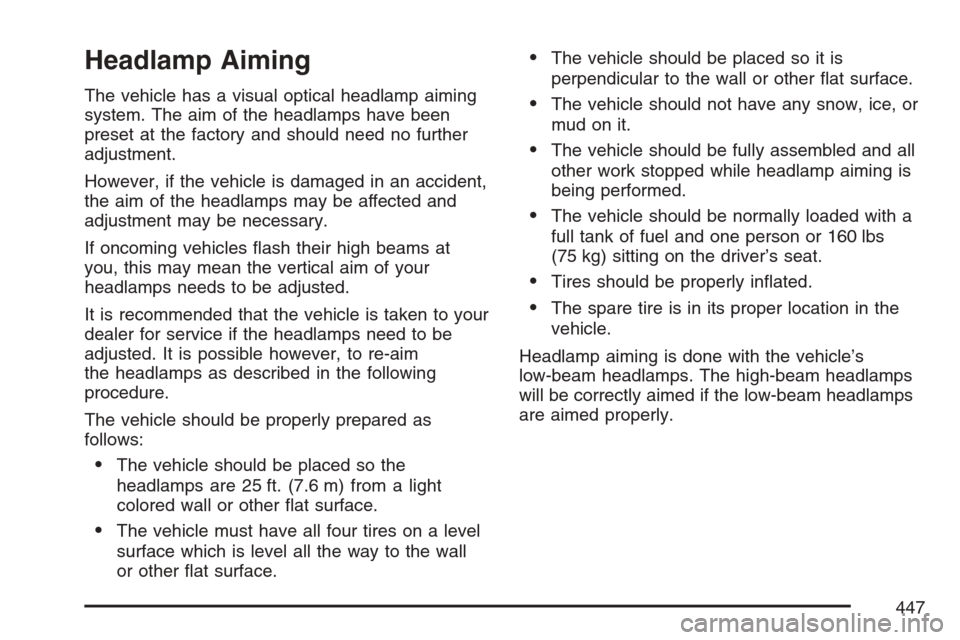

Headlamp Aiming
The vehicle has a visual optical headlamp aiming
system. The aim of the headlamps have been
preset at the factory and should need no further
adjustment.
However, if the vehicle is damaged in an accident,
the aim of the headlamps may be affected and
adjustment may be necessary.
If oncoming vehicles ash their high beams at
you, this may mean the vertical aim of your
headlamps needs to be adjusted.
It is recommended that the vehicle is taken to your
dealer for service if the headlamps need to be
adjusted. It is possible however, to re-aim
the headlamps as described in the following
procedure.
The vehicle should be properly prepared as
follows:
The vehicle should be placed so the
headlamps are 25 ft. (7.6 m) from a light
colored wall or other at surface.
The vehicle must have all four tires on a level
surface which is level all the way to the wall
or other at surface.
The vehicle should be placed so it is
perpendicular to the wall or other at surface.
The vehicle should not have any snow, ice, or
mud on it.
The vehicle should be fully assembled and all
other work stopped while headlamp aiming is
being performed.
The vehicle should be normally loaded with a
full tank of fuel and one person or 160 lbs
(75 kg) sitting on the driver’s seat.
Tires should be properly inated.
The spare tire is in its proper location in the
vehicle.
Headlamp aiming is done with the vehicle’s
low-beam headlamps. The high-beam headlamps
will be correctly aimed if the low-beam headlamps
are aimed properly.
447

Appearance Care (cont.)
Weatherstrips........................................... 501
Windshield and Wiper Blades................... 503
Wood Panels........................................... 500
Ashtray(s).................................................... 218
Audio System(s).......................................... 267
Audio Steering Wheel Controls................. 316
Care of Your CD and DVD Player............ 318
Care of Your CDs and DVDs................... 318
Chime Level Adjustment........................... 319
Fixed Mast Antenna................................. 318
Navigation/Radio System, see Navigation
Manual................................................. 302
Radio with CD and DVD.......................... 270
Rear Seat Audio (RSA)............................ 313
Setting the Time...................................... 269
Theft-Deterrent Feature............................ 315
Understanding Radio Reception............... 317
XM™ Satellite Radio Antenna System...... 319
Automatic Headlamp System....................... 210
Automatic Transmission
Fluid........................................................ 415
Operation................................................. 129
Autoride
®..................................................... 379
B
Battery........................................................ 437
Run-Down Protection............................... 212
Before Leaving on a Long Trip.................... 362
Brake
Anti-Lock Brake System (ABS)................. 327
Emergencies............................................ 329
Parking.................................................... 136
System Warning Light.............................. 232
Brake Pedal, Throttle................................... 128
Brakes........................................................ 433
Braking....................................................... 326
Braking in Emergencies............................... 329
Break-In, New Vehicle................................. 123
Bulb Replacement....................................... 450
Headlamp Aiming..................................... 447
High Intensity Discharge (HID) Lighting.... 450
License Plate Lamps................................ 452
Replacement Bulbs.................................. 452
Taillamps, Turn Signal, Sidemarker,
Stoplamps, and Back-Up Lamps........... 450
Buying New Tires........................................ 470
566

C
Calibration..........................................143, 145
California Fuel............................................. 400
California Proposition 65 Warning................ 397
Canadian Owners........................................... 3
Capacities and Specications...................... 518
Carbon Monoxide.....104, 114, 141, 366, 380
Care of
Safety Belts............................................. 500
Your CD and DVD Player........................ 318
Your CDs and DVDs................................ 318
Cargo Area, All-Weather.............................. 181
Cargo Cover Panels.................................... 168
Center Console Storage Area...................... 166
Chains, Tire................................................. 476
Charging System Light................................ 232
Check
Engine Light............................................ 236
Checking Things Under the Hood................ 404
Chemical Paint Spotting.............................. 506
Child Restraints
Child Restraint Systems............................. 45
Infants and Young Children........................ 42
Lower Anchors and Tethers for Children..... 51
Older Children........................................... 39Child Restraints (cont.)
Securing a Child Restraint in a Rear
Seat Position.......................................... 60
Securing a Child Restraint in the Right
Front Seat Position................................. 62
Where to Put the Restraint........................ 50
Chime Level Adjustment .............................. 319
Cigarette Lighter.......................................... 218
Cleaning
Aluminum or Chrome-Plated Wheels........ 504
Exterior Lamps/Lenses............................. 502
Fabric/Carpet........................................... 498
Finish Care.............................................. 502
Inside of Your Vehicle .............................. 496
Instrument Panel, Vinyl, and Other
Plastic Surfaces.................................... 499
Leather.................................................... 499
Speaker Covers....................................... 500
Tires........................................................ 505
Underbody Maintenance........................... 506
Washing Your Vehicle .............................. 501
Weatherstrips........................................... 501
Windshield and Wiper Blades................... 503
Wood Panels........................................... 500
567

Climate Control System
Dual Automatic......................................... 219
Outlet Adjustment..................................... 224
Clock.......................................................... 218
Collision Damage Repair............................. 556
Comfort Guides, Rear Safety Belt................. 35
Compass............................................143, 145
Content Theft-Deterrent............................... 118
Control of a Vehicle..................................... 326
Coolant
Engine Temperature Gage........................ 235
Heater, Engine......................................... 128
Surge Tank Pressure Cap........................ 422
Cooled Seats................................................ 11
Cooling System........................................... 426
Cruise Control............................................. 201
Cruise Control Light.................................... 241
Cupholder(s)................................................ 166
Customer Assistance Information
Courtesy Transportation........................... 552
Customer Assistance for Text
Telephone (TTY) Users......................... 546
Customer Assistance Offices.................... 546
Customer Satisfaction Procedure.............. 542
GM Mobility Reimbursement Program...... 547
Reporting Safety Defects to
General Motors..................................... 561Customer Assistance Information (cont.)
Reporting Safety Defects to the
Canadian Government.......................... 561
Reporting Safety Defects to the
United States Government.................... 560
Roadside Service..................................... 548
Service Publications Ordering
Information........................................... 562
D
Daytime Running Lamps............................. 209
Defensive Driving........................................ 322
Delayed Locking.......................................... 102
Differential, Locking..................................... 329
Doing Your Own Service Work.................... 398
Dome Lamp Override.................................. 212
Dome Lamps............................................... 212
Door
Delayed Locking...................................... 102
Locks....................................................... 101
Power Door Locks................................... 102
Programmable Automatic Door Locks....... 102
Rear Door Security Locks........................ 103
Driver
Position, Safety Belt................................... 23
568

O
Odometer.................................................... 227
Odometer, Trip............................................ 227
Off-Road Driving.......................................... 339
Off-Road Recovery...................................... 335
Oil
Engine..................................................... 407
Pressure Light.......................................... 240
Oil, Engine Oil Life System......................... 410
Older Children, Restraints............................. 39
Online Owner Center................................... 545
OnStar
®System, see OnStar®Manual........ 152
Other Warning Devices................................ 194
Outlet Adjustment........................................ 224
Outlet(s), Accessory Power.......................... 217
Outside
Power Foldaway Mirrors........................... 149
Overheated Engine Protection Operating
Mode....................................................... 425
Owner Checks and Services....................... 529
Owners, Canadian.......................................... 3
P
Paint, Damage............................................ 505
Park Aid...................................................... 213
Park (P)
Shifting Into............................................. 138
Shifting Out of......................................... 140
Parking
Assist....................................................... 213
Brake....................................................... 136
Over Things That Burn............................ 140
Passenger Airbag Status Indicator............... 230
Passenger Sensing System........................... 78
Passing....................................................... 336
PASS-Key
®III+........................................... 120
PASS-Key®III+ Operation........................... 121
Power
Accessory Outlet(s).................................. 217
Door Locks.............................................. 102
Electrical System..................................... 509
Lumbar Controls.......................................... 9
Reclining Seatbacks................................... 14
574
