2009 Cadillac Escalade EXT Owner ManualM

Memory Features
Your vehicle has the memory package.
The controls for this
feature are located on the
driver’s door, and are
used to program and recall
memory settings for the
driver’s seat, outside
mirrors, steering wheel
position, and the
adjustable throttle and
brake pedal feature, if your
vehicle has it.
To save your positions in memory, do the following:
1. Adjust the driver’s seat, including the seatback
recliner and lumbar, both outside mirrors, steering
wheel, and the throttle and brake pedals to a
comfortable position.
SeeOutside Power Foldaway Mirrors on page 2-47
andAdjustable Throttle and Brake Pedal on
page 2-34for more information.
Not all mirrors will have the ability to save and
recall the mirror positions.
2. Press and hold button 1 until two beeps let you
know that the position has been stored.A second seating, mirror, steering wheel position, and
throttle and brake pedal position can be programmed by
repeating the above steps and pressing button 2.
To recall the memory positions, the vehicle must be in
P (Park). Press and release either button 1 or button 2
corresponding to the desired driving position. The
seat, outside mirrors, steering wheel position, and
adjustable throttle and brake pedals will move to the
position previously stored. You will hear a single beep.
If you use the remote keyless entry transmitter to
enter your vehicle and the remote recall memory feature
is on, automatic seat, mirror, steering wheel position,
and adjustable pedal movement will occur. See
“MEMORY SEAT RECALL” underDIC Vehicle
Customization on page 3-56for more information.
To stop recall movement of the memory feature at any
time, press one of the power seat controls, memory
buttons, power mirror buttons, power tilt wheel control,
or adjustable pedal switch.
If something has blocked the driver’s seat and/or the
adjustable pedals while recalling a memory position, the
driver’s seat and/or the adjustable pedals recall may
stop working. If this happens, remove the obstruction
and press the appropriate function control for
two seconds. Then try recalling the memory position
again by pressing the appropriate memory button. If the
memory position is still not recalling, see your dealer/
retailer for service.
1-7

Keys...............................................................2-3
Remote Keyless Entry (RKE) System................2-4
Remote Keyless Entry (RKE) System
Operation...................................................2-4
Remote Vehicle Start......................................2-7
Doors and Locks.............................................2-9
Door Locks....................................................2-9
Power Door Locks..........................................2-9
Delayed Locking.............................................2-9
Programmable Automatic Door Locks..............2-10
Rear Door Security Locks..............................2-10
Lockout Protection........................................2-11
Midgate
®.....................................................2-11
Tailgate.......................................................2-21
Power Assist Steps.......................................2-22
Windows........................................................2-23
Power Windows............................................2-24
Sun Visors...................................................2-26
Theft-Deterrent Systems..................................2-27
Content Theft-Deterrent.................................2-27
PASS-Key
®III+ Electronic Immobilizer.............2-29
PASS-Key®III+ Electronic Immobilizer
Operation.................................................2-29Starting and Operating Your Vehicle................2-31
New Vehicle Break-In....................................2-31
Ignition Positions..........................................2-31
Retained Accessory Power (RAP)...................2-32
Starting the Engine.......................................2-32
Adjustable Throttle and Brake Pedal................2-34
Engine Coolant Heater..................................2-34
Automatic Transmission Operation...................2-36
Tow/Haul Mode............................................2-39
Parking Brake..............................................2-41
Shifting Into Park..........................................2-43
Shifting Out of Park......................................2-44
Parking Over Things That Burn.......................2-45
Engine Exhaust............................................2-45
Running the Vehicle While Parked..................2-46
Mirrors...........................................................2-47
Manual Rearview Mirror.................................2-47
Automatic Dimming Rearview Mirror................2-47
Outside Power Foldaway Mirrors.....................2-47
Park Tilt Mirrors............................................2-48
Outside Convex Mirror...................................2-49
Outside Heated Mirrors..................................2-49
Object Detection Systems...............................2-50
Ultrasonic Rear Parking Assist (URPA)............2-50
Rear Vision Camera (RVC)............................2-52
Section 2 Features and Controls
2-1

Mirrors
Manual Rearview Mirror
Hold the inside rearview mirror in the center to move it
for a clearer view behind your vehicle. Adjust the
mirror to avoid glare from the headlamps behind you.
Push the tab forward for daytime use and pull it for
nighttime use.
Automatic Dimming Rearview Mirror
This vehicle may have an automatic dimming inside
rearview mirror with OnStar®. It may also have
Intellibeam®. For more information on Intellibeam™, see
“Intellibeam™ Intelligent High-Beam Headlamp Control
System” underExterior Lamps on page 3-13. For
more information on OnStar
®, seeOnStar®System on
page 2-56.
Automatic Dimming Mirror Operation
Automatic dimming reduces the glare of lights from
behind the vehicle. The dimming feature comes on and
the indicator light illuminates each time the vehicle is
started.
O(On/Off):Press to turn the dimming feature on
or off.
Cleaning the Mirror
Do not spray glass cleaner directly on the mirror. Use a
soft towel dampened with water.
Outside Power Foldaway Mirrors
Controls for the outside
power foldaway mirrors are
located on the driver
door armrest.
Mirror Adjustment
1. Press (C) to fold the mirrors out to the driving
position.
2. Press (D) to fold the mirrors in to the folded
position.
2-47

Resetting the Power Foldaway Mirrors
You may need to reset the power foldaway mirrors if:
The mirrors are accidentally obstructed while folding.
They are accidentally manually folded/unfolded.
The mirrors will not stay in the unfolded position.
The mirrors vibrate at normal driving speeds.
Fold and unfold them one time using the mirror controls
to reset them to their normal position.
Automatic Dimming
Adjust the driver outside mirror for the glare of the
headlamps behind your vehicle. SeeAutomatic Dimming
Rearview Mirror on page 2-47for more information.
Turn Signal Indicator
The vehicle has a turn signal indicator on the mirror. An
arrow on the mirror ashes in the direction of the turn
or lane change.
Park Tilt Mirrors
If the vehicle has the memory package, the passenger
and/or driver mirror tilts to a preselected position
when the vehicle is in R (Reverse). This feature lets the
driver view the curb when parallel parking. The
mirror(s) return to the original position when the vehicle
is shifted out of R (Reverse), or the ignition is turned
off or to OFF/LOCK.
Turn this feature on or off through the Driver Information
Center (DIC). SeeDIC Vehicle Customization on
page 3-56for more information.
2-48

Disabling and Resetting IntelliBeam®at
the Rearview Mirror
IntelliBeam®can be disabled by using the controls on
the inside rearview mirror.
AUTO
3(On/Off):To disable the system, press this
button on the inside rearview mirror. The IntelliBeam®
indicator will turn off and will not come back on until the
IntelliBeam®button is pressed again.
(Stalk Disable):When IntelliBeam
®has turned on the
high-beams, pull or push the high-beam stalk. This
will disable IntelliBeam
®. The IntelliBeam®indicator on
the mirror will turn off. To re-enable IntelliBeam®,
press the IntelliBeam®button on the mirror.
A different sensitivity setting is available for dealer
diagnostics. This is done by pushing and holding this
button for 20 seconds until the IntelliBeam
®indicator
light ashes three times. If you accidentally activate this,
the vehicle’s setting will automatically be reset each
time the ignition is turned off and then on again.
Cleaning the IntelliBeam®Light Sensor
The light sensor is located
on the inside of the vehicle
in front of the inside
rearview mirror.
Clean the light sensor window, periodically, using glass
cleaner on a soft cloth. Gently wipe the sensor
window. Do not spray glass cleaner directly on the
surface of the sensor window.
Headlamps on Reminder
If a door is open, a reminder chime will sound when the
headlamps or parking lamps are manually turned on
and the key is out of the ignition. To turn off the chime,
turn the headlamp switch to off or AUTO and then
back on, or close and re-open the door. In the AUTO
mode, the headlamps turn off once the ignition is
in LOCK/OFF or may remain on until the headlamp
delay ends (if enabled in the DIC). See “Exit Lighting”
underDIC Vehicle Customization on page 3-56.
3-16

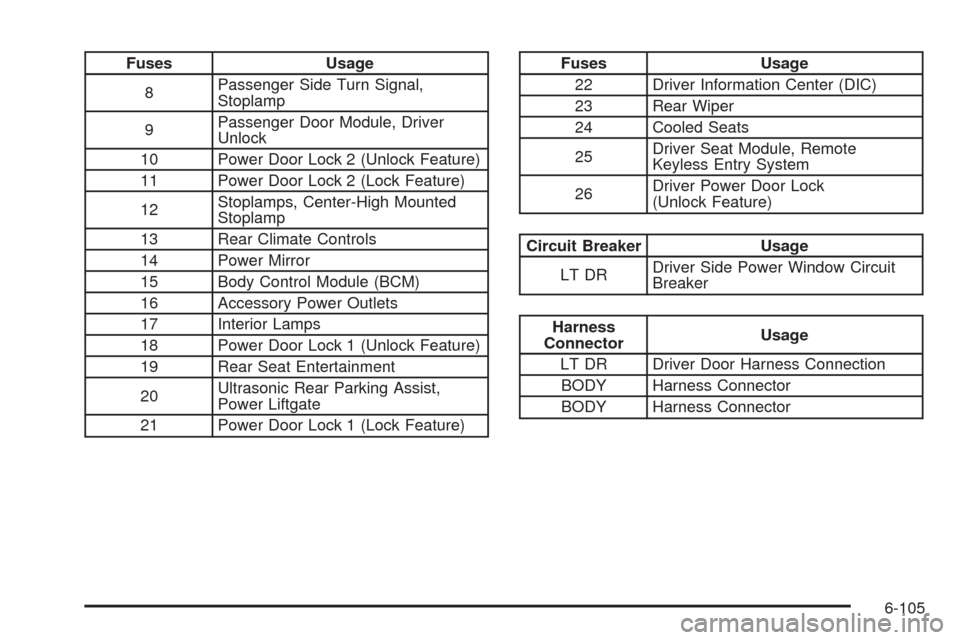

Fuses Usage
8Passenger Side Turn Signal,
Stoplamp
9Passenger Door Module, Driver
Unlock
10 Power Door Lock 2 (Unlock Feature)
11 Power Door Lock 2 (Lock Feature)
12Stoplamps, Center-High Mounted
Stoplamp
13 Rear Climate Controls
14 Power Mirror
15 Body Control Module (BCM)
16 Accessory Power Outlets
17 Interior Lamps
18 Power Door Lock 1 (Unlock Feature)
19 Rear Seat Entertainment
20Ultrasonic Rear Parking Assist,
Power Liftgate
21 Power Door Lock 1 (Lock Feature)Fuses Usage
22 Driver Information Center (DIC)
23 Rear Wiper
24 Cooled Seats
25Driver Seat Module, Remote
Keyless Entry System
26Driver Power Door Lock
(Unlock Feature)
Circuit Breaker Usage
LT DRDriver Side Power Window Circuit
Breaker
Harness
ConnectorUsage
LT DR Driver Door Harness Connection
BODY Harness Connector
BODY Harness Connector
6-105

Fuses Usage
47 Not Used
48 Auxiliary Climate Control (Ignition)
49Center High-Mounted Stoplamp
(CHMSL)
50 Rear Defogger
51 Heated Mirror
52 SEO B1 Uptter Usage (Battery)
53Cigarette Lighter, Auxiliary Power
Outlet
54Automatic Level Control Compressor
Relay, SEO Uptter Usage
55 Climate Controls (Ignition)
56Engine Control Module, Secondary
Fuel Pump (Ignition)
J-Case Fuses Usage
57 Cooling Fan 1
58 Automatic Level Control Compressor
59 Heavy Duty Antilock Brake System
60 Cooling Fan 2
61 Antilock Brake System 1
62 Starter
63 Stud 2 (Trailer Brakes)
64 Left Bussed Electrical Center 1
J-Case Fuses Usage
65 Electric Running Boards
66 Heated Windshield Washer System
67 Four-Wheel Drive System
68Stud 1 (Trailer Connector Battery
Power)
69 Mid-Bussed Electrical Center 1
70 Climate Control Blower
71 Power Liftgate Module
72 Left Bussed Electrical Center 2
Relays Usage
FAN HI Cooling Fan High Speed
FAN LO Cooling Fan Low Speed
FAN CNTRL Cooling Fan Control
HDLP LO/HID Hi Intensity Discharge Headlamp
FOG LAMP Front Fog Lamps
A/C CMPRSR Air Conditioning Compressor
STRTR Starter
PWR/TRN Powertrain
FUEL PMP Fuel Pump
PRK LAMP Parking Lamps
REAR DEFOG Rear Defogger
RUN/CRANK Switched Power
6-109

Locks
Delayed Locking........................................... 2-9
Door ........................................................... 2-9
Lockout Protection.......................................2-11
Power Door .................................................. 2-9
Programmable Automatic Door Locks.............2-10
Rear Door Security Locks.............................2-10
Loss of Control...............................................5-11
Lower Anchors and Tethers for Children.............1-41
Luggage Carrier..............................................2-66
Lumbar
Power Controls............................................. 1-4
M
Magnetic Ride Control....................................... 5-9
Maintenance Schedule
Additional Required Services........................... 7-6
At Each Fuel Fill........................................... 7-9
At Least Once a Month................................7-10
At Least Once a Year..................................7-10
Introduction.................................................. 7-2
Maintenance Footnotes.................................. 7-7
Maintenance Record....................................7-17
Maintenance Replacement Parts....................7-15
Maintenance Requirements............................. 7-2
Owner Checks and Services........................... 7-9Maintenance Schedule (cont.)
Recommended Fluids and Lubricants.............7-13
Scheduled Maintenance................................. 7-4
Using.......................................................... 7-3
Your Vehicle and the Environment................... 7-2
Malfunction Indicator Lamp...............................3-36
Maps ............................................................4-14
Memory Features............................................. 1-7
Message
DIC Warnings and Messages........................3-48
Midgate
®.......................................................2-11
Mirrors
Automatic Dimming Rearview........................2-47
Manual Rearview Mirror................................2-47
Outside Convex Mirror.................................2-49
Outside Heated Mirrors................................2-49
Outside Power Foldaway Mirrors....................2-47
Park Tilt.....................................................2-48
MyGMLink.com................................................ 8-4
N
Navigation.................................................4-2, 4-4
Using the System........................................4-11
Navigation System, Privacy..............................8-17
New Vehicle Break-In......................................2-31
8

O
Odometer......................................................3-29
Odometer, Trip...............................................3-29
Off-Road Driving.............................................5-12
Off-Road Recovery..........................................5-11
Oil
Engine.......................................................6-15
Pressure Light.............................................3-39
Oil, Engine Oil Life System..............................6-18
Older Children, Restraints................................1-32
Online Owner Center........................................ 8-4
OnStar, Privacy..............................................8-17
OnStar
®System, see OnStar®Manual...............2-56
Operation, Universal Home Remote System........2-60
Ordering
Map DVDs .................................................4-56
Outlet Adjustment............................................3-26
Outlets
Accessory Power.........................................3-20
Outside
Convex Mirror.............................................2-49
Heated Mirrors............................................2-49
Power Foldaway Mirrors...............................2-47
Overheated Engine Protection
Operating Mode..........................................6-33
Owner Checks and Services.............................. 7-9
Owners, Canadian.............................................. iii
P
Paint, Damage..............................................6-101
Park
Shifting Into................................................2-43
Shifting Out of............................................2-44
Park Aid................................................2-50, 2-52
Park Brake....................................................2-41
Park Tilt Mirrors..............................................2-48
Parking
Assist........................................................2-50
Over Things That Burn.................................2-45
Passenger Airbag Status Indicator.....................3-31
Passenger Sensing System..............................1-61
Passing.........................................................5-11
PASS-Key
®III+ Electronic Immobilizer...............2-29
PASS-Key®III+ Electronic Immobilizer
Operation...................................................2-29
Perchlorate Materials Requirements, California...... 6-4
Phone
Bluetooth
®..................................................3-66
Power
Door Locks.................................................. 2-9
Electrical System.......................................6-103
Lumbar Controls........................................... 1-4
Reclining Seatbacks...................................... 1-8
Retained Accessory.....................................2-32
Seat............................................................ 1-3
Steering Fluid.............................................6-33
Windows....................................................2-24
9
