TPMS reset CADILLAC ESCALADE HYBRID 2011 Owners Manual

Black plate (22,1)Cadillac Escalade Hybrid - 2011
10-22 Vehicle Care
Tire Rotation Tires should be rotated every
12 000 km (7,500 miles).
Any time you notice unusual
wear, rotate your tires as soon
as possible and check wheel
alignment. Also check for
damaged tires or wheels. See
“ When It Is Time for New Tires ”
and “ Wheel Replacement ” in the
owner manual for more
information.
The purpose of regular rotation
is to achieve more uniform wear
for all tires on the vehicle. The
first rotation is the most
important. See “ Scheduled
Maintenance ” in the owner

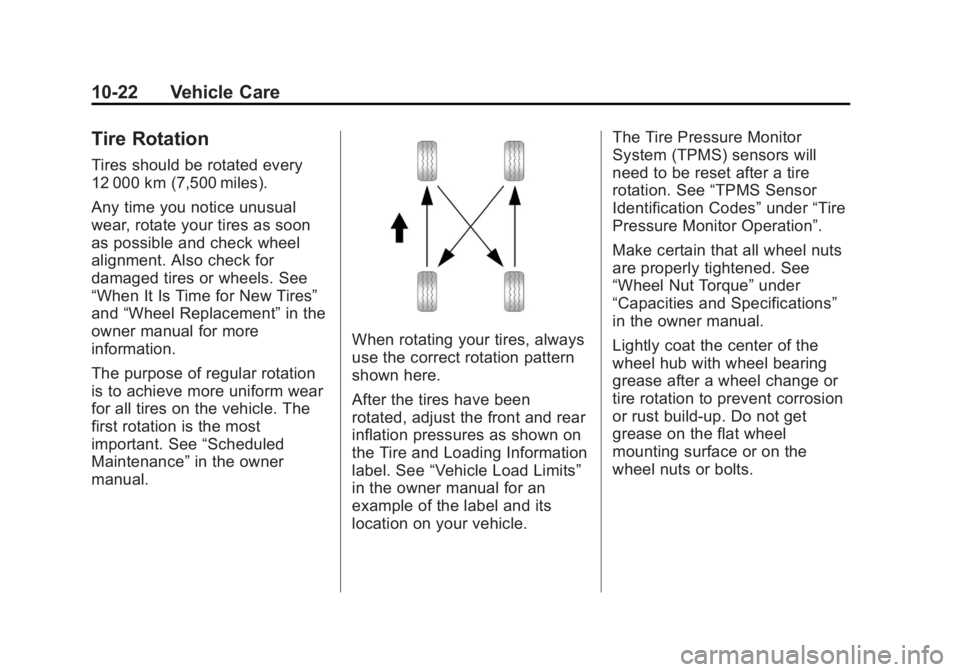

manual. When rotating your tires, always
use the correct rotation pattern
shown here.
After the tires have been
rotated, adjust the front and rear
inflation pressures as shown on
the Tire and Loading Information
label. See “ Vehicle Load Limits ”
in the owner manual for an
example of the label and its
location on your vehicle. The Tire Pressure Monitor
System (TPMS) sensors will
need to be reset after a tire
rotation. See “ TPMS Sensor
Identification Codes ” under “ Tire
Pressure Monitor Operation ” .
Make certain that all wheel nuts
are properly tightened. See
“ Wheel Nut Torque ” under
“ Capacities and Specifications ”
in the owner manual.
Lightly coat the center of the
wheel hub with wheel bearing
grease after a wheel change or
tire rotation to prevent corrosion
or rust build-up. Do not get
grease on the flat wheel
mounting surface or on the
wheel nuts or bolts.
