CADILLAC ESCALADE HYBRID 2011 Owners Manual
Manufacturer: CADILLAC, Model Year: 2011, Model line: ESCALADE HYBRID, Model: CADILLAC ESCALADE HYBRID 2011Pages: 94, PDF Size: 1.83 MB
Page 1 of 94
Black plate (1,1)Cadillac Escalade Hybrid - 2011
2011 Cadillac Escalade Hybrid MIn Brief . . . . . . . . . . . . . . . . . . . . . . . . 1-1
Initial Drive Information . . . . . . . . 1-1
Hybrid Features . . . . . . . . . . . . . . . 1-2
Performance and
Maintenance . . . . . . . . . . . . . . . . . 1-5
Seats and Restraints . . . . . . . . . 3-1
Airbag System . . . . . . . . . . . . . . . . . 3-1
Storage . . . . . . . . . . . . . . . . . . . . . . . 4-1
Storage Compartments . . . . . . . . 4-1
Instruments and Controls . . . . 5-1
Warning Lights, Gauges, and
Indicators . . . . . . . . . . . . . . . . . . . . 5-2
Information Displays . . . . . . . . . . . 5-5
Vehicle Messages . . . . . . . . . . . . . 5-5
Infotainment System . . . . . . . . . 7-1
Introduction . . . . . . . . . . . . . . . . . . . . 7-1
Climate Controls . . . . . . . . . . . . . 8-1
Climate Control Systems . . . . . . 8-1
Driving and Operating . . . . . . . . 9-1
Driving Information . . . . . . . . . . . . . 9-1
Starting and Operating . . . . . . . . . 9-2
Engine Exhaust . . . . . . . . . . . . . . . . 9-7
Automatic Transmission . . . . . . . 9-7 Drive Systems . . . . . . . . . . . . . . . . 9-11
Brakes . . . . . . . . . . . . . . . . . . . . . . . 9-16
Towing . . . . . . . . . . . . . . . . . . . . . . . 9-16
Vehicle Care . . . . . . . . . . . . . . . . . 10-1
Vehicle Checks . . . . . . . . . . . . . . . 10-2
Electrical System . . . . . . . . . . . . 10-15
Wheels and Tires . . . . . . . . . . . 10-17
Jump Starting . . . . . . . . . . . . . . . 10-31
Towing . . . . . . . . . . . . . . . . . . . . . . 10-36
Appearance Care . . . . . . . . . . . 10-40
Service and Maintenance . . . 11-1
Scheduled Maintenance . . . . . . 11-1
Recommended Fluids,
Lubricants, and Parts . . . . . . . 11-2
Technical Data . . . . . . . . . . . . . . . 12-1
Vehicle Data . . . . . . . . . . . . . . . . . . 12-2
Index . . . . . . . . . . . . . . . . . . . . . i-1
Page 2 of 94
Black plate (2,1)Cadillac Escalade Hybrid - 2011

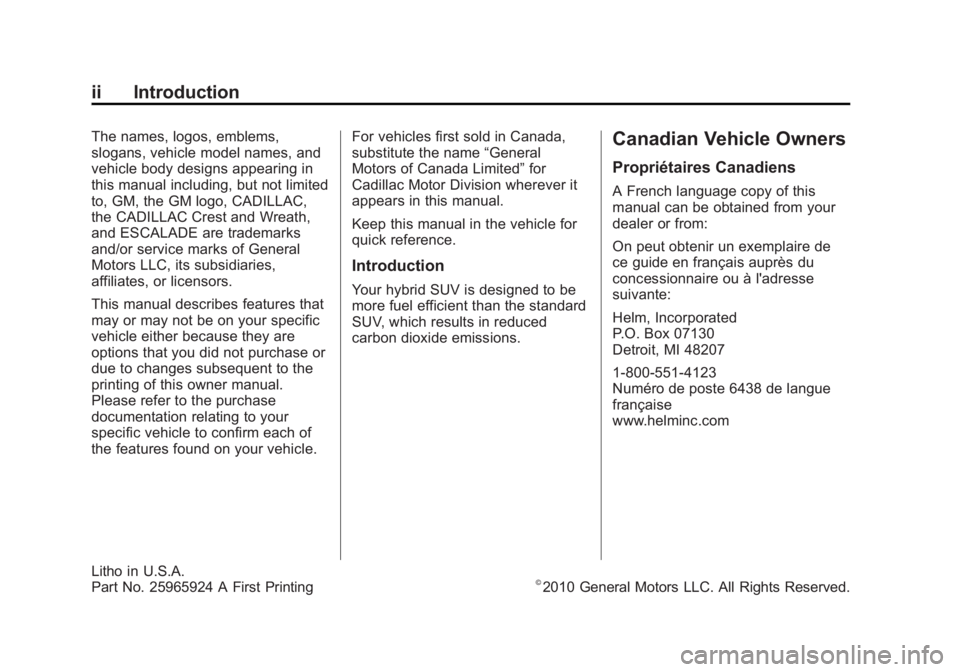

ii Introduction The names, logos, emblems,
slogans, vehicle model names, and
vehicle body designs appearing in
this manual including, but not limited
to, GM, the GM logo, CADILLAC,
the CADILLAC Crest and Wreath,
and ESCALADE are trademarks
and/or service marks of General
Motors LLC, its subsidiaries,
affiliates, or licensors.
This manual describes features that
may or may not be on your specific
vehicle either because they are
options that you did not purchase or
due to changes subsequent to the
printing of this owner manual.
Please refer to the purchase
documentation relating to your
specific vehicle to confirm each of
the features found on your vehicle. For vehicles first sold in Canada,
substitute the name “ General
Motors of Canada Limited ” for
Cadillac Motor Division wherever it
appears in this manual.
Keep this manual in the vehicle for
quick reference.
Introduction Your hybrid SUV is designed to be
more fuel efficient than the standard
SUV, which results in reduced
carbon dioxide emissions. Canadian Vehicle Owners Propriétaires Canadiens A French language copy of this
manual can be obtained from your
dealer or from:
On peut obtenir un exemplaire de
ce guide en français auprès du
concessionnaire ou à l'adresse
suivante:
Helm, Incorporated
P.O. Box 07130
Detroit, MI 48207
1-800-551-4123
Numéro de poste 6438 de langue
française
www.helminc.com
Litho in U.S.A.
Part No. 25965924 A First Printing ©
2010 General Motors LLC. All Rights Reserved.
Page 3 of 94
Black plate (3,1)Cadillac Escalade Hybrid - 2011
Introduction iii

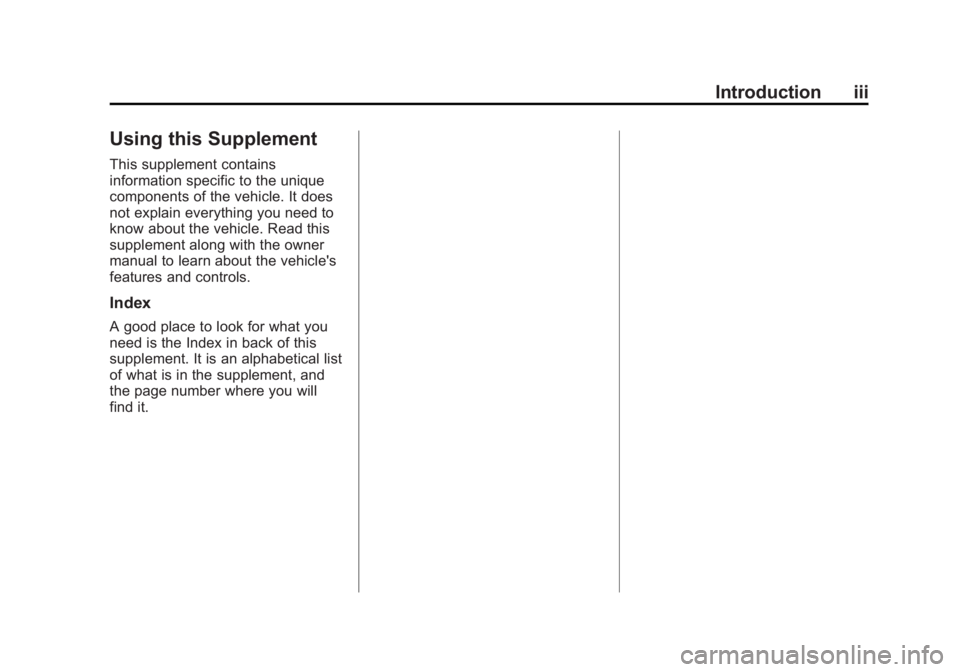

Using this Supplement This supplement contains
information specific to the unique
components of the vehicle. It does
not explain everything you need to
know about the vehicle. Read this
supplement along with the owner
manual to learn about the vehicle's
features and controls.
Index A good place to look for what you
need is the Index in back of this
supplement. It is an alphabetical list
of what is in the supplement, and
the page number where you will
find it.
Page 4 of 94
Black plate (4,1)Cadillac Escalade Hybrid - 2011
iv Introduction
2 NOTES
Page 5 of 94
Black plate (1,1)Cadillac Escalade Hybrid - 2011

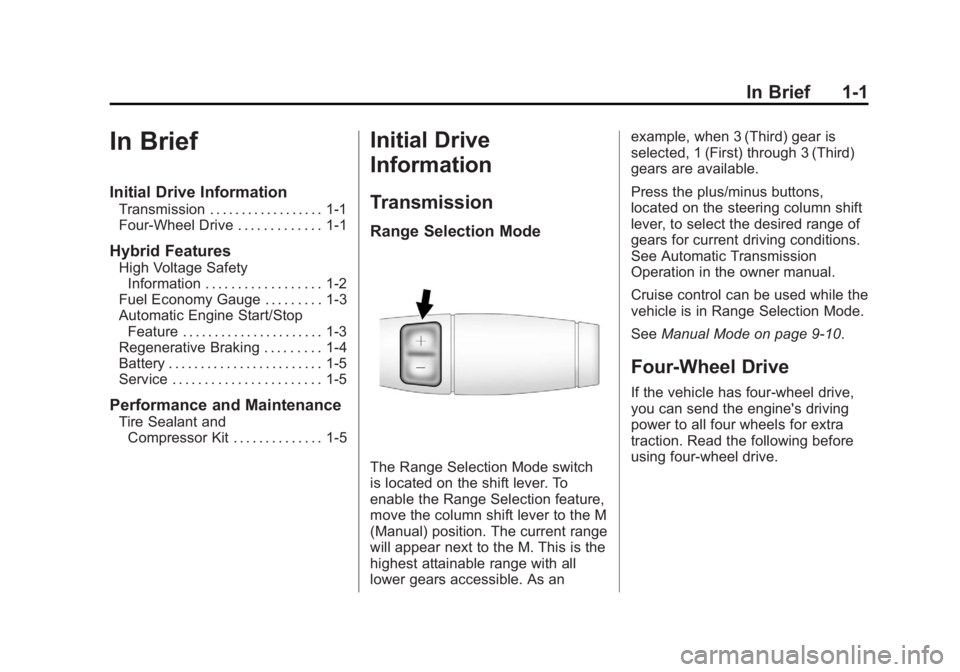

In Brief 1-1
In Brief Initial Drive Information Transmission . . . . . . . . . . . . . . . . . . 1-1
Four-Wheel Drive . . . . . . . . . . . . . 1-1
Hybrid Features High Voltage Safety
Information . . . . . . . . . . . . . . . . . . 1-2
Fuel Economy Gauge . . . . . . . . . 1-3
Automatic Engine Start/Stop
Feature . . . . . . . . . . . . . . . . . . . . . . 1-3
Regenerative Braking . . . . . . . . . 1-4
Battery . . . . . . . . . . . . . . . . . . . . . . . . 1-5
Service . . . . . . . . . . . . . . . . . . . . . . . 1-5
Performance and Maintenance Tire Sealant and
Compressor Kit . . . . . . . . . . . . . . 1-5 Initial Drive
Information Transmission Range Selection Mode
The Range Selection Mode switch
is located on the shift lever. To
enable the Range Selection feature,
move the column shift lever to the M
(Manual) position. The current range
will appear next to the M. This is the
highest attainable range with all
lower gears accessible. As an example, when 3 (Third) gear is
selected, 1 (First) through 3 (Third)
gears are available.
Press the plus/minus buttons,
located on the steering column shift
lever, to select the desired range of
gears for current driving conditions.
See Automatic Transmission
Operation in the owner manual.
Cruise control can be used while the
vehicle is in Range Selection Mode.
See Manual Mode on page 9 ‑ 10 .
Four-Wheel Drive If the vehicle has four-wheel drive,
you can send the engine's driving
power to all four wheels for extra
traction. Read the following before
using four-wheel drive.
Page 6 of 94
Black plate (2,1)Cadillac Escalade Hybrid - 2011

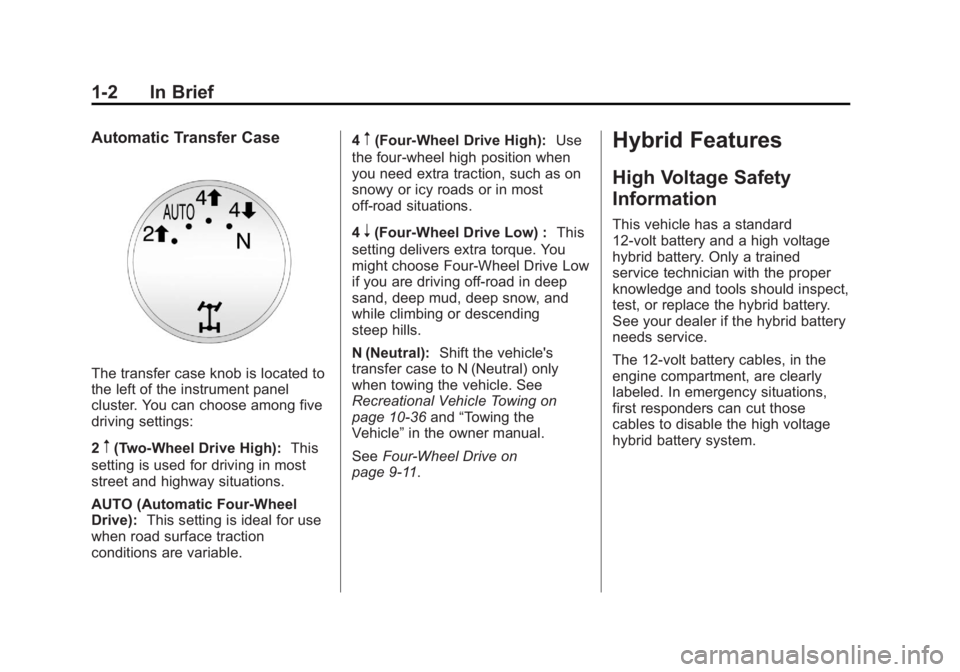

1-2 In Brief Automatic Transfer Case
The transfer case knob is located to
the left of the instrument panel
cluster. You can choose among five
driving settings:
2
m (Two-Wheel Drive High): This
setting is used for driving in most
street and highway situations.
AUTO (Automatic Four-Wheel
Drive): This setting is ideal for use
when road surface traction
conditions are variable. 4
m (Four-Wheel Drive High): Use
the four-wheel high position when
you need extra traction, such as on
snowy or icy roads or in most
off-road situations.
4
n (Four-Wheel Drive Low) : This
setting delivers extra torque. You
might choose Four-Wheel Drive Low
if you are driving off-road in deep
sand, deep mud, deep snow, and
while climbing or descending
steep hills.
N (Neutral): Shift the vehicle's
transfer case to N (Neutral) only
when towing the vehicle. See
Recreational Vehicle Towing on
page 10 ‑ 36 and “ Towing the
Vehicle ” in the owner manual.
See Four-Wheel Drive on
page 9 ‑ 11 .Hybrid Features High Voltage Safety
Information This vehicle has a standard
12-volt battery and a high voltage
hybrid battery. Only a trained
service technician with the proper
knowledge and tools should inspect,
test, or replace the hybrid battery.
See your dealer if the hybrid battery
needs service.
The 12-volt battery cables, in the
engine compartment, are clearly
labeled. In emergency situations,
first responders can cut those
cables to disable the high voltage
hybrid battery system.
Page 7 of 94
Black plate (3,1)Cadillac Escalade Hybrid - 2011
In Brief 1-3

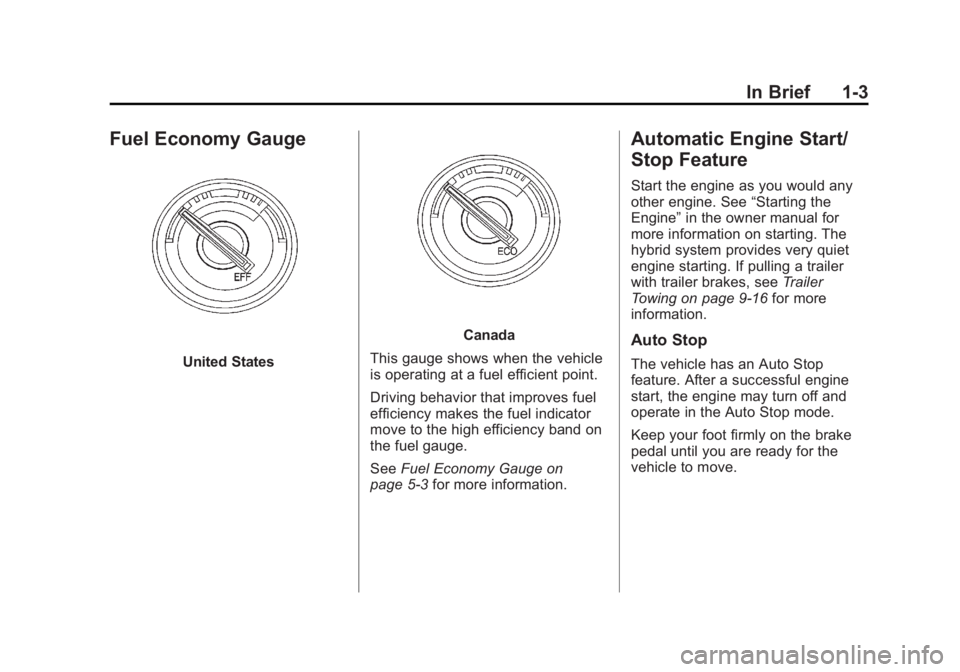

Fuel Economy Gauge
United States Canada
This gauge shows when the vehicle
is operating at a fuel efficient point.
Driving behavior that improves fuel
efficiency makes the fuel indicator
move to the high efficiency band on
the fuel gauge.
See Fuel Economy Gauge on
page 5 ‑ 3 for more information. Automatic Engine Start/
Stop Feature Start the engine as you would any
other engine. See “ Starting the
Engine ” in the owner manual for
more information on starting. The
hybrid system provides very quiet
engine starting. If pulling a trailer
with trailer brakes, see Trailer
Towing on page 9 ‑ 16 for more
information.
Auto Stop The vehicle has an Auto Stop
feature. After a successful engine
start, the engine may turn off and
operate in the Auto Stop mode.
Keep your foot firmly on the brake
pedal until you are ready for the
vehicle to move.
Page 8 of 94
Black plate (4,1)Cadillac Escalade Hybrid - 2011

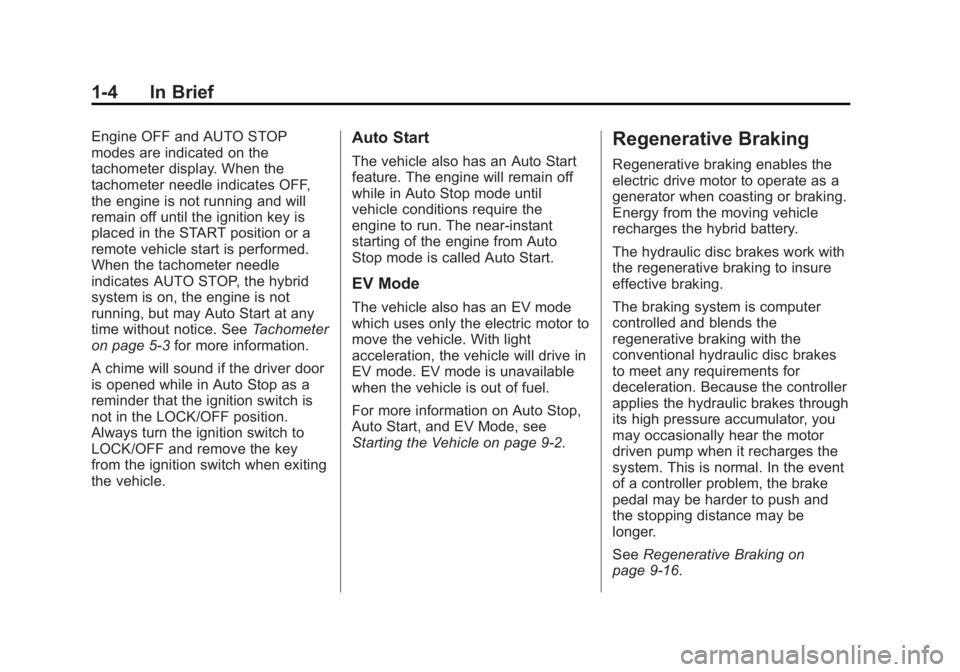

1-4 In Brief Engine OFF and AUTO STOP
modes are indicated on the
tachometer display. When the
tachometer needle indicates OFF,
the engine is not running and will
remain off until the ignition key is
placed in the START position or a
remote vehicle start is performed.
When the tachometer needle
indicates AUTO STOP, the hybrid
system is on, the engine is not
running, but may Auto Start at any
time without notice. See Tachometer
on page 5 ‑ 3 for more information.
A chime will sound if the driver door
is opened while in Auto Stop as a
reminder that the ignition switch is
not in the LOCK/OFF position.
Always turn the ignition switch to
LOCK/OFF and remove the key
from the ignition switch when exiting
the vehicle. Auto Start The vehicle also has an Auto Start
feature. The engine will remain off
while in Auto Stop mode until
vehicle conditions require the
engine to run. The near-instant
starting of the engine from Auto
Stop mode is called Auto Start.
EV Mode The vehicle also has an EV mode
which uses only the electric motor to
move the vehicle. With light
acceleration, the vehicle will drive in
EV mode. EV mode is unavailable
when the vehicle is out of fuel.
For more information on Auto Stop,
Auto Start, and EV Mode, see
Starting the Vehicle on page 9 ‑ 2 .Regenerative Braking Regenerative braking enables the
electric drive motor to operate as a
generator when coasting or braking.
Energy from the moving vehicle
recharges the hybrid battery.
The hydraulic disc brakes work with
the regenerative braking to insure
effective braking.
The braking system is computer
controlled and blends the
regenerative braking with the
conventional hydraulic disc brakes
to meet any requirements for
deceleration. Because the controller
applies the hydraulic brakes through
its high pressure accumulator, you
may occasionally hear the motor
driven pump when it recharges the
system. This is normal. In the event
of a controller problem, the brake
pedal may be harder to push and
the stopping distance may be
longer.
See Regenerative Braking on
page 9 ‑ 16 .
Page 9 of 94
Black plate (5,1)Cadillac Escalade Hybrid - 2011
In Brief 1-5

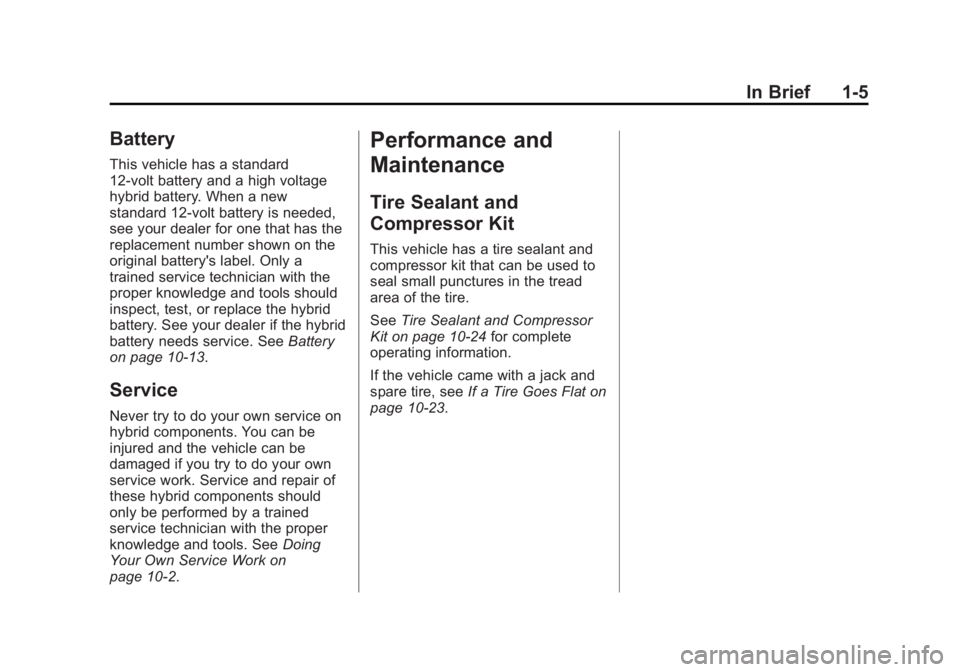

Battery This vehicle has a standard
12-volt battery and a high voltage
hybrid battery. When a new
standard 12-volt battery is needed,
see your dealer for one that has the
replacement number shown on the
original battery's label. Only a
trained service technician with the
proper knowledge and tools should
inspect, test, or replace the hybrid
battery. See your dealer if the hybrid
battery needs service. See Battery
on page 10 ‑ 13 .
Service Never try to do your own service on
hybrid components. You can be
injured and the vehicle can be
damaged if you try to do your own
service work. Service and repair of
these hybrid components should
only be performed by a trained
service technician with the proper
knowledge and tools. See Doing
Your Own Service Work on
page 10 ‑ 2 . Performance and
Maintenance Tire Sealant and
Compressor Kit This vehicle has a tire sealant and
compressor kit that can be used to
seal small punctures in the tread
area of the tire.
See Tire Sealant and Compressor
Kit on page 10 ‑ 24 for complete
operating information.
If the vehicle came with a jack and
spare tire, see If a Tire Goes Flat on
page 10 ‑ 23 .
Page 10 of 94
Black plate (6,1)Cadillac Escalade Hybrid - 2011
1-6 In Brief
2 NOTES
