Black plate (5,1)Cadillac Escalade Hybrid - 2011
Instruments and Controls 5-5
Information Displays Driver Information
Center (DIC) Trip/Fuel Menu Items Press the trip/fuel button to display
the Trip/Fuel Menu items. For more
items see “ Driver Information Center
(DIC) ” in the owner manual.
Instantaneous Fuel Economy (IFE)
This display normally shows
instantaneous fuel economy. When
the vehicle is in Auto Stop mode
AUTO STOP or IFE = 0 L/100km or
IFE = 99 MPG will be displayed.
See Starting the Vehicle on
page 9 ‑ 2 for more information. Vehicle Information Menu
Items Press the vehicle information button
to display the Vehicle Information
Menu items. For more items see
“ Driver Information Center (DIC) ” in
the owner manual.
Coolant Temperature
Press the vehicle information button
until COOLANT TEMP displays.
This display shows the temperature
of the engine coolant in either
degrees Celsius (°C) or degrees
Fahrenheit (°F). Vehicle Messages Messages displayed on the DIC
indicate the status of the vehicle or
some action may be needed to
correct a condition. Multiple
messages may appear one after
another.
The messages that do not require
immediate action can be
acknowledged and cleared by
pressing
V (Set/Reset) or the trip
odometer reset stem.
The messages that require
immediate action cannot be cleared
until that action is performed.
All messages should be taken
seriously. Clearing the message
does not correct the problem.
The following are the possible
messages for the Hybrid and some
information about them. For
information on other DIC messages,
see “ Vehicle Messages ” in the
owner manual.

Black plate (1,1)Cadillac Escalade Hybrid - 2011
Driving and Operating 9-1
Driving and
Operating Driving Information Steering . . . . . . . . . . . . . . . . . . . . . . . 9-1
Starting and Operating Starting the Vehicle . . . . . . . . . . . 9-2
Engine Coolant Heater . . . . . . . . 9-4
Shifting Into Park . . . . . . . . . . . . . 9-5
Engine Exhaust Running the Vehicle While
Parked . . . . . . . . . . . . . . . . . . . . . . 9-7 Automatic Transmission Automatic Transmission . . . . . . . 9-7
Manual Mode . . . . . . . . . . . . . . . . 9-10
Drive Systems Four-Wheel Drive . . . . . . . . . . . . 9-11
Brakes Regenerative Braking . . . . . . . . 9-16
Towing Trailer Towing . . . . . . . . . . . . . . . . 9-16
Towing Equipment . . . . . . . . . . . 9-17
Driving Information Steering This vehicle has On-Demand
Electric-Assist Power Steering
instead of conventional full-time
hydraulic power steering. It uses
electricity supplied by the same
battery which is re-charged by the
regenerative braking system.
Because the system is On-Demand
Electric-Assist, energy is used only
when the steering wheel is turned,
or when the steering gear is used to
help isolate the forces of rough
roads. This system does not use
power steering fluid, making it
maintenance-free.

Black plate (4,1)Cadillac Escalade Hybrid - 2011
9-4 Driving and Operating
Engine Coolant Heater The engine coolant heater can
provide easier starting and better
fuel economy during engine
warm-up in cold weather conditions
at or below − 18°C (0°F). Vehicles
with an engine heater should be
plugged in at least four hours before
starting. An internal thermostat in
the plug-end of the cord may exist
which will prevent engine coolant
heater operation at temperatures
above − 18°C (0°F).
Using the Engine Coolant
Heater 1. Turn off the engine.
2. Open the hood and unwrap the
electrical cord. The cord is
secured to a wiring harness
between the engine and the
Hybrid Auxiliary Underhood
Fuse Block with a clip. Carefully
remove the wire tie which
secures the electrical cord. Do
not cut the electrical cord. 3. Plug the cord into a normal,
grounded 110-volt AC outlet.
{ WARNINGPlugging the cord into an
ungrounded outlet could cause an
electrical shock. Also, the wrong
kind of extension cord could
overheat and cause a fire. You
could be seriously injured. Plug
the cord into a properly grounded
three-prong 110-volt AC outlet.
If the cord will not reach, use a
heavy-duty three-prong extension
cord rated for at least 15 amps. 4. Before starting the engine, be
sure to unplug and store the
cord as it was before to keep it
away from moving engine parts.
If you do not, it could be
damaged.
The length of time the heater should
remain plugged in depends on
several factors. Ask a dealer in the
area where you will be parking the
vehicle for the best advice on this.

Black plate (1,1)Cadillac Escalade Hybrid - 2011
Vehicle Care 10-1
Vehicle Care Vehicle Checks Doing Your Own
Service Work . . . . . . . . . . . . . . . 10-2
Engine Compartment
Overview . . . . . . . . . . . . . . . . . . . 10-4
Automatic Transmission
Fluid . . . . . . . . . . . . . . . . . . . . . . . 10-6
Drive Motor/Generator Control
Module (DMCM) Coolant
Surge Tank
Pressure Cap . . . . . . . . . . . . . . 10-9
Drive Motor/Generator Control
Module (DMCM) Cooling
System . . . . . . . . . . . . . . . . . . . . . 10-9
Power Steering Fluid . . . . . . . 10-13
Battery . . . . . . . . . . . . . . . . . . . . . 10-13
Four-Wheel Drive . . . . . . . . . . . 10-14
Electrical System High Voltage Devices and
Wiring . . . . . . . . . . . . . . . . . . . . . 10-15
Fuses and Circuit
Breakers . . . . . . . . . . . . . . . . . . 10-15
Engine Compartment Fuse
Block . . . . . . . . . . . . . . . . . . . . . 10-15 Wheels and Tires Tire Pressure . . . . . . . . . . . . . . . 10-17
Tire Pressure Monitor
Operation . . . . . . . . . . . . . . . . . 10-18
Tire Rotation . . . . . . . . . . . . . . . 10-22
If a Tire Goes Flat . . . . . . . . . . 10-23
Tire Sealant and
Compressor Kit . . . . . . . . . . . 10-24
Storing the Tire Sealant and
Compressor Kit . . . . . . . . . . . 10-31
Jump Starting Jump Starting . . . . . . . . . . . . . . 10-31
Towing Recreational Vehicle
Towing . . . . . . . . . . . . . . . . . . . . 10-36
Appearance Care Exterior Care . . . . . . . . . . . . . . . 10-40

Black plate (5,1)Cadillac Escalade Hybrid - 2011
Vehicle Care 10-5A. See “ Engine Air Cleaner/Filter ”
in the owner manual.
B. Drive Motor/Generator Control
Module (DMCM). See Drive
Motor/Generator Control
Module (DMCM) Cooling
System on page 10 ‑ 9 .
C. Engine Oil Dipstick (Out of
View). See “ Engine Oil ” in the
owner manual.
D. Automatic Transmission Fluid
Dipstick. See Automatic
Transmission Fluid on
page 10 ‑ 6 . E. Brake Fluid Reservoir. See
“ Brakes ” in the owner manual.
F. See “ Engine Compartment Fuse
Block ” in the owner manual.
G. Windshield Washer Fluid
Reservoir. See “ Washer Fluid ”
in the owner manual.
H. Hybrid Auxiliary Fuse Block
(Out of View). See Engine
Compartment Fuse Block on
page 10 ‑ 15 . I. DMCM Coolant Surge Tank
Pressure Cap. See Drive Motor/
Generator Control Module
(DMCM) Coolant Surge Tank
Pressure Cap on page 10 ‑ 9 .
J. Coolant Surge Tank Pressure
Cap. See “ Engine Coolant ” in
the owner manual.
K. Engine Oil Fill Cap (Out of
View). See “ Engine Oil ” in the
owner manual.

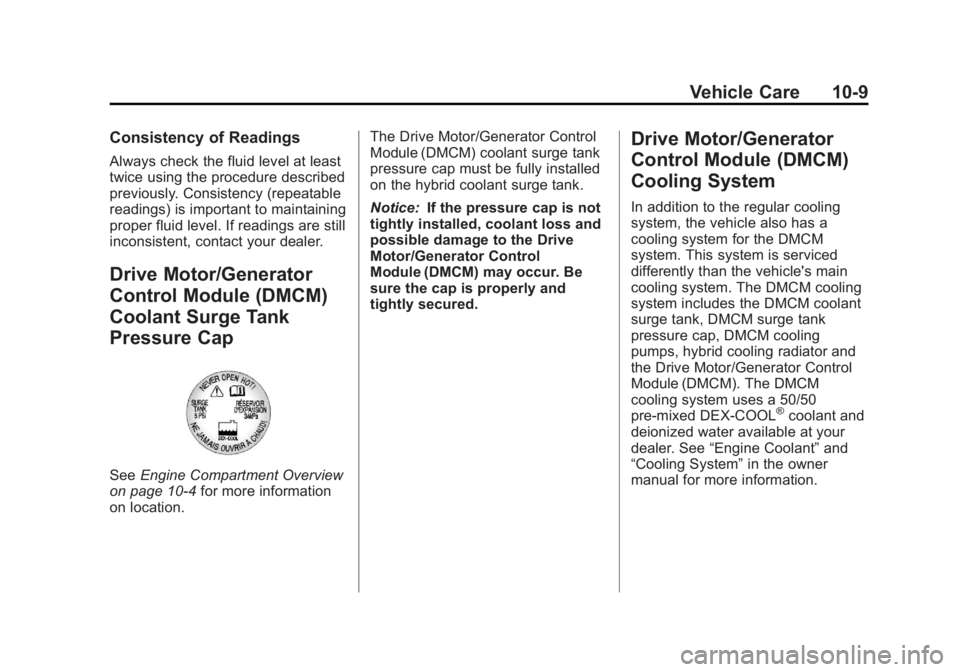

Black plate (9,1)Cadillac Escalade Hybrid - 2011
Vehicle Care 10-9Consistency of Readings Always check the fluid level at least
twice using the procedure described
previously. Consistency (repeatable
readings) is important to maintaining
proper fluid level. If readings are still
inconsistent, contact your dealer.
Drive Motor/Generator
Control Module (DMCM)
Coolant Surge Tank
Pressure Cap
See Engine Compartment Overview
on page 10 ‑ 4 for more information
on location. The Drive Motor/Generator Control
Module (DMCM) coolant surge tank
pressure cap must be fully installed
on the hybrid coolant surge tank.
Notice: If the pressure cap is not
tightly installed, coolant loss and
possible damage to the Drive
Motor/Generator Control
Module (DMCM) may occur. Be
sure the cap is properly and
tightly secured. Drive Motor/Generator
Control Module (DMCM)
Cooling System In addition to the regular cooling
system, the vehicle also has a
cooling system for the DMCM
system. This system is serviced
differently than the vehicle's main
cooling system. The DMCM cooling
system includes the DMCM coolant
surge tank, DMCM surge tank
pressure cap, DMCM cooling
pumps, hybrid cooling radiator and
the Drive Motor/Generator Control
Module (DMCM). The DMCM
cooling system uses a 50/50
pre-mixed DEX-COOL ®
coolant and
deionized water available at your
dealer. See “ Engine Coolant ” and
“ Cooling System ” in the owner
manual for more information.

Black plate (10,1)Cadillac Escalade Hybrid - 2011
10-10 Vehicle Care
When it is safe to lift the hood:
A. Drive Motor/Generator Control
Module (DMCM)
B. Engine Coolant Surge Tank
Pressure Cap
C. DMCM Coolant Surge Tank/
Engine Coolant Surge Tank
D. DMCM Cooling Hoses (Out
of View)
E. DMCM Coolant Tank
Pressure Cap If the coolant inside the DMCM
coolant surge tank is boiling, do not
do anything else until it cools down.
The coolant level should be at or
above the FULL COLD mark with
the vehicle parked on a level
surface. If it is not, there might be a
leak at the DMCM cooler core,
DMCM pressure cap, DMCM cooler hoses, DMCM cooling pump or
somewhere else in the DMCM
cooling system.
Notice: Running the engine when
there is a leak in the hybrid
cooling system can cause the
hybrid cooling system to lose all
coolant and can damage the
system. Get any leak fixed before
you drive the vehicle or run the
engine.

Black plate (11,1)Cadillac Escalade Hybrid - 2011
Vehicle Care 10-11How to Add Coolant to the
DMCM Coolant Surge Tank
If no problem has been found yet,
check to see if coolant is visible in
the DMCM coolant surge tank.
If coolant is visible, add pre ‐ mixed
DEX-COOL coolant, available at
your dealer, at the DMCM coolant
surge tank, but be sure the DMCM
cooling system, including the DMCM
coolant surge tank pressure cap, is
cool before you do it. Use the
procedure following. { WARNINGSteam and scalding liquids from a
hot cooling system can blow out
and burn you badly. They are
under pressure, and if you turn
the coolant surge tank pressure
cap — even a little — they can
come out at high speed. Never
turn the cap when the cooling
system, including the coolant
surge tank pressure cap, is hot.
Wait for the cooling system and
coolant surge tank pressure cap
to cool if you ever have to turn
the pressure cap.
Notice: Using coolant other than
a pre ‐ mixed DEX-COOL, available
at your dealer, may damage your
vehicle. Any repairs would not be
covered by your warranty. Always
use a pre ‐ mixed DEX-COOL
(silicate-free) coolant in your
vehicle. { WARNINGYou can be burned if you spill
coolant on hot engine parts.
Coolant contains ethylene glycol
and it will burn if the engine parts
are hot enough. Do not spill
coolant on a hot engine.
If the DMCM coolant is empty , the
vehicle must be serviced by your
dealer and a special fill procedure
must be followed.
Notice: Attempting to fill the
DMCM cooling surge tank
yourself when the fluid level is
empty can damage your vehicle.
Your vehicle must be serviced.

Black plate (12,1)Cadillac Escalade Hybrid - 2011
10-12 Vehicle Care
1. Park the vehicle on a level
surface and turn the vehicle off.
Remove the DMCM coolant
surge tank pressure cap when
the DMCM cooling system,
including the DMCM coolant
surge tank pressure cap and
DMCM cooling hoses, are no
longer hot. Turn the DMCM
coolant surge tank pressure cap
slowly counterclockwise (left)
about one full turn. Wait
30 seconds. 2. Then keep turning the DMCM
coolant surge tank pressure cap
slowly, and remove it.
3. Add the pre ‐ mixed DEX ‐ COOL,
available at your dealer, to the
DMCM coolant surge tank until
the level reaches the FULL
COLD mark. 4. Turn the ignition to ON/RUN
without starting the engine. The
hybrid cooling pumps will run
and any trapped air will purge to
the surge tank.
5. Add the pre ‐ mixed DEX ‐ COOL,
available at your dealer, until the
coolant level is maintained at the
FULL COLD mark. This should
take no longer than two minutes
of hybrid cooling pump
operation.
If the level cannot be kept at the
FULL COLD level, the vehicle
may need service. See your
dealer.

Black plate (13,1)Cadillac Escalade Hybrid - 2011
Vehicle Care 10-13
6. Then replace the DMCM coolant
surge tank pressure cap. Be
sure the pressure cap is
hand-tight and fully seated.
Notice: Using tap water, cooling
system sealers or conditioners in
an attempt to stop coolant leaks
can damage the DMCM and
engine cooling systems. Never
use tap water, cooling system
sealers or conditioners in your
cooling system.
Power Steering Fluid The vehicle has electric power
steering and does not use power
steering fluid. Battery This vehicle has a standard 12 ‐ volt
battery and a high voltage hybrid
battery.
Refer to the replacement number on
the original battery label when a
new standard 12 ‐ volt battery is
needed.
Only a trained service technician
with the proper knowledge and tools
should inspect, test, or replace the
hybrid battery. See your dealer if the
hybrid battery needs service. The
dealer has information on how to
recycle the hybrid battery . There is
also information available at
http://www.recyclemybattery.com. If an airbag inflates or the vehicle
has been in a crash, the vehicle's
sensing system might command the
automatic hybrid battery disconnect
to open. See Replacing Airbag
System Parts After a Crash on
page 3 ‑ 1 for more information.
{ DANGERBattery posts, terminals, and
related accessories contain lead
and lead compounds, chemicals
known to the State of California to
cause cancer and reproductive
harm. Wash hands after handling.
