Page 90 of 306

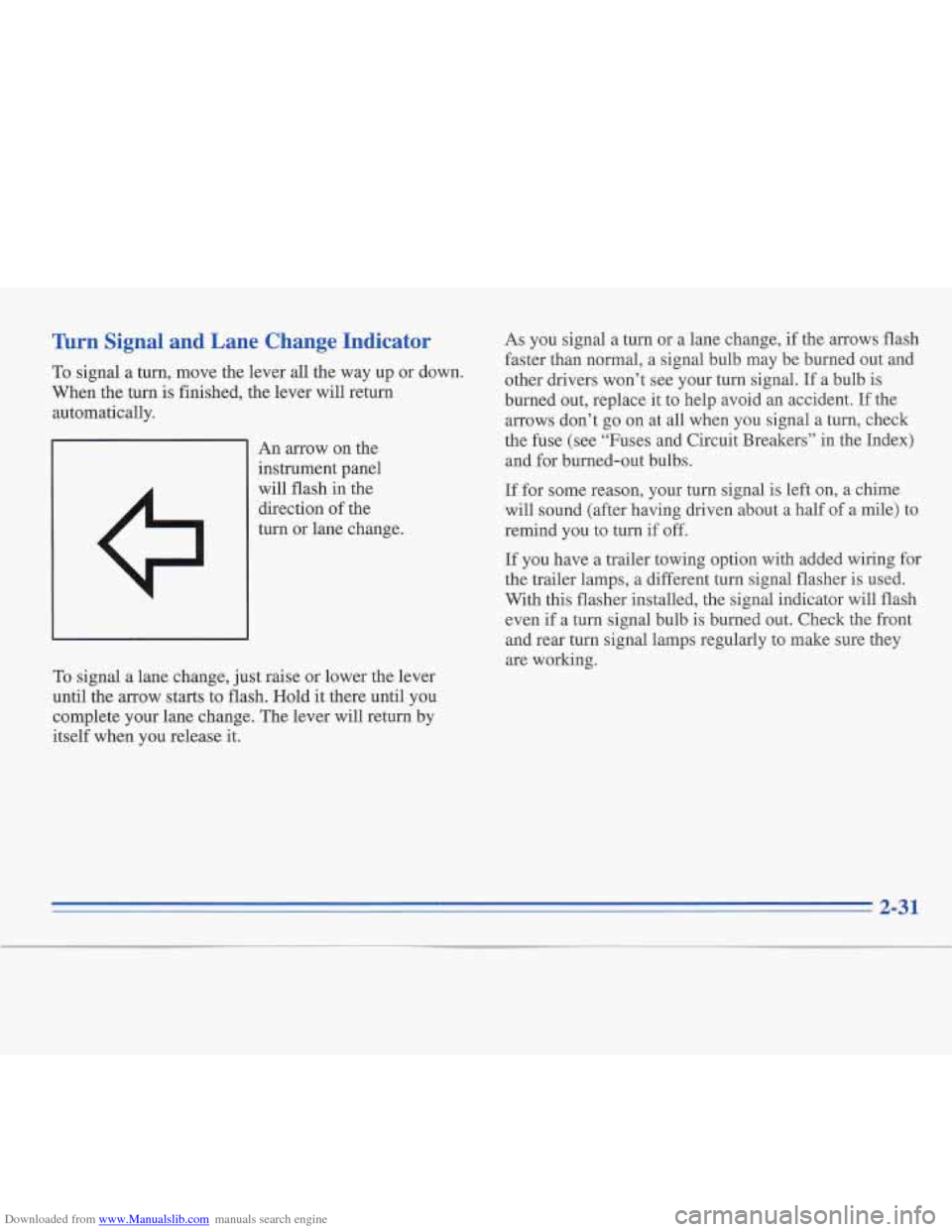

Downloaded from www.Manualslib.com manuals search engine lhrr Signal and Lane Change Indicator
To signal a turn, move the lever all the way up or down.
When the turn is finished, the lever will return
automatically.
An arrow on the
instrument panel
will flash in the
direction of the
turn or lane change.
To signal a lane change, just raise or lower the lever
until the arrow starts to flash. Hold it there until you
complete your lane change. The lever will return by
itself when you release it. As you
signal a turn or a lane change, if the arrows flash
faster than normal, a signal bulb may be burned out and
other drivers won’t see your turn signal.
If a bulb is
burned out, replace it to help avoid an accident. If the
arrows don’t go on at all when you signal a turn, check
the fuse (see “Fuses and Circuit Breakers”
in the Index)
and for burned-out bulbs.
If for some reason, your turn signal
is left on, a chime
will sound (after having driven about
a half of a mile) to
remind you to turn if off.
If you have a trailer towing option with added wiring for
the trailer lamps, a different turn signal flasher
is used.
With this flasher installed, the signal indicator will flash
even if a turn signal bulb is burned out. Check the front
and rear turn signal lamps regularly to make sure they
are working.
2-31
Page 118 of 306

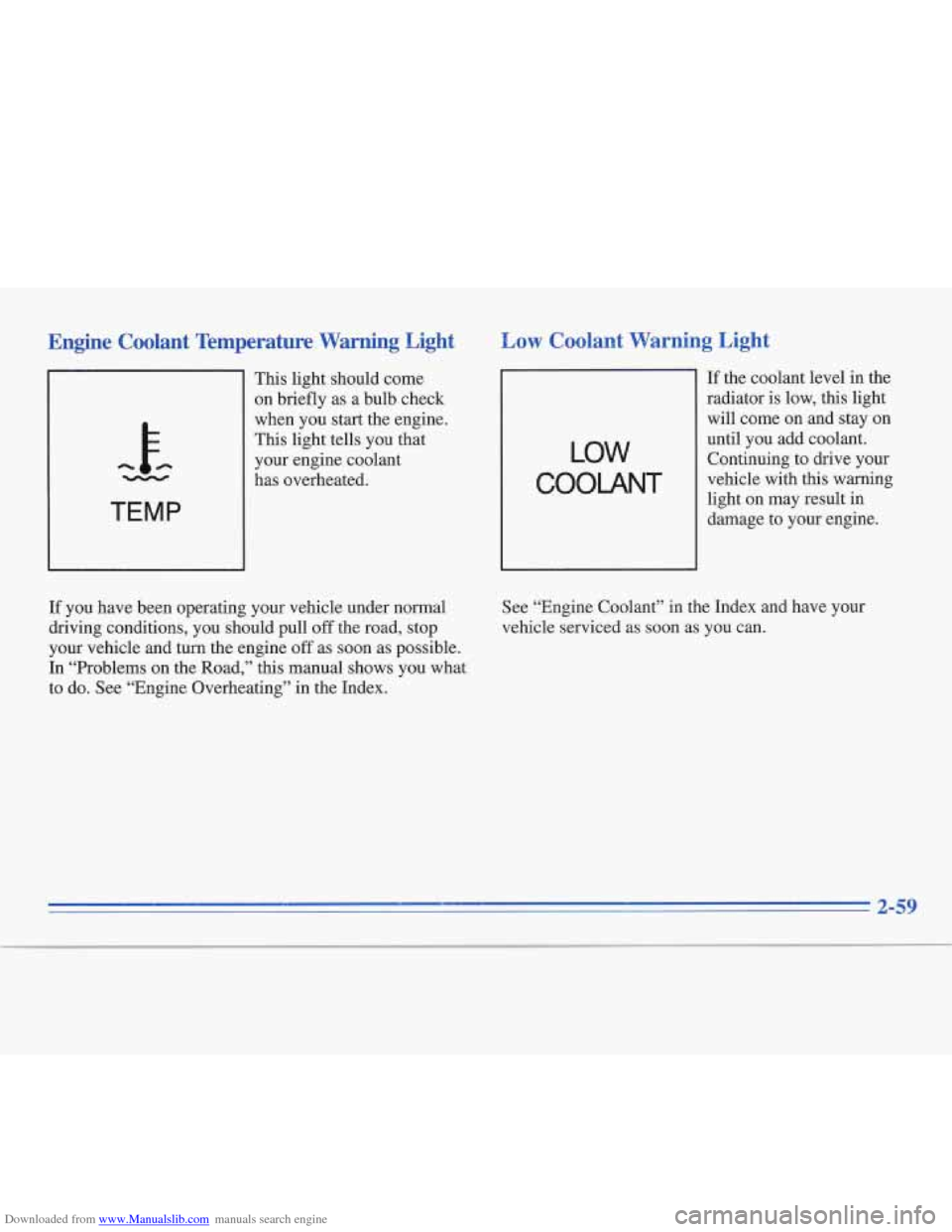

Downloaded from www.Manualslib.com manuals search engine Engine Coolant Temperature Warning Light
h k -
TEMP
This light should come
on briefly as a bulb check
when you start the engine.
This light tells you that
your engine coolant
has overheated.
Low Coolant Warning Light
LOW
COOLANT
If the coolant level in the
radiator is low, this light
will come on and stay on
until you add coolant.
Continuing
to drive your
vehicle with this warning
light on may result in
damage to your engine.
If you have been operating your vehicle under normal
driving conditions, you should pull
off the road, stop
your vehicle and turn the engine
off as soon as possible.
In “Problems on the Road,” this manual shows you what
to do.
See “Engine Overheating” in the Index. See
“Engine Coolant” in the Index and have your
vehicle serviced as
soon as you can.
2-59
Page 122 of 306

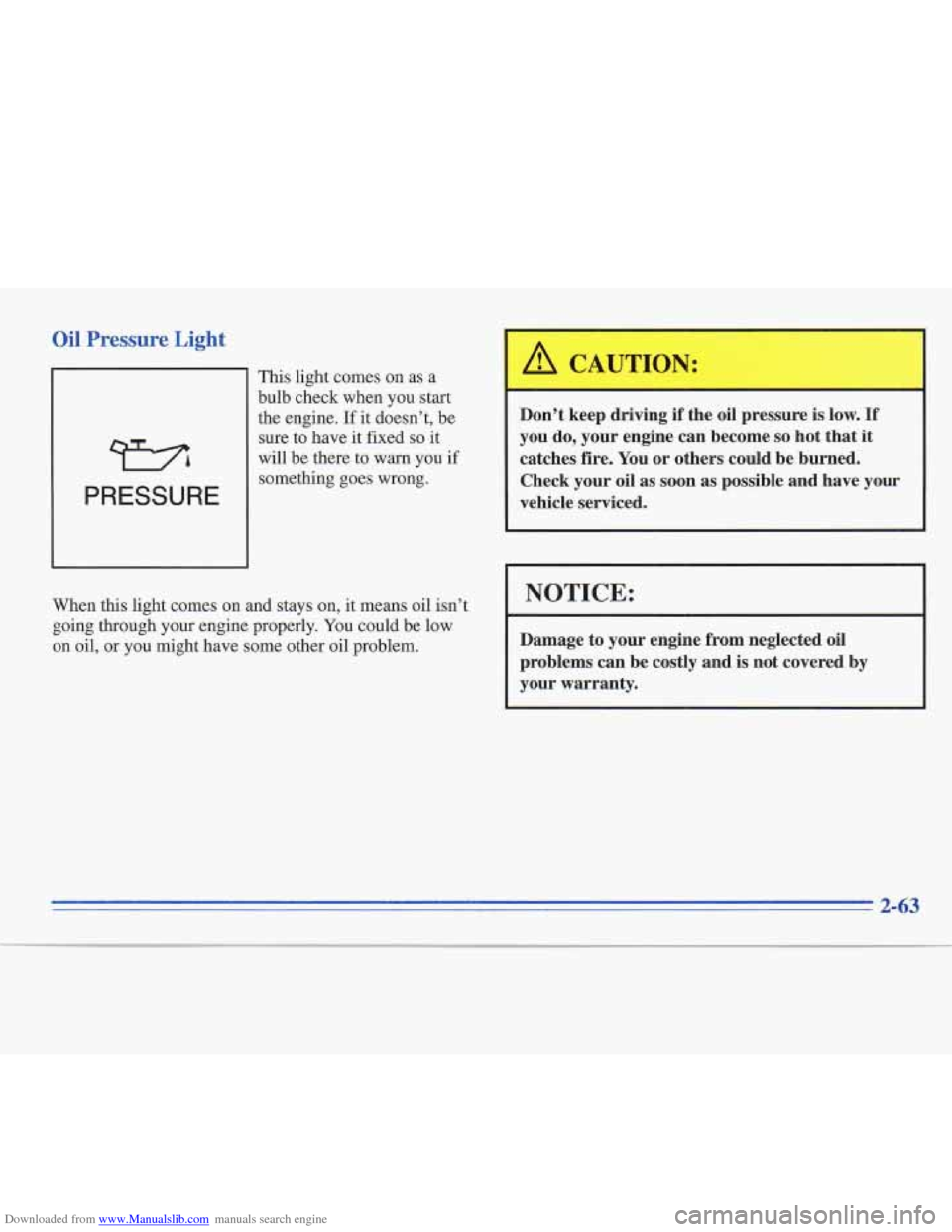

Downloaded from www.Manualslib.com manuals search engine Oil Pressure Light
WA
PRESSURE
This light comes on as a
bulb check when you start
the engine. If
it doesn’t, be
sure to have it fixed
so it
will be there
to warn you if
something goes wrong.
When
this light comes on and stays on, it means oil isn’t
going through your engine properly. You could be low
on oil, or
you might have some other oil problem.
Don’t keep driving if the oil pressure is low. If
you do, your engine can become so hot that it
catches fire. You or others could be burned.
Check your oil as
soon as possible and have your
vehicle serviced.
I NOTICE:
Damage to your engine from neglected oil
problems can be costly and
is not covered by
your warranty.
2-63
Page 123 of 306

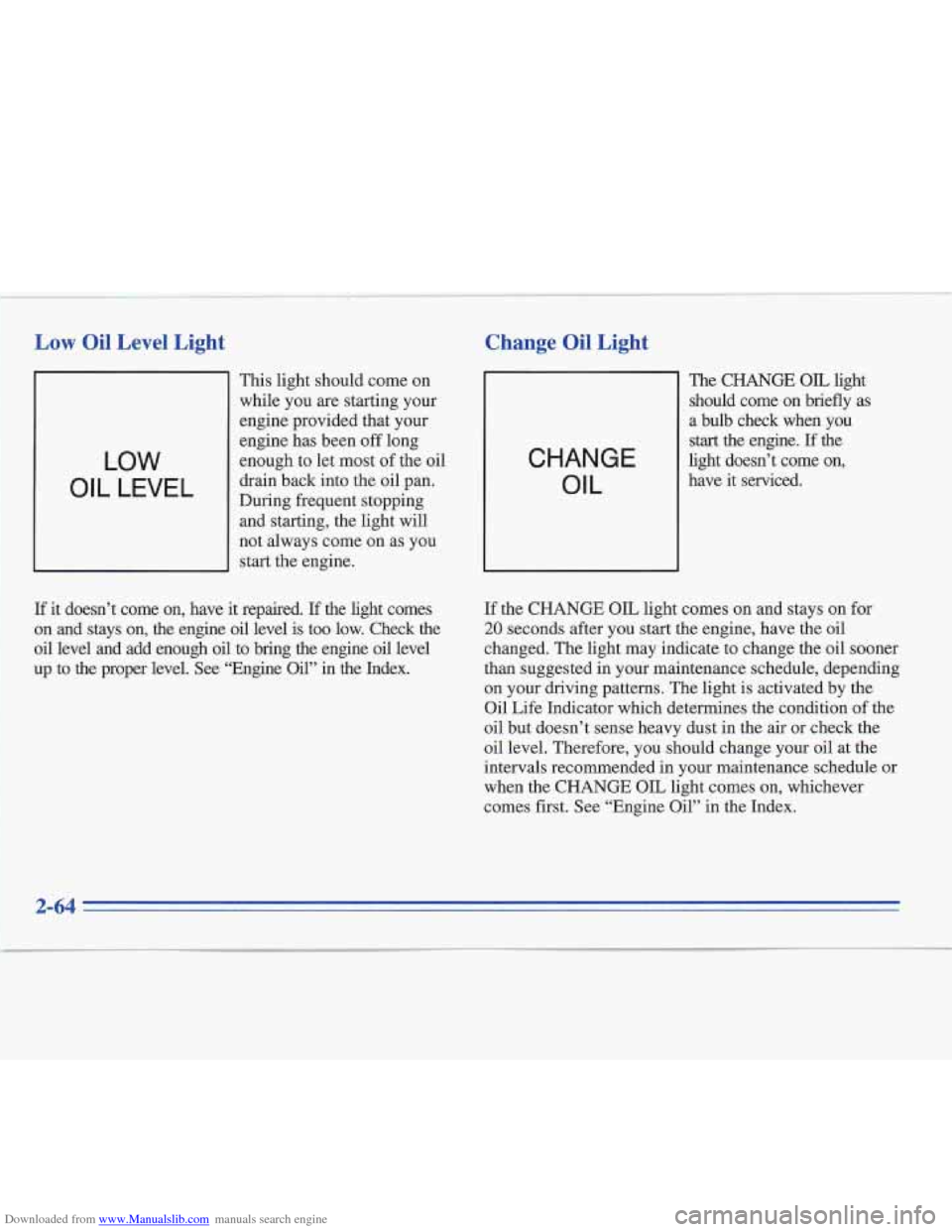

Downloaded from www.Manualslib.com manuals search engine Low Oil Level Light
11 This light should come on
while you are starting your
engine provided that your
LOW
OIL LEVEL
engine has been off long
enough to let most
of the oil
drain back into the oil pan.
During frequent stopping and starting, the light will
not always come on as you
start the engine.
If it doesn’t come on, have it repaired. If the light comes
on and stays on, the engine oil level is too low. Check the
oil level and add enough oil to bring the engine oil level
up to the proper level.
See “Engine Oil” in the Index.
Change Oil Light t
CHANGE OIL
The CHANGE OIL light
should come on briefly as
a bulb check when you
start the engine. If the
light doesn’t come on,
have it serviced.
If the CHANGE OIL light comes on and stays on for
20 seconds after you start the engine, have the oil
changed. The light may indicate to change the oil sooner
than suggested in your maintenance schedule, depending
on your driving patterns. The light is activated by the
Oil Life Inlcator which determines the condition of the
oil but doesn’t sense heavy dust in the air or check the
oil level. Therefore, you should change your oil at the
intervals recommended in your maintenance schedule or
when the CHANGE OIL light comes on, whichever
comes first. See “Engine Oil” in the Index.
Page 125 of 306
Downloaded from www.Manualslib.com manuals search engine Cruise Engaged Light
This light will come on
when your cruise control is
set to a selected speed.
CRUISE
ENGAGED
Washer Fluid Low Light
WASHER
FLUID LOW
This
bulb light comes
on as a
check when you start
your engine.
If this light
comes on when your
washers
are turned on,
you're low on washer fluid.
Add fluid. See "Windshield
Washer
Fluid" in the Index.
Driving without washer fluid can be dangerous.
A bad
mud splash can block your vision.
You could hit
another vehicle or go off the road. Check your washer
fluid level often.
Page 184 of 306

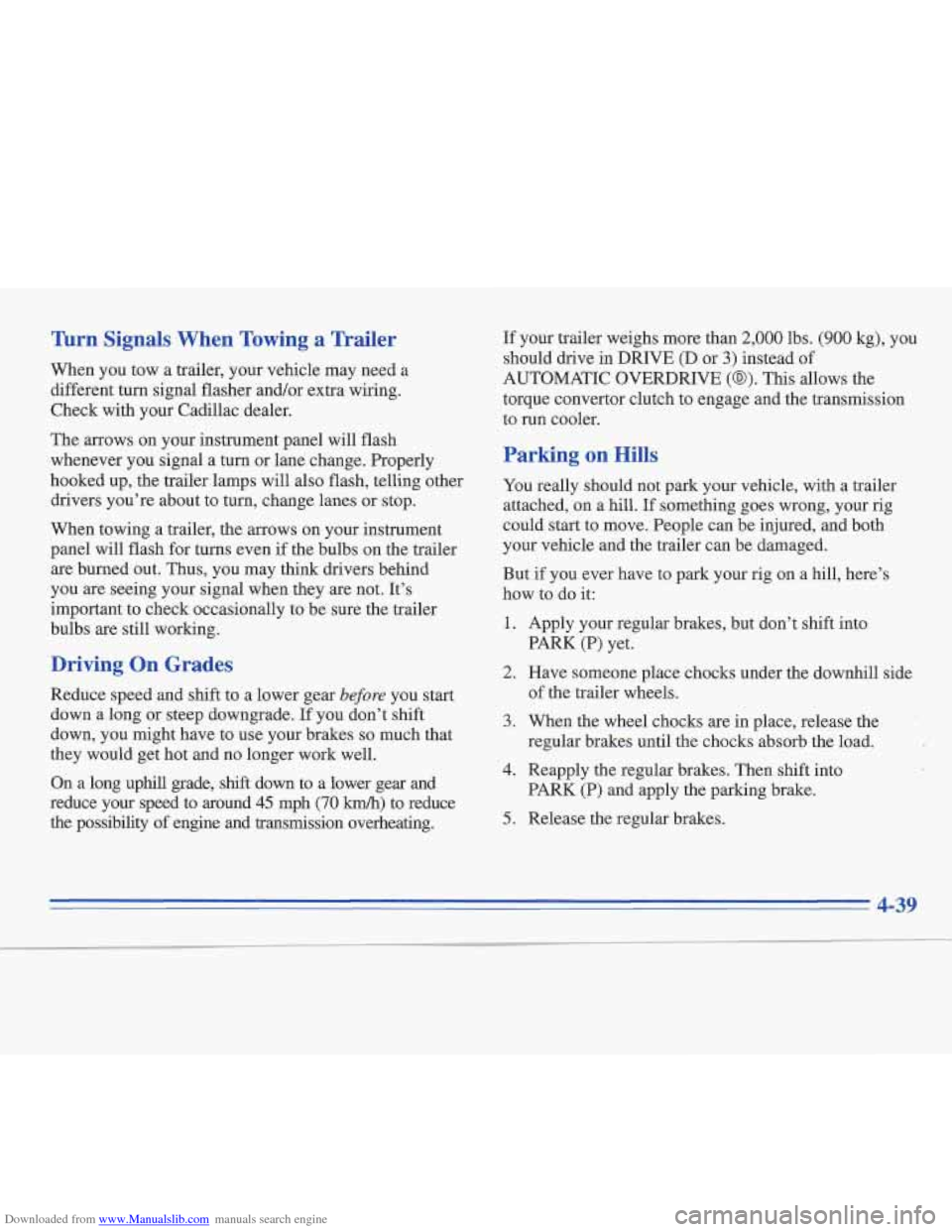

Downloaded from www.Manualslib.com manuals search engine Turn Signals When Towing a Trailer
When you tow a trailer, your vehicle may need a
different turn signal flasher and/or extra wiring.
Check with your Cadillac dealer.
The arrows on your instrument panel will flash
whenever you signal a turn or lane change. Properly
hooked up, the trailer lamps will also flash, telling other
drivers you’re about to turn, change lanes or stop.
When towing a trailer, the arrows on your instrument
panel will flash for turns even if
the bulbs on the trailer
are burned out. Thus, you may think drivers behind
you are seeing your signal when they are not. It’s
important to check occasionally to be sure the trailer
bulbs
are still working.
Driving On Grades
Reduce speed and shift to a lower gear before you start
down a long or steep downgrade. If you don’t shift
down, you might have to use your brakes
so much that
they would get hot and no longer work well.
On a long uphill grade,
shift down to a lower gear and
reduce your speed to around
45 mph (70 km/h) to reduce
the possibility of engine and transmission overheating.
If your trailer weighs more than 2,000 lbs. (900 kg), you
should drive in DRIVE
(D or 3) instead of
AUTOMATIC OVERDRIVE (@). This allows the
torque convertor clutch to engage and the transmission
to run cooler.
Parking on Hills
You really should not park your vehicle, with a trailer
attached, on a hill. If something goes wrong, your rig
could start to move. People can be injured, and both
’
your vehicle and the trailer can be damaged.
But if you ever have to park your rig on a hill, here’s
how to do
it:
1. Apply your regular brakes, but don’t shift into
2. Have someone place chocks under the downhill side
PARK
(P) yet.
of the trailer wheels.
3. When the wheel chocks are in place, release the
regular brakes until the chocks absorb the load.
4. Reapply the regular brakes. Then shift into
PARK (P) and apply the parking brake.
5. Release the regular brakes.
Page 248 of 306
Downloaded from www.Manualslib.com manuals search engine Battery
Every new Cadillac has a Delco Freedom@ battery. You
never have to add water to one of these. When it’s time
for
a new battery, we recommend a Delco Freedom
battery. Get one that has the replacement number shown
on the original battery’s label.
Vehicle Storage
If you’re not going to drive your vehicle for 25 days or
more, take
off the black, negative (-) cable from the
battery.
This will help keep your battery from
running down.
Batteries have acid that can burn you ana gas
that can explode. You can be badly hurt
if you
aren’t careful. See “Jump Starting” in the Index
for tips on working around a battery without
getting hurt.
Contact your dealer to learn how to prepare your vehicle
for longer storage periods.
Also, for your audio system, see “Theft-Deterrent
Feature’’ in the Index.
Bulb Replacement
For the proper type of replacement bulbs, see
“Replacement Bulbs” in the Index.
Halogen Bulbs
A CAUTION:
Halogen bulbs have pressurized gas inside and
can burst
if you drop or scratch the bulb. You or
others could be injured. Take special care when
handling and disposing of halogen bulbs.
Page 249 of 306

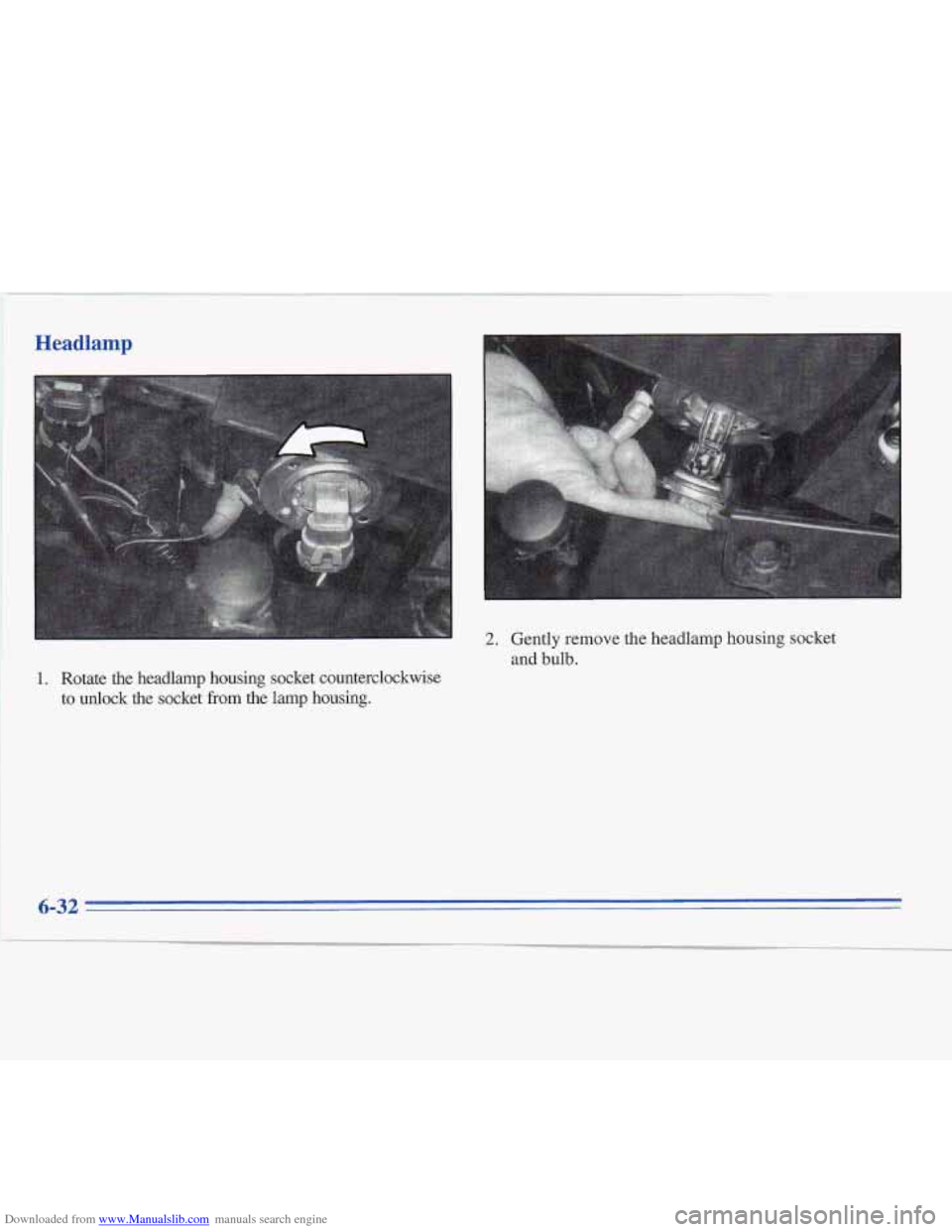

Downloaded from www.Manualslib.com manuals search engine Headlamp
2.
1. Rotate the headlamp housing socket counterclockwise to unlock
the socket from the lamp housing. Gently remove
the headlamp housing socket
and bulb.
6-32
Page 280 of 306

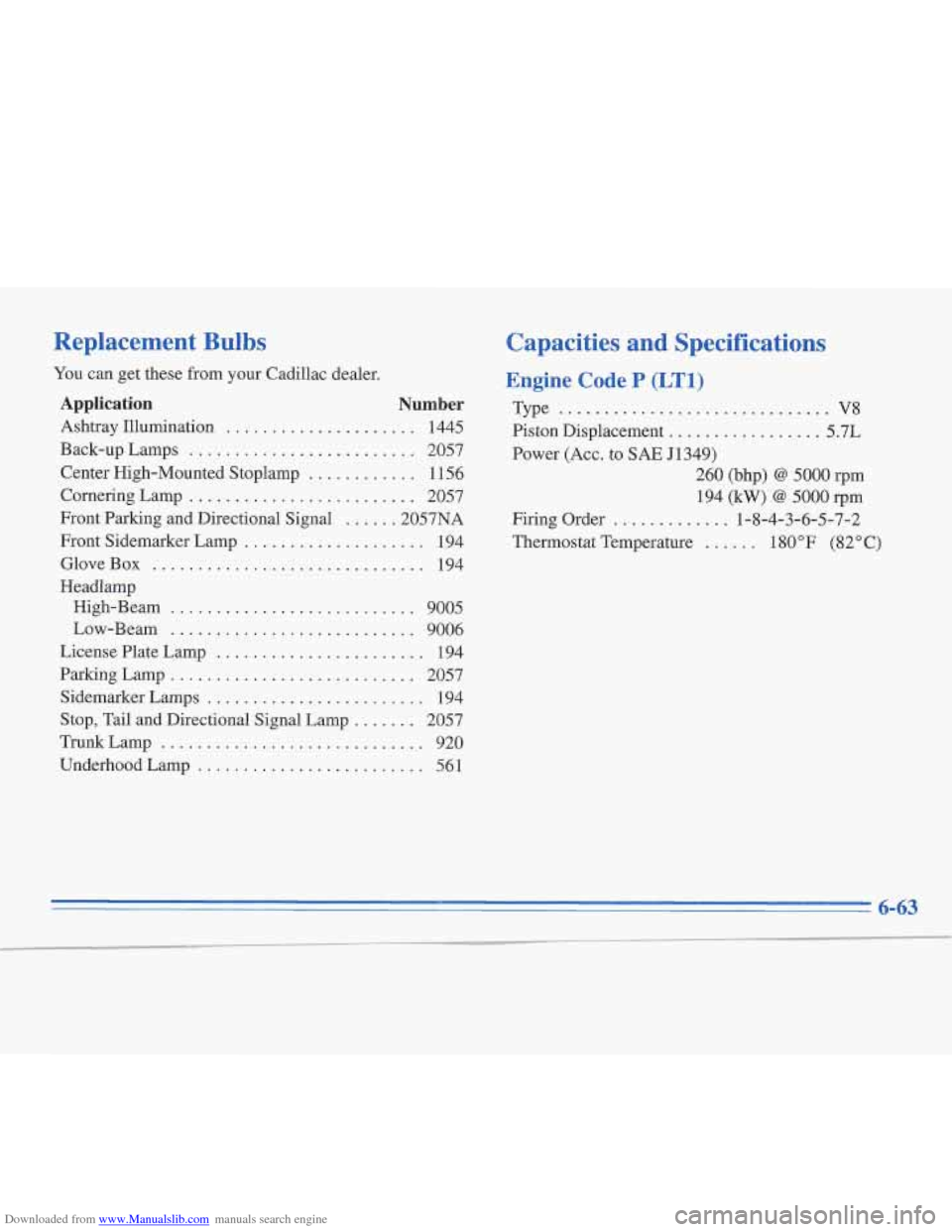

Downloaded from www.Manualslib.com manuals search engine Replacement Bulbs
You can get these from your Caddlac dealer .
Application Number
Ashtray Illumination ..................... 1445
Back-up Lamps
......................... 2057
Center High-Mounted Stoplamp
............ 1156
Cornering Lamp
......................... 2057
Front Parking and Directional Signal
...... 2057NA
Front Sidemarker Lamp
.................... 194
GloveBox
.............................. 194
Headlamp High-Beam
........................... 9005
Low-Beam
........................... 9006
License Plate Lamp
....................... 194
Parking Lamp
........................... 2057
Sidemarker Lamps
........................ 134
Stop. Tail and Directional Signal Lamp
....... 2057
Trunk Lamp
............................. 920
Underhood Lamp
......................... 561
Capacities and Specifications
Engine Code P (LTl)
Type .............................. V8
Piston Displacement
................. 5.71
Power (Acc . to SAE J1349)
260 (bhp)
@ 5000 rpm
194
(kW) @ 5000 rpm
Firing Order
............. 1-8-4-3-6-5-7-2
Thermostat Temperature
...... 180 "F (82" C)
6-63
Page 297 of 306

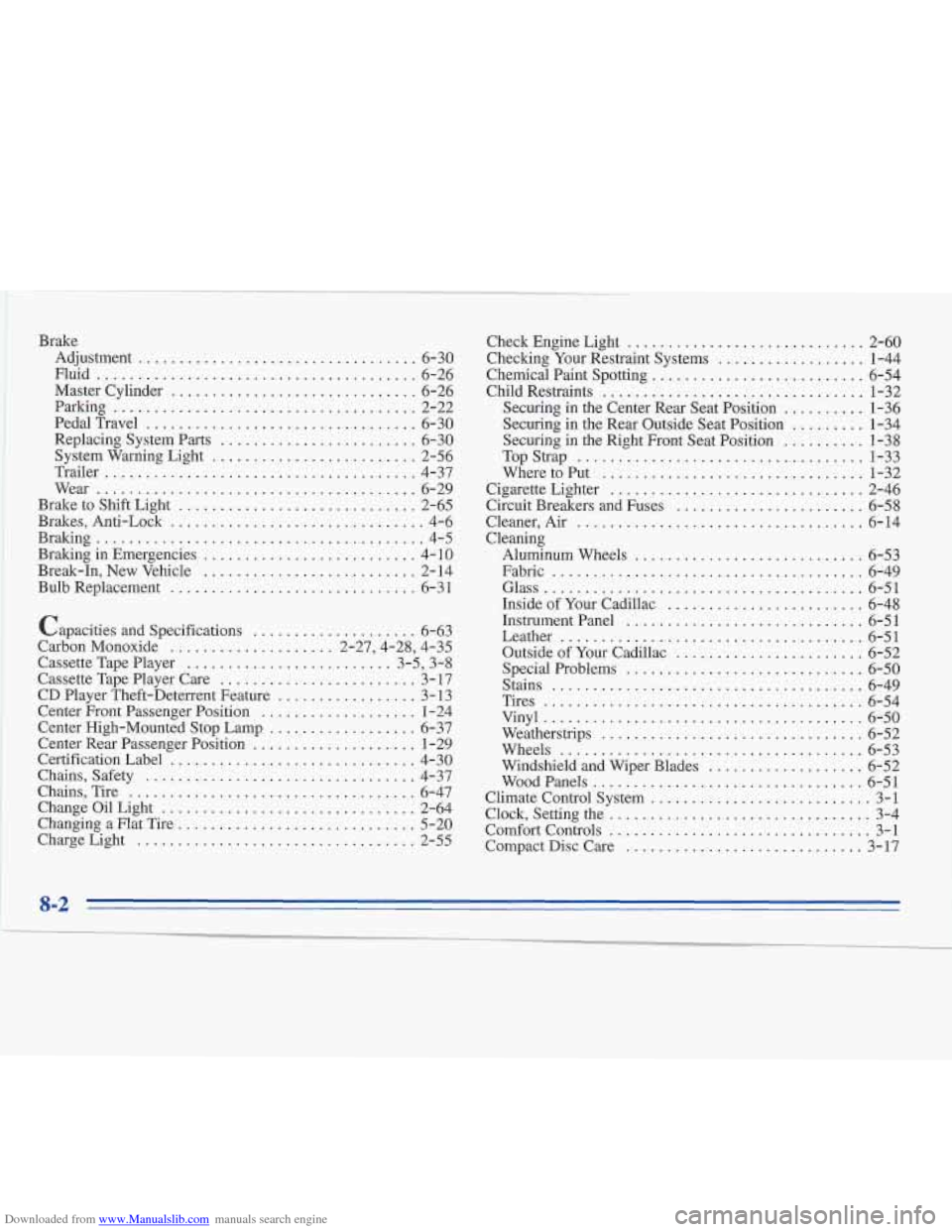

Downloaded from www.Manualslib.com manuals search engine Brake Adjustment
.................................. 6-30
Fluid
....................................... 6-26
Master Cylinder
.............................. 6-26
Parking
..................................... 2-22
PedalTravel
................................. 6-30
Replacing System Parts
........................ 6-30
System Warning Light
......................... 2-56
Trailer
...................................... 4-37
Wear
....................................... 6-29
Brake
to Shift Light ............................. 2-65
Brakes, Anti-Lock
............................... 4-6
Braking
........................................ 4-5
Braking
in Emergencies .......................... 4- 10
Break-In, New Vehicle
.......................... 2-14
Bulb Replacement
.............................. 6-3 1
Capacities and Specifications
.................... 6-63
Carbon Monoxide
.................... 2.27.4.28. 4.35
Cassette Tape Player
......................... 3.5. 3.8
Cassette Tape Player Care
........................ 3-17
CD Player Theft-Deterrent Feature
................. 3- 13
Center Front Passenger Position
................... 1-24
Center High-Mounted Stop Lamp
.................. 6-37
Center Rear Passenger Position
.................... 1-29
Certification Label
.............................. 4-30
Chains. Safety
................................. 4-37
Chains. Tire
................................... 6-47
ChangeOilLight
............................... 2-64
Changing a Flat Tire
............................. 5-20
ChargeLight
.................................. 2-55 Check
Engine Light
............................. 2-60
Checking Your Restraint Systems
.................. 1-44
Chemical Paint Spotting
.......................... 6-54
Child Restraints
................................ 1-32
Securing in the Center Rear Seat Position
.......... 1-36
Securing in the Rear Outside Seat Position
......... 1-34
Securing in the Right Front Seat Position
.......... 1-38
TopStrap
................................... 1-33
Wheretoput
................................ 1-32
Cigarette Lighter
............................... 2-46
Circuit Breakers and Fuses
....................... 6-58
Cleaner, Air
................................... 6-14
Cleaning Aluminum Wheels
............................ 6-53
Fabric
...................................... 6-49
Glass
....................................... 6-51
Inside of Your Cadillac
........................ 6-48
Instrument Panel
............................. 6-51
Leather
..................................... 6-51
Outside of Your Cadillac ....................... 6-52
Stains
...................................... 6-49
Tires
....................................... 6-54
Vinyl
....................................... 6-50
Weatherstrips
................................ 6-52
Wheels
..................................... 6-53
Windshield and Wiper Blades
................... 6-52
WoodPanels
................................. 6-51
Climate Control System
........................... 3-1
Clock. Setting the ................................ 3-4
Comfort Controls
................................ 3-1
Compact Disc Care
............................. 3-17
Special Problems
............................. 6-50
