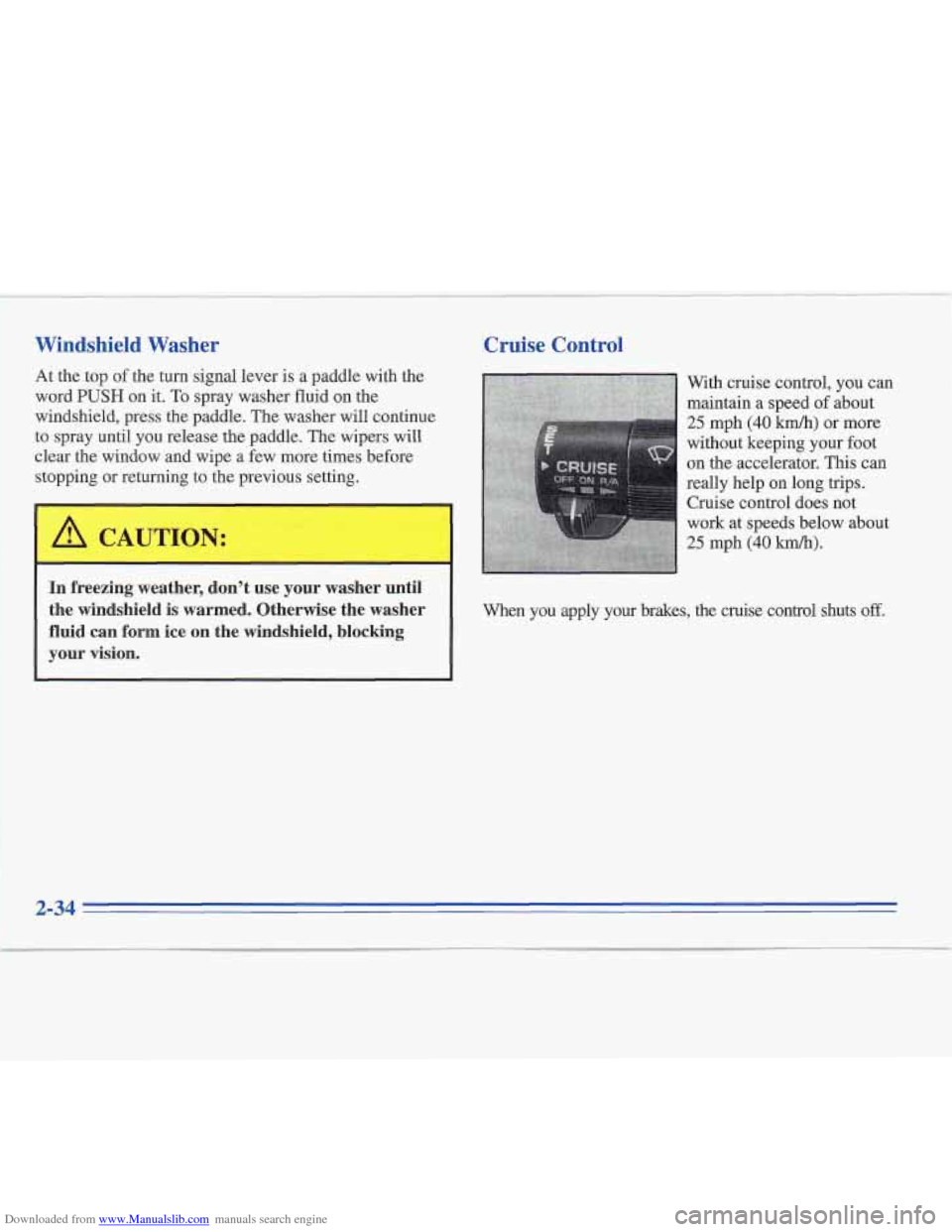

Page 93 of 306
Downloaded from www.Manualslib.com manuals search engine Windshield Washer
At the top of the turn signal lever is a paddle with the
word
PUSH on it. To spray washer fluid on the
windshield, press the paddle. The washer will continue
to spray until you release the paddle. The wipers will
clear the window and wipe a few more times before
stopping
or returning to the previous setting.
Cruise Control
_In freezing weather, don’t use your washer until
the windshield is warmed. Otherwise the washer
fluid can form ice on the windshield, blocking
your vision.
With cruise control, you can
maintain a speed
of about
25 mph (40 km/h) or more
without keeping your foot
on the accelerator. This can
really help on long trips. Cruise control does not
work at speeds below about
25 mph (40 km/h).
When you apply your brakes, the cruise control shuts off.
Page 111 of 306
Downloaded from www.Manualslib.com manuals search engine Instrument Panel CIuster
TRACTION LEVEL
ENGAGED RIDE
TRUNK SECURITY
AJAR SYSTEM
PASS
KEY FAULT TEMP -k -
957; FASTEN
PRESSURE BELTS
SERVICE ENGINE
tziTJK (e) SOON
CRUISE TRACTION
ENGAGED CONTROL
UNLEADED FUEL ONLY
ELOW @ F
irllilllirllilrli
[ P RNOD21 1
FLUID LOW OIL
WASHER
CHANGE
El
(0)
CHARGE
BRAKE
I 3AG AIR
LOW )IL
LEVEL COOLANT LO w
DOOR AJAR BRAKE TO SHIFT

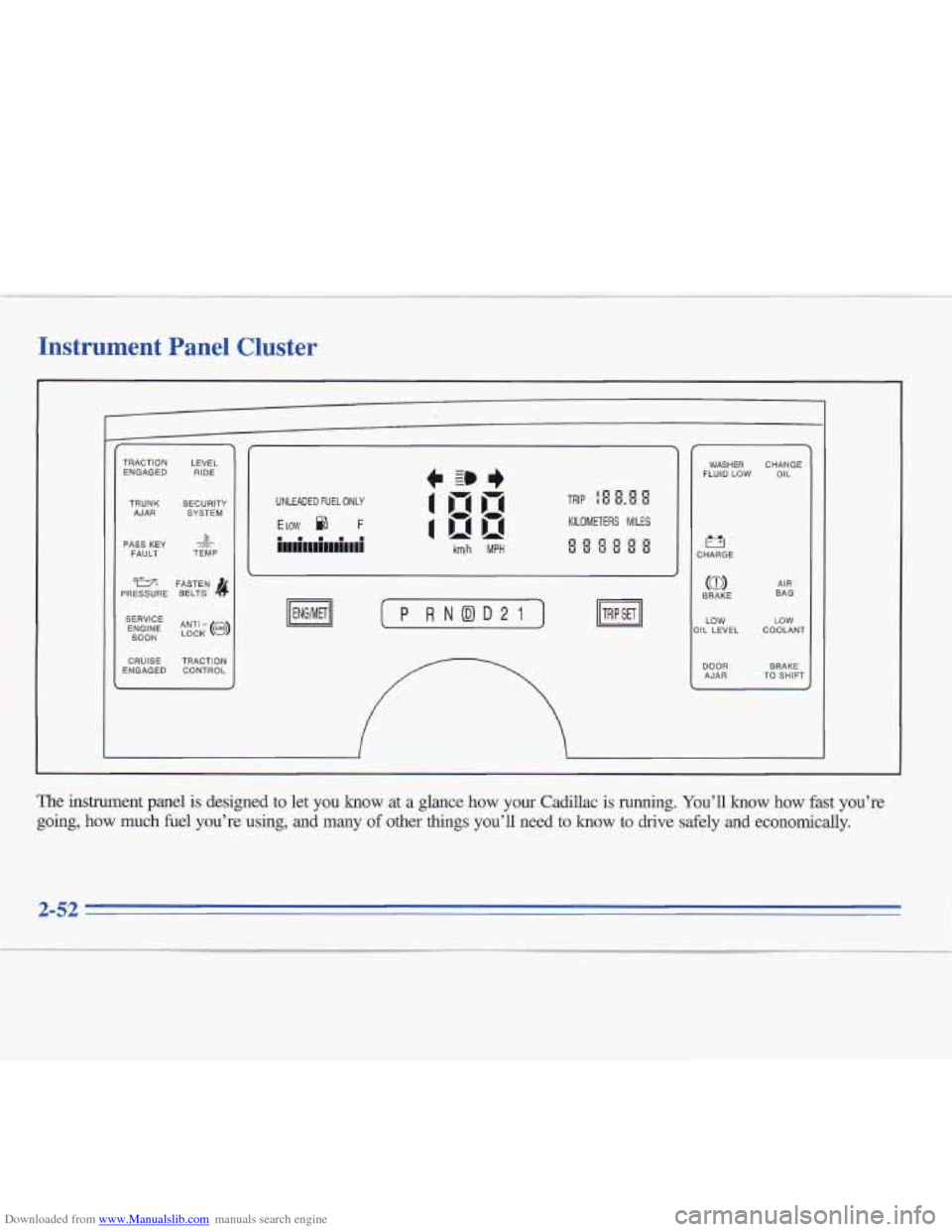

The instrument panel is designed to let
you know at a glance how your Cadillac is running. You’ll know how fast you’re
going, how much fuel you’re using, and
many of other things you’ll need to know to drive safely and economically.
Page 125 of 306
Downloaded from www.Manualslib.com manuals search engine Cruise Engaged Light

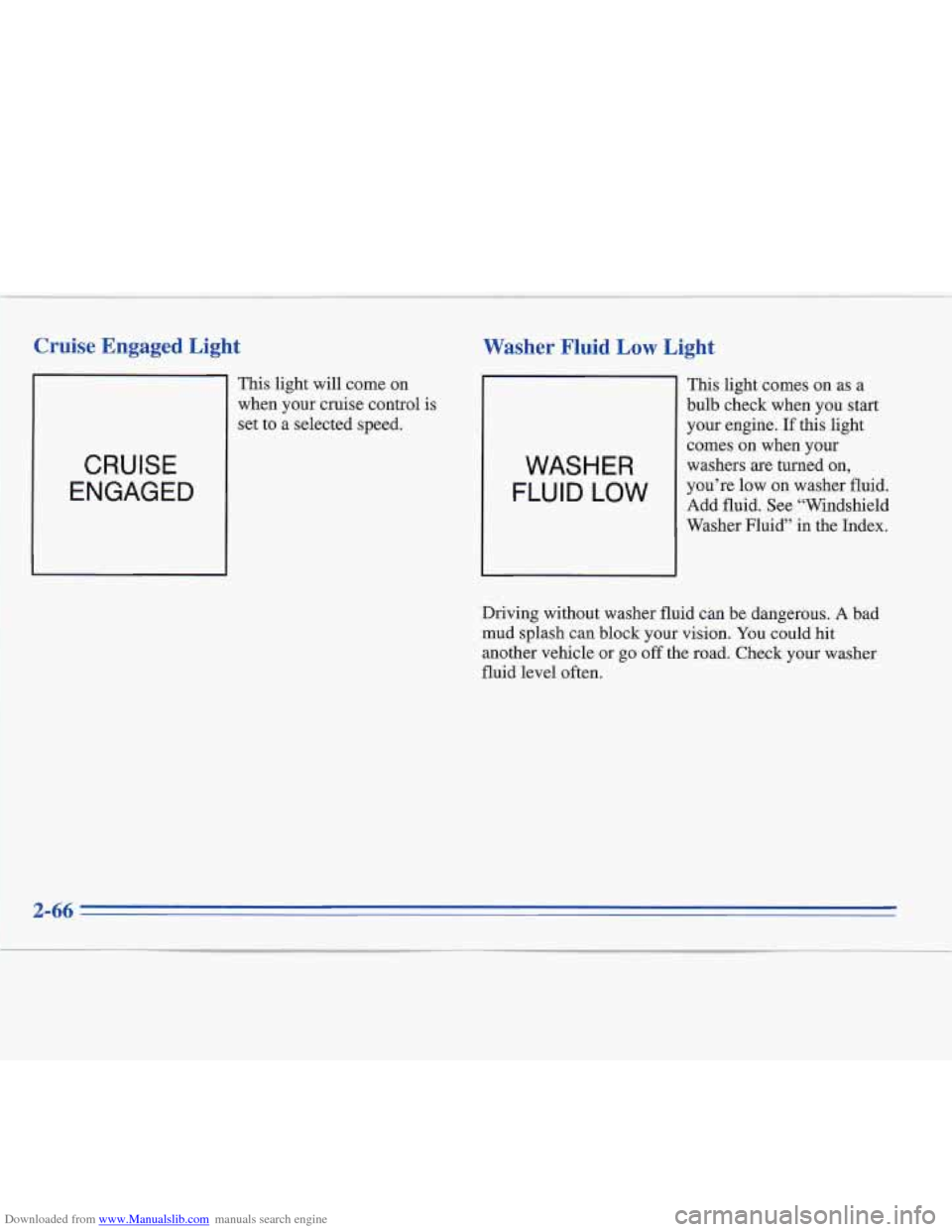

This light will come on
when your cruise control is
set to a selected speed.
CRUISE
ENGAGED
Washer Fluid Low Light
WASHER
FLUID LOW
This
bulb light comes
on as a
check when you start
your engine.
If this light
comes on when your
washers
are turned on,
you're low on washer fluid.
Add fluid. See "Windshield
Washer
Fluid" in the Index.
Driving without washer fluid can be dangerous.
A bad
mud splash can block your vision.
You could hit
another vehicle or go off the road. Check your washer
fluid level often.

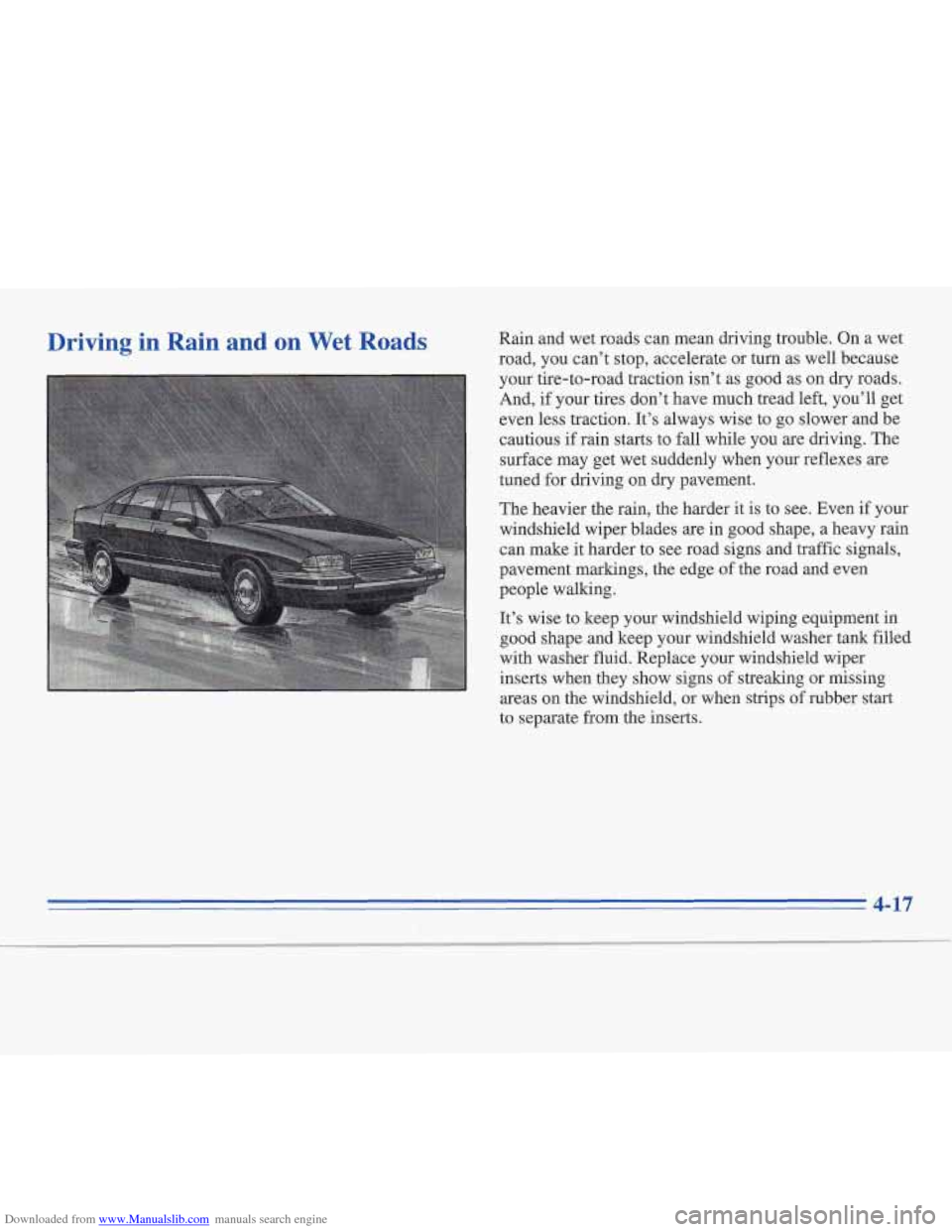

Page 162 of 306
Downloaded from www.Manualslib.com manuals search engine Driving in Rain and on Wet Roads Rain and wet roads can mean driving trouble. On a wet
road, you can’t stop, accelerate or turn as well because
your tire-to-road traction isn’t as good as on dry roads.
And,
if your tires don’t have much tread left, you’ll get
even less traction. It’s always wise to
go slower and be
cautious if rain starts to fall while you are driving. The
surface may get wet suddenly when your reflexes are
tuned for driving on dry pavement.
The heavier the rain, the harder it is to see. Even if your
windshield wiper blades are in good shape, a heavy rain
can make it harder
to see road signs and traffic signals,
pavement markings, the edge
of the road and even
people walking.
It’s wise to keep your windshield wiping equipment in
good shape and keep your windshield washer tank filled
with washer fluid. Replace your windshield wiper
inserts when they show signs
of streaking or missing
areas on the windshield, or when strips
of rubber start
to separate from the inserts.
4-17
Page 170 of 306
Downloaded from www.Manualslib.com manuals search engine Winter Driving

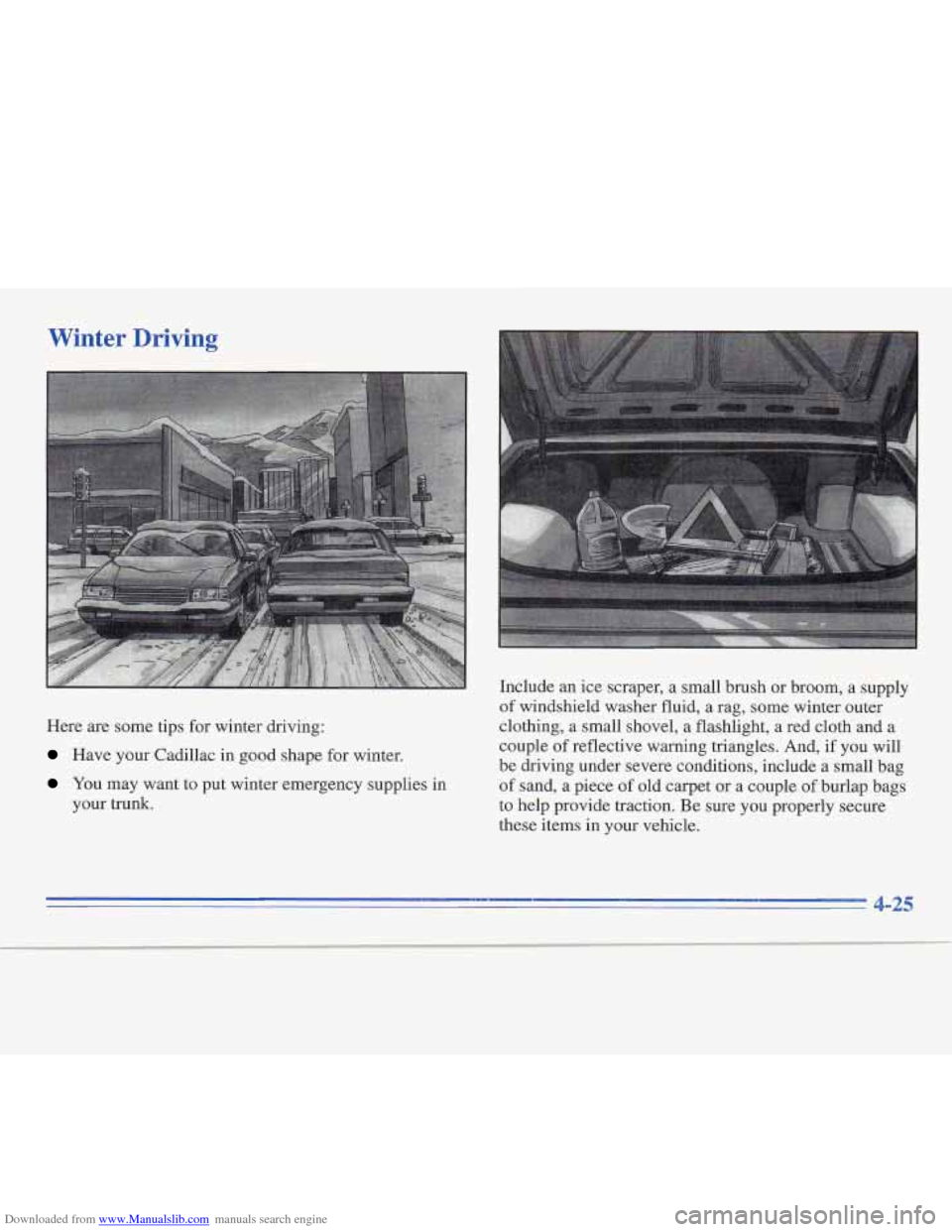

Here are some tips for winter driving:
Have your Cadillac in good shape for winter.
YOU may want to put winter emergency supplies in
your trunk. Include an
ice scraper, a small brush or broom, a supply
of windshield washer fluid, a rag, some winter outer
clothing, a small shovel,
a flashlight, a red cloth and a
couple of reflective warning triangles. And, if
you will
be driving under severe conditions, include a small bag
of sand, a piece of old carpet or a couple of burlap bags
to help provide traction. Be sure you properly secure
these items in your vehicle.
4-25
Page 223 of 306

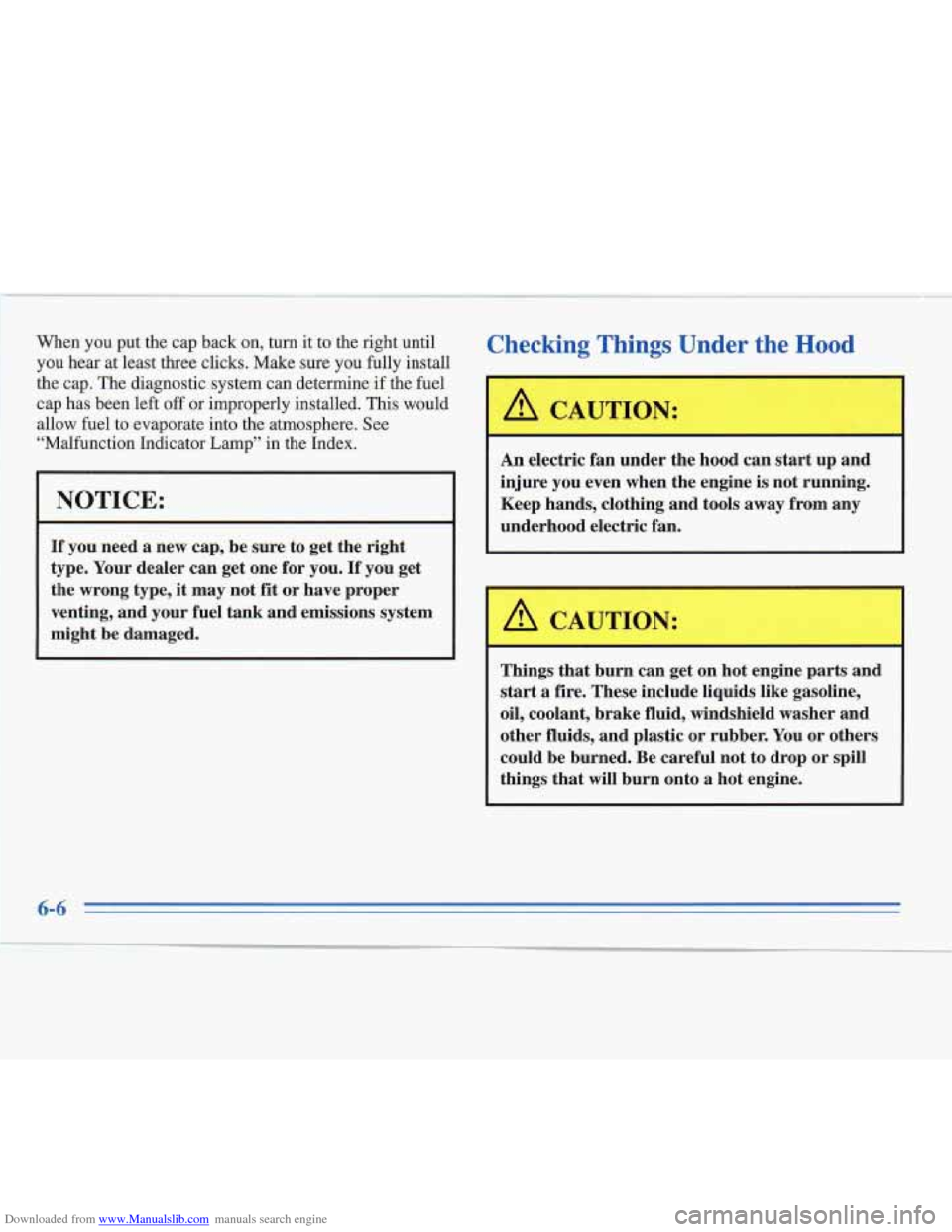

Downloaded from www.Manualslib.com manuals search engine When you put the cap back on, turn it to the right until
you hear at least three clicks. Make sure you fully install
the cap.
The diagnostic system can determine if the fuel
cap has been left off or improperly installed. This would
allow fuel to evaporate into the atmosphere. See
“Malfunction Indicator Lamp” in the Index.
NOTICE:
If you need a new cap, be sure to get the right
type. Your dealer can get one for you.
If you get
the wrong type,
it may not fit or have proper
venting, and your fuel tank and emissions system
might be damaged.
Checking Things Under the Hood
A CkmON’:
An electric fan under the hood can start up and
injure you even when the engine
is not running.
Keep hands, clothing and tools away from any
underhood electric fan.
Things that burn can get on hot engine parts and
start a fire. These include liquids like gasoline,
oil, coolant, brake fluid, windshield washer and
other fluids, and plastic or rubber. You or others
could be burned. Be careful not to drop or spill
things that will burn onto a hot engine.
6-6
Page 225 of 306
Downloaded from www.Manualslib.com manuals search engine When you lift the hood, you will see these items:

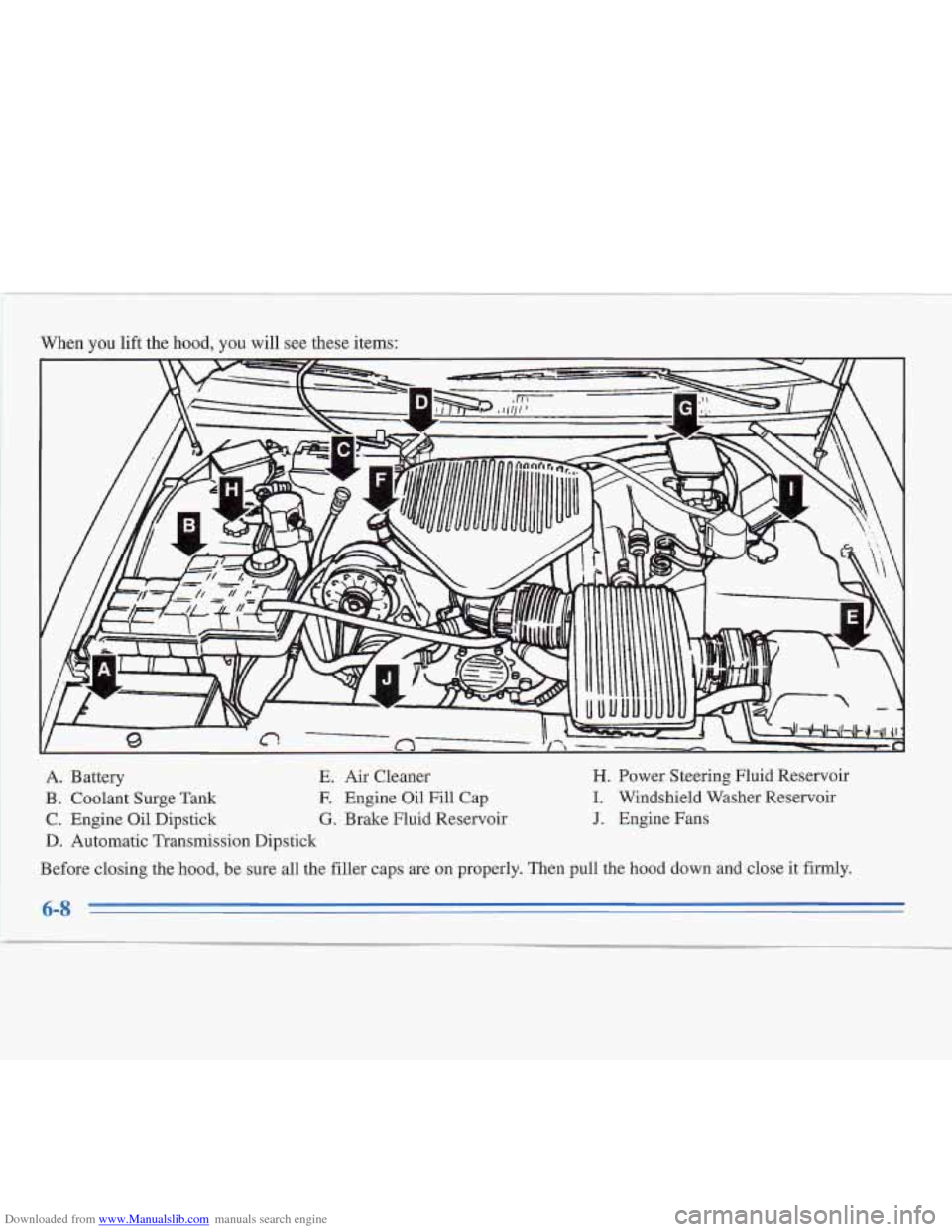

A. Battery E. Air Cleaner
B. Coolant Surge Tank E Engine Oil Fill Cap
C. Engine Oil Dipstick G. Brake Fluid Reservoir
D. Automatic Transmission Dipstick
H. Power Steering Fluid Reservoir
I. Windshield Washer Reservoir
J. Engine Fans
Before closing the hood, be sure all the filler caps are
on properly. Then pull the hood down and close it firmly.
Page 242 of 306
Downloaded from www.Manualslib.com manuals search engine Windshield Washer Fluid

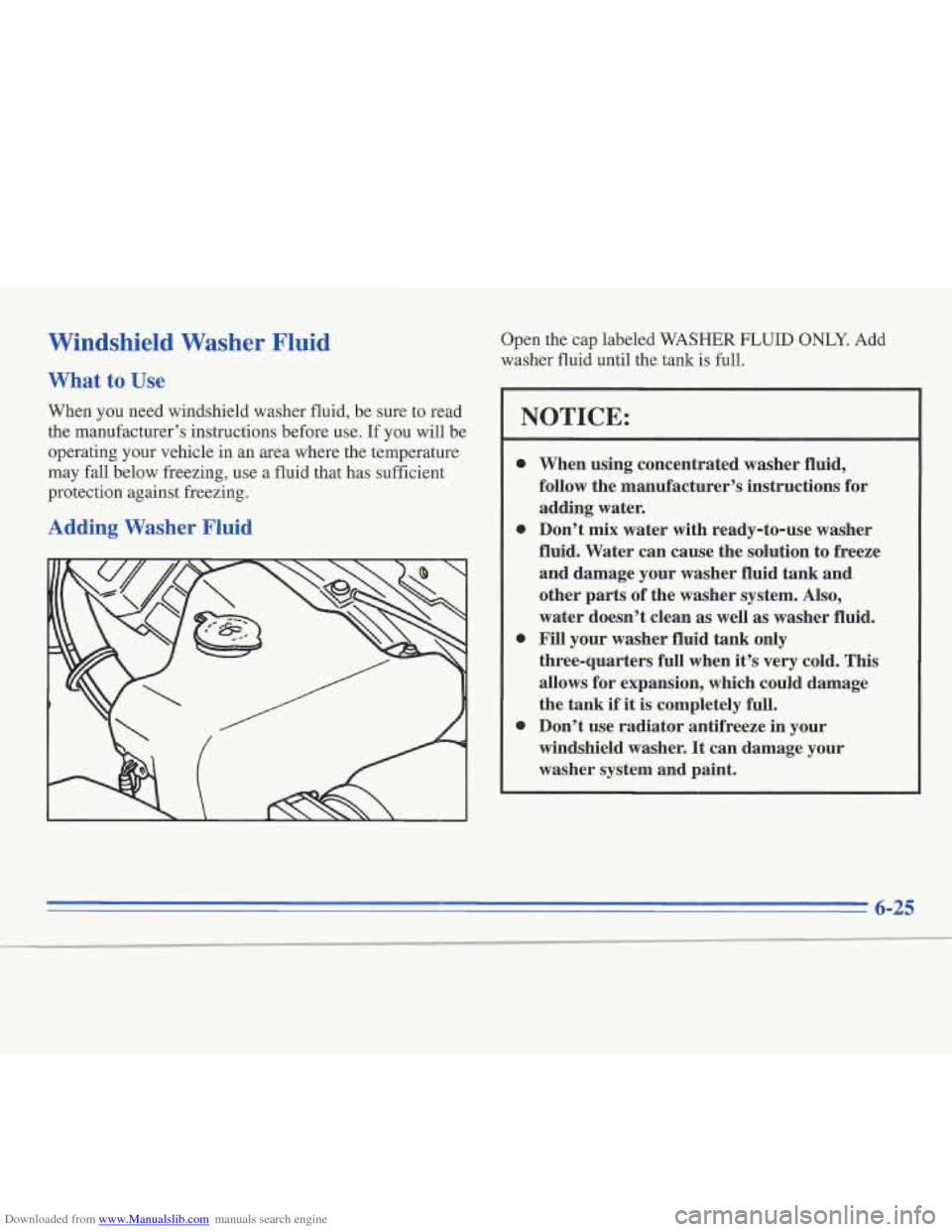

What to Use
When you need windshield washer fluid, be sure to read
the manufacturer’s instructions before use.
If you will be
operating your vehicle in an area where the temperature
may fall below freezing, use a fluid that has sufficient
protection against freezing.
Adding Washer Fluid
Open the cap labeled WASHER FLUID OmY. Add
washer fluid until the tank is full.
NOTICE:
When using concentrated washer fluid,
follow the manufacturer’s instructions for
adding water.
Don’t mix water with ready-to-use washer
fluid. Water can cause the solution to freeze
and damage your washer fluid tank and
other parts of the washer system. Also,
water doesn’t clean
as well as washer fluid.
Fill your washer fluid tank only
three-quarters full when it’s very cold.
This
allows for expansion, which could damage
the tank
if it is completely full.
Don’t use radiator antifreeze in your
windshield washer.
It can damage your
washer system and paint.
Page 269 of 306
Downloaded from www.Manualslib.com manuals search engine Cleaning the Outside of the

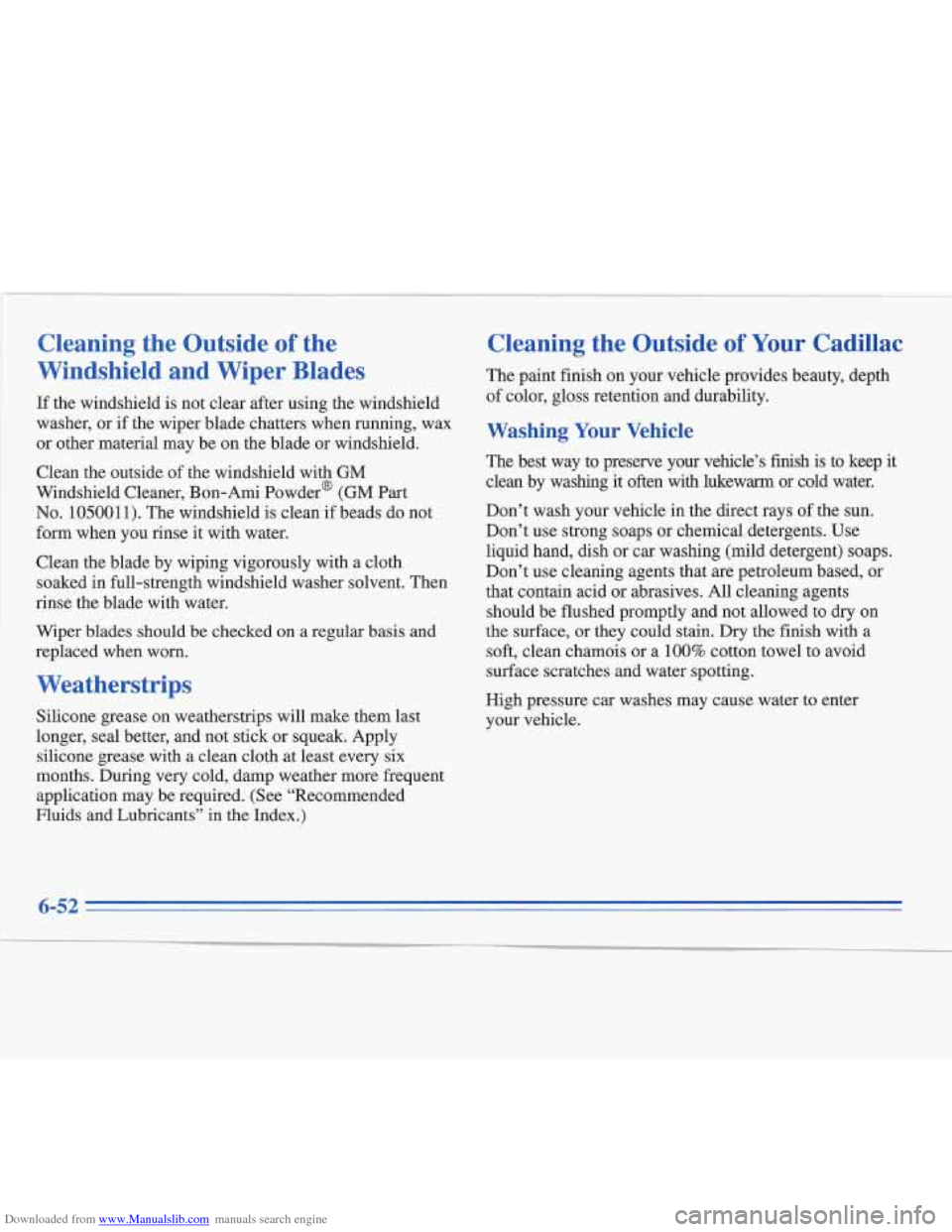

Windshield and Wiper Blades
If the windshield is not clear after using the windshield
washer, or if the wiper blade chatters when running, wax
or other material may be on the blade or windshield.
Clean the outside of the windshield with
GM
Windshield Cleaner, Bon-Ami Powder@ (GM Part
No. 105001 1). The windshield is clean if beads do not
form when you rinse it with water.
Clean the blade by wiping vigorously with a cloth
soaked
in full-strength windshield washer solvent. Then
rinse the blade with water.
Wiper blades should be checked on a regular basis and
replaced when worn.
Weatherstrips
Silicone grease on weatherstrips will make them last
longer, seal better, and not stick or squeak. Apply
silicone grease with a clean cloth at least every six
months. During very cold, damp weather more frequent
application may be required. (See “Recommended
Fluids and Lubricants” in the Index.)
Cleaning the Outside of Your Cadillac
The paint finish on your vehicle provides beauty, depth
of color, gloss retention and durability.
Washing Your Vehicle
The best way to preserve your vehicle’s finish is to keep it
clean by washing it often with lukewarm or cold water.
Don’t wash your vehicle in the direct rays of the sun.
Don’t use strong soaps or chemical detergents. Use
liquid hand, dish or car washing (mild detergent) soaps.
Don’t use cleaning agents that are petroleum based, or
that contain acid or abrasives. All cleaning agents
should be flushed promptly and not allowed to
dry on
the surface, or they could stain. Dry the finish with a
soft, clean chamois or a
100% cotton towel to avoid
surface scratches and water spotting.
High pressure car washes may cause water to enter
your vehicle.

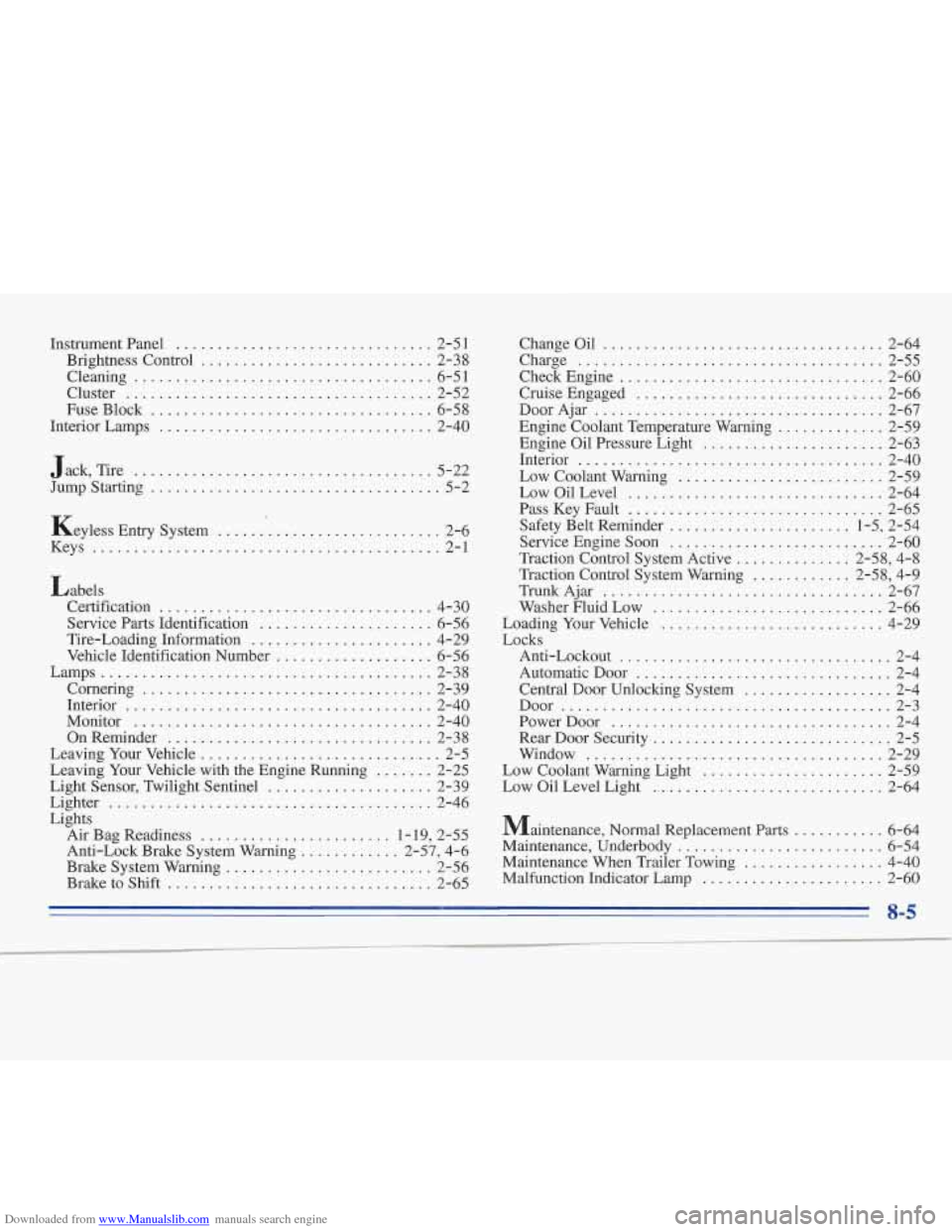

Page 300 of 306
Downloaded from www.Manualslib.com manuals search engine Instrument Panel ............................... 2-5 1
Brightness Control
............................ 2-38
Cleaning
.................................... 6-51
Cluster
..................................... 2-52
FuseBlock
.................................. 6-58
Interior Lamps
................................. 2-40
Jack. Tire
.................................... 5-22
Jumpstarting
................................... 5-2
Keyless Entry System
............................ 2-6
Keys
.......................................... 2-1
Labels Certification
................................. 4-30
Service Parts Identification
..................... 6-56
Tire-Loading Information
...................... 4-29
Vehicle Identification Number
................... 6-56
Lamps
........................................ 2-38
Interior
..................................... 2-40
Monitor
.................................... 2-40
OnReminder
................................ 2-38
Leaving Your Vehicle
............................. 2-5
Light Sensor. Twilight Sentinel
.................... 2-39
Lighter
....................................... 2-46
Lights Cornering
................................... 2-39
Leaving Your Vehicle with the Engine Running
....... 2-25
Air Bag Readiness ....................... 1.19. 2.55
Anti-Lock Brake System Warning
............ 2.57. 4.6
Brake System Warning
......................... 2-56
Brake to Shift
................................ 2-65 Changeoil
.................................. 2-64
Charge
..................................... 2-55
DoorAjar
................................... 2-67
Engine Coolant Temperature Warning
............. 2-59
Engine Oil Pressure Light
...................... 2-63
Interior
..................................... 2-40
Low Coolant Warning
......................... 2-59
Low Oil Level
............................... 2-64
Pass Key Fault
............................... 2-65
Safety Belt Reminder
...................... 1-5, 2-54
ServiceEngineSoon
.......................... 2-60
CheckEngine
................................ 2-60
CruiseEngaged
.............................. 2-66
Traction Control System Active
.............. 2-58, 4-8
Traction Control System Warning
............ 2-58, 4-9
TrunkAjar
.................................. 2-67
Washer Fluid Low
............................ 2-66
Loading Your Vehicle
........................... 4-29
Locks Anti-Lockout
................................. 2-4
Automatic Door
............................... 2-4
Door ........................................ 2-3
PowerDoor
.................................. 2-4
Rear Door Security
............................. 2-5
Window
.................................... 2-29
Low Coolant Warning Light ...................... 2-59
LowOilLevelLight
............................ 2-64
Central
Door Unlocking System
.................. 2-4
Maintenance, Normal Replacement
parts ........... 6-64
Maintenance, Underbody
......................... 6-54
Maintenance When Trailer Towing
................. 4-40
Malfunction Indicator Lamp
...................... 2-60
. 8-5
