Cadillac Lyriq Owner Manual (GMNA-Localizing-U.S./Canada-15644413) -
2023 - CRC - 2/23/22
Driving and Operating 275
respond to pedestrians. See
Automatic Emergency Braking
(AEB)0273.
The FPB system can detect
and alert to pedestrians in a
forward gear at speeds
between 8 km/h (5 mph) and
80 km/h (50 mph). During
daytime driving, the system
detects pedestrians up to a
distance of approximately
40 m (131 ft). During nighttime
driving, system performance is
very limited.
{Warning
FPB does not provide an
alert or automatically brake
the vehicle, unless it detects
a pedestrian. FPB may not
detect pedestrians, including
children:
.When the pedestrian is
not directly ahead, fully
visible, or standing upright,
or when part of a group. (Continued)
Warning (Continued)
.Due to poor visibility,
including nighttime
conditions, fog, rain,
or snow.
.If the FPB sensor is
blocked by dirt, snow,
or ice.
.If the headlamps or
windshield are not cleaned
or in proper condition.
Be ready to take action and
apply the brakes. For more
information, see Defensive
Driving 0196. Keep the
windshield, headlamps, and
FPB sensor clean and in
good repair.
FPB can be set to Off, Alert,
or Alert and Brake through
vehicle personalization. To
view available settings for this
feature, touch the Settings
icon on the infotainment home
page. Select “Vehicle”to display the list of available
options and select
“Collision/
Detection Systems”.
Detecting the Pedestrian
Ahead
FPB alerts and automatic
braking will not occur unless
the FPB system detects a
pedestrian. When a nearby
pedestrian is detected in front
of the vehicle, the pedestrian
ahead indicator will display
amber.
Front Pedestrian Alert

Cadillac Lyriq Owner Manual (GMNA-Localizing-U.S./Canada-15644413) -
2023 - CRC - 2/23/22
Vehicle Care 333

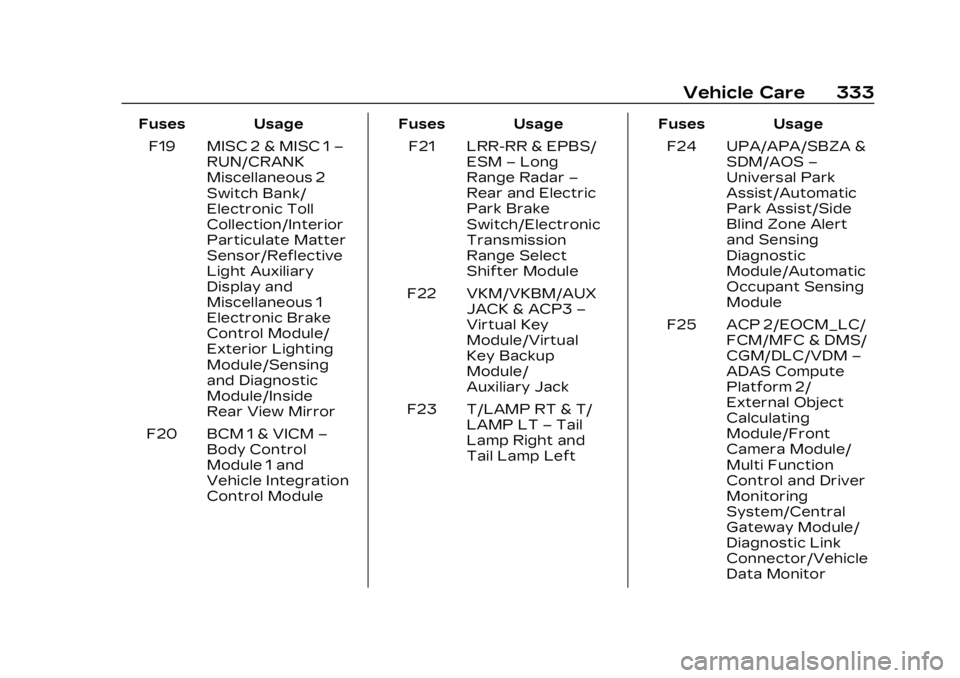

Fuses UsageF19 MISC 2 & MISC 1 –
RUN/CRANK
Miscellaneous 2
Switch Bank/
Electronic Toll
Collection/Interior
Particulate Matter
Sensor/Reflective
Light Auxiliary
Display and
Miscellaneous 1
Electronic Brake
Control Module/
Exterior Lighting
Module/Sensing
and Diagnostic
Module/Inside
Rear View Mirror
F20 BCM 1 & VICM –
Body Control
Module 1 and
Vehicle Integration
Control Module Fuses Usage
F21 LRR-RR & EPBS/ ESM–Long
Range Radar –
Rear and Electric
Park Brake
Switch/Electronic
Transmission
Range Select
Shifter Module
F22 VKM/VKBM/AUX JACK & ACP3 –
Virtual Key
Module/Virtual
Key Backup
Module/
Auxiliary Jack
F23 T/LAMP RT & T/ LAMP LT –Tail
Lamp Right and
Tail Lamp Left Fuses Usage
F24 UPA/APA/SBZA & SDM/AOS –
Universal Park
Assist/Automatic
Park Assist/Side
Blind Zone Alert
and Sensing
Diagnostic
Module/Automatic
Occupant Sensing
Module
F25 ACP 2/EOCM_LC/ FCM/MFC & DMS/
CGM/DLC/VDM –
ADAS Compute
Platform 2/
External Object
Calculating
Module/Front
Camera Module/
Multi Function
Control and Driver
Monitoring
System/Central
Gateway Module/
Diagnostic Link
Connector/Vehicle
Data Monitor

Cadillac Lyriq Owner Manual (GMNA-Localizing-U.S./Canada-15644413) -
2023 - CRC - 2/23/22
346 Vehicle Care
message should go off after
successfully completing the
sensor matching process.
See "TPMS Sensor Matching
Process" later in this section.
.One or more TPMS sensors
are missing or damaged. The
malfunction light and the DIC
message should go off when
the TPMS sensors are
installed and the sensor
matching process is
performed successfully. See
your dealer for service.
.Replacement tires or wheels
do not match the original
equipment tires or wheels.
Tires and wheels other than
those recommended could
prevent the TPMS from
functioning properly. See
Buying New Tires0350.
.Operating electronic devices
or being near facilities using
radio wave frequencies
similar to the TPMS could
cause the TPMS sensors to
malfunction. If the TPMS is not functioning
properly, it cannot detect or
signal a low tire pressure
condition. See your dealer for
service if the TPMS
malfunction light and DIC
message come on and stay on.
Tire Fill Alert (If Equipped)
This feature provides visual
and audible alerts outside the
vehicle to help when inflating
an underinflated tire to the
recommended cold tire
pressure.
When the low tire pressure
warning light comes on:
1. Park the vehicle in a safe, level place.
2. Set the parking brake firmly.
3. Place the vehicle in P (Park).
4. Add air to the tire that is underinflated. The turn
signal lamp will flash.
When the recommended
pressure is reached, the
horn sounds once and the turn signal lamp will stop
flashing and briefly turn
solid.
Repeat these steps for all
underinflated tires that have
illuminated the low tire
pressure warning light.{Warning
Overinflating a tire could
cause the tire to rupture
and you or others could be
injured. Do not exceed the
maximum pressure listed on
the tire sidewall. See Tire
Sidewall Labeling 0337 and
Vehicle Load Limits 0202.
If the tire is overinflated by
more than 35 kPa (5 psi), the
horn will sound multiple times
and the turn signal lamp will
continue to flash for several
seconds after filling stops. To
release and correct the
pressure, while the turn signal
lamp is still flashing, briefly
press the center of the valve
