280 Driving and Operating
Warning (Continued)
.BZSA performance may
be affected by weather
and road conditions.
.BZSA does not provide
steering assistance to
avoid a vehicle that is in,
or has entered, your lane
of travel.
.BZSA will not prevent a
towed trailer from
crossing into the adjacent
lane. Always monitor the
trailer position while
towing to ensure it is in
the same lane as your
vehicle. BZSA is only
designed to detect when
your vehicle
unintentionally crosses
detected lane lines.
Lane Keep
Assist (LKA)
If equipped, LKA may help
avoid crashes due to
unintentional lane departures.
This system uses a camera todetect lane markings. The LKA
may be ready to assist at
speeds between
80 km/h (50 mph) and 180
km/h (112 mph). LKA may assist
by gently turning the steering
wheel if the vehicle
approaches a detected lane
marking. It may also provide a
Lane Departure Warning
(LDW) alert if the vehicle
crosses a detected lane
marking. This system is not
intended to keep the vehicle
centered in the lane. LKA will
not assist and alert if the turn
signal is active in the direction
of lane departure, or if it
detects that you are
accelerating, braking or
actively steering. LKA can be
overridden by turning the
steering wheel. If the system
detects you are steering
intentionally across a lane
marker, the LDW will not be
given. Do not expect the LDW
to occur when you are
intentionally crossing a lane
marker.
{Warning
The LKA system does not
continuously steer the
vehicle. It may not keep the
vehicle in the lane or give a
Lane Departure Warning
(LDW) alert, even if a lane
marking is detected.
The LKA and LDW systems
may not:
.Provide an alert or enough
steering assist to avoid a
lane departure or crash.
.Detect lane markings
under poor weather or
visibility conditions. This
can occur if the windshield
or headlamps are blocked
by dirt, snow, or ice; if they
are not in proper
condition; or if the sun
shines directly into the
camera.
.Detect road edges.
.Detect lanes on winding or
hilly roads.
(Continued)

Cadillac Lyriq Owner Manual (GMNA-Localizing-U.S./Canada-15644413) -
2023 - CRC - 2/23/22
Driving and Operating 281
Warning (Continued)
If LKA only detects lane
markings on one side of the
road, it will only assist or
provide an LDW alert when
approaching the lane on the
side where it has detected a
lane marking. Even with LKA
and LDW, you must steer
the vehicle. Always keep
your attention on the road
and maintain proper vehicle
position within the lane,
or vehicle damage, injury,
or death could occur. Always
keep the windshield,
headlamps, and camera
sensors clean and in good
repair. Do not use LKA in
bad weather conditions or
on roads with unclear lane
markings, such as
construction zones.
{Warning
Using LKA on slippery roads
could cause loss of control
of the vehicle and a crash.
Turn the system off.
{Warning
LKA will not alert the driver
if a towed trailer crosses
into an adjacent lane of
travel. Serious injury or
property damage may occur
if the trailer moves into
another lane. Always
monitor the trailer position
while towing to make sure it
is within the same lane as
the tow vehicle.
How the System Works
LKA uses a camera sensor
installed on the windshield
ahead of the rearview mirror
to detect lane markings. It may
provide brief steering assist if
it detects an unintended lanedeparture. It may further
provide an audible alert or the
driver seat may pulse
indicating that a lane marking
has been crossed. The system
does not provide a Lane
Departure Warning (LDW)
when intentionally steering
across a lane marker.
To turn LKA on and off, press
non the center console.
If equipped, the indicator light
on the button comes on when
LKA is on and turns off when
LKA is disabled. On some
vehicles, a long press of over
three seconds is required to
turn LKA off.
When on,
nis white,
if equipped, indicating that the
system is not ready to assist.
nis green if LKA is ready to
assist. LKA may assist by
gently turning the steering
wheel if the vehicle
approaches a detected lane
marking.
nis amber when
assisting. It may also provide a
Lane Departure Warning

Cadillac Lyriq Owner Manual (GMNA-Localizing-U.S./Canada-15644413) -
2023 - CRC - 2/23/22
Vehicle Care 307
Vehicle Care
General Information
General Information . . . . . . 308
California PerchlorateMaterials
Requirements . . . . . . . . . . . . . 308
Accessories and Modifications . . . . . . . . . . . . . 308
Vehicle Checks
Doing Your OwnService Work . . . . . . . . . . . . . 309
Hood . . . . . . . . . . . . . . . . . . . . . . . . . . . 310
Underhood Compartment Overview . . . . . . . . . . . . . . . . . . . . 312
Cooling System . . . . . . . . . . . . . 313
Washer Fluid . . . . . . . . . . . . . . . . 314
Brakes . . . . . . . . . . . . . . . . . . . . . . . . . 315
Brake Fluid . . . . . . . . . . . . . . . . . . . 316
Battery - North America . . . . . . . . . . . . . . . . . . . . . . 317
Park Brake and P (Park) Mechanism Check . . . . . . . 320
Wiper Blade Replacement . . . . . . . . . . . . . . 320
Windshield Replacement . . . . . . . . . . . . . . . 321
Gas Strut(s) . . . . . . . . . . . . . . . . . . 321
Headlamp Aiming
Front Headlamp Aiming . . . . . . . . . . . . . . . . . . . . . . . 322
Bulb Replacement
Bulb Replacement . . . . . . . . . 323
LED Lighting . . . . . . . . . . . . . . . . 323
Electrical System
High Voltage Devices andWiring . . . . . . . . . . . . . . . . . . . . . . . 323
Electrical System Overload . . . . . . . . . . . . . . . . . . . . 323
Fuses and Circuit Breakers . . . . . . . . . . . . . . . . . . . . 325
Underhood Compartment Fuse Block . . . . . . . . . . . . . . . . . 326
Instrument Panel Fuse Block . . . . . . . . . . . . . . . . . . . . . . . . . 331
Wheels and Tires
Tires . . . . . . . . . . . . . . . . . . . . . . . . . . . 334
All-Season Tires . . . . . . . . . . . 335
Winter Tires . . . . . . . . . . . . . . . . 336
Self-Sealing Tires . . . . . . . . . 336
Low-Profile Tires . . . . . . . . . . 337
Tire Sidewall Labeling . . . . 337
Tire Designations . . . . . . . . . . 338
Tire Terminology andDefinitions . . . . . . . . . . . . . . . . . 339
Tire Pressure . . . . . . . . . . . . . . . 342 Tire Pressure Monitor
System . . . . . . . . . . . . . . . . . . . . . . 343
Tire Pressure Monitor Operation . . . . . . . . . . . . . . . . . . 344
Tire Inspection . . . . . . . . . . . . . 347
Tire Rotation . . . . . . . . . . . . . . . 348
When It Is Time for New
Tires . . . . . . . . . . . . . . . . . . . . . . . . . 349
Buying New Tires . . . . . . . . . 350
Different Size Tires and Wheels . . . . . . . . . . . . . . . . . . . . . . 352
Uniform Tire Quality Grading . . . . . . . . . . . . . . . . . . . . . 352
Wheel Alignment and Tire Balance . . . . . . . . . . . . . . . 354
Wheel Replacement . . . . . . 354
Tire Chains . . . . . . . . . . . . . . . . . . 355
If a Tire Goes Flat . . . . . . . . . 355
Jump Starting
Jump Starting - North America . . . . . . . . . . . . . . . . . . . . . 356
Towing the Vehicle
Transporting a DisabledVehicle . . . . . . . . . . . . . . . . . . . . . . 359
Recreational Vehicle Towing . . . . . . . . . . . . . . . . . . . . . . 362

Cadillac Lyriq Owner Manual (GMNA-Localizing-U.S./Canada-15644413) -
2023 - CRC - 2/23/22
322 Vehicle Care

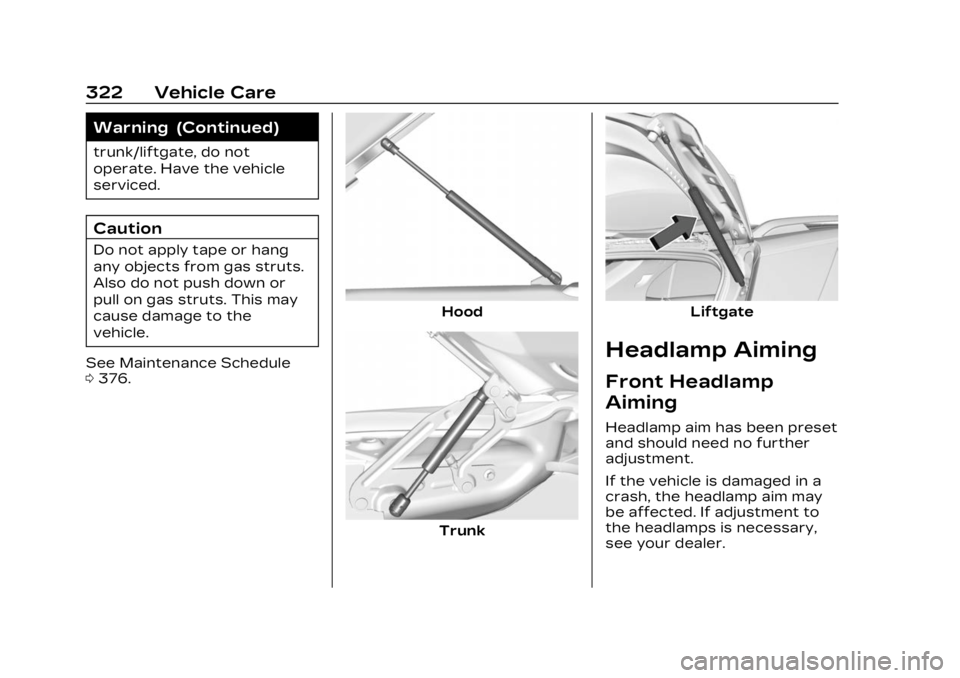

Warning (Continued)
trunk/liftgate, do not
operate. Have the vehicle
serviced.
Caution
Do not apply tape or hang
any objects from gas struts.
Also do not push down or
pull on gas struts. This may
cause damage to the
vehicle.
See Maintenance Schedule
0 376.
Hood
Trunk
Liftgate
Headlamp Aiming
Front Headlamp
Aiming
Headlamp aim has been preset
and should need no further
adjustment.
If the vehicle is damaged in a
crash, the headlamp aim may
be affected. If adjustment to
the headlamps is necessary,
see your dealer.

Cadillac Lyriq Owner Manual (GMNA-Localizing-U.S./Canada-15644413) -
2023 - CRC - 2/23/22
Vehicle Care 325
4. If the fuse must be replacedimmediately, borrow a
replacement fuse with the
same amperage from the
fuse block. Choose a vehicle
feature that is not needed
to safely operate the
vehicle. Repeat Steps 2–3.
5. Insert the replacement fuse into the empty slot of the
blown fuse.
At the next opportunity, see
your dealer to replace the
blown fuse.
Headlamp Wiring
An electrical overload may
cause the lamps to go on and
off, or in some cases to remain
off. Have the headlamp wiring
checked right away if the
lamps go on and off or
remain off.
Windshield Wipers
If the wiper motor overheats
due to heavy snow or ice, the
windshield wipers will stop
until the motor cools and will
then restart.
Although the circuit is
protected from electrical
overload, overload due to
heavy snow or ice may cause
wiper linkage damage. Always
clear ice and heavy snow from
the windshield before using
the windshield wipers.
If the overload is caused by an
electrical problem and not
snow or ice, be sure to get it
fixed.

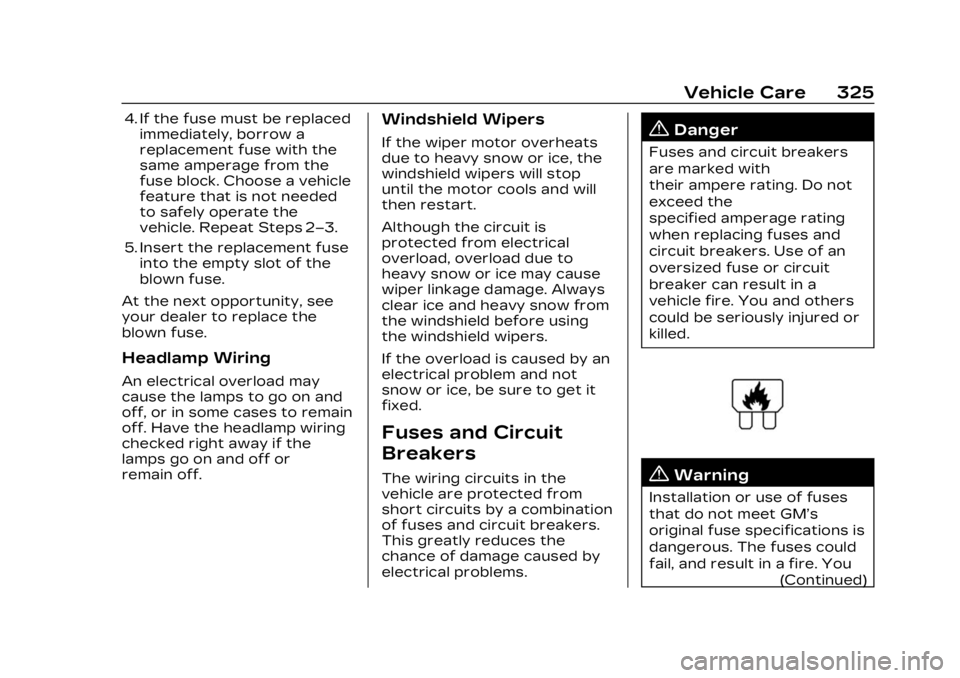

Fuses and Circuit
Breakers
The wiring circuits in the
vehicle are protected from
short circuits by a combination
of fuses and circuit breakers.
This greatly reduces the
chance of damage caused by
electrical problems.
{Danger
Fuses and circuit breakers
are marked with
their ampere rating. Do not
exceed the
specified amperage rating
when replacing fuses and
circuit breakers. Use of an
oversized fuse or circuit
breaker can result in a
vehicle fire. You and others
could be seriously injured or
killed.
{Warning
Installation or use of fuses
that do not meet GM’s
original fuse specifications is
dangerous. The fuses could
fail, and result in a fire. You (Continued)

Cadillac Lyriq Owner Manual (GMNA-Localizing-U.S./Canada-15644413) -
2023 - CRC - 2/23/22
Vehicle Care 329

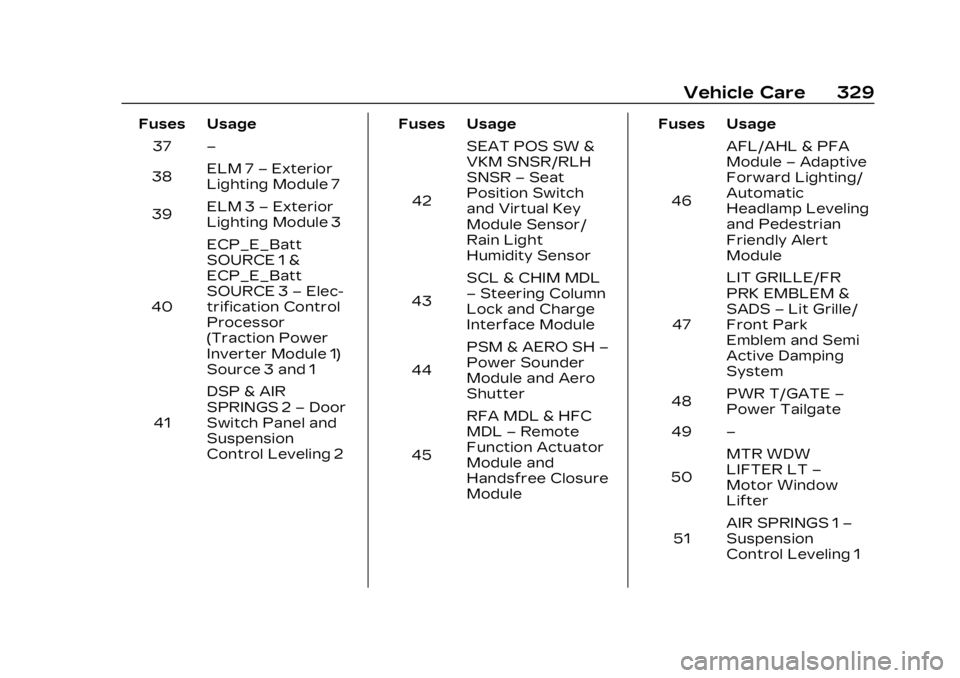

Fuses Usage37 –
38 ELM 7
–Exterior
Lighting Module 7
39 ELM 3
–Exterior
Lighting Module 3
40 ECP_E_Batt
SOURCE 1 &
ECP_E_Batt
SOURCE 3
–Elec-
trification Control
Processor
(Traction Power
Inverter Module 1)
Source 3 and 1
41 DSP & AIR
SPRINGS 2
–Door
Switch Panel and
Suspension
Control Leveling 2 Fuses Usage
42 SEAT POS SW &
VKM SNSR/RLH
SNSR
–Seat
Position Switch
and Virtual Key
Module Sensor/
Rain Light
Humidity Sensor
43 SCL & CHIM MDL
–
Steering Column
Lock and Charge
Interface Module
44 PSM & AERO SH
–
Power Sounder
Module and Aero
Shutter
45 RFA MDL & HFC
MDL
–Remote
Function Actuator
Module and
Handsfree Closure
Module Fuses Usage
46 AFL/AHL & PFA
Module
–Adaptive
Forward Lighting/
Automatic
Headlamp Leveling
and Pedestrian
Friendly Alert
Module
47 LIT GRILLE/FR
PRK EMBLEM &
SADS
–Lit Grille/
Front Park
Emblem and Semi
Active Damping
System
48 PWR T/GATE
–
Power Tailgate
49 –
50 MTR WDW
LIFTER LT
–
Motor Window
Lifter
51 AIR SPRINGS 1
–
Suspension
Control Leveling 1

Cadillac Lyriq Owner Manual (GMNA-Localizing-U.S./Canada-15644413) -
2023 - CRC - 2/23/22
332 Vehicle Care

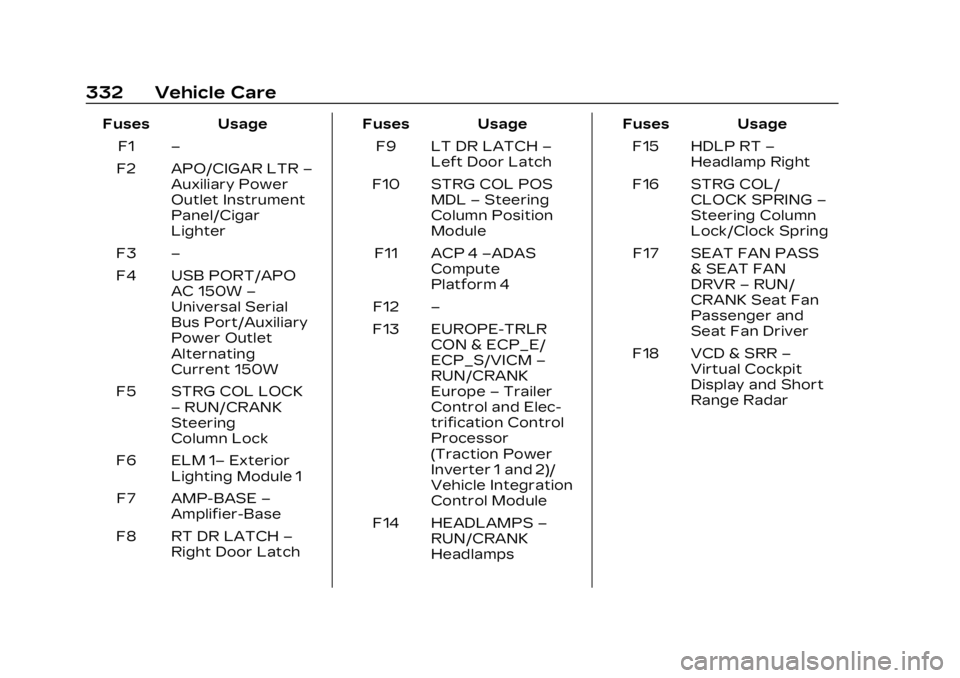

Fuses UsageF1 –
F2 APO/CIGAR LTR –
Auxiliary Power
Outlet Instrument
Panel/Cigar
Lighter
F3 –
F4 USB PORT/APO AC 150W –
Universal Serial
Bus Port/Auxiliary
Power Outlet
Alternating
Current 150W
F5 STRG COL LOCK –RUN/CRANK
Steering
Column Lock
F6 ELM 1– Exterior
Lighting Module 1
F7 AMP-BASE –
Amplifier-Base
F8 RT DR LATCH –
Right Door Latch Fuses Usage
F9 LT DR LATCH –
Left Door Latch
F10 STRG COL POS MDL–Steering
Column Position
Module
F11 ACP 4 –ADAS
Compute
Platform 4
F12 –
F13 EUROPE-TRLR CON & ECP_E/
ECP_S/VICM –
RUN/CRANK
Europe –Trailer
Control and Elec-
trification Control
Processor
(Traction Power
Inverter 1 and 2)/
Vehicle Integration
Control Module
F14 HEADLAMPS –
RUN/CRANK
Headlamps Fuses Usage
F15 HDLP RT –
Headlamp Right
F16 STRG COL/ CLOCK SPRING –
Steering Column
Lock/Clock Spring
F17 SEAT FAN PASS & SEAT FAN
DRVR–RUN/
CRANK Seat Fan
Passenger and
Seat Fan Driver
F18 VCD & SRR –
Virtual Cockpit
Display and Short
Range Radar

Cadillac Lyriq Owner Manual (GMNA-Localizing-U.S./Canada-15644413) -
2023 - CRC - 2/23/22
334 Vehicle Care

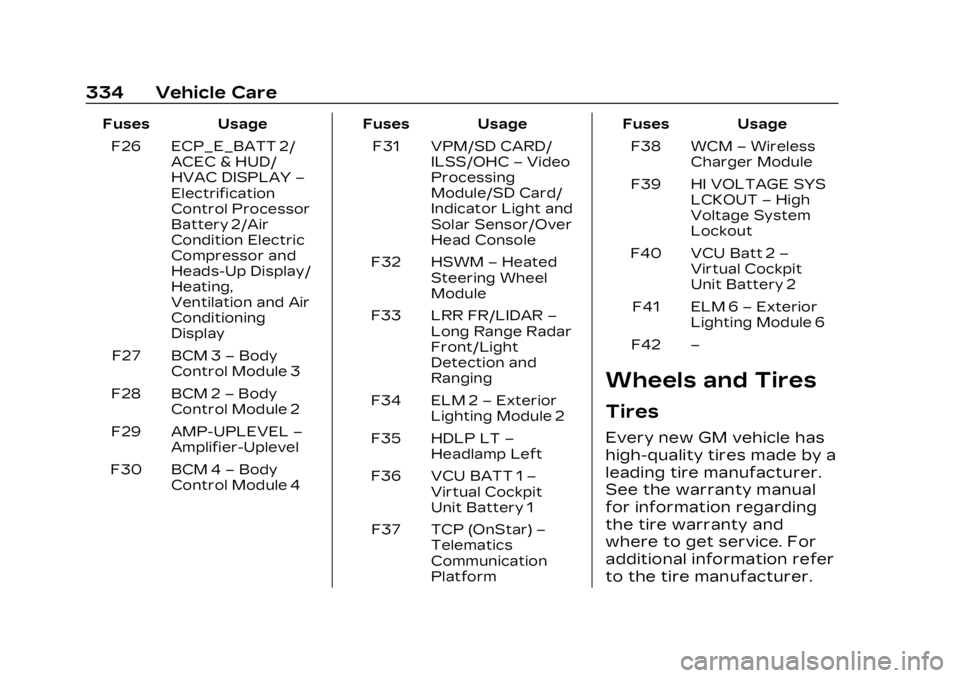

Fuses UsageF26 ECP_E_BATT 2/ ACEC & HUD/
HVAC DISPLAY –
Electrification
Control Processor
Battery 2/Air
Condition Electric
Compressor and
Heads-Up Display/
Heating,
Ventilation and Air
Conditioning
Display
F27 BCM 3 –Body
Control Module 3
F28 BCM 2 –Body
Control Module 2
F29 AMP-UPLEVEL –
Amplifier-Uplevel
F30 BCM 4 –Body
Control Module 4 Fuses Usage
F31 VPM/SD CARD/ ILSS/OHC –Video
Processing
Module/SD Card/
Indicator Light and
Solar Sensor/Over
Head Console
F32 HSWM –Heated
Steering Wheel
Module
F33 LRR FR/LIDAR –
Long Range Radar
Front/Light
Detection and
Ranging
F34 ELM 2 –Exterior
Lighting Module 2
F35 HDLP LT –
Headlamp Left
F36 VCU BATT 1 –
Virtual Cockpit
Unit Battery 1
F37 TCP (OnStar) –
Telematics
Communication
Platform Fuses Usage
F38 WCM –Wireless
Charger Module
F39 HI VOLTAGE SYS LCKOUT –High
Voltage System
Lockout
F40 VCU Batt 2 –
Virtual Cockpit
Unit Battery 2
F41 ELM 6 –Exterior
Lighting Module 6
F42 –
Wheels and Tires
Tires
Every new GM vehicle has
high-quality tires made by a
leading tire manufacturer.
See the warranty manual
for information regarding
the tire warranty and
where to get service. For
additional information refer
to the tire manufacturer.

Cadillac Lyriq Owner Manual (GMNA-Localizing-U.S./Canada-15644413) -
2023 - CRC - 2/23/22
Vehicle Care 355
Warning (Continued)
When replacing wheels, use
a new GM original
equipment wheel.
Caution
The wrong wheel can also
cause problems with bearing
life, brake cooling,
speedometer or odometer
calibration, headlamp aim,
bumper height, vehicle
ground clearance, and tire or
tire chain clearance to the
body and chassis.

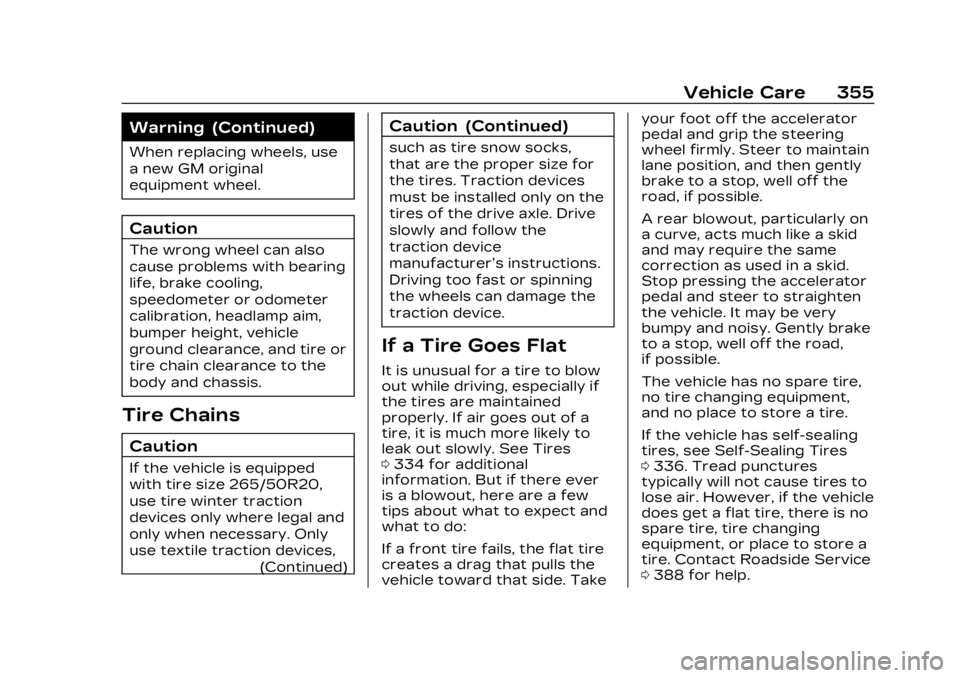

Tire Chains
Caution
If the vehicle is equipped
with tire size 265/50R20,
use tire winter traction
devices only where legal and
only when necessary. Only
use textile traction devices,(Continued)
Caution (Continued)
such as tire snow socks,
that are the proper size for
the tires. Traction devices
must be installed only on the
tires of the drive axle. Drive
slowly and follow the
traction device
manufacturer’s instructions.
Driving too fast or spinning
the wheels can damage the
traction device.
If a Tire Goes Flat
It is unusual for a tire to blow
out while driving, especially if
the tires are maintained
properly. If air goes out of a
tire, it is much more likely to
leak out slowly. See Tires
0334 for additional
information. But if there ever
is a blowout, here are a few
tips about what to expect and
what to do:
If a front tire fails, the flat tire
creates a drag that pulls the
vehicle toward that side. Take your foot off the accelerator
pedal and grip the steering
wheel firmly. Steer to maintain
lane position, and then gently
brake to a stop, well off the
road, if possible.
A rear blowout, particularly on
a curve, acts much like a skid
and may require the same
correction as used in a skid.
Stop pressing the accelerator
pedal and steer to straighten
the vehicle. It may be very
bumpy and noisy. Gently brake
to a stop, well off the road,
if possible.
The vehicle has no spare tire,
no tire changing equipment,
and no place to store a tire.
If the vehicle has self-sealing
tires, see Self-Sealing Tires
0
336. Tread punctures
typically will not cause tires to
lose air. However, if the vehicle
does get a flat tire, there is no
spare tire, tire changing
equipment, or place to store a
tire. Contact Roadside Service
0 388 for help.

Cadillac Lyriq Owner Manual (GMNA-Localizing-U.S./Canada-15644413) -
2023 - CRC - 2/23/22
INDEX 411
Alert (cont'd)Side Blind
Zone (SBZA) . . . . . . . . . . . . . . . . 277
All-Season Tires . . . . . . . . . . . . . 335
All-Wheel Drive . . . . . . . . . . . . . . . . 215
AM-FM Radio . . . . . . . . . . . . . . . . . . 156
Antenna Multi-band . . . . . . . . . . . . . . . . . . . . 160
Antilock Brake System (ABS) . . . . . . . . . . . . . . . . 216
Warning Light . . . . . . . . . . . . . . . . 117
Appearance Care
Exterior . . . . . . . . . . . . . . . . . . . . . . . 364
Interior . . . . . . . . . . . . . . . . . . . . . . . . 369
Apple CarPlay and Android Auto . . . . . . . . . . . . . . . . . 174
Assistance Systems Driving . . . . . . . . . . . . . . . . . . . . . . . . 270
Parking and Backing . . . . . . . 257
Audio Bluetooth . . . . . . . . . . . . . . . . . . . . . 161
Automatic Door Locks . . . . . . . . . . . . . . . . . . . . . 19
EmergencyBraking (AEB) . . . . . . . . . . . . . . 273
Emergency Braking
(AEB) Disabled Light . . . . . 118
Headlamp System . . . . . . . . . . 143 Automatic (cont'd)
Parking Assist (APA) . . . . . 262
Vehicle Hold Light . . . . . . . . . . . 117
Automatic Vehicle Hold (AVH) . . . . . . . . . . . . . . . . . . . . 219
Avoiding Untrusted Media Devices . . . . . . . . . . . . . . . 160
B
Battery
Charging ElectricalRequirements . . . . . . . . . . . . . 295
Exterior Lighting Battery Saver . . . . . . . . . . . . . . 149
Fault Light . . . . . . . . . . . . . . . . . . . . 115
Gauge . . . . . . . . . . . . . . . . . . . . . . . . . . 110
Load Management . . . . . . . . . 148
Power Protection . . . . . . . . . . 149
Battery - North America . . . . . . . . . . . . . . . . . 317, 356
Blade Replacement, Wiper . . . . . . . . . . . . . . . . . . . . . . . . . . 320
Blind Zone SteeringAssist (BZSA) . . . . . . . . . . . . . . 279
Bluetooth
Audio . . . . . . . . . . . . . . . . . . . . . . . . . . . 161
Overview . . . . . . . . . . . . . . . . 168, 170 Brake
Fluid . . . . . . . . . . . . . . . . . . . . . . . . . . . . 316
System Warning Light . . . . 115
Brakes . . . . . . . . . . . . . . . . . . . . . . . . . . . 315 Antilock . . . . . . . . . . . . . . . . . . . . . . . . 216
Brake Assist . . . . . . . . . . . . . . . . . 218
Electric Brake Boost . . . . . . 216
Electric Parking Brake . . . . 217
Regenerative Braking . . . . 220
Braking . . . . . . . . . . . . . . . . . . . . . . . . . . 196 Automatic
Emergency (AEB) . . . . . . . . . 273
Reverse Automatic . . . . . . . . 267
Braking System FrontPedestrian (FPB) . . . . . . . . . . 274
Break-In, New Vehicle . . . . . . 206
Buckle To Drive . . . . . . . . . . . . . . . . . 51
Bulb Replacement . . . . . . . . . . . 323 Headlamp Aiming . . . . . . . . . . 322
Buying New Tires . . . . . . . . . . . . 350
C
Calibration
Compass . . . . . . . . . . . . . . . . . . . . . . 102
