power steering fluid CADILLAC LYRIC 2023 Owners Manual

Cadillac Lyriq Owner Manual (GMNA-Localizing-U.S./Canada-15644413) -
2023 - CRC - 2/23/22

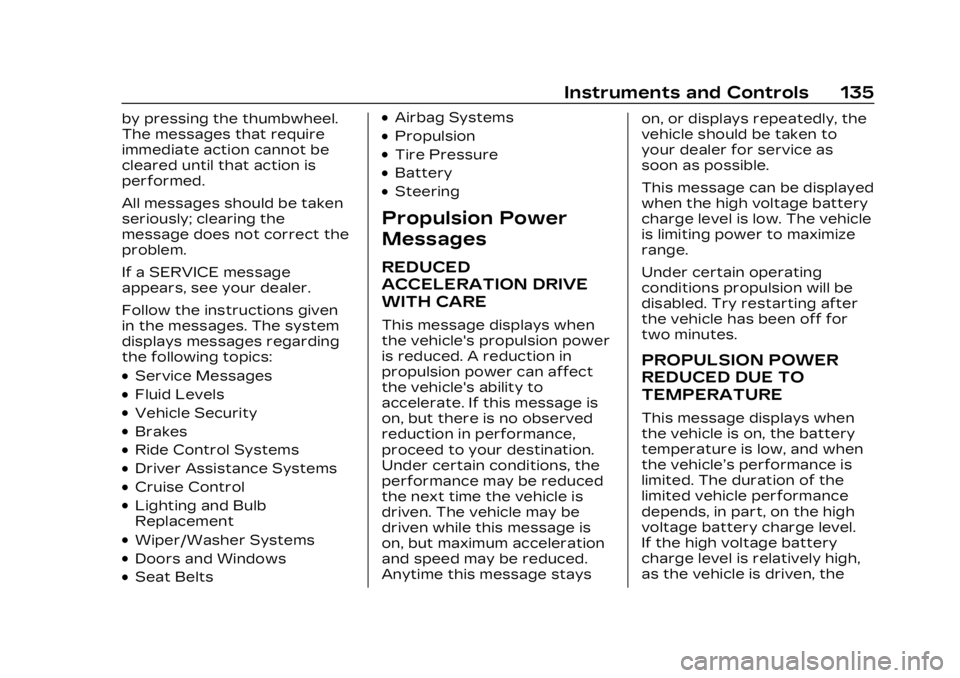

Instruments and Controls 135
by pressing the thumbwheel.
The messages that require
immediate action cannot be
cleared until that action is
performed.
All messages should be taken
seriously; clearing the
message does not correct the
problem.
If a SERVICE message
appears, see your dealer.
Follow the instructions given
in the messages. The system
displays messages regarding
the following topics:
.Service Messages
.Fluid Levels
.Vehicle Security
.Brakes
.Ride Control Systems
.Driver Assistance Systems
.Cruise Control
.Lighting and Bulb
Replacement
.Wiper/Washer Systems
.Doors and Windows
.Seat Belts
.Airbag Systems
.Propulsion
.Tire Pressure
.Battery
.Steering
Propulsion Power
Messages
REDUCED
ACCELERATION DRIVE
WITH CARE
This message displays when
the vehicle's propulsion power
is reduced. A reduction in
propulsion power can affect
the vehicle's ability to
accelerate. If this message is
on, but there is no observed
reduction in performance,
proceed to your destination.
Under certain conditions, the
performance may be reduced
the next time the vehicle is
driven. The vehicle may be
driven while this message is
on, but maximum acceleration
and speed may be reduced.
Anytime this message stayson, or displays repeatedly, the
vehicle should be taken to
your dealer for service as
soon as possible.
This message can be displayed
when the high voltage battery
charge level is low. The vehicle
is limiting power to maximize
range.
Under certain operating
conditions propulsion will be
disabled. Try restarting after
the vehicle has been off for
two minutes.
PROPULSION POWER
REDUCED DUE TO
TEMPERATURE
This message displays when
the vehicle is on, the battery
temperature is low, and when
the vehicle’s performance is
limited. The duration of the
limited vehicle performance
depends, in part, on the high
voltage battery charge level.
If the high voltage battery
charge level is relatively high,
as the vehicle is driven, the

Cadillac Lyriq Owner Manual (GMNA-Localizing-U.S./Canada-15644413) -
2023 - CRC - 2/23/22
Driving and Operating 197
moving at 100 km/h (60 mph)
travels 20 m (66 ft), which
could be a lot of distance in an
emergency.
Helpful braking tips to keep in
mind include:
.Keep enough distance
between you and the vehicle
in front of you.
.Avoid needless heavy
braking.
.Keep pace with traffic.
Steering
Electric Power SteeringCaution
To avoid damage to the
steering system, do not
drive over curbs, parking
barriers, or similar objects at
speeds greater than 3 km/h
(1 mph). Use care when
driving over other objects
such as lane dividers and
speed bumps. Damage (Continued)
Caution (Continued)
caused by misuse of the
vehicle is not covered by the
vehicle warranty.
The vehicle has electric power
steering. It does not have
power steering fluid. Regular
maintenance is not required.
If power steering assist is lost
due to a system malfunction,
the vehicle can be steered, but
may require increased effort. If the steering assist is used
for an extended period of time
while the vehicle is not moving,
power assist may be reduced.
If the steering wheel is turned
until it reaches the end of its
travel and is held against that
position for an extended
period of time, power steering
assist may be reduced.
Normal use of the power
steering assist should return
when the system cools down.
See your dealer if there is a
problem.
Curve Tips
.Take curves at a reasonable
speed.
.Reduce speed before
entering a curve.
.Maintain a reasonable
steady speed through the
curve.
.Wait until the vehicle is out
of the curve before
accelerating gently into the
straightaway.

Cadillac Lyriq Owner Manual (GMNA-Localizing-U.S./Canada-15644413) -
2023 - CRC - 2/23/22
368 Vehicle Care
Caution (Continued)
used on roads for conditions
such as dust and ice. Always
wash the chrome with soap
and water after exposure.
Caution
To avoid surface damage on
wheels and wheel trim, do
not use strong soaps,
chemicals, abrasive polishes,
cleaners, or brushes. Use
only GM approved cleaners.
Do not drive the vehicle
through an automatic car
wash that uses silicon
carbide tire/wheel cleaning
brushes. Damage could
occur and the repairs would
not be covered by the
vehicle warranty.
Brake System
Visually inspect brake lines
and hoses for proper hook-up,
binding, leaks, cracks, chafing,
etc. Inspect disc brake padsfor wear and rotors for
surface condition. Inspect all
other brake parts.
Steering, Suspension, and
Chassis Components
Visually inspect steering,
suspension, and chassis
components for damaged,
loose, or missing parts or signs
of wear at least once a year.
Inspect power steering for
proper electrical connections,
binding, cracks, chafing, etc.
Visually check constant
velocity joint boots and axle
seals for leaks.
Body Component
Lubrication
Lubricate all key lock cylinders,
hood hinges, and liftgate
hinges unless the components
are plastic. Applying silicone
grease on weatherstrips with
a clean cloth will make them
last longer, seal better, and
not stick or squeak.
Underbody Maintenance
At least twice a year, spring
and fall, use plain water to
flush any corrosive materials
from the underbody. Take care
to thoroughly clean any areas
where mud and other debris
can collect.
Do not directly power wash
the transfer case and/or
front/rear axle output seals.
High pressure water can
overcome the seals and
contaminate the fluid.
Contaminated fluid will
decrease the life of the
transfer case and/or axles and
should be replaced.
Sheet Metal Damage
If the vehicle is damaged and
requires sheet metal repair or
replacement, make sure the
body repair shop applies
anti-corrosion material to
parts repaired or replaced to
restore corrosion protection.

Cadillac Lyriq Owner Manual (GMNA-Localizing-U.S./Canada-15644413) -
2023 - CRC - 2/23/22
378 Service and Maintenance
Some items may not apply to
your vehicle and/or region.
Diagnostics
.OnStar active, if equipped
.Service history/recall check
Exterior Lights
.Visual inspection
Windshield and Wipers
.Visual inspection
Battery
.Battery visual inspection
.Battery test results
.Battery cables and
connections
Systems, Fluids, and
Visible Leak Inspection
.Electric Drive Unit
.Drive axle
.Transfer case
.Power electronics cooling
system
.Windshield washer fluid
Tire Inspection
.Tire pressure, tread depth,
and wear
.Rotation, if applicable
.Alignment check, optional
.Reset tire pressure monitor
.Check tire sealant expiration
date, if equipped
.Check spare tire, if equipped
Brakes
.Check brake system
Visible and Functional
Inspections
.Seat belt components
.Accelerator pedal
.Passenger compartment air
filter, if equipped
.Hoses
.Shocks and struts
.Steering components
.Axle boots or driveshaft and
u-joints
.Compartment lift struts,
if equipped
.Floor mats secured, no
interference with pedals
.Horn
.Starter switch
Lubricate
.Chassis components
Owner Checks and
Services
.At least twice a year, have
underbody flushing service
performed. See "Underbody
Maintenance" in Exterior
Care 0364.

Cadillac Lyriq Owner Manual (GMNA-Localizing-U.S./Canada-15644413) -
2023 - CRC - 2/23/22
INDEX 411
Alert (cont'd)Side Blind
Zone (SBZA) . . . . . . . . . . . . . . . . 277
All-Season Tires . . . . . . . . . . . . . 335
All-Wheel Drive . . . . . . . . . . . . . . . . 215
AM-FM Radio . . . . . . . . . . . . . . . . . . 156
Antenna Multi-band . . . . . . . . . . . . . . . . . . . . 160
Antilock Brake System (ABS) . . . . . . . . . . . . . . . . 216
Warning Light . . . . . . . . . . . . . . . . 117
Appearance Care
Exterior . . . . . . . . . . . . . . . . . . . . . . . 364
Interior . . . . . . . . . . . . . . . . . . . . . . . . 369
Apple CarPlay and Android Auto . . . . . . . . . . . . . . . . . 174
Assistance Systems Driving . . . . . . . . . . . . . . . . . . . . . . . . 270
Parking and Backing . . . . . . . 257
Audio Bluetooth . . . . . . . . . . . . . . . . . . . . . 161
Automatic Door Locks . . . . . . . . . . . . . . . . . . . . . 19
EmergencyBraking (AEB) . . . . . . . . . . . . . . 273
Emergency Braking
(AEB) Disabled Light . . . . . 118
Headlamp System . . . . . . . . . . 143 Automatic (cont'd)
Parking Assist (APA) . . . . . 262
Vehicle Hold Light . . . . . . . . . . . 117
Automatic Vehicle Hold (AVH) . . . . . . . . . . . . . . . . . . . . 219
Avoiding Untrusted Media Devices . . . . . . . . . . . . . . . 160
B
Battery
Charging ElectricalRequirements . . . . . . . . . . . . . 295
Exterior Lighting Battery Saver . . . . . . . . . . . . . . 149
Fault Light . . . . . . . . . . . . . . . . . . . . 115
Gauge . . . . . . . . . . . . . . . . . . . . . . . . . . 110
Load Management . . . . . . . . . 148
Power Protection . . . . . . . . . . 149
Battery - North America . . . . . . . . . . . . . . . . . 317, 356
Blade Replacement, Wiper . . . . . . . . . . . . . . . . . . . . . . . . . . 320
Blind Zone SteeringAssist (BZSA) . . . . . . . . . . . . . . 279
Bluetooth
Audio . . . . . . . . . . . . . . . . . . . . . . . . . . . 161
Overview . . . . . . . . . . . . . . . . 168, 170 Brake
Fluid . . . . . . . . . . . . . . . . . . . . . . . . . . . . 316
System Warning Light . . . . 115
Brakes . . . . . . . . . . . . . . . . . . . . . . . . . . . 315 Antilock . . . . . . . . . . . . . . . . . . . . . . . . 216
Brake Assist . . . . . . . . . . . . . . . . . 218
Electric Brake Boost . . . . . . 216
Electric Parking Brake . . . . 217
Regenerative Braking . . . . 220
Braking . . . . . . . . . . . . . . . . . . . . . . . . . . 196 Automatic
Emergency (AEB) . . . . . . . . . 273
Reverse Automatic . . . . . . . . 267
Braking System FrontPedestrian (FPB) . . . . . . . . . . 274
Break-In, New Vehicle . . . . . . 206
Buckle To Drive . . . . . . . . . . . . . . . . . 51
Bulb Replacement . . . . . . . . . . . 323 Headlamp Aiming . . . . . . . . . . 322
Buying New Tires . . . . . . . . . . . . 350
C
Calibration
Compass . . . . . . . . . . . . . . . . . . . . . . 102
