CADILLAC SEVILLE 1994 4.G Owners Manual

Downloaded from www.Manualslib.com manuals search engine DEFROSTER
1-1 Push this button to
remove fog or frost
from the windshield.
This setting sends most of the air flow to the windshield with only a small
amount to the floor outlets. In some cold start conditions, the
“AUTO”
blower fan speed may be limited until the cooling system warms up. This
is normal to prevent windshield fogging.
The .fan speed will work automatically to maintain your requested interior
temperature. If
you need more air to your windshield, you should select a
higher fan speed.
It will help a lot if you first clear any ice and snow from the hood and the
air inlet (it’s between the hood and the windshield).
REAR DEFOGGER
I
Push this button to turn
on the rear defogger.
With it, your rear window and both outside rearview mirrors are heated.
The system will automatically shut off after
10 minutes. If further
defrosting is desired, simply push the button again.
NOTICE:
Scraping the inside of your rear window could cut and damage
the heating grids. Your warranty would not,cover this damage.
And don’t put decals there; you might have to scrape them.off.
158

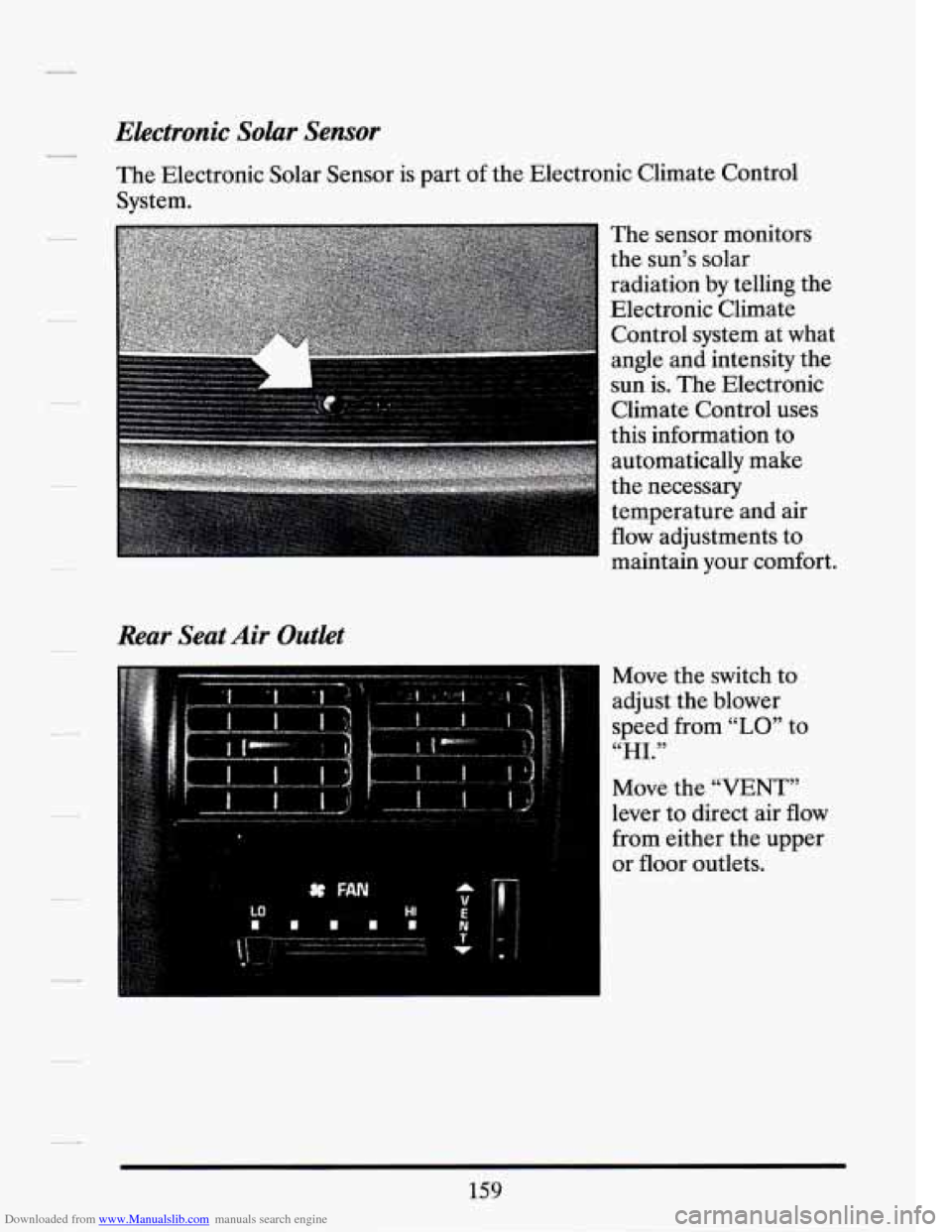

Downloaded from www.Manualslib.com manuals search engine Electronic Solar Sensor
The Electronic Solar Sensor is part of the Electronic Climate Control
System.
Rear Seat Air Outlet
The sensor monitors
the sun’s solar
radiation
by telling the
Electronic Climate
Control system at what
angle and intensity the
sun is. The Electronic
Climate Control uses
this information to
automatically make
the necessary
temperature and air
flow adjustments to
maintain your comfor
Move the switch to
adjust the blower
speed from
“LO” to
“HI.”
‘t .
Move the “VENT”
lever to direct air
flow
from either the upper
or floor outlets.
159

Downloaded from www.Manualslib.com manuals search engine Heated Windshield (Option)
Front De-Ice
Here’s how to use your heated windshield in cold weather to remove ice
or frost quickly:
1. If any snow is piled up on the windshield, brush it away.
2. Start your Cadillac and leave it in P (“Park”).
‘. .
n.
3. Push the switch. A light will come on to tell you it is working.
4. Try not to use other electrical equipment while the system is working.
The system will go
off after a four minute heating cycle. If you shift out of
“P” (Park), the system
will only cycle for two minutes. If you want it to
cycle again, push the switch. It will go on for
two minute cycles after that.
If it has cleared your windshield before the cycle is over, you can turn it
off by just pushing the switch again.
Use the defroster to clear the windshield.
In warm weather the heated
windshield system helps keep the vehicle’s interior cool by blocking much
of the sun’s heat producing radiation. The system’s solar control
properties also help reduce interior fading.
There is a metal film in the windshield which will block out some radio or
microwave signals. Therefore, the heated windshield will reduce the
useful range
of devices such as garage door openers and radar detectors.
(In certain states radar detectors are legal.)
160

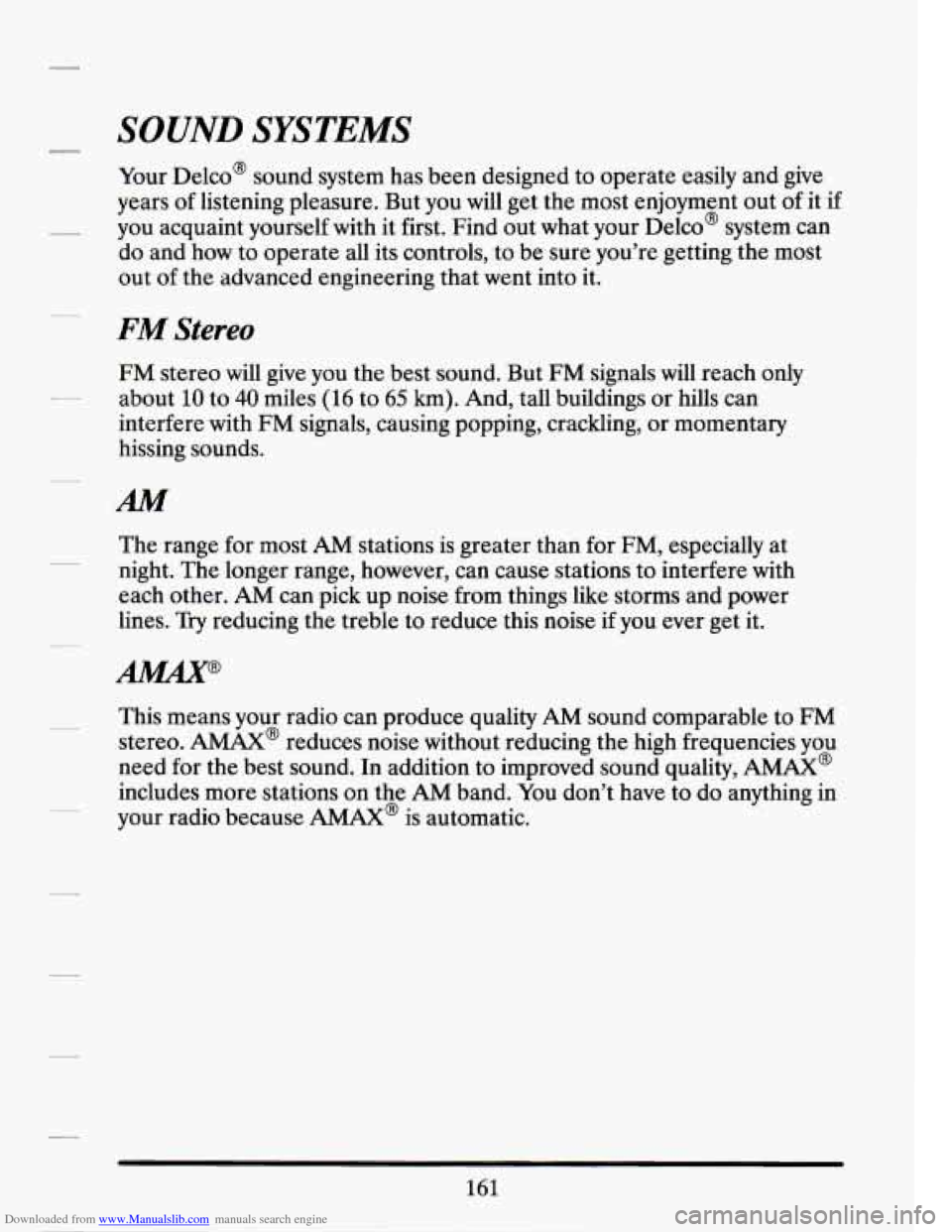

Downloaded from www.Manualslib.com manuals search engine SOUND SYSTEMS
Your Delco@ sound system has been designed to operate easily and give
years
of listening pleasure. But you will get the most enjoyment out of it if
you acquaint yourself with it first. Find out what your Delco@ system can
do and how to operate all its controls, to be sure you’re getting the most
out of the advanced engineering that went into it.
FM Stereo
FM stereo will give you the best sound. But FM signals will reach only
about
10 to 40 miles (16 to 65 km). And, tall buildings or hills can
interfere with
FM signals, causing popping, crackling, or momentary
hissing sounds.
AM
The range for most AM stations is greater than for FM, especially at
night. The longer range, however, can cause stations to interfere with
each other.
AM can pick up noise from things like storms and power
lines.
Try reducing the treble to reduce this noise if you ever get it.
This means your radio can produce quality
AM sound comparable to FM
stereo.
AMAX@ reduces noise without reducing the high frequencies you
need for the best sound. In addition to improved sound quality,
AMAX@
includes more stations on the AM band. You don’t have to do anything in
your radio because
AMAX@ is automatic.
161

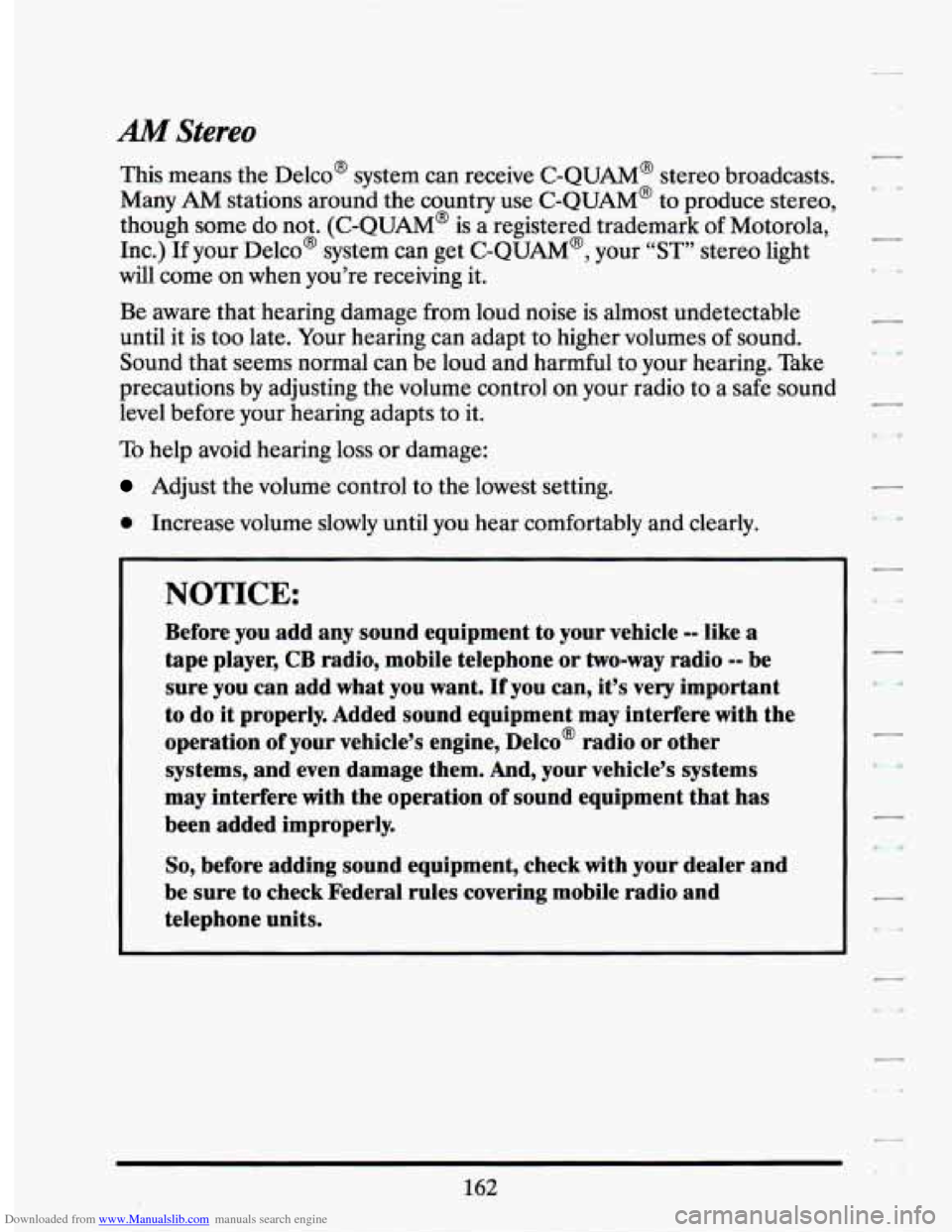

Downloaded from www.Manualslib.com manuals search engine AM Stereo
This means the Delco@ system can receive C-QUAM@ stereo broadcasts.
Many
AM stations around the country use C-QUAM@ to produce stereo,
though some do not. (C-QUAM@ is a registered trademark of Motorola,
Inc.)
If your Delco’ system can get C-QUAM@, your “ST” stereo light
will come
on when you’re receiving it.
Be aware that hearing damage from loud noise
is almost undetectable
until it is too late. Your hearing can adapt to higher volumes
of sound.
Sound that seems normal can be loud and harmful to your hearing. Take
precautions by adjusting the volume control
on your radio to a safe sound
level before your hearing adapts to it.
To help avoid hearing loss or damage:
Adjust the volume control to the lowest setting.
0 Increase volume slowly until you hear comfortably and clearly.
~~
NOTICE:
Before you add any sound equipment to your vehicle -- like a
tape player, CB radio, mobile telephone or two-way radio -- be
sure you can add what you want.
If you can, it’s very important
to
do it properly. Added sound equipment may interfere with the
operation of your vehicle’s engine, Delco’ radio or other
systems, and even damage them.
And, your vehicle’s systems
may interfere with the operation of sound equipment that has
been added improperly.
So, before adding sound equipment, check with your dealer and
be sure to check Federal rules covering mobile radio and
telephone units.
7
7
162
.c-.

Downloaded from www.Manualslib.com manuals search engine How To Operate Your Sound System
Your Cadillac will have one of these Delco Radio Systems.
163

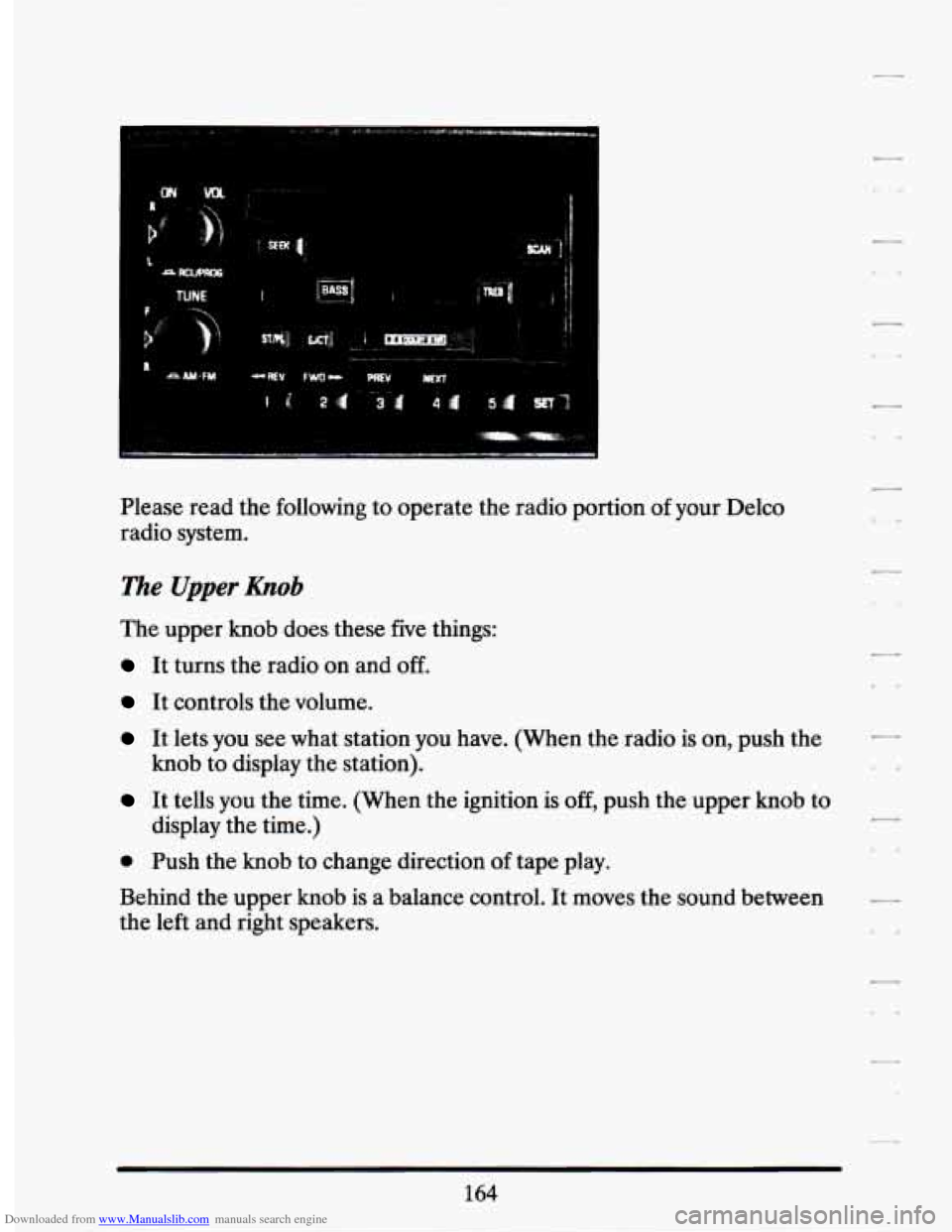

Downloaded from www.Manualslib.com manuals search engine 1 =waJPim
TUNE
Please read the following to operate the radio portion of your Delco
radio system.
The Upper &ob
The upper knob does these five things:
It turns the radio on and off.
It controls the volume.
It lets you see what station you have. (When the radio is on, push the
It tells you the time. (When the ignition is off, push the upper knob to
knob
to display the station).
display the time.)
@ Push the knob to change direction af tape play.
Behind the upper
knob is a balance control. It moves the sound between
the left and right speakers.

Downloaded from www.Manualslib.com manuals search engine l%e Lower Knob
Turn the lower knob to choose radio stations. Push the knob to switch
from
AM or FM.
If you have the Delco Bose Gold Series Music System, it lets you switch
from CD (Compact Disc) to TP (Tape player).
The control behind the lower knob moves the sound between your front
and rear speakers
When you push this button either up or down, the SCAN indicator
in the
display will light and the radio will find the next station and stay there
about
5 seconds. Then it will go to the next station and pause, and keep
doing that until you push either the SCAN or upper knob.
SEEK
This button selects stations, but it doesn’t keep moving as SCAN does.
When you push
SEEK up or down, the radio will automatically go to the
next strongest station and stay there.
Eqport Radio Only
The SCAN and SEEK function selects station only in one direction.
Push Buttons
You can set the push buttons to get up to ten favorite stations (Five on
AM and five more on FM). Just:
0 Choose either AM or FM
0 Tune in the station.
Push the SET button.
0 Within 5 seconds, push one of the five push buttons.
0 Repeat these steps for each of the five push buttons.
165

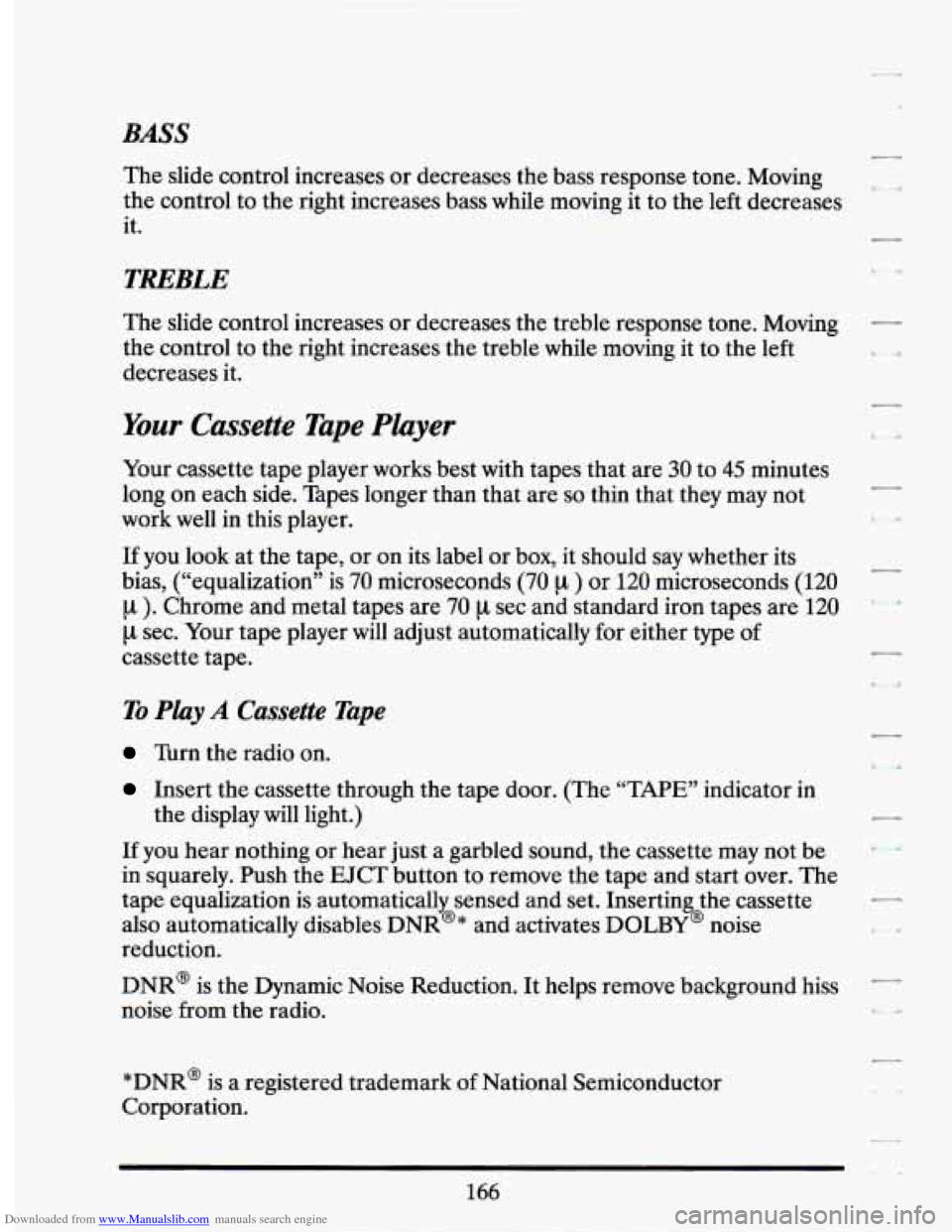

Downloaded from www.Manualslib.com manuals search engine BASS
The slide control increases or decreases the bass response tone. Moving
the control to the right increases bass while moving it to the left decreases
it.
TREBLE
The slide control increases or decreases the treble response tone. Moving
the control to the right increases the treble while moving it to the left
decreases it.
Your Cassette Tape Player
Your cassette tape player works best with tapes that are 30 to 45 minutes
long on each side. Tapes longer than that are
so thin that they may not
work well in this player.
If you look at the tape, or on its label or box, it should say whether its
bias, (“equalization”
is 70 microseconds (70 p ) or 120 microseconds (120
p ). Chrome and metal tapes are 70 p sec and standard iron tapes are 120
p sec. Your tape player will adjust automatically for either type of
cassette tape.
To Play A Cassette Tape
Turn the radio on.
Insert the cassette through the tape door. (The “TAPE indicator in
If you hear nothing or hear just a garbled sound, the cassette may not be
in squarely. Push the EJCT button to remove the tape and start over. The
tape equalization is automatically sensed and set. Inserting the cassette
also automatically disables DNR’” and activates
DOLBY’ noise
reduction.
DNR@ is the Dynamic Noise Reduction. It helps remove background hiss
noise from the radio.
the
display will light.)
*DNR@ is a registered trademark of National Semiconductor
Corporation.
166
7
LI

Downloaded from www.Manualslib.com manuals search engine Once the tape is playing, use the upper and lower knobs to adjust the
volume and balance, just as you do
for the radio. Push the upper knob
to change tape direction. The arrow in the display show which
direction the tape is being played.
FWI (Forward)
Push the FWD button to move forward rapidly to another part of the
tape. The radio will play during fast forward.
To stop the tape push the
same button and the tape will start to play again.
REV (Reverse)
Push the REV button to move the tape rapidly backward. To stop the
tape, push the same button lightly or any
of the other buttons. The radio
will play during this reverse function.
To go from one side of the tape to the other, push in the upper knob on
your radio. To remove the tape, push EJCT The tape can be ejected when
the ignition is turned
off.
NEXT
Push the NEXT button up to jump quickly to the next selection. If the
selection is at the end of the tape, the tape will reverse directions and
begin playing at a normal speed.
PREV
Push the PREV button up to quickly go to the beginning of the last
selection.
If the player has played less than 10 seconds into the current selection,
depressing the PREV button will cause the player to find the beginning of
the previous selection
and resume play from that point. If the player is
more than
10 seconds into the current selection, pressing PREV button
will cause the player to find the beginning of the current selection and
resume play from that point. If PREV is issued while the first selection on
the tape is being played, the player will return
to the beginning of that
side of the tape.
167
