CADILLAC SEVILLE 1994 4.G Owners Manual

Downloaded from www.Manualslib.com manuals search engine NOTICE: I-
I
Don’t put papers or other flammable things into your ashtrays.
Hot cigarettes or other smoking materials could ignite them,
I-
causing a damaging fire. -
LA
Cigarette Lighter
It’s near the ashtray. To use the lighter just push itall the way and let go.
When it’s ready, it will pop
back by itself.
NOTICE:
Don’t hold a cigarette lighter in with your hand while it is
heating.
If you do, it won’t be able to back away from the
heating element when it’s ready. That can make it overheat,
damaging the lighter and the heating element.
I-
128

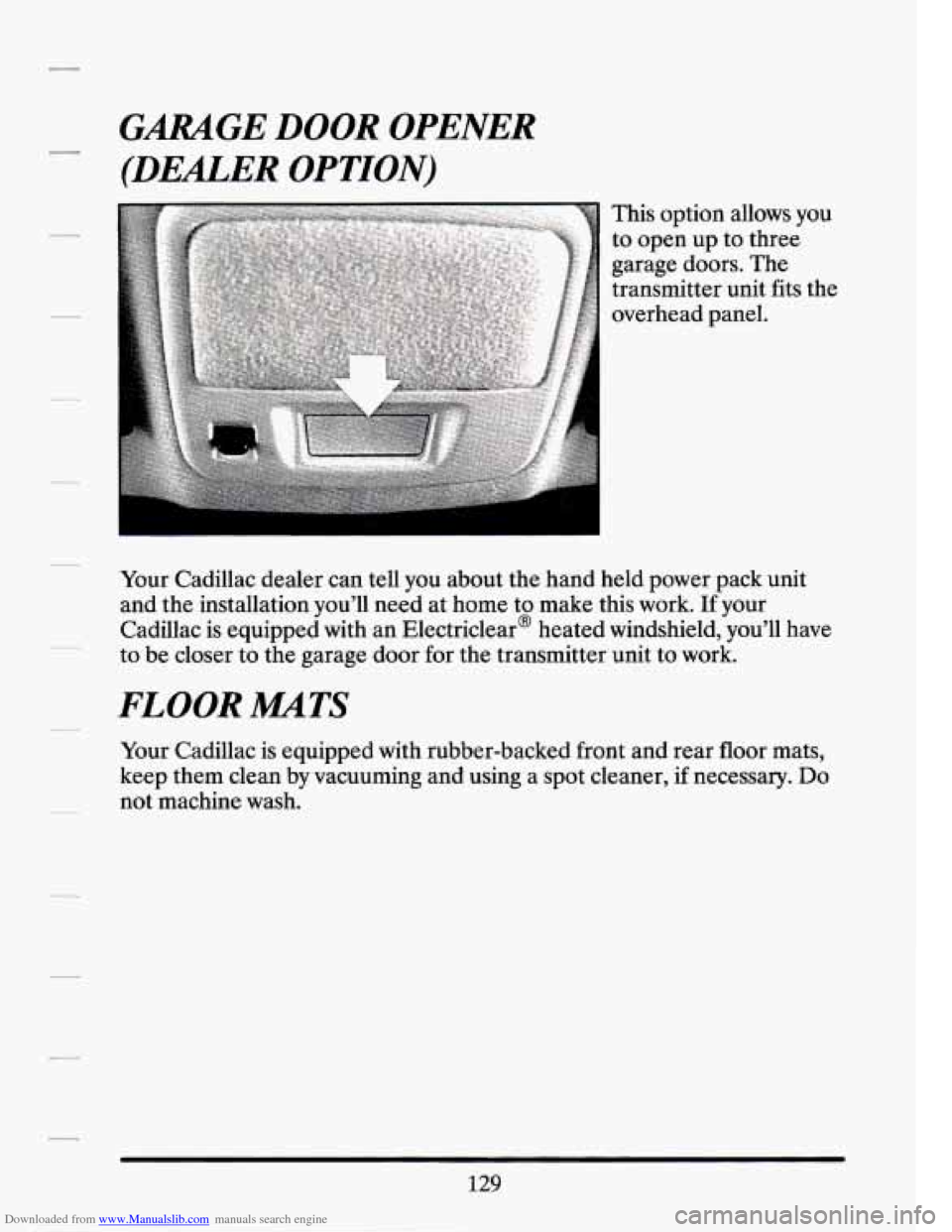

Downloaded from www.Manualslib.com manuals search engine GARAGE DOOR OPENER
(DEALER OPTION)
This option allows you
to open up to three
garage doors. The
transmitter unit fits the
overhead panel.
L
.
Your Cadillac dealer can tell you about the hand held power pack unit
and the installation you’ll need at home to make this work.
If your
Cadillac is equipped with an Electriclear@ heated windshield, you’ll have
to be closer to the garage door for the transmitter unit to work.
FLOOR MATS
Your Cadillac is equipped with rubber-backed front and
keep them clean by vacuuming and using a spot cleaner,
not machine wash. rear
floor mats,
if necessary.
Do
129

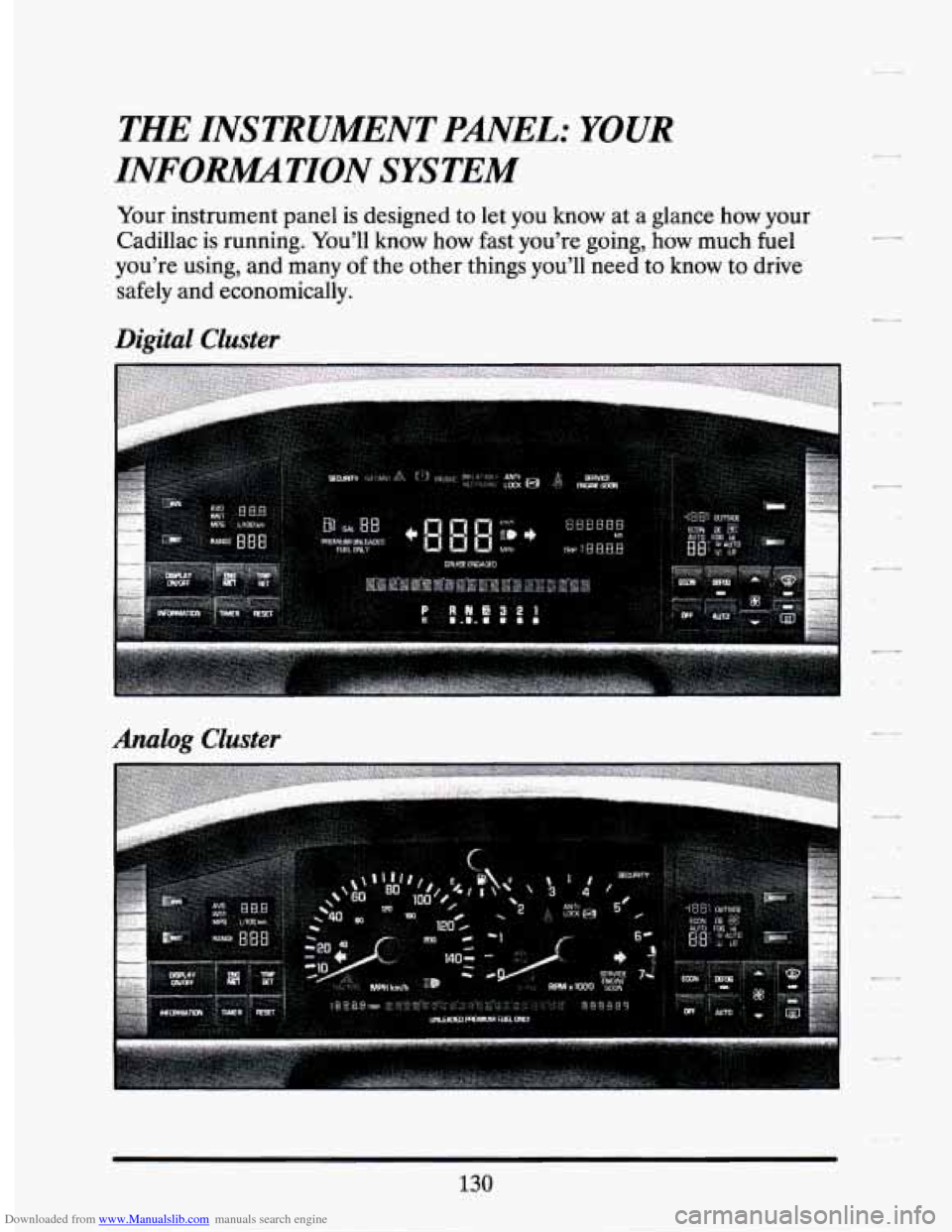

Downloaded from www.Manualslib.com manuals search engine THE INSTRUMENT PANEL: YOUR
INFOIWMTION SYSTEM
Your instrument panel is designed to let you know at a glance how your
Cadillac
is running. You’ll know how fast you’re going, how much fuel\

you’re using, and many
of the other things you’ll need to know to drive
safely and economically.
Digital Cluster
Analog Cluster
130

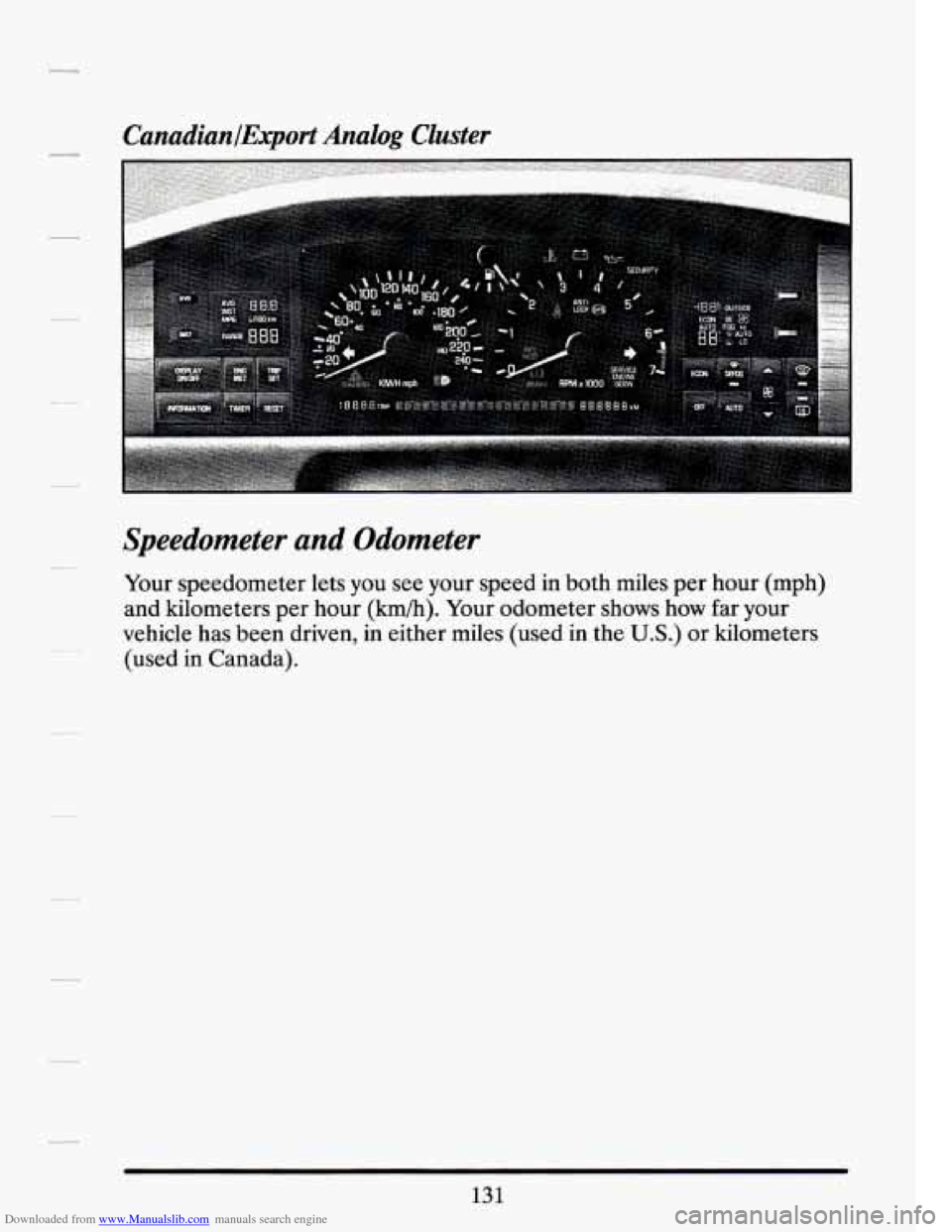

Downloaded from www.Manualslib.com manuals search engine Speedometer and Odometer
Your speedometer lets you see your speed in both miles per hour (mph)
and kilometers per hour (kmh). Your odometer
shows how far your
vehicle has been driven,
in either miles (used in the U.S.) or kilometers
(used in Canada).
13 1

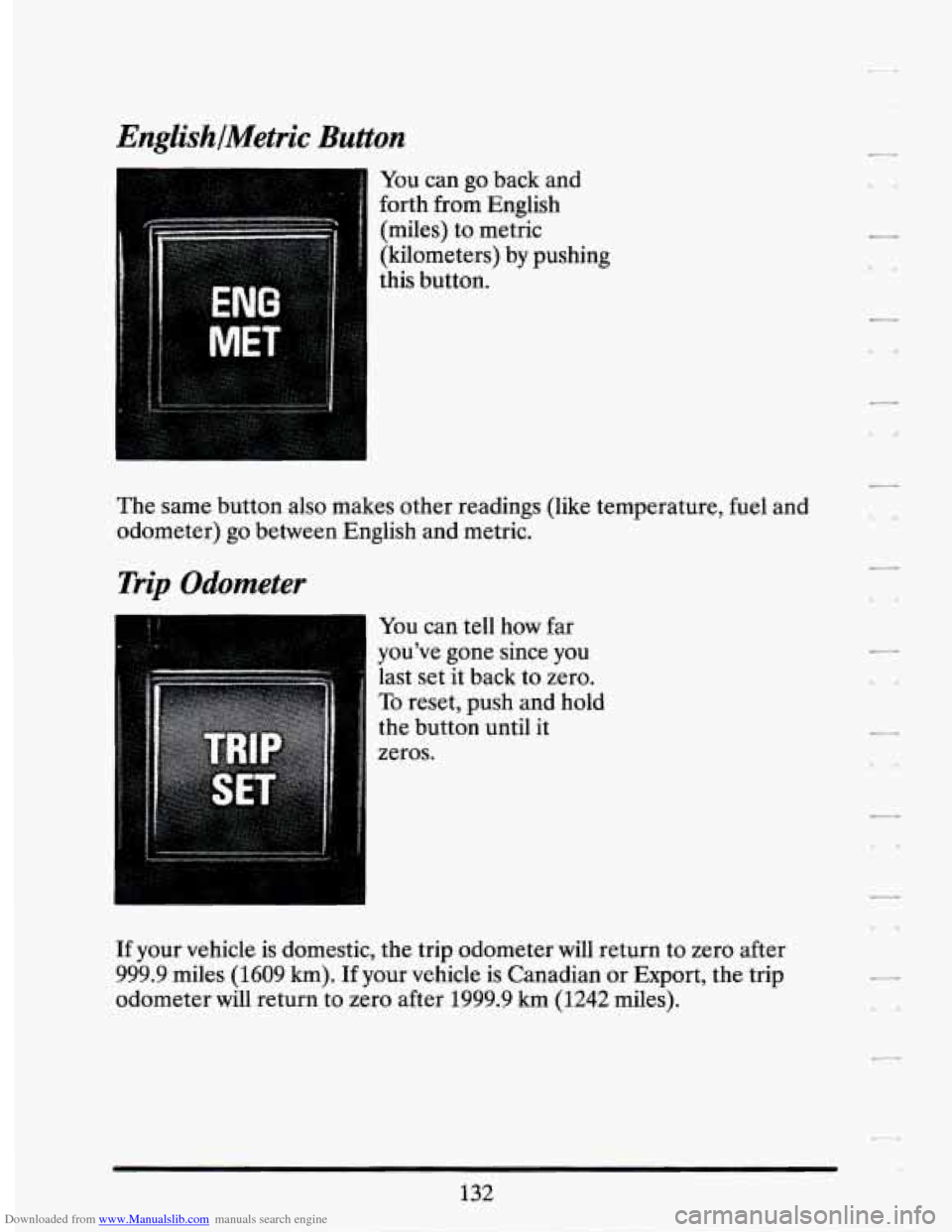

Downloaded from www.Manualslib.com manuals search engine EnglishlMetric Button
You can go back and
forth from English
(miles) to metric
(kilometers) by pushing
this button.
The same button also makes other readings (like temperature, fuel and
odometer) go between English and metric.
Trip Odometer
You can tell how far
you’ve gone since you
last set it back to zero.
To reset, push and hold
the button until it
zeros.
If your vehicle is domestic, the trip odometer will return to zero after
999.9 miles (1609
km). If your vehicle is Canadian or Export, the trip
odometer will return to zero after 1999.9 km (1242 miles).

Downloaded from www.Manualslib.com manuals search engine Odometer
-
You may wonder what happens if a car has to have a new odometer
installed. The new one will read the correct mileage. This is because your
car’s computer has stored the mileage in memory.
WMING LIGHTS
This section describes the warning
pictures will help you locate them. lights
that are on your vehicle. The
Warning lights can signal that something is wrong before it becomes
serious enough to cause an expensive repair or replacement. Paying
attention
to your warning lights could also save you or others from injury.
Warning lights go on when there may be or is
a problem with one of your
vehicle’s functions.
As you will see in the details on the next few pages,
some warning lights come on briefly when you turn the ignition key just to
let you know they’re working.
If you are familiar with this section, you
should not be alarmed when this happens.
When one
of the warning lights comes on and stays on when you are
driving, check the section that tells you what to do about it. Please follow
the manual’s advice. Waiting to do repairs can be costly
-- and even
dangerous.
So please get to know your warning lights. They’re a big help.
Your vehicle may also have a driver information system that works along
with the warning lights. See “Driver Information System” in the Index.
133

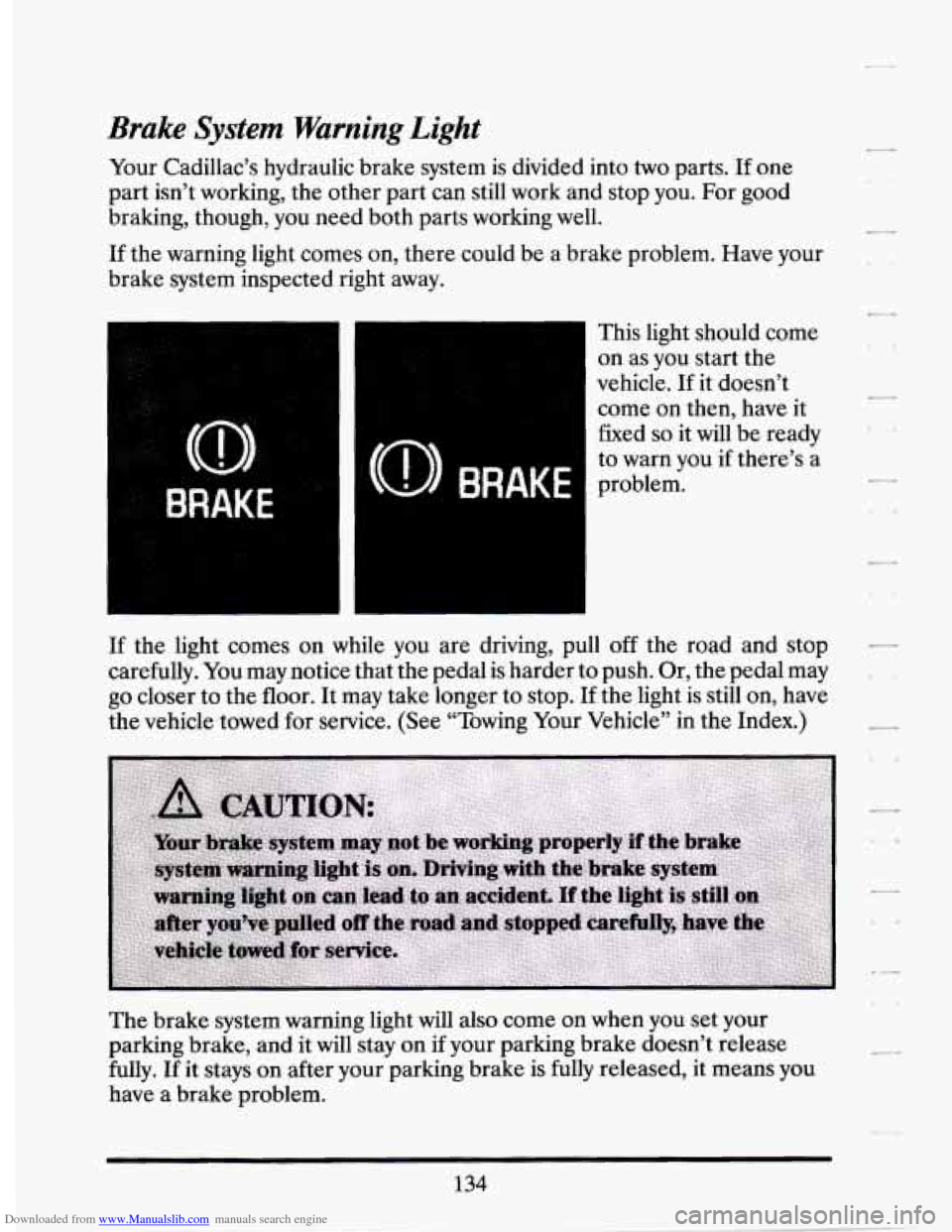

Downloaded from www.Manualslib.com manuals search engine Brake System Warning Light
Your Cadillac’s hydraulic brake system is divided into two parts. If one
part isn’t working, the other part can still work and stop you. For good
braking, though, you need both parts working well.
If the warning light comes
on, there could be a brake problem. Have your
brake system inspected right away.
This light should come
on as you start the
vehicle.
If it doesn’t
come on then, have it
fixed
so it will be ready
to warn you if there’s a
problem.
If the light comes on while you are driving, pull off the road and stop
carefully. You may notice that the pedal is harder
to push. Or, the pedal may
go closer to the floor. It may take longer to stop.
If the light is still on, have
the vehicle.towed for service. (See “Towing Your Vehicle” in the Index.)
The brake system warning light will also come on when you set your
parking brake, and it will stay on
if your parking brake doesn’t release
fully.
If it stays on after your parking brake is fully released, it means you
have a brake problem.
134
5-
LC.

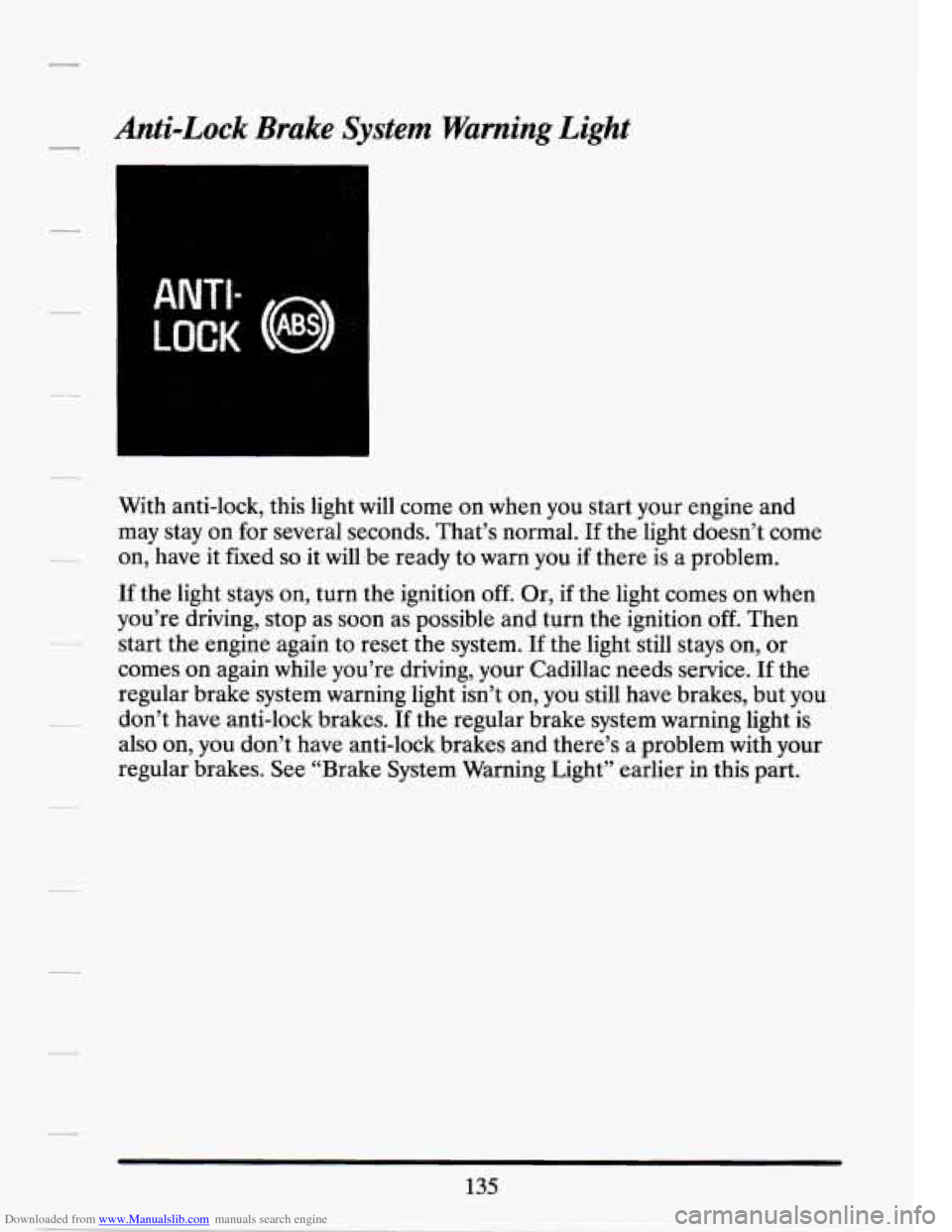

Downloaded from www.Manualslib.com manuals search engine Anti-Lock Brake System Warning Light
II
With anti-lock, this light will come on when you start your engine and
may stay on for several seconds. That’s normal.
If the light doesn’t come
on, have it fixed
so it will be ready to warn you if there is a problem.
If the light stays on, turn the ignition off. Or, if the light comes on when
you’re driving, stop as soon
as possible and turn the ignition off. Then
start the engine again to reset the system. If the light still stays on, or
comes on again while you’re driving, your Cadillac needs service. If the
regular brake system warning light isn’t on, you still have brakes, but you
don’t have anti-lock brakes. If the regular brake system warning light is
also on, you don’t have anti-lock brakes and there’s a problem with your
regular brakes. See “Brake System Warning Light” earlier in this part.
135

Downloaded from www.Manualslib.com manuals search engine Engine Temperature Warning Light (Canadian !Export
Only)
This light tells you that
your engine has
overheated. You
should stop the car and
turn the engine off
as
soon as possible. A
warning chime should
also sound
if this light
comes on.
As a check,
the light should come
on for
a few seconds
when
you start your
engine.
HOT COOLANT CAN BURN YOU BADLY!
In “Problems
on the Road,” this manual shows what to do. See “Engine
Overheating” in the Index.
Malfunction Indicator Lamp
i t W1 3VICE .,
ENGINE
SOON
SERVICE
ENGINE SOON
A computer monitors operation of your fuel, ignition and emission
control systems. This light should come on when the ignition is
on, but
136

Downloaded from www.Manualslib.com manuals search engine r
-
r- I !
the engine is not running, as a check to show you it is working. If it does
not come on at all, have it fixed right away.
If it stays on, or it comes on
while you are driving, the computer is indicating that you have a problem.
You should take your vehicle in for service
soon.
NOTICE:
If you keep driving your vehicle with this light on, after a whi\
le
the emission controls won’t work as well, your fuel economy
won’t be as good and your engine may not run as smoothly. This
could lead to costly repairs not covered by your warranty.
Battery Charge Light (Canadian\Export Only)
r
“1
r:
When you turn the key
to “Run” or
“START”,
this light will come on
briefly, to show that
your alternator and
battery charging
systems are working.
137
