Page 111 of 354

Downloaded from www.Manualslib.com manuals search engine Storage Compartments

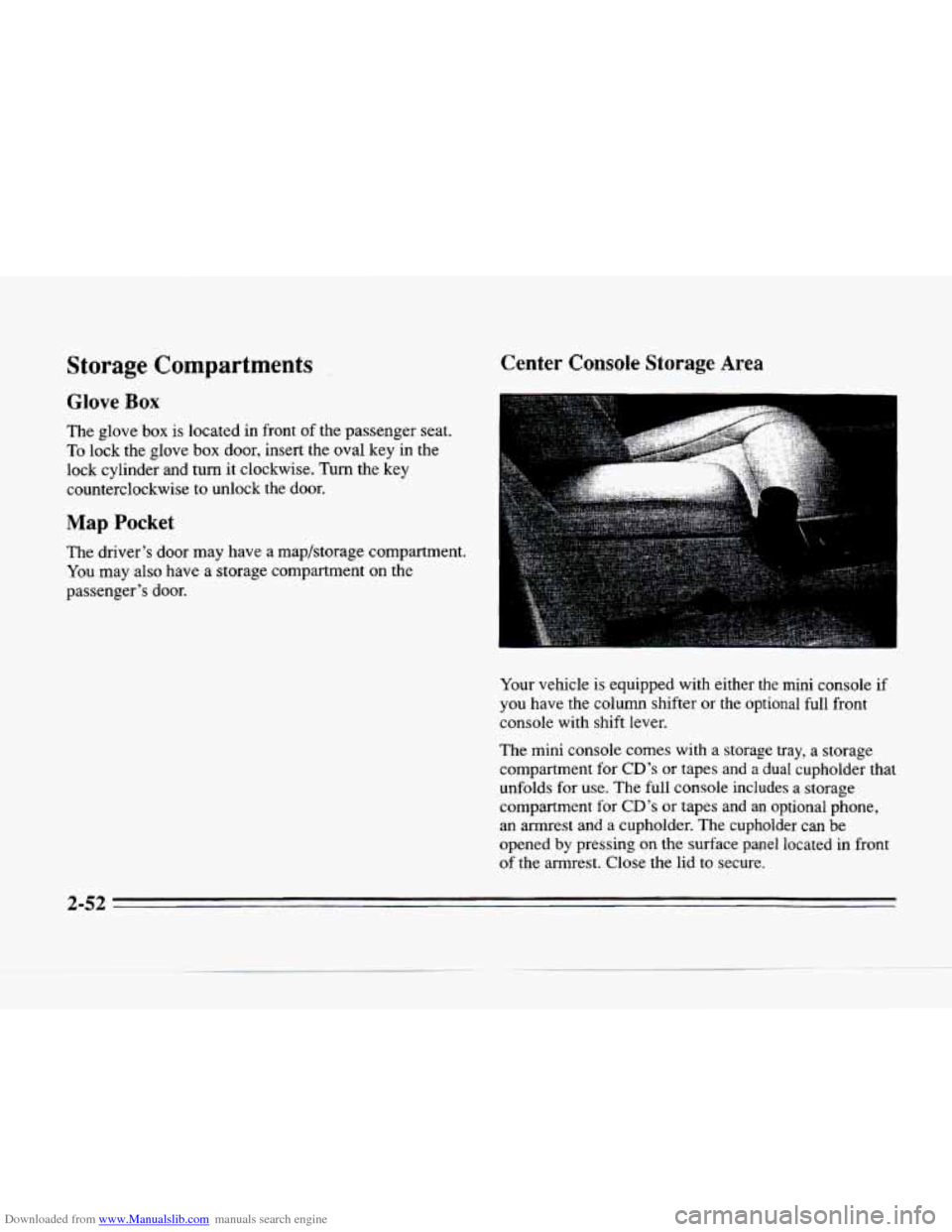

Glove Box
The glove box is located in front of the passenger seat.
To lock the glove box door, insert the oval key in the
lock cylinder and turn it clockwise. Turn the key
counterclockwise to unlock the door.
Map Pocket
The driver’s door may have a map/storage compartment.
You may also have
a storage compartment on the
passenger’s door.
Center Console Storage Area
Your vehicle is equipped with either the mini console if
you have the column shifter or the optional full front
console with shift lever.
The mini console comes with a storage tray, a storage
compartment for
CD’s or tapes and a dual cupholder that
unfolds
for use. The full console includes a storage
compartment for
CD’s or tapes and an optional phone,
an armrest and a cupholder. The cupholder can be
opened
by pressing on the surface panel located in front
of the armrest. Close the lid to secure.
2-52

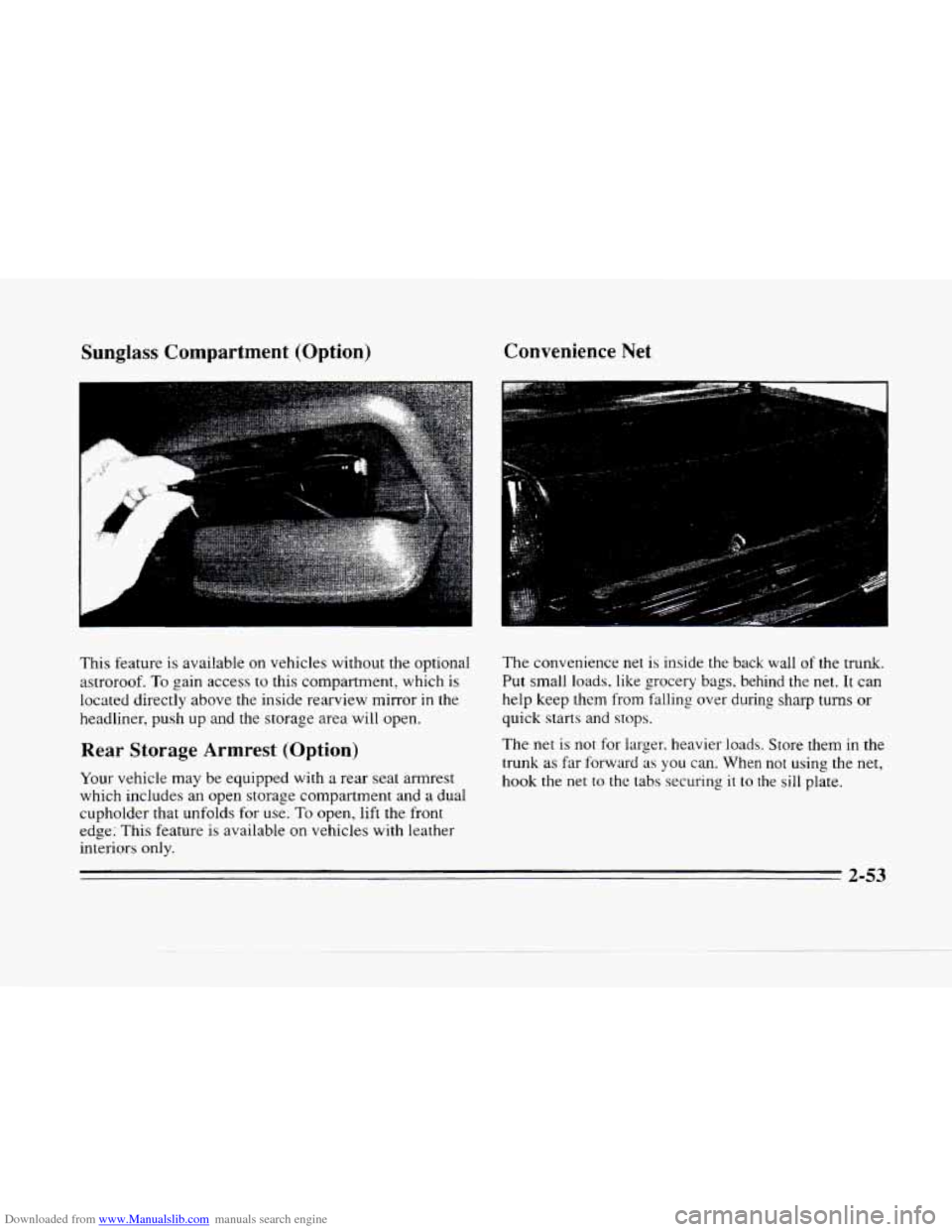

Page 112 of 354

Downloaded from www.Manualslib.com manuals search engine Sunglass Compartment (Option)
This feature is avai!able on vehicles without the optional
astroroof.
To gain access to this compartment, which is
located directly above the inside rearview mirror in the
headliner, push up and the storage area will open.
Rear Storage Armrest (Option)
Your vehicle may be equipped with a rear seat armrest
which includes an open storage compartment and a dual
cupholder that unfolds for use. To open, lift the front
edge; This feature
is available on vehicles with leather
interiors only.
Convenience Net
The convenience net is inside the back wall of the trunk.
Put small loads, like grocery bags, behind the net. It can
help keep them from falling over during
sharp turns or
quick starts and stops.
The net is
not for larger. heavier loads. Store them in the
trunk
as far forward as you can. When not using the net,
hook the net to the tabs securing it to the sill plate.
2-53
Page 113 of 354

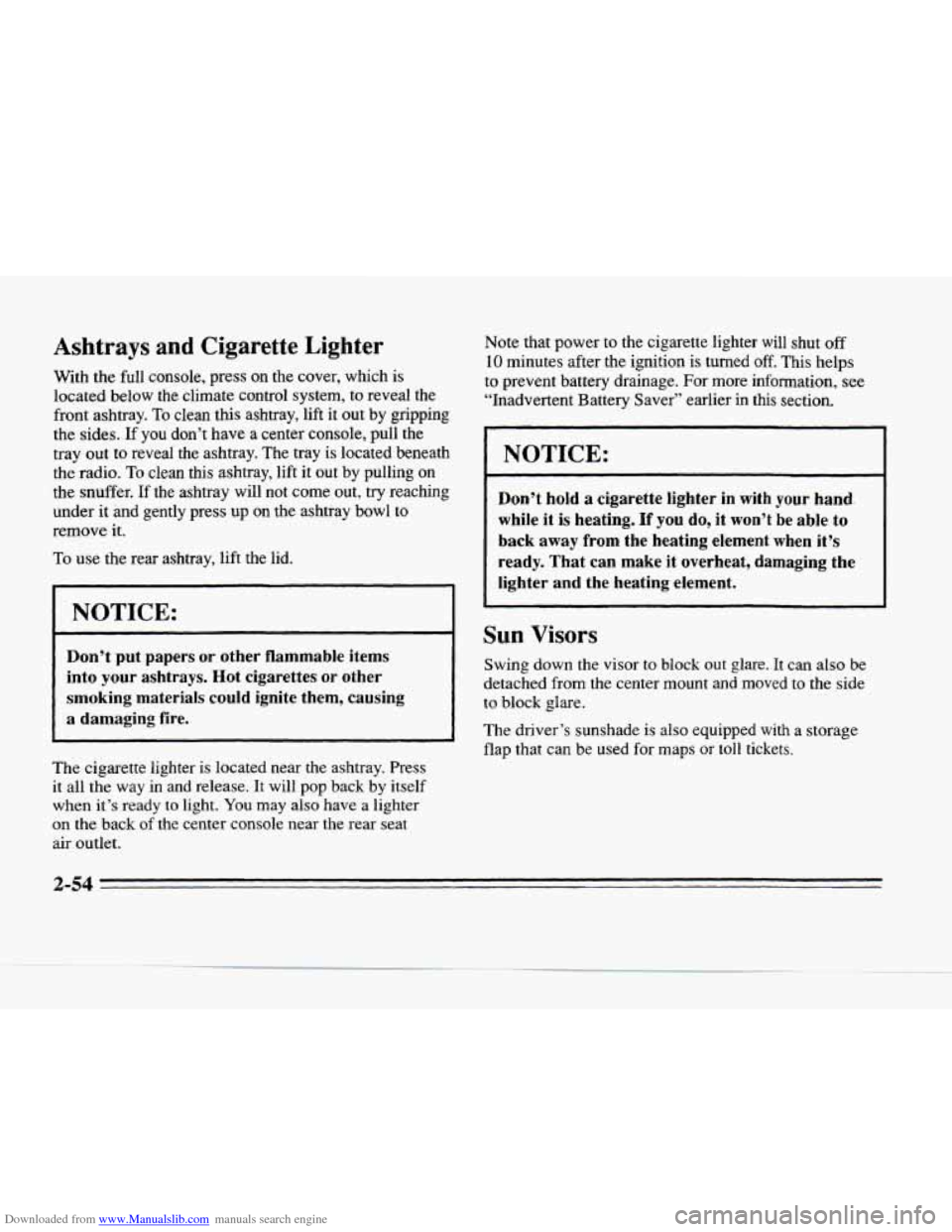

Downloaded from www.Manualslib.com manuals search engine Ashtrays and Cigarette Lighter
With the full console, press on the cover, which is
located below the climate control system, to reveal the
front ashtray.
To clean this ashtray, lift it out by gripping
the
sides. If you don’t have a center console, pull the
tray out to reveal the ashtray. The tray
is located beneath
the radio.
To clean this ashtray, lift it out by pulling on
the snuffer. If the ashtray will not come out, try reaching
under it and gently press up
on the ashtray bowl to
remove it.
To use the rear ashtray, lift the lid.
I NOTICE:
Don’t put papers or other flammable items
into your ashtrays. Hot cigarettes or other
smoking materials could ignite them, causing
a damaging fire.
The cigarette lighter is located near the ashtray. Press
it all the way in and release.
It will pop back by itself
when
it’s ready to light. You may also have a lighter
on the back
of the center console near the rear seat
air outlet. Note
that power
to the cigarette lighter will shut off
10 minutes after the ignition is turned off. This helps
to prevent battery drainage. For more information,
see
“Inadvertent Battery Saver” earlier in this section.
I NOTICE:
Don’t hold a cigarette 1,ighter in with your hand.
while it is heating.
If you do, it won’t be able to
back away from the heating element when it’s
ready. That can make it overheat, damaging the
lighter
and the heating element.
Sun Visors
Swing down the visor to block out glare. It can also be
detached from the center mount and moved
to the side
to block glare.
The driver’s sunshade is
also equipped with a storage
flap that can be used for maps or toll tickets.
Page 114 of 354

Downloaded from www.Manualslib.com manuals search engine e

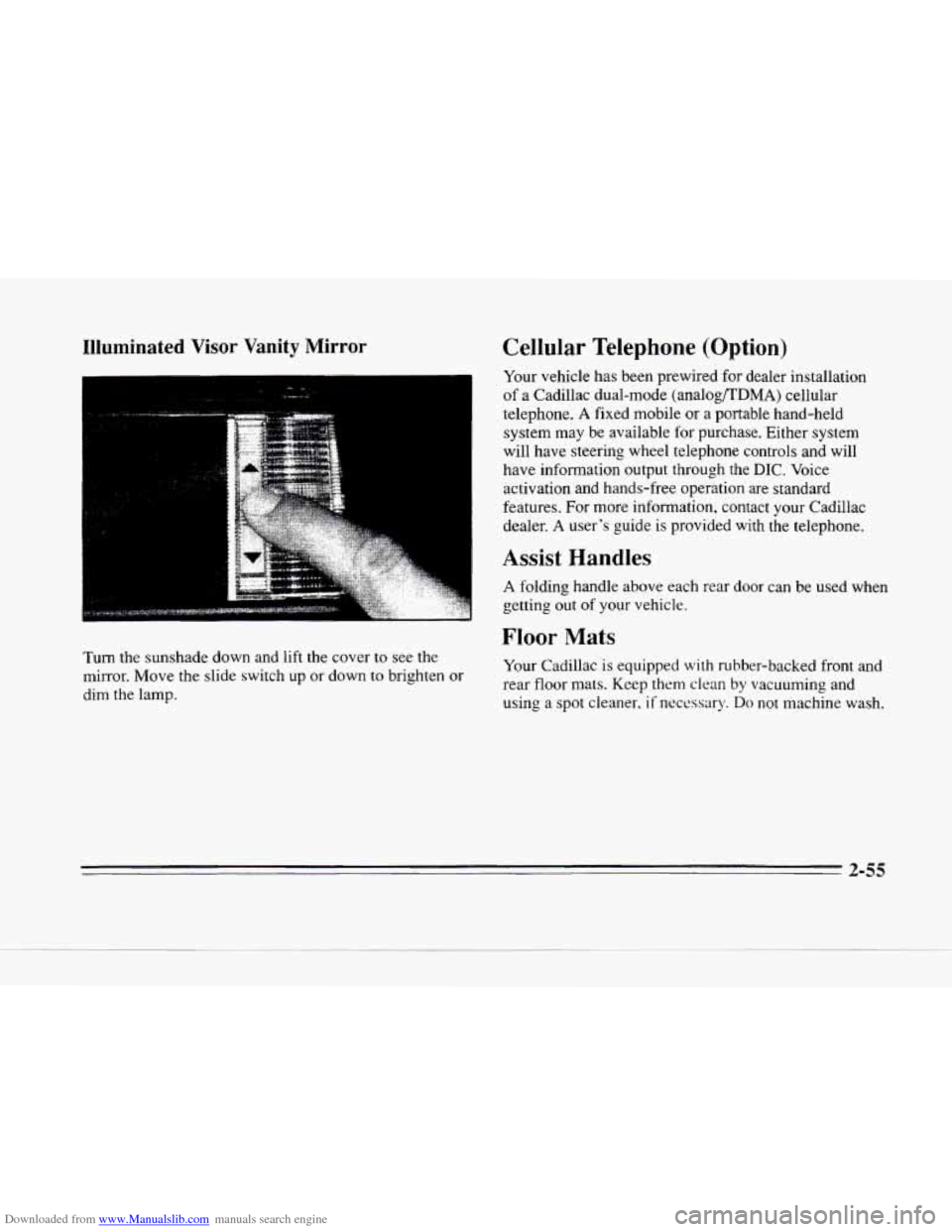

Illuminated Visor Vanity Mirror
Turn the sunshade down and lift the cover to see the
mirror. Move the slide switch up or down
to brighten or
dim the lamp.
Cellular Telephone (Option)
Your vehicle has been prewired for dealer installation
of a Cadillac dual-mode (analogRDMA) cellular
telephone.
A fixed mobile or a portable hand-held
system may be available for purchase. Either system
will have steering wheel telephone controls and will
have information output through the
DIC. Voice
activation and hands-free operation are standard
features. For more information, contact your Cadillac
dealer.
A user's guide is provided with the telephone.
Assist Handles
A folding handle above each rear door can be used when
getting out
of your vehicle.
Floor Mats
Your Cadillac is equipped with rubber-backed front and
rear floor mats. Keep them clean by vacuuming and
using a spot cleaner,
if necessary. Do not machine wash.
2-55
Page 115 of 354

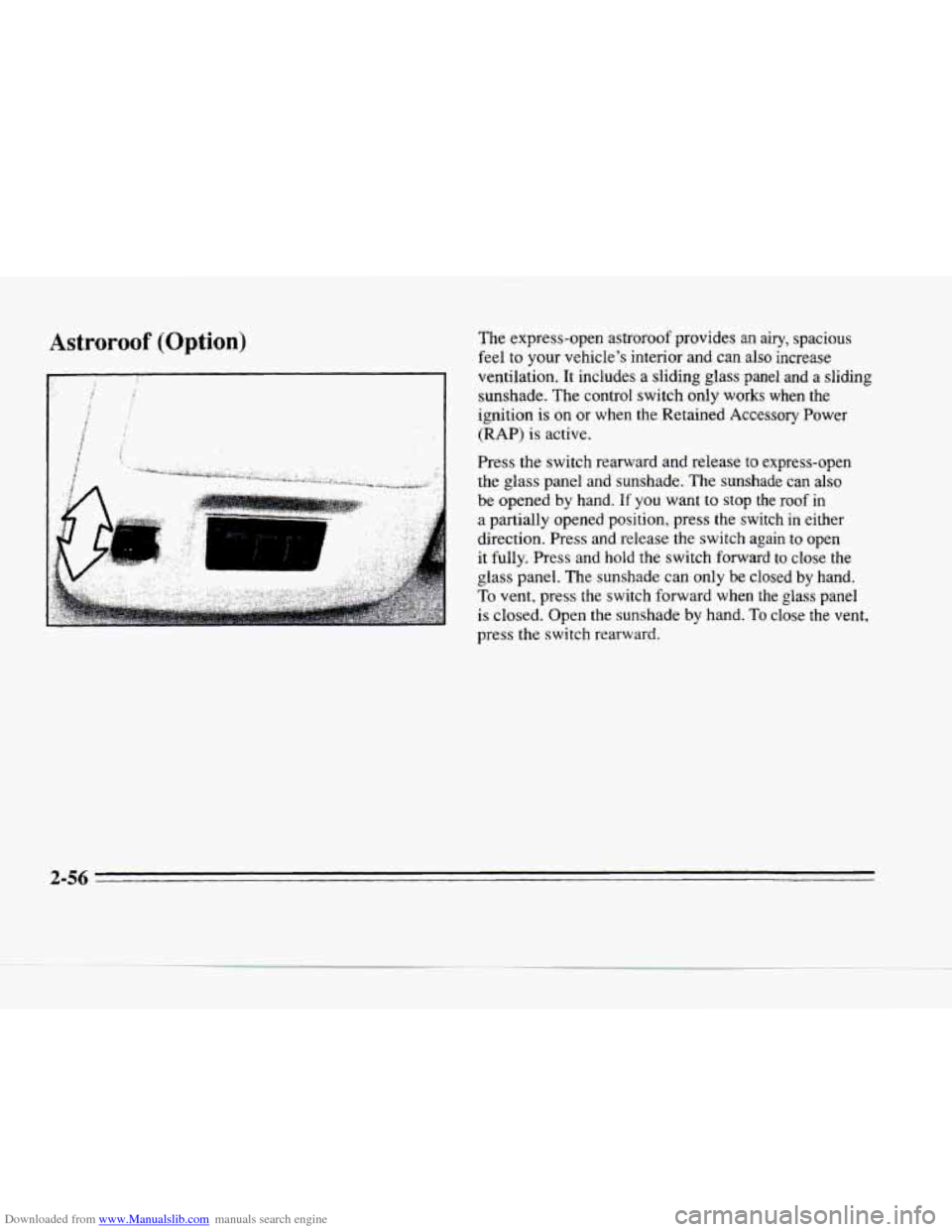

Downloaded from www.Manualslib.com manuals search engine Astroroof (Option) The express-open astroroof provides an airy, spacious
feel
to your vehicle’s interior and can also increase
ventilation. It includes
a sliding glass panel and a sliding
sunshade. The control switch only
works when the
ignition is on or when the Retained Accessory Power
(RAP) is active.
Press the switch rearward and release to express-open
the glass panel and sunshade. The sunshade can also
be opened
by hand. If you want to stop the roof in
a partially opened position, press the switch in either
direction. Press and release the switch again to open
it fully. Press and hold the switch forward to close the
glass panel. The sunshade can only be closed by hand.
To vent, press the switch forward when the glass panel
is closed. Open the sunshade
by hand. To close the vent,
press the switch rearward.
2-56
.-
Page 116 of 354

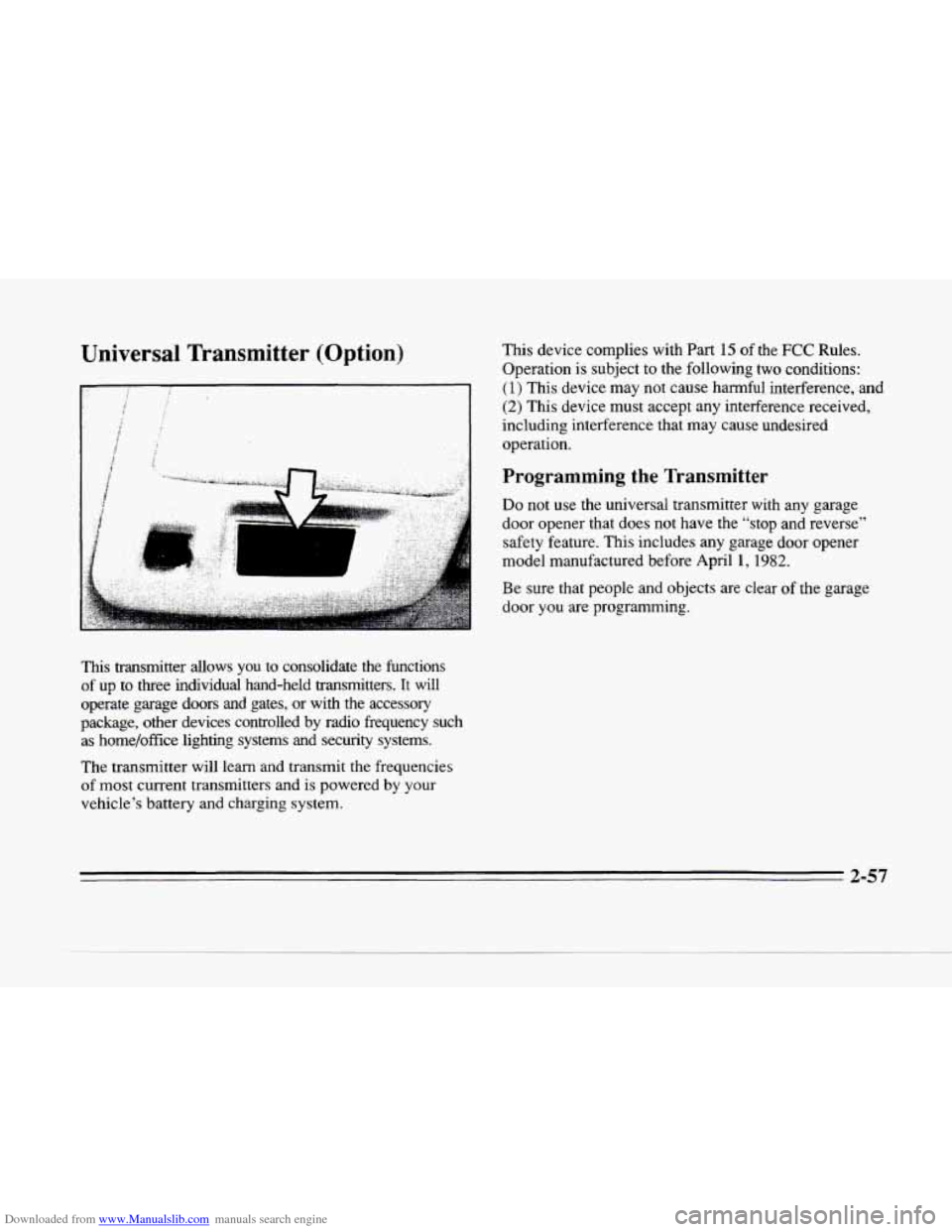

Downloaded from www.Manualslib.com manuals search engine Universal Transmitter (Option)
c
Thls transmitter allows you to consolidate the functions
of up to three individual hand-held transmitters. It will
operate garage doors and gates, or with the
accessory
package, other devices controlled by radio frequency such
as home/office lighting systems
and security systems.
The transmitter will learn and transmit the frequencies
of most current transmitters and is powered by your
vehicle’s battery and charging system. This
device complies with
Part 15 of the FCC Rules.
Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received,
including interference that may cause undesired
operation.
Programming the Transmitter
Do not use the universal transmitter with any garage
door opener that does not have the “stop and reverse”
safety feature. This includes any garage door opener
model manufactured before
April 1,1982.
Be sure that people and objects are clear of the garage
door you are programming.
2-57
Page 117 of 354

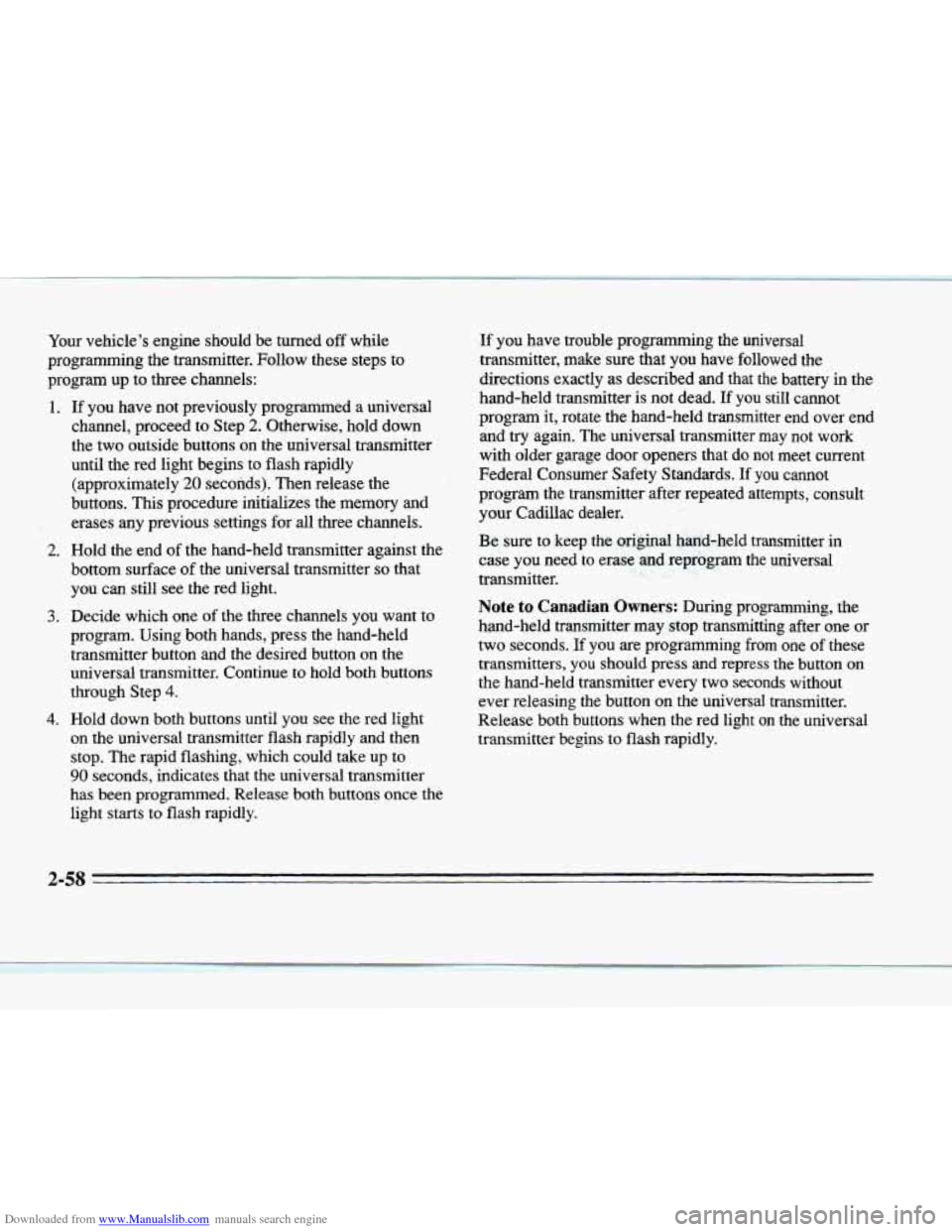

Downloaded from www.Manualslib.com manuals search engine Your vehicle’s engine should be turned off while
programming the transmitter. Follow these steps to
program up to three channels:
1. If you have not previously programmed a universal
channel, proceed to Step
2. Otherwise, hold down
the two outside buttons on the universal transmitter
until the red light begins to flash rapidly
(approximately
20 seconds). Then release the
buttons. This procedure initializes the memory and
erases any previous settings for
all three channels.
2. Hold the end of the hand-held transmitter against the
bottom surface of the universal transmitter
so that
you can still see the red light.
3. Decide which one of the three channels you want to
program. Using both hands, press the hand-held
transmitter button and the desired button on the
universal transmitter. Continue to hold both buttons
through Step
4.
4. Hold down both buttons until you see the red light
on the universal transmitter flash rapidly and then
stop. The rapid flashing, which could take up to
90 seconds, indicates that the universal transmitter
has been programmed. Release both buttons once the
light starts to flash rapidly.
If you have trouble programming the universal
transmitter, make sure that
you have followed the
directions exactly
as described and that the battery in the
hand-held transmitter is not dead.
If you still cannot
program it, rotate the hand-held transmitter end over end
and
try again. The universal transmitter may not work
with older garage door openers that do
not meet current
Federal Consumer Safety Standards.
If you cannot
program the transmitter after repeated attempts, consult
your Cadillac dealer.
Be sure to keep the original hand-held transmitter in
case
you need to erase and reprogram the universal
transmitter.
Note to Canadian Owners: During programming, the
hand-held transmitter may stop transmitting after one or
two seconds.
If you are programming from one of these
transmitters, you should
press and repress the button on
the hand-held transmitter every two seconds without
ever releasing the button on the universal transmitter.
Release both buttons when the red light
on the universal
transmitter begins to flash rapidly.
2-58
a
I
Page 118 of 354

Downloaded from www.Manualslib.com manuals search engine IL

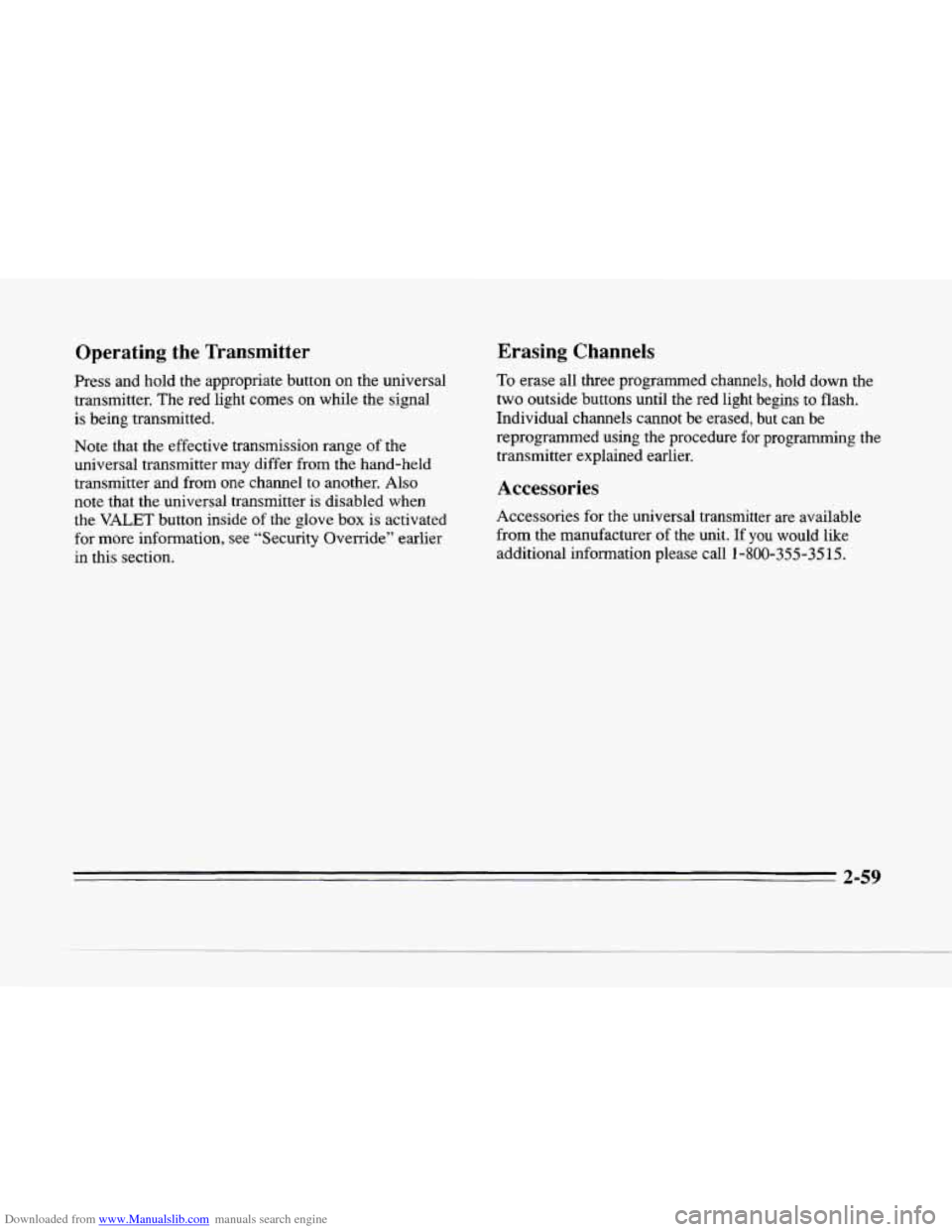

Operating the Transmitter
Press and hold the appropriate button on the universal
transmitter. The red light comes
on while the signal
is being transmitted.
Note that
the effective transmission range of the
universal transmitter may differ from the hand-held
transmitter and from
one channel to another. Also
note that
the universal transmitter is disabled when
the
VALET button inside of the glove box is activated
for more information, see “Security Override” earlier
in this section.
Erasing Channels
To erase all three programmed channels, hold down the
two outside buttons until the red light begins to
flash.
Individual channels cannot be erased, but can be
reprogrammed using the procedure for programming the
transmitter explained earlier.
Accessories
Accessories for the universal transmitter are available
from the manufacturer
of the unit. If you would like
additional information please call
1-800-355-35 15.
Page 119 of 354

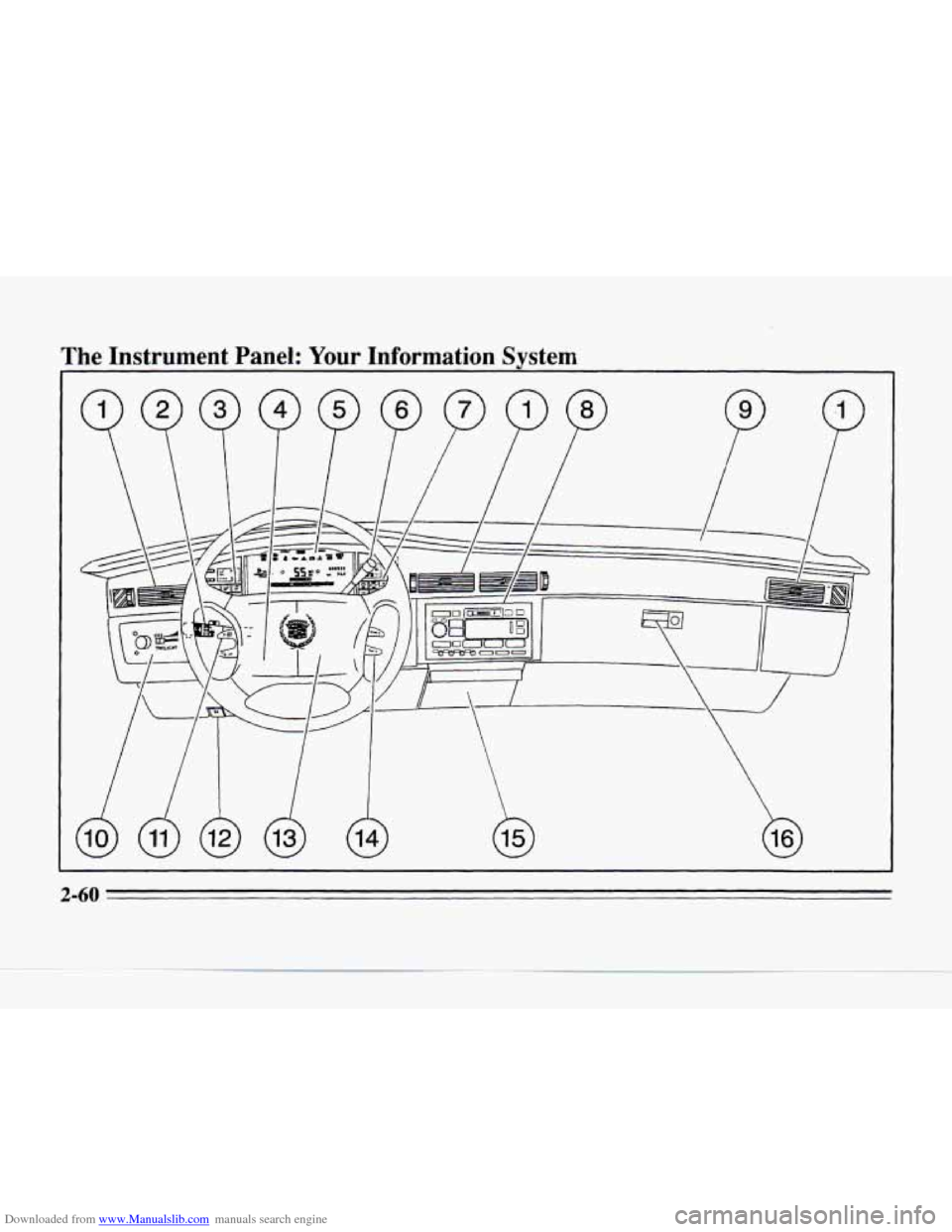

Downloaded from www.Manualslib.com manuals search engine The Instrument Panel: Your Information Svstem
2-60
Page 120 of 354

Downloaded from www.Manualslib.com manuals search engine c

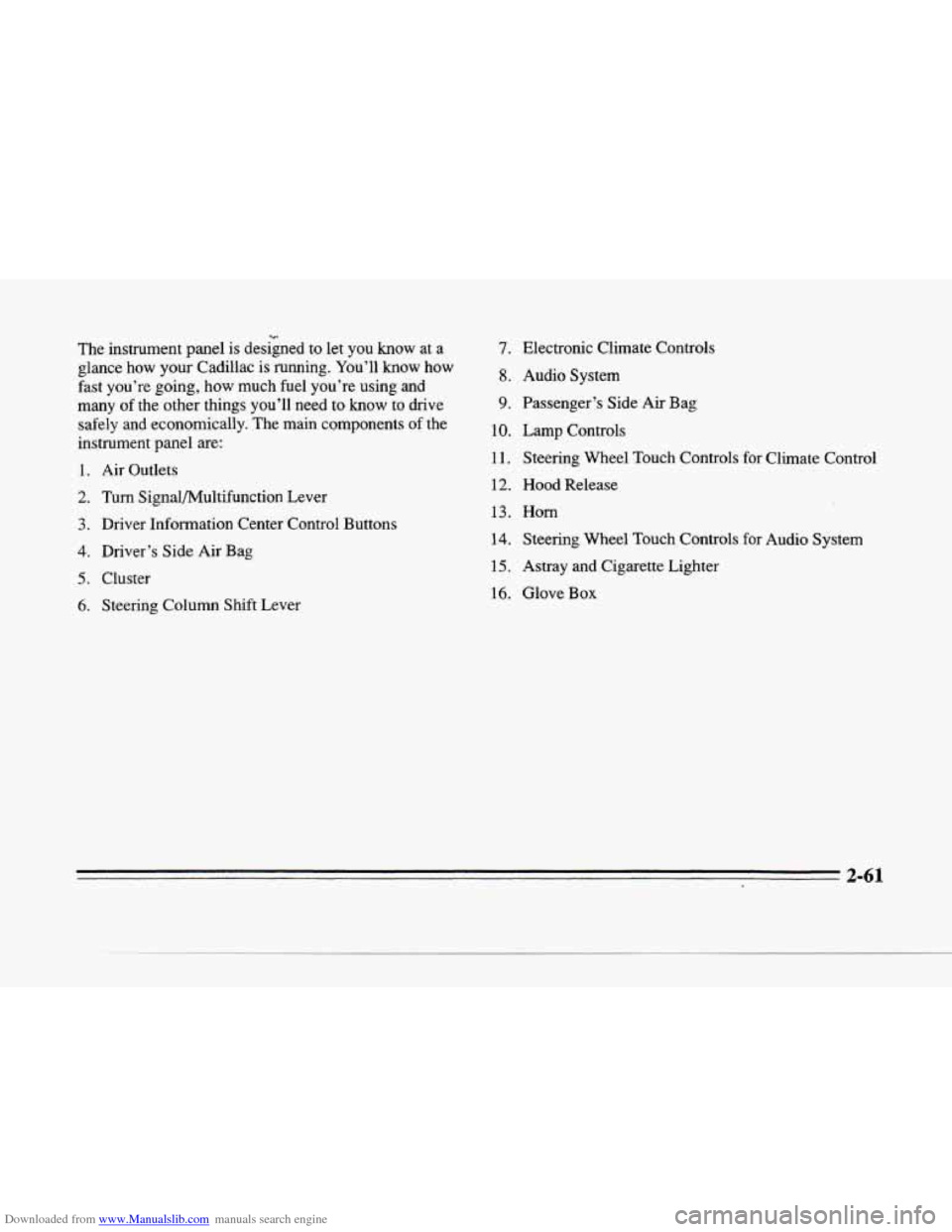

The instrument panel is designed to let you know at a
glance how your Cadillac is running. You’ll
know how
fast you’re going, how much fuel you’re using and
many
of the other things you’ll need to know to drive
safely and economically. The main components
of the
instrument panel are:
1. Air Outlets
[Wb
2. Turn Signal/Multifunction Lever
3. Driver Information Center Control Buttons
4. Driver’s Side Air Bag
5. Cluster
6. Steering Column Shift Lever
7.
8.
9.
10.
11.
12.
13.
14.
15.
16.
Electronic Climate Controls
Audio System
Passenger’s Side
Air Bag
Lamp Controls Steering Wheel Touch Controls for Climate Control
Hood Release
Horn
Steering Wheel Touch Controls for Audio System
Astray and Cigarette Lighter
Glove
Box
2-61
