CADILLAC SEVILLE 1996 4.G Owners Manual

Downloaded from www.Manualslib.com manuals search engine When You Are Ready to Leave After
Parking
on a Hill
1. Apply your regular brakes and hold the pedal down
while
you:
Start your engine;
Shift into a gear; and
Be sure the parking brake has released.
2. Let up on the brake pedal.
3. Drive slowly until the trailer is clear of the chocks.
4. Stop and have someone pick up and store the chocks.
Maintenance When Trailer Towing
Your vehicle will need service more often when you’re
pulling a trailer. See the Maintenance Schedule for more
on this. Things that are especially important
in trailer
operation are automatic transaxle fluid (don’t overfill),
engine oil, belt, cooling system and brake adjustment.
Each of these
is covered in this manual, and the Index
will help you find them quickly. If you’re trailering, it’s
a good idea to review these sections before you start
your trip.
Check periodically to see that all
hitch nuts and bolts
are tight.

Downloaded from www.Manualslib.com manuals search engine c

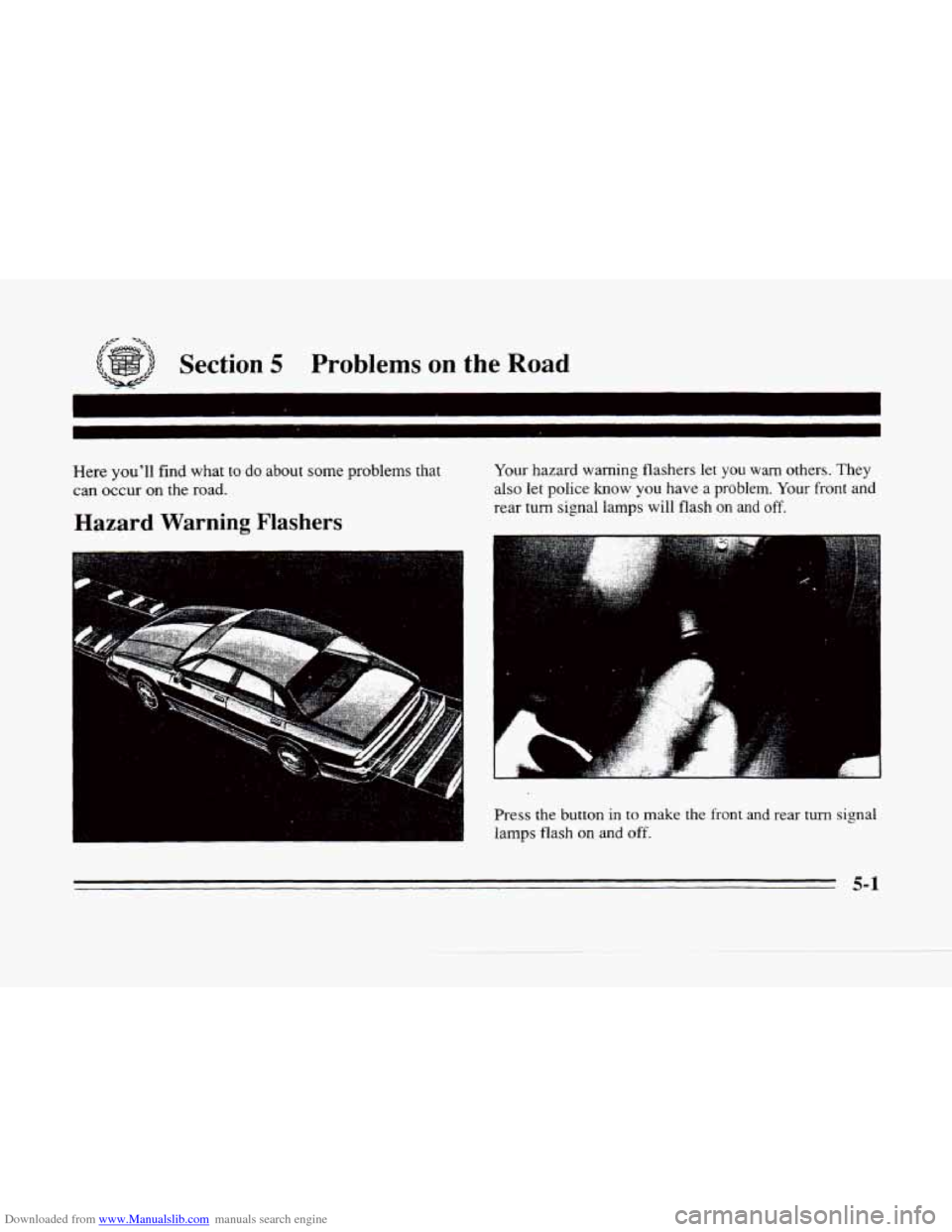

Section 5 Problems on the Road
Here you'll find what to do about some problems that
can occur on the road.
Hazard Warning Flashers
L
Your hazard warning flashers let you warn others. They
also
let police know you have a problem. Your front and
rear
turn signal lamps will flash on and off.
I
Press the button in to make the front and rear turn signal
lamps flash
on and off.
5-1

Downloaded from www.Manualslib.com manuals search engine A

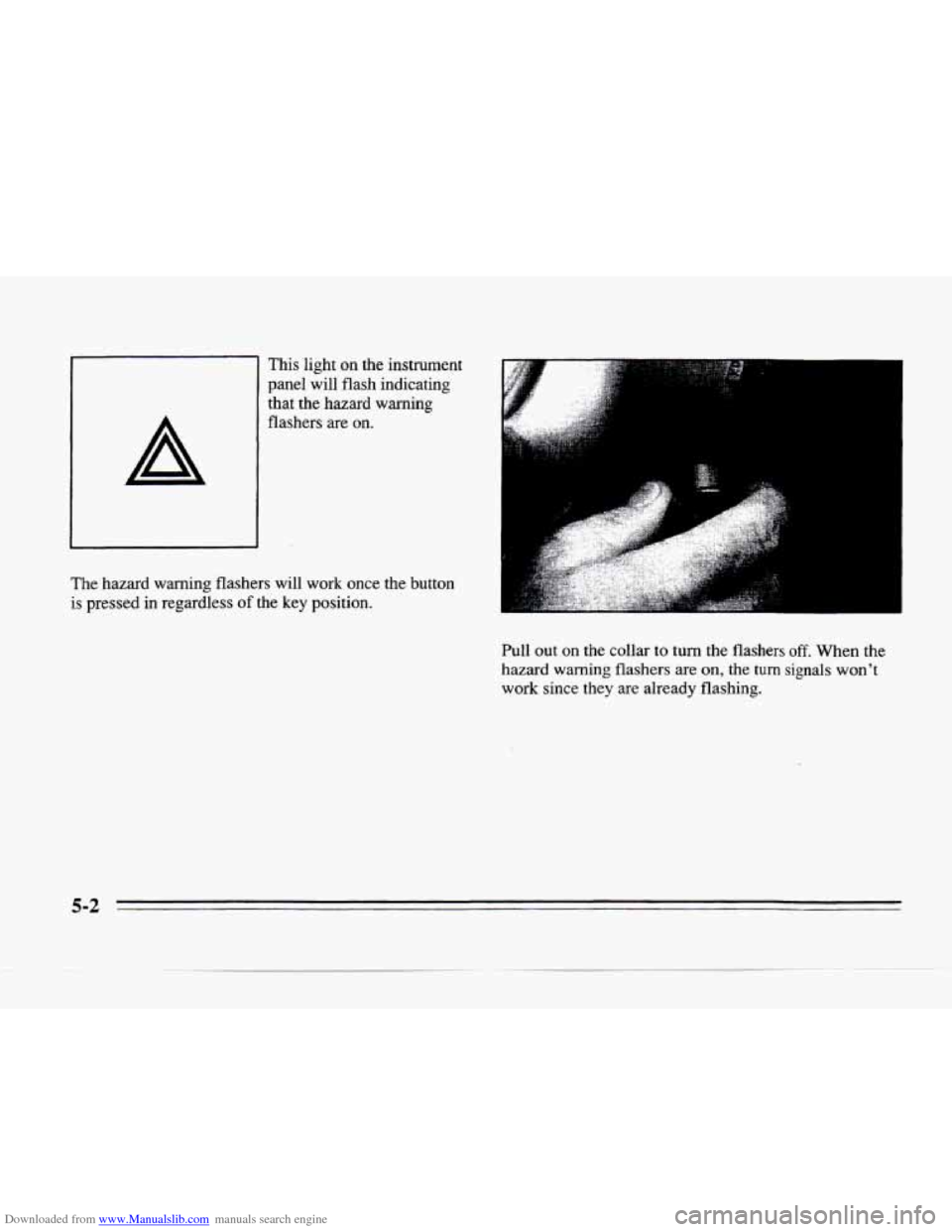

This light on the instrument
panel will
flash indicating
that the hazard warning
flashers
are on.
The hazard warning fiashers will work once
the button
is pressed in regardless
of the key position.
.-
A
Pull out on the collar to turn the flashers off. When the
hazard warning flashers are
on, the turn signals won't
work since they are already flashing.
c
4

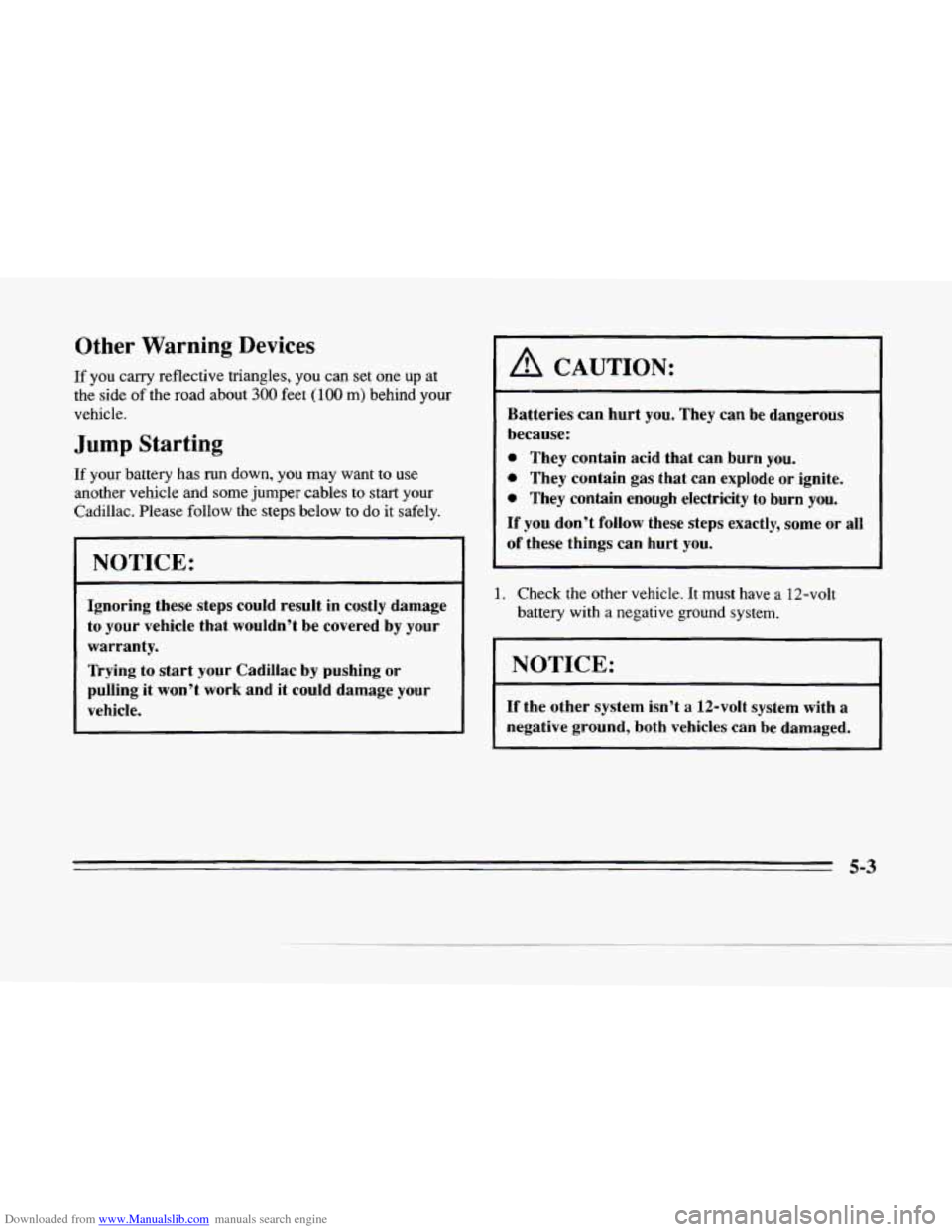

Downloaded from www.Manualslib.com manuals search engine Other Warning Devices
If you carry reflective triangles, you can set one up at
the side
of the road about 300 feet (100 m) behind your
vehicle.
Jump Starting
If your battery has run down, you may want to use
another vehicle and some jumper cables to
start your
Cadillac. Please follow the steps below to do
it safely.
NOTICE:
Ignoring these steps could result in costly damage
to your vehicle that wouldn’t be covered by your
warranty.
Trying to start your Cadillac by pushing or
pulling it won’t work and it could damage your
vehicle.
A CAUTION:
Batteries can hurt you. They can be dangerous
because:
0 They contain acid that can burn you.
0 They contain gas that can explode or ignite.
0 They contain enough electricity to burn you.
If you don’t follow these steps exactly, some or all
of these things can hurt you.
. Check the other vehicle. It must have a 12-volt
battery with
a negative ground system.
I I
I NOTICE:
~
~~
If the other system isn’t a 12-volt system with a
negative ground, both vehicles can be damaged.
5-3

Downloaded from www.Manualslib.com manuals search engine 2.
3.
4.
Get the’vehicles close enough so the jumper cables
can reach, but be sure the vehicles aren’t touching
each other.
If they are, it could cause a ground
connection you don’t want. You wouldn’t
be able to
start your Cadillac and the bad grounding could
damage
the electrical systems.
Turn
off the ignition on both vehicles. Unplug
unnecessary accessories plugged
into the cigarette
lighter. Turn
off all lamps that aren’t needed as well
as radios. This will avoid
sparks and help save both
batteries.
In addition, it could save your radio!
Open the hoods and locate the batteries. Find the
positive
(+) and negative (-) terminals on each
battery.
I A CAUTION:
!- rn
U
5. Start by removing the red positive (+) terminal
cover.
___~ ~
An electric fan can start up even when the engine
is not running and can injure you. Keep hands,
clothing and tools away from any underhood
electric fan.
1
5-4

Downloaded from www.Manualslib.com manuals search engine r)
L.
F

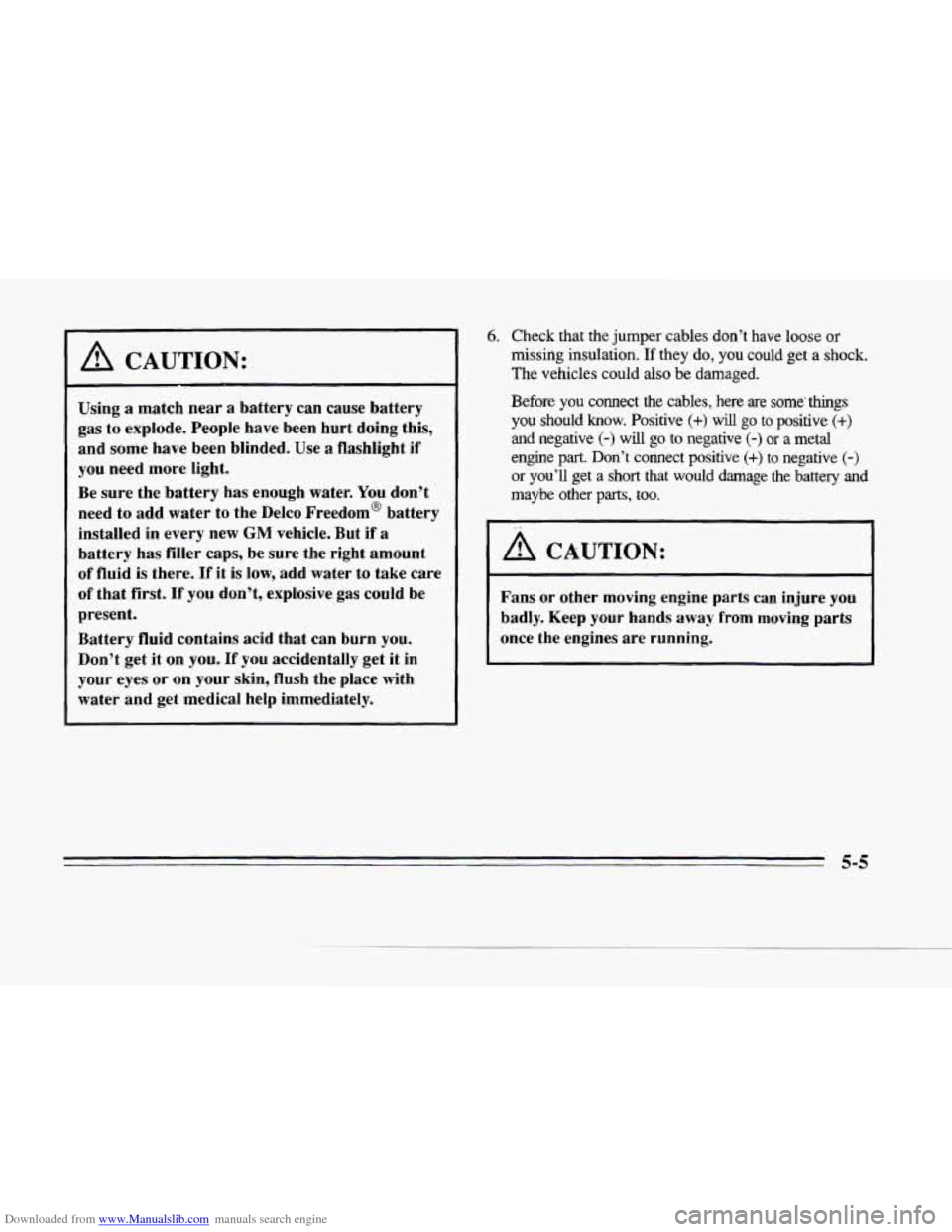

I A CAUTION:
Using a match near a battery can cause battery
gas to explode. People have been hurt doing this,
and some have been blinded. Use a flashlight
if
you need more light.
Be sure the battery has enough water. You don’t
need to add water to the Delco Freedom@ battery
installed in every new
GM vehicle. But if a
battery has filler caps, be sure the right amount
-of fluid is there. If it is low, add water to take care
of that first. If you don’t, explosive gas could be
present.
Battery fluid contains acid that can burn you.
Don’t get it on
you. If you accidentally get it in
your eyes or on your skin, flush the place with
water and get medical help immediately.
6. Check that the jumper cables don’t have loose or
missing insulation. If they do, you could get a shock.
The vehicles could also be damaged.
Before
you connect the cables, here are some’ things
you should know. Positive (+) will go to positive (+)
and negative (-) will go to negative (-) or a metal
engine part. Don’t connect positive
(+) to negative (-)
or you’ll get a short that would damage the battery and
maybe other parts, too.
A CAUTION:
Fans or other moving engine parts can injure you
badly. Keep your hands
away from moving parts
once the engines are
running.

Downloaded from www.Manualslib.com manuals search engine .
.C',
a'

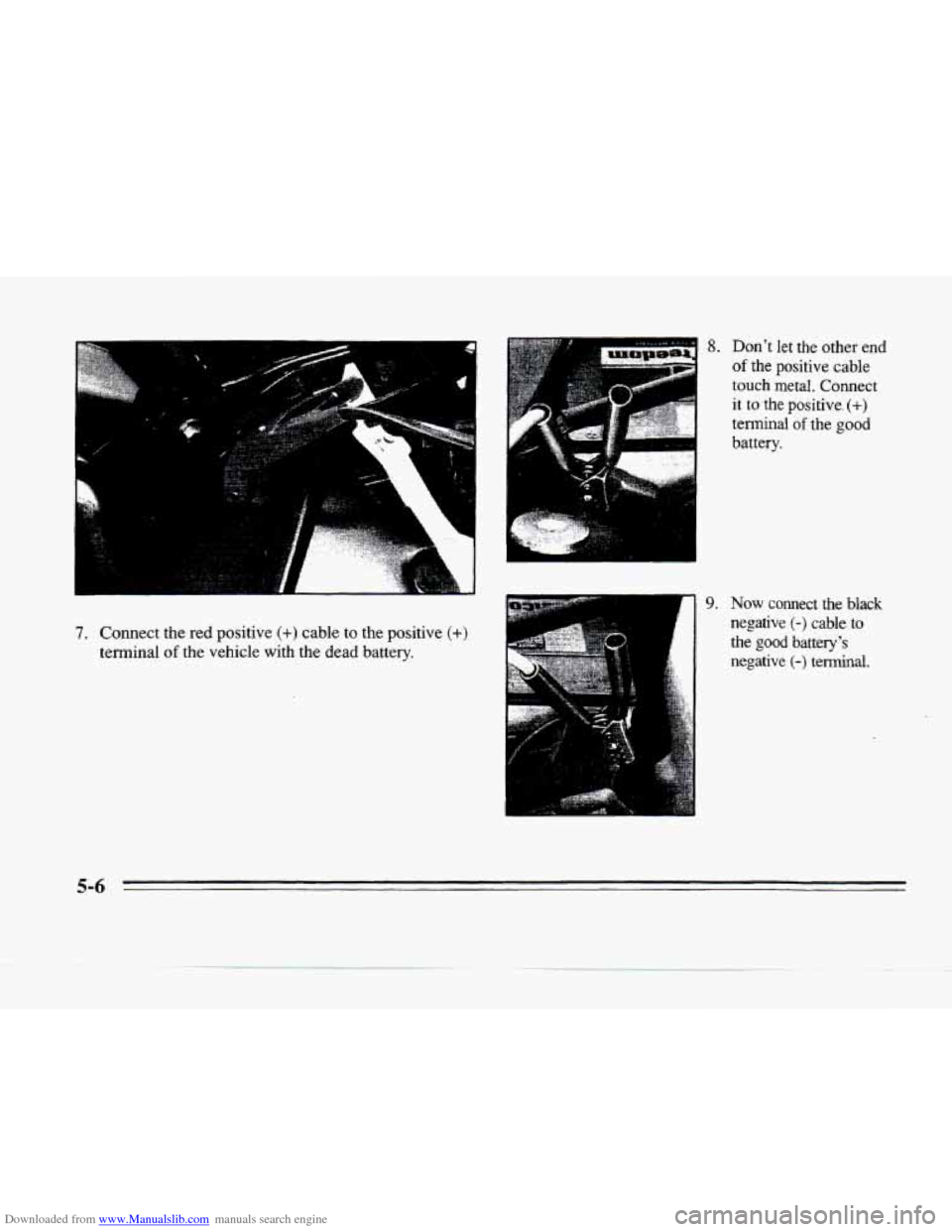

7. Connect the red positive (+) cable to the positive (+)
terminal of the vehicle with the dead battery.
8. Don't let the other end
of the positive cable
touch metal. Connect
it
to the positive. (+)
terminal of the good
battery.
9. Now connect the black
negative
(-) cable to
the good battery's
negative
(-) terminal.
5-6

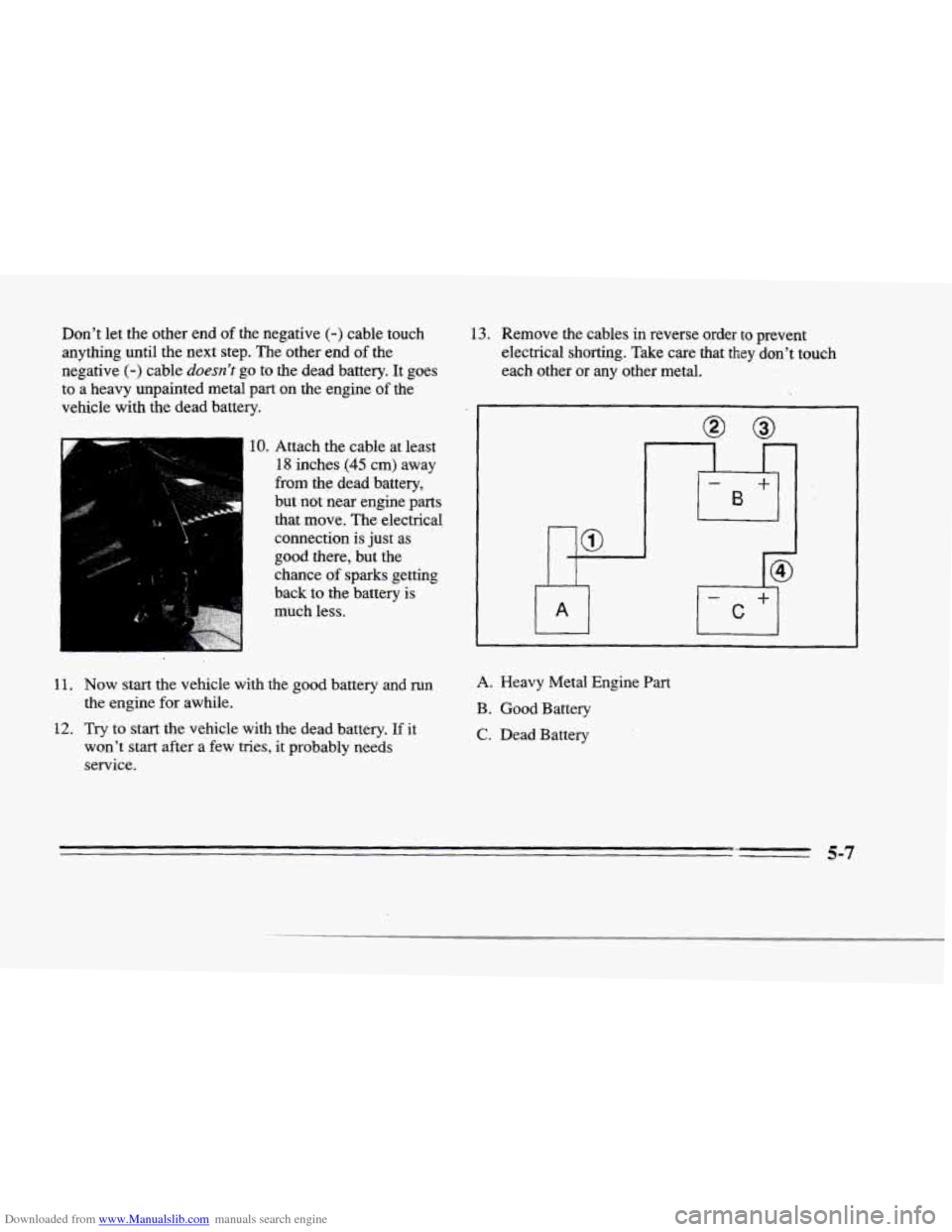

Downloaded from www.Manualslib.com manuals search engine Don't let the other end of the negative (-) cable touch
anything until the next step. The other end
of the
negative
(-) cable doesn't go to the dead battery. It goes
to a heavy unpainted metal part on the engine
of the
vehicle with the dead battery.
I 10. Attach the cable at least
18 inches (45 cm) away
from the dead battery,
but not near engine
parts
that move. The electrical
connection is just as
good there, but the
chance of sparks getting
back to the battery
is
much less.
-I" I I I
11. Now start the vehicle with the good battery and run
the engine for awhile.
12. Try to start the vehicle with the dead battery. If it
won't
start after a few tries, it probably needs
service.
13. Remove the cables in reverse order to prevent
electrical shorting. Take care that they don't touch
each other or
any other metal.
I
A. Heavy Metal Engine Part
B. Good Battery
C. Dead Battery
f
5-7
f

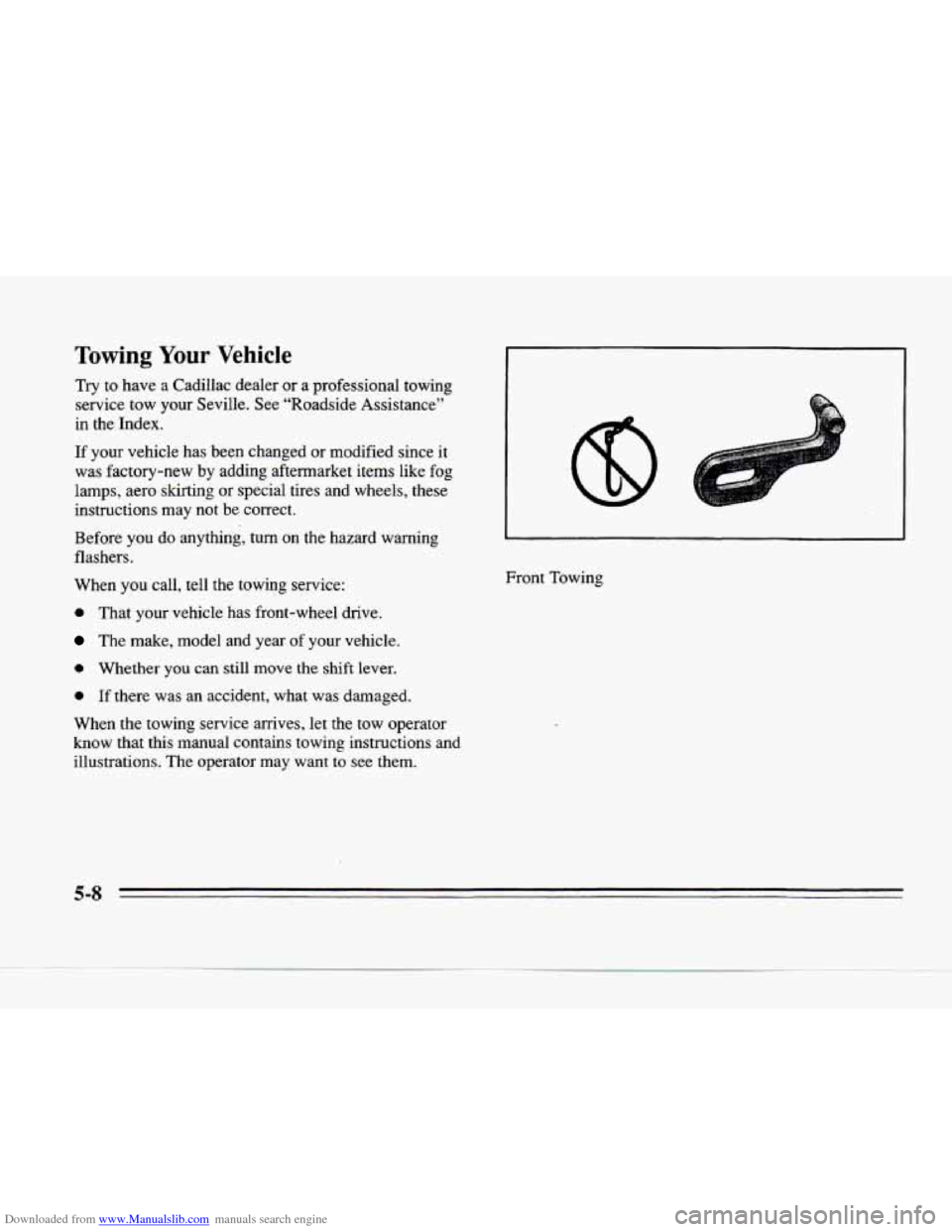

Downloaded from www.Manualslib.com manuals search engine Towing Your Vehicle
Try to have a Cadillac dealer or a professional towing
service tow
your Seville. See “Roadside Assistance”
in the Index.
If your vehicle has been changed
or modified since it
was factory-new by adding aftermarket items like fog
lamps, aero skirting or special tires and wheels, these
instructions may not be correct.
Before you do anything, turn on the hazard warning
flashers.
When you call, tell the towing service:
0 That your vehicle has front-wheel drive.
The make, model and year of your vehicle.
0 Whether you can still move the shift lever. Front Towing
0 If there
was an accident, what was damaged.
When the towing service arrives, let the tow operator
know that this manual contains towing instructions and
illustrations. The operator may want to see them.
5-8

Downloaded from www.Manualslib.com manuals search engine c

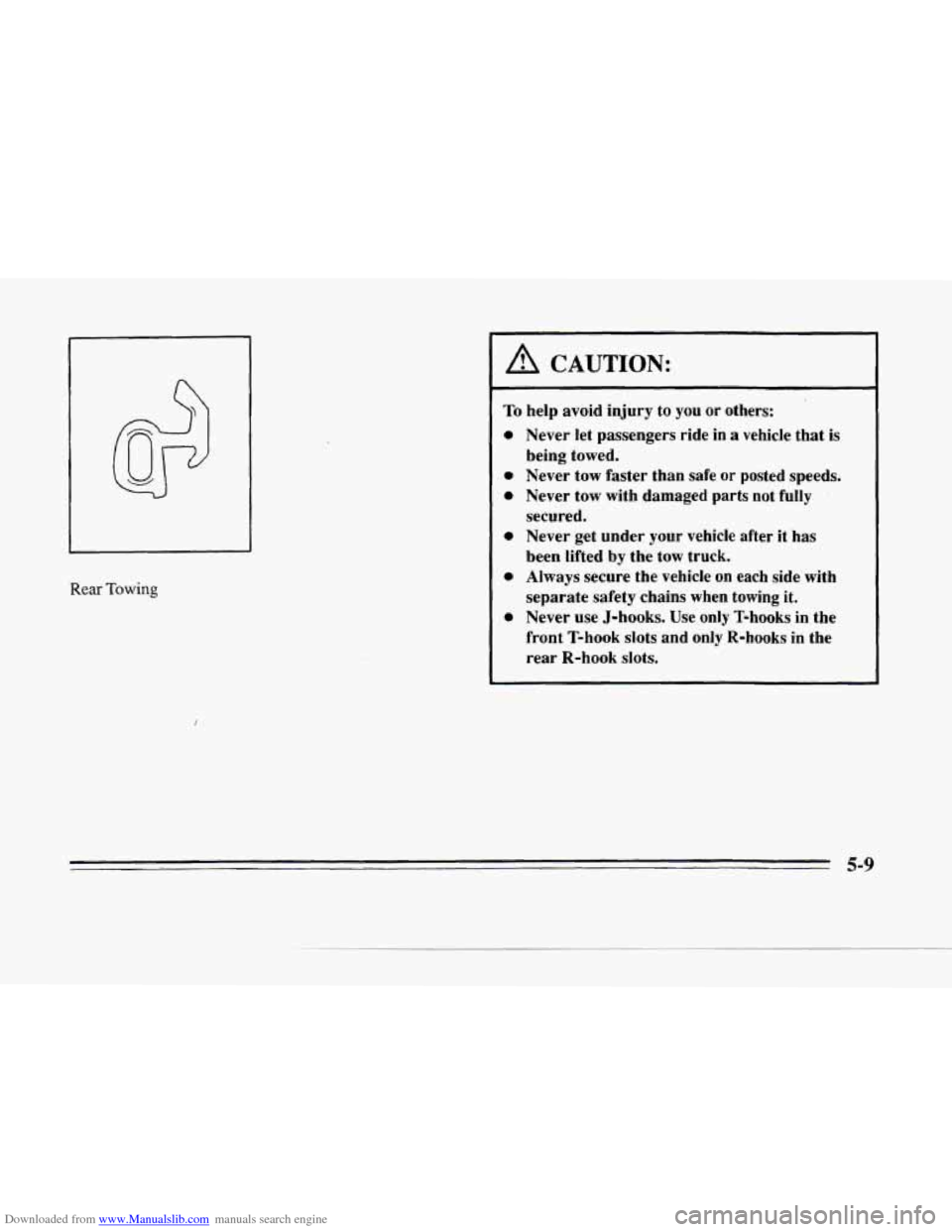

c- Rear Towing
A CAUTION:
~~
To help avoid injury to you or others:
0
0
0
0
0 0
Never let passengers ride in a vehicle that is
being towed.
Never tow faster than safe
or posted speeds.
Never tow with damaged parts not fully
secured.
Never get under your vehicle after it has
been lifted by the tow truck.
Always secure the vehicle on each side with
separate safety chains when towing it.
Never
use J-hooks. Use only T-hooks in the
front T-hook slots and only R-hooks in the
rear R-hook slots.
5-9
