CADILLAC SEVILLE 1996 4.G Owners Manual

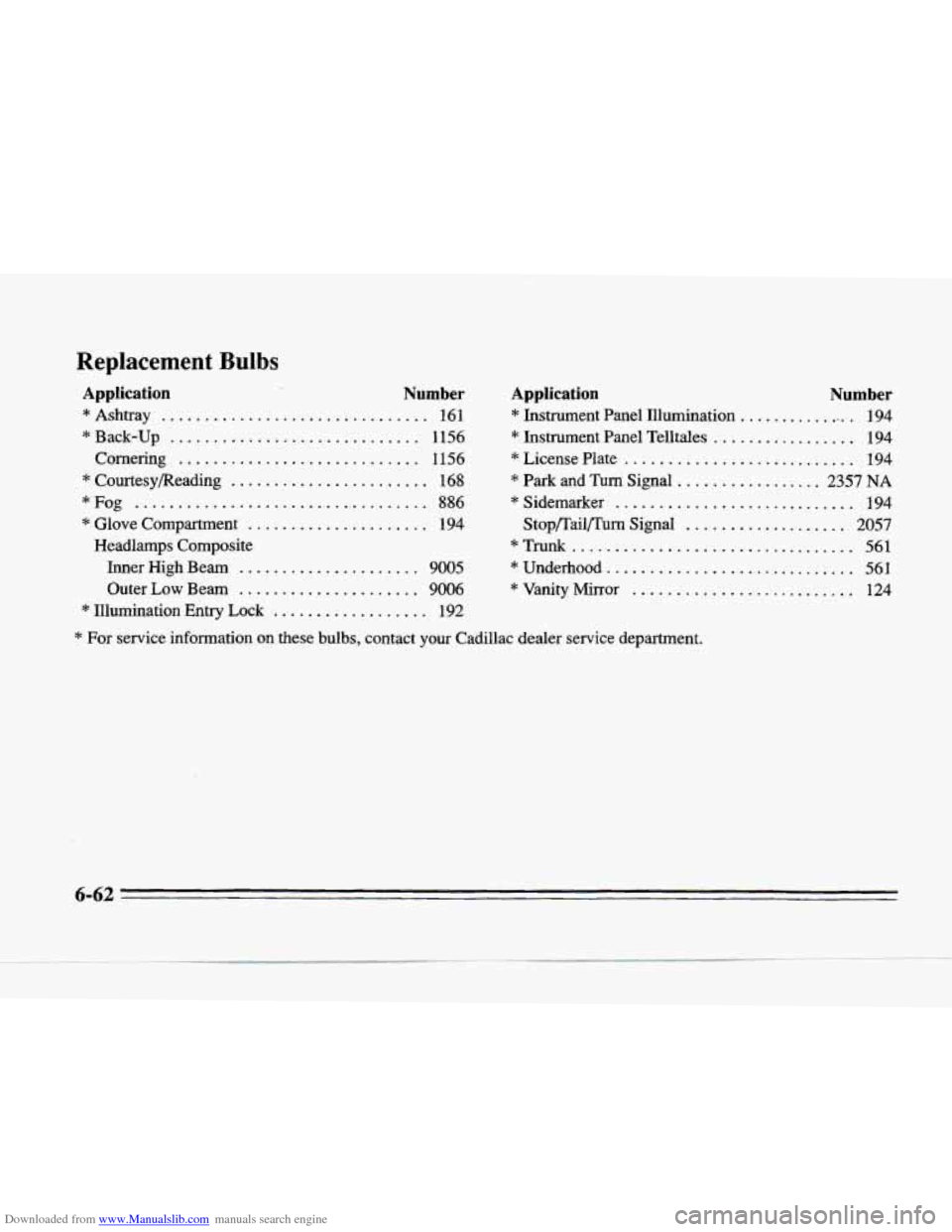

Downloaded from www.Manualslib.com manuals search engine Replacement Bulbs
* Ashtray ............................... 161
* Back-up ............................. 1156
Cornering
............................ 1 156
* Courtesy/Reading ....................... 168
* Glove Compartment ..................... 194
Inner High Beam
..................... 9005
Outer
Low Beam ..................... 9006
Application Number
*Fog .................................. 886
Headlamps Composite
* Illumination Entry Lock .................. 192
* For service information on these bulbs, contact your Cadillac dealer service department.
Application Number
* hstrument Panel Illumination ............... 194
* Instrument Panel Telltales 194
* License Plate ........................... 194
* Park and Turn Signal ................. 2357 NA
* Sidemarker
194
Stop/Tail/Turn Signal
................... 2057
*Trunk................................. 561
*Underhood............................. 561
* Vanity Mirror .......................... 124
.................
............................
6-62

Downloaded from www.Manualslib.com manuals search engine c

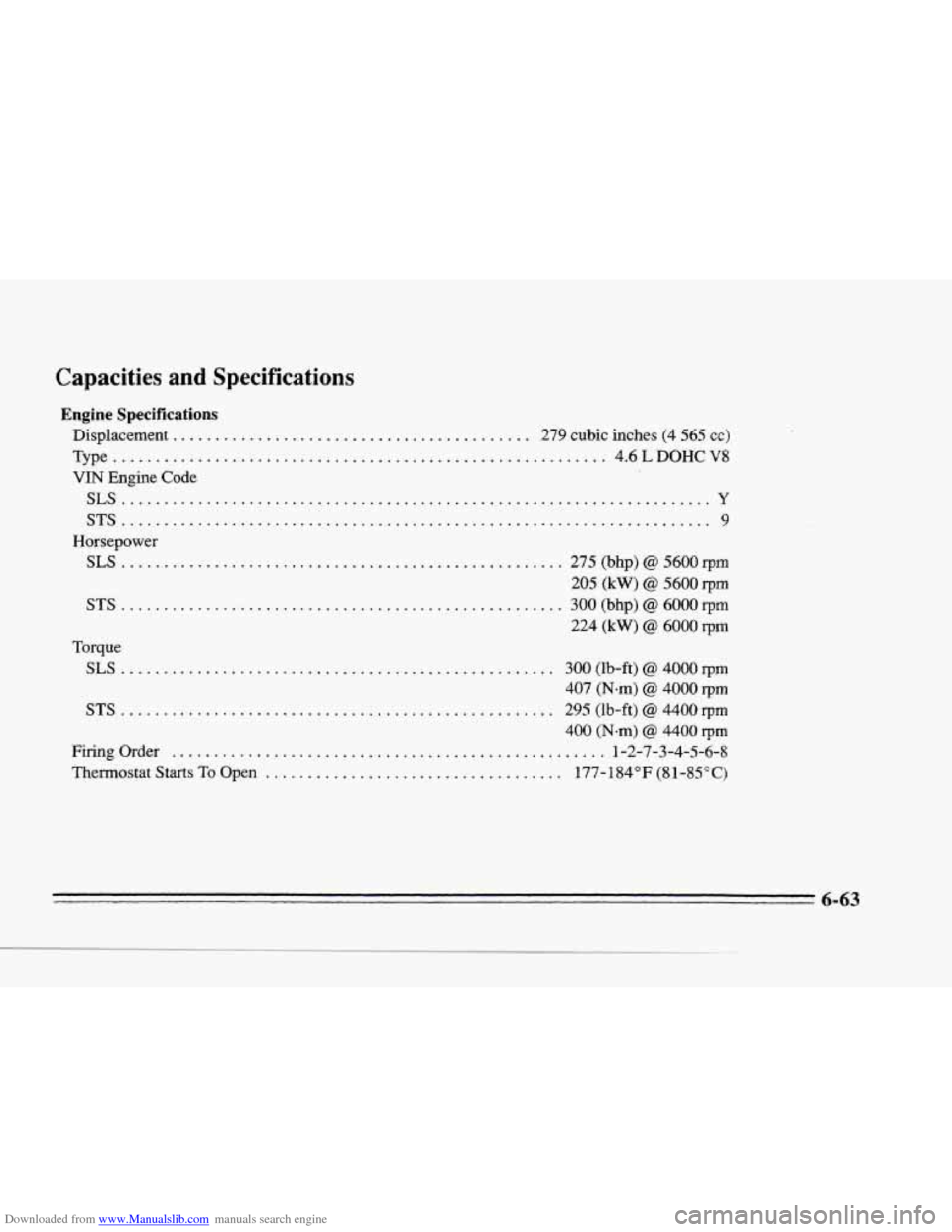

c Capacities and Specifications
Engine Specifications
Displacement. ......................................... 279 cubic inches (4 565 cc)
Type .......................................................... 4.6LDOHCV8
VIN Engine Code
SLS ..................................................................... Y
STS ..................................................................... 9
Horsepower
SLS .................................................... 275(bhp)@5600rpm
205 (kW) @ 5600 rpm
STS .................................................... 300(bhp)@600Orpm
224 (kW) @ 6000 rpm
Torque
SLS ................................................... 300(1b-ft)@4000rp111 407
(Nmm) @ 4000 rpm
STS ................................................... 295 (lb-ft) @ 4400 rpm
400 (N-m) @ 4400 rpm
Firingorder ................................................... 1-2-7-3-4-5-6-8
Thermostat
Starts To Open ................................... 177-184°F (81-85°C)
6-63

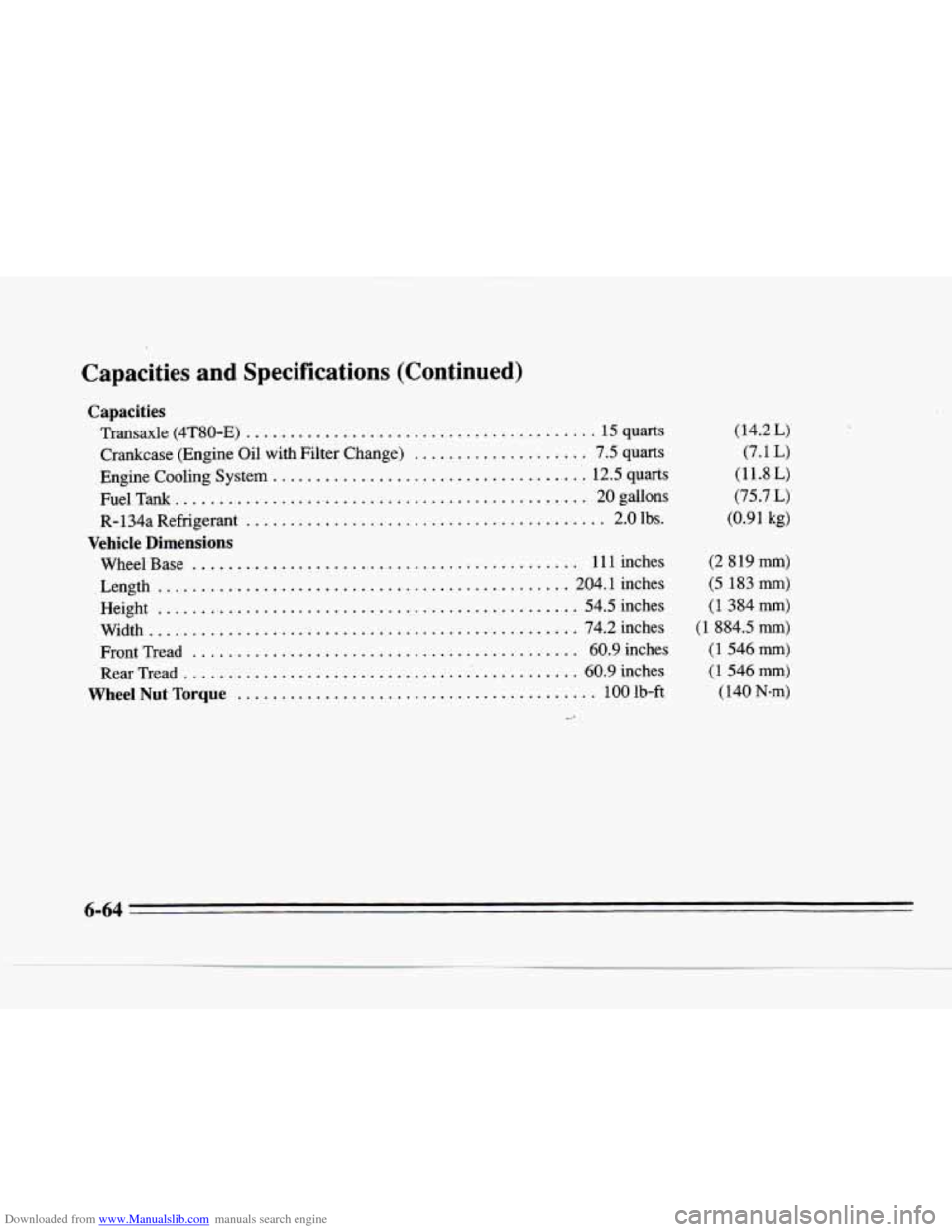

Downloaded from www.Manualslib.com manuals search engine Capacities and Specifications (Continued)
Capacities
Transaxle (4T80-E) ........................................ 15 quarts
Crankcase (Engine Oil with Filter Change)
.................... 7.5 quarts
Engine Cooling System
.................................... 12.5 quarts
R-134a Refrigerant ......................................... 2.0 lbs.
Wheel Base
............................................ 11 1 inches
Length
............................................... 204.1inches
Height
................................................ 54.5 inches
Width
................................................. 74.2 inches
Front Tread
............................................ 60.9 inches
Wheel Nut Torque .......................................... 100 lb-ft
FuelTank
............................................... 20gallons
Vehicle Dimensions
Rear Tread .............................................. 60.9 inches
-.
(14.2 L)
(7.1 L)
(11.8
L)
(75.7 L)
(0.91 kg)
(2 819 mm)
(5 183 mm)
(1 384 mm)
(1 884.5 mm)
(1 546 mm)
(1 546 mm)
( 140 N-m)
6-64

Downloaded from www.Manualslib.com manuals search engine c
LI

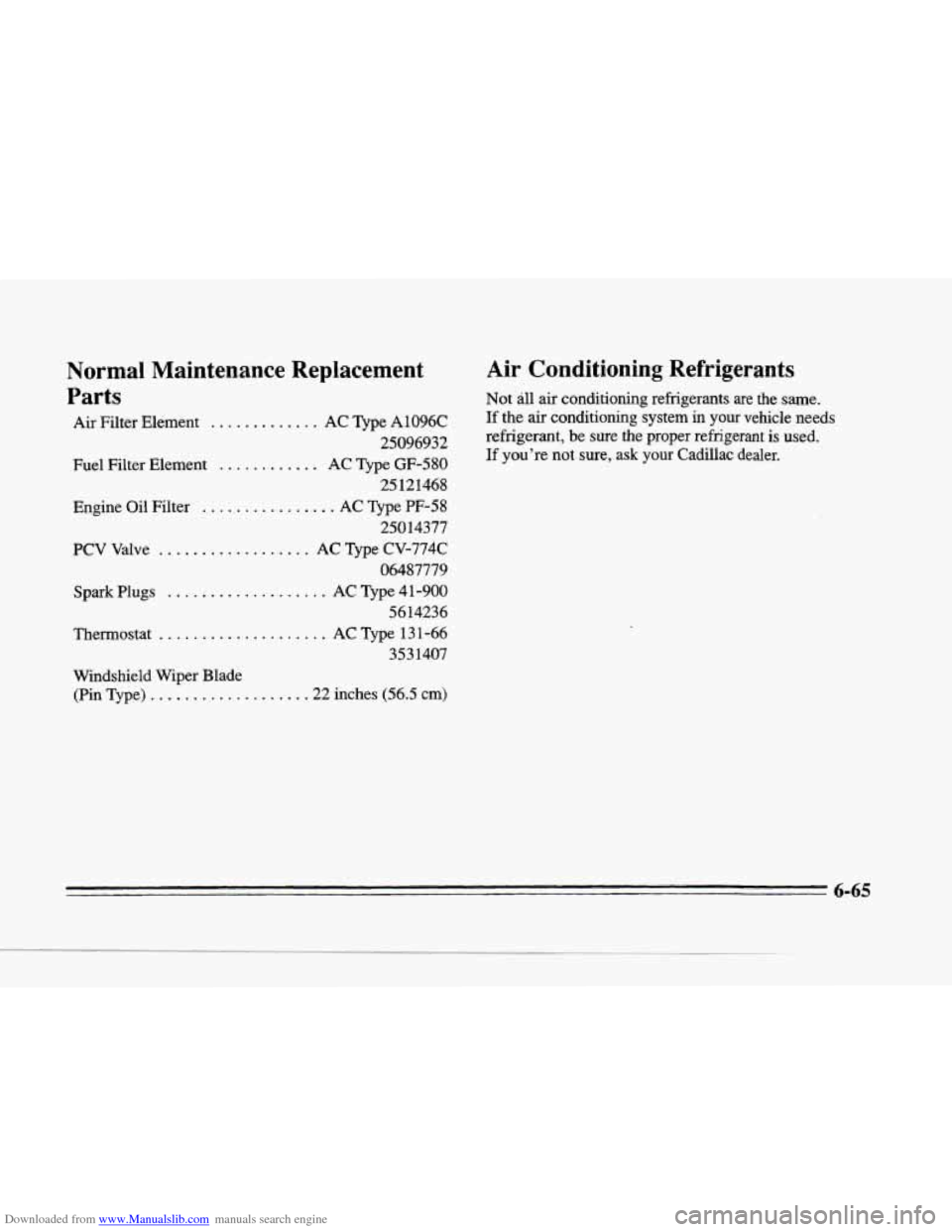

Normal Maintenance Replacement Parts
Air Filter Element .............
Fuel Filter Element ............
AC Type A1096C
25096932
AC Type GF-580 25121468
Engine Oil Filter
................ AC Type PF-58
25014377
PCV Valve
.................. AC Type CV-774C
06487779
Spark
Plugs ................... AC Type 4 1-900
5614236
Thermostat
.................... AC Type 13 1-66
3531407
Air Conditioning Refrigerants
Not all air conditioning refrigerants are the same.
If the air conditioning system in your vehicle needs
refrigerant, be sure the proper refrigerant
is used.
If you’re not sure, ask your Cadillac dealer.
Windshield Wiper Blade
(Pin Type)
.................. .22 inches (56.5 cm)
6-65

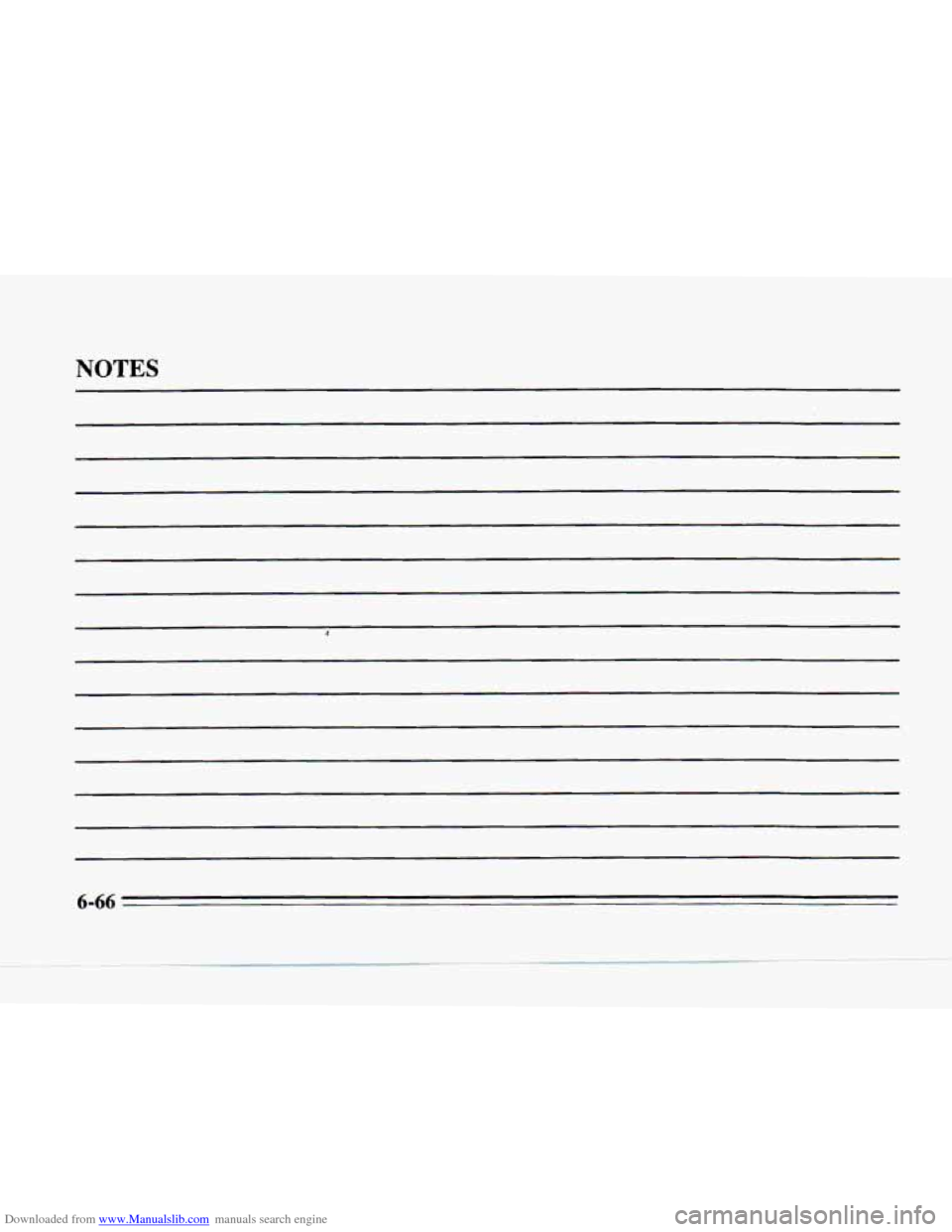

Downloaded from www.Manualslib.com manuals search engine NOTES
t
6-66

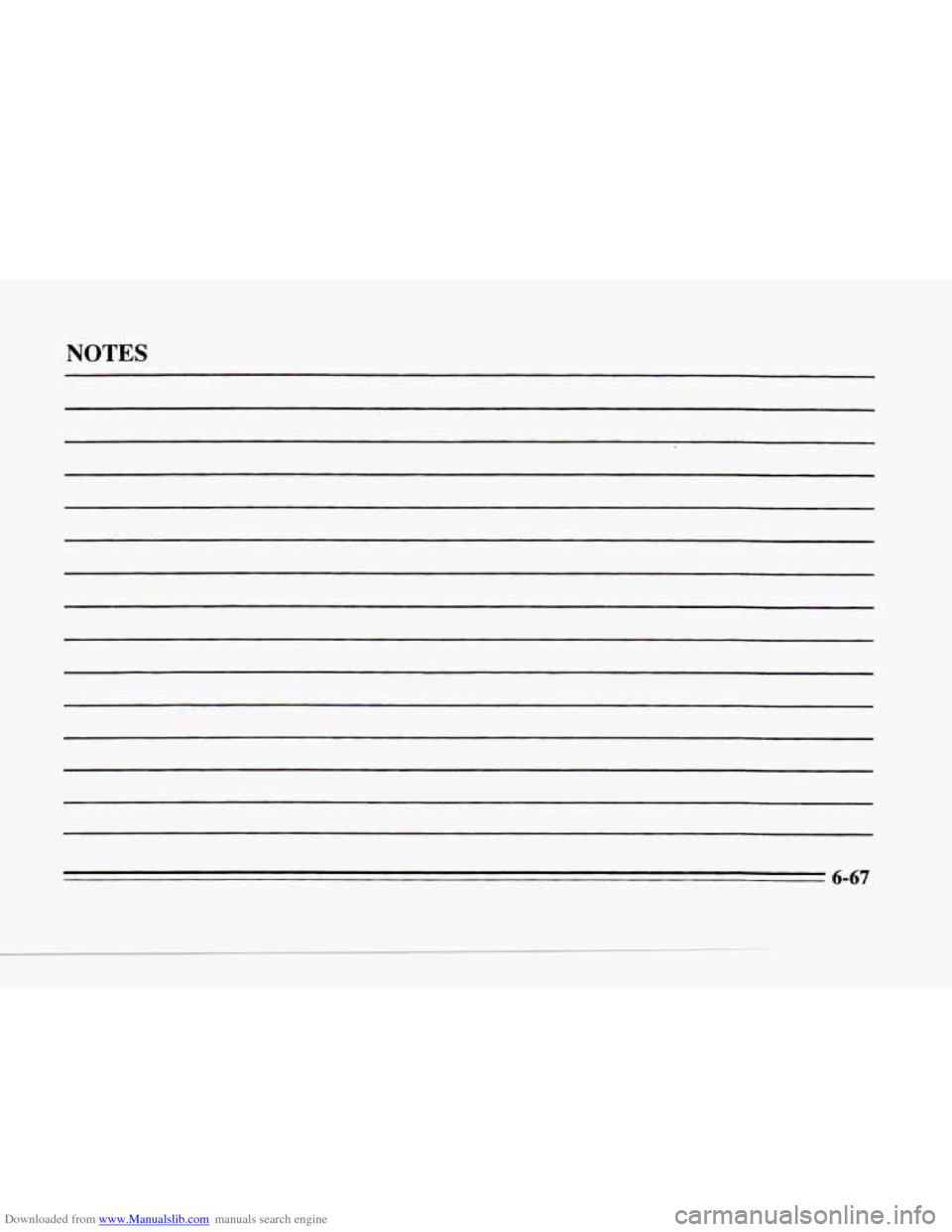

Downloaded from www.Manualslib.com manuals search engine NOTES
6-67

Downloaded from www.Manualslib.com manuals search engine NOTES

Downloaded from www.Manualslib.com manuals search engine c
,-"' %-,

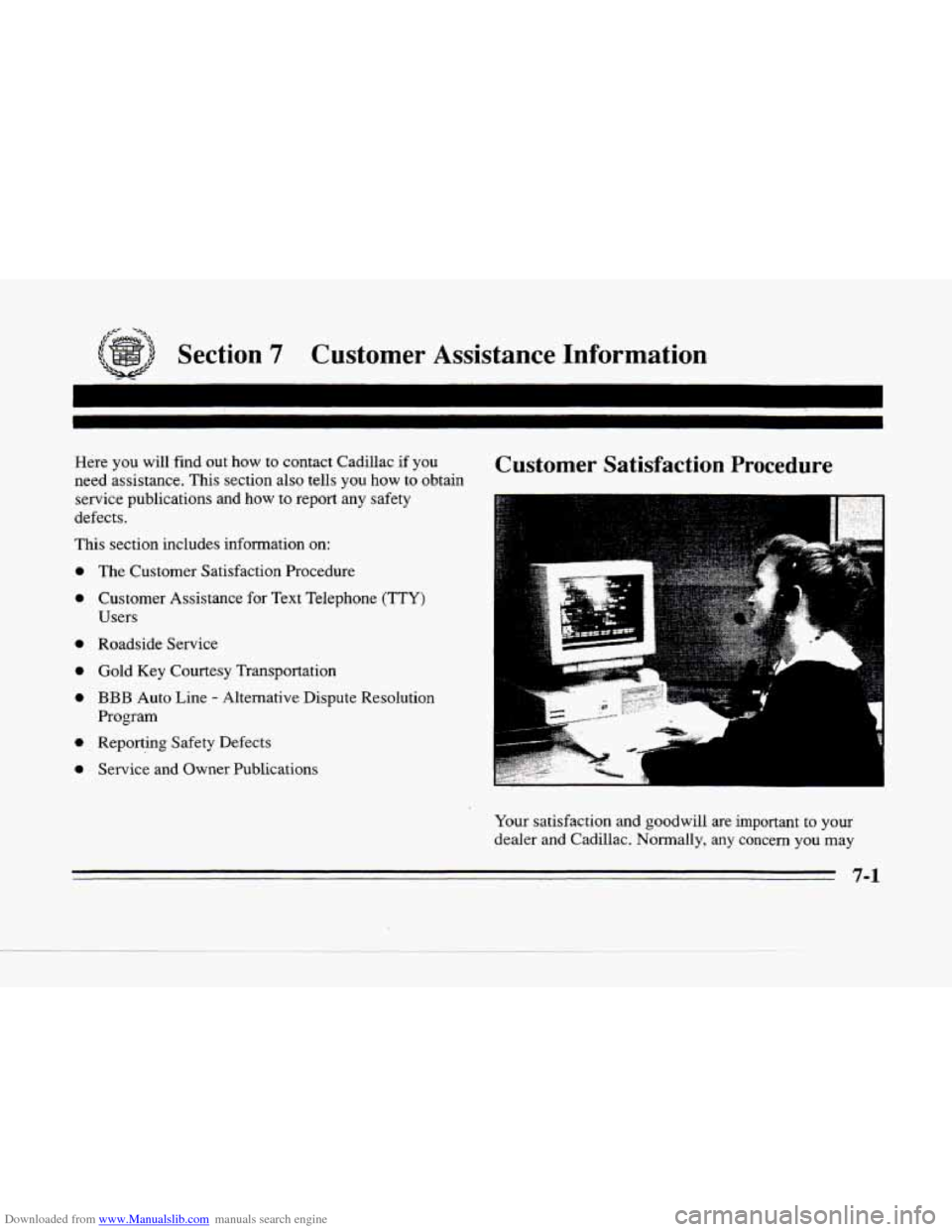

Section 7 Customer Assistance Information
Here you will find out how to contact Cadillac if you
need assistance. This section also tells you how to obtain
service publications and
how to report any safety
defects.
This section includes information on:
0 The Customer Satisfaction Procedure
0 Customer Assistance for Text Telephone (TTY)
Users
0 Roadside Service
0 Gold Key Courtesy Transportation
0 BBB Auto Line - Alternative Dispute Resolution
Program
0 Reporting Safety Defects
0 Service and Owner Publications
Customer Satisfaction Procedure
.
Your satisfaction and goodwill are important to your
dealer and Cadillac. Normally, any concern
you may
7-1

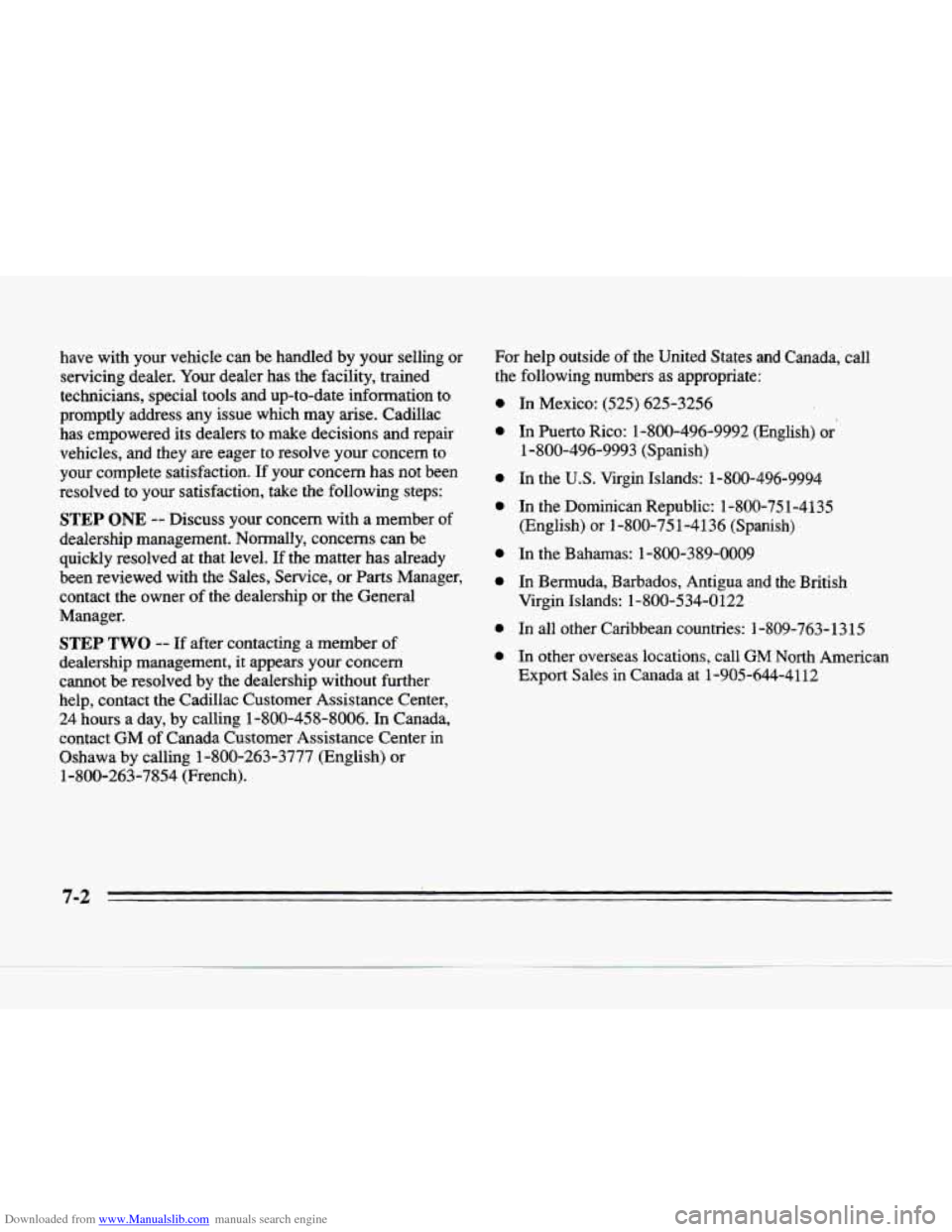

Downloaded from www.Manualslib.com manuals search engine have with your vehicle can be handled by your selling or
servicing dealer. Your dealer has the facility, trained
technicians, special tools and up-to-date information to
promptly address any issue which may arise. Cadillac
has empowered its dealers to make decisions and repair
vehicles, and they are eager
to resolve your concern to
your complete satisfaction. If your concern
has not been
resolved to your satisfaction, take the following steps:
STEP ONE -- Discuss your concern with a member of
dealership management. Normally, concerns can be
quickly resolved at that level.
If the matter has already
been reviewed with the Sales, Service, or
Parts Manager,
contact the owner
of the dealership or the General
Manager.
STEP TWO -- If after contacting a member of
dealership management, it appears your concern
cannot be resolved by the dealership without further
help, contact the Cadillac Customer Assistance Center,
24 hours a day, by calling 1-800-458-8006. In Canada,
contact GM
of Canada Customer Assistance Center in
Oshawa by calling 1-800-263-3777 (English) or
1-800-263-7854 (French). For
help outside
of the United States and Canada, call
the following numbers as appropriate:
0
0
0
0
0
0
0
0
In Mexico: (525) 625-3256
In herto Rico: 1-800-496-9992 (English) or
1-800-496-9993 (Spanish)
In the
U.S. Virgin Islands: 1-800-496-9994
In the Dominican Republic: 1-800-75 1-4135
(English)
or 1-800-75 1-41 36 (Spanish)
In the Bahamas: 1-800-389-0009
In Bermuda, Barbados, Antigua and the British
Virgin Islands: 1-800-534-0122
In all other Caribbean countries: 1-809-763-13 15
In other overseas locations, call GM North American
Export Sales in Canada at 1-905-644-41
12

Downloaded from www.Manualslib.com manuals search engine ,-

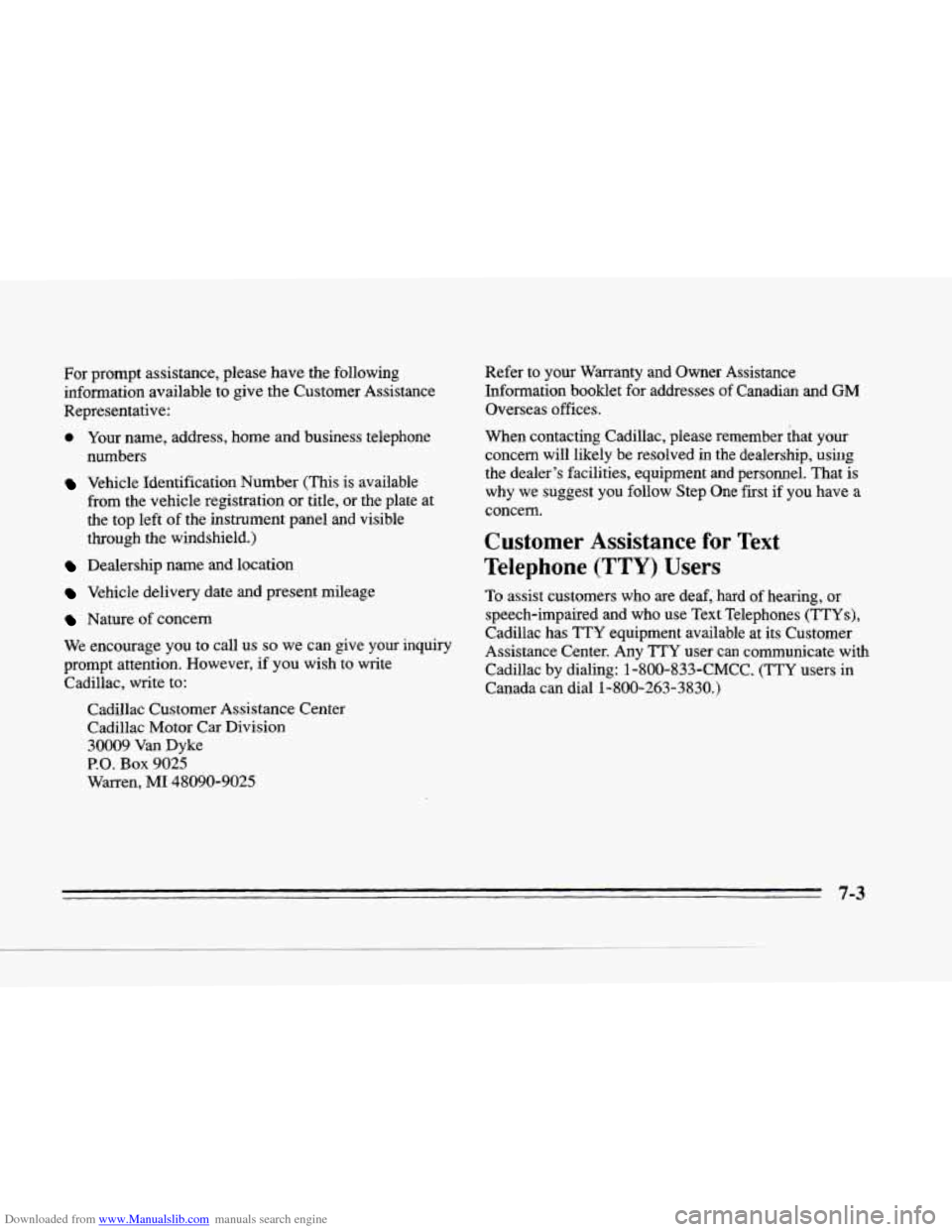

For prompt assistance, please have the following
information available to give the Customer Assistance
Representative:
0 Your name, address, home and business telephone
numbers
Vehicle Identification Number (This is available
from the vehicle registration
or title, or the plate at
the top left of the instrument panel
and visible
through the windshield.)
Dealership name and location
Vehicle delivery date and present mileage
Nature of concern
We encourage you to call
us so we can give your inquiry
prompt attention. However, if
you wish to write
Cadillac, write to:
Cadillac Customer Assistance Center
Cadillac Motor Car Division
30009 Van Dyke
P.O. Box 9025
Warren,
MI 48090-9025
Refer to your Warranty and Owner Assistance
Information booklet for addresses
of Canadian and GM
Overseas offices.
When contacting CadiIlac, please remember that your
concern will likely be resolved
in the dealership, using
the dealer's facilities, equipment and personnel. That is
why we suggest you follow Step One first if you have a
concern.
Customer Assistance for Text
Telephone
(TTY) Users
To assist customers who are deaf, hard of hearing, or
speech-impaired and who use Text Telephones
(TTYs),
Cadillac has TTY equipment available at its Customer
Assistance Center. Any
TTY user can communicate with
Cadiilac by dialing: 1-800-833-CMCC.
(TTY users in
Canada can dial 1-800-263-3830.)
7-3
