CADILLAC SEVILLE 1996 4.G Owners Manual

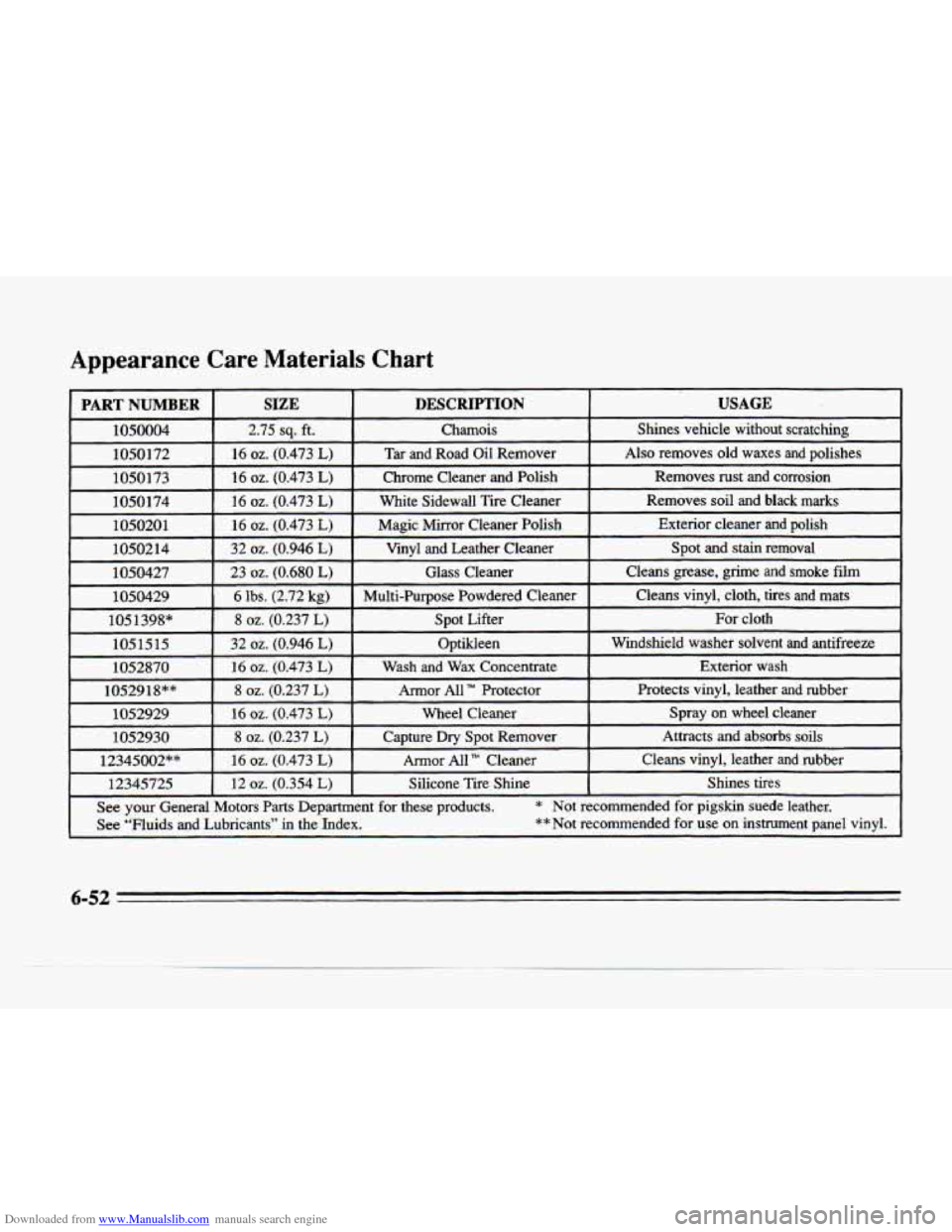

Downloaded from www.Manualslib.com manuals search engine Appearance Care Materials Chart
I PARTNUMBER I SIZE I DESCRIPTION I USAGE
1050004 2.75 sq. ft. Chamois Shines vehicle without scratching
1050 172 16 oz. (0.473 L) Tar and Road Oil
Remover Also removes old waxes and polishes
10501 73
16 oz. (0.473 L) Chrome Cleaner and Polish Removes rust
and corrosion
1050174 16 oz. (0.473 L) White Sidewall Tire Cleaner Removes
soil and black marks
1050201 16 oz. (0.473 L) Magic Mirror Cleaner Polish Exterior cleaner
and polish
1050214 32 oz. (0.946 L) Vinyl and
Leather Cleaner Spot and stain removal
1050427 23 oz. (0.680 L) Glass Cleaner Cleans grease, grime
and smoke film
1050429 6 lbs. (2.72 kg) Multi-Purpose Powdered Cleaner
Cleans vinyl, cloth, tires and mats
105 1398* 8 oz. (0.237 L) Spot Lifter For
cloth
1051515 32 02. (0.946 L) Optikleen Windshield washer solvent
and antifreeze
1052870 16 oz. (0.473 L) I Wash and Wax Concentrate Exterior wash
1052918** 8 oz. (0.237 L) Armor All TM Protector Protects vinyl, leather and rubber
1052929
16 oz. (0.473 L) Wheel Cleaner Spray on wheel cleaner
1052930 8 oz. (0.237 L) Capture Dry Spot
Remover Attracts and absorbs soils
12345002** 16 oz. (0.473 L) Armor All ’IM Cleaner Cleans vinyl, leather
and rubber
12345725 I 12 oz. (0.354 L) Silicone Tire Shine Shines tires
See
your General Motors Parts Department for these products. * Not recommended for pigskin suede leather.
See “Fluids and Lubricants” in the Index.
** Not recommended for use on instrument panel vinyl.

Downloaded from www.Manualslib.com manuals search engine c
c..

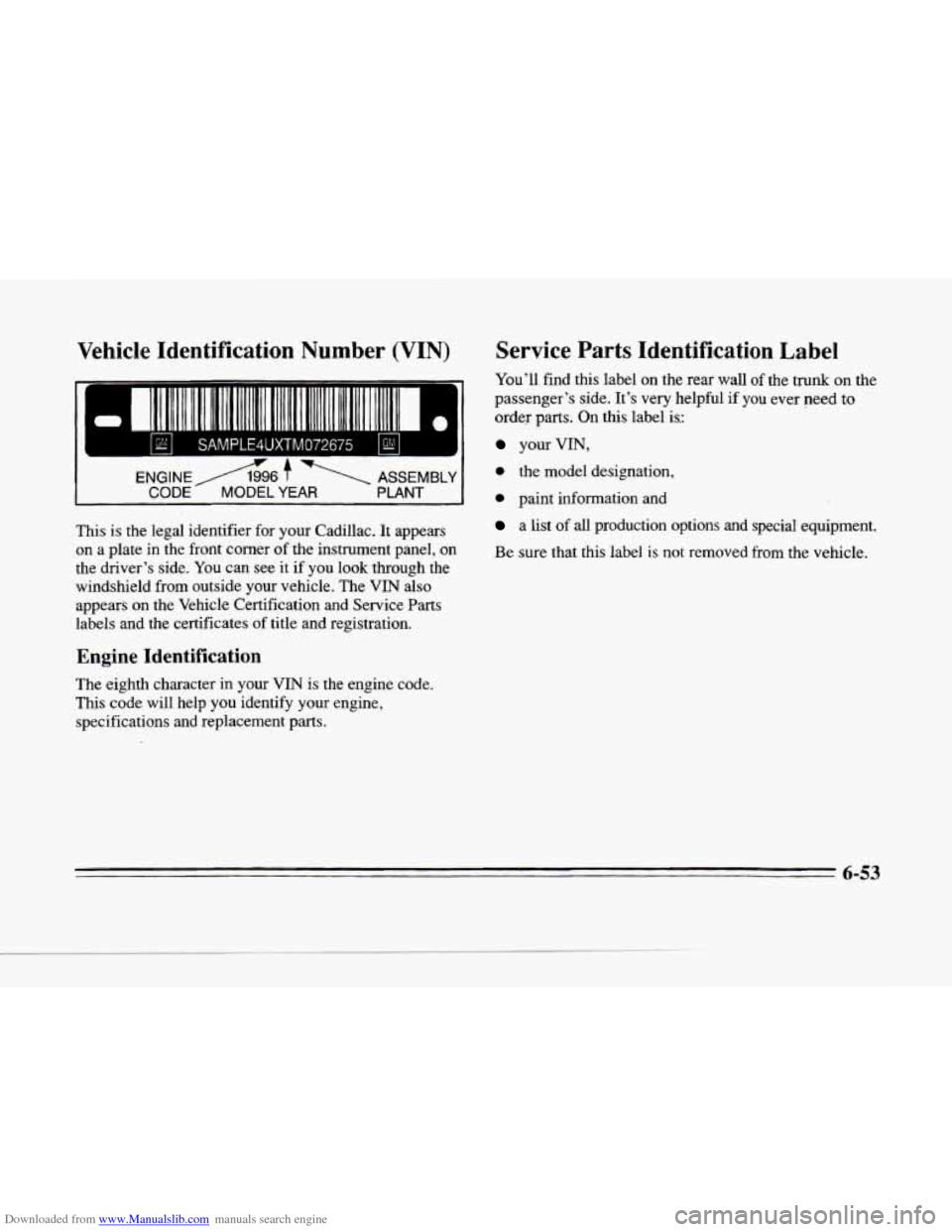

Vehicle Identification Number (VIN)
4UXTM072675
CODE MODEL YEAR PLANT
This is the legal identifier for your Cadillac. It appears
on a plate in the front comer of the instrument panel, on
the driver’s side.
You can see it if you look through the
windshield from outside your vehicle. The VIN also
appears on the Vehicle Certification and Service Parts
labels and the certificates of title and registration.
Engine Identification
The eighth character in your VIN is the engine code.
This code will help you identify your engine,
specifications and replacement parts.
Service Parts Identification Label
You’ll find this label on the rear wall of the trunk on the
passenger’s side. It’s very helpful if you ever need
to
order parts. On this label is.:
your VIN,
0 the model designation,
e paint information and
a list of all production options and special equipment.
Be sure that this label
is not removed from the vehicle.
6-53

Downloaded from www.Manualslib.com manuals search engine Electrical System

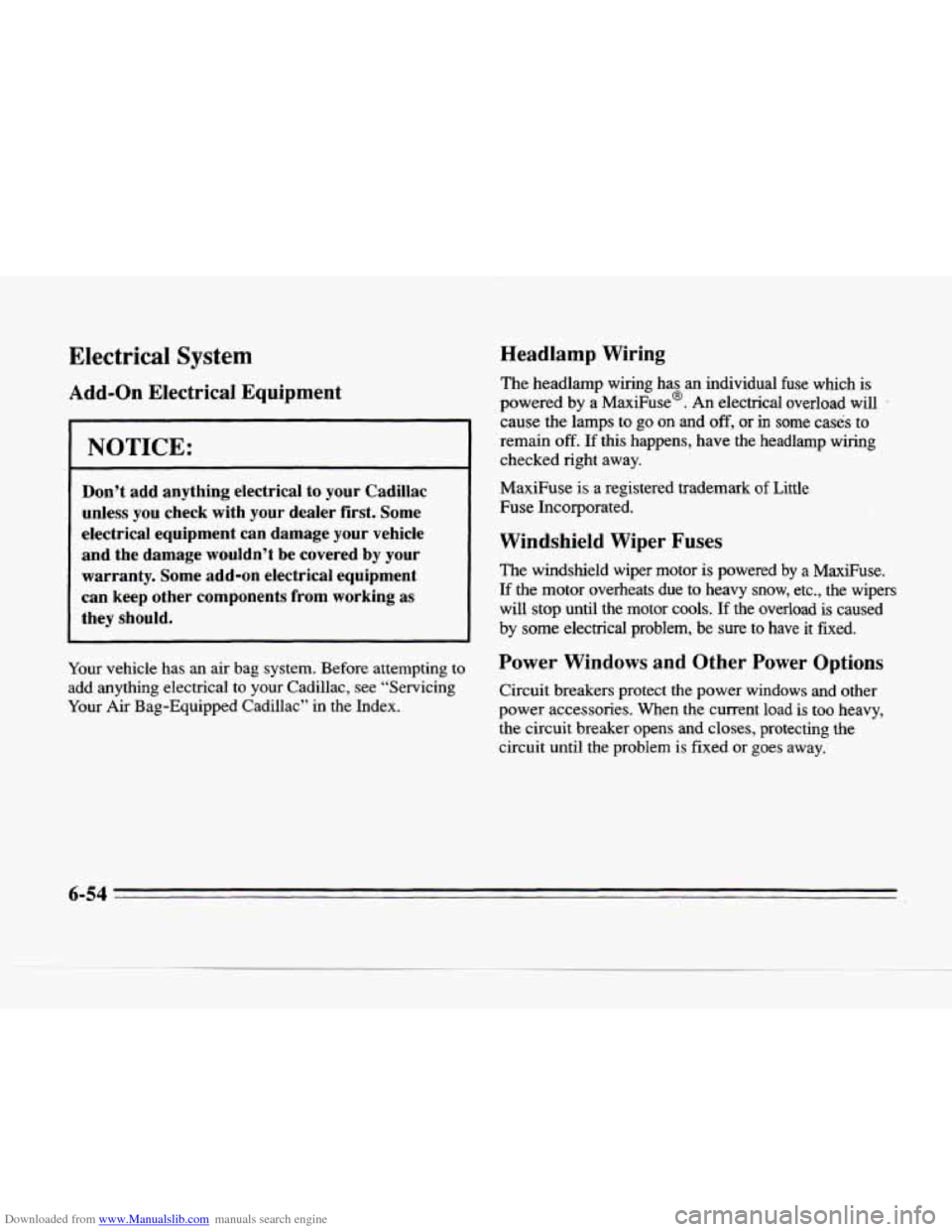

Add-on Electrical Equipment
NOTICE:
Don’t add anything electrical to your Cadillac
unless you check with your dealer first. Some
electrical equipment can damage your vehicle
and the damage wouldn’t be covered by your
warranty. Some add-on electrical equipment
can keep other components from working as
they should.
Your vehicle has an air bag system. Before attempting to
add anything electrical
to your Cadillac, see “Servicing
Your
Air Bag-Equipped Cadillac” in the Index.
Headlamp Wiring
The headlamp wiring has an individual fuse which is
powered by
a MaxiFuse@. An electrical overload will .
cause the lamps to go on and off, or in some cases to
remain
off. If this happens, have the headlamp wiring
checked right away.
MaxiFuse is
a registered trademark of Little
Fuse Incorporated.
Windshield Wiper Fuses
The windshield wiper motor is powered by a MaxiFuse.
If the motor overheats due to heavy snow, etc., the wipers
will stop until the motor cools. If the overload is caused
by some electrical problem, be sure to have it fixed.
Power Windows and Other Power Options
Circuit breakers protect the power windows and other
power accessories. When the current load
is too heavy,
the circuit breaker opens and closes, protecting the
circuit until the problem is fixed or
goes away.
6-54

Downloaded from www.Manualslib.com manuals search engine c
r".

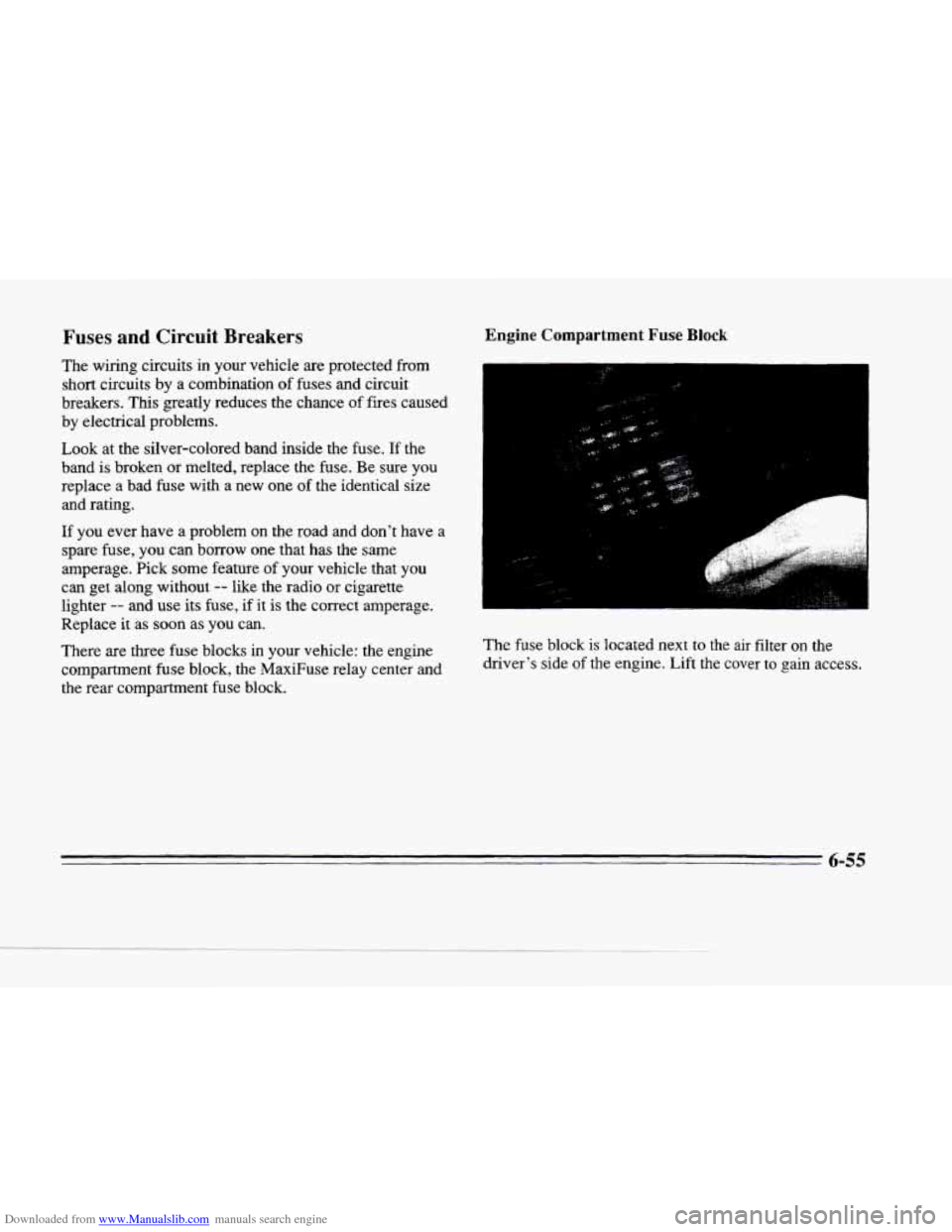

Fuses and Circuit Breakers
The wiring circuits in your vehicle are protected from
short circuits by a combination
of fuses and circuit
breakers. This greatly reduces the chance of fires caused
by electrical problems.
Look at the silver-colored band inside the fuse. If the
band is broken or melted, replace the fuse. Be sure you
replace
a bad fuse with a new one of the identical size
and rating.
If you ever have a problem on the road and don't have a
spare fuse, you can borrow one that has the same
amperage. Pick some feature of your vehicle that you
can get along without
-- like the radio or cigarette
lighter
-- and use its fuse, if it is the correct amperage.
Replace
it as soon as you can.
There
are three fuse blocks in your vehicle: the engine
compartment fuse block, the MaxiFuse relay center and
the rear compartment fuse block.
hgine Compartment Fuse Block
r-
The fuse block is located next to the air filter on the
driver's side
of the engine. Lift the cover to gain access.
6-55

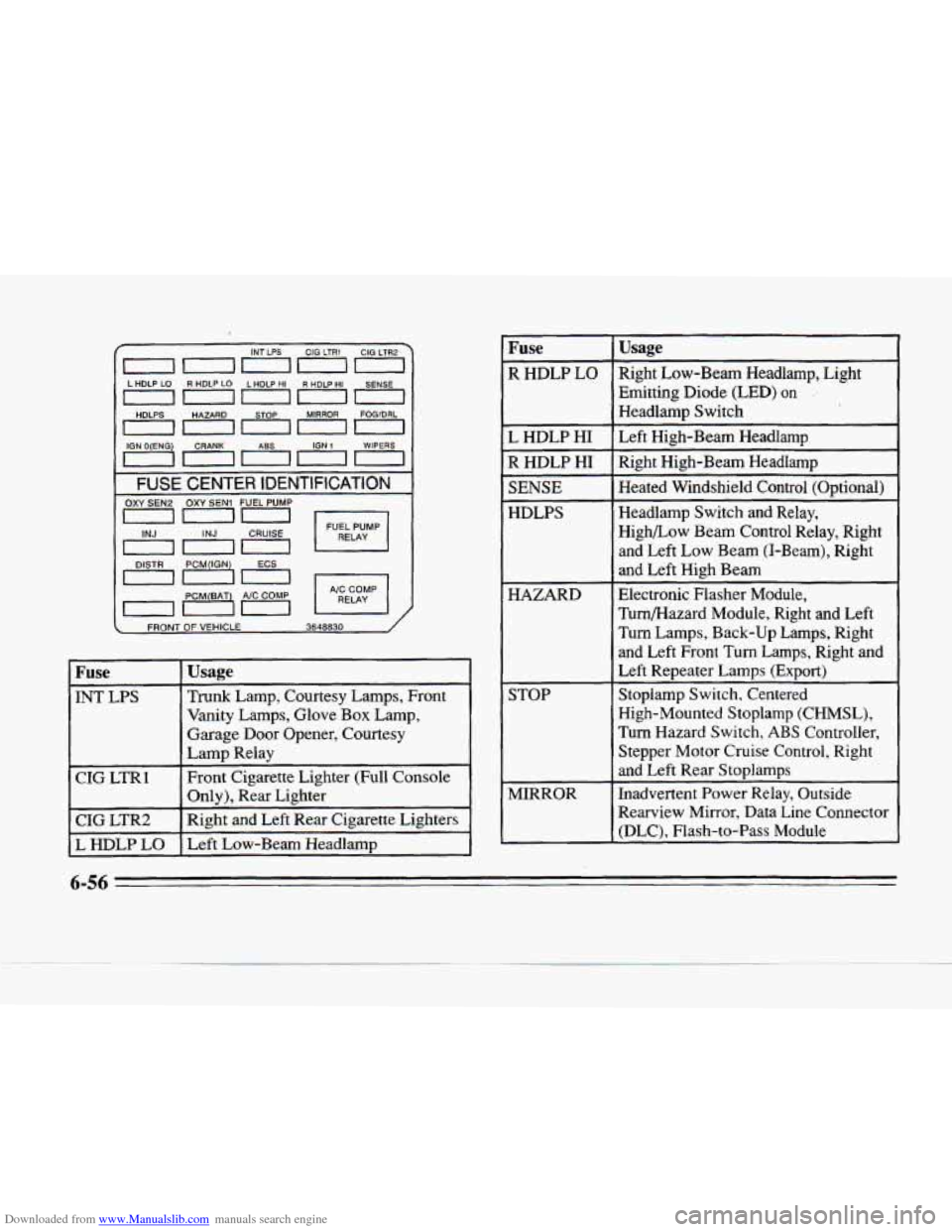

Downloaded from www.Manualslib.com manuals search engine , , , I I INT LPS I , CIG LTRI , , CIG LTR2 I
00~00
L HDLP LO R HDLP LO L HDLP HI R HDLP HI . SENSE
, HDLPS I , HAZARD , , STOP I , MIRROR I F0(3/DRL ,
IGN O(ENG) CRANK WIPERS
FUSE CENTER IDENTIFICATION
OXY SEN2 OXY SEN1 FUEL PUMP
CRUISE RELAY
, DlSTR ,PC~JI(IGN)~ I ECS ,
, , ,PCM(BAT), IA/C COM?
L FRONT OF VEHICLE 36488x1
I Fuse
INT LPS
E
CIG LTR2
L HDLP LO
Usage
Trunk Lamp, Courtesy Lamps, Front
Vanity Lamps, Glove
Box Lamp,
Garage Door Opener, Courtesy
Lamp Relay
Front Cigarette Lighter (Full Console
Only), Rear Lighter
Right and Left Rear Cigarette Lighters
Left Low-Beam Weadlamp
Fuse
R HDLP LO
LDLP HI
R HDLP HI
SENSE
HDLPS
HAZARD
STOP
MIRROR
Usage
Right Low-Beam Headlamp, Light Emitting Diode
(LED) on -.
Headlamp Switch
Left High-Beam Headlamp
Right High-Beam Headlamp
Heated Windshield Control (Optional)
Headlamp Switch and Relay,
High/Low Beam Control Relay, Right
and Left Low Beam (I-Beam), Right
and Left High Beam
Electronic Flasher Module,
Turnmazard Module, Right and Left
Turn Lamps, Back-up Lamps, Right
and Left
Front Turn Lamps, Right and
Left Repeater Lamps (Export)
Stoplamp Switch, Centered
High-Mounted Stoplamp (CHMSL),
Turn Hazard Switch,
ABS Controller,
Stepper Motor
Cruise Control, Right
and Left Rear Stoplamps
Inadvertent Power Relay, Outside
Rearview Mirror, Data Line Connector (DLC), Flash-to-Pass
Module

Downloaded from www.Manualslib.com manuals search engine -

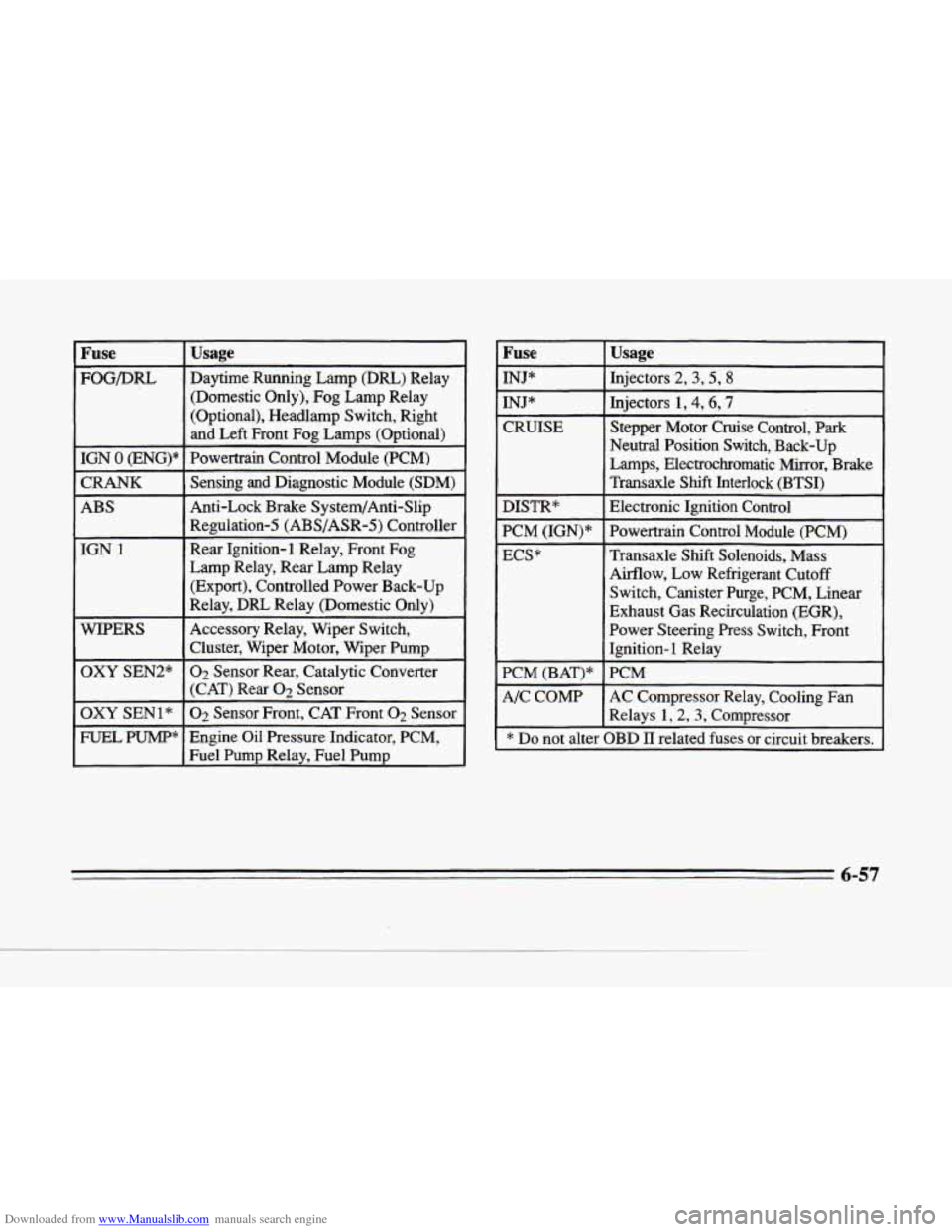

Usage
Fuse Fuse
FOG/DRL
Usage
Daytime Running Lamp (DRL) Relay
(Domestic Only),
Fog Lamp Relay
(Optional), Headlamp Switch, Right
and Left Front Fog Lamps (Optional)
~~ ~
Injectors 2,3,5,8
INJ* Injectors 1,4,6,7 -
Stepper Motor Cruise Control, Park
Neutral Position Switch, Back-up
Lamps, Electrochromatic Mirror, Brake
Transaxle Shift Interlock (BTSI)
CRUISE
I IGN 0 (ENG)* I Powertrain
Control Module (PCM) I
I CRANK I Sensing and Diagnostic Module (SDM) I - ~~
Electronic Ignition Control
I ABS I Regulation-5 (ABS/ASR-5) Controller I
Anti-Lock Brake System/Anti-Slip DISTR*
PCM (IGN)" ~
Powertrain
Control Module (PCM)
Transaxle Shift Solenoids, Mass
Airflow, Low Refrigerant Cutoff
Switch, Canister Purge, PCM, Linear
Exhaust
Gas Recirculation (EGR),
Power Steering Press Switch, Front
Ignition-
1 Relay
Rear
Ignition-1 Relay, Front Fog
Lamp Relay, Rear Lamp Relay
(Export), Controlled Power Back-up
Relay,
DRL Relay (Domestic Only)
IGN
1 ECS*
I I Cluster, Wiper
Motor, Wiper Pump I
Accessory Relay, Wiper Switch,
I
OXY SEN2* 02 Sensor Rear, Catalytic Converter
I (CAT) Rear Op Sensor I
-
PCM PCM (BAT)*
A/C COMP AC Compressor Relay, Cooling Fan
Relays
1,2,3, Compressor OXY SEN1 *
Engine Oil Pressure Indicator, PCM, FUEL PUMP"
02 Sensor Front, CAT Front 02 Sensor
Fuel Pump Relax Fuel PumD
* Do not alter OBD I1 related fuses or circuit breakers.
6-57

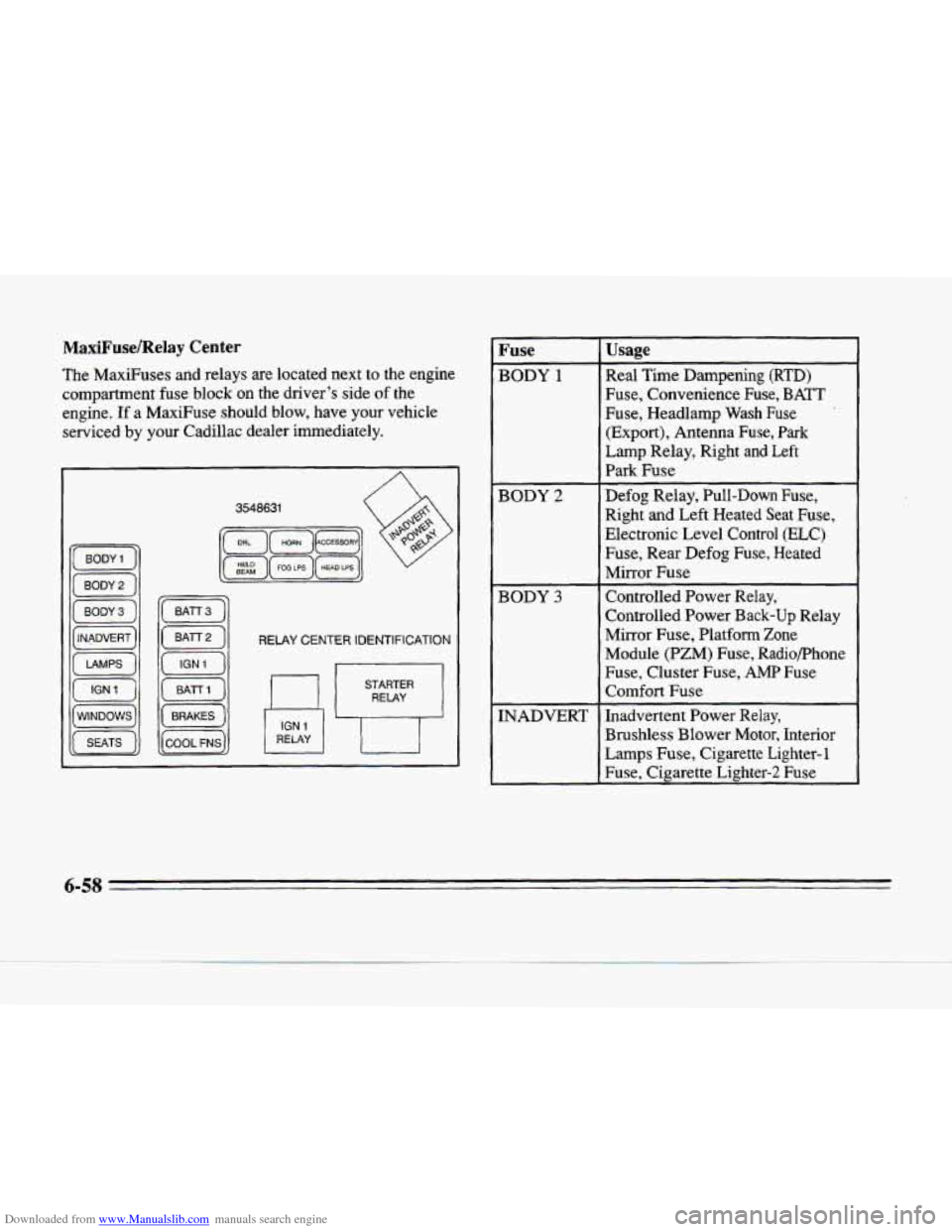

Downloaded from www.Manualslib.com manuals search engine MaxiFuse/Relay Center
The MaxiFuses and relays are located next to the engine
compartment fuse block
on the driver’s side of the
engine. If a MaxiFuse should
blow, have your vehicle
serviced by your Cadillac dealer immediately.
RELAY CENTER IDENTIFICATION
RELAY
Fuse
BODY 1
BODY 2
BODY 3
INADVERT
Usage
Real Time Dampening (RTD)
Fuse, Convenience Fuse, BATT
Fuse, Headlamp Wash Fuse
(Export), Antenna Fuse,
Park
Lamp Relay, Right and Left
Park Fuse
Defog Relay, Pull-Down Fuse,
Right
and Left Heated Seat Fuse,
Electronic Level Control
(ELC)
Fuse, Rear Defog Fuse, Heated
Mirror Fuse
Controlled
Power Relay,
Controlled Power Back-up Relay
Mirror Fuse, Platform
Zone
Module (PZM) Fuse, Radiophone
Fuse, Cluster Fuse,
AMP Fuse
Comfort Fuse
Inadvertent Power Relay,
Brushless Blower Motor, Interior
Lamps
Fuse, Cigarette Lighter- 1
Fuse, Cigarette Lighter-2 Fuse
6-58

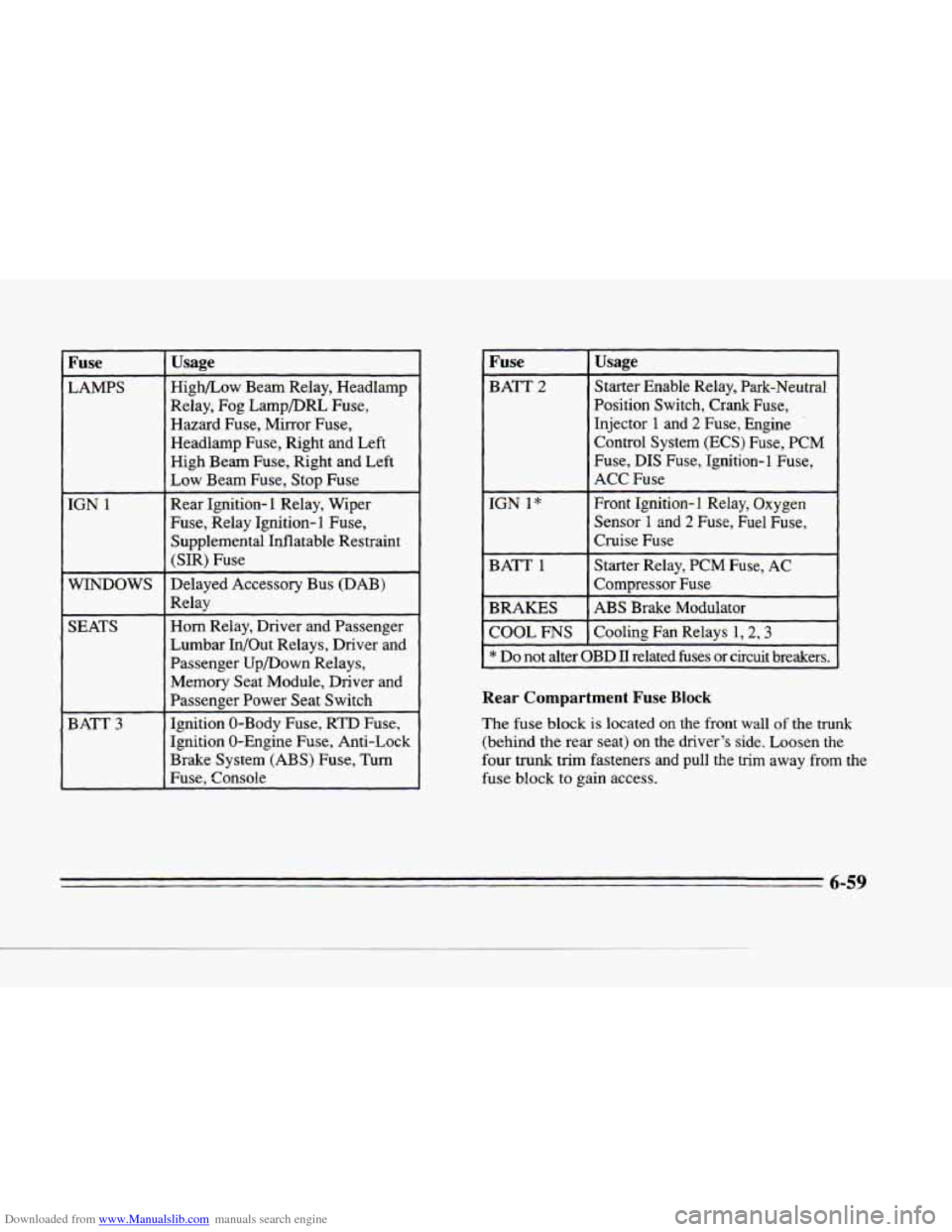

Downloaded from www.Manualslib.com manuals search engine L-
c
L
Fuse ~~
LAMPS
IGN
1
W6lDOWS
SEATS
BATT
3
Usage
Highbow Beam Relay, Headlamp
Relay, Fog Lamp/DRL Fuse,
Hazard Fuse, Mirror Fuse,
Headlamp Fuse, Right and Left
High Beam Fuse, Right and Left
Low Beam Fuse, Stop Fuse
Rear Ignition-1 Relay, Wiper
Fuse, Relay Ignition-
1 Fuse,
Supplemental Inflatable Restraint
(SIR) Fuse
Delayed Accessory Bus (DAB)
Relay
Horn Relay, Driver and Passenger
Lumbar In/Out Relays, Driver and
Passenger UpDown Relays,
Memory Seat Module, Driver and
Passenger Power Seat Switch
Ignition 0-Body Fuse,
RTD Fuse,
Ignition 0-Engine Fuse, Anti-Lock
Brake System
(ABS) Fuse, Turn
Fuse, Console
Fuse
Starter Enable Relay, Park-Neutral BATT 2
Usage
Position Switch, Crank Fuse,
Injector
1 and 2 Fuse, Engine .
Control System (ECS) Fuse, PCM
Fuse, DIS Fuse, 'Ignition-1 Fuse,
ACC Fuse
IGN
1" Front Ignition- 1 Relay, Oxygen
Sensor
1 and 2 Fuse, Fuel Fuse,
Cruise Fuse
BATT
1 Starter Relay, PCM Fuse, AC
BRAKES ABS Brake Modulator
COOL
FNS Cooling Fan Relays 1,2,3
* Do not alter OBD II related fuses or circuit breakers.
Compressor Fuse
Rear Compartment Fuse Block
The fuse block is located on the front wall of the trunk
(behind the rear seat)
on the driver's side. Loosen the
four trunk trim fasteners and pull the trim away from the
fuse block to gain access.

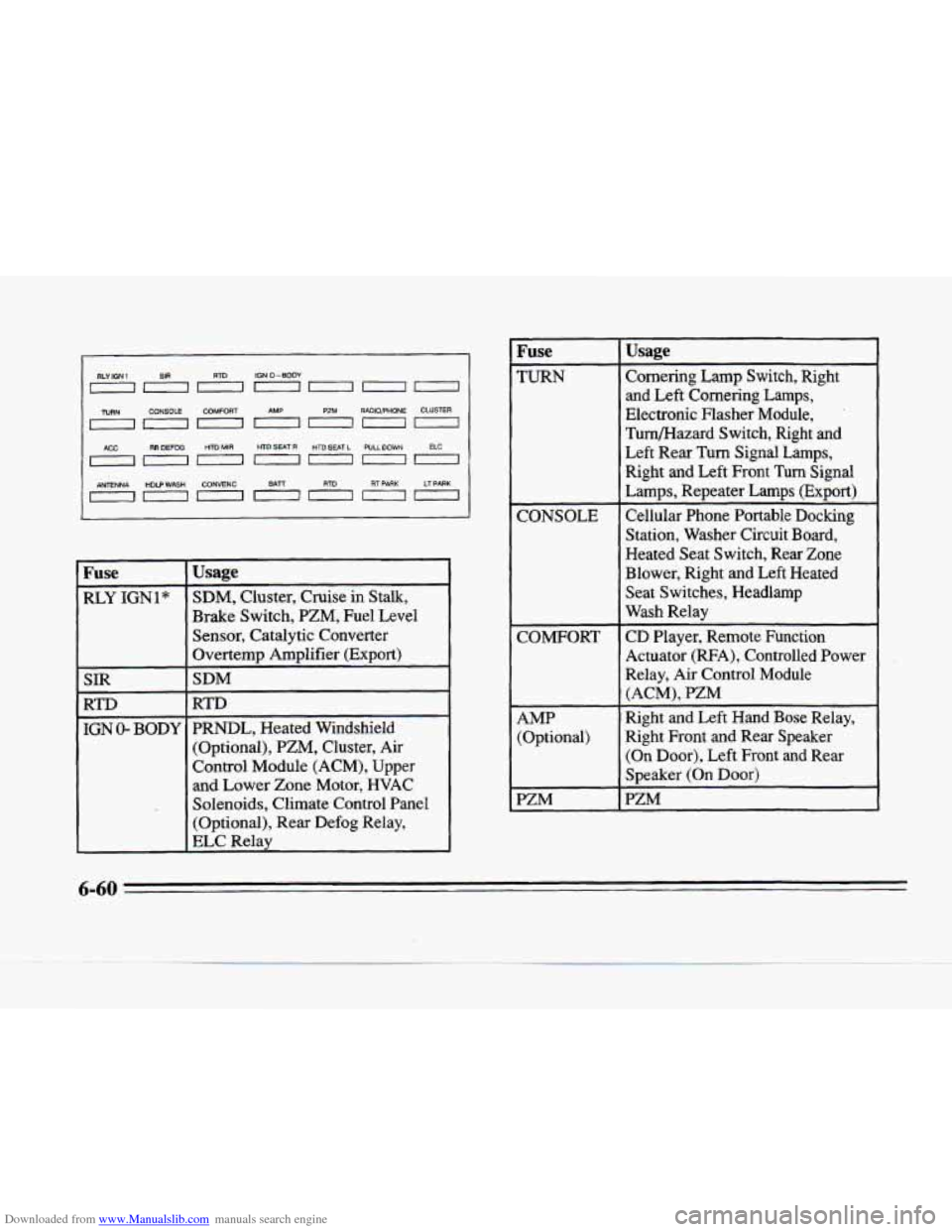

Downloaded from www.Manualslib.com manuals search engine RLY ION 1 IGN 0 .-BODY
CONSOLE COMFORT AMP PZM RADlOlPHONE CLUSTER
ACC
RR DEFOG HTD MIR HTD SEAT R HTDSEAT L PULLDOWN ELC
ANTENNA
HDLPWASH CONVENC BATr RTD RT PARK LT PARK
Fuse
RLY IGNl*
SIR
RTD ~~
IGN 0- BODY
Usage
SDM, Cluster, Cruise in Stalk,
Brake Switch, PZM, Fuel Level
Sensor, Catalytic Converter
Overtemp Amplifier
(Export)
SDM
RTD
PRNDL, Heated Windshielc
(Optional),
PZM, Cluster, Air
Control Module (ACM), Upper
and Lower Zone Motor, HVAC
Solenoids, Climate Control Panel
(Optional),
Rear Defog Relay,
ELC Relay
Fuse
TURN
CONSOLE
COMFORT
AMP
(Optional)
PZM
Usage
Cornering Lamp Switch, Right
and Left Cornering
Lamps,
Electronic Flasher Module,
Turn/Hazard Switch, Right and
Left Rear
Turn Signal Lamps,
Right and Left Front Turn Signal
Lamps, Repeater Lamps
(Export)
Cellular Phone Portable Docking
Station, Washer Circuit Board,
Heated Seat Switch, Rear
Zone
Blower, Right and Left Heated
Seat Switches, Headlamp
Wash Relay
CD Player, Remote Function
Actuator
(RFA), Controlled Power
Relay,
Air Control Module
(ACM), PZM
Right and Left Hand Bose Relay,
Right Front and Rear Speaker
(On
Door), Left Front and Rear
Speaker (On Door)
PZM
c
6-60

Downloaded from www.Manualslib.com manuals search engine c

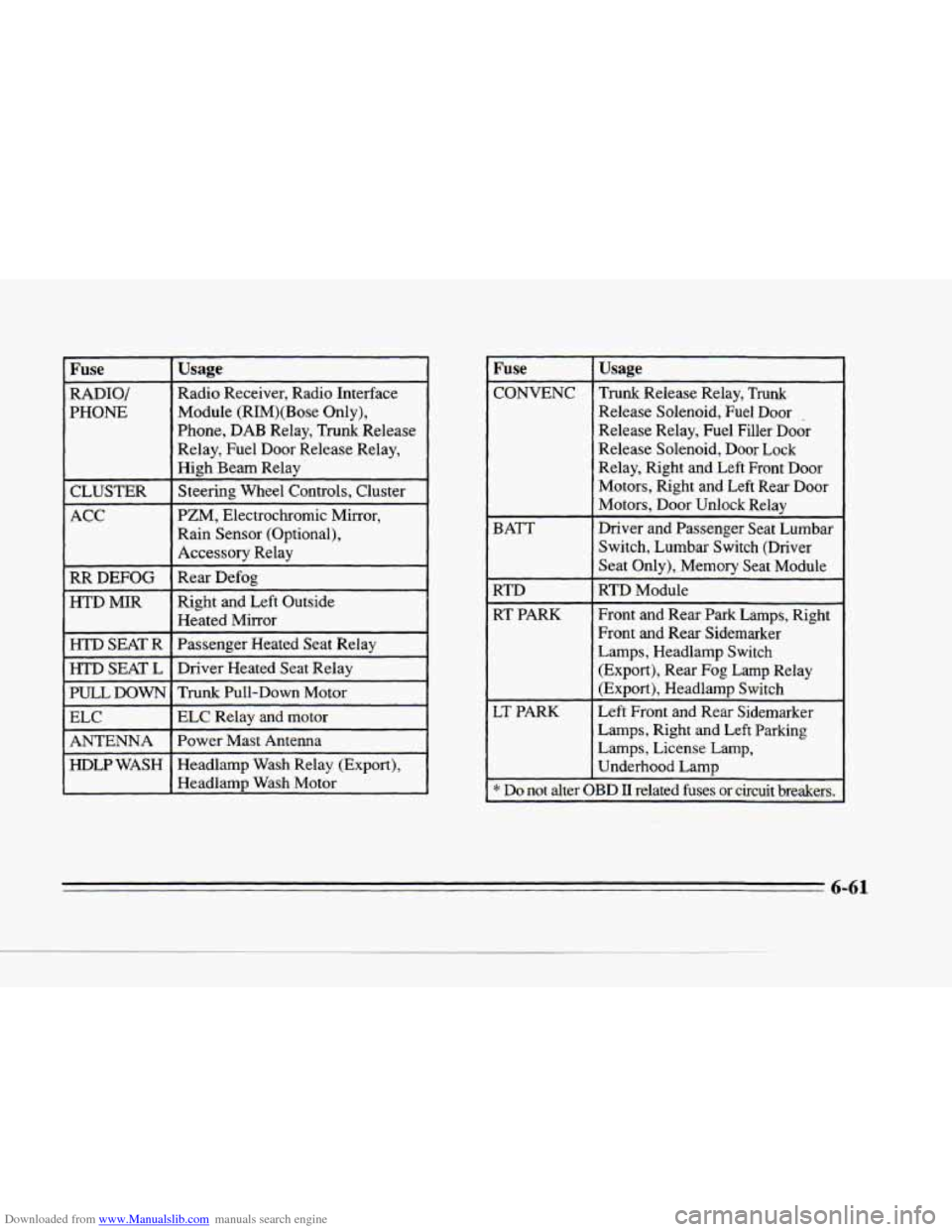

Fuse
Module (RIM)(Bose Only),
PHONE Radio
Receiver, Radio Interface
RADIO/
Usage
Phone, DAB Relay, Trunk Release
Relay, Fuel Door Release Relay,
High Beam Relay
CLUSTER Steering
Wheel Controls, Cluster
ACC PZM,
Electrochromic Mirror,
Rain Sensor (Optional),
Accessory Relay
RR DEFOG Rear
Defog
HTD
MIR Right and Left Outside
Heated Mirror
HTD SEAT R Passenger Heated Seat Relay
HTD
SEAT L Driver
Heated Seat Relay
PULL
DOWN
ELC Relay and motor ELC
Trunk Pull-Down Motor
Headlamp Wash Relay (Export),
HDLP WASH Power
Mast Antenna
ANTENNA
Headlamp Wash Motor
Fuse
CONVENC
BATT
RTD
RT PARK
LT PARK
Usage
Trunk Release Relay, Trunk
Release Solenoid, Fuel Door .
Release Relay, Fuel Filler Door
Release Solenoid, Door Lock
Relay, Right and Left Front Door
Motors, Right and Left Rear Door
Motors, Door Unlock Relay
Driver and Passenger Seat Lumbar
Switch, Lumbar Switch (Driver
Seat Only), Memory Seat Module
RTD Module
Front and Rear Park Lamps, Right
Front
and Rear Sidemarker
Lamps, Headlamp Switch
(Export), Rear Fog Lamp Relay
(Export), Headlamp Switch
Left Front
and Rear Sidemarker
Lamps, Right
and Left Parking
Lamps, License Lamp,
Underhood Lamp
* Do not alter OBD II related fuses or circuit breakers.
~~
