CADILLAC SEVILLE 1996 4.G Repair Manual

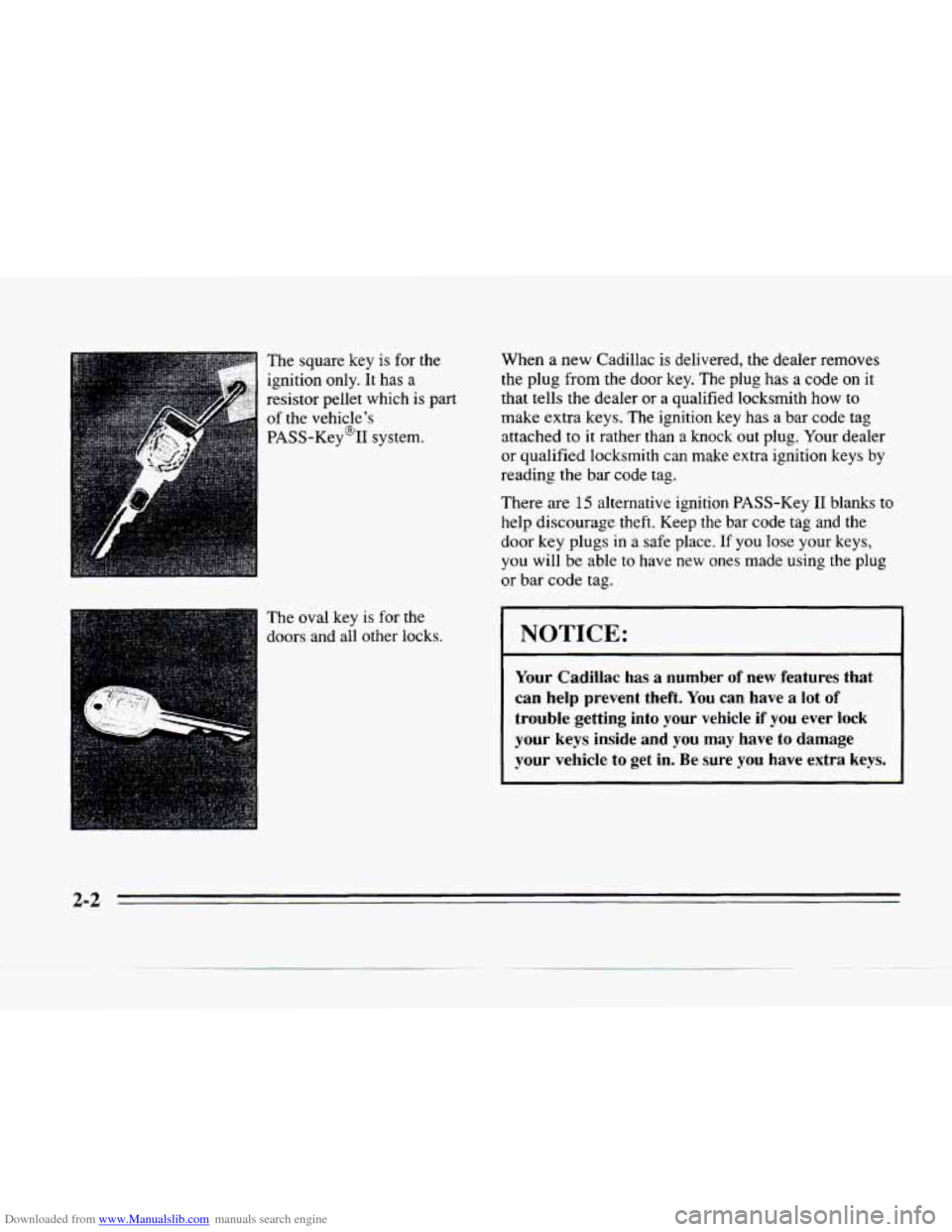

Downloaded from www.Manualslib.com manuals search engine The square key is for the
ignition only. It has a
resistor pellet which is part
of the vehicle's
PASS-Key@II system.
The oval key is
for the
doors and all other locks. When
a new
Cadillac is delivered, the dealer removes
the plug from the door key. The plug has
a code on it
that tells the dealer or a qualified locksmith how to
make extra keys. The ignition key has a bar code tag
attached to it rather than
a knock out plug. Your dealer
or qualified locksmith can make extra ignition keys by
reading the bar code tag.
There are
15 alternative ignition PASS-Key I1 blanks to
help discourage theft. Keep the bar code tag and the
door key plugs in a safe place. If you lose your keys,
you will be able
to have new ones made using the plug
or bar code tag.
NOTICE:
Your Cadillac has a number of new features that
can help prevent theft.
You can have a lot of
trouble getting into your vehicle if you ever lock
your keys inside and
you may have to damage
your vehicle to get in.
Be sure you have extra keys.

Downloaded from www.Manualslib.com manuals search engine m
3

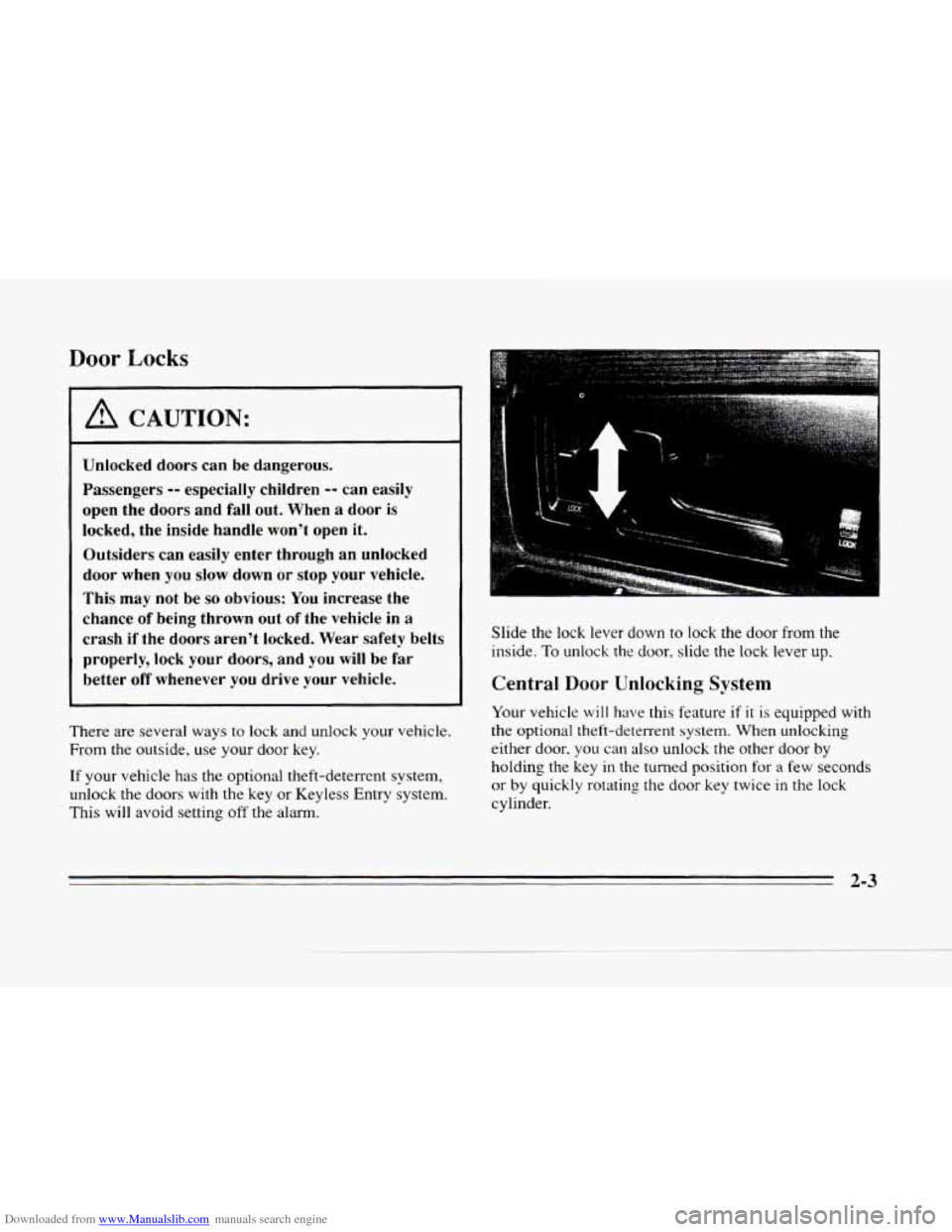

Door Locks
1 A CAUTION:
Unlocked doors can be dangerous.
Passengers
-- especially children -- can easily
open the doors and fall out. When
a door is
locked, the inside handle won't open it.
Outsiders can easily enter through an unlocked
door when you
slow down or stop your vehicle.
This may not be
so obvious: You increase the
chance of being thrown out of the vehicle in
a
crash if the doors aren't locked. Wear safety belts
properly, lock your doors, and you will be far
better
off whenever you drive your vehicle.
There are several ways to lock and unlock your vehicle.
From the outside, use your door key.
If your vehicle has the optional theft-deterrent system,
unlock the doors with the key or Keyless Entry system.
This
will avoid setting off'the alarm. Slide
the lock lever down
to lock the door from the
inside.
To unlock the door, slide the lock lever up.
Central Door Unlocking System
Your vehicle will have this feature if it is equipped with
the optional theft-deterrent system. When unlocking
either door.
you can also unlock the other door by
holding the key
in the turned position for a few seconds
or
by quickly rotating the door key twice in the lock
cylinder.
2-3

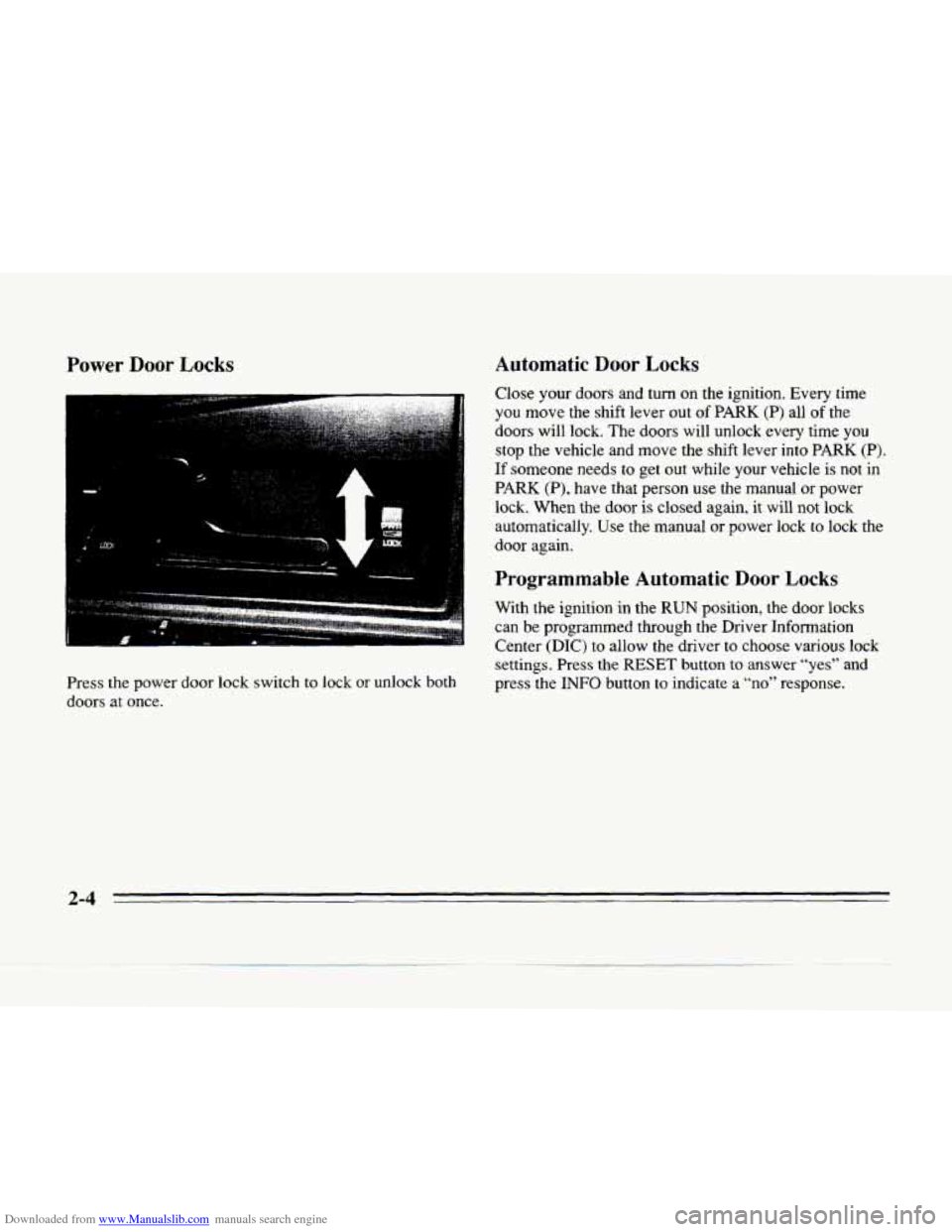

Downloaded from www.Manualslib.com manuals search engine Power Door Locks
-
Automatic Door Locks
Close your doors and turn on the ignition. Every time
you move the shift lever out of PARK (P) all of the
doors will lock. The doors will unlock every time you
stop the vehicle and move the shift lever into PARK
(P).
If someone needs to get out while your vehicle is not in
PARK (P), have that person use the manual or power
lock. When the door is closed again, it will not lock
automatically. Use the manual or power lock to lock the
door again.
I Programmable Automatic Door Locks
?. >?& ;'* .%, >,." '..2 " I . z7.,.e-,- rr ' ' . . + .*.',,:a@??%* .._:.*A< With the ignition in the RUN position, the door locks
can be programmed through the Driver Information Center
(DIC) to allow the driver to choose various lock 1 P -
Press the power door lock switch to lock or unlock both
doors
at once. settings.
Press the
RESET button to answer "yes" and
press the
INFO button to indicate a "no" response.
2-4

Downloaded from www.Manualslib.com manuals search engine c
c-

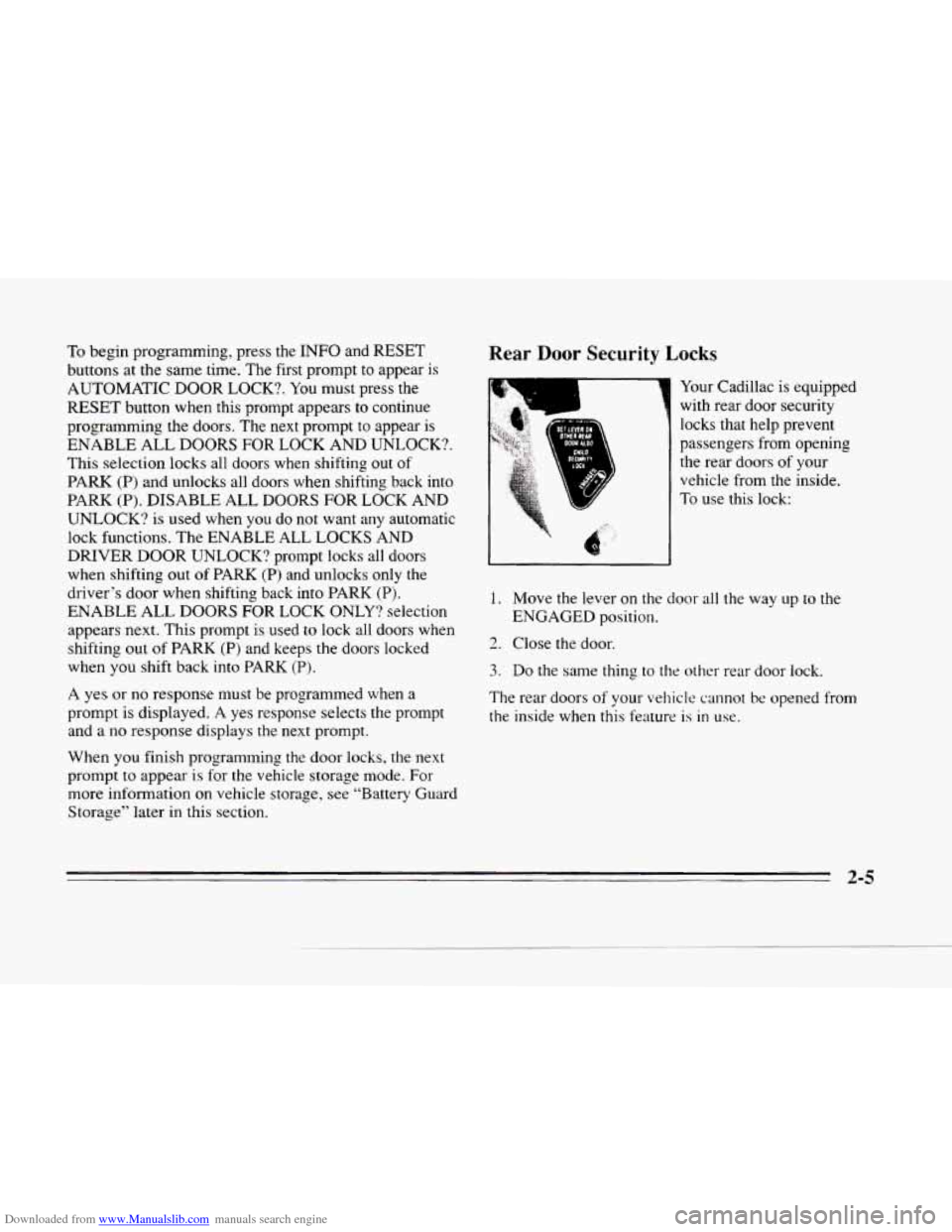

To begin programming, press the INFO and RESET
buttons at the same time. The first prompt
to appear is
AUTOMATIC DOOR LOCK?. You must press the
RESET button when this prompt appears to continue
programming the doors. The next prompt to appear is
ENABLE ALL DOORS FOR LOCK AND UNLOCK?.
This selection locks all doors when shifting
out of
PARK (P) and unlocks all doors when shifting back into
PARK
(P). DISABLE ALL DOORS FOR LOCK AND
UNLOCK?
is used when you do not want any automatic
lock functions. The ENABLE ALL
LOCKS AND
DRIVER DOOR UNLOCK? prompt locks all doors
when shifting out
of PARK (P) and unlocks only the
driver‘s door when shifting back into PARK (P).
ENABLE ALL DOORS FOR
LOCK ONLY? selection
appears next.
This prompt is used to lock all doors when
shifting out
of PARK (P) and keeps the doors locked
when you shift back into
PARK (P).
A yes or no response must be programmed when a
prompt is displayed. A yes response selects the prompt
and a no response displays the next prompt.
When you finish programming the door
locks, the next
prompt
to appear is for the vehicle storage mode. For
more information on vehicle storage, see “Battery Guard
Storage” later in this section.
Rear Door Security Locks
b
Your Cadillac is equipped
with rear door security
locks that help prevent
passengers from opening
the rear doors
of your
vehicle from the inside.
To
use this lock:
1. Move the lever on the door all the way up to the
ENGAGED position.
2. Close the door.
3. Do the same thing to the other rear door lock.
The rear doors
of your vehicle cannot be opened from
the inside when this feature
is in use.
2-5

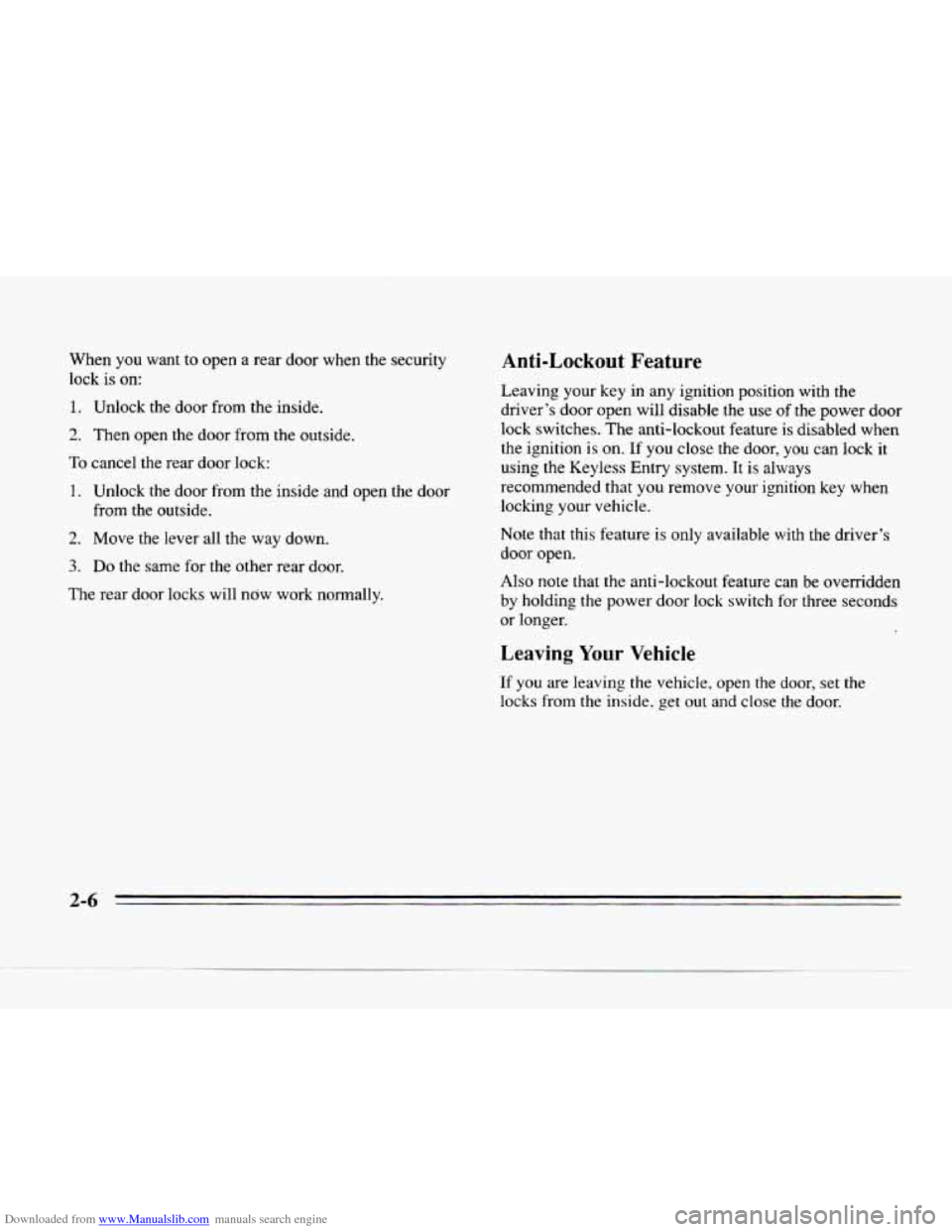

Downloaded from www.Manualslib.com manuals search engine When you want to open a rear door when the security
lock
is on:
1. Unlock the door from the inside.
2. Then open the door from the outside.
To cancel the rear door lock:
1. Unlock the door from the inside and open the door
from the outside.
2. Move the lever all the way down.
3. Do the same for the other rear door.
The rear door locks will now work normally.
Anti-Lockout Feature
Leaving your key in any ignition position with the
driver’s door open will disable the use
of the power door
lock switches. The anti-lockout feature is disabled when
the ignition
is on. If you close the door, you can lock it
using the Keyless Entry system. It is always
recommended that you remove your ignition key when
locking your vehicle.
Note that this feature is only available with
the driver’s
door open.
Also note that the anti-lockout feature can be overridden
by holding the power door lock switch for three seconds
or longer.
Leaving Your Vehicle
If you are leaving the vehicle, open the door, set the
locks from the inside. get out and dose the door.

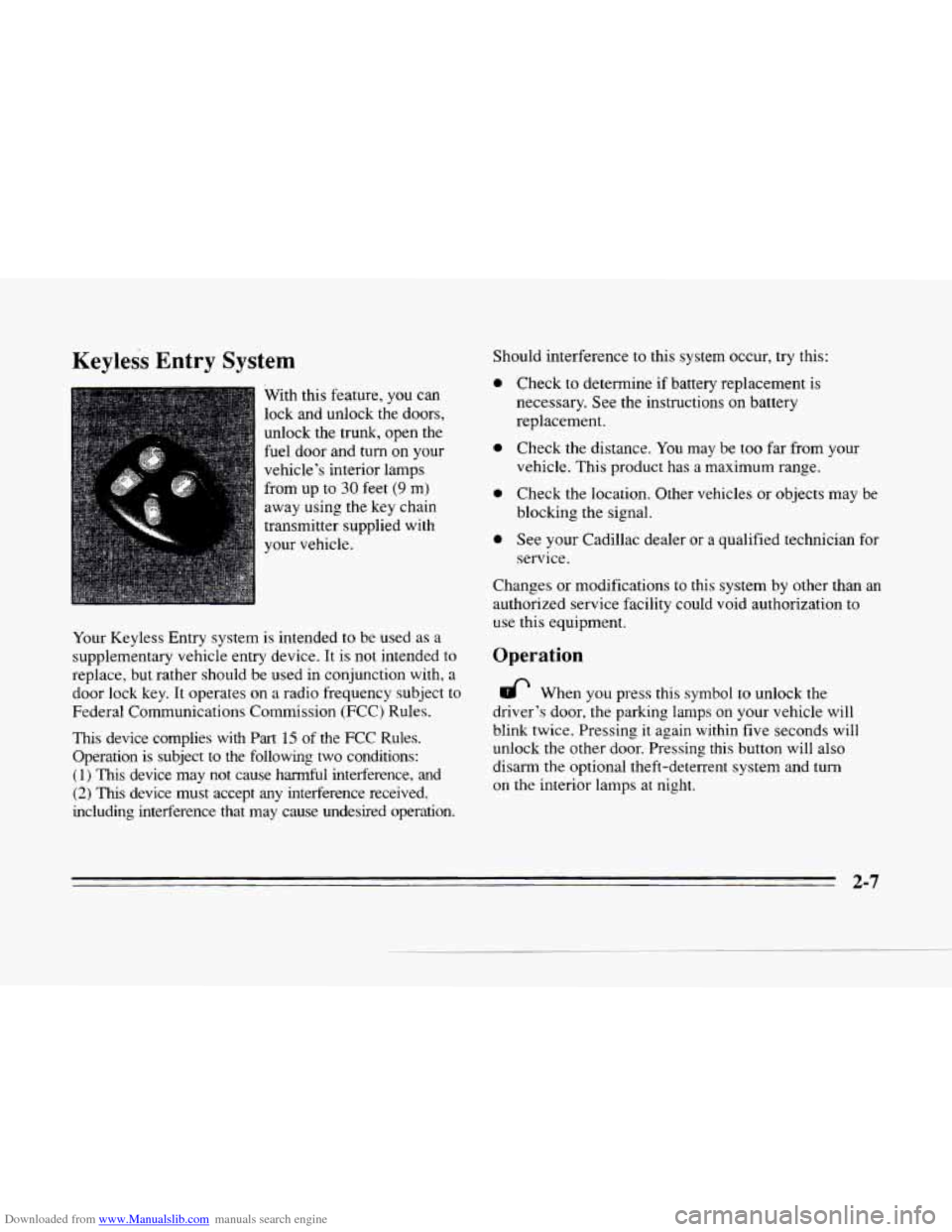

Downloaded from www.Manualslib.com manuals search engine Keyless Entry System
With this feature, you can
lock and unlock the doors,
unlock the trunk, open the
fuel door and turn on
your
vehicle’s interior lamps
from up to
30 feet (9 m)
away using the key chain
transmitter supplied with
your vehicle.
Your Keyless Entry system is intended
to be used as a
supplementary vehicle entry device. It is not intended to
replace, but rather should be used in conjunction with, a
door lock key. It operates on
a radio frequency subject to
Federal Communications Commission (FCC) Rules.
This device complies with
Part 15 of the FCC Rules.
Operation is subject
to the following two conditions:
( 1 ) This device may not cause harmful interference, and
(2) Tlus device must accept any interference received,
including interference that
may cause undesired operation. Should
interference
to this system occur, try this:
0
0
0
0
Check to determine if battery replacement is
necessary. See the instructions on battery
replacement.
Check the distance.
You may be too far from your
vehicle. This product has
a maximum range.
Check the location. Other vehicles or objects may be
blocking the signal.
See your Cadillac dealer
or a qualified technician for
service.
Changes
or modifications to this system by other than an
authorized service facility could void authorization
to
use this equipment.
Operation
65 When you press this symbol
driver’s door, the parking lamps on
to unlock the
your vehicle will
blink twice. Pressing it again within five seconds will
unlock the other door. Pressing
this button will also
disarm
the optional theft-deterrent system and turn
on the interior lamps at night.

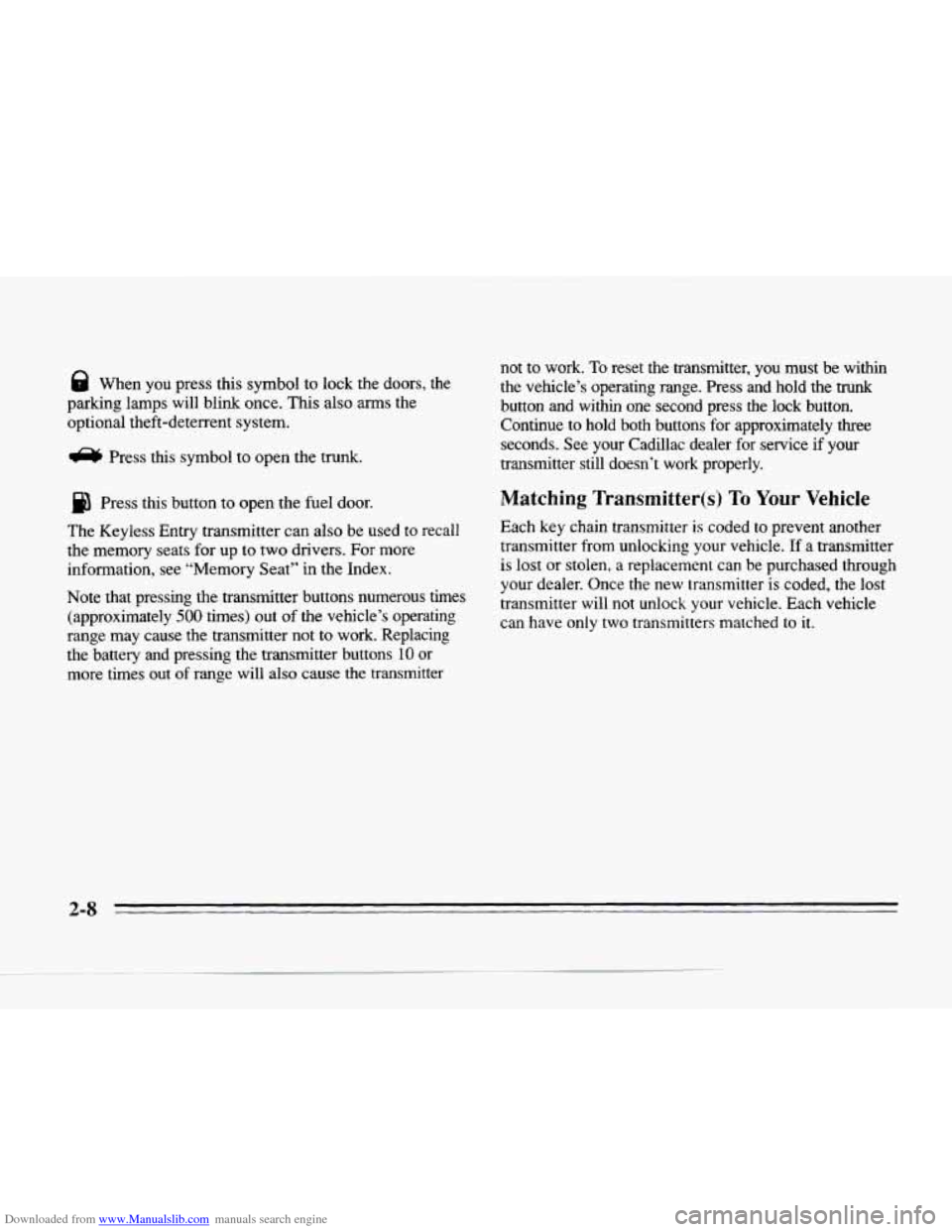

Downloaded from www.Manualslib.com manuals search engine 8 When you press this symbol to lock the doors, the
parking lamps will blink once. This also
arms the
optional theft-deterrent system.
a Press this symbol to open the trunk.
Press this button to
open the fuel door.
The Keyless Entry transmitter can also be used to recall
the memory seats
for up to two drivers. For more
information, see “Memory Seat” in the Index.
Note that pressing the transmitter buttons numerous times
(approximately
500 times) out of the vehicle’s operating
range may cause the transmitter not to
work. Replacing
the battery and pressing the transmitter buttons
10 or
more times out
of range will also cause the transmitter not to work.
To reset the transmitter, you must be within
the vehicle’s operating range.
Press and hold the trunk
button and within one second press the lock button.
Continue to hold both buttons
for approximately three
seconds. See your Cadillac dealer for service if your
transmitter still doesn’t work properly.
Matching Transmitter(s) To Your Vehicle
Each key chain transmitter is coded to prevent another
transmitter from unlocking your vehicle.
If a transmitter
is lost
or stolen, a replacement can be purchased through
your dealer. Once the new transmitter is coded, the
lost
transmitter will not unlock your vehicle. Each vehicle
can have only two transmitters matched to it.
2-8

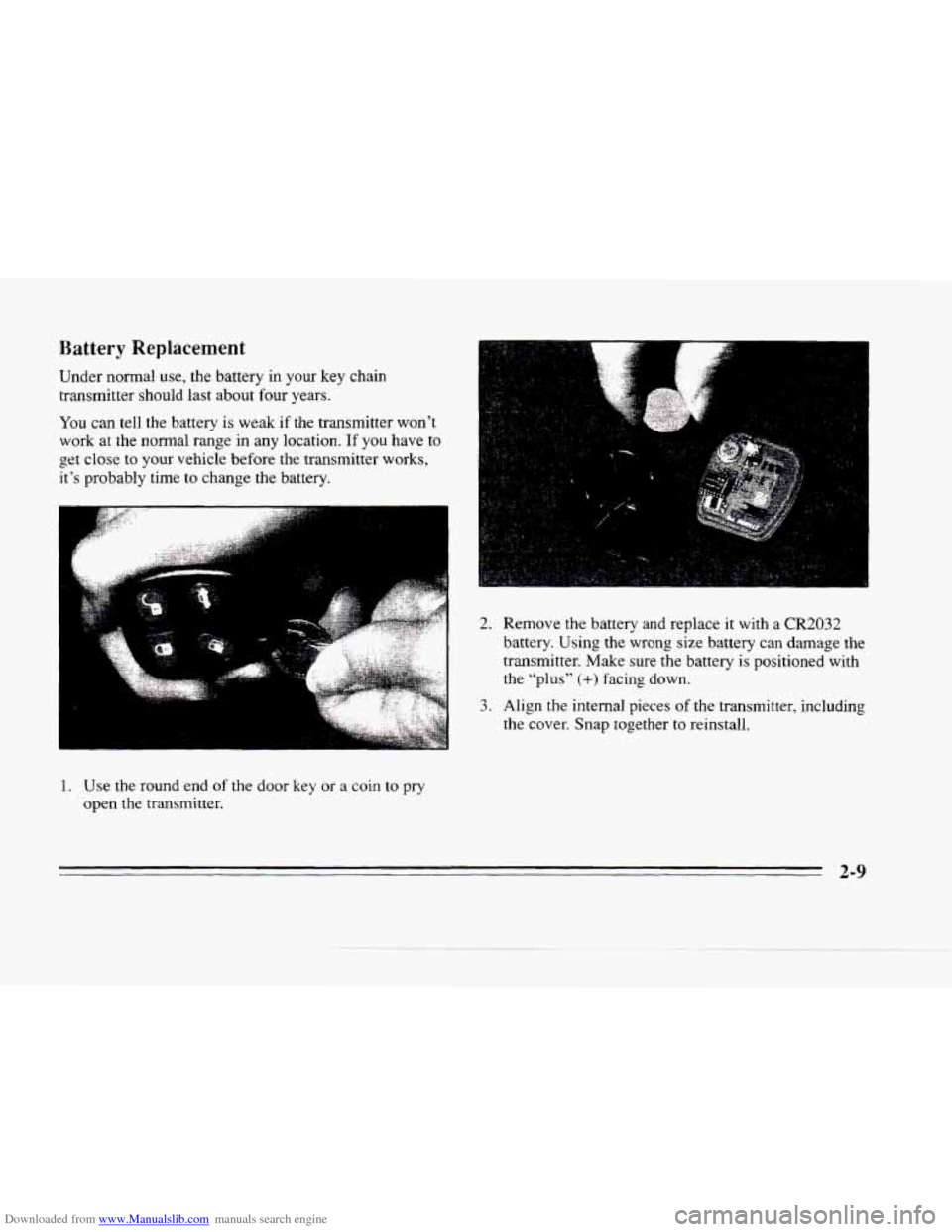

Downloaded from www.Manualslib.com manuals search engine Battery Replacement
Under normal use, the battery in your key chain
transmitter should last about
four years.
You can tell the battery is weak if the transmitter won’t
work
at the normal range in any location. If you have to
get
close to your vehicle before the transmitter works,
it’s probably time
to change the battery.
-
1. Use the round end of the door key or a coin to pry
open the transmitter.
2. Remove the battery and replace it with a CR2032
battery. Using the wrong size battery can damage the
transmitter. Make sure the battery is positioned with
the “plus”
(+) facing down.
3. Align the internal pieces of the transmitter, including
the cover. Snap together
to reinstall.
2-9

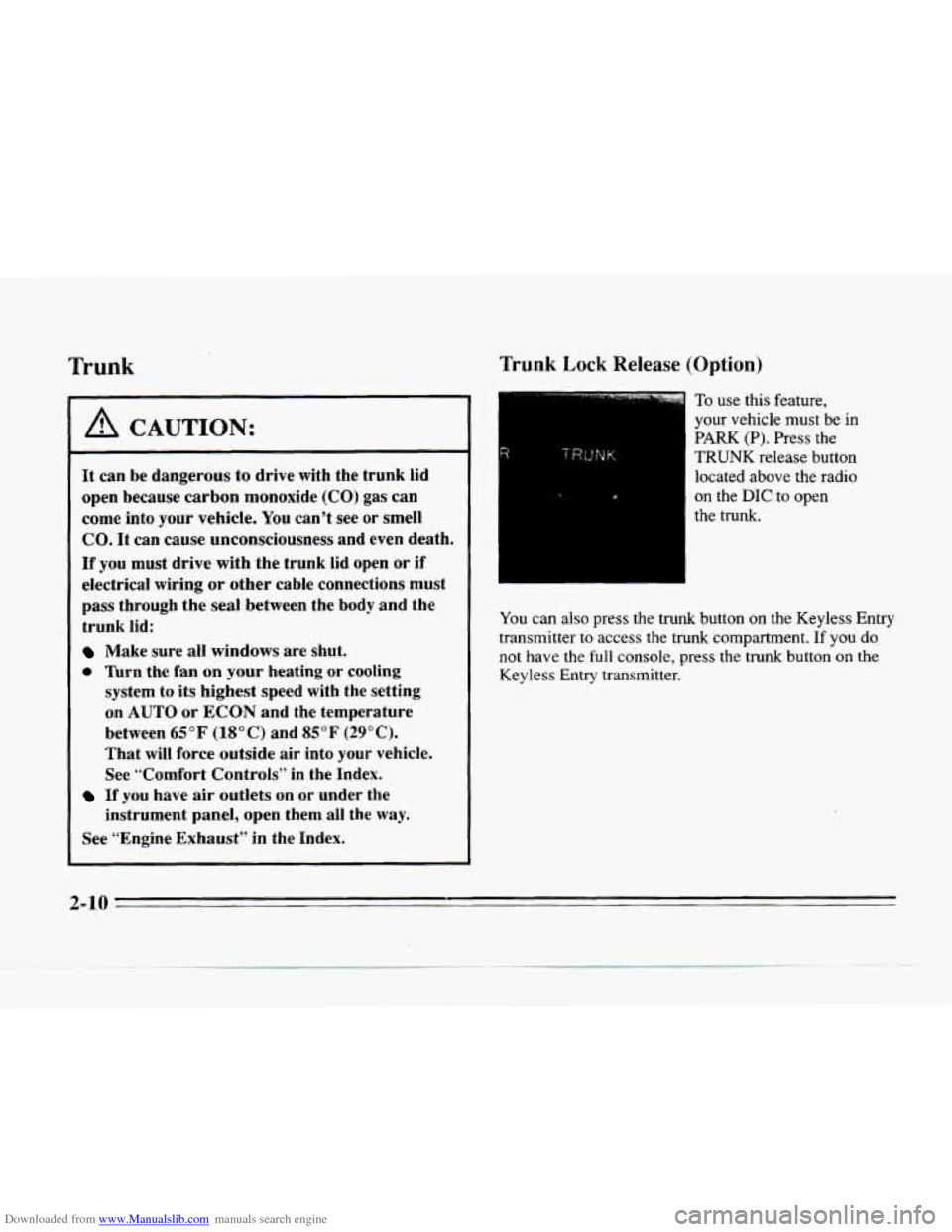

Downloaded from www.Manualslib.com manuals search engine Frunk
A CAUTION:
It can be dangerous to drive with the trunk lid
open because carbon monoxide
(CO) gas can
come into your vehicle.
You can’t see or smell
CO. It can cause unconsciousness and even death.
If you must drive with the trunk lid open or if
electrical wiring
or other cable connections must
pass through the seal between the body and the
trunk lid:
Make sure all windows are shut.
e lhrn the fan on your heating or cooling
system to its highest speed with the setting
on
AUTO or ECON and the temperature
between
65°F (18OC) and 85°F (29°C).
That will force outside air into your vehicle.
See “Comfort Controls” in the Index.
instrument panel, open them all the
way.
If you have air outlets on or under the
See “Engine Exhaust” in the Index.
Trunk Lock Release (Option)
TRUNK
To use this feature,
your vehicle must
be in
PARK (P). Press the
TRUNK release button
located above the radio
on the
DIC to open
the trunk. P
You can also press the trunk button on the Keyless Entry
transmitter to access the trunk compartment.
If you do
not have the full console, press the trunk button on the
Keyless Entry transmitter.
2-10

Downloaded from www.Manualslib.com manuals search engine N

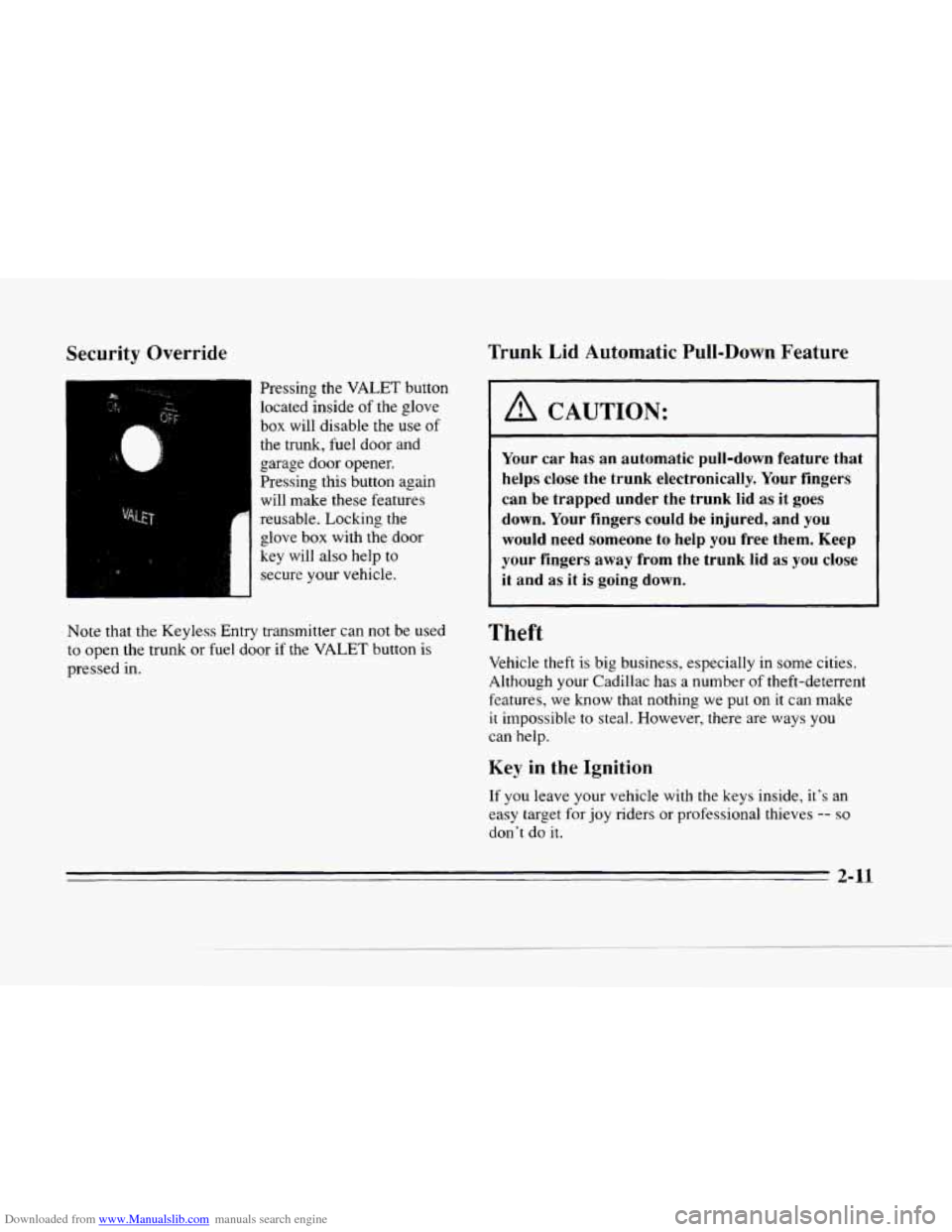

Security Override
1-1 Pressing the VALET button
I locatedinside of the glove
box will disable the use of
the trunk, fuel door and
garage door opener.
Pressing this button again
will make these features
reusable. Locking the
glove box with the door
key will also help to
secure your vehicle.
Note that the Keyless Entry transmitter can not be used
to open the trunk or fuel door if the VALET button is
pressed in.
Trunk Lid Automatic Pull-Down Feature
A CAUTION:
Your car has an automatic pull-down feature that
helps close the trunk electronically. Your fingers
can be trapped under the trunk lid
as it goes
down. Your fingers could be injured, and
you
would need someone to help you free them. Keep
your fingers
away from the trunk lid as you close
it and as it is going down.
Theft
Vehicle theft is big business, especially in some cities.
Although your Cadillac has
a number of theft-deterrent
features, we
know that nothing we put on it can make
it impossible to steal. However, there are ways
you
can help.
Key in the Ignition
If you leave your vehicle with the keys inside, it's an
easy target for joy riders or professional thieves
-- so
don't do it.
2-11
