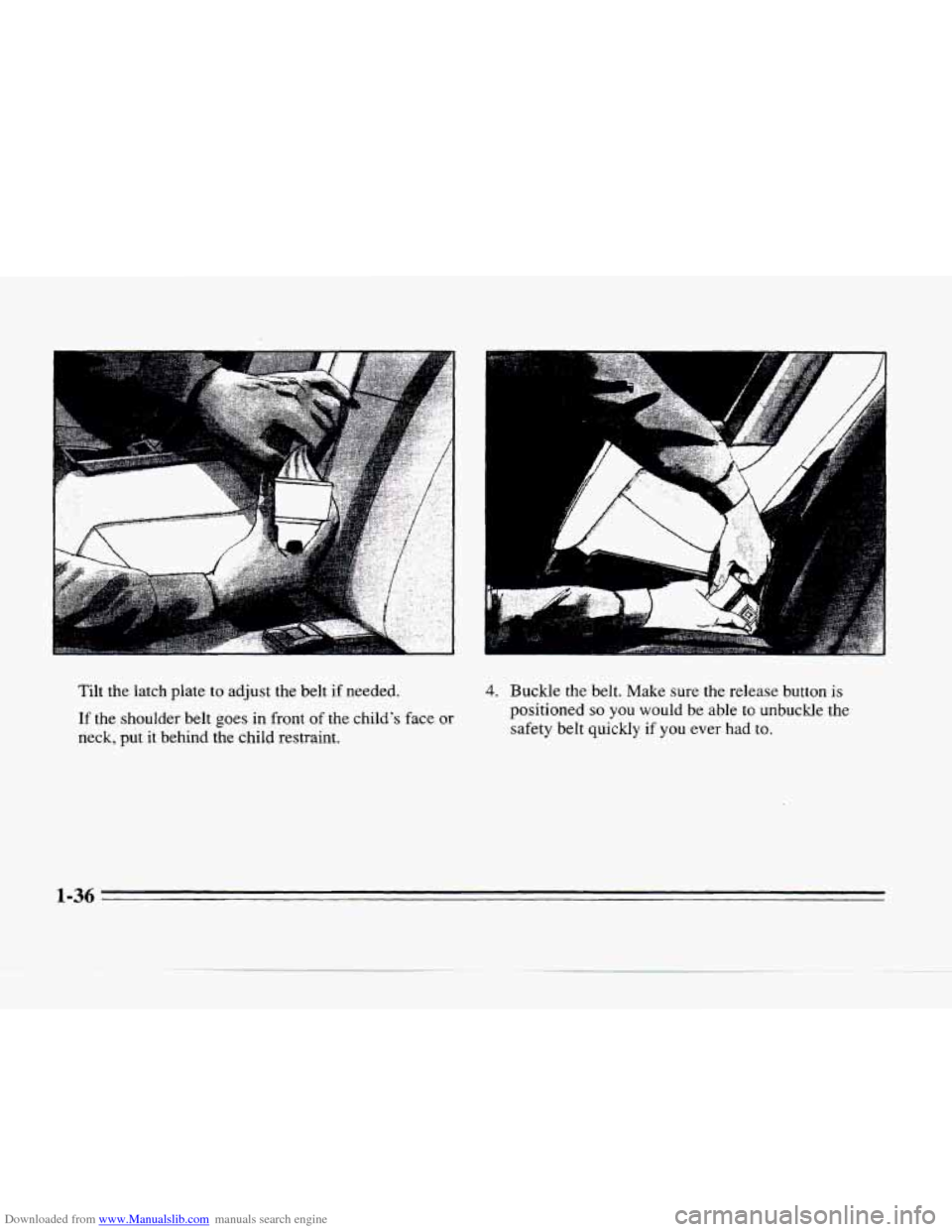

Downloaded from www.Manualslib.com manuals search engine Tilt the latch plate to adjust the belt if needed.
If the shoulder belt
goes in front of the child's face or
neck, put
it behind the child restraint.
4. Buckle the belt. Make sure the release button is
positioned so you would be able to unbuckle the
safety belt
quickly if you ever had to.
1-36

Downloaded from www.Manualslib.com manuals search engine c

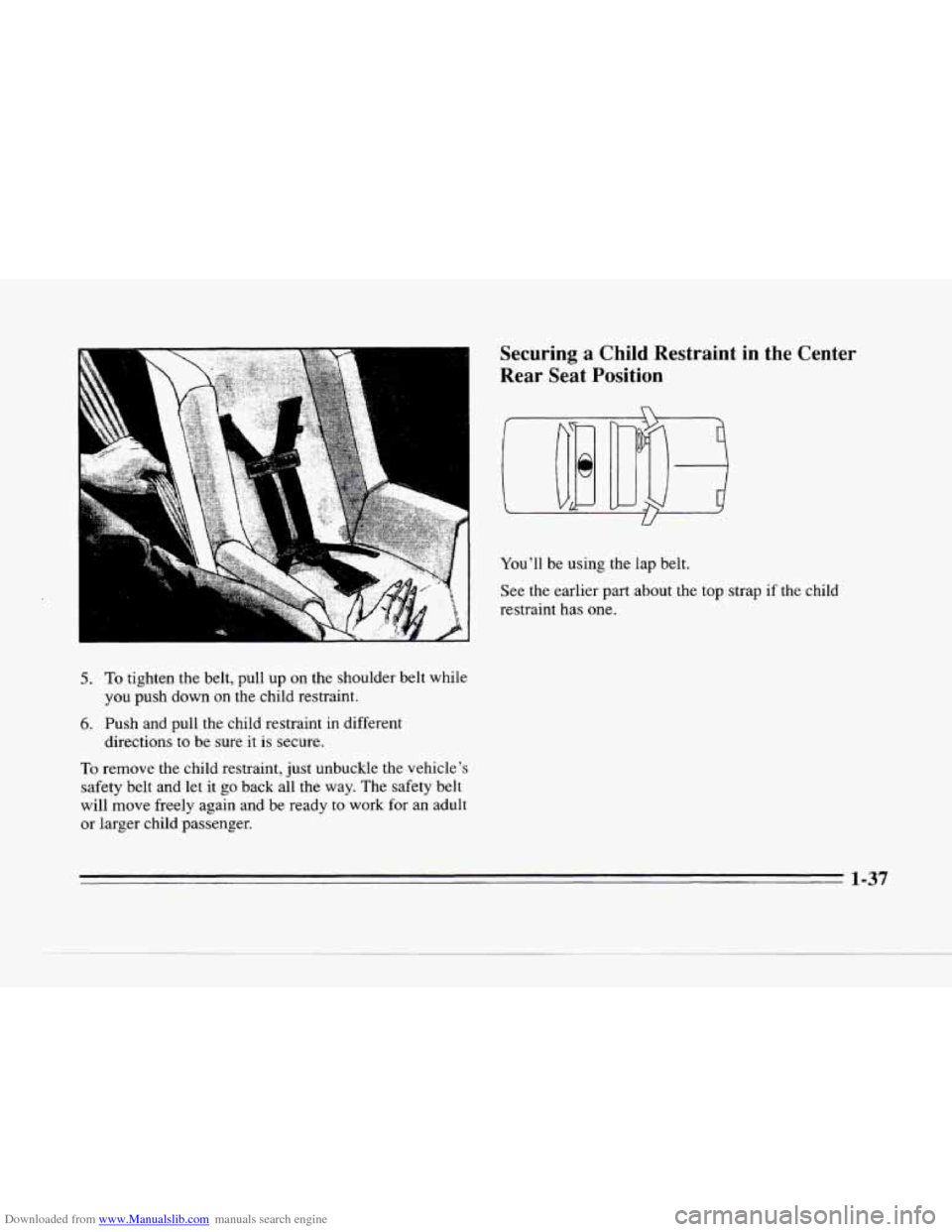

Securing a Child Restraint in the Center
Rear Seat Position
5. To tighten the belt, pull up on the shoulder belt while
you push down on the child restraint.
6. Push and pull the child restraint in different
directions to be sure it
is secure.
To remove the child restraint, just unbuckle the vehicle's
safety belt and let
it go back all the way. The safety belt
will move freely again and
be ready to work for an adult
or larger child passenger.
You'll be using the lap belt.
See the earlier part about the top strap if the child
restraint has one.
1-37

Downloaded from www.Manualslib.com manuals search engine 1.
2.
3.
4.
Make the belt as long as possible by tilting the latch
plate and pulling it along the belt.
Put the restraint on the seat. Follow the instructions
for the child restraint.
Secure the child in the child restraint as the
instructions say.
Run the vehicle's safety belt through or around the
restraint. The child restraint instructions will
show
you how.
5.
6.
7.
Buckle the belt. Make sure the release button is
positioned
so you would be able to unbuckle the
safety belt quickly if
you ever had to.
To tighten the belt, pull its free end while you push
down
on the child restraint.
Push and pull the child restraint
in different
directions to be sure
it is secure. If it isn't, secure the
restraint in a different place in the vehicle and
contact the child restraint maker for their advice
about how
to attach the child restraint properly.
1-38

Downloaded from www.Manualslib.com manuals search engine c

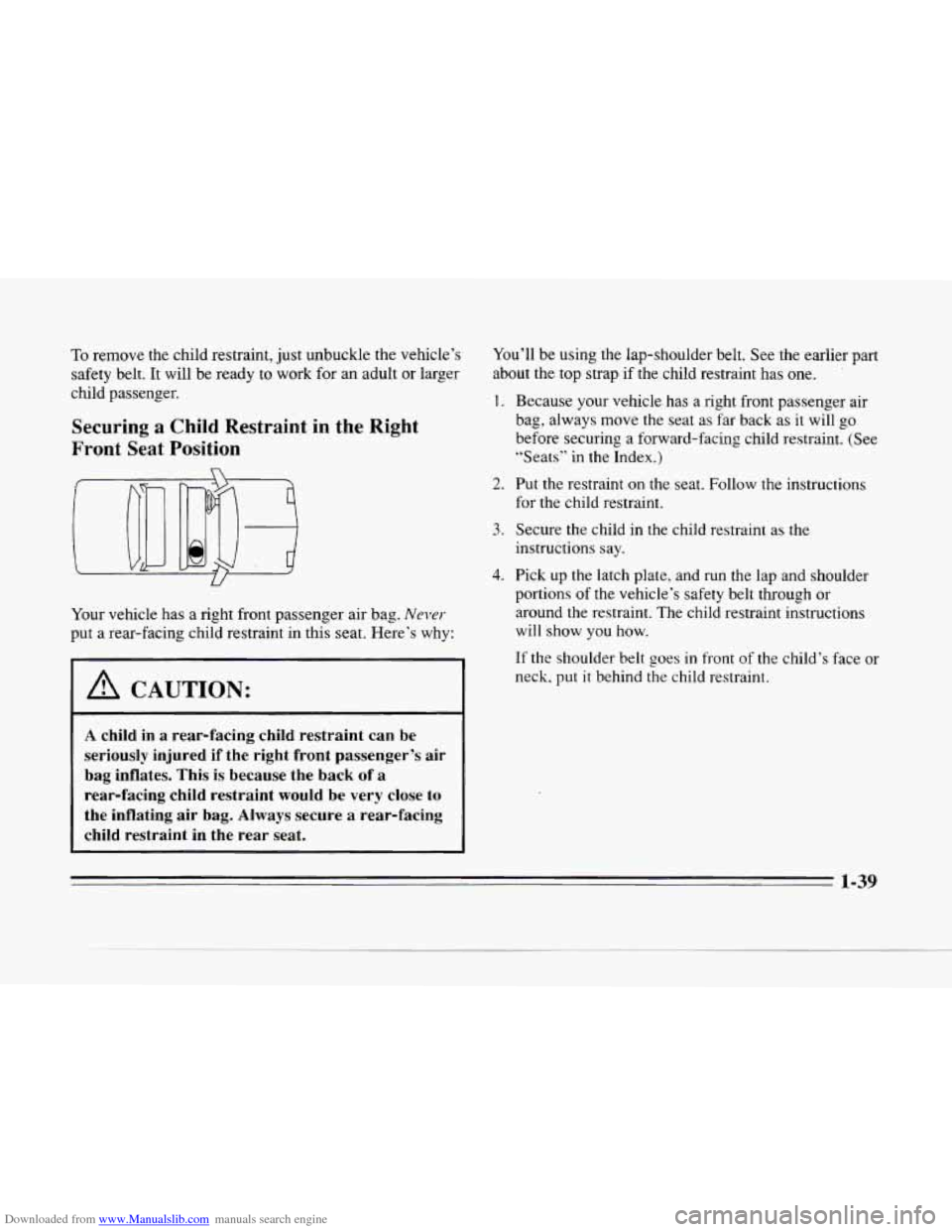

To remove the child restraint, just unbuckle the vehicle’s
safety belt.
It will be ready to work for an adult or larger
child passenger.
Securing a Child Restraint in the Right
Front Seat Position
Y
Your vehicle has a right front passenger air bag. Never-
put a rear-facing child restraint in this seat. Here’s why:
A CAUTION:
A child in a rear-facing child restraint can be
seriously injured
if the right front passenger’s air
bag inflates. This is because the back
of a
rear-facing child restraint would be very close to
the inflating air bag. Always secure a rear-facing
child restraint
in the rear seat.
You’ll be using the lap-shoulder belt. See the earlier part
about the top strap if the child restraint has
one.
1.
2.
3.
4.
Because your vehicle has a right front passenger air
bag, always move the seat
as far back as it will go
before securing a forward-facing child restraint. (See
“Seats’’ in the Index.)
Put the restraint
on the seat. Follow the instructions
for the child restraint.
Secure the child in the child restraint
as the
instructions say.
Pick up
the latch plate, and run the lap and shoulder
portions
of the vehicle‘s safety belt through or
around the restraint. The child restraint instructions
will show you how.
If the shoulder belt goes
in front of the child‘s face or
neck, put
it behind the child restraint.
1-39

Downloaded from www.Manualslib.com manuals search engine A

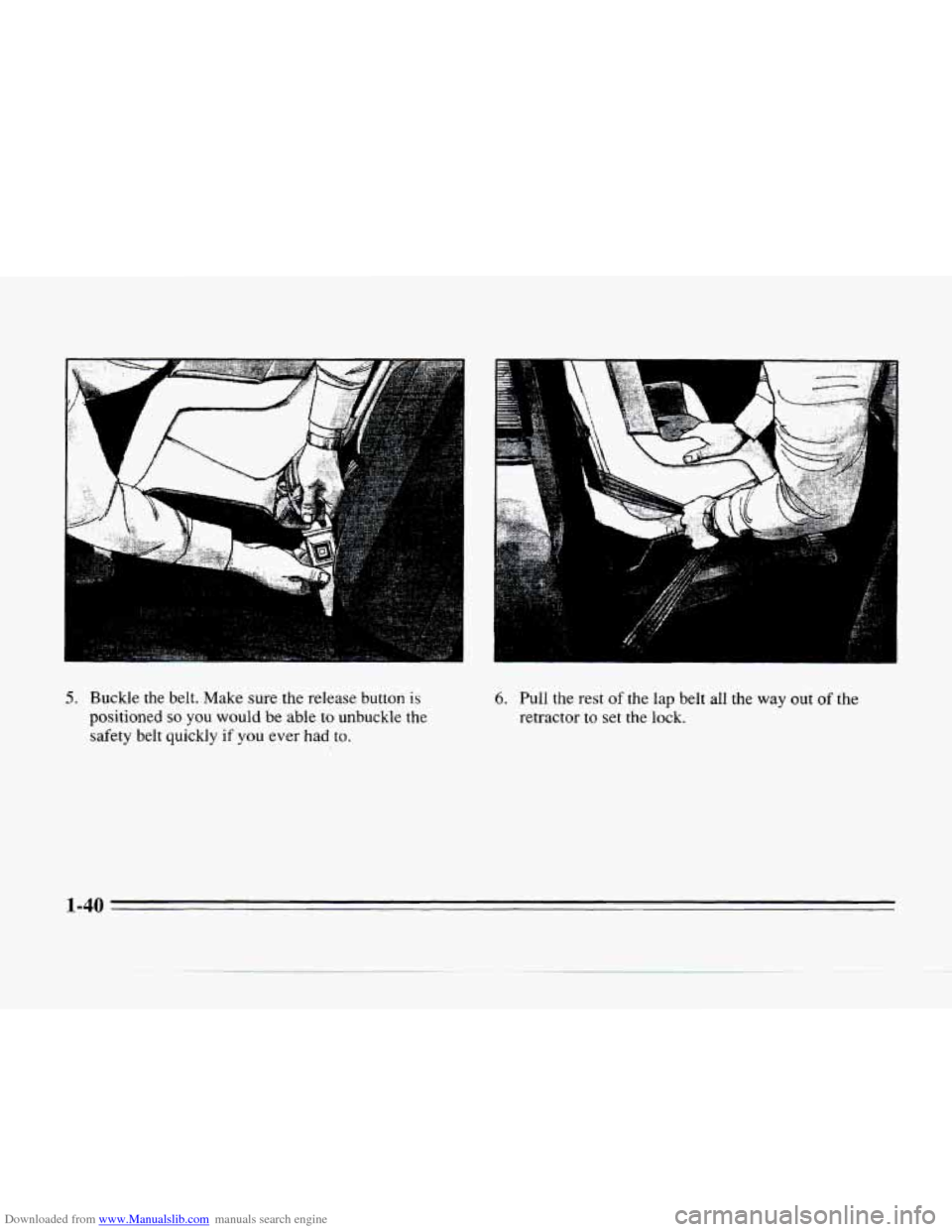

5. Buckle the belt. Make sure the release button is
positioned so you would be abie to unbuckle the
safety belt quickly
if you ever had to.
6. Pull the rest of the lap belt all the way out of the
retractor to set the lock.
1-40

Downloaded from www.Manualslib.com manuals search engine k:.

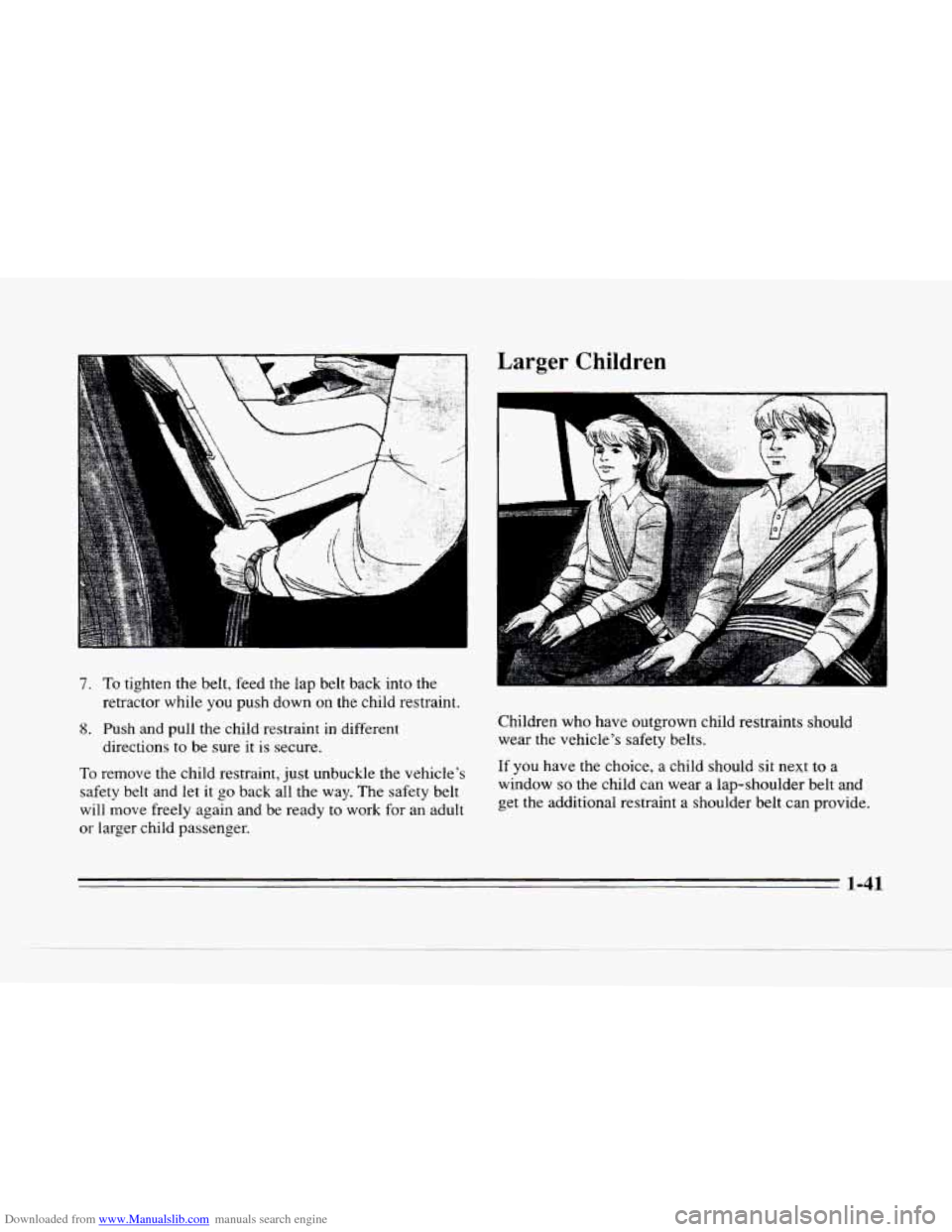

7. To tighten the belt, feed the lap belt back into the
retractor while
you push down on the child restraint.
8. Push and pull the child restraint in different
directions
to be sure it is secure.
To remove the child restraint, just unbuckle the vehicle’s
safety belt and
let it go back all the way. The safety belt
will move freely again and be ready
to work for an adult
or larger child passenger.
Larger Children
1-
Children who have outgrown child restraints should
wear the vehicle’s safety belts.
If you have the choice, a child should sit next to a
window so the child can wear a lap-shoulder belt and
get the additional restraint a shoulder belt can provide.
1-41

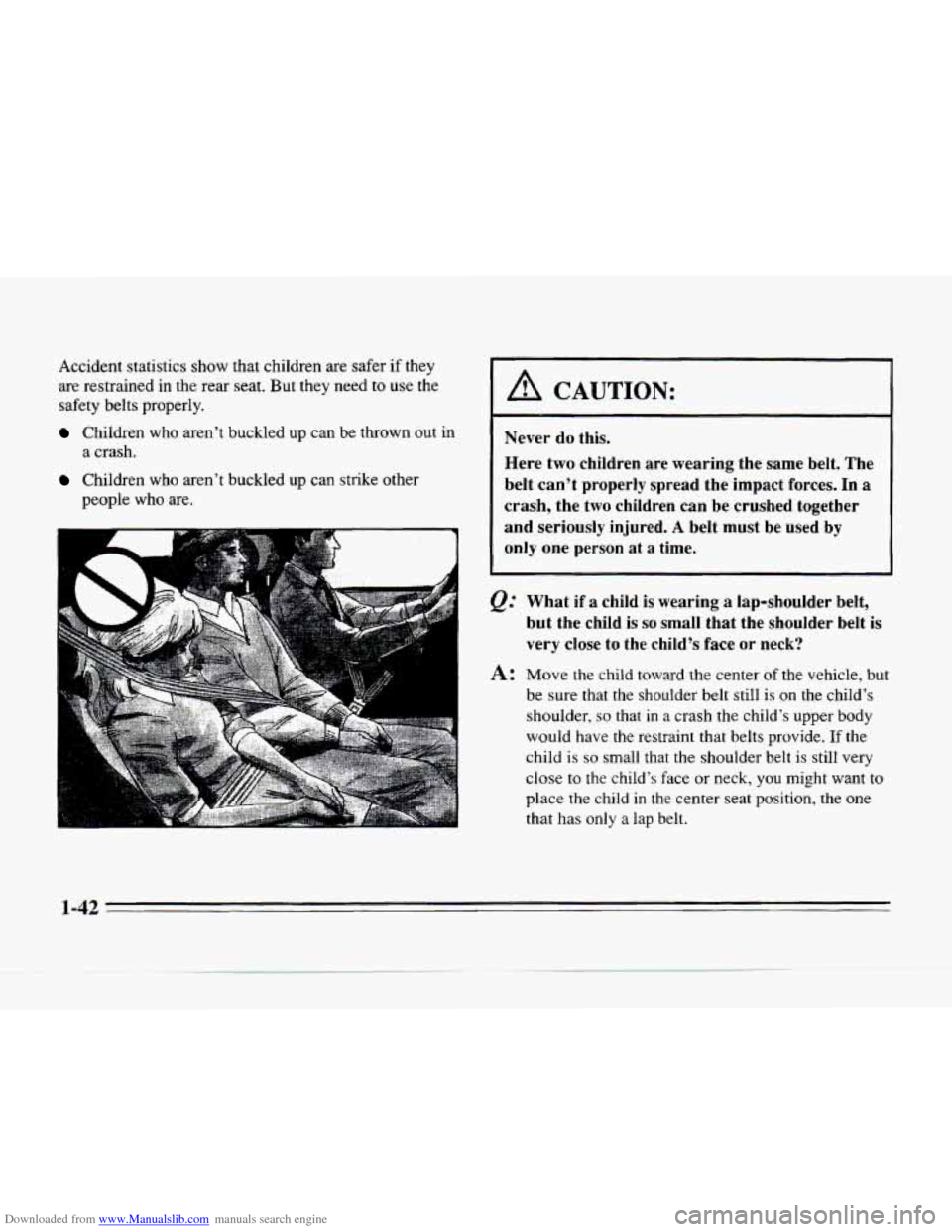

Downloaded from www.Manualslib.com manuals search engine Accident statistics show that children are safer if they
are restrained
in the rear seat. But they need to use the
safety belts properly.
Children who aren’t buckled up can be thrown out in
a crash.
Children who aren’t buckled up can strike other
people who are.
A
4
A CAUTION:
Never do this.
Here two children are wearing the same belt. The
belt can’t properly spread the impact forces. In
a
crash, the two children can be crushed together
and seriously injured.
A belt must be used by
only one person at
a time.
Q.’
A:
What if a child is wearing a lap-shoulder belt,
but the child
is so small that the shoulder belt is
very close to the child’s face or neck?
Move the child toward the center
of the vehicle, but
be sure that the shoulder belt still is
on the child’s
shoulder,
so that in a crash the child’s upper body
would have the restraint that belts provide.
If the
child is
so small that the shoulder belt is still very
close to the child’s face or neck, you might want to
place the child in the center seat position, the one
that has only
a lap belt.
1-42

Downloaded from www.Manualslib.com manuals search engine e

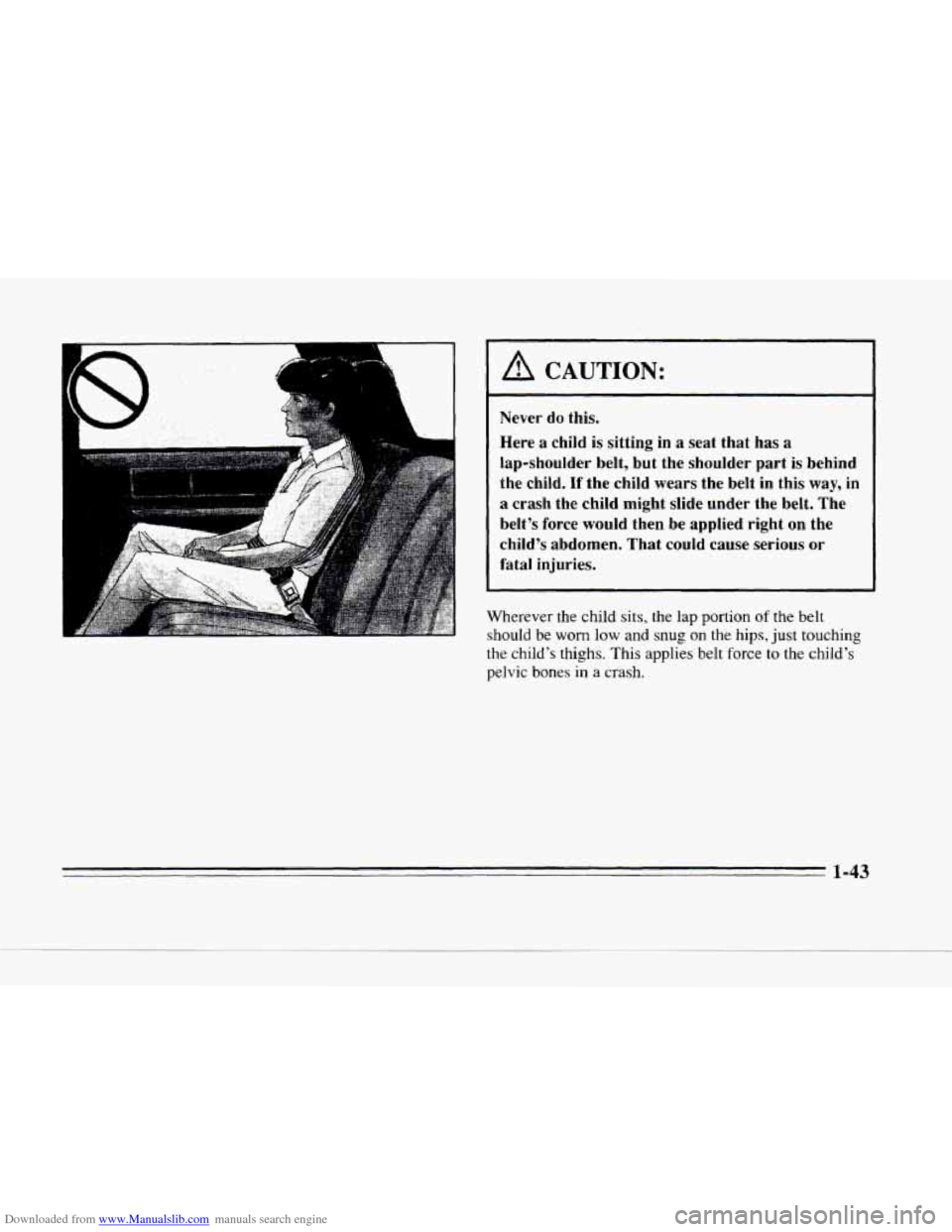

A CAUTION:
Never do this.
Here
a child is sitting in a seat that has a
lap-shoulder belt, but the shoulder part is behind
the child.
If the child wears the belt in this way, in
a crash the child might slide under the belt. The
belt's force would then be applied right on the
child's abdomen. That could cause serious or
fatal injuries.
Wherever the child sits, the lap portion
of the belt
should be worn low and snug on the hips, just touching
the child's thighs. This applies belt force to the child's
pelvic
bones in a crash.
1-43

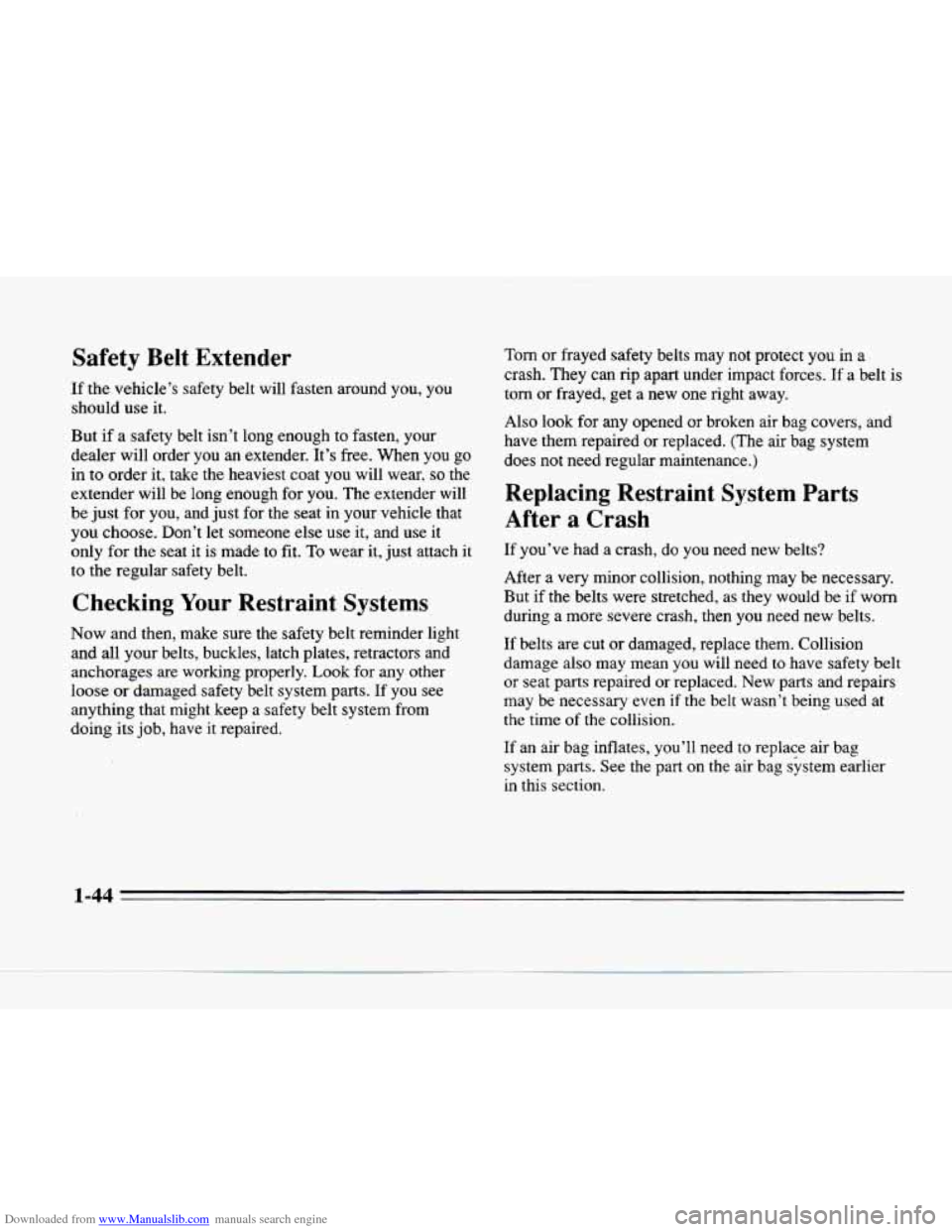

Downloaded from www.Manualslib.com manuals search engine Safety Belt Extender
If the vehicle’s safety belt will fasten around you, you
should use it.
But if a safety belt isn’t long enough to fasten, your
dealer will order
you an extender. It’s free. When you go
in to order it, take the heaviest coat you will wear, so the
extender will be long enough for you. The extender will
be just for you, and
just for the seat in your vehicle that
you choose. Don’t let someone
else use it, and use it
only for the seat it is made to fit. To wear it, just attach it
to the regular safety belt.
Checking Your Restraint Systems
Now and then, make sure the safety belt reminder light
and
all your belts, buckles, latch plates, retractors and
anchorages are working properly. Look for any other
loose
or damaged safety belt system parts. If you see
anything that might keep a safety belt system from
doing its job, have
it repaired.
Torn or frayed safety belts may not protect you in a
crash. They can rip apart under impact forces. If a belt
is
tom or frayed, get a new one right away.
Also look for any opened
or broken air bag covers, and
have them repaired or replaced. (The air bag system
does not need regular maintenance.)
Replacing Restraint System Parts
After
a Crash
If you’ve had a crash, do you need new belts?
After a very minor collision, nothing may be necessary. But if the belts were stretched, as they would be if
worn
during a more severe crash, then you need new belts.
If belts are cut or damaged, replace them. Collision
damage also may mean
you will need to have safety belt
or seat parts repaired or replaced. New parts and repairs
may be necessary even
if the belt wasn’t being used at
the time of the collision.
If an air bag inflates, you’ll need
to replace air bag
system parts. See the
part on the air bag system earlier
in this section.
1-44

Downloaded from www.Manualslib.com manuals search engine ,-L- -*-,

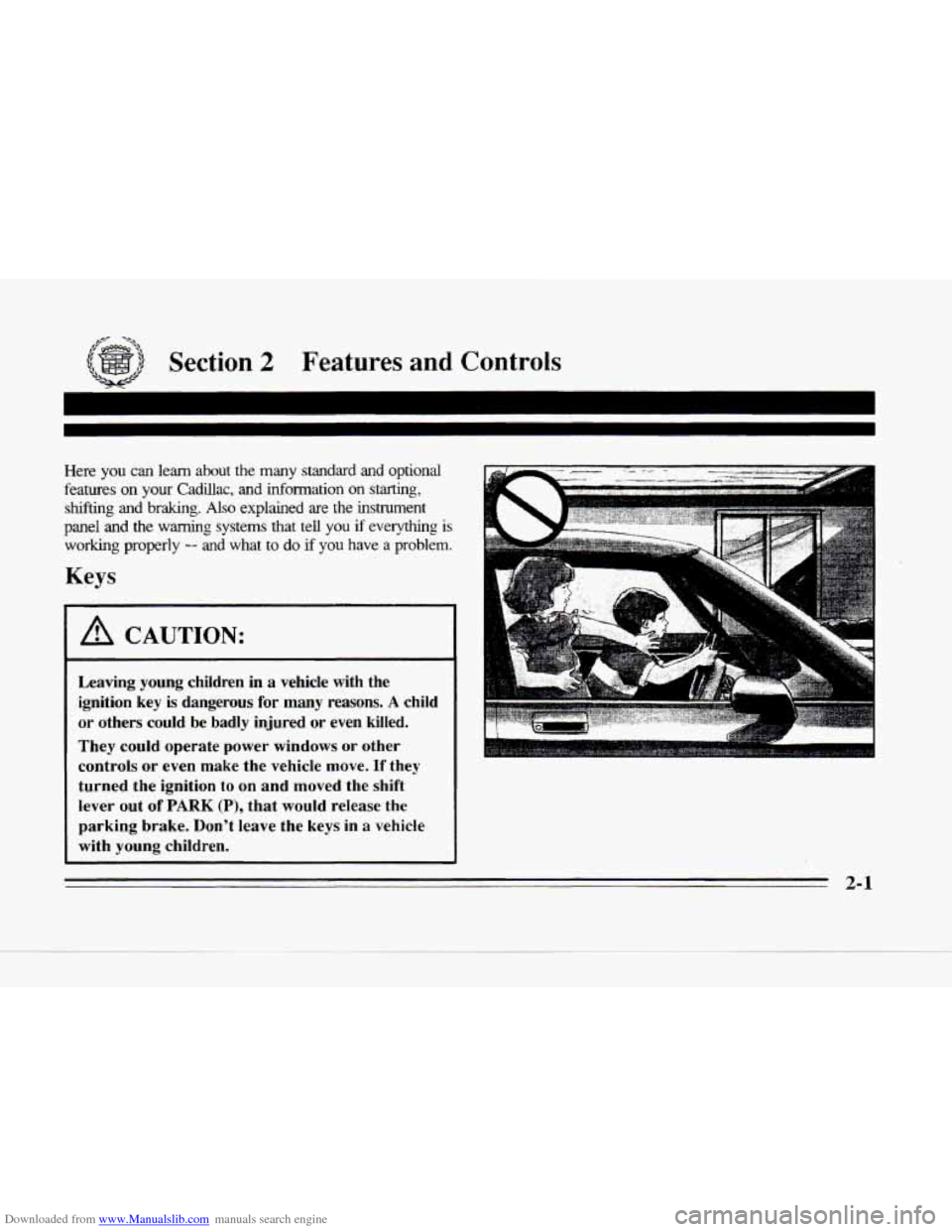

Section 2 Features and Controls
Here you can learn about the many standard and optional
features on your Cadillac, and information on starting,
shrfting and braking. Also explained are the instrument
panel
and the warning systems that tell you if everything is
working properly -- and what to do if you have a problem.
Keys
A CAUTION:
Leaving young children in a vehicle with the
ignition key
is dangerous for many reasons. A child
or others could be badly injured
or even killed.
They could operate power windows or other
controls or even
make the vehicle move. If they
turned the ignition to
on and moved the shift
lever out
of PARK (P), that would release the
parking brake. Don't leave the keys in
a vehicle
with young children.
3:
yl . . . . . ,.
