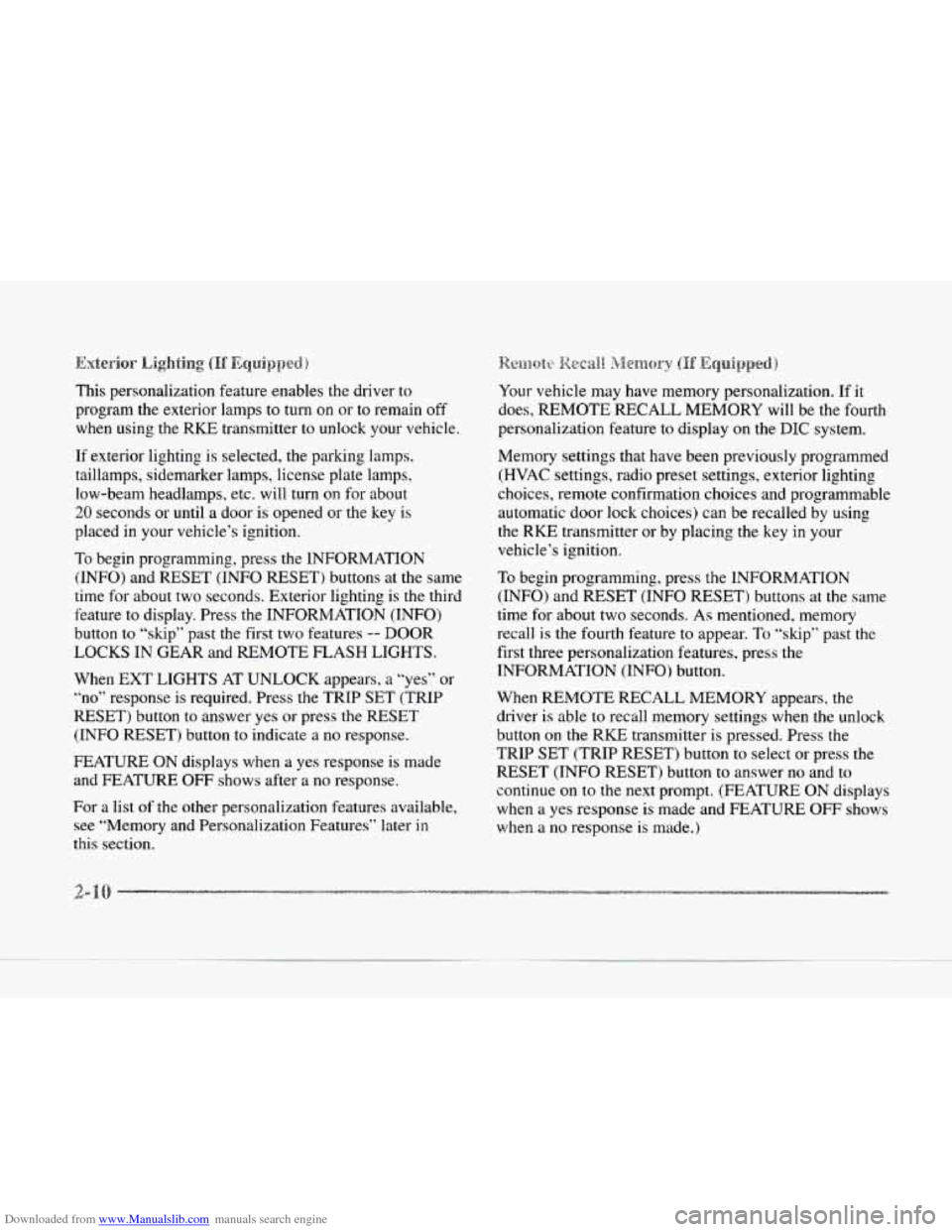

program the exterior lamps
to turn on or to remain off
when using the RKE transmitter to unlock your vehicle.
If exterior lighting is selected, the parking lamps.
taillamps, sidemarker lamps. license plate lamps,
low-beam headlamps, etc. will turn
on for about
20 seconds or until a door is opened or the key is
placed in your vehicle’s ignition.
To begin programming, press the INFORMATION
(INFO) and RESET (INFO RESET’) buttons at the same
time for about two seconds. Exterior lighting is
the third
feature to display. Press the INFORMATION (INFO)
button to “skip” past the first two features
-- DOOR
LOCKS IN GEAR and REMOTE FLASH LIGHTS.
When EXT LIGHTS AT UNLOCK appears, a “yes”
or
“no” response is required. Press the TRIP SET (TRIP
RESET) button to answer
yes 01- press the RESET
(INFO RESET) button
to indicate a no response.
FEATURE
ON displays when a yes response is made
and FEATURE OFF shows after
a no response.
For a list
of the other personalization features available,
see “Memory and Personalization Features” later
in
this section. Your
vehicle may have memory personalization. If
it
does, REMOTE RECALL MEMORY will be the fourth
personalization feature to display
on the DIC system.
Memory settings that have been previously programmed
(HVAC settings, radio preset settings, exterior lighting
choices, remote confirmation choices and programmable
automatic door lock choices) can be recalled by using
the RKE transmitter or by placing the key in your
vehicle’s ignition.
To begin programming, press the INFORMATION
(INFO) and RESET (INFO RESET) buttons at the same
time for about two seconds. As mentioned, memory
recall
is the fourth feature to appear. To “skip” past the
first three personalization features, press the
INFORMATION (INFO) button.
When REMOTE RECALL MEMORY appears,
the
driver is able to recall memory settings when the unlock
button on the RKE transmitter is pressed. Press the
TRIP SET (TRIP
RESET) button to select or press the
RESET (INFO RESET) button to answer no and to
continue
on to the next prompt. (FEATURE ON displays
when a yes response is made and FEATURE OFF shows
when a
no response is made.)
rrl
Page 72 of 370
Downloaded from www.Manualslib.com manuals search engine If a no response was made, the KEY IN RECALL

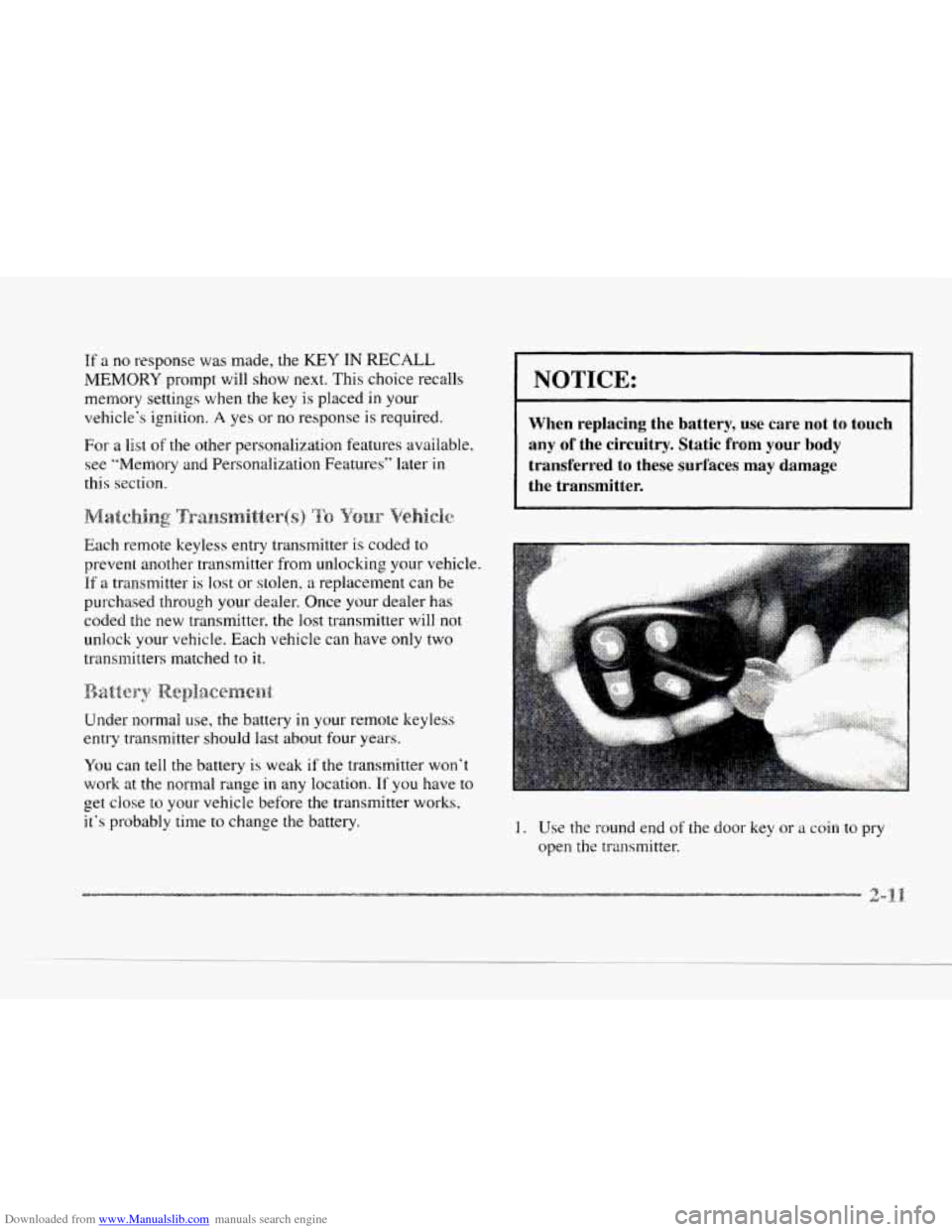

MEMORY prompt will show next. This choice recalls
memory settings when the key is placed in your
vehicle's ignition.
A yes or no response is required.
For
a list of the other personalization features available,
see "Memory and Personalization Features" later
in
this section.
Each remote keyless entry transmitter is coded to
prevent another transmitter from unlocking your vehicle.
If a transmitter is lost or stolen. a replacement can be
purchased through your dealer. Once your dealer has
coded the new transmitter, the lost transmitter will not
unlock
your vehicle. Each vehicle can have only two
transmitters matched to
it.
Under normal use, the battery in your remote keyless
entry transmitter should last about
four years.
You can tell the battery is weak if the transmitter won't
work at the normal range in any location. If you have to
get close
to your vehicle before the transmitter works.
it's probably time to change the battery.
I NOTICE: I
When replacing the battery, use care not to touch
any
of the circuitry. Static from your body
transferred
to these surfaces may damage
the transmitter.
I. Use the round end of the door key or a coin to pry
open the transmitter.
Page 73 of 370
Downloaded from www.Manualslib.com manuals search engine 2. Remove the battery and replace it with a CR2032
battery.
Using the wrong size battery can damage the
transmitter. Make Lsure the battery is positioned with
the “plus”
(+> facing down.
3. Align the internal pieces of the transmitter, including
the cover. Snap together to reinstall.
It can be dangerous to drive with thc trunk lid
open because carbon monoxide (CO) gas can
come into your vehicle. You can’t set‘ or snwll
CO. It can cause unconsciousness and evtw death.
If you must drive with the trunk lid open or if‘
electrical wiring or other cable connections must
pass through the seal between the body and the
trunk lid:
Make sure all Gndows are shut.
Turn the fan on your heating or cooling
system to its highest speed with the setting
on
AUTO or ECON and the temperature
between
65°F (HOC) and 85°F (29°C).
That will force outside air into your vehicle.
See “Comfort Controls” in the Index.
If you have air outlets on or under the
instrument panel, open them all the way.
See “Engine Exhaust” in the Index.
3
Page 74 of 370
Downloaded from www.Manualslib.com manuals search engine To use this feature,
your vehicle
must be
in
PARK (P). Press the
TRUNK release button
located above the radio on
the
DIC to open the trunk.
You can also press the trunk button on the RKE
transmitter to access the trunk compartment. If you
do not have the full console, then press the trunk
button
on the RKE transmitter.
;FARE
If equipped, the optional trunk storage system can be
used to organize many different items inside the trunk.
Page 75 of 370
Downloaded from www.Manualslib.com manuals search engine To install the storage system:
1.
2.
3.
4.
5.
6.
7.
Pull the carpeting from the floor of the trunk. Turn
the retainer (center dial) on the compact spare tire
cover counterclockwise
to remove it.
Place the trunk storage system on the center of the
trunk floor (the cut
out portion of the storage system
should be facing the rear
of the vehicle).
Open the storage system by pulling up on the handle
located in the carpeted area. This allows the unit to
snap into place. Fold the divider walls open.
Remove
the rectangular access panel from the floor
of the storage system. The access panel should
unsnap by hand.
Center
the storage system access hole over the area
where the spare tire is secured by the retainer.
Position the storage systetn as needed and then
secure it with the retainer.
Replace
the access panel.
Attach the removable
net to the slots located on the
side and front
of the divider walls.
Once in place. the storage system can be moved forward
or rearward for convenience and easy accessing of
stored items. The
following steps explain
how to remove the trunk
storage system
for cleaning or in case you need to access
the spare tire. Follotv all of these steps if the storage
system is in the closed position. Begin with Step
2 if
the system is already open.
1.
2.
3.
4.
Open the storage system by pulling up on the handle
located in the carpeted area. This allows the unit
to
snap into place. Fold the divider walls open.
Remove the rectangular access panel from the floor
of the storage system. The access panel should
unsnap
by hand.
Center the storage system access hole over the
area where the spare tire
is secured by the
retainer. Position the storage system as needed
and then remove the retainer (turn the retainer
counterclockwise
to remove it).
Replace the access panel and remove the
storage system.
Page 76 of 370
Downloaded from www.Manualslib.com manuals search engine C
c
c
c
CAUTION:
Your car has an automatic pull-down feature that
helps close the trunk electronically.
Your fingers
can be trapped under the trunk lid as
it goes
down. Your fingers could be injured, and you
would need someone to help you free them. Keep
your fingers away from the trunk lid as you close
it and as it is
going down.
With the automatic pull-down feature. you never have to
slam the trunk lid in order
to close the trunk. instead,
gently lower the trunk lid until it is nearly shut
-- the
automatic pull-down unit will take over and lock the
trunk firmly.
/A
/-
E3
A. Trunk Lid
B. Lever
If for some reason the trunk lid (A) will not close, it may
be because the trunk pull-down unit was accidentally
bumped. Even though the trunk
lid remains open, the
motor from the pull-down unit has already cycled down.
If this happens, press the lever
(B j on the trunk lid. The
pull-down unit motor will reset itself allowing the trunk
lid to close when lowered.
Page 77 of 370
Downloaded from www.Manualslib.com manuals search engine Vehicle theft is big business, especially in some cities.
Although your Cadillac has a number
of theft-deterrent
features,
we know that nothing we put on it can make
it impossible to steal. However, there are ways
you
can help.
If you leave your vehicle with the keys inside, it’s an
easy target
for joy riders or professional thieves -- so
don’t do it.
When you park your Cadillac and open the driver‘s
door, you’ll hear a chime reminding
you to remove
your key from the ignition and take
it with you. Always
do this. Your steering wheel will be locked, and so
will your ignition and transaxle. And remember to
lock the doors.
Park in a lighted spot, close all windows and lock your
vehicle. Remember to keep your valuables
out of sight.
Put them
in a storage area, or take them with you.
If you park in a lot where someone will be watching
your vehicle,
it’s best to lock it up and take your keys.
But what
if you have to leave your ignition key? What
if you have to leave something valuable in your vehicle?
Put your valuables in a storage area, like your trunk
or glove box.
Lock the glove box.
0 Lock all the doors except the driver’s.
Then take the door key and remote keyless entry
transmitter with you.
If the ignition is off and
any door is open, the
SECURITY light will flash.
reminding
you to activate
the system (the light will
also flash
if the battery has
been disconnected and
reconnected). SECURITY
2-3.6
-I.
d
1
Page 78 of 370
Downloaded from www.Manualslib.com manuals search engine c
.--
To
1.
2.
3.
i arm the system, do the following:
Open the door.
Lock the door using the power door lock
or the RKE
system. The SECURITY light should come on and
stay on.
Close all
the doors. The SECURITY light should go
off within approximately 30 seconds.
The horn will sound and the lamps will flash for about
30 seconds when the door or trunk is opened without the
key
or RKE system. The horn also sounds if the loclcs
are damaged.
Remember. the theft-deterrent system won't activate if
you lock the doors with a key or use the manual door
lock. It activates only
if you use a power door lock
switch or the RKE system.
TO
0
0
i avoid activating the alarm by accident:
The vehicle should be locked with the door key
or
the manual door lock switch after- the doors are
closed if
you don't want to activate the
theft-deterrent system.
Always unlock
a door with a key or use the RKE
system. (Pressing the unlock button on the RKE
transmitter disables the theft-detell-ent system. j
Unlocking a door any other way will activate the alarm.
Turning the ignition key
to RUN without
disarming the theft-deterrent system will
also
activate the alarm.
If you activate the alarm by accident, unlock any door
with your key.
You car1 also turn off the alarm by using
the unlock button of the RKE system. The alarm won't
stop if
you try to unlock a door any other way.
:l'&$,jg.]gg. tj3e $Jj8T:"Xhj
1. From inside the vehicle, roll down the window, then
c% "'
b met out of the vehicle, keeping the door open.
2. From outside of the vehicle, with the door open. lock
the vehicle using the
power door lock or the RKE
system
and close the door. Wait 30 seconds until the
SECURITY limp goes off.
3. Reach in and unlock the door using the manual lock
and open the door. The horn will sound and the
headlamps
will flash.
If the alarm does not sound when it should, check to
see if the horn works. The horn fuse may be blown. To
replace the fuse, see "Fuses and Circuit Breakers'' in the
Index. If the fuse
does not need to be replaced, you may
need
to have your Cadillac serviced.
To reduce the possibility of theft, always activate the
optional theft-detelrent system when leaving your vehicle.
c
Page 79 of 370
Downloaded from www.Manualslib.com manuals search engine Pressing the VALET button
located inside the glove
box
will disable the use of the
trunk, fuel door and garage
door opener. Pressing this
button again will nlalce
these features reusable.
Locking the glove box with
the door key will also help
to secure your vehicle. Your vehicle
is equipped
with the PASS-Key
II
theft-deterrent system.
PASS-Key
I1 is a passive
system. The system is
armed when the key
is
removed from the ignition.
1
I
1
Note that the RKE transmitter can’t be used to open the
trunk or fuel door if the VALET button is pressed in. PASS-Key
I1 uses a reiistor
pellet in the ignition key
that
is read by the system in your vehicle. If the key
resistor matches the code stored in the vehicle system,
the vehicle’s fuel and starting systems will be enabled.
If an incorrect key is used, the vehicle’s fuel and
starting systems are disabled for three minutes.
Additional attempts during this lockout period will
not start the car, even with the correct key. I
I
Page 80 of 370
Downloaded from www.Manualslib.com manuals search engine r
r
r
r
r
r
r
r

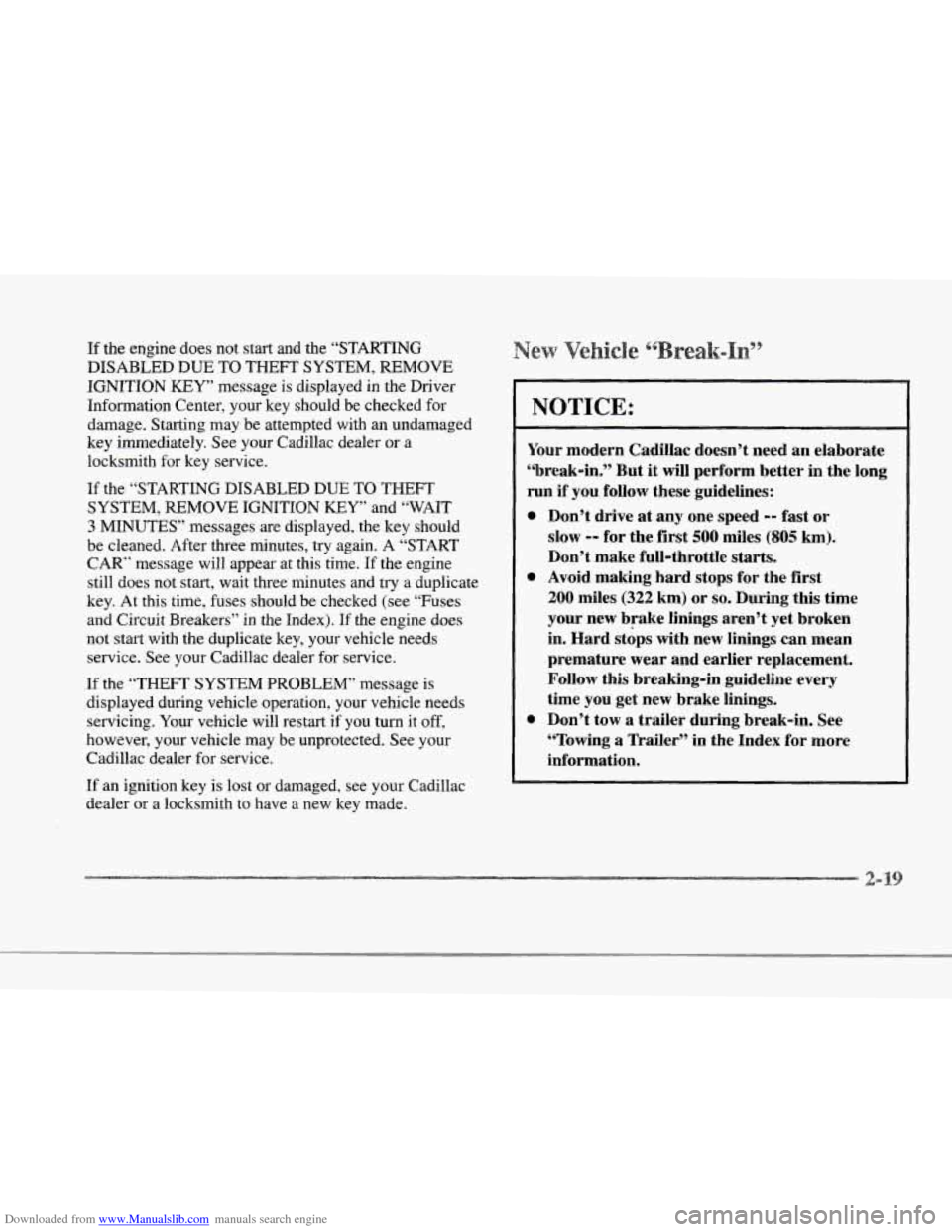

If the engine does not start and the “STARTING
DISABLED DUE TO THEFT SYSTEM, REMOVE
IGNITION
KEY” message is displayed in the Driver
Information Center, your key should be checked for
damage. Starting may be attempted with an undamaged
key immediately. See your Cadillac dealer or a
locksmith
fur key service.
If the “STARTING DISABLED DUE TO THEFT
SYSTEM,
REMOVE IGNITION KEY” and “WAIT
3 MINUTES” messages are displayed, the key should
be cleaned. After three minutes,
try again. A “START
CAR” message will appear
at this time. If the engine
still does not start, wait three minutes and try a duplicate
key. At this time, fuses should be checked (see “Fuses
and Circuit Breakers” in the Index). If the engine does
not start with the duplicate key, your vehicle needs
service. See your Cadillac dealer for service.
If the “THEFT SYSTEM PROBLEM’ message is
displayed during vehicle operation, your vehicle needs
servicing. Your vehicle will restart if you turn it
off,
however, your vehicle may be unprotected. See your
Cadillac dealer for service.
If an ignition key is lost or damaged, see your Cadillac
dealer or a locksmith to have a new key made.
e c6
NOTICE:
Your modern Cadillac doesn’t need an elaborate
“break-in.” But it
will perform better in the long
run if you follow these guidelines:
0 Don’t drive at any one speed -- fast or
slow -9 for the first 500 miles (805 km).
Don’t make full-throttle starts.
200 miles (322 km) or so. During this time
your new brake linings aren’t yet broken
in. Hard stops with new linings can mean
premature wear and earlier replacement.
Follow this breaking-in guideline every
time you get new brake linings.
0 Don’t tow a trailer during break-in. See
“Towing a Trailer” in the Index for more
information.
0 Avoid making hard stops for the first
