Page 51 of 370

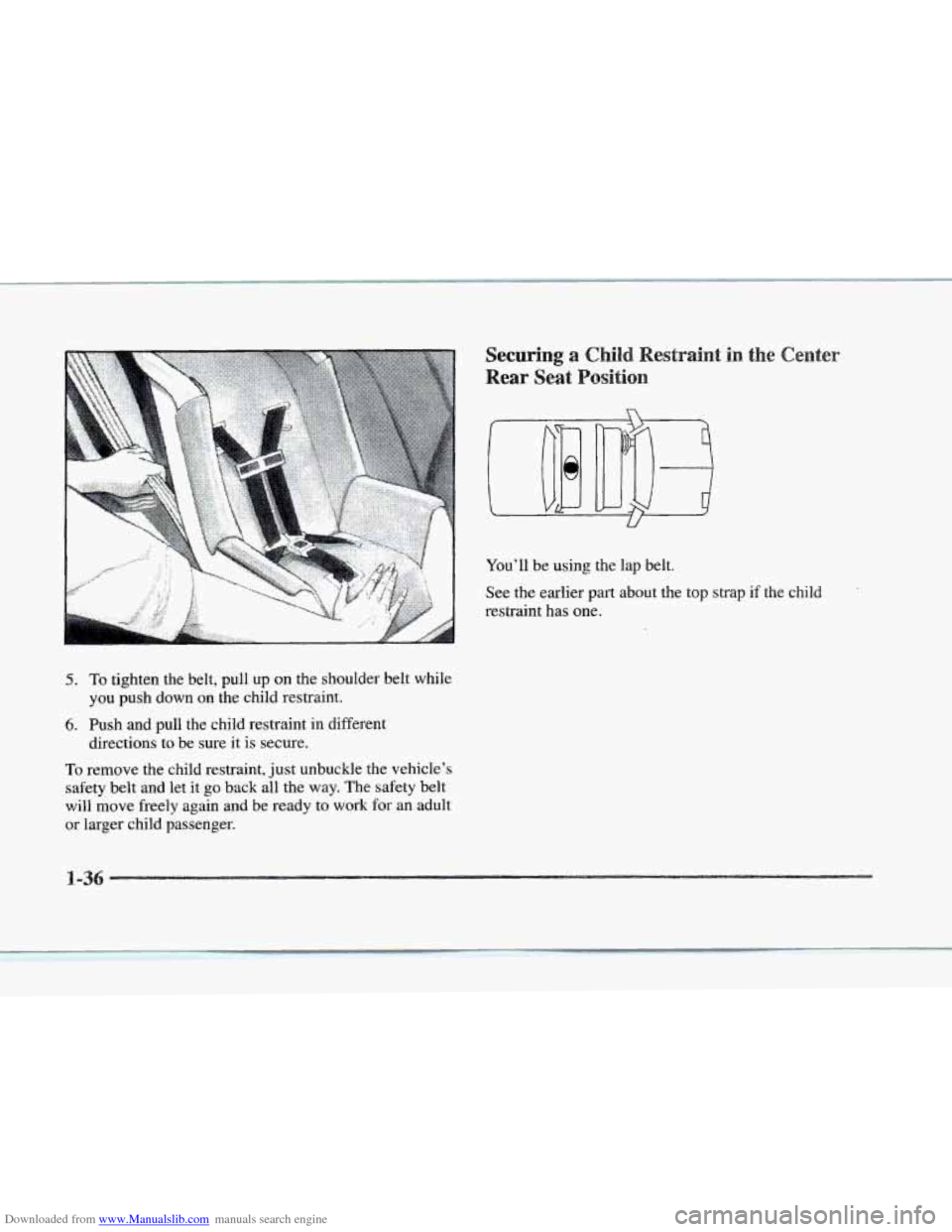

Downloaded from www.Manualslib.com manuals search engine 5. To tighten the belt, pull up on the shoulder belt while
you
push down on the child restraint.
6. Push and pull the child restraint in different
To remove the child restraint, just unbuckle the vehicle’s
safety belt and let
it go back all the way. The safety belt
will move freely again and be ready to work
€or an adult
or larger child passenger. directions to
be sure it
is secure.
Securing a Chi1 Restraint in the
Rear Seat Position
You’ll be using the lap belt.
See the earlier part about the top strap if the child
restraint has one.
Page 52 of 370
Downloaded from www.Manualslib.com manuals search engine r
r
r
r
I
r
r
r
1.
2.
3.
4.
Make the belt as long as possible by tilting the latch
plate and pulling
it along the belt.
Put the restraint
on the seat. Follow the instructions
€or the child restraint.
Secure the child in the child restraint as the
instructions say.
Run the vehicle's safety belt through or around the
restraint. The child restraint instructions will show
you how.
5.
6.
7.
Buckle the belt. Make sure the release button is
positioned
so you would be able to unbuckle the
safety belt quickly if you ever had to.
To tighten the belt, pull its free end while you push
down on the child restraint.
Push and pull the child restraint in different
directions
to be sure it is secure. If it isn't, secure the
restraint in a different place in the vehicle and
contact the child restraint maker for their advice
about
how to attach the child restraint properly.
4 m- %-3'/
Page 53 of 370

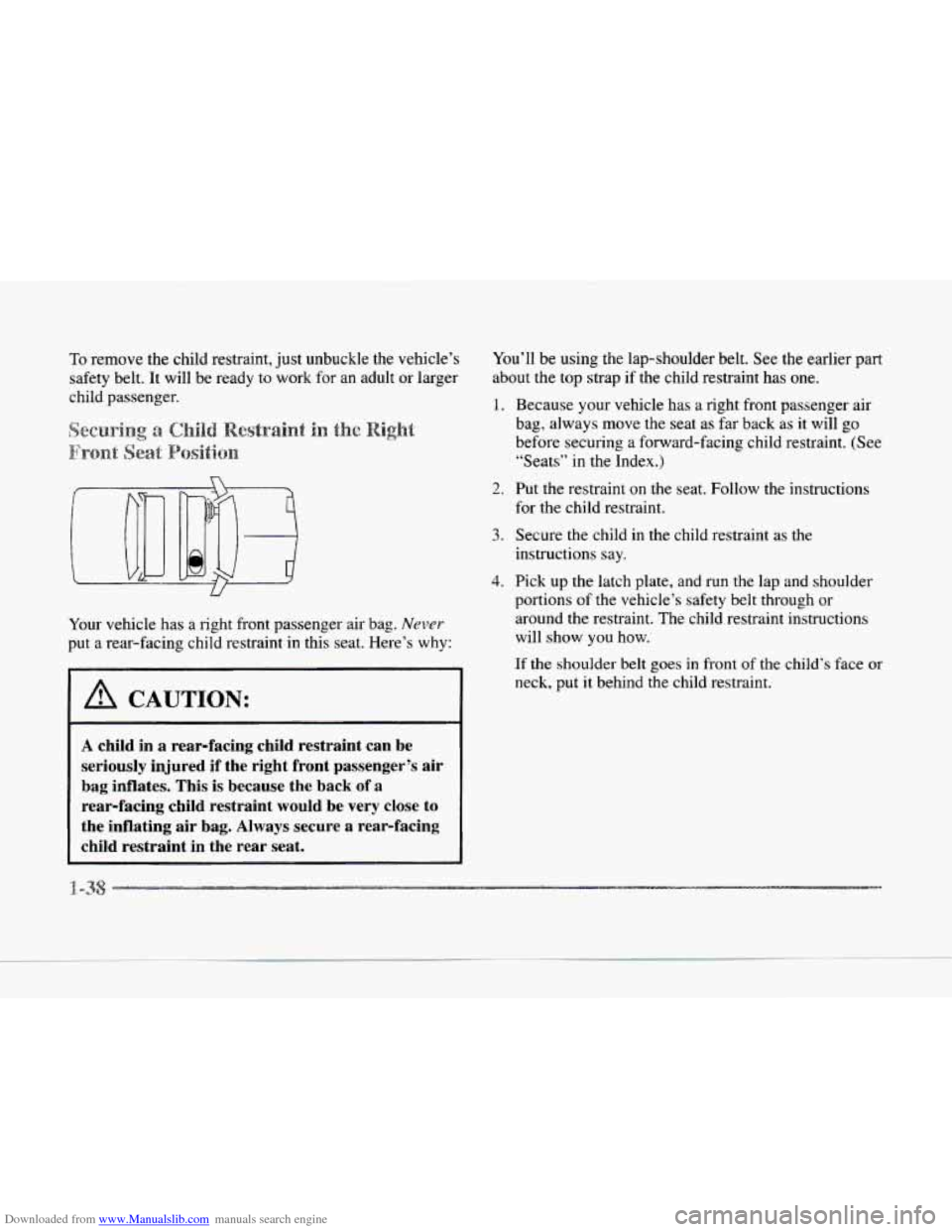

Downloaded from www.Manualslib.com manuals search engine To remove the child restraint, just unbuckle the vehicle’s
safety belt.
It will be ready to work for an adult or larger
child passenger.
n 7 -.
3.
4.
You’ll be using the lap-shoulder belt. See the earlier part
about the top strap if the child restraint has one.
1. Because your vehicle has a right front passenger air
bag, always move the seat
as far back as it will go
before securing a forward-facing child restraint. (See
“Seats” in the Index.)
Put the restraint
on the seat. Follow the instructions
for the child restraint.
Secure the child in the child restraint as the
instructions say.
Pick up the latch plate, and run the lap and shoulder
portions
of the vehicle’s safety belt through or
around the restraint. The child restraint instructions
will show you how.’
If the shoulder belt goes in front of the child’s face or
neck, put
it behind the child restraint.
Your
vehicle has a right front passenger air bag.
Never
put a rear-facing child restraint in this seat. Here’s why:
A CAUTION:
A child in a rear-facing child restraint can be
seriously injured if the right front passenger’s air
bag inflates. This is because the back
of a
rear-facing child restraint would be very close to
the inflating air bag. Always secure a rear-facing
child restraint in the rear seat.
1. -35
rl
Page 54 of 370
Downloaded from www.Manualslib.com manuals search engine r
r
r r
r
r 1
P

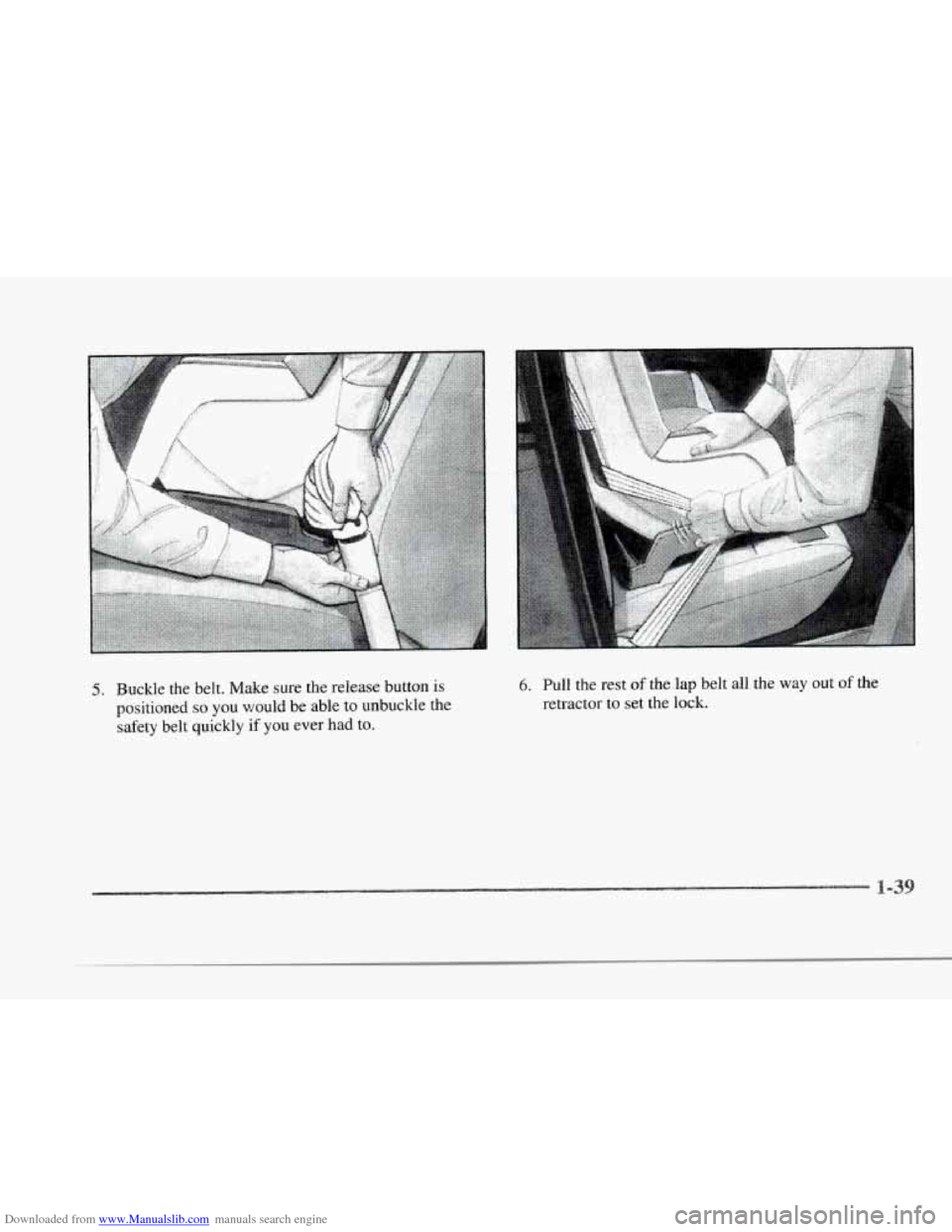

5. Buckle the belt. Make sure the release button is
positioned
so you would be able to unbuckle the
safety belt quickly if you ever had to.
6. Pull the rest of the lap belt all the way out of the
retractor to set the lock.
Page 55 of 370

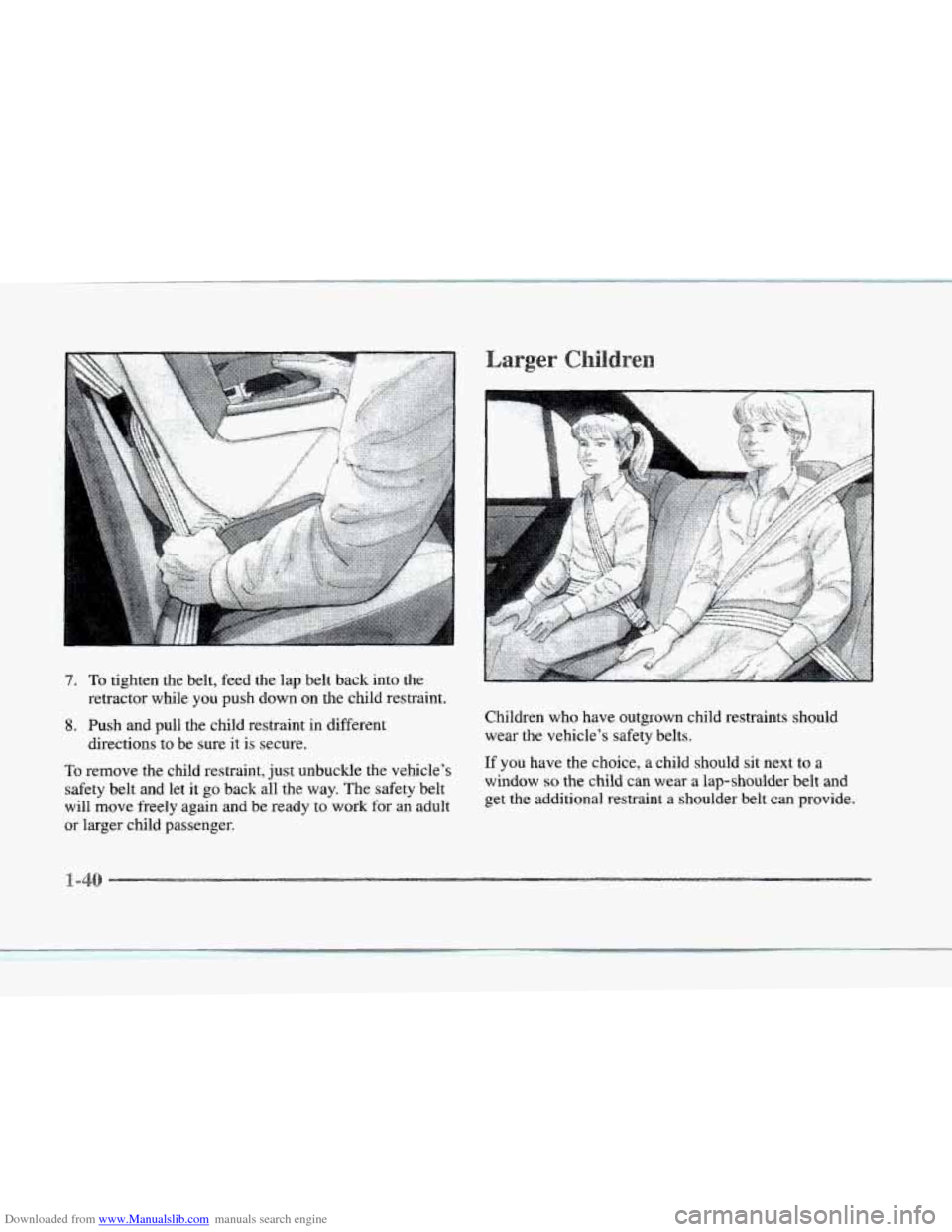

Downloaded from www.Manualslib.com manuals search engine 7. To tighten the belt, feed the lap belt back into the
retractor while
you push down on the child restraint.
8. Push and pull the child restraint in different
To remove the child restraint, just unbuckle the vehicle’s
safety belt
and let it go back all the way. The safety belt
will move freely again and be ready
to work for an adult
or larger child passenger.
directions to
be sure it is secure. Children
who have outgrown child restraints should
wear the vehicle’s safety belts.
If you have the choice, a child should sit next to a
window so the child can wear a lap-shoulder belt and
get the additional restraint a shoulder belt can provide.
Page 56 of 370
Downloaded from www.Manualslib.com manuals search engine S
r
r

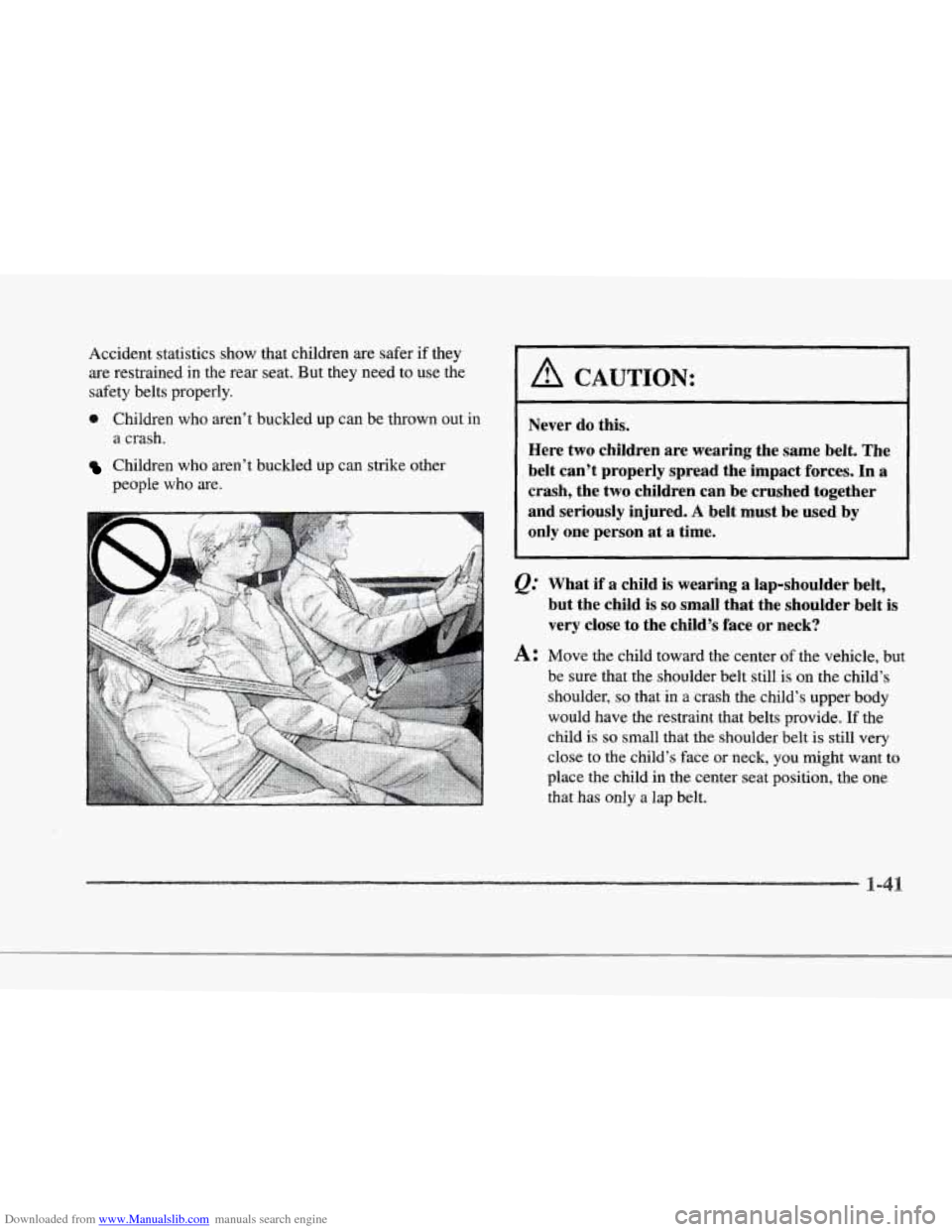

Accident statistics show that children are safer if they
are restrained in the rear seat. But they need
to use the
safety belts properly.
e Children who aren’t buckled up can be thrown out in
Children who aren’t buckled up can strike other
a crash.
people who
are.
r
r
r
r
r
r
/?
A CAUTION:
Never do this.
Here two children are wearing the same belt. The
, belt can’t properly spread the impact forces. In a
crash, the two children can be crushed together
and seriously injured.
A belt must be used by
only one person at a time.
@’ What if a child is wearing a lap-shoulder belt,
but the child is
so small that the shoulder belt is
very close
to the child’s face or neck?
A: Move the child toward the center of the vehicle, but
be sure that the shoulder belt still is on the child’s
shoulder,
so that in a crash the child’s upper body
would have the restraint that belts provide.
If the
child is
so small that the shoulder belt is still very
close to the child’s face
or neck, you might want to
place the child in the center seat position, the one
that has only a lap belt.
-4
Page 57 of 370

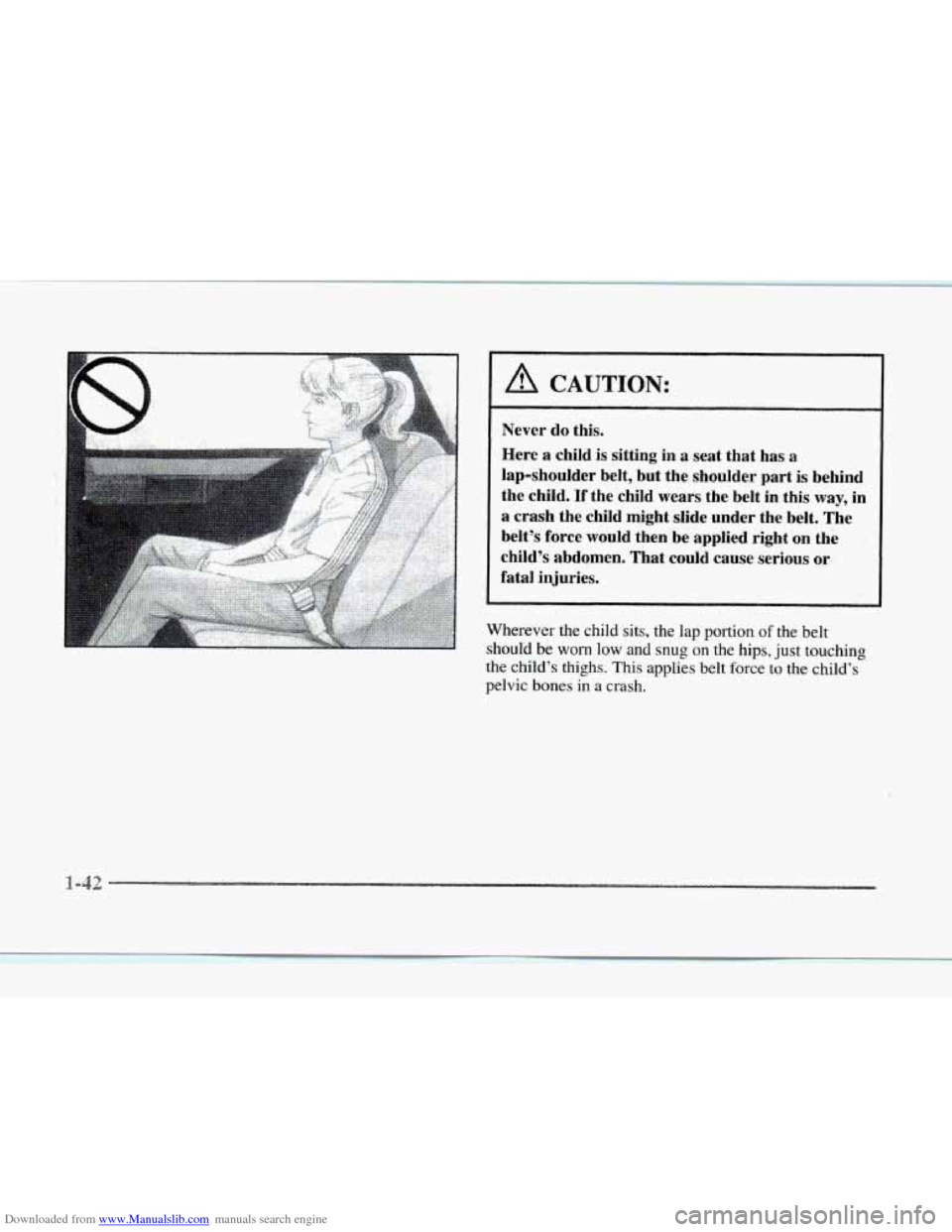

Downloaded from www.Manualslib.com manuals search engine Wherever the child sits, the lap portion of the belt
should
be worn low and snug on the hips, just touching
the child’s thighs. This applies
belt force to the child’s
pelvic bones
in a crash.
A CAUTION:
Never do this.
Here
a child is sitting in a seat that has a
lap-shoulder belt, but the shoulder part is behind
the child.
If the child wears the belt in this way, in
a crash the child might slide under the belt. The
belt’s force would then be applied right on the
child’s abdomen. That could cause serious
or
fatal injuries.
Page 58 of 370
Downloaded from www.Manualslib.com manuals search engine c

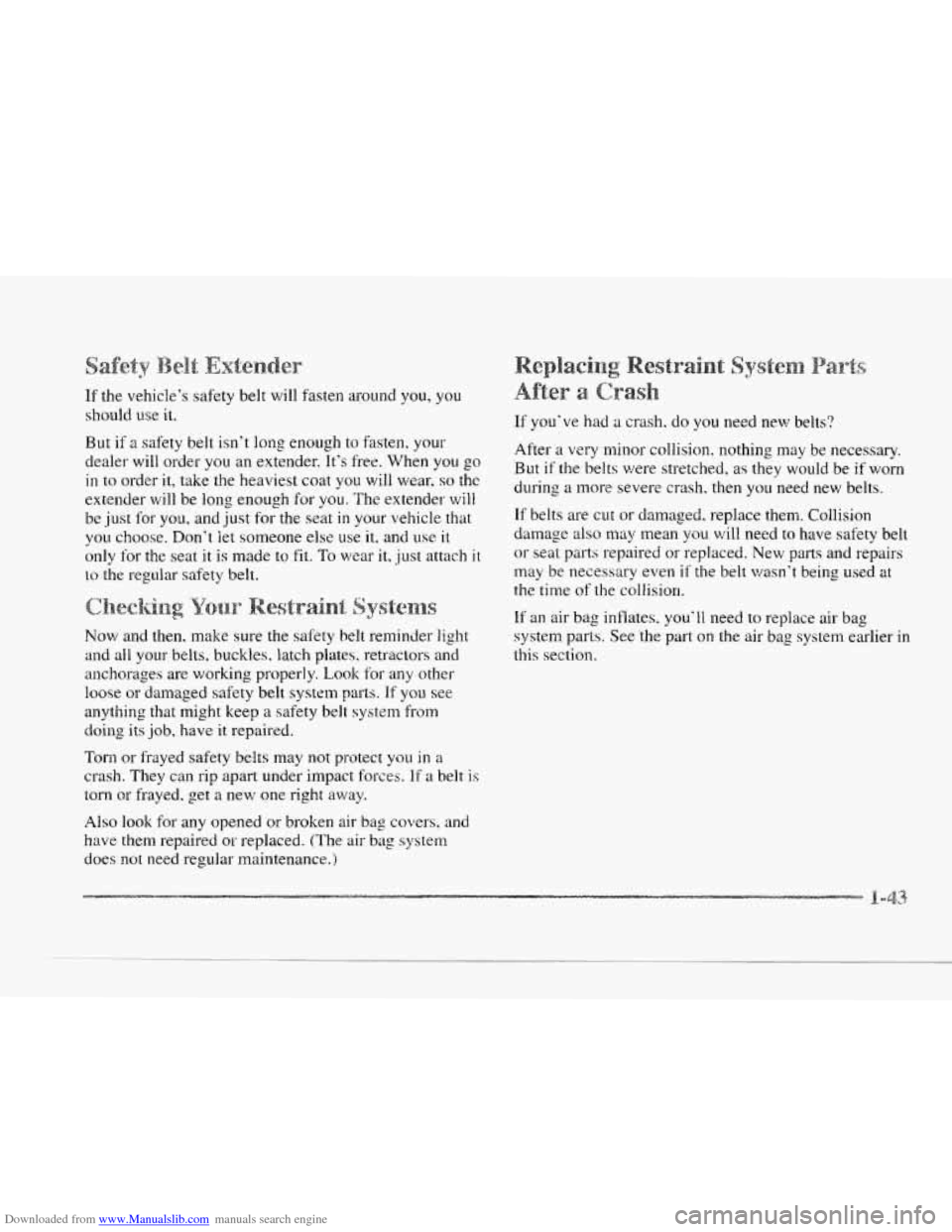

If the vehicle’s safety belt will fasten aqound you, you
should we it.
But
if a safety belt isn’t long enough to fasten, your
dealer will order you an extender. It’s free. When you
go
in to order it, take the heaviest coat you wili wear, so the
c
1
L-
c
extender will be long enough for you. The extender wil
be just
for you, and just for the seat in your vehicle that
you choose. Don’t let someone else
use it, and use it
only for the seat it is made to fit. To wear it, .just attach
to the regular safety belt.
Now and then, make sure the safety belt reminder light
and
all your belts, buckles, latch plates, retractors and
anchorages are working properly.
Look for any other
loose or damaged safety belt system parts. If you see
anything that might keep a safety belt system fron?
doing its
job, have it repaired.
Torn
or frayed safety belts may not protect you in a
t
crash. They can rip apart under impact forces. If a belt is
torn or frayed. get a new one right away.
Also look for any opened
or broken air bag covers, and
have them repaired or replaced. (The air bag system
does
not need regular maintenance.) If
you’ ve had a crash, do you need
new belts?
After
a very minor collision. nothing may be necessary.
But
if the belts were stretched, as they would be if worn
during
a more severe crash, then you need new belts.
If belts are cut or damaged. replace them. Collision
damage also nay mean you will need to have safety belt
or seat parts repaired or replaced. New parts and repairs
may
be necessary even if the belt wasn’t being used at
the time
of the collision.
If
an. air bag inflates. you‘ll need to replace air bag
system parts. See
the part on the air bag system earlier in
this section.
Page 59 of 370
Downloaded from www.Manualslib.com manuals search engine -
J
