CADILLAC SEVILLE 1998 4.G Owners Manual
Manufacturer: CADILLAC, Model Year: 1998, Model line: SEVILLE, Model: CADILLAC SEVILLE 1998 4.GPages: 378, PDF Size: 21.99 MB
Page 111 of 378

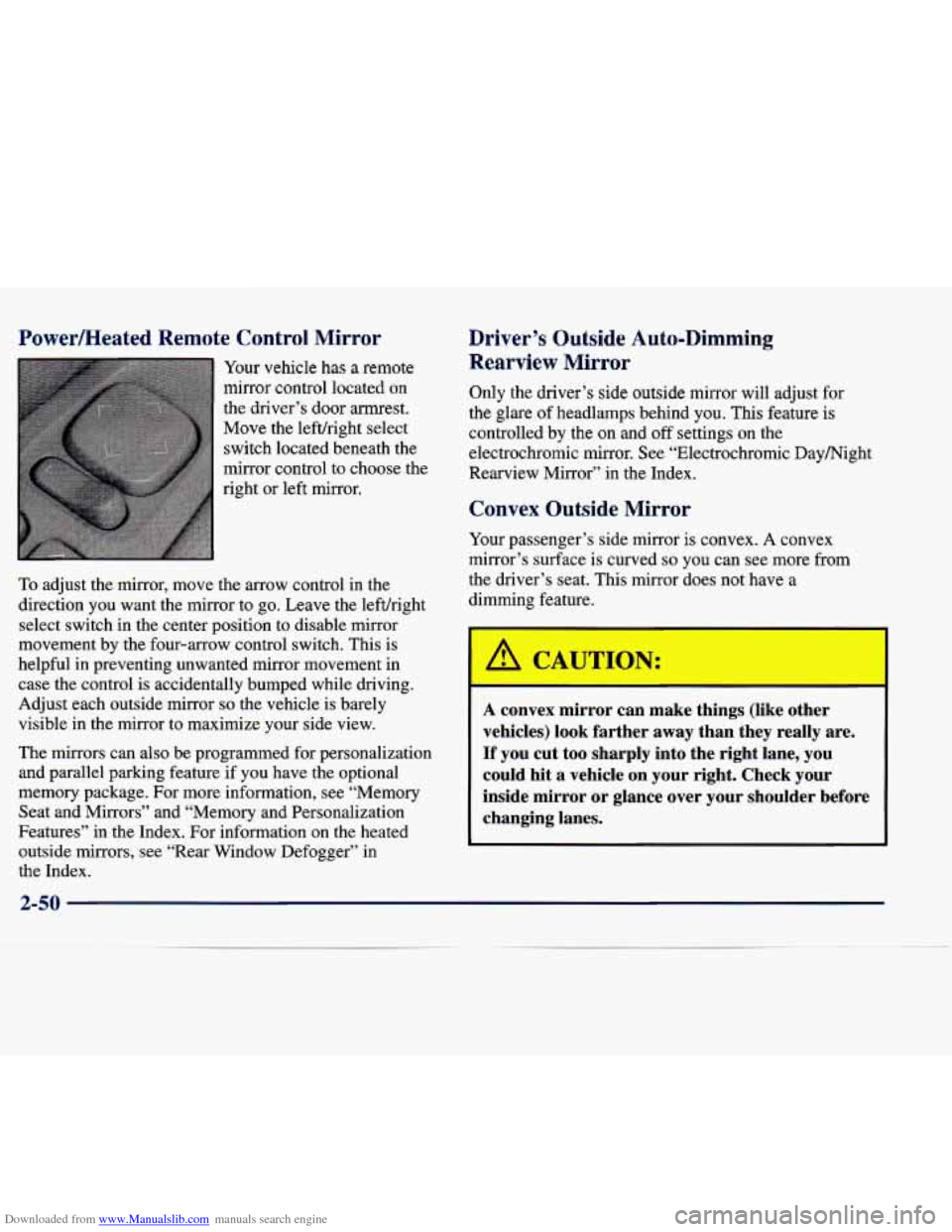

Downloaded from www.Manualslib.com manuals search engine PowedHeated Remote Control Mirror
Your vehicle has a remote
mirror control located on
the driver’s door armrest.
Move the lefthight select
switch located beneath
the
mirror control to choose the
right or left mirror.
To adjust the mirror, move the arrow control in the
direction you want the mirror to
go. Leave the lefuright
select switch in the center position to disable mirror
movement by the four-arrow control switch. This is
helpful in preventing unwanted mirror movement in case the control is accidentally bumped while driving.
Adjust each outside mirror so the vehicle is barely
visible in the mirror to maximize your side view.
The mirrors can also be programmed for personalizauon
and parallel parking feature if you have the optional
memory package. For more information, see “Memory Seat and Mirrors” and “Memory and Personalization
Features” in the Index. For infomation on the heated
outside mirrors, see “Rear Window Defogger’’ in the Index.
Driver’s Outside Auto-Dimming Rearview
Mirror
Only the driver’s side outside mirror will adjust for
the glare of headlamps behind you. This feature is
controlled by the on and off settings on the
electrochromic mirror. See “Electrochromic Daymight
Rearview Mirror” in the Index.
Convex Outside Mirror
Your passenger’s side mirror is convex. A convex
mirror’s surface is curved
so you can see more from
the driver’s seat. This mirror does not have a
dimming feature.
A CAUTIC) r:
I
A convex mirror can make things (like other
vehicles) look farther away than they really are.
If you cut too sharply into the right lane,
you
could hit a vehicle on your right. Check your
inside mirror or glance over your shoulder before
changing lanes.
2-50
Page 112 of 378

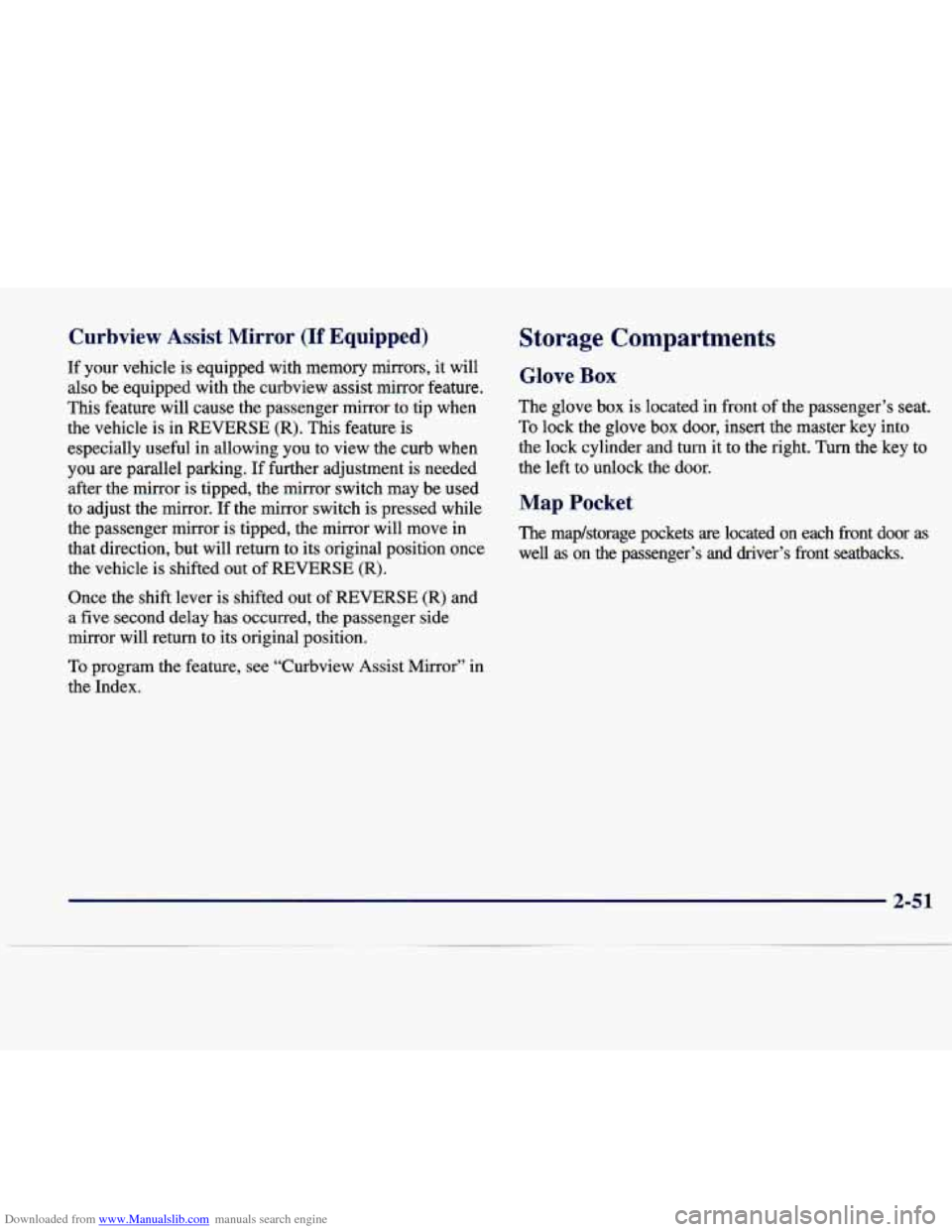

Downloaded from www.Manualslib.com manuals search engine Curbview Assist Mirror (If Equipped)
If your vehicle is equipped with memory mirrors, it will
also be equipped with the curbview assist
mirror feature.
This feature
will cause the passenger mirror to tip when
the vehicle is in REVERSE (R). This feature is
especially useful in allowing you to view the curb when
you are parallel parking. If further adjustment is needed
after the mirror
is tipped, the mirror switch may be used
to adjust the mirror. If the mirror switch
is pressed while
the passenger mirror is tipped, the mirror will move in
that direction, but will return to its original position once
the vehicle is shifted out of
REVERSE (R).
Once the shift lever is shifted out of REVERSE (R) and
a five second delay has occurred, the passenger side
mirror will return to its original position.
To program the feature, see “Curbview Assist Mirror” in
the Index.
Storage Compartments
Glove Box
The glove box is located in front of the passenger’s seat.
To lock the glove box door, insert the master key into
the lock cylinder and
turn it to the right. Turn the key to
the left
to unlock the door.
Map Pocket
The mapktorage pockets are located on each front door as
well as on the passenger’s and driver’s front seatbacks.
Page 113 of 378

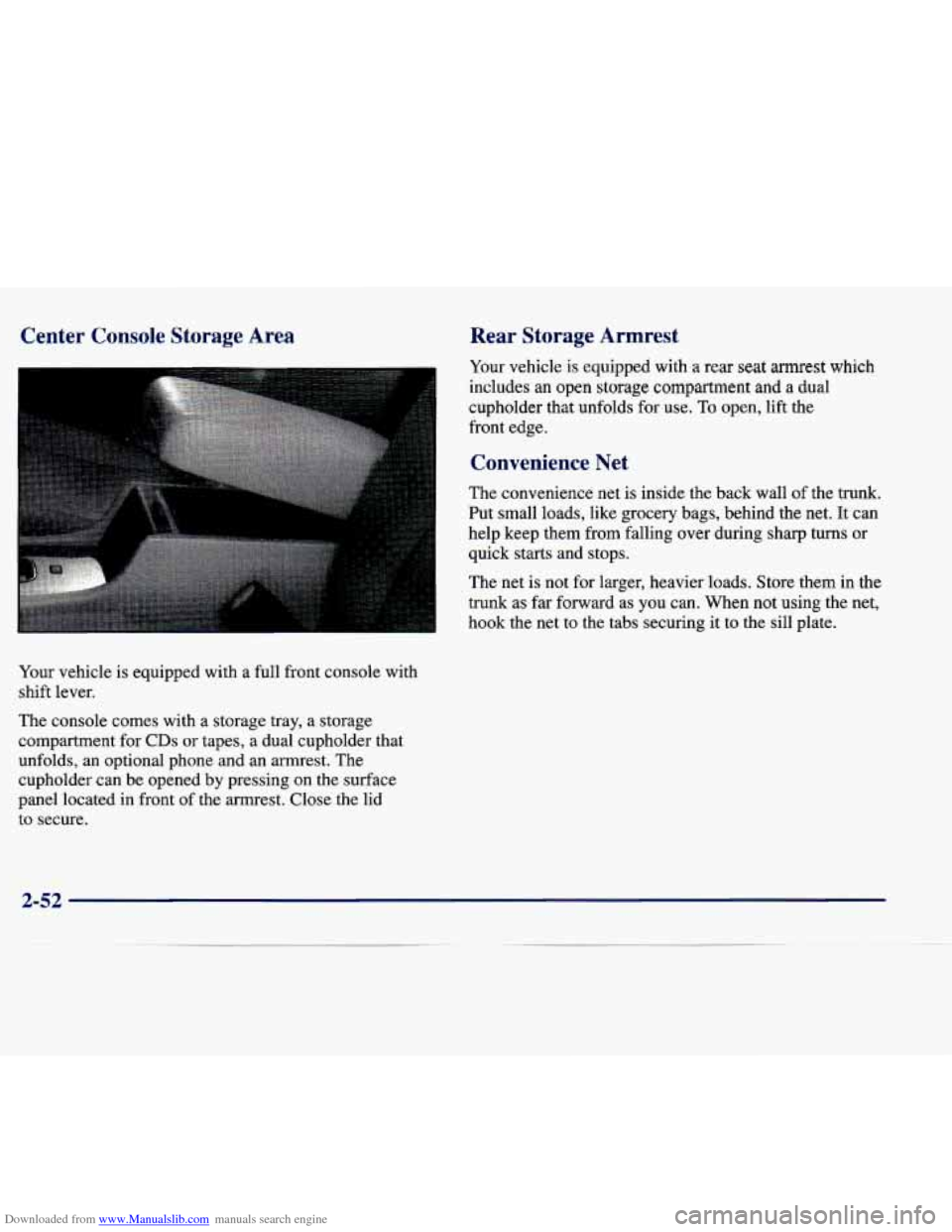

Downloaded from www.Manualslib.com manuals search engine Center Console Storage Area Rear Storage Armrest
Your vehicle is equipped with a rear seat armrest which
includes an open storage compartment and a dual
cupholder that unfolds for use.
To open, lift the
front edge.
Convenience Net
The convenience net is inside the back wall of the trunk.
Put small loads, like grocery bags, behind the net.
It can
help keep them from falling over during sharp turns
or
quick starts and stops.
The
net is not for larger, heavier loads. Store them in the
trunk
as far forward as you can. When not using the net,
hook the net to the tabs securing it
to the sill plate.
Your vehicle is equipped with a full front console with
shift lever.
The console comes with a storage tray, a storage
compartment for
CDs or tapes, a dual cupholder that
unfolds, an optional phone and an armrest. The
cupholder can be opened
by pressing on the surface
panel located in front of the armrest. Close the lid
to secure.
2-52
Page 114 of 378

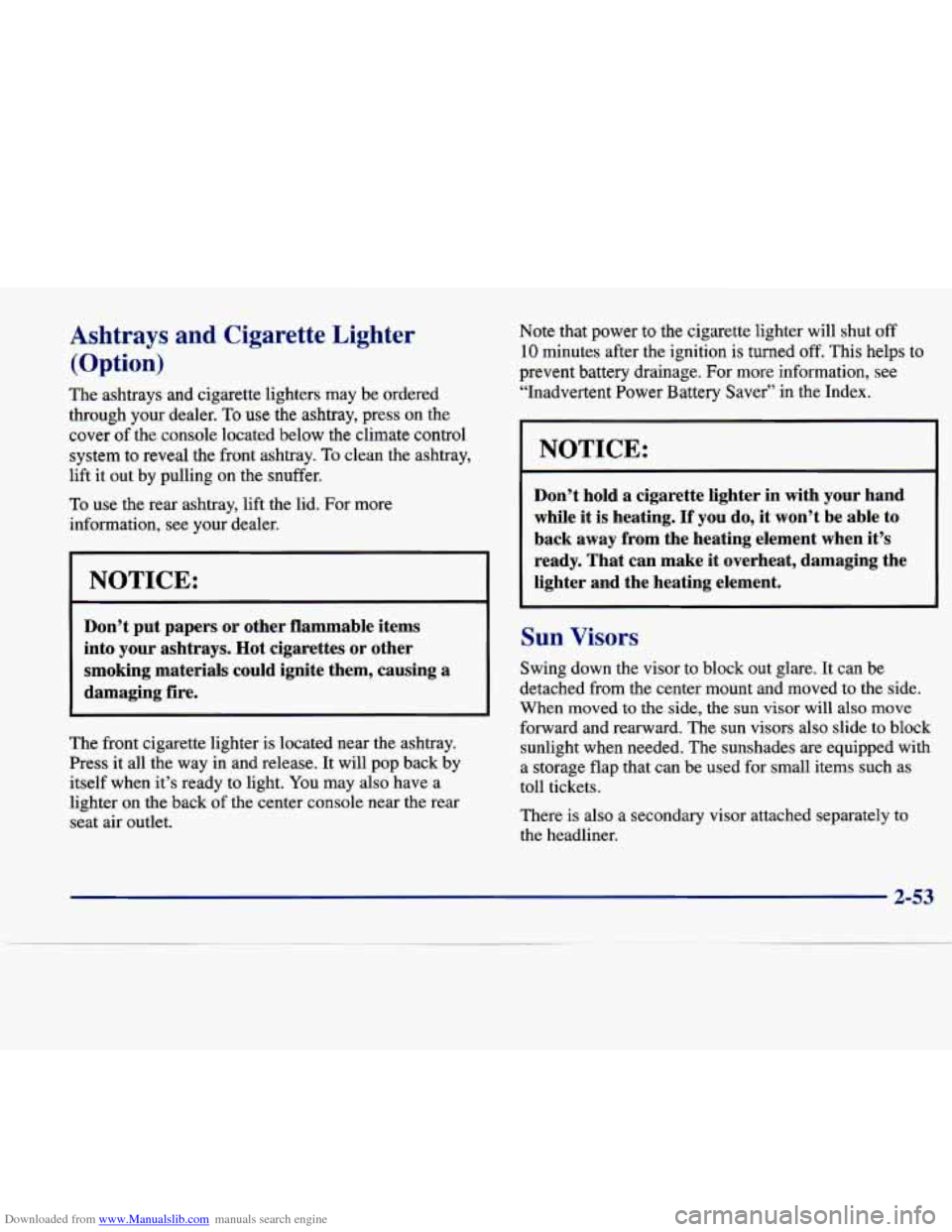

Downloaded from www.Manualslib.com manuals search engine Ashtrays and Cigarette Lighter
(Option)
The ashtrays and cigarette lighters may be ordered
through your dealer.
To use the ashtray, press on the
cover of the console located below the climate control
system to reveal the front ashtray. To clean the ashtray,
lift it out by pulling on the snuffer.
To use the rear ashtray, lift the lid. For more
information, see your dealer.
NOTICE:
Note that power to the cigarette lighter will shut off
10 minutes after the ignition is turned off. This helps to
prevent battery drainage. For more information, see ‘?nadvertent Power Battery Saver” in the Index.
NOTICE:
Don’t hold a cigarette lighter in with your hand
while it is heating.
If you do, it won’t be able to
back away from the heating element when it’s ready. That can make it overheat, damaging the
lighter and the heating element.
Don’t put papers or other flammable items
into your ashtrays. Hot cigarettes or other smoking materials could ignite them, causing a
detached from the center mount and moved to the side. damaging fire.
Swing down the visor to block out glare. It can be
When moved to
the side, the sun visor will also move
forward and rearward. The sun visors also slide to block
The front cigarette lighter is located near the ashtray. sunlight when needed. The sunshades are equipped with
Press it all the way in and release. It will pop back by a storage flap that can be used for small items such as
itself when it’s ready to light.
You may also have a toll tickets.
lighter on the back
of the center console near the rear
seat air outlet. There is also a secondary visor attached separately to
the headliner.
Sun Visors
2-53
Page 115 of 378

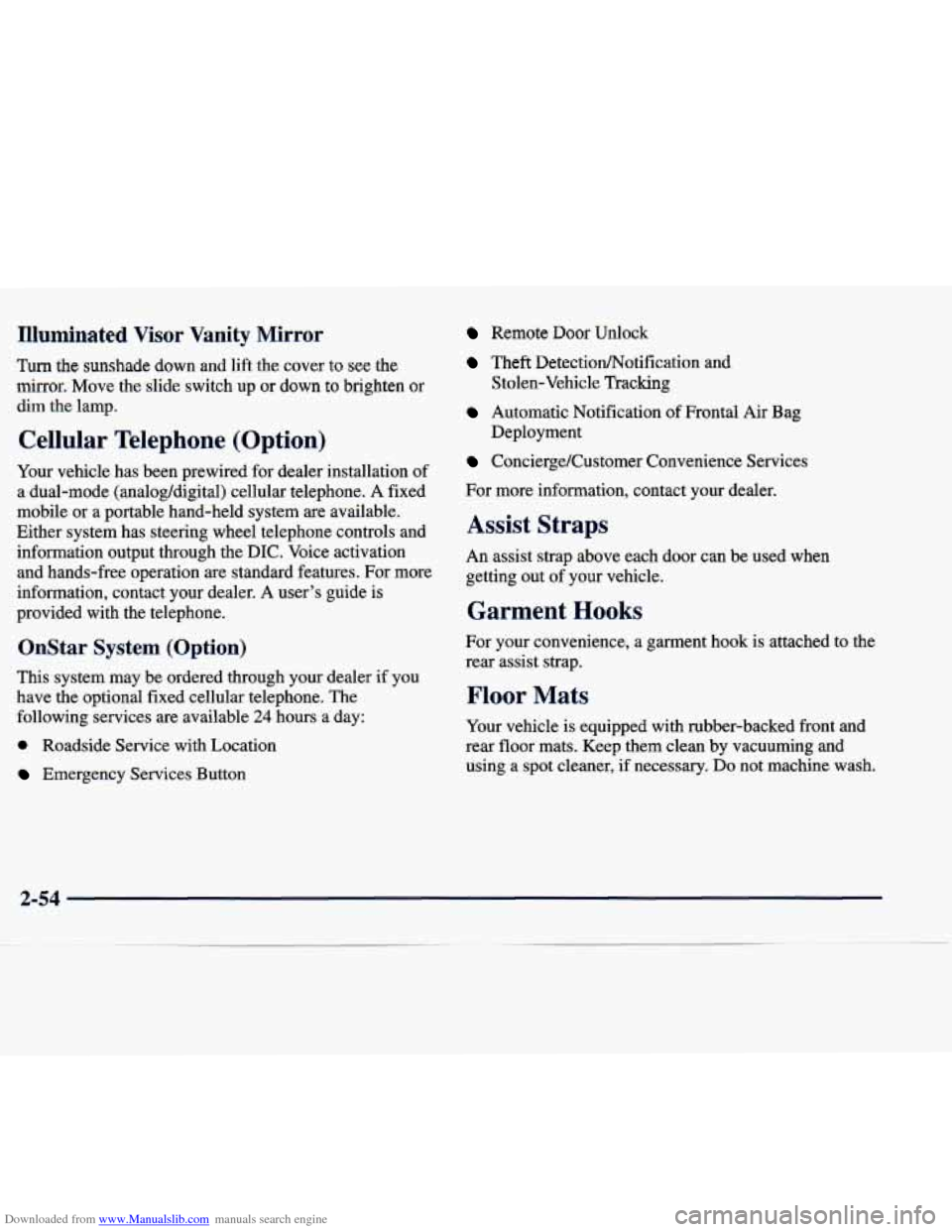

Downloaded from www.Manualslib.com manuals search engine Illuminated Visor Vanity Mirror
Turn the sunshade down and lift the cover to see the
mirror. Move the slide switch up or down to brighten or
dim the lamp.
Cellular TeleI '>one (Option)
Remote Door unlock
Your vehicle has been prewlred for dealer installation of
a dual-mode (analog/digital) cellular telephone. A fixed
mobile or a portable hand-held system are available.
Either system has steering wheel telephone controls and information output through the DIC. Voice activation
and hands-free operation are standard features. For more
information, contact your dealer.
A user's guide is
provided with the telephone.
OnStar System (Option)
This system may be ordered through your dealer if you have the optional fixed cellular telephone. The
following services are available
24 hours a day:
0 Roadside Service with Location
Emergency Services Button
Theft DetectiodNotification and
Stolen-Vehicle Tracking
Deployment
Automatic Notification of Frontal Air Bag
Concierge/Customer Convenience Services
For more information, contact your dealer.
Assist Straps
An assist strap above each door can be used when
getting out of your vehicle.
Garment Hooks
For your convenience, a garment hook is attached to the
rear assist strap.
Floor Mats
Your vehicle is equipped with rubber-backed front and
rear floor mats. Keep them clean by vacuuming and using a spot cleaner,
if necessary. Do not machine wash.
2-54
Page 116 of 378

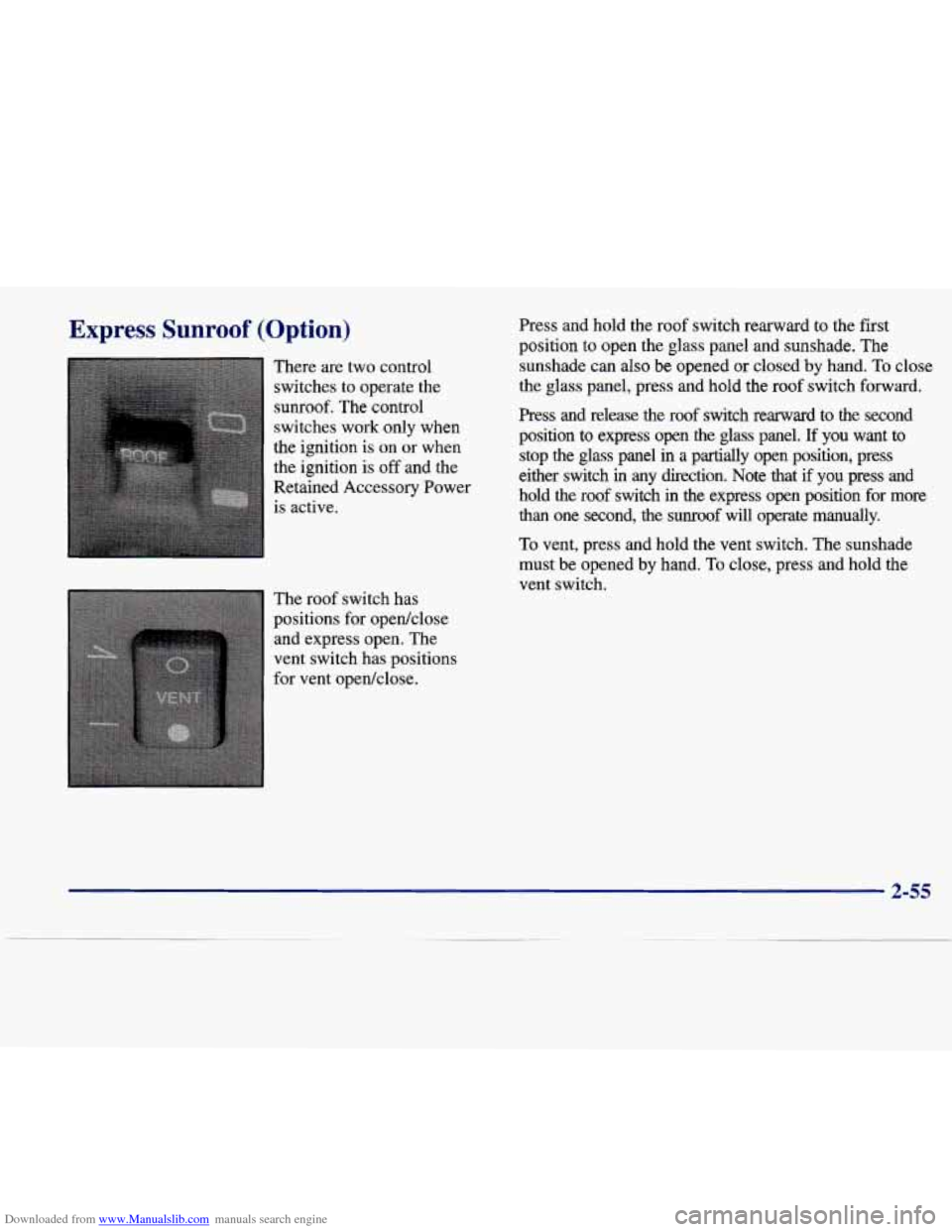

Downloaded from www.Manualslib.com manuals search engine Express Sunroof (Option)
There are two control switches to operate the
sunroof. The control
switches work only when
the ignition is on or when
the ignition is
off and the
Retained Accessory Power
is active.
The roof switch has
positions for opedclose
and express open. The
vent switch has positions
for vent opedclose. Press and hold the roof switch rearward to the
first
position to open the glass panel and sunshade. The
sunshade can also be opened or closed by hand. To close
the glass panel, press
and hold the roof switch forward.
Press and release the roof switch rearward
to the second
position to express open the glass panel.
If you want to
stop the glass panel in a partially open position, press
either switch
in any direction. Note that if you press and
hold the roof switch in the express open position for more
than one second, the
sunroof will operate manually.
To vent, press and hold the vent switch. The sunshade
must be opened by hand.
To close, press and hold the
vent switch.
2-55
Page 117 of 378

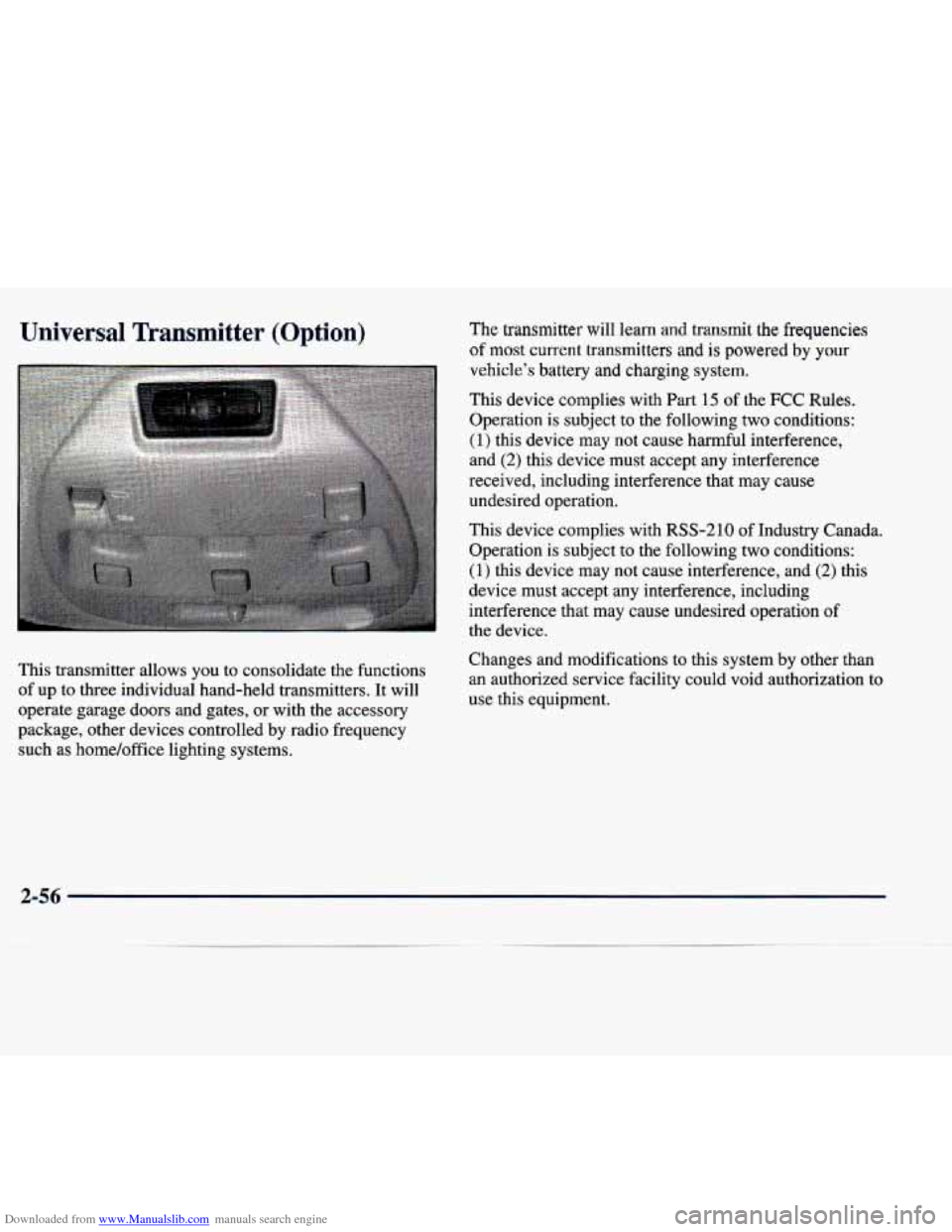

Downloaded from www.Manualslib.com manuals search engine Universal Transmitter (Option)
This transmitter allows you to consolidate the functions
of up to three individual hand-held transmitters. It will
operate garage doors and gates, or with the accessory
package, other devices controlled by radio frequency such as home/office lighting systems.
The transmitter will learn and transmit the frequencies
of most current transmitters and is powered by your
vehicle’s battery and charging system.
This device complies with
Part 15 of the FCC Rules.
Operation is subject to the following two conditions:
(1) this device may not cause harmful interference,
and
(2) this device must accept any interference
received, including interference that may cause
undesired operation.
This device complies with
RSS-210 of Industry Canada.
Operation is subject to the following two conditions:
(1) this device may not cause interference, and (2) this
device must accept any interference, including
interference that may cause undesired operation
of
the device.
Changes and modifications to this system
by other than
an authorized service facility could void authorization to
use this equipment.
2-56
Page 118 of 378

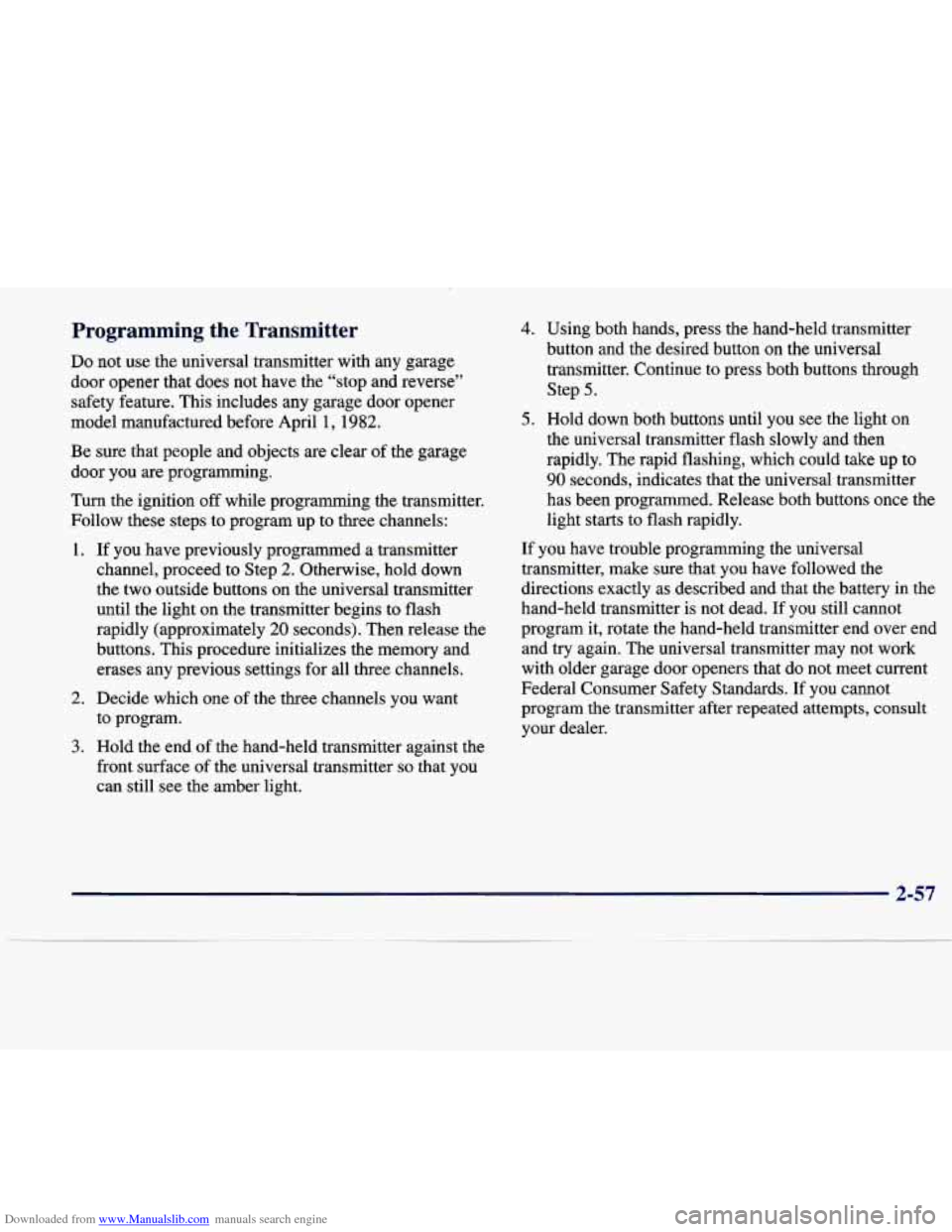

Downloaded from www.Manualslib.com manuals search engine Programming the Transmitter
Do not use the universal transmitter with any garage
door opener that does not have the “stop and reverse” safety feature. This includes any garage door opener
model manufactured before April
1, 1982.
Be sure that people and objects
are clear of the garage
door you are programming.
Turn the ignition
off while programming the transmitter.
Follow these steps to program up to three channels:
1.
2.
3.
If you have previously programmed a transmitter
channel, proceed to Step
2. Otherwise, hold down
the two outside buttons on the universal transmitter
until the light on the transmitter begins to flash
rapidly (approximately
20 seconds). Then release the
buttons. This procedure initializes the memory and erases any previous settings for all three channels.
Decide which one of the three channels you want
to program.
Hold the end of the hand-held transmitter against the
front surface of the universal transmitter
so that you
can still see the amber light.
4. Using both hands, press the hand-held transmitter
button and the desired button on the universal
transmitter. Continue to press both buttons through Step
5.
5. Hold down both buttons until you see the light on
the universal transmitter flash slowly and then
rapidly. The rapid flashing, which could take up to
90 seconds, indicates that the universal transmitter
has been programmed. Release both buttons once the
light starts to flash rapidly.
If you have trouble programming the universal
transmitter, make sure that you have followed the
directions exactly as described and that the battery in the
hand-held transmitter is not dead.
If you still cannot
program it, rotate the hand-held transmitter end over end
and
try again. The universal transmitter may not work
with older garage door openers that do not meet current
Federal Consumer Safety Standards.
If you cannot
program the transmitter after repeated attempts, consult
your dealer.
Page 119 of 378

Downloaded from www.Manualslib.com manuals search engine
Page 120 of 378

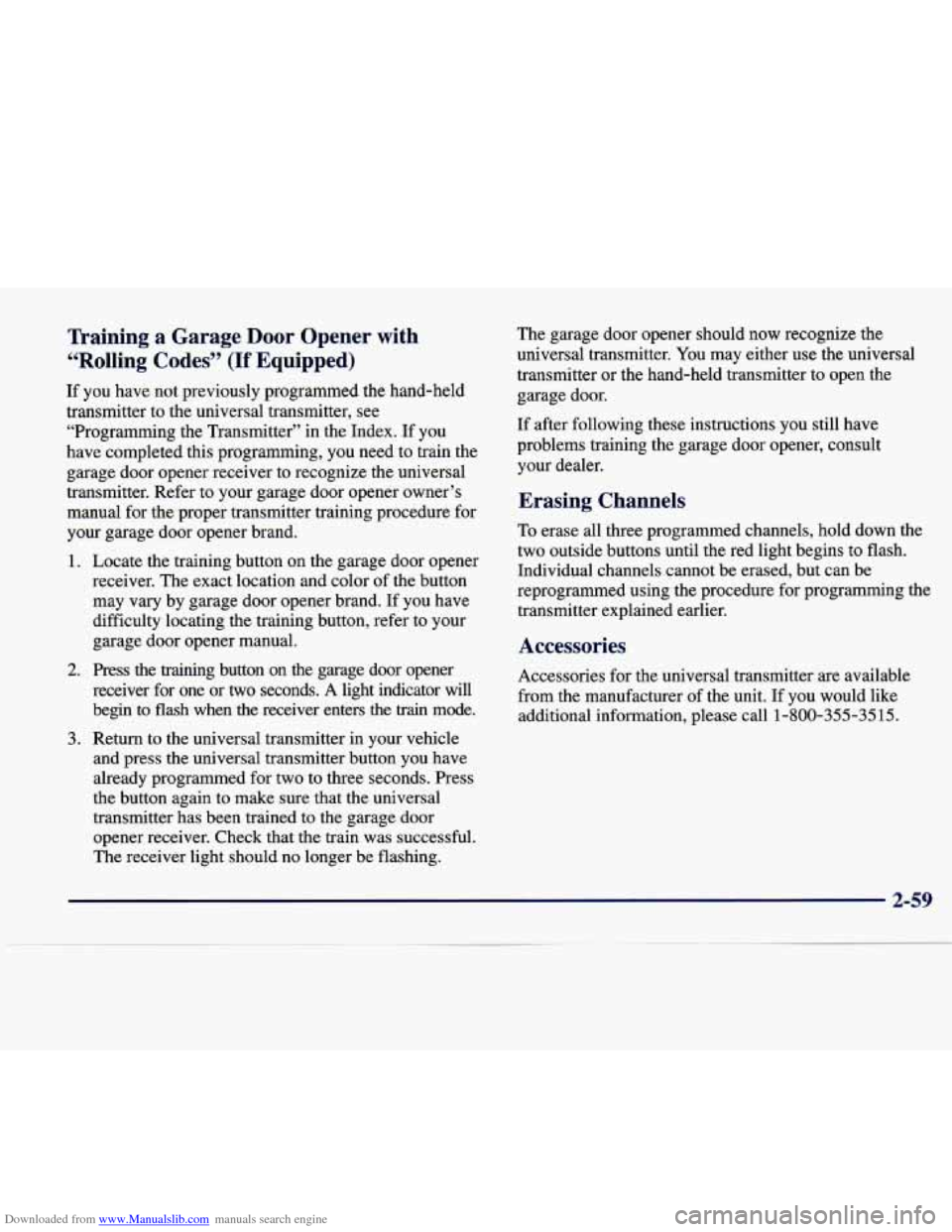

Downloaded from www.Manualslib.com manuals search engine Training a Garage Door Opener with
“Rolling Codes”
(If Equipped)
If you have not previously programmed the hand-held
transmitter to the universal transmitter, see
“Programming the Transmitter” in the Index. If you
have completed this programming,
you need to train the
garage door opener receiver to recognize the universal
transmitter. Refer to
your garage door opener owner’s
manual for the proper transmitter training procedure for
your garage door opener brand.
1.
2.
3. Locate
the training button
on the garage door opener
receiver. The exact location and color of the button
may vary by garage door opener brand. If you have difficulty locating the training button, refer to your
garage door opener manual.
Press the training button on the garage door opener
receiver for one or
two seconds. A light indicator will
begin to
flash when the receiver enters the train mode.
Return to the universal transmitter
in your vehicle
and press the universal transmitter button you have
already programmed for two to three seconds. Press
the button again to make sure that the universal
transmitter has been trained to the garage door opener receiver. Check that the train was successful.
The receiver light should no longer be flashing. The
garage door opener should now recognize the
universal transmitter.
You may either use the universal
transmitter
or the hand-held transmitter to open the
garage door.
If after following these instructions you still have
problems training the garage door opener, consult
your dealer.
Erasing Chan--
To erase all three programmed channels, hold down the
two outside buttons until the red light begins to flash.
Individual channels cannot be erased, but can be
reprogrammed using the procedure for programming the
transmitter explained earlier.
-
Accessories
Accessories for the universal transmitter are available
from the manufacturer
of the unit. If you would like
additional information, please call 1-800-355-35
15.
2-59
