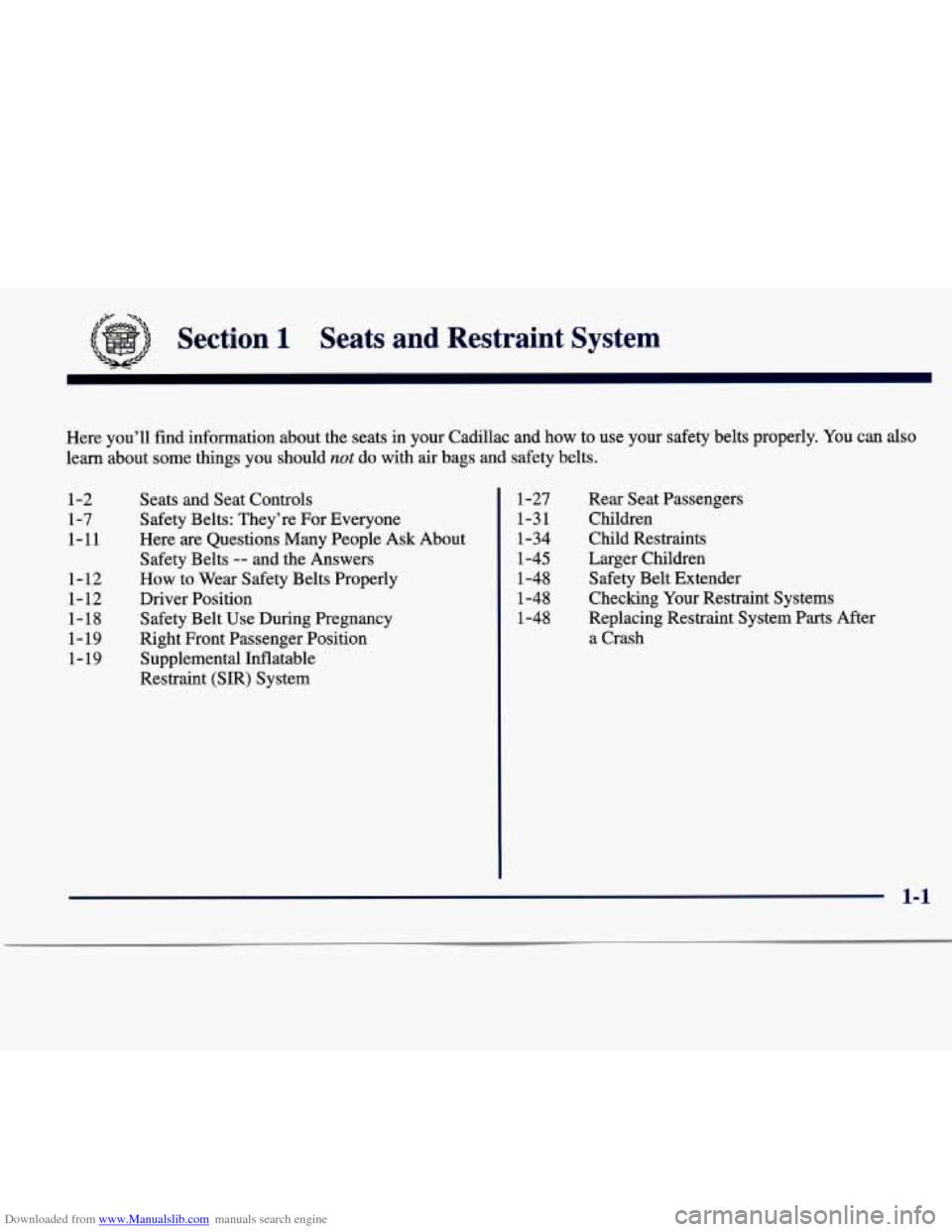

Section 1 Seats and Restraint System
Here you’ll find information about the seats in your Cadillac and how to use your safety belts properly. You can also
learn about some things you should not do with air bags and safety belts.
. -2
. -7
.-11
1-12
1-12
1-18
1-19
1-19 Seats and
Seat Controls
Safety Belts: They’re For Everyone
Here are Questions Many People
Ask About
Safety Belts
-- and the Answers
How to Wear Safety Belts Properly
Driver Position Safety Belt Use During Pregnancy
Right Front Passenger Position
Supplemental Inflatable
Restraint
(SIR) System 1-27
1-31
1-34
1-45
1-48
1-48
1-48 Rear Seat Passengers
Children
Child Restraints
Larger Children Safety Belt Extender
Checking Your Restraint Systems
Replacing Restraint System Parts After
a Crash

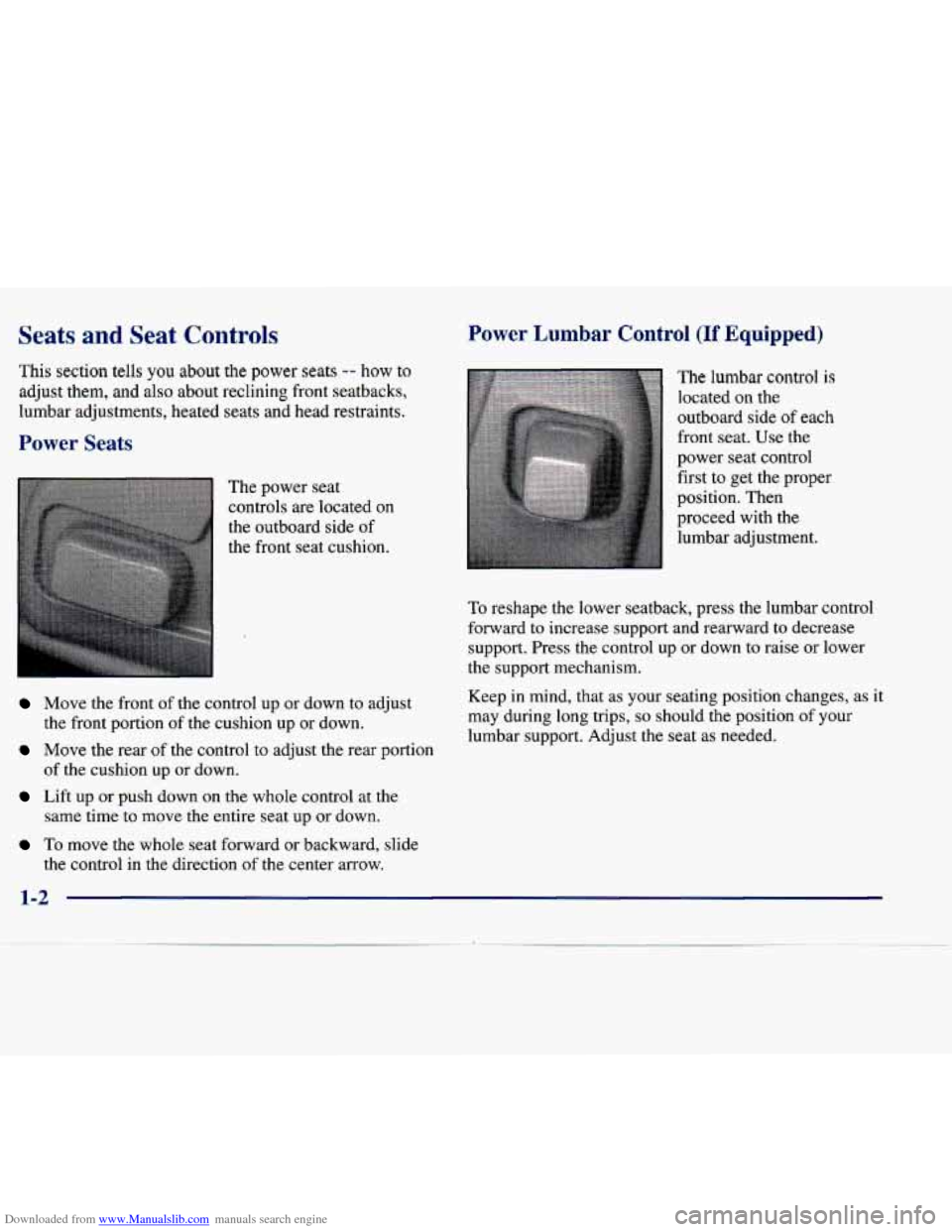

Downloaded from www.Manualslib.com manuals search engine Seats and Seat Controls
This section tells you about the power seats -- how to
adjust them, and also about reclining front seatbacks,
lumbar adjustments, heated seats and head restraints.
Power Seats
The power seat
controls are located on
the outboard side
of
the front seat cushion.
Power Lumbar Control (If Equipped)
I
The lumbar control is
located on the
outboard side
of each
front seat. Use the
power seat control first to get the proper
position. Then
proceed with the
lumbar adjustment.
To reshape the lower seatback, press the lumbar control
forward to increase support and rearward
to decrease
support. Press the control up or down to raise or lower
the support mechanism.
Move the front of the control up or down to adjust Keep in mind, that as your seating position changes, as it
the front portion of the cushion up or down. may during long trips,
so should the position of your
Move the rear of the control to adjust the rear portion
of the cushion up or down.
Lift up or push down on the whole control at the
same time to move the entire seat up or down. lumbar support. Adjust the seat
as needed.
To move the whole seat forward or backward, slide
the control in the direction
of the center arrow.

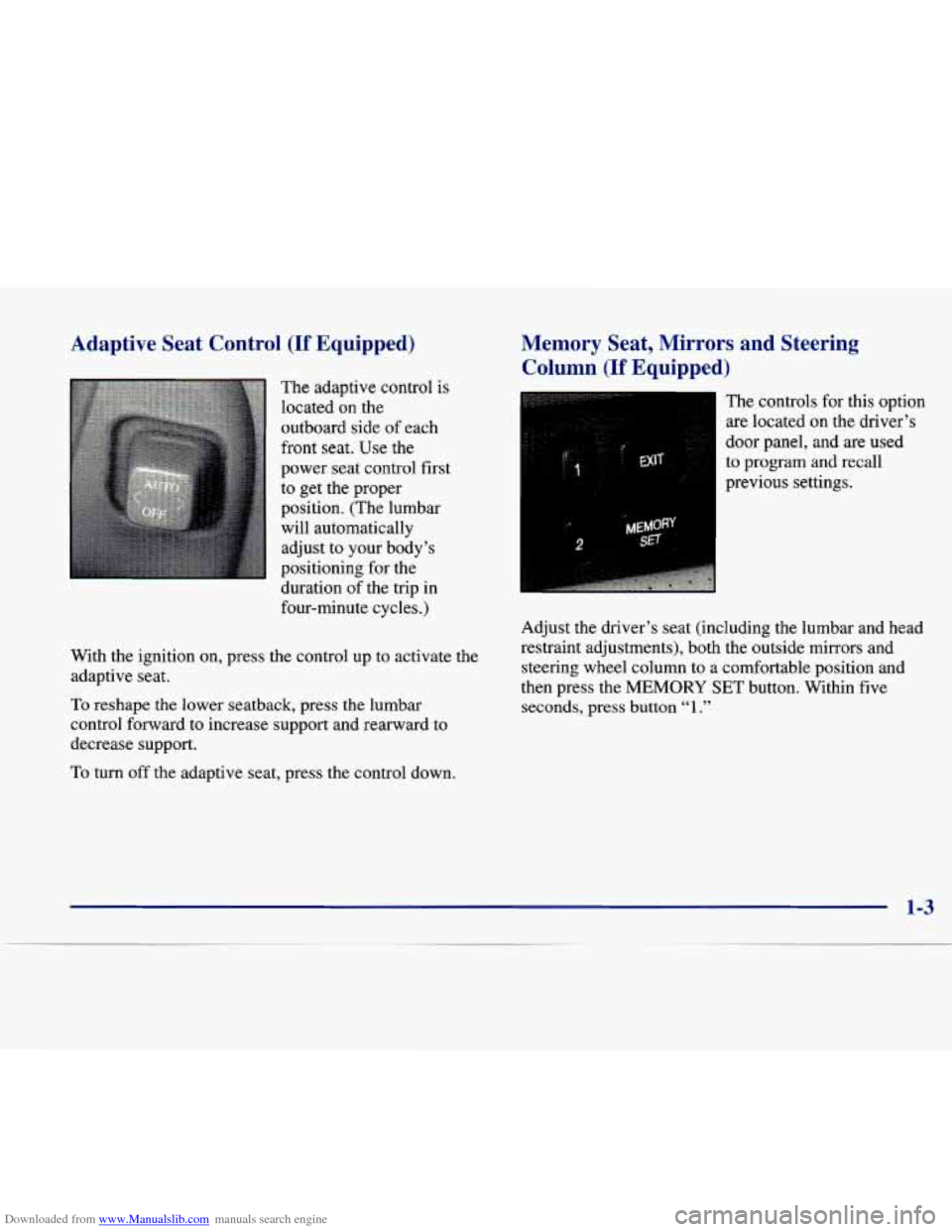

Downloaded from www.Manualslib.com manuals search engine Adaptive Seat Control (If Equipped)
The adaptive control is
located
on the
outboard side of each
front
seat. Use the
power seat control first
to get the proper
position. (The lumbar
will automatically
adjust to your body’s
positioning for the
duration of the trip in
four-minute cycles.)
With the ignition on, press the control up to activate the
adaptive seat.
To reshape the lower seatback, press the lumbar
control forward to increase support and rearward to
decrease support.
To turn off the adaptive seat, press the control down.
Memory Seat, Mirrors and Steering
Column
(If Equipped)
2 MEMOffY
SET
The controls for this option
are located
on the driver’s
door panel, and
are used
to program and recall
previous settings.
Adjust the driver’s seat (including the lumbar and head
restraint adjustments), both the outside mirrors and steering wheel column to a comfortable position and
then press the MEMORY SET button. Within five
seconds, press button “1.”

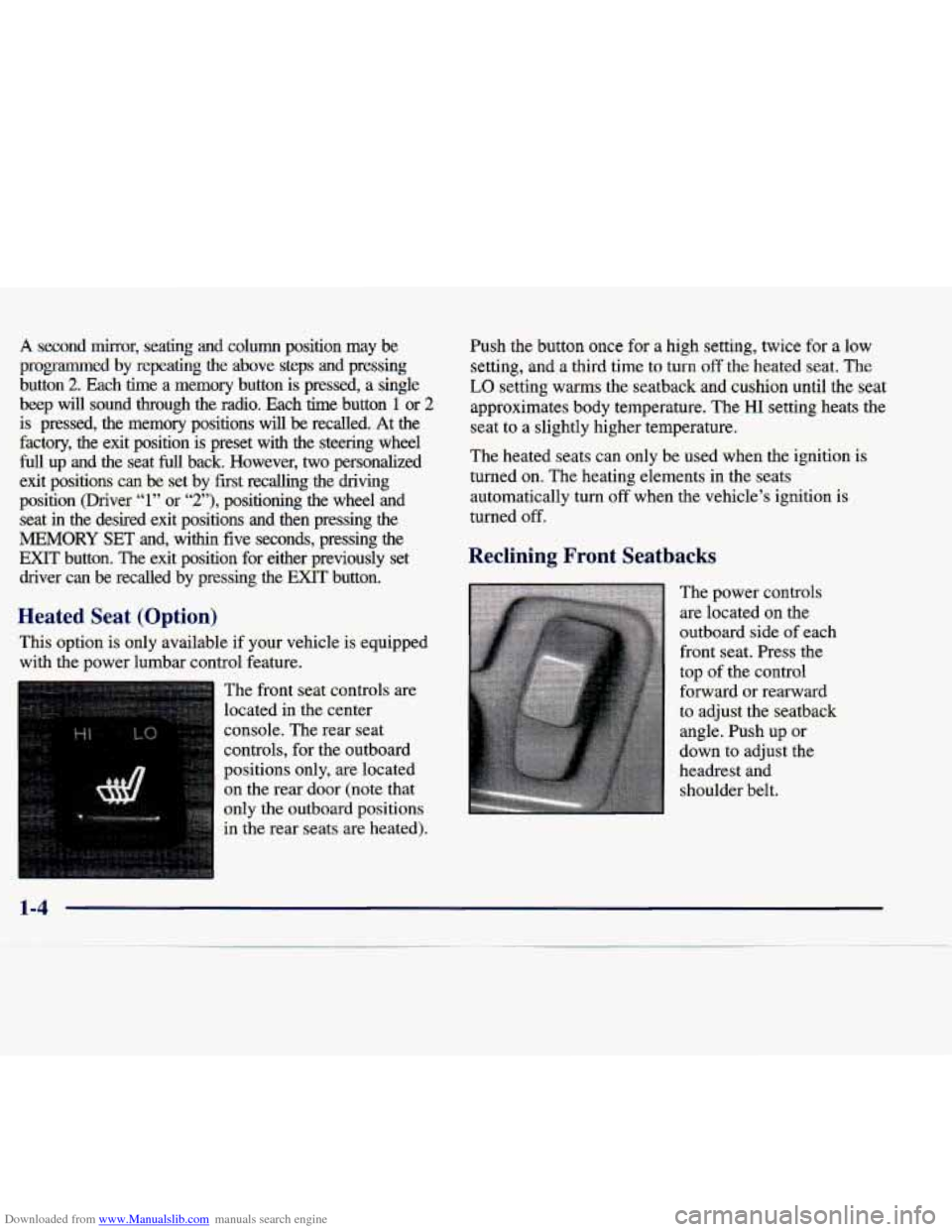

Downloaded from www.Manualslib.com manuals search engine A second &or, seating and column position may be
programmed by repeating the above steps and pressing
button
2. Each time a memory button is pressed, a single
beep will sound through the radio. Each time button
1 or 2
is pressed, the memory positions will be recalled. At the
factory, the exit position is preset with the steering wheel
full up and the seat full back. However, two personalized
exit positions can
be set by first recalling the driving
position (Driver
“1” or “2”), positioning the wheel and
seat in the desired exit positions and then pressing the
MEMORY SET and, within five seconds, pressing the
EXIT button. The exit position for either previously set
driver can
be recalled by pressing the EXIT button.
Heated Seat (Option)
This option is only available if your vehicle is equipped
with the power lumbar control feature.
The front seat controls are
located in the center
console. The rear seat
controls, for the outboard
positions only, are located on the rear door (note that
only the outboard positions
in the rear seats are heated).
Push the button once for a high setting, twice for a low
setting, and a third time to turn
off the heated seat. The
LO setting warms the seatback and cushion until the seat
approximates body temperature. The
HI setting heats the
seat to a slightly higher temperature.
The heated seats can only be used when the ignition is
turned on. The heating elements in the seats
automatically
turn off when the vehicle’s ignition is
turned off.
Reclining Front Seatbacks
The power controls
are located on the
outboard side
of each
front seat. Press the
top of the control
forward or rearward
to adjust the seatback
angle. Push up or
down to adjust the
headrest and shoulder belt.

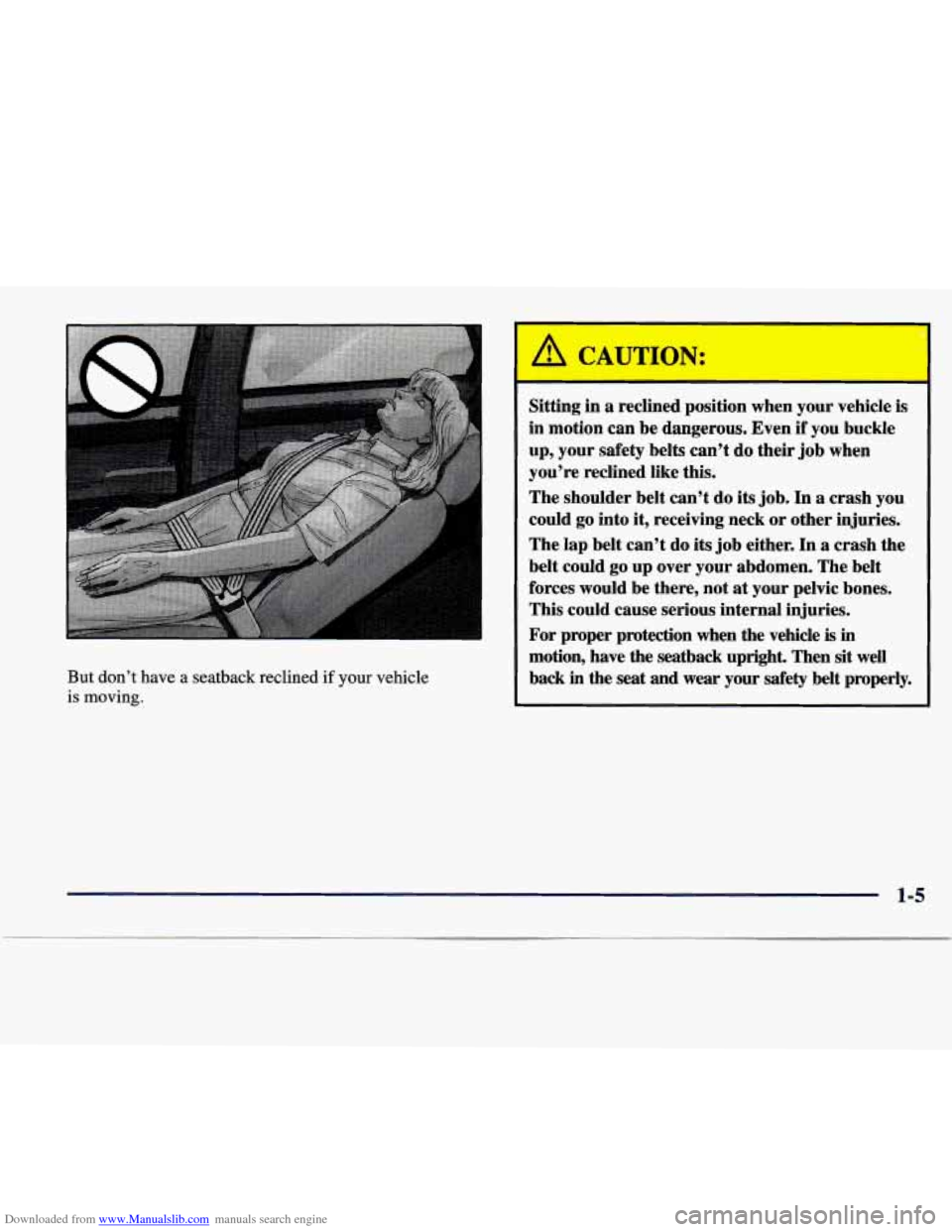

Downloaded from www.Manualslib.com manuals search engine But don’t have a seatback reclined if your vehicle
is moving.
Sitting in a reclined position when your vehicle is
in motion can be dangerous. Even
if you buckle
up, your safety belts can’t do their
job when
you’re reclined like this.
The shoulder belt can’t
do its job. In a crash you
could go into it, receiving neck or other injuries.
The lap belt can’t do its job either. In a crash the
belt could go up over your abdomen. The belt
forces would be there, not at your pelvic bones.
This could cause serious internal injuries.
For proper protection when the vehicle
is in
motion, have the seatback upright. Then sit well
back in the seat and wear your safety belt properly.
1-5

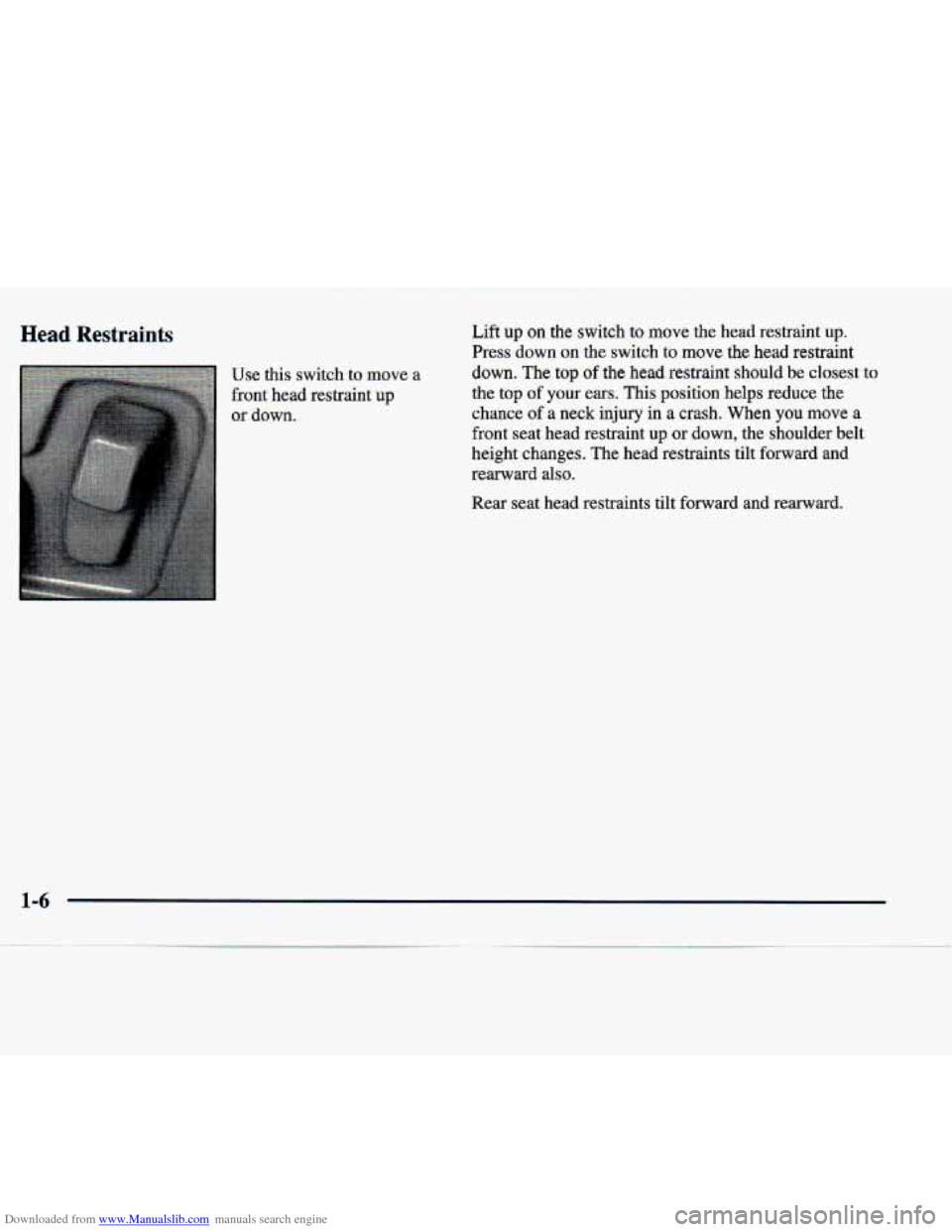

Downloaded from www.Manualslib.com manuals search engine Head Restraints
Use this switch to move a
front head restraint up
or down. Lift
up on the switch to move the head restraint up.
Press down on the switch to move the head restraint
down. The top of the head restraint should be closest to
the top of your ears. This position helps reduce the
chance
of a neck injury in a crash. When you move a
front seat head restraint up or down, the shoulder belt
height changes. The head restraints tilt forward and
rearward also.
Rear seat head restraints tilt forward and rearward.
1-6

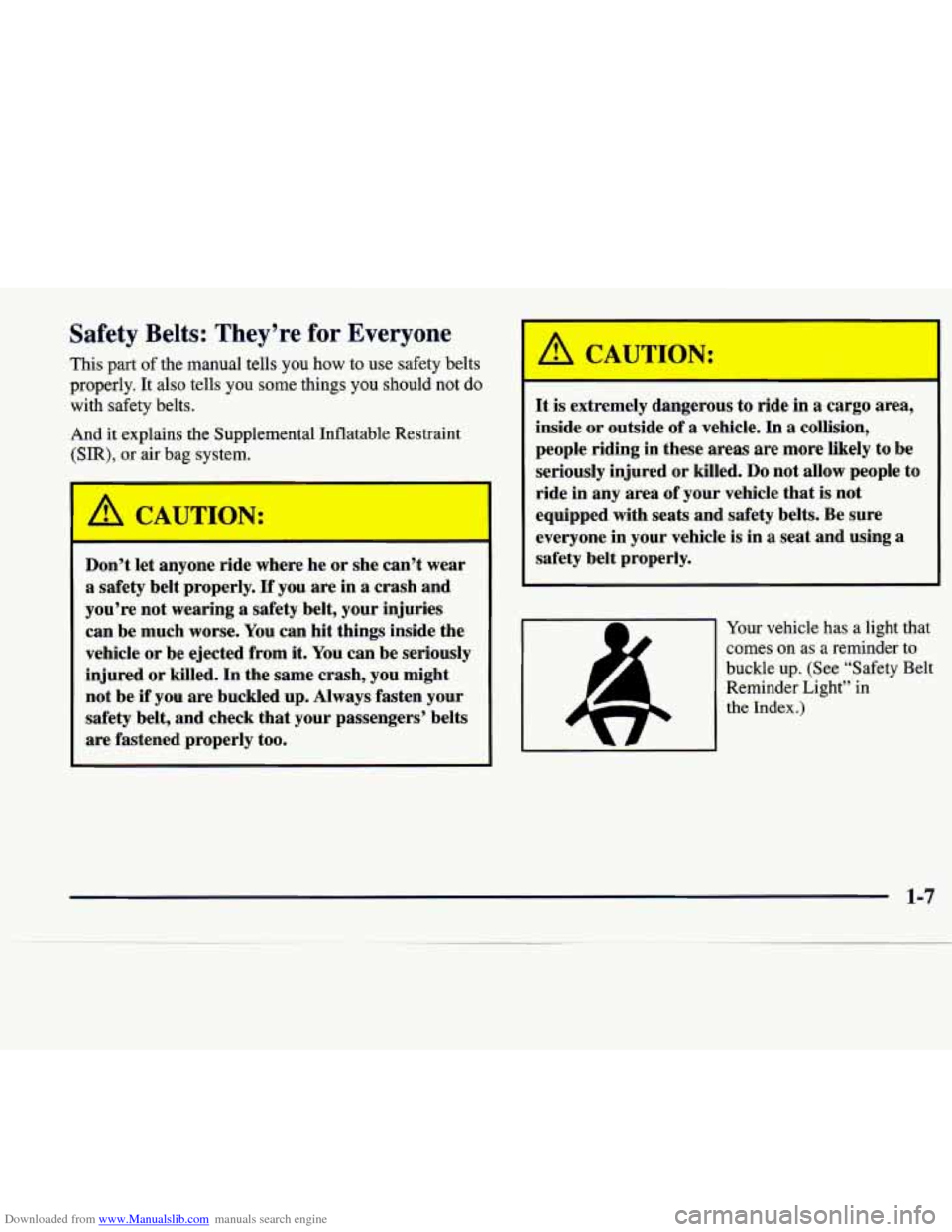

Downloaded from www.Manualslib.com manuals search engine Safety Belts: They’re for Everyone
This part of the manual tells you how to use safety belts
properly. It also tells you some things
you should not do
with safety belts.
And it explains the Supplemental Inflatable Restraint
(SIR), or
air bag system.
Don’t
let anyone ride where he or she can’t wear
a safety belt properly. If you are in a crash and
you’re not wearing
a safety belt, your injuries
can be much worse. You can hit things inside the
vehicle or be ejected from it. You can be seriously
injured or killed. In the same crash, you might
not be if you are buckled up. Always fasten your
safety belt, and check
that your passengers’ belts
are fastened properly too.
~~
L
It is extremely dangerous to ride in a cargo area,
inside
or outside of a vehicle. In a collision,
people riding in these areas are more likely
to be
seriously injured or killed. Do not allow people to
ride in any area of your vehicle that is not
equipped with seats and safety belts. Be sure
everyone in your vehicle is in
a seat and using a
safety belt properly.
Your vehicle has a light that
comes
on as a reminder to
buckle
up. (See “Safety Belt
Reminder Light”
in
, the Index.)
1-7

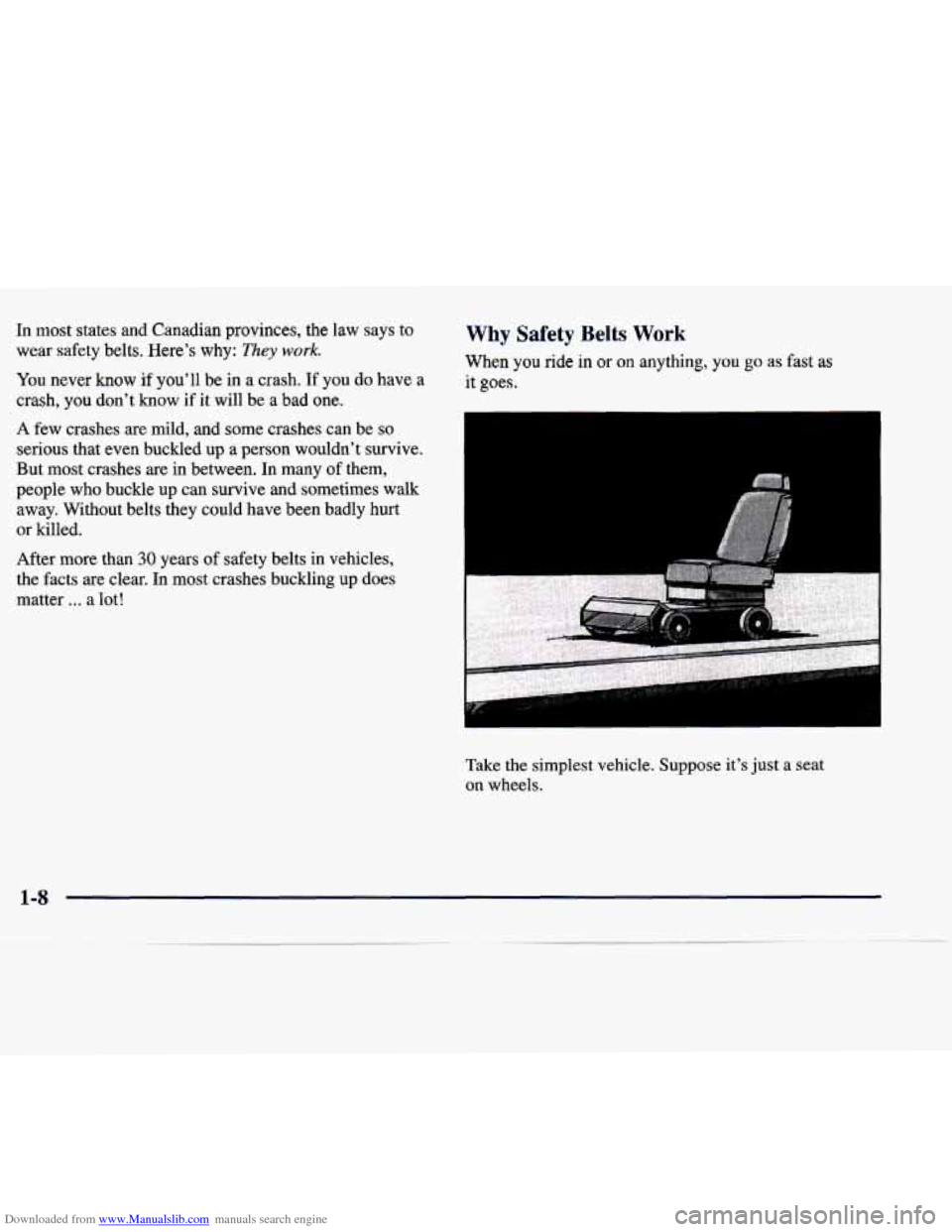

Downloaded from www.Manualslib.com manuals search engine In most states and Canadian provinces, the law says to
wear safety belts. Here’s why:
They work.
You never know if you’ll be in a crash. If you do have a
crash, you don’t
know if it will be a bad one.
A few crashes
are mild, and some crashes can be so
serious that even buckled up a person wouldn’t survive.
But most crashes are in between. In many of them,
people who buckle up can survive and sometimes walk
away. Without belts they could have been badly
hurt
or killed.
After more than
30 years of safety belts in vehicles,
the facts are clear. In most crashes buckling up does
matter
. .. a lot!
Why Safety Belts Work
When you ride in or on anything, you go as fast as
it goes.
Take the simplest vehicle. Suppose it’s just
a seat
on wheels.
1-8

Downloaded from www.Manualslib.com manuals search engine I

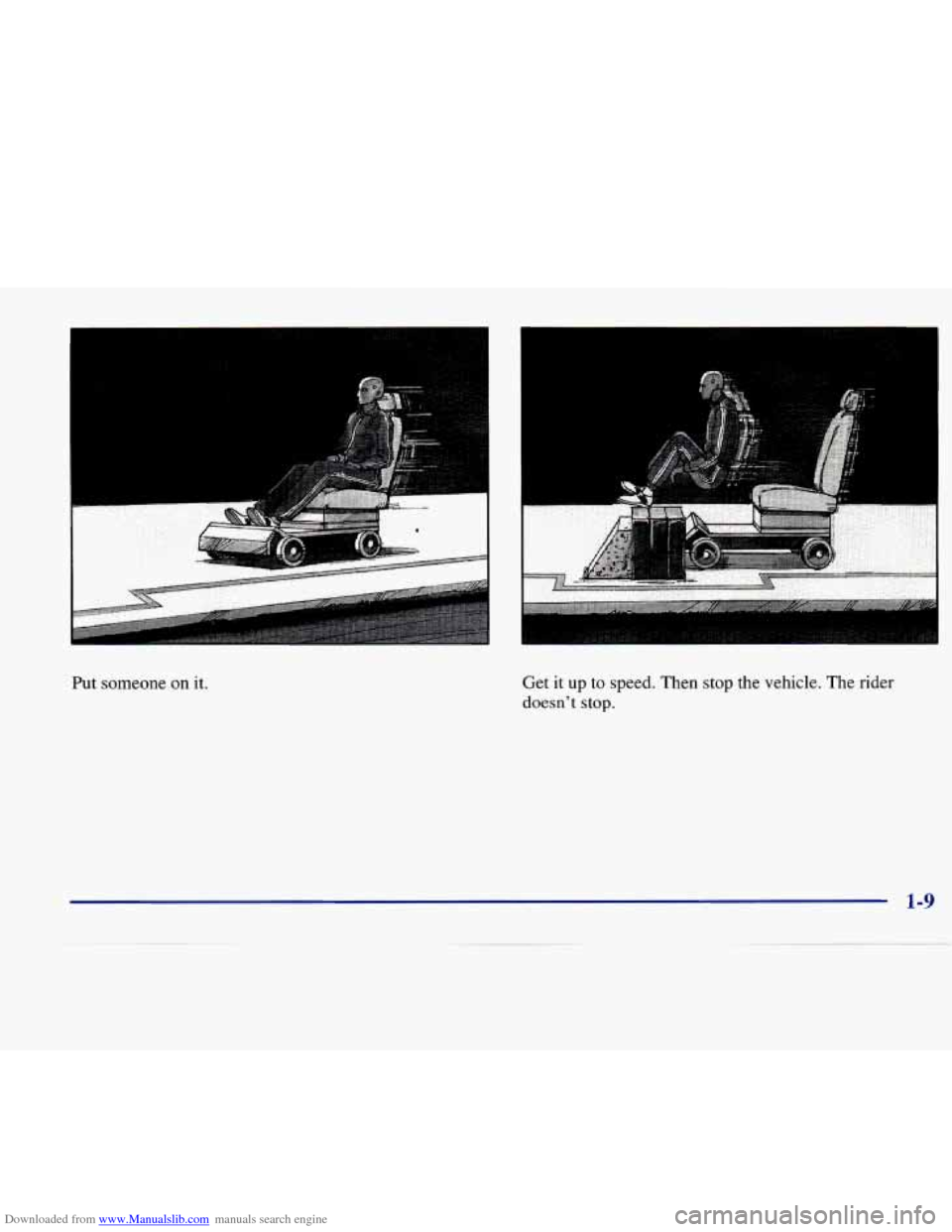

Put someone on it. Get it up
to speed. Then stop the vehicle. The rider
doesn't stop.
