CADILLAC SEVILLE 1999 5.G Workshop Manual

yellowblue
1-45

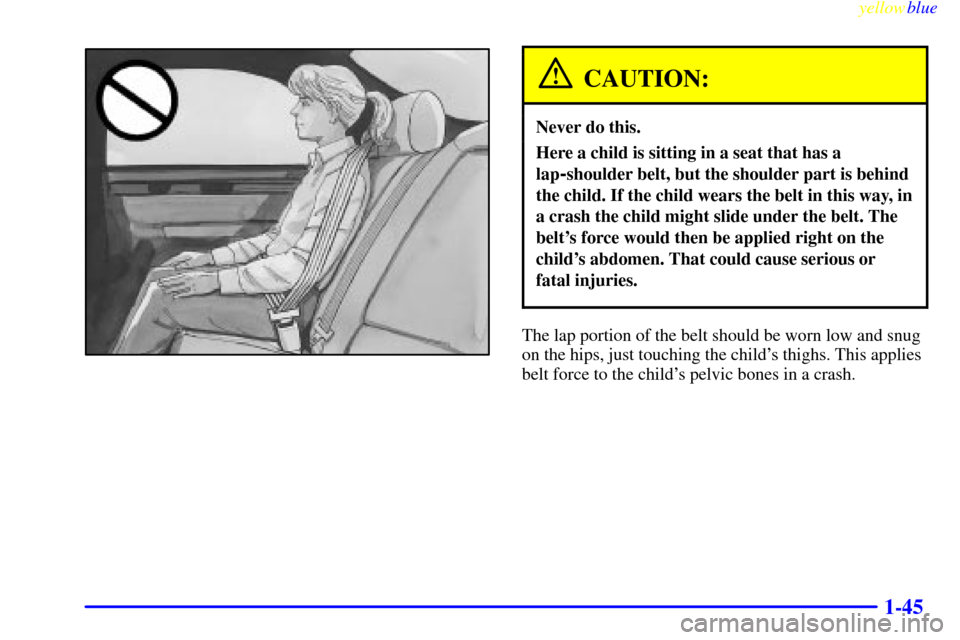

CAUTION:
Never do this.
Here a child is sitting in a seat that has a
lap
-shoulder belt, but the shoulder part is behind
the child. If the child wears the belt in this way, in
a crash the child might slide under the belt. The
belt's force would then be applied right on the
child's abdomen. That could cause serious or
fatal injuries.
The lap portion of the belt should be worn low and snug
on the hips, just touching the child's thighs. This applies
belt force to the child's pelvic bones in a crash.

yellowblue
1-46
Safety Belt Extender
If the vehicle's safety belt will fasten around you, you
should use it.
But if a safety belt isn't long enough to fasten, your
dealer will order you an extender. It's free. When you go
in to order it, take the heaviest coat you will wear, so the
extender will be long enough for you. The extender will
be just for you, and just for the seat in your vehicle that
you choose. Don't let someone else use it, and use it
only for the seat it is made to fit. To wear it, just attach it
to the regular safety belt.
Checking Your Restraint Systems
Now and then, make sure the safety belt reminder light
and all your belts, buckles, latch plates, retractors and
anchorages are working properly. Look for any other
loose or damaged safety belt system parts. If you see
anything that might keep a safety belt system from
doing its job, have it repaired.
Torn or frayed safety belts may not protect you in a
crash. They can rip apart under impact forces. If a belt is
torn or frayed, get a new one right away.
Also look for any opened or broken air bag covers, and
have them repaired or replaced. (The air bag system
does not need regular maintenance.)
Replacing Restraint System Parts
After a Crash
If you've had a crash, do you need new belts?
After a very minor collision, nothing may be necessary.
But if the belts were stretched, as they would be if worn
during a more severe crash, then you need new belts.
If belts are cut or damaged, replace them. Collision
damage also may mean you will need to have safety belt
or seat parts repaired or replaced. New parts and repairs
may be necessary even if the belt wasn't being used at
the time of the collision.
If an air bag inflates, you'll need to replace air bag
system parts. See the part on the air bag system earlier in
this section.
If the frontal air bags inflate, you'll also need to replace
the driver's and right front passenger's safety belt
buckle assembly. Be sure to do so. Then the new buckle
assembly will be there to help protect you in a collision.

2-
yellowblue
2-1
Section 2 Features and Controls
Here you can learn about the many standard and optional features on your vehicle, and information on starting,
shifting and braking. Also explained are the instrument panel and the warning systems that tell you if everything is
working properly
-- and what to do if you have a problem.
2
-2 Keys
2
-4 Door Locks
2
-7 Remote Keyless Entry (RKE) System
2
-11 Trunk
2
-15 Theft
2
-15 Theft-Deterrent System
2
-17 PASS-Key
III
2
-19 New Vehicle ªBreak-Inº
2
-19 Ignition Positions
2
-21 Starting Your Engine
2
-22 Engine Coolant Heater (If Equipped)
2
-24 Automatic Transaxle Operation
2
-27 Parking Brake
2
-29 Shifting Into PARK (P)
2
-31 Shifting Out of PARK (P)
2
-32 Parking Over Things That Burn2
-32 Engine Exhaust
2
-33 Running Your Engine While You're Parked
2
-34 Windows
2
-35 Tilt Wheel
2
-36 Turn Signal/Multifunction Lever
2
-43 Exterior Lamps
2
-47 Interior Lamps
2
-49 Mirrors
2
-53 Storage Compartments
2
-56 Sun Visors
2
-57 Sunroof (Option)
2
-58 Universal Transmitter (Option)
2
-62 The Instrument Panel -- Your
Information System
2
-67 Warning Lights, Gages and Indicators
2
-78 Driver Information Center (DIC)

yellowblue
2-2

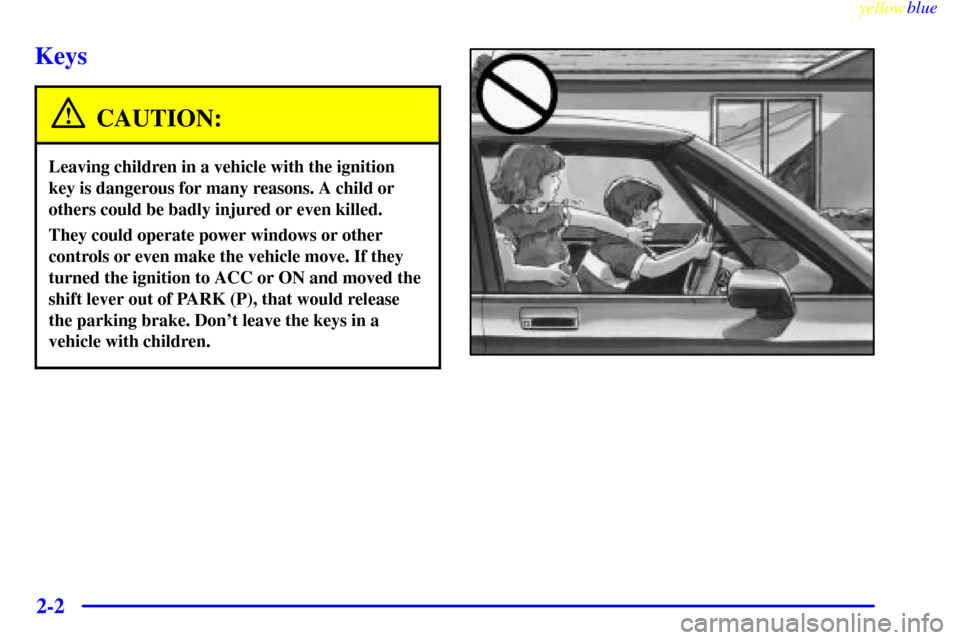

Keys
CAUTION:
Leaving children in a vehicle with the ignition
key is dangerous for many reasons. A child or
others could be badly injured or even killed.
They could operate power windows or other
controls or even make the vehicle move. If they
turned the ignition to ACC or ON and moved the
shift lever out of PARK (P), that would release
the parking brake. Don't leave the keys in a
vehicle with children.

yellowblue
2-3
Master Key Valet Key
There is a master key that works in all of the lock
cylinders (driver's door, trunk, ignition and glove box).
There is also a valet key which only operates the
driver's door and the ignition.Both the master and valet keys have a transponder
embedded into the key for security and theft deterrence.
The keys also come with a bar code tag. Keep the bar
code tag in a safe place. If you lose your key you will be
able to have a new one made using the bar code tag.
The replacement key must have a transponder embedded
in it.
NOTICE:
Your vehicle has a number of new features that
can help prevent theft. You can have a lot of
trouble getting into your vehicle if you ever lock
your key inside and you may have to damage
your vehicle to get in. Be sure you have an
extra key.

yellowblue
2-4

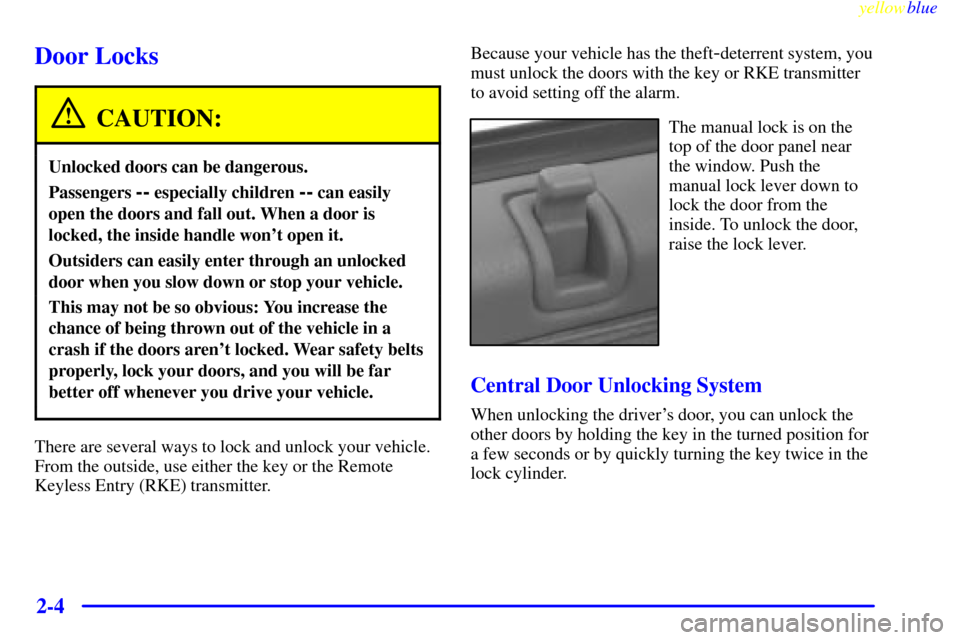

Door Locks
CAUTION:
Unlocked doors can be dangerous.
Passengers -- especially children -- can easily
open the doors and fall out. When a door is
locked, the inside handle won't open it.
Outsiders can easily enter through an unlocked
door when you slow down or stop your vehicle.
This may not be so obvious: You increase the
chance of being thrown out of the vehicle in a
crash if the doors aren't locked. Wear safety belts
properly, lock your doors, and you will be far
better off whenever you drive your vehicle.
There are several ways to lock and unlock your vehicle.
From the outside, use either the key or the Remote
Keyless Entry (RKE) transmitter.Because your vehicle has the theft
-deterrent system, you
must unlock the doors with the key or RKE transmitter
to avoid setting off the alarm.
The manual lock is on the
top of the door panel near
the window. Push the
manual lock lever down to
lock the door from the
inside. To unlock the door,
raise the lock lever.
Central Door Unlocking System
When unlocking the driver's door, you can unlock the
other doors by holding the key in the turned position for
a few seconds or by quickly turning the key twice in the
lock cylinder.

yellowblue
2-5 Power Door Locks
Press the top of the power
door lock switch to unlock
all of the doors at once.
Press the down arrow to
lock the doors.
The rear power door lock switches only provide a lock
function as a safety feature. They will not unlock
the doors.
Automatic Door Locks
Close your doors and turn on the ignition. Every time
you move the shift lever out of PARK (P), all of the
doors will lock. The doors will unlock every time you
stop the vehicle and move the shift lever back into
PARK (P). If someone needs to get out while your
vehicle is not in PARK (P), have that person use the
manual or power door locks. When the door is closed
again, it will not lock automatically. Use the manual or
power door locks to lock the door again. If you need to
lock the doors before shifting out of PARK (P), use the
manual or power door locks.
Programmable Automatic Door Locks
With the vehicle in PARK (P) and the ignition in ON,
the door locks can be programmed through prompts
displayed by the Driver Information Center (DIC).
These prompts allow the driver to choose various lock
and unlock settings. For programming information, see
ªMemory and Personalization Featuresº in the Index.

yellowblue
2-6 Rear Door Security Lock
Your vehicle is equipped
with rear door security
locks that help prevent
passengers from opening
the rear doors of your
vehicle from the inside.
To Use One of These Locks
1. Move the lever on the door all the way up to the
ENGAGED position.
2. Close the door.
3. Do the same thing to the other rear door lock.
The rear doors of your vehicle cannot be opened from
the inside when this feature is in use.
To Open a Rear Door with the Security Lock
1. You may unlock the door by using the remote
keyless entry transmitter, the front door power lock
switch or by lifting the rear door lock knob.
2. Then open the door from the outside.To Cancel the Rear Door Lock
1. You may unlock the door by using the remote
keyless entry transmitter, the front door power lock
switch or by lifting the rear door manual lock. Open
the door from the outside.
2. Move the lever all the way down.
3. Do the same for the other rear door.
The rear door locks will now work normally.
Anti-Lockout Feature
Leaving your key in any ignition position with any door
open will disable the use of the power door locks and
the Remote Keyless Entry (RKE) lock function. If you
close the doors, you can lock them using the power door
locks or the (RKE) system. It is always recommended
that you remove the ignition key when locking
your vehicle.
The anti
-lockout feature can be overridden by holding
the power door lock switch for three seconds or longer.
Leaving Your Vehicle
If you are leaving the vehicle, open the door, set the
locks from the inside, get out and close the door.

yellowblue
2-7
Remote Keyless Entry (RKE) System
With this feature, you can
lock and unlock the doors,
unlock the trunk, open the
fuel door and turn on your
vehicle's interior lamps
from about 10 feet (3 m) up
to 30 feet (9 m) away using
the RKE transmitter
supplied with your vehicle.
Your remote keyless entry (RKE) system is intended to
be used as an added vehicle entry device. It is not
intended to replace a door key. It operates on a radio
frequency subject to Federal Communications
Commission (FCC) Rules and with Industry Canada.
This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received,
including interference that may cause
undesired operation.This device complies with RSS
-210 of Industry Canada.
Operation is subject to the following two conditions:
(1) this device may not cause interference, and (2) this
device must accept any interference received, including
interference that may cause undesired operation of
the device.
Changes or modifications to this system by other than an
authorized service facility could void authorization to
use this equipment.
The range of this system is from about 10 feet (3 m) up
to 30 feet (9 m). At times you may notice a decrease in
range. This is normal for any RKE system. If the
transmitter does not work or if you have to stand closer
to your vehicle for the transmitter to work, try this:

Check to determine if battery replacement is
necessary. See the instructions that follow.

Check the distance. You may be too far from your
vehicle. You may need to stand closer during rainy
or snowy weather.

Check the location. Other vehicles or objects may be
blocking the signal. Take a few steps to the left or
right, hold the transmitter higher, and try again.

If you're still having trouble, see your dealer or a
qualified technician for service.

yellowblue
2-8 Operation
When you press this button to unlock the driver's
door, the parking lamps on your vehicle will flash twice.
(You can program your vehicle so the parking lamps
will not flash. For more information, see ªRemote
Confirmationº in the Index.) Pressing this button again
within one to five seconds will unlock the other doors.
Pressing this button will also disarm the theft
-deterrent
system and turn on the interior lamps at night.
When you press this button to lock the doors, the
parking lamps will flash once and the horn will sound
once. (You can program your vehicle so the parking
lamps will not flash and/or the horn will not sound. For
more information, see ªRemote Confirmationº in the
Index.) This also arms the theft
-deterrent system when
the ignition is turned off.
Press this button to open the trunk. (The valet lock
switch must be in the OFF position.)
Press this button to open the fuel door. (The valet
lock switch must be in the OFF position.)
The numbers on the back of the RKE transmitter
correspond to Driver 1 and Driver 2. See ªMemory Seat
and Personalizationº in the Index. Remote confirmation
is not operational if any door is open.
The RKE transmitter can also be used to recall the
memory seats for up to two drivers. For more
information, see ªMemory Seat and Mirrorsº in
the Index.
Matching Transmitter(s) To Your Vehicle
Each remote keyless entry transmitter is coded to
prevent another transmitter from unlocking your vehicle.
If a transmitter is lost or stolen, a replacement can be
purchased through your dealer. Once your dealer has
coded the new transmitter, the lost transmitter will not
unlock your vehicle. Each vehicle can have only up to
four transmitters matched to it.
All transmitters must be present when replacement or
additional transmitters are being programmed.
