CADILLAC SEVILLE 2000 5.G Repair Manual

2-
2-1
Section 2 Features and Controls
Here you can learn about the many standard and optional features on your vehicle, and information on starting,
shifting and braking. Also explained are the instrument panel and the warning systems that tell you if everything is
working properly
-- and what to do if you have a problem.
2
-2 Keys
2
-4 Door Locks
2
-7 Remote Keyless Entry (RKE) System
2
-10 Trunk
2
-13 Theft
2
-14 Theft-Deterrent System
2
-16 PASS-Key
III
2
-18 New Vehicle ªBreak-Inº
2
-18 Ignition Positions
2
-19 Starting Your Engine
2
-21 Engine Coolant Heater (If Equipped)
2
-22 Automatic Transaxle Operation
2
-26 Parking Brake
2
-27 Shifting Into PARK (P)
2
-29 Shifting Out of PARK (P)
2
-30 Ultrasonic Rear Parking Assist
(URPA) (Option)
2
-31 Parking Over Things That Burn2
-32 Engine Exhaust
2
-32 Running Your Engine While You're Parked
2
-33 Windows
2
-34 Tilt Wheel
2
-36 Turn Signal/Multifunction Lever
2
-43 Exterior Lamps
2
-48 Interior Lamps
2
-50 Mirrors
2
-54 Storage Compartments
2
-57 Sun Visors
2
-59 Sunroof (Option)
2
-60 HomeLink
Transmitter (Option)
2
-64 The Instrument Panel -- Your
Information System
2
-69 Warning Lights, Gages and Indicators
2
-79 Driver Information Center (DIC)
2
-94 Navigation (Option)

2-2

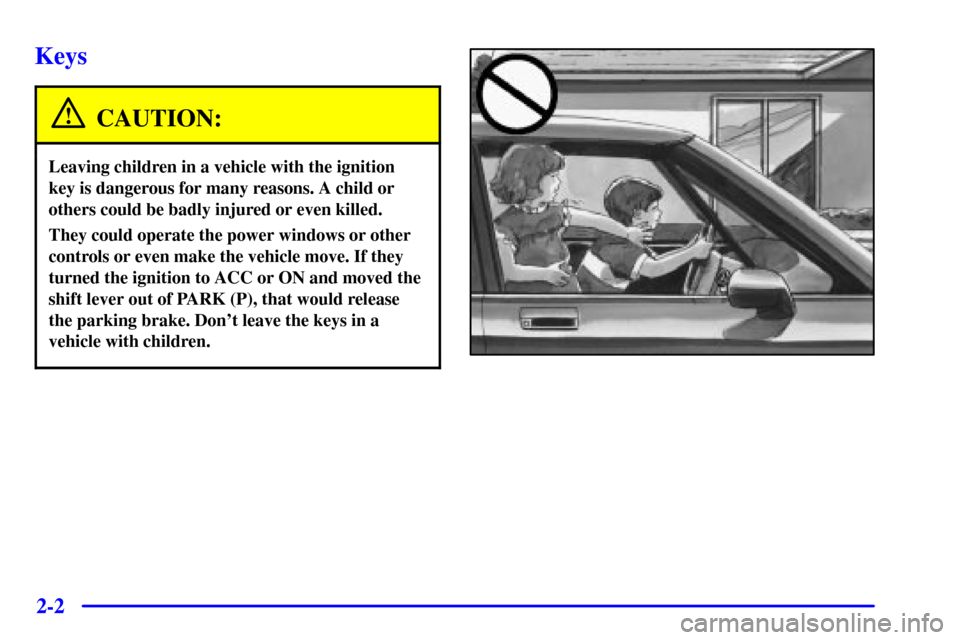

Keys
CAUTION:
Leaving children in a vehicle with the ignition
key is dangerous for many reasons. A child or
others could be badly injured or even killed.
They could operate the power windows or other
controls or even make the vehicle move. If they
turned the ignition to ACC or ON and moved the
shift lever out of PARK (P), that would release
the parking brake. Don't leave the keys in a
vehicle with children.

2-3
Master Key Valet Key
There is a master key that works in all of the lock
cylinders (driver's door, trunk, ignition and glove box).
There is also a valet key which only operates the
driver's door and the ignition.Both the master and valet keys have a transponder
embedded into the key for security and theft deterrence.
The keys also come with a bar code tag. Keep the bar
code tag in a safe place. If you lose your key you will be
able to have a new one made using the bar code tag. The
replacement key must have a transponder embedded in it.
NOTICE:
Your vehicle has a number of new features that
can help prevent theft. You can have a lot of
trouble getting into your vehicle if you ever lock
your key inside and you may have to damage your
vehicle to get in. Be sure you have an extra key.

2-4

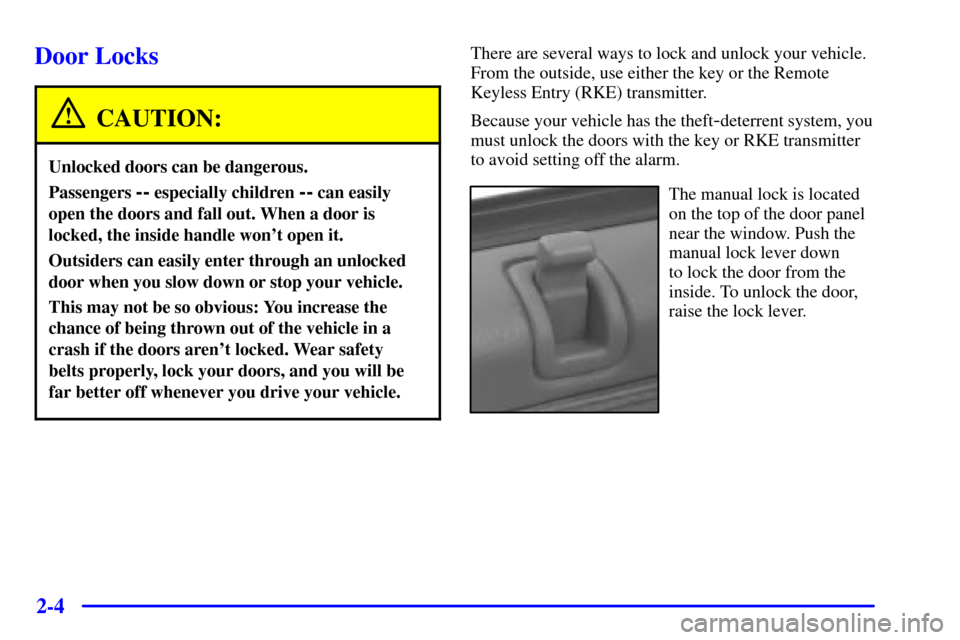

Door Locks
CAUTION:
Unlocked doors can be dangerous.
Passengers -- especially children -- can easily
open the doors and fall out. When a door is
locked, the inside handle won't open it.
Outsiders can easily enter through an unlocked
door when you slow down or stop your vehicle.
This may not be so obvious: You increase the
chance of being thrown out of the vehicle in a
crash if the doors aren't locked. Wear safety
belts properly, lock your doors, and you will be
far better off whenever you drive your vehicle.
There are several ways to lock and unlock your vehicle.
From the outside, use either the key or the Remote
Keyless Entry (RKE) transmitter.
Because your vehicle has the theft
-deterrent system, you
must unlock the doors with the key or RKE transmitter
to avoid setting off the alarm.
The manual lock is located
on the top of the door panel
near the window. Push the
manual lock lever down
to lock the door from the
inside. To unlock the door,
raise the lock lever.

2-5 Central Door Unlocking System
When unlocking the driver's door, you can unlock the
other doors by holding the key in the turned position for
a few seconds or by quickly turning the key twice in the
lock cylinder.
Power Door Locks
The power door lock switch
is located on each front
door. Press the top of the
switch to unlock all of the
doors at once. Press the
down arrow (LOCK V) to
lock the doors.
The rear power door lock switches only provide a lock
function as a safety feature. They will not unlock
the doors.
Automatic Door Locks
Close your doors and turn on the ignition. If all of the
doors are closed, every time you move the shift lever out
of PARK (P), all of the doors will lock. The doors will
unlock every time you stop the vehicle and move the
shift lever back into PARK (P). If someone needs to
get out while your vehicle is not in PARK (P), have that
person use the manual or power door locks. When the
door is closed again, it will not lock automatically. Use
the manual or power door locks to lock the door again.
If you need to lock the doors before shifting out of
PARK (P), use the manual or power door locks.
Programmable Automatic Door Locks
With the vehicle in PARK (P) and the ignition in ON,
the door locks can be programmed through prompts
displayed by the Driver Information Center (DIC).
These prompts allow the driver to choose various lock
and unlock settings. For programming information, see
ªVehicle Programming and Personalization Featuresº
in the Index.

2-6 Rear Door Security Lock
Your vehicle is equipped
with rear door security
locks that help prevent
passengers from opening
the rear doors of your
vehicle from the inside.
The locks are located on
the inside edge of each
rear door.
To Use One of These Locks
1. Move the lever on the door all the way up to the
ENGAGED position.
2. Close the door.
3. Do the same thing to the other rear door lock.
The rear doors of your vehicle cannot be opened from
the inside when this feature is in use.
To Open a Rear Door with the Security Lock
1. You may unlock the door by using the Remote Keyless
Entry (RKE) transmitter, the front door power lock
switch or by lifting the rear door manual lock.
2. Then open the door from the outside.To Cancel the Rear Door Lock
1. You may unlock the rear door by using the RKE
transmitter, the front door power lock switch or by
lifting the rear door manual lock. Open the door
from the outside.
2. Move the lever all the way down.
3. Do the same for the other rear door.
The rear door locks will now work normally.
Anti-Lockout Feature
Leaving your key in any ignition position with any door
open will disable the use of the power door locks and
the Remote Keyless Entry (RKE) lock function. If you
close the doors, you can lock them using the power door
locks or the RKE system. It is always recommended that
you remove the ignition key when locking your vehicle.
The anti
-lockout feature can be overridden by holding
the power door lock switch for three seconds or longer.
Leaving Your Vehicle
If you are leaving the vehicle, open the door, set the
locks from the inside, get out and close the door.

2-7
Remote Keyless Entry (RKE) System
With this feature, you can
lock and unlock the doors,
unlock the trunk, open the
fuel door and turn on your
vehicle's interior lamps
from about 3 feet (1 m)
up to 30 feet (9 m) away
using the RKE transmitter
supplied with your vehicle.
Your Remote Keyless Entry (RKE) system is intended
to be used as an added vehicle entry device. It is not
intended to replace a door key. It operates on a
radio frequency subject to Federal Communications
Commission (FCC) Rules and with Industry Canada.
This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions:
(1) this device may not cause harmful interference,
and (2) this device must accept any interference
received, including interference that may cause
undesired operation.This device complies with RSS
-210 of Industry Canada.
Operation is subject to the following two conditions:
(1) this device may not cause interference, and (2)
this device must accept any interference received,
including interference that may cause undesired
operation of the device.
Changes or modifications to this system by other than
an authorized service facility could void authorization to
use this equipment.
The range of this system is from about 3 feet (1 m)
up to 30 feet (9 m). At times you may notice a decrease
in range. This is normal for any RKE system. If the
transmitter does not work or if you have to stand closer
to your vehicle for the transmitter to work, try this:

Check the distance. You may be too far from your
vehicle. You may need to stand closer during rainy
or snowy weather.

Check the location. Other vehicles or objects may
be blocking the signal. Take a few steps to the left
or right, hold the transmitter higher, and try again.

Check to determine if battery replacement is
necessary. See the instructions that follow.

If you're still having trouble, see your dealer or a
qualified technician for service.

2-8 Operation
When you press this button to unlock the driver's
door, the parking lamps on your vehicle will flash twice.
(You can program your vehicle so the parking lamps
will not flash. For more information, see ªVehicle
Programming and Personalization Featuresº in the
Index.) Pressing this button again within one to five
seconds will unlock the other doors. Pressing this button
will also disarm the theft
-deterrent system and turn on
the interior lamps at night.
When you press this button to lock the doors, the
parking lamps will flash once and the horn will sound
once. (You can program your vehicle so the parking
lamps will not flash and/or the horn will not sound.
For more information, see ªVehicle Programming and
Personalization Featuresº in the Index.) This also arms
the theft
-deterrent system when the ignition is turned off.
Press this button to open the trunk. (The valet lock
switch must be in the OFF position.)
Press this button to open the fuel door. (The valet
lock switch must be in the OFF position.)
The numbers on the back of the RKE transmitter
correspond to Driver 1 and Driver 2. See ªVehicle
Programming and Personalization Features º in the Index.Remote confirmation is not operational if any door
is open.
The RKE transmitter can also be used to recall the
memory seats for up to two drivers. For more
information, seeªMemory Seat, Mirrors and Steering
Wheelº in the Index.
Matching Transmitter(s) To Your Vehicle
Each remote keyless entry transmitter is coded to
prevent another transmitter from unlocking your vehicle.
If a transmitter is lost or stolen, a replacement can be
purchased through your dealer. Once your dealer has
coded the new transmitter, the lost transmitter will not
unlock your vehicle. Each vehicle can have only up to
four transmitters matched to it.
All transmitters must be present when replacement or
additional transmitters are being programmed.
Battery Replacement
Under normal use, the battery in your transmitter should
last about two years.
You can tell the battery is weak if the transmitter won't
work at the normal range in any location. If you have to
get close to your vehicle before the transmitter works,
it's probably time to change the battery.

2-9

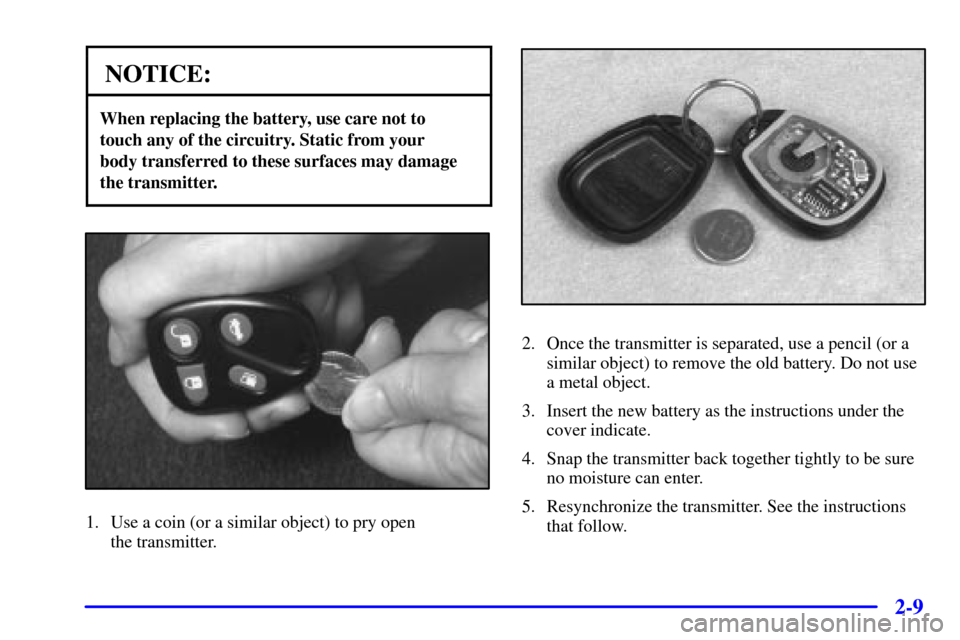

NOTICE:
When replacing the battery, use care not to
touch any of the circuitry. Static from your
body transferred to these surfaces may damage
the transmitter.
1. Use a coin (or a similar object) to pry open
the transmitter.
2. Once the transmitter is separated, use a pencil (or a
similar object) to remove the old battery. Do not use
a metal object.
3. Insert the new battery as the instructions under the
cover indicate.
4. Snap the transmitter back together tightly to be sure
no moisture can enter.
5. Resynchronize the transmitter. See the instructions
that follow.

2-10 Resynchronization
Pressing the transmitter buttons numerous times
(approximately 250 times) out of the vehicle's operating
range may cause the transmitter not to work. Replacing
the battery and pressing the transmitter buttons out
of range will also cause the transmitter not to work.
If only the fuel door button works, the transmitter needs
to be resynchronized to the receiver. Do this by pressing
and holding both the lock and unlock buttons on the
transmitter for about eight seconds. You must be within
range of the vehicle.
Once the transmitter has been resynchronized, the horn
will sound and the exterior lamps will flash once. The
system should now operate properly. See your dealer for
service if your transmitter still doesn't work properly.
Trunk
CAUTION:
It can be dangerous to drive with the trunk lid
open because carbon monoxide (CO) gas can
come into your vehicle. You can't see or smell
CO. It can cause unconsciousness and even death.
If you must drive with the trunk lid open or if
electrical wiring or other cable connections must
pass through the seal between the body and the
trunk lid:

Make sure all other windows are shut.

Turn the fan on your heating or cooling
system to its highest speed with the setting
on AUTO and the temperature between
65F (18C) and 85F (29C). That will
force outside air into your vehicle.
See ªComfort Controlsº in the Index.

If you have air outlets on or under the
instrument panel, open them all the way.
See ªEngine Exhaustº in the Index.
