CD player CADILLAC SRX 2004 1.G Owner's Manual

DVD Distortion
There may be an experience with audio distortion in the
wireless headphones when operating cellular phones,
scanners, CB radios, Global Positioning Systems
(GPS)*, two-way radios, mobile fax, or walkie talkies.
It may be necessary to turn off the DVD player
when operating one of these devices in or near the
vehicle.
* Excludes the OnStar
®System.
Cleaning the DVD Player
When cleaning the outside DVD faceplate and buttons,
use only a clean cloth dampened with clean water.
Cleaning the Video Screen
Pour some isopropyl or rubbing alcohol on a clean cloth
and gently wipe the video screen. Do not spray
directly onto the screen and do not press too hard or
too long on the video screen.
Theft-Deterrent Feature
THEFTLOCK®is designed to discourage theft of your
vehicle’s radio. The feature works automatically by
learning a portion of the Vehicle Identication Number
(VIN). If the radio is moved to a different vehicle,
it will not operate. If the radio is removed from your
vehicle, the original VIN in the radio can be used to trace
the radio back to your vehicle.
With THEFTLOCK
®activated, the radio will not operate
if stolen.
3-123

+tu— (Seek):Press either arrow to go to the
next or the previous radio station and stay there.
The radio will only seek stations with a strong signal
that are in the selected band.
When a CD is playing, press the minus sign to go to the
start of the current track, if more than 10 seconds
have played. Press the plus sign to go to the next track.
If either the minus or the plus button are pressed
more than once, the player will continue moving
backward or forward through the CD.
Press and hold the SEEK plus or minus button, until
you hear a beep. The CD will fast forward or fast reverse
through the CD. Press either button again to play the
passage.
If you have the navigation system, some of the audio
steering wheel controls work when a DVD is playing in
the navigation radio. See the Navigation System
manual for more information.Radio Reception
AM
The range for most AM stations is greater than for FM,
especially at night. The longer range can cause
station frequencies to interfere with each other.
Static can occur on AM stations caused by things like
storms and power lines. Try reducing the treble to
reduce this noise.
FM Stereo
FM stereo will give the best sound, but FM signals will
reach only about 10 to 40 miles (16 to 65 km).
Tall buildings or hills can interfere with FM signals,
causing the sound to fade in and out.
XM™ Satellite Radio Service
XM™ Satellite Radio Service gives digital radio
reception from coast to coast. Just as with FM, tall
buildings or hills can interfere with satellite radio signals,
causing the sound to fade in and out. The radio may
display NO XM SIGNAL to indicate interference.
3-125

Cellular Phone Usage
Cellular phone usage may cause interference with your
vehicle’s radio. This interference may occur when
making or receiving phone calls, charging the phone’s
battery, or simply having the phone on. This interference
is an increased level of static while listening to the
radio. If static is received while listening to the radio,
unplug the cellular phone and turn it off.
Care of Your CDs and DVDs
Handle discs carefully. Store them in their original cases
or other protective cases and away from direct sunlight
and dust. If the surface of a disc is soiled, dampen
a clean, soft cloth in a mild, neutral detergent solution
and clean it, wiping from the center to the edge.
Be sure never to touch the side without writing when
handling discs. Pick up discs by grasping the outer
edges or the edge of the hole and the outer edge.
Care of Your CD and DVD Player
The use of CD lens cleaners for CDs is not advised, due
to the risk of contaminating the lens of the CD optics
with lubricants internal to the CD mechanism.
Diversity Antenna System
The AM-FM antenna is integrated with the rear quarter
glass windows, located in the rear of the vehicle on
the driver and passenger sides. Make sure that
the inside surface of the rear windows are not scratched
and that the grid lines on the glass are not damaged.
If the inside surface is damaged, it could interfere
with radio reception.
Notice:Do not apply aftermarket glass tinting with
metallic lm. The metallic lm in some tinting
materials will interfere with or distort the incoming
radio reception. Any damage caused to your
backglass antenna due to metallic tinting materials
will not be covered by your warranty.
3-126

Audio System(s).............................................3-93
Audio Steering Wheel Controls....................3-124
Care of Your CD and DVD Player................3-126
Care of Your CDs and DVDs.......................3-126
Diversity Antenna System............................3-126
Navigation/Radio System.............................3-110
Radio with CD............................................3-94
Setting the Time..........................................3-93
Theft-Deterrent Feature...............................3-123
Understanding Radio Reception...................3-125
XM™ Satellite Radio Antenna System...........3-127
Automatic Transmission
Fluid..........................................................5-24
Operation...................................................2-25
B
Backing Up....................................................4-56
Battery..........................................................5-43
Battery Replacement......................................... 2-7
Battery Saver Active........................................3-64
Battery Voltage High.......................................3-64
Battery Voltage Low........................................3-65
Before Leaving on a Long Trip.........................4-37
Before You Drive...........................................3-110
Before You Go Off-Roading..............................4-17Brake
Panic Assist................................................4-11
Parking......................................................2-29
System Warning Light..................................3-41
Brake Adjustment............................................5-43
Brake Fluid....................................................5-40
Brake Pedal, Throttle.......................................2-23
Brake Pedal Travel.........................................5-43
Brake Wear...................................................5-42
Brakes..........................................................5-40
Braking........................................................... 4-6
Braking in Emergencies..................................... 4-9
Break-In, New Vehicle.....................................2-20
Bulb Replacement...........................................5-54
Back-Up and License Plate Lamps.................5-57
Center High-Mounted Stoplamp (CHMSL)........5-57
Front Turn Signal and Fog Lamps..................5-56
Halogen Bulbs............................................5-54
Headlamps, Sidemarker, and Parking Lamps.....5-55
High Intensity Discharge (HID) Lighting...........5-54
Replacement Bulbs......................................5-58
Sidemarker Lamps.......................................5-57
Taillamps, Turn Signal, Stoplamps and
Sidemarker Lamps...................................5-57
Buying New Tires...........................................5-72
2

C
Cadillac Owner Privileges™............................... 7-6
California Fuel.................................................. 5-6
Canada – Customer Assistance.......................... 7-4
Canadian Owners................................................ ii
Capacities and Specications..........................5-111
Carbon Monoxide...................2-12, 2-33, 4-40, 4-52
Care of
Safety Belts................................................5-96
Your CD and DVD Player...........................3-126
Your CDs and DVDs..................................3-126
Cargo Cover..................................................2-47
Cargo Management System.............................2-48
CD Messages...............................................3-109
Cell Phone Storage Area.................................2-45
Cellular Phone Usage....................................3-126
Center Console Storage Area...........................2-46
Center High-Mounted Stoplamp (CHMSL)...........5-57
Chains, Tires..................................................5-77
Change Engine Oil..........................................3-65
Change Trans (Transmission) Fluid....................3-66
Charging System Light....................................3-40
Check
Engine Light...............................................3-44
Check Brake Fluid..........................................3-66
Check Coolant Level.......................................3-66Check Engine Light.........................................3-44
Check Gas Cap..............................................3-66
Check Oil Level..............................................3-65
Check Tire Pressure........................................3-65
Check Washer Fluid........................................3-66
Checking Brake Fluid......................................5-41
Checking Coolant............................................5-27
Checking Engine Oil........................................5-16
Checking Things Under the Hood......................5-10
Chemical Paint Spotting...................................5-99
Child Restraints
Child Restraint Systems...............................1-35
Infants and Young Children...........................1-31
Lower Anchorages and Top Tethers for
Children (LATCH System)..........................1-42
Older Children.............................................1-29
Securing a Child Restraint Designed for
the LATCH System...................................1-44
Securing a Child Restraint in a Rear
Seat Position...........................................1-44
Securing a Child Restraint in the Right
Front Seat Position...................................1-48
Top Strap...................................................1-39
Top Strap Anchor Location............................1-41
Where to Put the Restraint...........................1-38
Cigarette Lighter.............................................3-25
3

Cleaning
Inside of Your Vehicle..................................5-94
Outside of Your Vehicle................................5-97
Underbody Maintenance...............................5-99
Weatherstrips..............................................5-96
Cleaning Aluminum or Chrome-Plated Wheels.......5-98
Cleaning Exterior Lamps/Lenses.......................5-97
Cleaning Fabric/Carpet....................................5-94
Cleaning Glass Surfaces..................................5-96
Cleaning Interior Plastic Components.................5-95
Cleaning Leather............................................5-95
Cleaning the DVD Player...............................3-123
Cleaning the Mirror.................................2-35, 2-37
Cleaning the Speaker Covers...........................5-95
Cleaning the Top of the Instrument Panel...........5-95
Cleaning the Video Screen.............................3-123
Cleaning Tires................................................5-99
Cleaning Vinyl................................................5-95
Cleaning Windshield and Wiper Blades..............5-98
Cleaning Wood Panels....................................5-95
Climate Control System
Air Filter, Passenger Compartment.................3-34
Dual..........................................................3-26
Outlet Adjustment........................................3-31
Rear Air Conditioning System........................3-33
Compact Spare Tire........................................5-93
Compass Calibration.......................................2-36
Compass Operation.........................................2-36
Compass Variance..........................................2-36Congurable Radio Display Keys.....................3-109
Control of a Vehicle.......................................... 4-6
Convenience Net............................................2-47
Coolant
Engine Temperature Gage............................3-43
Engine Temperature Warning Light.................3-43
Heater, Engine............................................2-24
Surge Tank Pressure Cap.............................5-28
Cooling System..............................................5-31
Cruise Control........................................3-11, 3-17
Cruise Control Light........................................3-50
Cupholder(s)..................................................2-45
Current and Past Model Order Forms................7-12
Customer Assistance Information
Courtesy Transportation.................................. 7-7
Customer Assistance for Text Telephone
(TTY) Users.............................................. 7-4
Customer Assistance Offices........................... 7-4
Customer Satisfaction Procedure..................... 7-2
GM Mobility Program for Persons with
Disabilities................................................ 7-5
Reporting Safety Defects to General Motors.......7-10
Reporting Safety Defects to the Canadian
Government............................................7-10
Reporting Safety Defects to the United States
Government............................................7-10
Roadside Service.......................................... 7-5
Service Publications Ordering Information........7-11
4

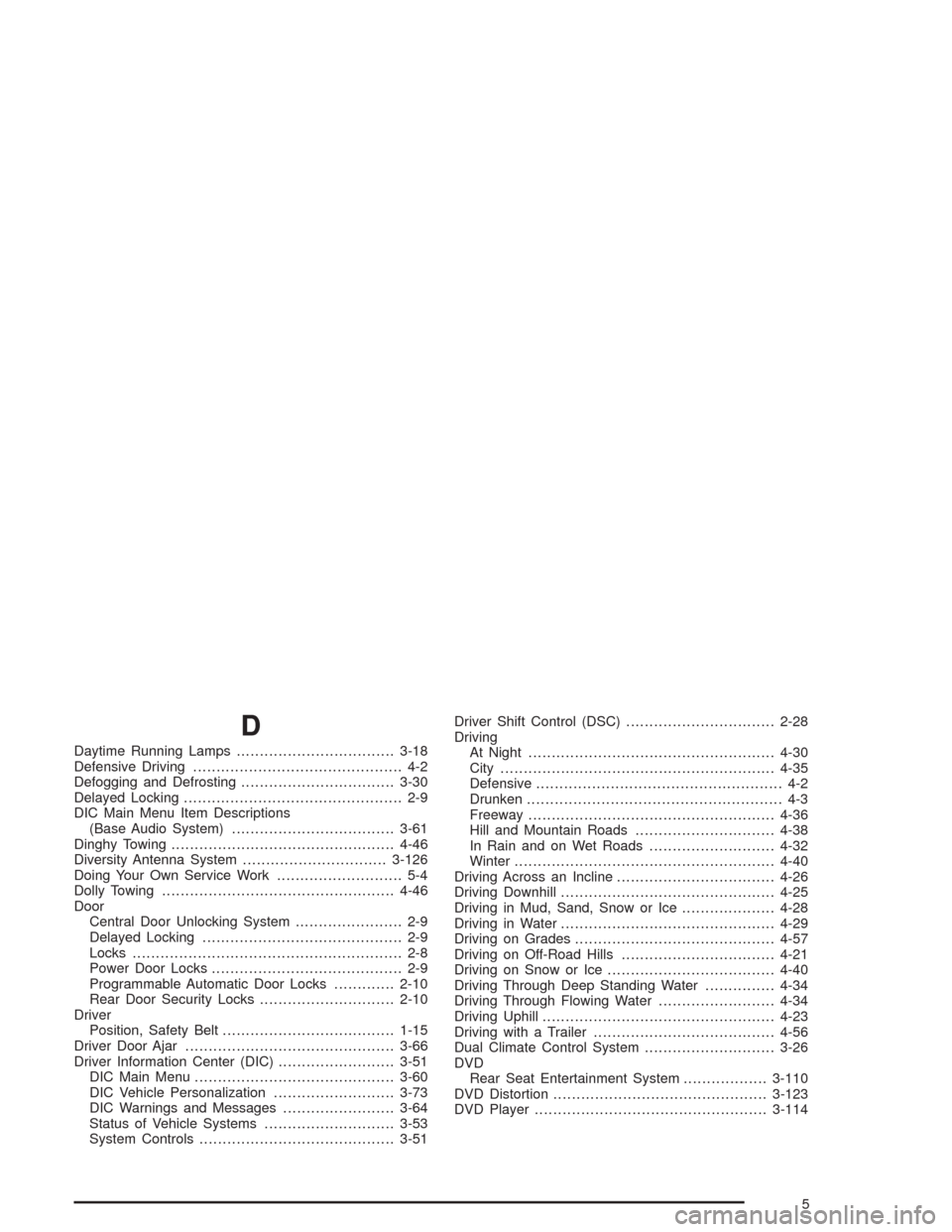

D
Daytime Running Lamps..................................3-18
Defensive Driving............................................. 4-2
Defogging and Defrosting.................................3-30
Delayed Locking............................................... 2-9
DIC Main Menu Item Descriptions
(Base Audio System)...................................3-61
Dinghy Towing................................................4-46
Diversity Antenna System...............................3-126
Doing Your Own Service Work........................... 5-4
Dolly Towing..................................................4-46
Door
Central Door Unlocking System....................... 2-9
Delayed Locking........................................... 2-9
Locks.......................................................... 2-8
Power Door Locks......................................... 2-9
Programmable Automatic Door Locks.............2-10
Rear Door Security Locks.............................2-10
Driver
Position, Safety Belt.....................................1-15
Driver Door Ajar.............................................3-66
Driver Information Center (DIC).........................3-51
DIC Main Menu...........................................3-60
DIC Vehicle Personalization..........................3-73
DIC Warnings and Messages........................3-64
Status of Vehicle Systems............................3-53
System Controls..........................................3-51Driver Shift Control (DSC)................................2-28
Driving
At Night.....................................................4-30
City...........................................................4-35
Defensive..................................................... 4-2
Drunken....................................................... 4-3
Freeway.....................................................4-36
Hill and Mountain Roads..............................4-38
In Rain and on Wet Roads...........................4-32
Winter........................................................4-40
Driving Across an Incline..................................4-26
Driving Downhill..............................................4-25
Driving in Mud, Sand, Snow or Ice....................4-28
Driving in Water..............................................4-29
Driving on Grades...........................................4-57
Driving on Off-Road Hills.................................4-21
Driving on Snow or Ice....................................4-40
Driving Through Deep Standing Water...............4-34
Driving Through Flowing Water.........................4-34
Driving Uphill..................................................4-23
Driving with a Trailer.......................................4-56
Dual Climate Control System............................3-26
DVD
Rear Seat Entertainment System..................3-110
DVD Distortion..............................................3-123
DVD Player..................................................3-114
5

Power (cont.)
Steering Fluid.............................................5-37
Windows....................................................2-14
Power Steering...............................................4-12
Pretensioners, Safety Belt................................1-28
Programmable Automatic Door Locks.................2-10
Programming the HomeLink
®Transmitter...........2-42
Programming the Power Windows.....................2-15
Q
Questions and Answers About Safety Belts.........1-14
R
Radio Data System (RDS)...............................3-94
Radio Message.............................................3-102
Radios..........................................................3-93
Care of Your CD and DVD Player................3-126
Care of Your CDs and DVDs.......................3-126
Navigation/Radio System.............................3-110
Radio with CD............................................3-94
Setting the Time..........................................3-93
Theft-Deterrent..........................................3-123
Understanding Reception............................3-125
RDS Messages.............................................3-100Reaching Roadside Service............................... 7-6
Reading Lamps..............................................3-21
Rear Air Conditioning System...........................3-33
Rear Axle......................................................5-52
Rear Door Security Locks................................2-10
Rear Safety Belt Comfort Guides......................1-26
Rear Seat Entertainment System.....................3-110
Rear Seat Operation......................................... 1-7
Rear Seat Passenger Positions.........................1-23
Rear Seat Passengers, Safety Belts..................1-23
Rear Underseat Fuse Block (Driver’s Side).......5-107
Rear Underseat Fuse Block
(Passenger’s Side).....................................5-109
Rear Washer/Wiper.........................................3-16
Rear Window Defogger....................................3-31
Rearview Mirror, Automatic Dimming
with OnStar®..............................................2-35
Rearview Mirror, Automatic Dimming
with OnStar
®and Compass..........................2-35
Reclining Seatbacks.......................................... 1-4
Recommended Fluids and Lubricants.................6-13
Recreational Vehicle Towing.............................4-45
Remote Control.............................................3-117
Remote Keyless Entry System............................ 2-5
Remote Keyless Entry System, Operation............ 2-6
Removing the Flat Tire and Installing the
Spare Tire..................................................5-84
12

Using the Recovery Hook................................4-45
Using the Single CD Player............................3-105
Using the Six-CD CD Changer........................3-106
V
Vehicle
Control........................................................ 4-6
Damage Warnings........................................... iv
Loading......................................................4-47
Symbols......................................................... iv
Vehicle Data Collection and Event Data
Recorders.................................................... 7-9
Vehicle Identication
Number (VIN)............................................5-101
Service Parts Identication Label..................5-101
Vehicle Information Menu
(Base Audio System)...................................3-53
Vehicle Information Menu Item Descriptions........3-55
Vehicle Information Menu
(Navigation System).....................................3-54
Vehicle Personalization
DIC ...........................................................3-73
Memory Seat and Mirrors.............................2-52
Vehicle Storage..............................................5-44
Ventilation Adjustment......................................3-31
Video Screen................................................3-113
Visors...........................................................2-16
W
Warning Lights, Gages and Indicators................3-35
Warnings
DIC Warnings and Messages........................3-64
Hazard Warning Flashers............................... 3-6
Other Warning Devices.................................. 3-7
Safety and Symbols......................................... iii
Vehicle Damage.............................................. iv
Washing Your Vehicle......................................5-97
Weight of the Trailer........................................4-53
Weight of the Trailer Tongue.............................4-54
What Kind of Engine Oil to Use........................5-18
What to Add..................................................5-41
What to Do with Used Oil................................5-22
What to Use..................................5-26, 5-38, 5-52
Wheels
Alignment and Tire Balance..........................5-75
Replacement...............................................5-76
When to Add Engine Oil..................................5-17
When to Change Engine Oil
(GM Oil Life System)...................................5-20
When to Check..............................................5-68
When to Check Lubricant.................................5-52
When to Check Power Steering Fluid................5-38
When to Inspect the Engine Air Cleaner/Filter........5-23
When You Are Ready to Leave After Parking
on a Hill.....................................................4-58
17
