CADILLAC SRX 2006 1.G User Guide

{CAUTION:
If the seatback is not locked, it could move
forward in a sudden stop or crash. That could
cause injury to the person sitting there. Always
push and pull on the seatback to be sure it is
locked.
If your front passenger’s seat has a manual reclining
seatback, the lever used to operate it is located on the
outboard side of the seat.To recline the seatback, do the following:
1. Lift the recline lever.
2. Move the seatback to the desired position, then
release the lever to lock the seatback in place.
3. Push and pull on the seatback to make sure it is
locked.
To return the seatback to an upright position, do the
following:
1. Lift the lever fully without applying pressure to the
seatback and the seatback will return to the upright
position.
2. Push and pull on the seatback to make sure it is
locked.
1-5

Power Reclining SeatbacksIf your seats have power reclining seatbacks, use the
vertical power seat control located on the outboard side
of the seat(s).
To recline the seatback, press the control toward
the rear of the vehicle.
To raise the seatback, press the control toward the
front of the vehicle.
1-6

{CAUTION:
Sitting in a reclined position when your vehicle
is in motion can be dangerous. Even if you
buckle up, your safety belts cannot do their
job when you are reclined like this.
The shoulder belt cannot do its job. In a crash,
you could go into it, receiving neck or other
injuries.
The lap belt cannot do its job either. In a crash
the belt could go up over your abdomen. The
belt forces would be there, not at your pelvic
bones. This could cause serious internal
injuries.
For proper protection when the vehicle is in
motion, have the seatback upright. Then sit
well back in the seat and wear your safety belt
properly.
Do not have a seatback reclined if your vehicle is
moving.
1-7

Head Restraints
Adjust the head restraint so that the top of the restraint
is at the same height as the top of the occupant’s
head. This position reduces the chance of a neck injury
in a crash.The height of the front seat
head restraints can be
adjusted. Pull the restraint
up to raise it. To lower
it, press the button, located
on the top of the seatback,
and push the head
restraint down.
The front seat head restraints can also tilt forward and
rearward. The second row seat head rests do not tilt.
The height of the second row seat outboard head rests
and the third row seat head rests, if the vehicle has
them, can be adjusted. Pull these head rests up or push
them down for adjustment.
The second row seat may have a head rest in the
center position.
If the vehicle has third row seats, the head rests adjust
like the front seat head restraints.
1-8

The third row seat head rests can be removed from the
seatback. To do this, press the button, located on
the top of the seatback, and pull them out from the
seatback. Store the head rest, front side facing up, in the
compartment behind the third row, by inserting the
head rest posts into the slots in the storage area.
Rear Seats
Rear Seat Operation
Adjusting the Second Row Seat
The second row seat can be adjusted forward or
rearward. Pull up on the lever under the seat cushion
and slide the seat with your body. Release the lever and
try to move the seat forward and rearward to be sure
it is locked into place.
1-9

Entering or Exiting the Third Row Seat
{CAUTION:
Using the third row seating position while the
second row is folded, or folded and tumbled,
could cause injury in a sudden stop or crash.
Be sure to return the seat to the passenger
seating position. Push and pull on the seat to
make sure it is locked into place.
The passenger’s side of the second row seat has an
easy entry feature. This makes it easy to get in and out
of the third row seat, if your vehicle has one.
Notice:Folding a rear seat with the safety belts
still fastened may cause damage to the seat or the
safety belts. Always unbuckle the safety belts
and return them to their normal stowed position
before folding a rear seat.
To operate the seat, pull the release handle located on
the top of the seatback. Fold the seatback forward,
then pull the release handle on the top of the seatback
to release the seat to tumble forward.
Stowable Seat
If your vehicle has a third row seat, it is a power
folding seat.
The head rests need to be removed before folding the
third row seat. SeeHead Restraints on page 1-8for
instructions for removing the third row seat head rests.
The seatback will not fold all of the way down if the
head rests are not removed.
The buttons that are used to operate the power folding
third row seat are located inside of the liftgate and behind
the second row seat on the passenger’s side of the
vehicle.Inside Liftgate
1-10

Two buttons are located inside the liftgate. One button
is to tilt the seatback forward for added storage
space or when storing a at tire. The other button is the
power folding seat button. The button behind the
second row seat is also a power folding seat button.
Press and hold either one of the two power folding seat
buttons to fold the seat.
Notice:Folding a rear seat with the safety belts
still fastened may cause damage to the seat or the
safety belts. Always unbuckle the safety belts
and return them to their normal stowed position
before folding a rear seat.
Before folding or unfolding the third row seat, all of the
following conditions must be met:
The liftgate or passenger’s side rear door must
be open.
The unlock button on either the remote keyless
entry transmitter or the door must be pressed
three times to enable the rear seat for two minutes,
or the ignition must be in ON or ACCESSORY.
The vehicle must be in PARK (P).
The vehicle cannot have a low battery.
After the seat has folded, the panel on the seat must be
folded forward to create the at oor.
If the seat’s path is blocked it will stop and back away.
Press the button again to return the seat to its
previous position.
Before returning the third row seat to the passenger
seating position, the panel must be folded back
upon itself. Press and hold one of the power folding
seat buttons and the seat will unfold into the seating
position. If the seat is not unfolded fully into the seating
position, a chime will sound when the vehicle is
shifted out of PARK (P). This indicates that the seat is
not ready for a passenger.
Replace the head rests.
1-11

Safety Belts
Safety Belts: They Are for Everyone
This part of the manual tells you how to use safety
belts properly. It also tells you some things you should
not do with safety belts.
{CAUTION:
Do not let anyone ride where he or she cannot
wear a safety belt properly. If you are in a
crash and you are not wearing a safety belt,
your injuries can be much worse. You can hit
things inside the vehicle or be ejected from it.
You can be seriously injured or killed. In the
same crash, you might not be, if you are
buckled up. Always fasten your safety belt,
and check that your passengers’ belts are
fastened properly too.
{CAUTION:
It is extremely dangerous to ride in a cargo
area, inside or outside of a vehicle. In a
collision, people riding in these areas are more
likely to be seriously injured or killed. Do not
allow people to ride in any area of your vehicle
that is not equipped with seats and safety
belts. Be sure everyone in your vehicle is in a
seat and using a safety belt properly.
Your vehicle has a light
that comes on as a
reminder to buckle up. See
Safety Belt Reminder
Light on page 3-37.
1-12

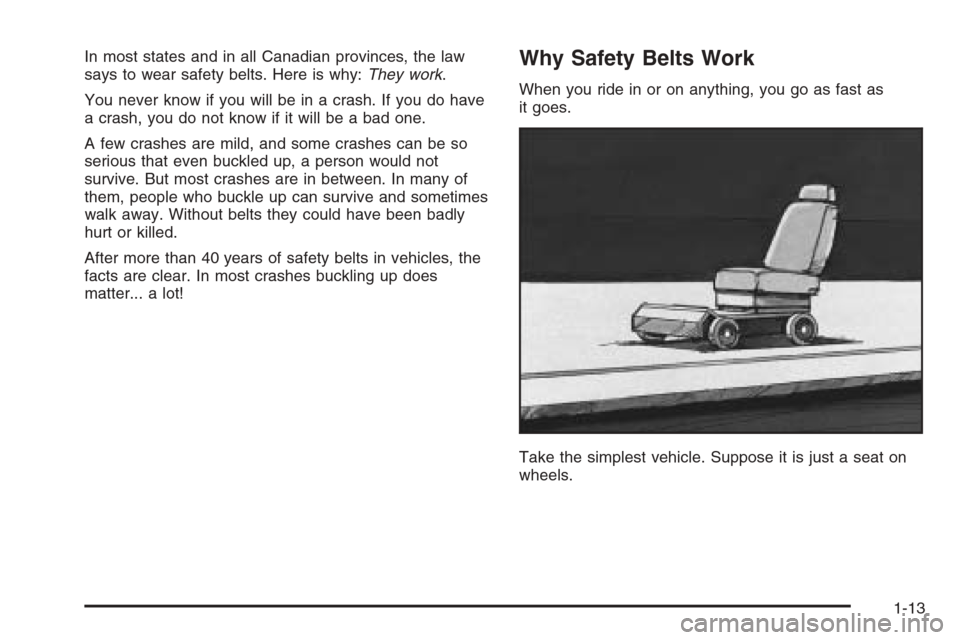

In most states and in all Canadian provinces, the law
says to wear safety belts. Here is why:They work.
You never know if you will be in a crash. If you do have
a crash, you do not know if it will be a bad one.
A few crashes are mild, and some crashes can be so
serious that even buckled up, a person would not
survive. But most crashes are in between. In many of
them, people who buckle up can survive and sometimes
walk away. Without belts they could have been badly
hurt or killed.
After more than 40 years of safety belts in vehicles, the
facts are clear. In most crashes buckling up does
matter... a lot!Why Safety Belts Work
When you ride in or on anything, you go as fast as
it goes.
Take the simplest vehicle. Suppose it is just a seat on
wheels.
1-13

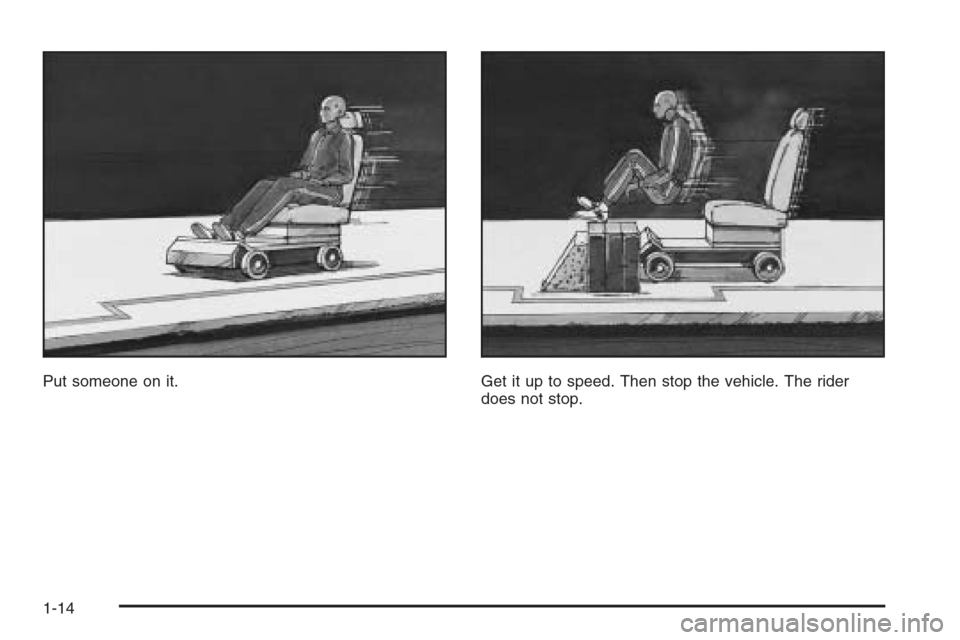

Put someone on it. Get it up to speed. Then stop the vehicle. The rider
does not stop.
1-14
