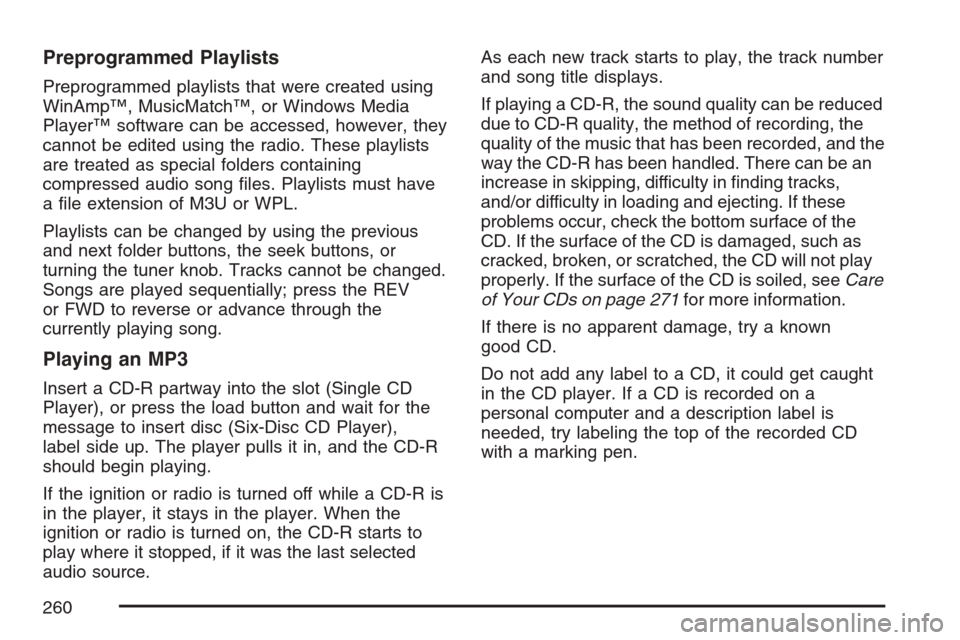

Preprogrammed Playlists
Preprogrammed playlists that were created using
WinAmp™, MusicMatch™, or Windows Media
Player™ software can be accessed, however, they
cannot be edited using the radio. These playlists
are treated as special folders containing
compressed audio song les. Playlists must have
a le extension of M3U or WPL.
Playlists can be changed by using the previous
and next folder buttons, the seek buttons, or
turning the tuner knob. Tracks cannot be changed.
Songs are played sequentially; press the REV
or FWD to reverse or advance through the
currently playing song.
Playing an MP3
Insert a CD-R partway into the slot (Single CD
Player), or press the load button and wait for the
message to insert disc (Six-Disc CD Player),
label side up. The player pulls it in, and the CD-R
should begin playing.
If the ignition or radio is turned off while a CD-R is
in the player, it stays in the player. When the
ignition or radio is turned on, the CD-R starts to
play where it stopped, if it was the last selected
audio source.As each new track starts to play, the track number
and song title displays.
If playing a CD-R, the sound quality can be reduced
due to CD-R quality, the method of recording, the
quality of the music that has been recorded, and the
way the CD-R has been handled. There can be an
increase in skipping, difficulty in nding tracks,
and/or difficulty in loading and ejecting. If these
problems occur, check the bottom surface of the
CD. If the surface of the CD is damaged, such as
cracked, broken, or scratched, the CD will not play
properly. If the surface of the CD is soiled, seeCare
of Your CDs on page 271for more information.
If there is no apparent damage, try a known
good CD.
Do not add any label to a CD, it could get caught
in the CD player. If a CD is recorded on a
personal computer and a description label is
needed, try labeling the top of the recorded CD
with a marking pen.
260

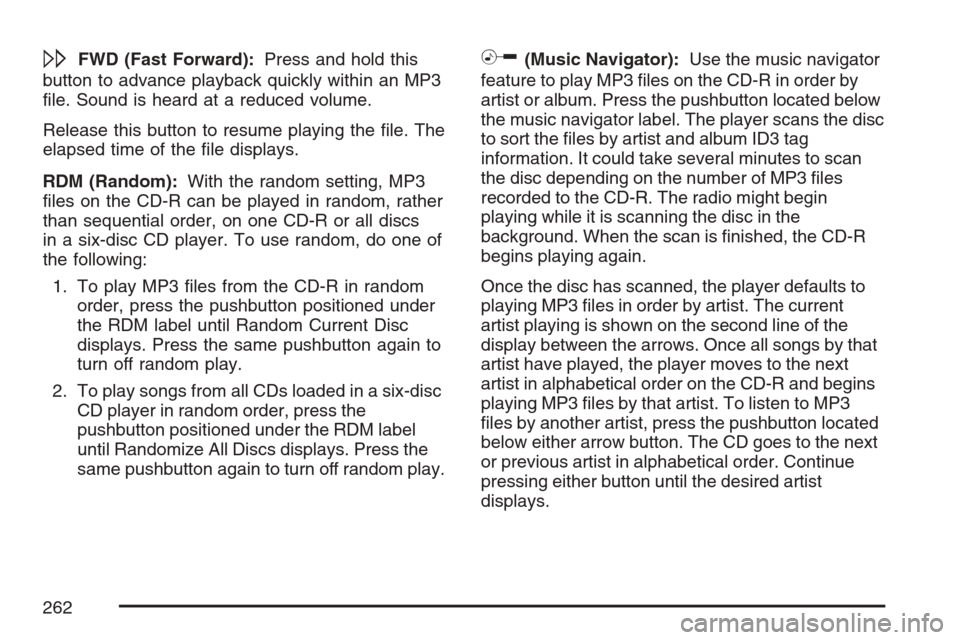

\FWD (Fast Forward):Press and hold this
button to advance playback quickly within an MP3
le. Sound is heard at a reduced volume.
Release this button to resume playing the le. The
elapsed time of the le displays.
RDM (Random):With the random setting, MP3
les on the CD-R can be played in random, rather
than sequential order, on one CD-R or all discs
in a six-disc CD player. To use random, do one of
the following:
1. To play MP3 les from the CD-R in random
order, press the pushbutton positioned under
the RDM label until Random Current Disc
displays. Press the same pushbutton again to
turn off random play.
2. To play songs from all CDs loaded in a six-disc
CD player in random order, press the
pushbutton positioned under the RDM label
until Randomize All Discs displays. Press the
same pushbutton again to turn off random play.h(Music Navigator):Use the music navigator
feature to play MP3 les on the CD-R in order by
artist or album. Press the pushbutton located below
the music navigator label. The player scans the disc
to sort the les by artist and album ID3 tag
information. It could take several minutes to scan
the disc depending on the number of MP3 les
recorded to the CD-R. The radio might begin
playing while it is scanning the disc in the
background. When the scan is nished, the CD-R
begins playing again.
Once the disc has scanned, the player defaults to
playing MP3 les in order by artist. The current
artist playing is shown on the second line of the
display between the arrows. Once all songs by that
artist have played, the player moves to the next
artist in alphabetical order on the CD-R and begins
playing MP3 les by that artist. To listen to MP3
les by another artist, press the pushbutton located
below either arrow button. The CD goes to the next
or previous artist in alphabetical order. Continue
pressing either button until the desired artist
displays.
262

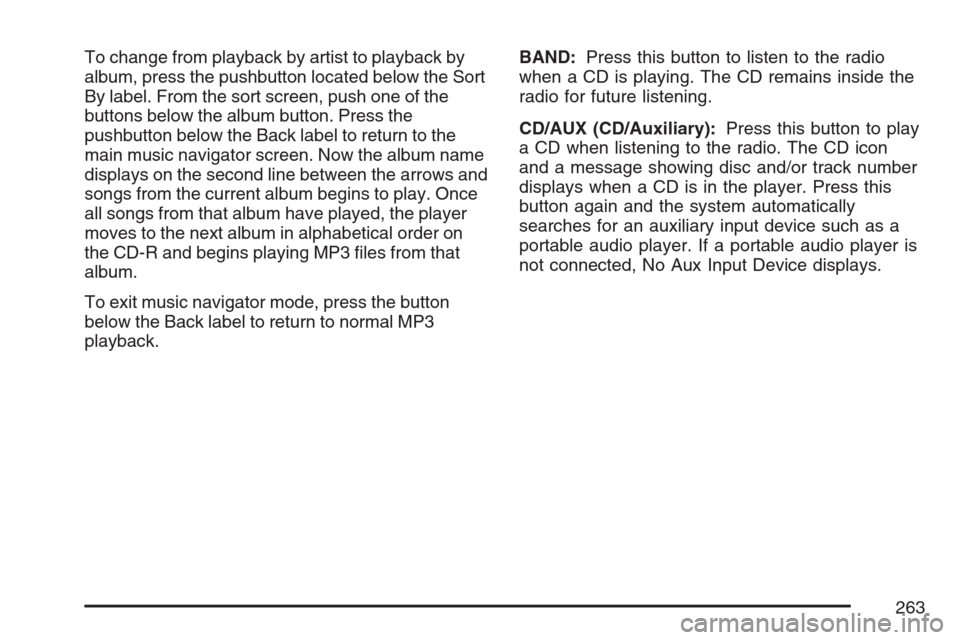

To change from playback by artist to playback by
album, press the pushbutton located below the Sort
By label. From the sort screen, push one of the
buttons below the album button. Press the
pushbutton below the Back label to return to the
main music navigator screen. Now the album name
displays on the second line between the arrows and
songs from the current album begins to play. Once
all songs from that album have played, the player
moves to the next album in alphabetical order on
the CD-R and begins playing MP3 les from that
album.
To exit music navigator mode, press the button
below the Back label to return to normal MP3
playback.BAND:Press this button to listen to the radio
when a CD is playing. The CD remains inside the
radio for future listening.
CD/AUX (CD/Auxiliary):Press this button to play
a CD when listening to the radio. The CD icon
and a message showing disc and/or track number
displays when a CD is in the player. Press this
button again and the system automatically
searches for an auxiliary input device such as a
portable audio player. If a portable audio player is
not connected, No Aux Input Device displays.
263

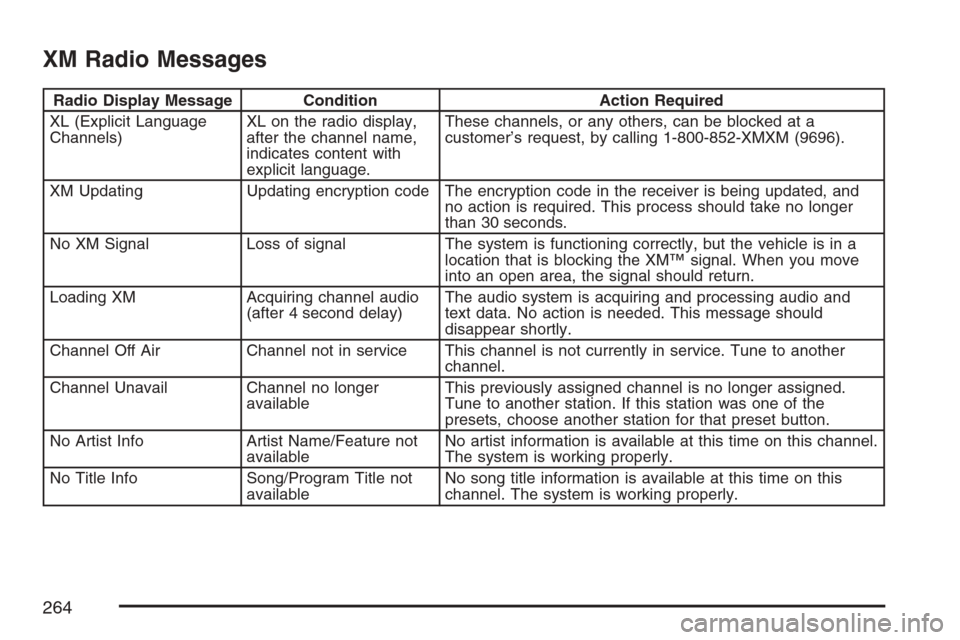

XM Radio Messages
Radio Display Message Condition Action Required
XL (Explicit Language
Channels)XL on the radio display,
after the channel name,
indicates content with
explicit language.These channels, or any others, can be blocked at a
customer’s request, by calling 1-800-852-XMXM (9696).
XM Updating Updating encryption code The encryption code in the receiver is being updated, and
no action is required. This process should take no longer
than 30 seconds.
No XM Signal Loss of signal The system is functioning correctly, but the vehicle is in a
location that is blocking the XM™ signal. When you move
into an open area, the signal should return.
Loading XM Acquiring channel audio
(after 4 second delay)The audio system is acquiring and processing audio and
text data. No action is needed. This message should
disappear shortly.
Channel Off Air Channel not in service This channel is not currently in service. Tune to another
channel.
Channel Unavail Channel no longer
availableThis previously assigned channel is no longer assigned.
Tune to another station. If this station was one of the
presets, choose another station for that preset button.
No Artist Info Artist Name/Feature not
availableNo artist information is available at this time on this channel.
The system is working properly.
No Title Info Song/Program Title not
availableNo song title information is available at this time on this
channel. The system is working properly.
264

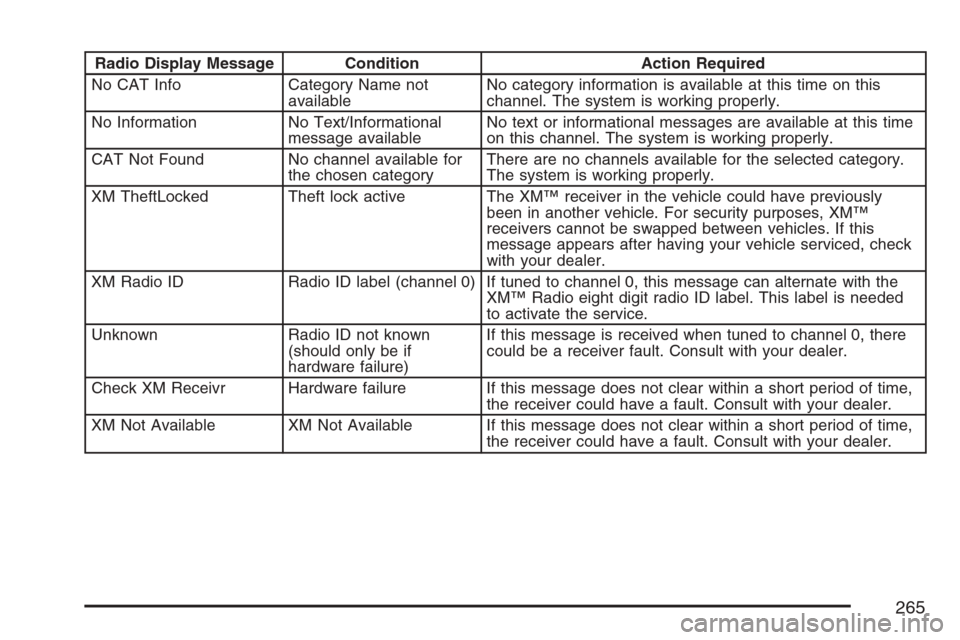

Radio Display Message Condition Action Required
No CAT Info Category Name not
availableNo category information is available at this time on this
channel. The system is working properly.
No Information No Text/Informational
message availableNo text or informational messages are available at this time
on this channel. The system is working properly.
CAT Not Found No channel available for
the chosen categoryThere are no channels available for the selected category.
The system is working properly.
XM TheftLocked Theft lock active The XM™ receiver in the vehicle could have previously
been in another vehicle. For security purposes, XM™
receivers cannot be swapped between vehicles. If this
message appears after having your vehicle serviced, check
with your dealer.
XM Radio ID Radio ID label (channel 0) If tuned to channel 0, this message can alternate with the
XM™ Radio eight digit radio ID label. This label is needed
to activate the service.
Unknown Radio ID not known
(should only be if
hardware failure)If this message is received when tuned to channel 0, there
could be a receiver fault. Consult with your dealer.
Check XM Receivr Hardware failure If this message does not clear within a short period of time,
the receiver could have a fault. Consult with your dealer.
XM Not Available XM Not Available If this message does not clear within a short period of time,
the receiver could have a fault. Consult with your dealer.
265

Navigation/Radio System
Your vehicle could have a navigation radio system.
The navigation system has built-in features
intended to minimize driver distraction. Technology
alone, no matter how advanced, can never
replace your own judgment. See the Navigation
System manual for some tips to help you
reduce distractions while driving.
Rear Seat Entertainment System
If your vehicle has a navigation radio system, it
could have the Rear Seat Entertainment
(RSE) system. For more information on how to
use the RSE system, see “Rear Seat
Entertainment System” in the Navigation System
manual.
Rear Seat Audio (RSA)
This feature lets rear seat passengers listen to
and control any of the music sources: radio, CDs,
DVDs, or other auxiliary sources. However, the
rear seat passengers can only control the
music sources the front seat passengers are not
listening to (except on some radios where
dual control is allowed). For example, rear seat
passengers can control a CD and listen to it
through the headphones, while the driver listens to
the radio through the front speakers. The rear
seat passengers have control of the volume
for each set of headphones.
You can operate the Rear Seat Audio (RSA)
functions even when the main radio is off.
Audio can be heard through wired headphones
(not included) plugged into the jacks on the RSA.
If your vehicle has this feature, audio can also
be heard on Channel 2 of the wireless
headphones.
Depending on the audio system, the rear speakers
can continue to play even when the RSA audio
is active through the headphones.
266

P(Power):Press this button to turn the RSA on
or off.
Volume:Turn this knob to increase or to
decrease the volume of the wired headphones.
The left knob controls the left headphones and the
right knob controls the right headphones.SRCE (Source):Press this button to switch
between the radio (AM/FM), XM™ (if equipped),
CD, and if your vehicle has these features,
DVD, front auxiliary, and rear auxiliary.
©¨(Seek):When listening to FM, AM, or
XM™ (if equipped), press the seek up or the seek
down arrow to go to the next or the previous
station or channels and stay there. This function is
inactive, with some radios, if the front seat
passengers are listening to the radio.
Press and hold the seek up or seek down arrow
until the display ashes, to tune to an individual
station. The display stops ashing after the buttons
have not been pushed for more than two seconds.
This function is inactive, with some radios, if
the front seat passengers are listening to the radio.
While listening to a CD, press the seek up arrow to
hear the next track on the CD. Press the seek down
arrow to go back to the start of the current track (if
more than ten seconds have played). This function
is inactive, with some radios, if the front seat
passengers are listening to the radio.
267

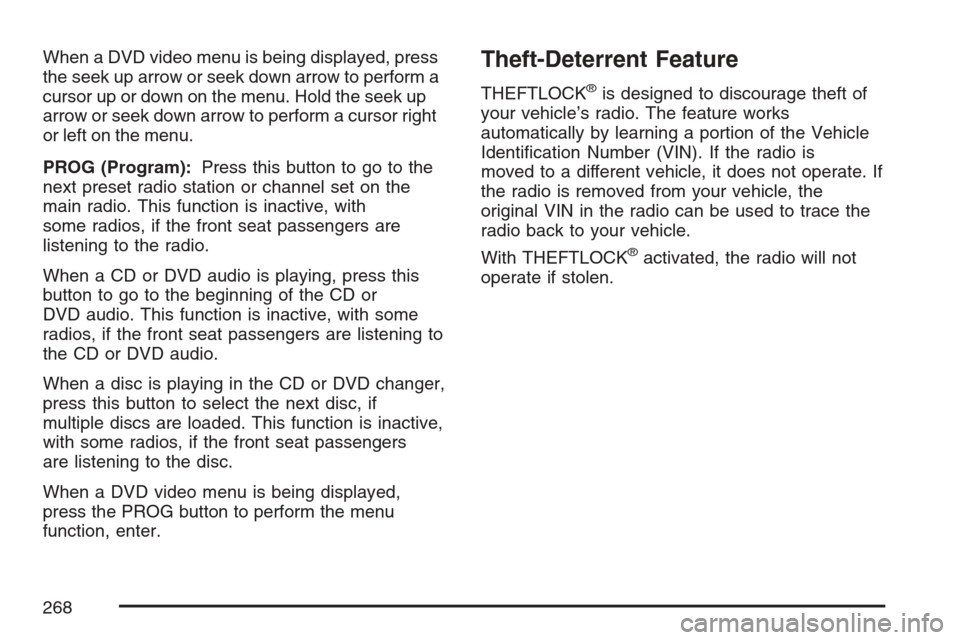

When a DVD video menu is being displayed, press
the seek up arrow or seek down arrow to perform a
cursor up or down on the menu. Hold the seek up
arrow or seek down arrow to perform a cursor right
or left on the menu.
PROG (Program):Press this button to go to the
next preset radio station or channel set on the
main radio. This function is inactive, with
some radios, if the front seat passengers are
listening to the radio.
When a CD or DVD audio is playing, press this
button to go to the beginning of the CD or
DVD audio. This function is inactive, with some
radios, if the front seat passengers are listening to
the CD or DVD audio.
When a disc is playing in the CD or DVD changer,
press this button to select the next disc, if
multiple discs are loaded. This function is inactive,
with some radios, if the front seat passengers
are listening to the disc.
When a DVD video menu is being displayed,
press the PROG button to perform the menu
function, enter.Theft-Deterrent Feature
THEFTLOCK®is designed to discourage theft of
your vehicle’s radio. The feature works
automatically by learning a portion of the Vehicle
Identication Number (VIN). If the radio is
moved to a different vehicle, it does not operate. If
the radio is removed from your vehicle, the
original VIN in the radio can be used to trace the
radio back to your vehicle.
With THEFTLOCK
®activated, the radio will not
operate if stolen.
268

Audio Steering Wheel Controls
Some audio controls can be adjusted at the
steering wheel. They include the following:
0(Mute):Press this button to mute the system.
Press this button again, or any other radio
button, to turn the sound on.
SRCE (Source):Press this button to switch
between AM, FM, XM™ (if equipped), CD, and
auxiliary jack.
g(Voice Recognition):If your vehicle has the
navigation system, press and hold this button
for longer than one second to initiate voice
recognition. See “Voice Recognition” in the
Navigation System manual for more information.
If your vehicle has OnStar
®, press and hold
this button for longer than one second to interact
with the OnStar
®system. If your vehicle also
has the navigation system, press and hold this
button for longer than one second to initiate voice
recognition and say “OnStar” to enter OnStar
®
mode. See theOnStar®System on page 139in
this manual for more information.
1-6 (Preset Stations):Press this button to play
stations that are programmed on the radio
preset pushbuttons. The radio seeks preset
stations only with a strong signal that are in the
selected band.
While a CD is playing, press this button to go to
the next track.
269

+u−(Volume):Press this button to increase
or to decrease the volume.
+
tu−(Seek):Press either arrow to go to the
next or the previous radio station and stay
there. The radio seeks stations only with a strong
signal that are in the selected band.
While a CD is playing in a single CD player, press
the minus button to go to the previous track or
the plus button to go to the next track on the CD.
While a CD is playing in a six-disc CD player,
loaded with more than one CD, press the minus
button to go to the previous disc or the plus button
to go to the next disc.
If the radio has the navigation system, some of
the audio steering wheel controls work when
a DVD is playing in the navigation radio. See the
Navigation System manual for more information.
Radio Reception
Frequency interference and static can occur
during normal radio reception if items such as
cellphone chargers, vehicle convenience
accessories, and external electronic devices are
plugged into the accessory power outlet. If there is
interference or static, unplug the item from the
accessory power outlet.
AM
The range for most AM stations is greater than for
FM, especially at night. The longer range can
cause station frequencies to interfere with each
other. For better radio reception, most AM
radio stations boost the power levels during the
day, and then reduces these levels during
the night. Static can also occur when things like
storms and power lines interfere with radio
reception. When this happens, try reducing the
treble on the radio.
FM Stereo
FM stereo gives the best sound, but FM signals
reach only about 10 to 40 miles (16 to 65 km). Tall
buildings or hills can interfere with FM signals,
causing the sound to fade in and out.
270
