CADILLAC SRX 2008 1.G Owners Manual

Seats and Restraint Systems........................... 1-1
Front Seats
............................................... 1-2
Rear Seats
..............................................1-11
Safety Belts
.............................................1-13
Child Restraints
.......................................1-32
Airbag System
.........................................1-55
Restraint System Check
............................1-72
Features and Controls..................................... 2-1
Keys
........................................................ 2-3
Doors and Locks
......................................2-10
Windows
.................................................2-16
Theft-Deterrent Systems
............................2-20
Starting and Operating Your Vehicle
...........2-24
Mirrors
....................................................2-41
Object Detection Systems
..........................2-45
OnStar
®System
......................................2-47
Universal Home Remote System
................2-50
Storage Areas
.........................................2-57
Sunroof
..................................................2-59
Instrument Panel............................................. 3-1
Instrument Panel Overview
.......................... 3-4
Climate Controls
......................................3-23
Warning Lights, Gages, and Indicators
........3-31
Driver Information Center (DIC)
..................3-47
Audio System(s)
.......................................3-70Driving Your Vehicle....................................... 4-1
Your Driving, the Road, and Your Vehicle
..... 4-2
Towing
...................................................4-39
Service and Appearance Care.......................... 5-1
Service
..................................................... 5-3
Fuel
......................................................... 5-5
Checking Things Under the Hood
...............5-10
All-Wheel Drive
........................................5-44
Rear Axle
...............................................5-46
Front Axle
...............................................5-46
Headlamp Aiming
.....................................5-47
Bulb Replacement
....................................5-47
Windshield Wiper Blade Replacement
.........5-49
Tires
......................................................5-51
Appearance Care
.....................................5-91
Vehicle Identication
.................................5-99
Electrical System
....................................5-100
Capacities and Specications
...................5-111
Maintenance Schedule..................................... 6-1
Maintenance Schedule
................................ 6-2
Customer Assistance Information.................... 7-1
Customer Assistance and Information
........... 7-2
Reporting Safety Defects
...........................7-16
Vehicle Data Recording and Privacy
...........7-18
Index................................................................ 1
2008 Cadillac SRX Owner ManualM

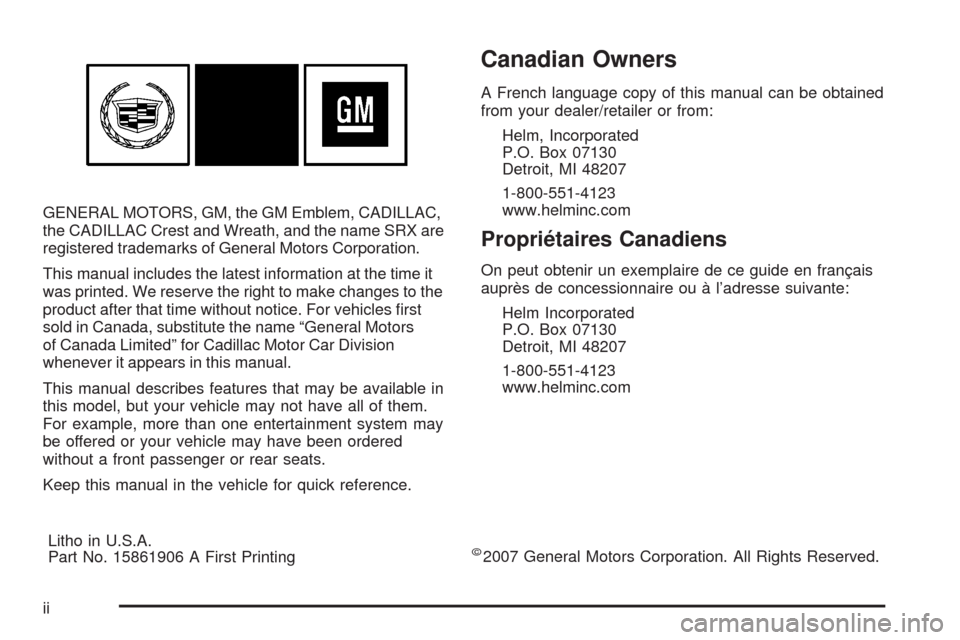

GENERAL MOTORS, GM, the GM Emblem, CADILLAC,
the CADILLAC Crest and Wreath, and the name SRX are
registered trademarks of General Motors Corporation.
This manual includes the latest information at the time it
was printed. We reserve the right to make changes to the
product after that time without notice. For vehicles rst
sold in Canada, substitute the name “General Motors
of Canada Limited” for Cadillac Motor Car Division
whenever it appears in this manual.
This manual describes features that may be available in
this model, but your vehicle may not have all of them.
For example, more than one entertainment system may
be offered or your vehicle may have been ordered
without a front passenger or rear seats.
Keep this manual in the vehicle for quick reference.
Canadian Owners
A French language copy of this manual can be obtained
from your dealer/retailer or from:
Helm, Incorporated
P.O. Box 07130
Detroit, MI 48207
1-800-551-4123
www.helminc.com
Propriétaires Canadiens
On peut obtenir un exemplaire de ce guide en français
auprès de concessionnaire ou à l’adresse suivante:
Helm Incorporated
P.O. Box 07130
Detroit, MI 48207
1-800-551-4123
www.helminc.com
Litho in U.S.A.
Part No. 15861906 A First Printing
©2007 General Motors Corporation. All Rights Reserved.
ii

Using this Manual
Many people read the owner manual from beginning to
end when they rst receive their new vehicle to learn
about the vehicle’s features and controls. Pictures
and words work together to explain things.
Index
A good place to quickly locate information about the
vehicle is the Index in the back of the manual. It is
an alphabetical list of what is in the manual and
the page number where it can be found.
Safety Warnings and Symbols
There are a number of safety cautions in this book.
A box with the word CAUTION is used to tell about
things that could hurt you or others if you were to
ignore the warning.
{CAUTION:
These mean there is something that could hurt
you or other people.
We tell you what the hazard is and what to do to help
avoid or reduce the hazard. Please read these cautions.
If you do not, you or others could be hurt.
A circle with a slash
through it is a safety
symbol which means
“Do Not,” “Do Not do this”
or “Do Not let this
happen.”
iii

Vehicle Damage Warnings
You will also nd notices in this manual.
Notice:These mean there is something that could
damage your vehicle.
A notice tells about something that can damage the
vehicle. Many times, this damage would not be covered
by your vehicle’s warranty, and it could be costly.
The notice tells what to do to help avoid the damage.
When you read other manuals, you might see CAUTION
and NOTICE warnings in different colors or in different
words.
There are also warning labels on the vehicle which use
the same words, CAUTION or NOTICE.
Vehicle Symbols
The vehicle has components and labels that use
symbols instead of text. Symbols are shown along
with the text describing the operation or information
relating to a specic component, control, message,
gage, or indicator.
iv

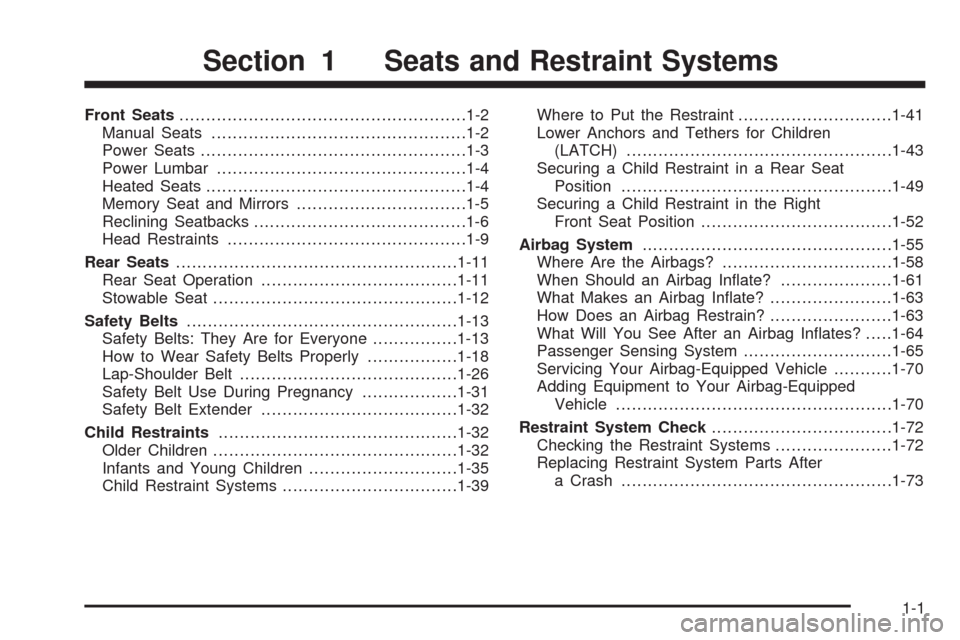

Front Seats......................................................1-2
Manual Seats................................................1-2
Power Seats..................................................1-3
Power Lumbar...............................................1-4
Heated Seats.................................................1-4
Memory Seat and Mirrors................................1-5
Reclining Seatbacks........................................1-6
Head Restraints.............................................1-9
Rear Seats.....................................................1-11
Rear Seat Operation.....................................1-11
Stowable Seat..............................................1-12
Safety Belts...................................................1-13
Safety Belts: They Are for Everyone................1-13
How to Wear Safety Belts Properly.................1-18
Lap-Shoulder Belt.........................................1-26
Safety Belt Use During Pregnancy..................1-31
Safety Belt Extender.....................................1-32
Child Restraints.............................................1-32
Older Children..............................................1-32
Infants and Young Children............................1-35
Child Restraint Systems.................................1-39Where to Put the Restraint.............................1-41
Lower Anchors and Tethers for Children
(LATCH)..................................................1-43
Securing a Child Restraint in a Rear Seat
Position...................................................1-49
Securing a Child Restraint in the Right
Front Seat Position....................................1-52
Airbag System...............................................1-55
Where Are the Airbags?................................1-58
When Should an Airbag Inate?.....................1-61
What Makes an Airbag Inate?.......................1-63
How Does an Airbag Restrain?.......................1-63
What Will You See After an Airbag Inates?.....1-64
Passenger Sensing System............................1-65
Servicing Your Airbag-Equipped Vehicle..........
.1-70
Adding Equipment to Your Airbag-Equipped
Vehicle....................................................1-70
Restraint System Check..................................1-72
Checking the Restraint Systems......................1-72
Replacing Restraint System Parts After
a Crash...................................................1-73
Section 1 Seats and Restraint Systems
1-1

Front Seats
Manual Seats
{CAUTION:
You can lose control of the vehicle if you try to
adjust a manual driver’s seat while the vehicle
is moving. The sudden movement could startle
and confuse you, or make you push a pedal
when you do not want to. Adjust the driver’s
seat only when the vehicle is not moving.To move a manual seat forward or rearward:
1. Lift the bar to unlock
the seat.
2. Slide the seat to the
desired position and
release the bar.
Try to move the seat with your body to be sure the seat
is locked in place.
1-2

Power SeatsIf the vehicle has power seats, the controls used to
operate them are located on the outboard side of
the seats.
Move the seat forward or rearward by sliding the
horizontal control forward or rearward.
Raise or lower the front part of the seat cushion by
moving the front of the horizontal control up or down.
Raise or lower the rear part of the seat cushion by
moving the rear of the horizontal control up or down.
Raise or lower the entire seat by moving the entire
horizontal control up or down.
The vertical control is used for reclining your seatback.
See “Power Reclining Seatbacks” underReclining
Seatbacks on page 1-6for more information.
1-3

Power Lumbar
Your vehicle may have this
feature. The driver’s and
passenger’s seatback
lumbar support can be
adjusted by moving the
control located on the
outboard side of the
seat cushions.
To increase or decrease support, hold the control forward
or rearward. Keep in mind that as your seating position
changes, as it may during long trips, so should the
position of your lumbar support. Adjust the seat as
needed.
Heated Seats
Vehicles with heated front seats have controls located
on the driver’s and passenger’s doors, near the
door handle.
I(Heated Seatback):Press the button to cycle
through the temperature settings and to turn the heat
to the seatback off. Indicator lights next to the button
show the heat level selected: three for high, two
for medium, and one for low.
J(Heated Seat and Seatback):Press the button
to cycle through the temperature settings and to turn the
heat to the seat off. Indicator lights next to the button
show the heat level selected: three for high, two
for medium, and one for low.
You will need to press the appropriate heated seat or
seatback button every time you start the vehicle.
1-4

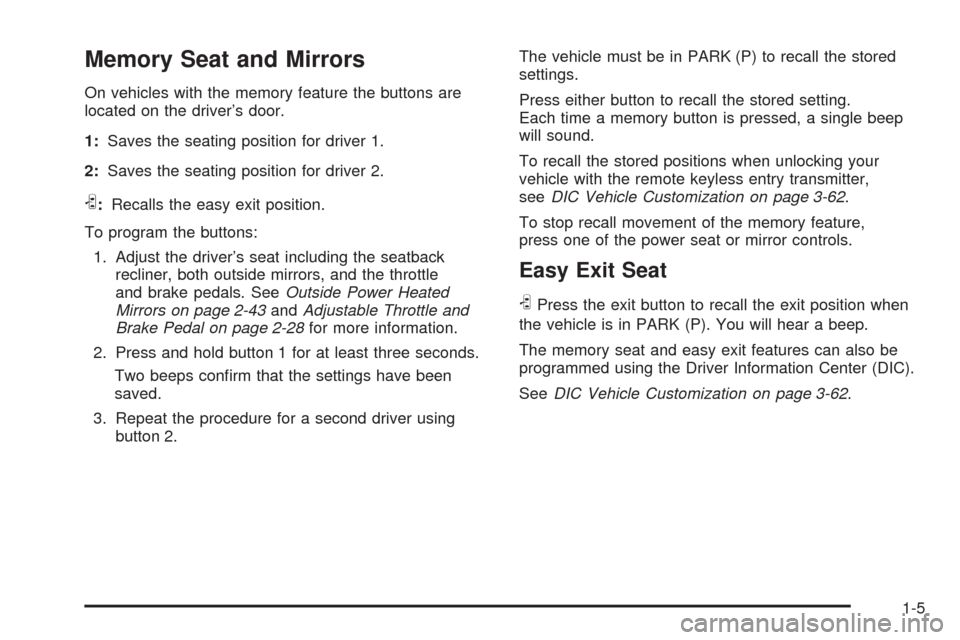

Memory Seat and Mirrors
On vehicles with the memory feature the buttons are
located on the driver’s door.
1:Saves the seating position for driver 1.
2:Saves the seating position for driver 2.
S:Recalls the easy exit position.
To program the buttons:
1. Adjust the driver’s seat including the seatback
recliner, both outside mirrors, and the throttle
and brake pedals. SeeOutside Power Heated
Mirrors on page 2-43andAdjustable Throttle and
Brake Pedal on page 2-28for more information.
2. Press and hold button 1 for at least three seconds.
Two beeps conrm that the settings have been
saved.
3. Repeat the procedure for a second driver using
button 2.The vehicle must be in PARK (P) to recall the stored
settings.
Press either button to recall the stored setting.
Each time a memory button is pressed, a single beep
will sound.
To recall the stored positions when unlocking your
vehicle with the remote keyless entry transmitter,
seeDIC Vehicle Customization on page 3-62.
To stop recall movement of the memory feature,
press one of the power seat or mirror controls.
Easy Exit Seat
S
Press the exit button to recall the exit position when
the vehicle is in PARK (P). You will hear a beep.
The memory seat and easy exit features can also be
programmed using the Driver Information Center (DIC).
SeeDIC Vehicle Customization on page 3-62.
1-5

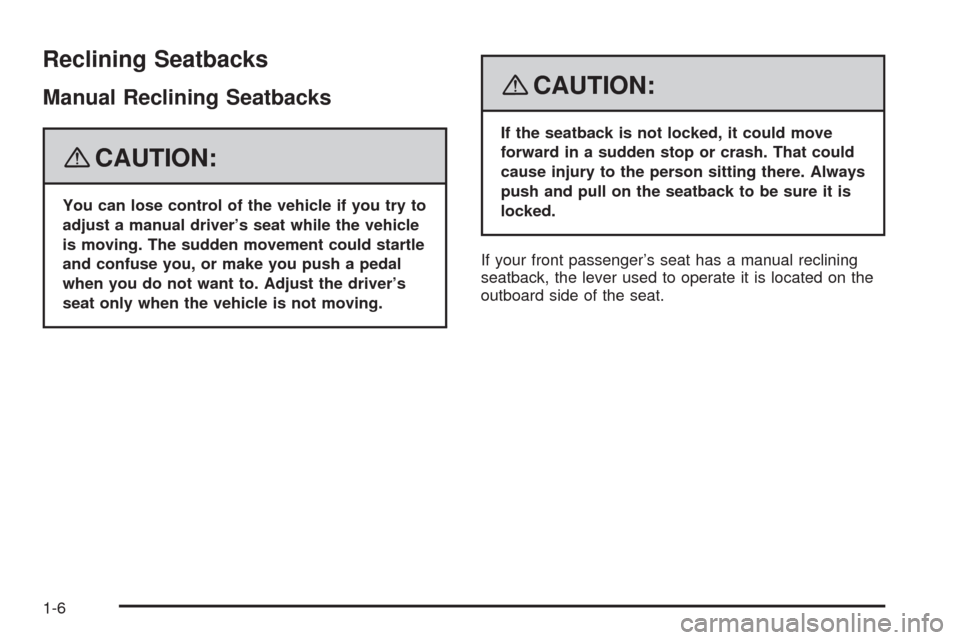

Reclining Seatbacks
Manual Reclining Seatbacks
{CAUTION:
You can lose control of the vehicle if you try to
adjust a manual driver’s seat while the vehicle
is moving. The sudden movement could startle
and confuse you, or make you push a pedal
when you do not want to. Adjust the driver’s
seat only when the vehicle is not moving.
{CAUTION:
If the seatback is not locked, it could move
forward in a sudden stop or crash. That could
cause injury to the person sitting there. Always
push and pull on the seatback to be sure it is
locked.
If your front passenger’s seat has a manual reclining
seatback, the lever used to operate it is located on the
outboard side of the seat.
1-6
