How to Check Lubricant
A. Drain Plug
B. Filler Plug
To get an accurate reading, the vehicle should be on a
level surface.
If the level is below the bottom of the ller plug hole,
located on the front axle, you may need to add some
lubricant.
What to Use
Refer to the Maintenance Schedule to determine what
kind of lubricant to use. SeeRecommended Fluids and
Lubricants on page 6-12.
Headlamp Aiming
Headlamp aim has been preset at the factory and
should need no further adjustment.
However, if your vehicle is damaged in a crash, the
headlamp aim may be affected. Aim adjustment to the
low-beam headlamps may be necessary if oncoming
drivers ash their high-beam headlamps at you
(for vertical aim).
If the headlamps need to be re-aimed, it is
recommended that you take the vehicle to your
dealer/retailer for service.
Bulb Replacement
It is recommended that all bulbs be replaced by your
dealer/retailer.
5-47

High Intensity Discharge (HID)
Lighting
{CAUTION:
The low beam high intensity discharge lighting
system operates at a very high voltage. If you
try to service any of the system components,
you could be seriously injured. Have your
dealer/retailer or a qualied technician
service them.
Your vehicle has HID headlamps. After your vehicle’s
HID headlamp bulb has been replaced, you may notice
that the beam is a slightly different shade than it was
originally. This is normal.
Halogen Bulbs
{CAUTION:
Halogen bulbs have pressurized gas inside
and can burst if you drop or scratch the bulb.
You or others could be injured. Be sure to
read and follow the instructions on the bulb
package.
5-48

{CAUTION:
Using the wrong replacement wheels, wheel
bolts, or wheel nuts on your vehicle can be
dangerous. It could affect the braking and
handling of your vehicle, make your tires lose
air and make you lose control. You could have
a collision in which you or others could be
injured. Always use the correct wheel, wheel
bolts, and wheel nuts for replacement.
Notice:The wrong wheel can also cause problems
with bearing life, brake cooling, speedometer or
odometer calibration, headlamp aim, bumper height,
vehicle ground clearance, and tire or tire chain
clearance to the body and chassis.
SeeChanging a Flat Tire on page 5-76for more
information.
Used Replacement Wheels
{CAUTION:
Putting a used wheel on your vehicle is
dangerous. You cannot know how it has been
used or how far it has been driven. It could fail
suddenly and cause a crash. If you have to
replace a wheel, use a new GM original
equipment wheel.
5-73

Relays Usage
IGN Ignition Switch (ON)
STRTR Starter Solenoid
PWR/TRN Powertrain/Engine Control Module
HI BEAM High-Beam Headlamps
SPARE Spare
WPR Windshield Wiper System - On/Off
WPR HIWindshield Wiper
System - Low/High
HDLP WASH Headlamp Washer Pump (Option)
LO BEAM -
W/O HID/HIDLow-Beam Headlamps
REAR WASH Rear Washer Pump
HORN Horn
A/C CMPRSR
CLTCHAir Conditioning Compressor Clutch
FUEL PUMP Fuel Pump
ACCYAccessory Power (Rear Wipers,
Inside Rearview Mirror)
J Case Fuses Usage
FAN 2 Right Cooling Fan Motor
SPARE Spare
FAN 1 Left Cooling Fan Motor
J Case Fuses Usage
BLWR Front Blower Motor Assembly
STRTR Starter Solenoid
LPDB 2LRPDB (Left Side Rear Power
Distribution Box)
ABS MOTOR Antilock Brake System Module
LPDB 1LRPDB (Left Side Rear Power
Distribution Box)
RPDB 1RRPDB (Right Side Rear Power
Distribution Box)
SPARE Spare
SPARE Spare
RPDB 2RRPDB (Right Side Rear Power
Distribution Box)
Mini Fuses Usage
FRT WASH Front Washer Pump
SPARE Spare
SPARE Spare
AIRBAGSensing Diagnostic Module (SDM),
Occupant Sensor Display,
Instrument Cluster
ABS IGNAntilock Braking System Ignition,
Variable Effort Steering
IGN SW Ignition Switch, Immobilizer Module
5-103

Mini Fuses Usage
ECM/TCM IGNEngine Control Module/Transmission
Control Module Ignition Power,
Mass Airow Sensor (V6)
MISC IGN Air Quality Sensor
EMIS 1Pre 02 Sensors, Cam Phasor (V6),
Canister Purge (V6), Intake Manifold
Tuning Valve (V6)
SPARE Spare
DISPLYInstrument Panel Cluster, Climate
Control Module, Diagnostic Link
Connector
BCM 2LED Instrument Panel Dimming,
Overhead Lamps, Vanity Lamps
EVEN COILSEven Ignition Coils, Even Fuel
Injectors
BCM 6Right Side Rear Stoplamp, Turn
Lamps, Key Capture Solenoid
RDO Radio
ODD COILSOdd Ignition Coils, Odd Fuel
Injectors
BCM 1 Body Control Module (BCM) Power
LT HI BEAM Left Side High-Beam HeadlampMini Fuses Usage
BCM 7/CLOCK Switch Dimming, Analog Clock
SPARE Spare
EMIS 2Cooling Fan Relays, Air Conditioning
Clutch Relay, Post O2 Sensors,
Mass Airow Sensor (V8),
Canister Purge (V8)
ECM BATT Engine Control Module (ECM)
RT HI BEAM Right Side High-Beam Headlamp
RVC SNSRBattery Regulated Voltage
Control Sense
FOG LAMP Front Fog Lamps
ECM 1 Engine Control Module (ECM)
BCM 5Left Side Front Turn Lamps,
Rear Stoplamps, Turn Lamps
WPR Windshield Wiper Motor
SPARE Spare
BCM 4Center High-Mounted Stoplamp
(CHMSL), Back-up Lamps
CIGInstrument Panel Accessory Power
Outlet (Cigarette Lighter)
RT LO BEAM Right Side Low-Beam Headlamp
5-104

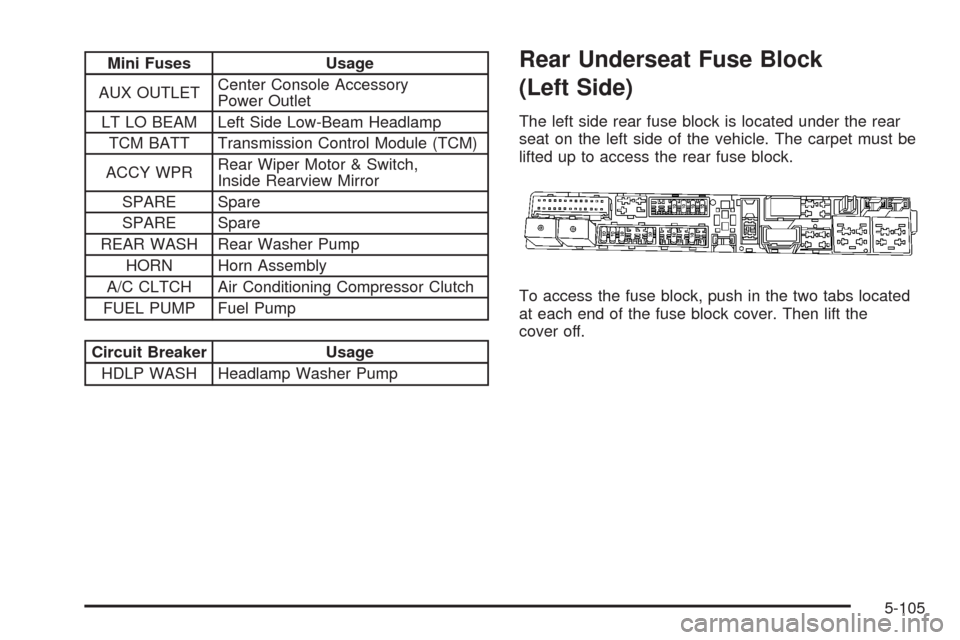

Mini Fuses Usage
AUX OUTLETCenter Console Accessory
Power Outlet
LT LO BEAM Left Side Low-Beam Headlamp
TCM BATT Transmission Control Module (TCM)
ACCY WPRRear Wiper Motor & Switch,
Inside Rearview Mirror
SPARE Spare
SPARE Spare
REAR WASH Rear Washer Pump
HORN Horn Assembly
A/C CLTCH Air Conditioning Compressor Clutch
FUEL PUMP Fuel Pump
Circuit Breaker Usage
HDLP WASH Headlamp Washer Pump
Rear Underseat Fuse Block
(Left Side)
The left side rear fuse block is located under the rear
seat on the left side of the vehicle. The carpet must be
lifted up to access the rear fuse block.
To access the fuse block, push in the two tabs located
at each end of the fuse block cover. Then lift the
cover off.
5-105
