You can program your vehicle so that the exterior lamps
will ash when you unlock the doors with the RKE
transmitter. SeeDIC Vehicle Customization on page 3-62
for more information on programming this feature.
If your vehicle is programmed for remote conrmation,
the doors must be closed for this feature to work.
If a door is open, remote conrmation will be canceled.
/(Remote Vehicle Start):Your vehicle may be
started from outside the vehicle using the RKE
transmitter. SeeRemote Vehicle Start on page 2-7.
L(Panic Alarm):Press and release this button to
locate your vehicle. The turn signal lamps will ash and
the horn will sound three times. Press and hold this
button for more than two seconds to activate the panic
alarm. The turn signal lamps will ash and the horn
will sound repeatedly for 30 seconds. The alarm will
turn off when the ignition is turned to ON/RUN or
the alarm button is pressed again. The ignition must
be in LOCK/OFF for the panic alarm to work.
&(Power Liftgate):Press and hold this button
on the RKE transmitter to open and close the liftgate.
The taillamps will ash and a chime will sound to
indicate when the liftgate is opening and closing.
Matching Transmitter(s) to
Your Vehicle
Each RKE transmitter is coded to prevent another
transmitter from unlocking your vehicle. If a transmitter
is lost or stolen, a replacement can be purchased
through your dealer/retailer. Remember to bring any
additional transmitters with you so that all of them
can be re-coded to match the new transmitter. Once your
dealer/retailer has coded the new transmitter, the lost
transmitter will not unlock your vehicle. Each vehicle can
have a maximum of eight transmitters matched to it.
See RELEARN REMOTE KEY underDIC Operation and
Displays on page 3-48
Battery Replacement
Under normal use, the battery in your RKE transmitter
should last about four years.
The battery is weak if the transmitter will not work at the
normal range in any location. If you have to get close to
your vehicle before the transmitter works, it is probably
time to change the battery.
The REPLACE BATTERY IN REMOTE KEY message in
the vehicle’s DIC will display if the RKE transmitter
battery is low. See “REPLACE BATTERY IN REMOTE
KEY” underDIC Warnings and Messages on page 3-53.
2-6

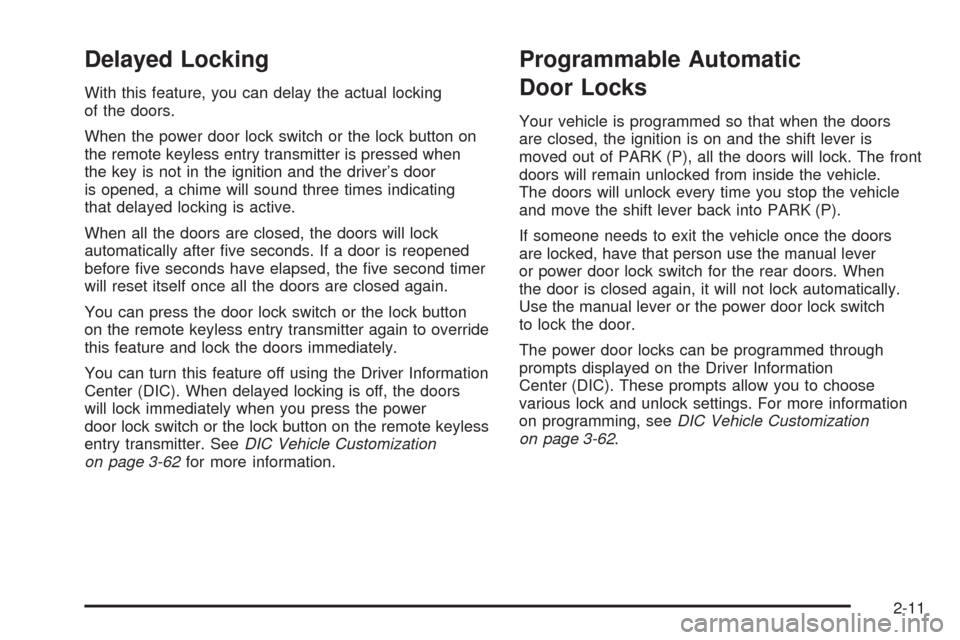

Delayed Locking
With this feature, you can delay the actual locking
of the doors.
When the power door lock switch or the lock button on
the remote keyless entry transmitter is pressed when
the key is not in the ignition and the driver’s door
is opened, a chime will sound three times indicating
that delayed locking is active.
When all the doors are closed, the doors will lock
automatically after ve seconds. If a door is reopened
before ve seconds have elapsed, the ve second timer
will reset itself once all the doors are closed again.
You can press the door lock switch or the lock button
on the remote keyless entry transmitter again to override
this feature and lock the doors immediately.
You can turn this feature off using the Driver Information
Center (DIC). When delayed locking is off, the doors
will lock immediately when you press the power
door lock switch or the lock button on the remote keyless
entry transmitter. SeeDIC Vehicle Customization
on page 3-62for more information.
Programmable Automatic
Door Locks
Your vehicle is programmed so that when the doors
are closed, the ignition is on and the shift lever is
moved out of PARK (P), all the doors will lock. The front
doors will remain unlocked from inside the vehicle.
The doors will unlock every time you stop the vehicle
and move the shift lever back into PARK (P).
If someone needs to exit the vehicle once the doors
are locked, have that person use the manual lever
or power door lock switch for the rear doors. When
the door is closed again, it will not lock automatically.
Use the manual lever or the power door lock switch
to lock the door.
The power door locks can be programmed through
prompts displayed on the Driver Information
Center (DIC). These prompts allow you to choose
various lock and unlock settings. For more information
on programming, seeDIC Vehicle Customization
on page 3-62.
2-11

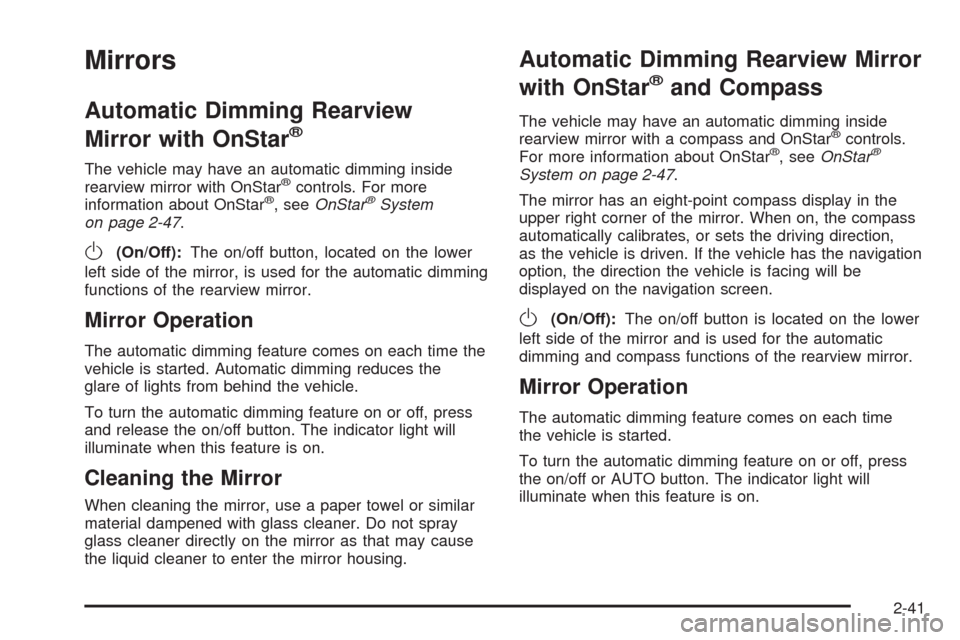

Mirrors
Automatic Dimming Rearview
Mirror with OnStar
®
The vehicle may have an automatic dimming inside
rearview mirror with OnStar®controls. For more
information about OnStar®, seeOnStar®System
on page 2-47.
O(On/Off):The on/off button, located on the lower
left side of the mirror, is used for the automatic dimming
functions of the rearview mirror.
Mirror Operation
The automatic dimming feature comes on each time the
vehicle is started. Automatic dimming reduces the
glare of lights from behind the vehicle.
To turn the automatic dimming feature on or off, press
and release the on/off button. The indicator light will
illuminate when this feature is on.
Cleaning the Mirror
When cleaning the mirror, use a paper towel or similar
material dampened with glass cleaner. Do not spray
glass cleaner directly on the mirror as that may cause
the liquid cleaner to enter the mirror housing.
Automatic Dimming Rearview Mirror
with OnStar
®and Compass
The vehicle may have an automatic dimming inside
rearview mirror with a compass and OnStar®controls.
For more information about OnStar®, seeOnStar®
System on page 2-47.
The mirror has an eight-point compass display in the
upper right corner of the mirror. When on, the compass
automatically calibrates, or sets the driving direction,
as the vehicle is driven. If the vehicle has the navigation
option, the direction the vehicle is facing will be
displayed on the navigation screen.
O(On/Off):The on/off button is located on the lower
left side of the mirror and is used for the automatic
dimming and compass functions of the rearview mirror.
Mirror Operation
The automatic dimming feature comes on each time
the vehicle is started.
To turn the automatic dimming feature on or off, press
the on/off or AUTO button. The indicator light will
illuminate when this feature is on.
2-41

Compass Operation
Press the on/off button once to turn the compass on or off.
When the ignition and the compass feature are on, the
compass will show two character boxes for approximately
two seconds. After two seconds, the mirror will display
the current compass direction.
Compass Calibration
If after two seconds the display does not show a
compass direction, (N for North for example), there may
be a strong magnetic eld interfering with the compass.
Such interference may be caused by a magnetic antenna
mount, note pad holder, or similar object. If the letter C
appears in the compass window, the compass may need
to be reset or calibrated.
The mirror can be calibrated by driving the vehicle in
circles at 5 mph (8 km/h) or less until the display reads
a direction.
The compass can be calibrated by pressing and holding
the on/off button until a C is shown in the compass
display.
Compass Variance
Compass variance is the difference between earth’s
magnetic north and true geographic north. If the mirror
is not adjusted for compass variance, the compass
could give false readings.The mirror is set in zone eight upon leaving the factory.
It will be necessary to adjust the compass to compensate
for compass variance if the vehicle is driven outside
zone eight. Under certain circumstances, such as a long
distance, cross-country trip, it will be necessary to adjust
the compass variance.
To adjust for compass variance, do the following:
1. Find your current location and variance zone
number on the zone map that follows.
2. Press and hold the on/off button until a zone
number appears on the display.
2-42

3. Once the zone number appears on the display, press
the on/off button quickly until you reach the correct
zone number. If C appears in the compass window,
the compass may need calibration. See “Compass
Calibration” listed previously.
Cleaning the Mirror
When cleaning the mirror, use a paper towel or similar
material dampened with glass cleaner. Do not spray
glass cleaner directly on the mirror as that may cause
the liquid cleaner to enter the mirror housing.
Outside Power Heated Mirrors
The power mirror controls
are located on the
driver’s door armrest
and operate both outside
rearview mirrors.
Press (A) to select the driver’s side mirror. The LED
indicator will turn on to indicate that this mirror is
selected. Then press the arrows located on thefour-way control pad to adjust the mirror. Press (A)
again to deselect the mirror. The LED indicator will
turn off to indicate that this mirror is de-selected.
Press (B) to select the passenger’s side mirror. The
LED indicator will turn on to indicate that this mirror
is selected. Then press the arrows located on the
four-way control pad to adjust the mirror. Press (B)
again to deselect the mirror. The LED indicator will
turn off to indicate that this mirror is de-selected.
The preferred position can be stored in memory if the
vehicle has the memory option. SeeMemory Seat
and Mirrors on page 1-5for more information.
The mirrors can be manually folded inward to prevent
damage when going through an automatic car wash
or a conned space. To fold, push the mirror toward the
vehicle. To return the mirror to its original position,
push outward. Be sure to return both mirrors to their
original unfolded position before driving.
When the rear window defogger is turned on, both
outside rearview mirrors are heated to help clear them
of ice, snow, and condensation. See “Rear Window
Defogger” underDual Climate Control System on
page 3-23for more information.
2-43

Object Detection Systems
Ultrasonic Rear Parking
Assist (URPA)
If your vehicle has the Ultrasonic Rear Parking
Assist (URPA) system, it helps you park easier
and avoid other vehicles while in REVERSE (R).
It operates at speeds less than 3 mph (5 km/h).
It can determine how close objects are to the rear
bumper, up to 5 feet (1.5 m) behind your vehicle.
The distance sensors are located on the rear bumper.
{CAUTION:
The Ultrasonic Rear Parking Assist (URPA)
system does not replace driver vision.
It cannot detect:
objects that are below the bumper,
underneath the vehicle, or if they are
too close or far from the vehicle
children, pedestrians, bicyclists, or pets.
CAUTION: (Continued)
CAUTION: (Continued)
If you do not use proper care before and
while backing; vehicle damage, injury, or death
could occur. Even with URPA, always check
behind your vehicle before backing up. While
backing, be sure to look for objects and check
your vehicle’s mirrors.
The display is located
above the liftgate glass
and can be seen by
looking over your right
shoulder.
URPA uses three color-coded lights to provide
distance and system information.
2-45

How the System Works
URPA comes on automatically when the shift lever is
moved into REVERSE (R). The rear display will then
briey illuminate to let you know the system is working.
URPA operates only at speeds less than 3 mph (5 km/h).
If you are above this speed, the red light on the rear
display will ash.
To be detected, objects must be at least 10 inches
(25.4 cm) off the ground and below liftgate level.
Objects must also be within 5 feet (1.5 m) from your
rear bumper. This distance may be less during warmer
or humid weather.
A single beep will sound the rst time an object is
detected between 20 inches (0.5 m) and 5 feet (1.5 m)
away. Beeping will occur for three seconds when
you are closer than 1 foot (0.3 m) from the object.
The following describes what will occur with the URPA
display as you get closer to a detected object:
Description English Metric
amber light 5 ft 1.5 m
amber/amber lights 40 in 1.0 m
amber/amber/red lights 20 in 0.5 m
amber/amber/red lights
ashing and beep for
three seconds1 ft 0.3 mThe system can be disabled using the Driver Information
Center (DIC). See “Parking Assist” underDIC Operation
and Displays on page 3-48.
When the System Does Not Seem to
Work Properly
The driver disables the system.
The parking brake pedal is depressed.
The ultrasonic sensors are not clean. Keep your
vehicle’s rear bumper free of mud, dirt, snow,
ice and slush. For cleaning instructions, see
Washing Your Vehicle on page 5-94.
A trailer was attached to your vehicle, or a bicycle
or an object was hanging out of your liftgate
during your last drive cycle, the red light may
illuminate. Once the attached object is removed,
URPA will return to normal operation.
A tow bar is attached to your vehicle.
The vehicle’s bumper is damaged. Take the vehicle
to your dealer/retailer to repair the system.
Other conditions may affect system performance,
such as vibrations from a jackhammer or the
compression of air brakes on a very large truck.
If the system is still disabled, after driving forward at
least 15 mph (25 km/h), take your vehicle to your
dealer/retailer.
2-46

Warning Lights, Gages, and Indicators............3-31
Instrument Panel Cluster................................3-32
Speedometer and Odometer...........................3-33
Tachometer.................................................3-33
Engine Speed Limiter....................................3-33
Safety Belt Reminders...................................3-33
Airbag Readiness Light..................................3-34
Passenger Airbag Status Indicator...................3-35
Charging System Light..................................3-37
Brake System Warning Light..........................3-38
Antilock Brake System Warning Light...............3-39
Traction Control System (TCS) Warning Light......3-39
Engine Coolant Temperature Warning Light......3-40
Engine Coolant Temperature Gage..................3-40
Tire Pressure Light.......................................3-41
Malfunction Indicator Lamp.............................3-42
Oil Pressure Light.........................................3-44
Security Light...............................................3-45
Fog Lamp Light............................................3-45
Lights On Reminder......................................3-46
Cruise Control Light......................................3-46Highbeam On Light.......................................3-46
Tow/Haul Mode Light....................................3-46
Fuel Gage...................................................3-47
Driver Information Center (DIC).......................3-47
DIC Operation and Displays...........................3-48
DIC Warnings and Messages.........................3-53
DIC Vehicle Customization.............................3-62
Audio System(s).............................................3-70
Setting the Time...........................................3-71
Radio(s) (MP3).............................................3-75
Using an MP3..............................................3-84
XM Radio Messages.....................................3-89
Navigation/Radio System..............................
.3-90
Rear Seat Entertainment (RSE) System...........3-90
Rear Seat Audio (RSA).................................3-90
Theft-Deterrent Feature..................................3-92
Audio Steering Wheel Controls.......................3-92
Radio Reception...........................................3-93
Rear Side Window Antenna...........................3-94
XM™ Satellite Radio Antenna System.............3-94
Section 3 Instrument Panel
3-2

The main components of the instrument panel are the following:
A. Air Outlets. SeeOutlet Adjustment on page 3-29.
B. Turn Signal/Multifunction Lever. SeeTurn
Signal/Multifunction Lever on page 3-7.
C. Instrument Panel Cluster. SeeInstrument Panel
Cluster on page 3-32.
D. Windshield Wiper Lever. SeeWindshield Wipers on
page 3-9.
E. Analog Clock. SeeAnalog Clock on page 3-22.
F. Driver Information Center Controls (DIC). SeeDIC
Operation and Displays on page 3-48.
G. Hood Release. SeeHood Release on page 5-11.
Parking Brake Release. SeeParking Brake on
page 2-34.
H. Instrument Panel Brightness Control. SeeInstrument
Panel Brightness on page 3-19.
I. Cruise Control Buttons. SeeCruise Control on
page 3-12.
J. Tilt Wheel Lever. SeeTilt Wheel on page 3-6.K. Adjustable Pedal Button (If Equipped). See
Adjustable Throttle and Brake Pedal on page 2-28.
L. Horn. SeeHorn on page 3-6.
M. Audio Steering Wheel Controls. SeeAudio Steering
Wheel Controls on page 3-92.
N. Ashtray (If Equipped). SeeAshtray(s) and Cigarette
Lighter on page 3-21.
O. Traction Control Button. SeeTraction Control
System (TCS) on page 4-5.
P. Tow/Haul Selector Button (If Equipped).
SeeTow/Haul Mode on page 2-33.
Q. Hazard Warning Flasher Button. SeeHazard
Warning Flashers on page 3-6.
R. Dual Climate Control System. SeeDual Climate
Control System on page 3-23.
S. Audio System. SeeAudio System(s) on page 3-70.
T. Glove Box. SeeGlove Box on page 2-57.
3-5

To tilt the wheel, hold the steering wheel and pull the
lever. Then move the steering wheel to a comfortable
position and release the lever to lock the wheel in place.
Heated Steering Wheel
Your vehicle may have a heated steering wheel.
The button with this
symbol is located on
the left side of the
steering wheel.
Press the button to turn the heated steering wheel on or
off. A light on the button will display when the feature
is turned on.
The steering wheel will take about three minutes to start
heating.
Turn Signal/Multifunction Lever
The lever on the left side of the steering column
includes the following:
GTurn and Lane-Change Signals. SeeTurn and
Lane-Change Signals on page 3-8.
PExterior Lamp Control. SeeHeadlamps on
page 3-16.
23Headlamp High/Low-Beam Changer. See
Headlamp High/Low-Beam Changer on page 3-8.
Flash-To-Pass Feature. SeeFlash-to-Pass
on page 3-9.
-Fog Lamps. SeeFog Lamps on page 3-18.
3-7
