Page 387 of 448

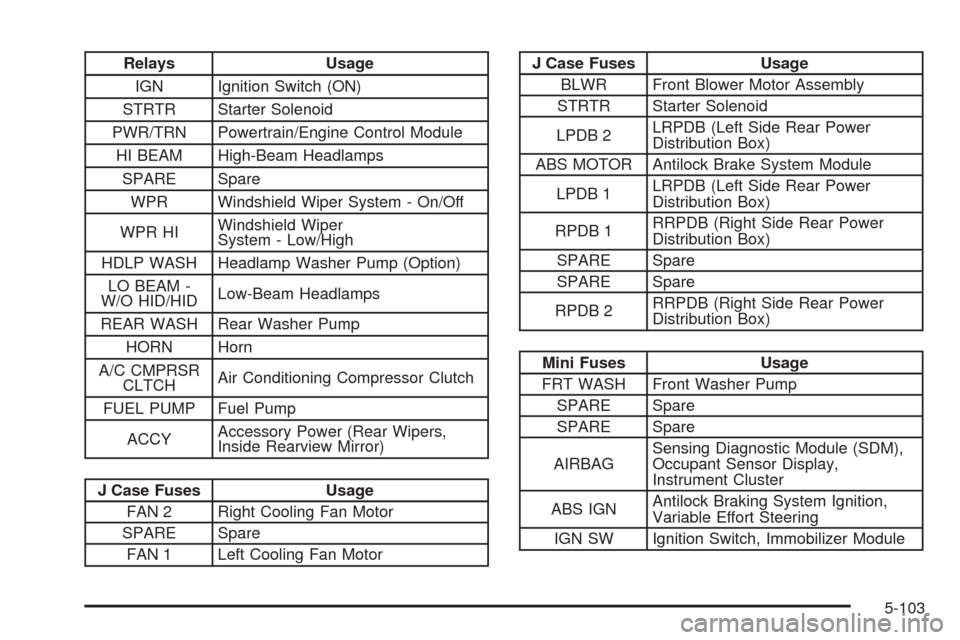

Relays Usage
IGN Ignition Switch (ON)
STRTR Starter Solenoid
PWR/TRN Powertrain/Engine Control Module
HI BEAM High-Beam Headlamps
SPARE Spare
WPR Windshield Wiper System - On/Off
WPR HIWindshield Wiper
System - Low/High
HDLP WASH Headlamp Washer Pump (Option)
LO BEAM -
W/O HID/HIDLow-Beam Headlamps
REAR WASH Rear Washer Pump
HORN Horn
A/C CMPRSR
CLTCHAir Conditioning Compressor Clutch
FUEL PUMP Fuel Pump
ACCYAccessory Power (Rear Wipers,
Inside Rearview Mirror)
J Case Fuses Usage
FAN 2 Right Cooling Fan Motor
SPARE Spare
FAN 1 Left Cooling Fan Motor
J Case Fuses Usage
BLWR Front Blower Motor Assembly
STRTR Starter Solenoid
LPDB 2LRPDB (Left Side Rear Power
Distribution Box)
ABS MOTOR Antilock Brake System Module
LPDB 1LRPDB (Left Side Rear Power
Distribution Box)
RPDB 1RRPDB (Right Side Rear Power
Distribution Box)
SPARE Spare
SPARE Spare
RPDB 2RRPDB (Right Side Rear Power
Distribution Box)
Mini Fuses Usage
FRT WASH Front Washer Pump
SPARE Spare
SPARE Spare
AIRBAGSensing Diagnostic Module (SDM),
Occupant Sensor Display,
Instrument Cluster
ABS IGNAntilock Braking System Ignition,
Variable Effort Steering
IGN SW Ignition Switch, Immobilizer Module
