Mirrors
Automatic Dimming Rearview
Mirror with OnStar
®
The vehicle may have an automatic dimming inside
rearview mirror with OnStar®controls. For more
information about OnStar®, seeOnStar®System
on page 2-47.
O(On/Off):The on/off button, located on the lower
left side of the mirror, is used for the automatic dimming
functions of the rearview mirror.
Mirror Operation
The automatic dimming feature comes on each time the
vehicle is started. Automatic dimming reduces the
glare of lights from behind the vehicle.
To turn the automatic dimming feature on or off, press
and release the on/off button. The indicator light will
illuminate when this feature is on.
Cleaning the Mirror
When cleaning the mirror, use a paper towel or similar
material dampened with glass cleaner. Do not spray
glass cleaner directly on the mirror as that may cause
the liquid cleaner to enter the mirror housing.
Automatic Dimming Rearview Mirror
with OnStar
®and Compass
The vehicle may have an automatic dimming inside
rearview mirror with a compass and OnStar®controls.
For more information about OnStar®, seeOnStar®
System on page 2-47.
The mirror has an eight-point compass display in the
upper right corner of the mirror. When on, the compass
automatically calibrates, or sets the driving direction,
as the vehicle is driven. If the vehicle has the navigation
option, the direction the vehicle is facing will be
displayed on the navigation screen.
O(On/Off):The on/off button is located on the lower
left side of the mirror and is used for the automatic
dimming and compass functions of the rearview mirror.
Mirror Operation
The automatic dimming feature comes on each time
the vehicle is started.
To turn the automatic dimming feature on or off, press
the on/off or AUTO button. The indicator light will
illuminate when this feature is on.
2-41

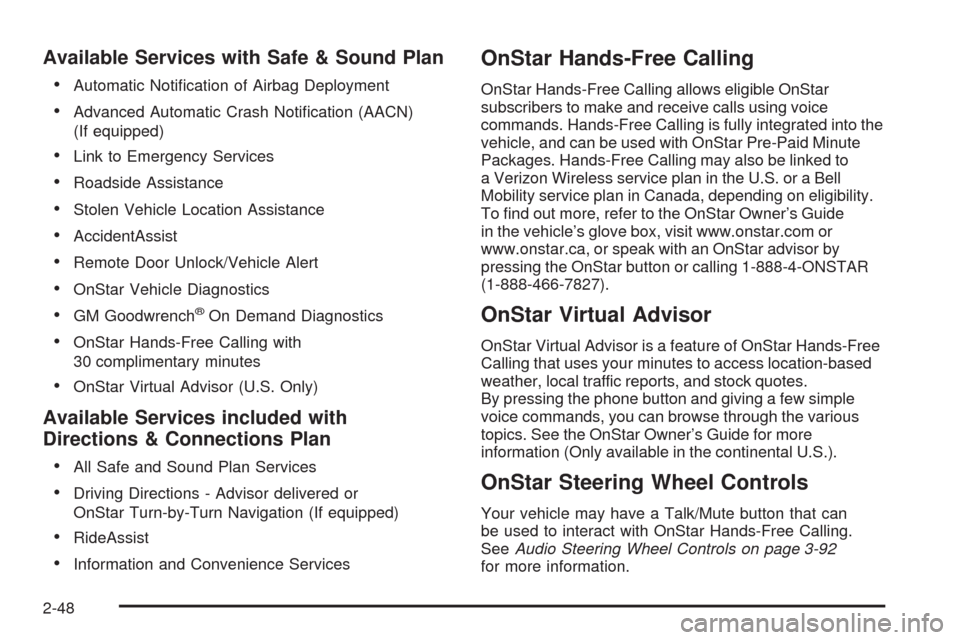

Available Services with Safe & Sound Plan

Automatic Notication of Airbag Deployment
Advanced Automatic Crash Notication (AACN)
(If equipped)
Link to Emergency Services
Roadside Assistance
Stolen Vehicle Location Assistance
AccidentAssist
Remote Door Unlock/Vehicle Alert
OnStar Vehicle Diagnostics
GM Goodwrench®On Demand Diagnostics
OnStar Hands-Free Calling with
30 complimentary minutes
OnStar Virtual Advisor (U.S. Only)
Available Services included with
Directions & Connections Plan

All Safe and Sound Plan Services
Driving Directions - Advisor delivered or
OnStar Turn-by-Turn Navigation (If equipped)
RideAssist
Information and Convenience Services
OnStar Hands-Free Calling
OnStar Hands-Free Calling allows eligible OnStar
subscribers to make and receive calls using voice
commands. Hands-Free Calling is fully integrated into the
vehicle, and can be used with OnStar Pre-Paid Minute
Packages. Hands-Free Calling may also be linked to
a Verizon Wireless service plan in the U.S. or a Bell
Mobility service plan in Canada, depending on eligibility.
To nd out more, refer to the OnStar Owner’s Guide
in the vehicle’s glove box, visit www.onstar.com or
www.onstar.ca, or speak with an OnStar advisor by
pressing the OnStar button or calling 1-888-4-ONSTAR
(1-888-466-7827).
OnStar Virtual Advisor
OnStar Virtual Advisor is a feature of OnStar Hands-Free
Calling that uses your minutes to access location-based
weather, local traffic reports, and stock quotes.
By pressing the phone button and giving a few simple
voice commands, you can browse through the various
topics. See the OnStar Owner’s Guide for more
information (Only available in the continental U.S.).
OnStar Steering Wheel Controls
Your vehicle may have a Talk/Mute button that can
be used to interact with OnStar Hands-Free Calling.
SeeAudio Steering Wheel Controls on page 3-92
for more information.
2-48

Warning Lights, Gages, and Indicators............3-31
Instrument Panel Cluster................................3-32
Speedometer and Odometer...........................3-33
Tachometer.................................................3-33
Engine Speed Limiter....................................3-33
Safety Belt Reminders...................................3-33
Airbag Readiness Light..................................3-34
Passenger Airbag Status Indicator...................3-35
Charging System Light..................................3-37
Brake System Warning Light..........................3-38
Antilock Brake System Warning Light...............3-39
Traction Control System (TCS) Warning Light......3-39
Engine Coolant Temperature Warning Light......3-40
Engine Coolant Temperature Gage..................3-40
Tire Pressure Light.......................................3-41
Malfunction Indicator Lamp.............................3-42
Oil Pressure Light.........................................3-44
Security Light...............................................3-45
Fog Lamp Light............................................3-45
Lights On Reminder......................................3-46
Cruise Control Light......................................3-46Highbeam On Light.......................................3-46
Tow/Haul Mode Light....................................3-46
Fuel Gage...................................................3-47
Driver Information Center (DIC).......................3-47
DIC Operation and Displays...........................3-48
DIC Warnings and Messages.........................3-53
DIC Vehicle Customization.............................3-62
Audio System(s).............................................3-70
Setting the Time...........................................3-71
Radio(s) (MP3).............................................3-75
Using an MP3..............................................3-84
XM Radio Messages.....................................3-89
Navigation/Radio System..............................
.3-90
Rear Seat Entertainment (RSE) System...........3-90
Rear Seat Audio (RSA).................................3-90
Theft-Deterrent Feature..................................3-92
Audio Steering Wheel Controls.......................3-92
Radio Reception...........................................3-93
Rear Side Window Antenna...........................3-94
XM™ Satellite Radio Antenna System.............3-94
Section 3 Instrument Panel
3-2

Check XM Receivr:If this message does not clear
within a short period of time, the receiver could have
a fault. Consult with your dealer/retailer.
XM Not Available:If this message does not clear
within a short period of time, the receiver could have
a fault. Consult with your dealer/retailer.
Navigation/Radio System
Your vehicle may have a navigation radio system.
The navigation system has built-in features intended to
minimize driver distraction. Technology alone, no matter
how advanced, can never replace your own judgment.
See the Navigation System manual for some tips to help
you reduce distractions while driving.
Rear Seat Entertainment (RSE)
System
If your vehicle has a navigation radio system, it could
have the Rear Seat Entertainment (RSE) system.
For more information on how to use the RSE system,
see “Rear Seat Entertainment System” in the Navigation
System manual.
Rear Seat Audio (RSA)
This feature lets rear seat passengers listen to and
control any of the music sources: radio, CDs, DVDs,
or other auxiliary sources. However, the rear seat
passengers can only control the music sources the front
seat passengers are not listening to (except on some
radios where dual control is allowed). For example, rear
seat passengers can control a CD and listen to it through
the headphones, while the driver listens to the radio
through the front speakers. The rear seat passengers
have control of the volume for each set of headphones.
You can operate the Rear Seat Audio (RSA) functions
even when the main radio is off. The front audio system
will display the headphone icon when the RSA is on,
and will disappear from the display when it is off.
Audio can be heard through wired headphones
(not included) plugged into the jacks on the RSA.
If your vehicle has this feature, audio can also be
heard on Channel 2 of the wireless headphones.
Depending on the audio system, the rear speakers can
continue to play even when the RSA audio is active
through the headphones.
To listen to an iPod or portable audio device through
the RSA, attach the iPod or portable audio device to the
front auxiliary input (if available), located on the front
audio system. Turn the iPod on, then choose the
front auxiliary input with the RSA SRCE button.
3-90

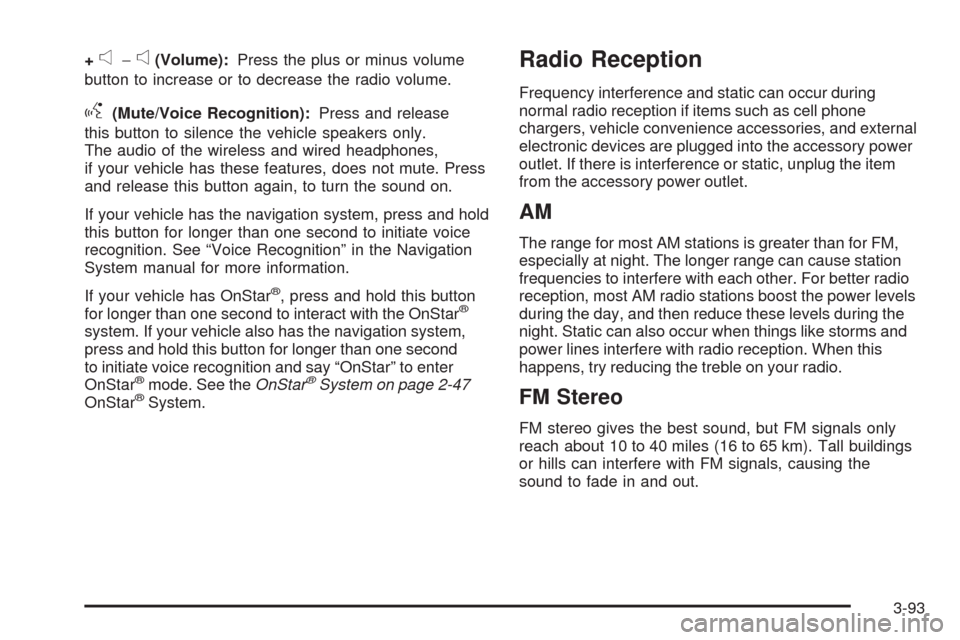

+e−e(Volume):Press the plus or minus volume
button to increase or to decrease the radio volume.
g(Mute/Voice Recognition):Press and release
this button to silence the vehicle speakers only.
The audio of the wireless and wired headphones,
if your vehicle has these features, does not mute. Press
and release this button again, to turn the sound on.
If your vehicle has the navigation system, press and hold
this button for longer than one second to initiate voice
recognition. See “Voice Recognition” in the Navigation
System manual for more information.
If your vehicle has OnStar
®, press and hold this button
for longer than one second to interact with the OnStar®
system. If your vehicle also has the navigation system,
press and hold this button for longer than one second
to initiate voice recognition and say “OnStar” to enter
OnStar
®mode. See theOnStar®System on page 2-47
OnStar®System.
Radio Reception
Frequency interference and static can occur during
normal radio reception if items such as cell phone
chargers, vehicle convenience accessories, and external
electronic devices are plugged into the accessory power
outlet. If there is interference or static, unplug the item
from the accessory power outlet.
AM
The range for most AM stations is greater than for FM,
especially at night. The longer range can cause station
frequencies to interfere with each other. For better radio
reception, most AM radio stations boost the power levels
during the day, and then reduce these levels during the
night. Static can also occur when things like storms and
power lines interfere with radio reception. When this
happens, try reducing the treble on your radio.
FM Stereo
FM stereo gives the best sound, but FM signals only
reach about 10 to 40 miles (16 to 65 km). Tall buildings
or hills can interfere with FM signals, causing the
sound to fade in and out.
3-93

Customer Assistance and Information...............7-2
Customer Satisfaction Procedure......................7-2
Online Owner Center......................................7-5
Customer Assistance for
Text Telephone (TTY) Users.........................7-6
Customer Assistance Offices............................7-6
GM Mobility Reimbursement Program................7-7
Roadside Service...........................................7-8
Scheduling Service Appointments....................7-10
Courtesy Transportation.................................7-11
Collision Damage Repair................................7-12Reporting Safety Defects................................7-16
Reporting Safety Defects to the United States
Government..............................................7-16
Reporting Safety Defects to the Canadian
Government..............................................7-16
Reporting Safety Defects to
General Motors.........................................7-17
Service Publications Ordering Information.........7-17
Vehicle Data Recording and Privacy................7-18
Event Data Recorders...................................7-19
OnStar
®......................................................7-20
Navigation System........................................7-20
Radio Frequency
Identication (RFID)...................................7-20
Section 7 Customer Assistance Information
7-1

OnStar®
If your vehicle has OnStar®and you subscribe to
the OnStar®services, please refer to the OnStar®Terms
and Conditions for information on data collection and
use. See alsoOnStar
®System on page 2-47in
this manual for more information.
Navigation System
If your vehicle has a navigation system, use of the
system may result in the storage of destinations,
addresses, telephone numbers, and other trip
information. Refer to the navigation system
operating manual for information on stored
data and for deletion instructions.
Radio Frequency
Identication (RFID)
RFID technology is used in some vehicles for functions
such as tire pressure monitoring and ignition system
security, as well as in connection with conveniences
such as key fobs for remote door locking/unlocking
and starting, and in-vehicle transmitters for garage door
openers. RFID technology in GM vehicles does not
use or record personal information or link with any
other GM system containing personal information.
7-20

Audio System.................................................3-70
Audio Steering Wheel Controls......................3-92
Navigation/Radio System,
see Navigation Manual..............................3-90
Radio Reception..........................................3-93
Rear Seat Audio (RSA)................................3-90
Setting the Time..........................................3-71
Theft-Deterrent Feature................................3-92
XM™ Satellite Radio Antenna System............3-94
Audio System(s).............................................3-75
Rear Side Window Antenna..........................3-94
Automatic Transmission
Fluid..........................................................5-23
Operation...................................................2-30
B
Battery..........................................................5-39
Electric Power Management..........................3-20
Exterior Lighting Battery Saver......................3-19
Brake
Emergencies................................................ 4-5
Brakes..........................................................5-35
Panic Assist................................................. 4-8
System Warning Light..................................3-38
Braking........................................................... 4-3Braking in Emergencies..................................... 4-5
Break-In, New Vehicle.....................................2-24
Bulb Replacement...........................................5-47
Halogen Bulbs............................................5-48
Headlamp Aiming........................................5-47
High Intensity Discharge (HID) Lighting...........5-48
Buying New Tires...........................................5-68
C
Calibration.....................................................2-41
California Fuel.................................................. 5-6
California Perchlorate Materials Requirements....... 5-4
California Proposition 65 Warning....................... 5-4
Canadian Owners................................................ ii
Capacities and Specications..........................5-111
Carbon Monoxide...................2-13, 2-39, 4-29, 4-41
Care of
Safety Belts................................................5-94
Cargo Cover..................................................2-59
Cargo Management System.............................2-59
CD, MP3 .......................................................3-84
Center Console Storage Area...........................2-57
Chains, Tire...................................................5-74
Charging System Light....................................3-37
2

N
Navigation System, Privacy..............................7-20
Navigation/Radio System,
see Navigation Manual.................................3-90
New Vehicle Break-In......................................2-24
Normal Maintenance Replacement Parts............6-14
O
Odometer......................................................3-33
Off-Road Driving.............................................4-12
Off-Road Recovery..........................................4-10
Oil
Engine.......................................................5-16
Pressure Light.............................................3-44
Oil, Engine Oil Life System..............................5-19
Older Children, Restraints................................1-32
Online Owner Center........................................ 7-5
OnStar, Privacy..............................................7-20
OnStar
®System, see OnStar®Manual...............2-47
Operation, Universal Home Remote System........2-50
Other Warning Devices...................................... 3-6
Outlet Adjustment............................................3-29
Outlets
Accessory Power.........................................3-21Outside
Automatic Dimming Mirror.............................2-44
Convex Mirror.............................................2-44
Power Heated Mirrors..................................2-43
Overheated Engine Protection Operating Mode.....5-28
Owner Checks and Services.............................. 6-9
Owners, Canadian............................................... ii
P
Paint, Damage...............................................5-97
Panic Brake Assist............................................ 4-8
Parade Dimming.............................................3-19
Park Aid........................................................2-45
Park Brake....................................................2-34
Park (P)
Shifting Into................................................2-36
Shifting Out of............................................2-38
Park Tilt Mirrors..............................................2-44
Parking
Assist........................................................2-45
Over Things That Burn.................................2-38
Passenger Airbag Status Indicator.....................3-35
Passenger Compartment Air Filter.....................3-30
Passenger Sensing System..............................1-65
Passing.........................................................4-10
9

PASS-Key®III+..............................................2-22
PASS-Key®III+ Operation................................2-22
Perchlorate Materials Requirements,
California..................................................... 5-4
Power
Door Locks.................................................2-10
Electrical System.......................................5-100
Liftgate......................................................2-13
Lumbar Controls........................................... 1-4
Retained Accessory (RAP)............................2-26
Seat............................................................ 1-3
Steering Fluid.............................................5-33
Windows....................................................2-17
Privacy..........................................................7-18
Event Data Recorders..................................7-19
Navigation System.......................................7-20
OnStar.......................................................7-20
Radio Frequency Identication.......................7-20
Programmable Automatic Door Locks.................2-11
R
Radio Frequency Identication (RFID),
Privacy......................................................7-20
Radios..........................................................3-70
Radio(s)........................................................3-75Radios
Navigation/Radio System,
see Navigation Manual..............................3-90
Rear Seat Audio..........................................3-90
Reception...................................................3-93
Setting the Time..........................................3-71
Theft-Deterrent............................................3-92
Reading Lamps..............................................3-20
Rear Air Conditioning System...........................3-29
Rear Axle......................................................5-46
Limited-Slip.................................................. 4-7
Rear Door Security Locks................................2-12
Rear Seat Audio (RSA)....................................3-90
Rear Seat Entertainment System.......................3-90
Rear Seat Operation.......................................1-11
Rear Side Window Antenna..............................3-94
Rear Windshield Washer/Wiper.........................3-11
Rearview Mirror, Automatic Dimming with
OnStar
®.....................................................2-41
Rearview Mirror, Automatic Dimming with
OnStar
®and Compass.................................2-41
Reclining Seatbacks.......................................... 1-6
Recommended Fluids and Lubricants.................6-12
Recreational Vehicle Towing.............................4-39
Remote Keyless Entry (RKE) System.................. 2-4
Remote Keyless Entry (RKE) System, Operation . . . 2-5
Remote Vehicle Start........................................ 2-7
10
