power steering fluid CADILLAC SRX 2008 1.G Owners Manual

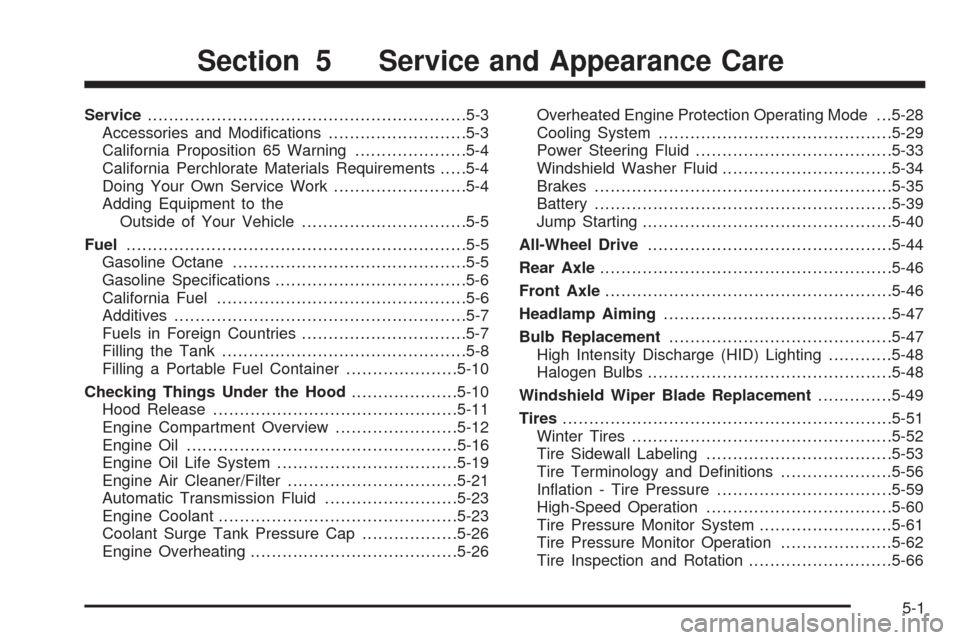

Service............................................................5-3
Accessories and Modications..........................5-3
California Proposition 65 Warning.....................5-4
California Perchlorate Materials Requirements.....5-4
Doing Your Own Service Work.........................5-4
Adding Equipment to the
Outside of Your Vehicle...............................5-5
Fuel................................................................5-5
Gasoline Octane............................................5-5
Gasoline Specications....................................5-6
California Fuel...............................................5-6
Additives.......................................................5-7
Fuels in Foreign Countries...............................5-7
Filling the Tank..............................................5-8
Filling a Portable Fuel Container.....................5-10
Checking Things Under the Hood....................5-10
Hood Release..............................................5-11
Engine Compartment Overview.......................5-12
Engine Oil...................................................5-16
Engine Oil Life System..................................5-19
Engine Air Cleaner/Filter................................5-21
Automatic Transmission Fluid.........................5-23
Engine Coolant.............................................5-23
Coolant Surge Tank Pressure Cap..................5-26
Engine Overheating.......................................5-26Overheated Engine Protection Operating Mode . . .5-28
Cooling System............................................5-29
Power Steering Fluid.....................................5-33
Windshield Washer Fluid................................5-34
Brakes........................................................5-35
Battery........................................................5-39
Jump Starting...............................................5-40
All-Wheel Drive..............................................5-44
Rear Axle.......................................................5-46
Front Axle......................................................5-46
Headlamp Aiming...........................................5-47
Bulb Replacement..........................................5-47
High Intensity Discharge (HID) Lighting............5-48
Halogen Bulbs..............................................5-48
Windshield Wiper Blade Replacement..............5-49
Tires..............................................................5-51
Winter Tires.................................................5-52
Tire Sidewall Labeling...................................5-53
Tire Terminology and Denitions.....................5-56
Ination - Tire Pressure.................................5-59
High-Speed Operation...................................5-60
Tire Pressure Monitor System.........................5-61
Tire Pressure Monitor Operation.....................5-62
Tire Inspection and Rotation...........................5-66
Section 5 Service and Appearance Care
5-1

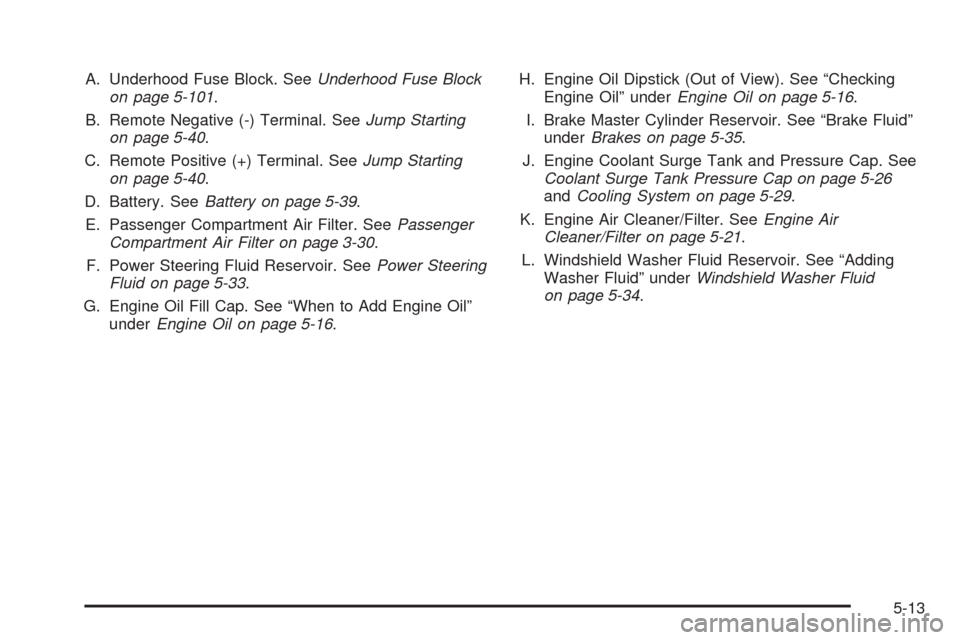

A. Underhood Fuse Block. SeeUnderhood Fuse Block
on page 5-101.
B. Remote Negative (-) Terminal. SeeJump Starting
on page 5-40.
C. Remote Positive (+) Terminal. SeeJump Starting
on page 5-40.
D. Battery. SeeBattery on page 5-39.
E. Passenger Compartment Air Filter. SeePassenger
Compartment Air Filter on page 3-30.
F. Power Steering Fluid Reservoir. SeePower Steering
Fluid on page 5-33.
G. Engine Oil Fill Cap. See “When to Add Engine Oil”
underEngine Oil on page 5-16.H. Engine Oil Dipstick (Out of View). See “Checking
Engine Oil” underEngine Oil on page 5-16.
I. Brake Master Cylinder Reservoir. See “Brake Fluid”
underBrakes on page 5-35.
J. Engine Coolant Surge Tank and Pressure Cap. See
Coolant Surge Tank Pressure Cap on page 5-26
andCooling System on page 5-29.
K. Engine Air Cleaner/Filter. SeeEngine Air
Cleaner/Filter on page 5-21.
L. Windshield Washer Fluid Reservoir. See “Adding
Washer Fluid” underWindshield Washer Fluid
on page 5-34.
5-13

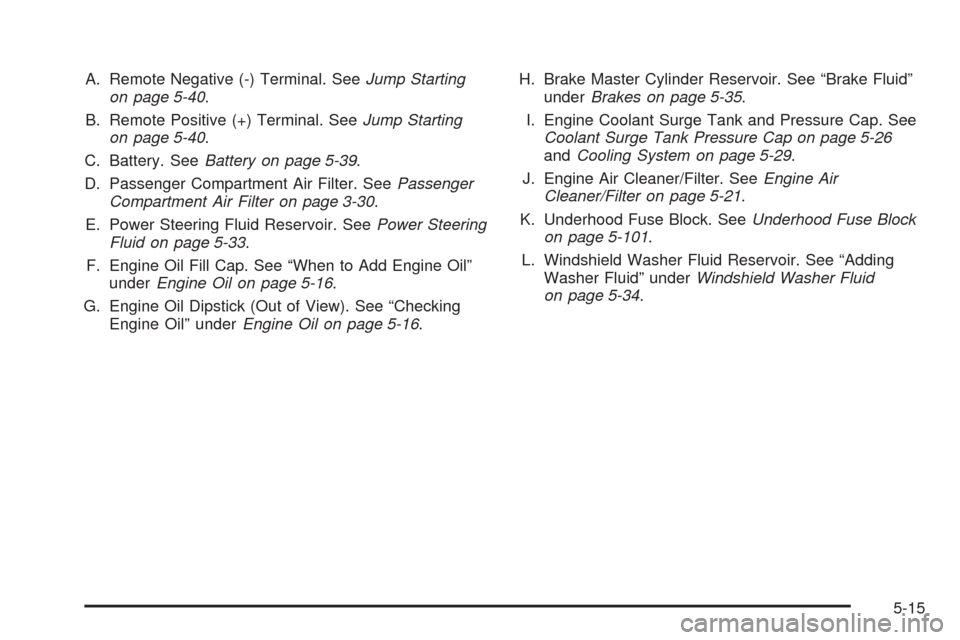

A. Remote Negative (-) Terminal. SeeJump Starting
on page 5-40.
B. Remote Positive (+) Terminal. SeeJump Starting
on page 5-40.
C. Battery. SeeBattery on page 5-39.
D. Passenger Compartment Air Filter. SeePassenger
Compartment Air Filter on page 3-30.
E. Power Steering Fluid Reservoir. SeePower Steering
Fluid on page 5-33.
F. Engine Oil Fill Cap. See “When to Add Engine Oil”
underEngine Oil on page 5-16.
G. Engine Oil Dipstick (Out of View). See “Checking
Engine Oil” underEngine Oil on page 5-16.H. Brake Master Cylinder Reservoir. See “Brake Fluid”
underBrakes on page 5-35.
I. Engine Coolant Surge Tank and Pressure Cap. See
Coolant Surge Tank Pressure Cap on page 5-26
andCooling System on page 5-29.
J. Engine Air Cleaner/Filter. SeeEngine Air
Cleaner/Filter on page 5-21.
K. Underhood Fuse Block. SeeUnderhood Fuse Block
on page 5-101.
L. Windshield Washer Fluid Reservoir. See “Adding
Washer Fluid” underWindshield Washer Fluid
on page 5-34.
5-15

4. With the coolant surge tank pressure cap off, start
the engine and let it run until you can feel the upper
radiator hose getting hot. The upper radiator
hose is the largest of the hoses which comes out of
the radiator, on the passenger’s side of the
vehicle. Watch out for the engine cooling fans.
By this time, the coolant level inside the coolant
surge tank may be lower. If the level is lower, add
more of the proper mixture to the coolant surge tank
until the level reaches the FULL COLD/FROID
line on the side of the coolant surge tank.
5. Then replace the pressure cap. Be sure the
pressure cap is hand-tight and fully seated.
Recheck the coolant level in the bottle next time you
use your vehicle to insure the system is full when cold.
SeeEngine Coolant on page 5-23.Power Steering Fluid
SeeEngine Compartment
Overview on page 5-12for
reservoir location.
When to Check Power Steering Fluid
It is not necessary to regularly check power steering uid
unless you suspect there is a leak in the system or
you hear an unusual noise. A uid loss in this system
could indicate a problem. Have the system inspected
and repaired.
5-33

How to Check Power Steering Fluid
To check the power steering uid, do the following:
1. Turn the key off and let the engine compartment
cool down.
2. Wipe the cap and the top of the reservoir clean.
3. Unscrew the cap and wipe the dipstick with a
clean rag.
4. Replace the cap and completely tighten it.
5. Remove the cap again and look at the uid level
on the dipstick.
The level should be within the HOT mark. If necessary,
add only enough uid to bring the level within the mark.
What to Use
To determine what kind of uid to use, see
Recommended Fluids and Lubricants on page 6-12.
Always use the proper uid.
Notice:Use of the incorrect uid may damage your
vehicle and the damages may not be covered by
your warranty. Always use the correct uid listed in
Recommended Fluids and Lubricants on page 6-12.
Windshield Washer Fluid
What to Use
When you need windshield washer uid, be sure to
read the manufacturer’s instructions before use. If you
will be operating your vehicle in an area where the
temperature may fall below freezing, use a uid that
has sufficient protection against freezing.
Adding Washer Fluid
The WASHER FLUID LOW ADD FLUID message will
appear on the Driver Information Center (DIC) when
the uid level is low. SeeDIC Warnings and Messages
on page 3-53for more information.
Open the cap with the
washer symbol on it.
Add washer uid until the
tank is full. SeeEngine
Compartment Overview
on page 5-12for reservoir
location.
5-34

Recommended Fluids and
Lubricants
Fluids and lubricants identied below by name, part
number, or specication can be obtained from your
dealer/retailer.
Usage Fluid/Lubricant
Engine OilThe engine requires a special
engine oil meeting GM Standard
GM4718M. Oils meeting this
standard can be identied as
synthetic, and should also be
identied with the American
Petroleum Institute (API) Certied
for Gasoline Engines starburst
symbol. However, not all synthetic
API oils with the starburst symbol
will meet this GM standard. Look
for and use only an oil that meets
GM Standard GM4718M. For the
proper viscosity, seeEngine Oil on
page 5-16.
Engine Coolant50/50 mixture of clean, drinkable
water and use only DEX-COOL
®
Coolant. SeeEngine Coolant on
page 5-23.
Usage Fluid/Lubricant
Hydraulic Brake
SystemDelco
®Supreme 11 Brake Fluid or
equivalent DOT-3 brake uid.
Windshield
WasherOptikleen
®Washer Solvent.
Power Steering
SystemGM Power Steering Fluid
(GM Part No. U.S. 89021184,
in Canada 89021186).
Automatic
TransmissionDEXRON
®-VI Automatic
Transmission Fluid.
Key Lock
CylindersMulti-Purpose Lubricant, Superlube
(GM Part No. U.S. 12346241,
in Canada 10953474).
Chassis
LubricationChassis Lubricant
(GM Part No. U.S. 12377985, in
Canada 88901242) or lubricant
meeting requirements of NLGI #2,
Category LB or GC-LB.
Front and Rear
AxleSAE 75W-90 Synthetic
Axle Lubricant
(GM Part No. U.S. 89021677,
in Canada 89021678) meeting
GM Specication 9986115.
6-12

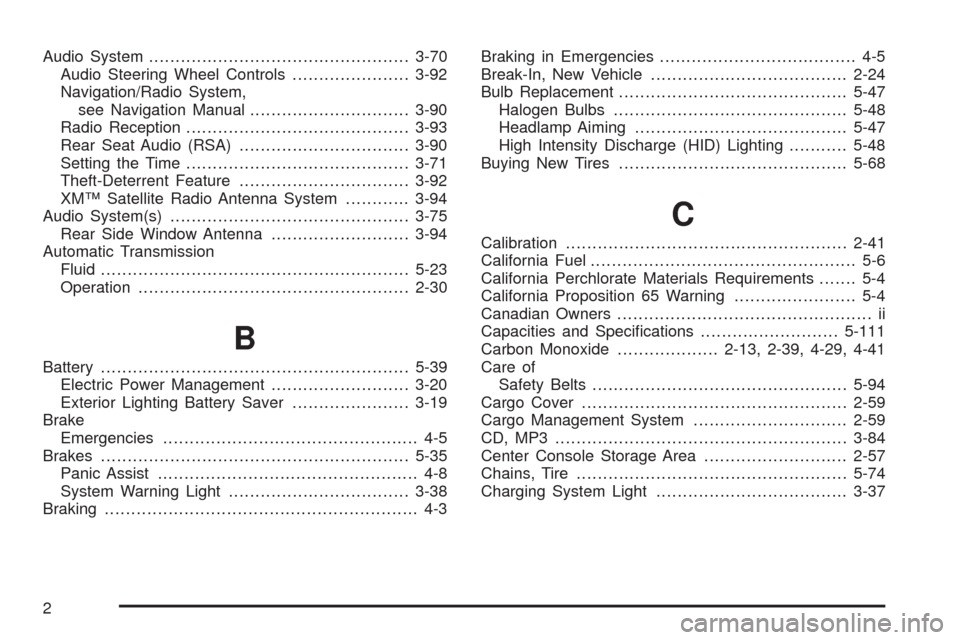

Audio System.................................................3-70
Audio Steering Wheel Controls......................3-92
Navigation/Radio System,
see Navigation Manual..............................3-90
Radio Reception..........................................3-93
Rear Seat Audio (RSA)................................3-90
Setting the Time..........................................3-71
Theft-Deterrent Feature................................3-92
XM™ Satellite Radio Antenna System............3-94
Audio System(s).............................................3-75
Rear Side Window Antenna..........................3-94
Automatic Transmission
Fluid..........................................................5-23
Operation...................................................2-30
B
Battery..........................................................5-39
Electric Power Management..........................3-20
Exterior Lighting Battery Saver......................3-19
Brake
Emergencies................................................ 4-5
Brakes..........................................................5-35
Panic Assist................................................. 4-8
System Warning Light..................................3-38
Braking........................................................... 4-3Braking in Emergencies..................................... 4-5
Break-In, New Vehicle.....................................2-24
Bulb Replacement...........................................5-47
Halogen Bulbs............................................5-48
Headlamp Aiming........................................5-47
High Intensity Discharge (HID) Lighting...........5-48
Buying New Tires...........................................5-68
C
Calibration.....................................................2-41
California Fuel.................................................. 5-6
California Perchlorate Materials Requirements....... 5-4
California Proposition 65 Warning....................... 5-4
Canadian Owners................................................ ii
Capacities and Specications..........................5-111
Carbon Monoxide...................2-13, 2-39, 4-29, 4-41
Care of
Safety Belts................................................5-94
Cargo Cover..................................................2-59
Cargo Management System.............................2-59
CD, MP3 .......................................................3-84
Center Console Storage Area...........................2-57
Chains, Tire...................................................5-74
Charging System Light....................................3-37
2

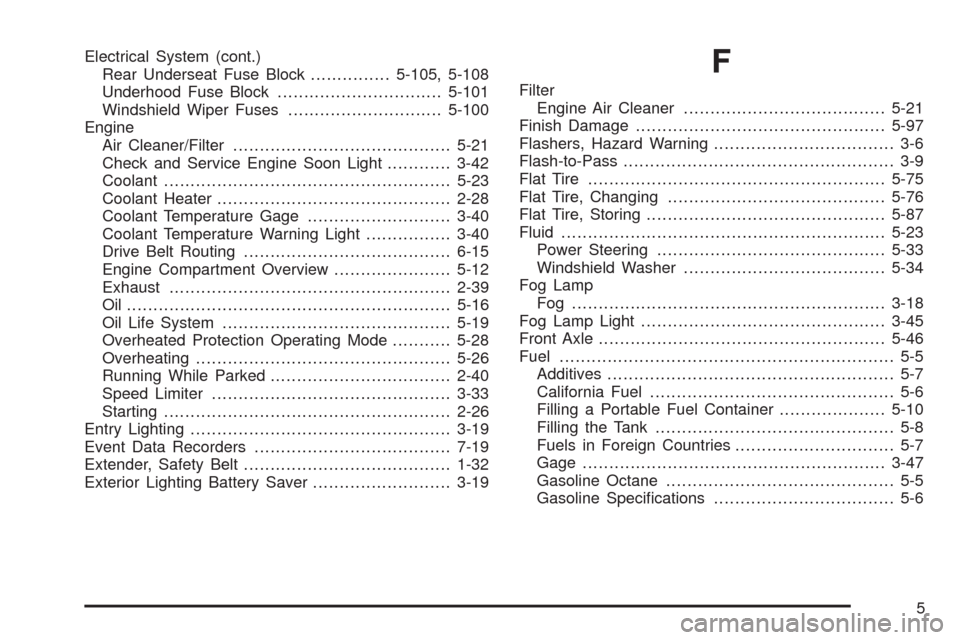

Electrical System (cont.)
Rear Underseat Fuse Block...............5-105, 5-108
Underhood Fuse Block...............................5-101
Windshield Wiper Fuses.............................5-100
Engine
Air Cleaner/Filter.........................................5-21
Check and Service Engine Soon Light............3-42
Coolant......................................................5-23
Coolant Heater............................................2-28
Coolant Temperature Gage...........................3-40
Coolant Temperature Warning Light................3-40
Drive Belt Routing.......................................6-15
Engine Compartment Overview......................5-12
Exhaust.....................................................2-39
Oil .............................................................5-16
Oil Life System...........................................5-19
Overheated Protection Operating Mode...........5-28
Overheating................................................5-26
Running While Parked..................................2-40
Speed Limiter.............................................3-33
Starting......................................................2-26
Entry Lighting.................................................3-19
Event Data Recorders.....................................7-19
Extender, Safety Belt.......................................1-32
Exterior Lighting Battery Saver..........................3-19F
Filter
Engine Air Cleaner......................................5-21
Finish Damage...............................................5-97
Flashers, Hazard Warning.................................. 3-6
Flash-to-Pass................................................... 3-9
Flat Tire........................................................5-75
Flat Tire, Changing.........................................5-76
Flat Tire, Storing.............................................5-87
Fluid.............................................................5-23
Power Steering...........................................5-33
Windshield Washer......................................5-34
Fog Lamp
Fog ...........................................................3-18
Fog Lamp Light..............................................3-45
Front Axle......................................................5-46
Fuel............................................................... 5-5
Additives...................................................... 5-7
California Fuel.............................................. 5-6
Filling a Portable Fuel Container....................5-10
Filling the Tank............................................. 5-8
Fuels in Foreign Countries.............................. 5-7
Gage.........................................................3-47
Gasoline Octane........................................... 5-5
Gasoline Specications.................................. 5-6
5

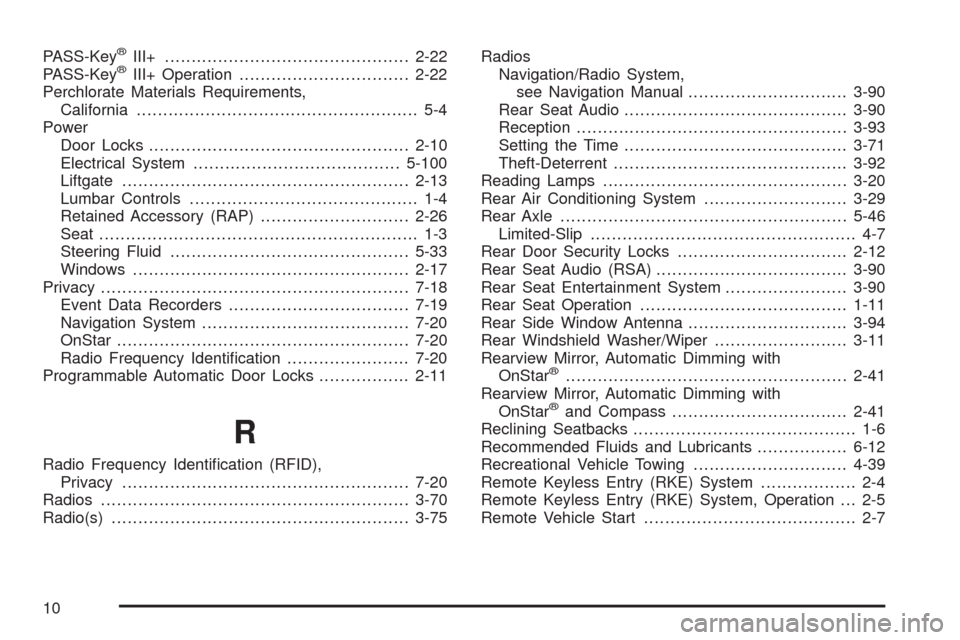

PASS-Key®III+..............................................2-22
PASS-Key®III+ Operation................................2-22
Perchlorate Materials Requirements,
California..................................................... 5-4
Power
Door Locks.................................................2-10
Electrical System.......................................5-100
Liftgate......................................................2-13
Lumbar Controls........................................... 1-4
Retained Accessory (RAP)............................2-26
Seat............................................................ 1-3
Steering Fluid.............................................5-33
Windows....................................................2-17
Privacy..........................................................7-18
Event Data Recorders..................................7-19
Navigation System.......................................7-20
OnStar.......................................................7-20
Radio Frequency Identication.......................7-20
Programmable Automatic Door Locks.................2-11
R
Radio Frequency Identication (RFID),
Privacy......................................................7-20
Radios..........................................................3-70
Radio(s)........................................................3-75Radios
Navigation/Radio System,
see Navigation Manual..............................3-90
Rear Seat Audio..........................................3-90
Reception...................................................3-93
Setting the Time..........................................3-71
Theft-Deterrent............................................3-92
Reading Lamps..............................................3-20
Rear Air Conditioning System...........................3-29
Rear Axle......................................................5-46
Limited-Slip.................................................. 4-7
Rear Door Security Locks................................2-12
Rear Seat Audio (RSA)....................................3-90
Rear Seat Entertainment System.......................3-90
Rear Seat Operation.......................................1-11
Rear Side Window Antenna..............................3-94
Rear Windshield Washer/Wiper.........................3-11
Rearview Mirror, Automatic Dimming with
OnStar
®.....................................................2-41
Rearview Mirror, Automatic Dimming with
OnStar
®and Compass.................................2-41
Reclining Seatbacks.......................................... 1-6
Recommended Fluids and Lubricants.................6-12
Recreational Vehicle Towing.............................4-39
Remote Keyless Entry (RKE) System.................. 2-4
Remote Keyless Entry (RKE) System, Operation . . . 2-5
Remote Vehicle Start........................................ 2-7
10
