Black plate (5,1)Cadillac SRX Owner Manual (Include Mex) - 2012
In Brief 1-5
Remote Vehicle Start
With this feature the engine can be
started from outside of the vehicle.
Starting the Vehicle
1. Press and releaseQon the
RKE transmitter.
2. Within two seconds, press and hold
/until the turn signal
lamps flash, or for at least
two seconds if the vehicle is
not in view.
When the vehicle starts, the parking
lamps will turn on and remain on as
long as the engine is running. The
doors will be locked and the climate
control system may come on.
The engine will continue to run for
10 minutes. Repeat the steps for a
10-minute time extension. Remote
start can be extended only once.
Canceling a Remote Start
To cancel a remote start, do any of
the following:
.Press and hold/until the
parking lamps turn off.
.Turn on the hazard warning
flashers.
.Turn the vehicle on and then off.
See Remote Vehicle Start on
page 2‑9.
Door Locks
To lock or unlock the doors from
the outside, press
QorKon the
Remote Keyless Entry (RKE)
transmitter. See Remote Keyless
Entry (RKE) System Operation on
page 2‑3.
To unlock a door from the inside,
pull once on the door handle to
unlock it, and a second time to
open it.
Power Door Locks
There is a power door lock switch
on the instrument panel and on the
front door panels.
Q: Press to lock the doors.
K: Press to unlock the doors.
See Power Door Locks on
page 2‑12.
Liftgate
Manual Liftgate Operation
For vehicles without keyless access,
unlock the vehicle before opening
the liftgate.
Press the touch pad located in the
handle of the liftgate, above the
license plate, and lift up to open.
Do not press the touch pad while
closing the liftgate. This will cause
the liftgate to be unlatched.
Page 12 of 502
Black plate (6,1)Cadillac SRX Owner Manual (Include Mex) - 2012
1-6 In Brief

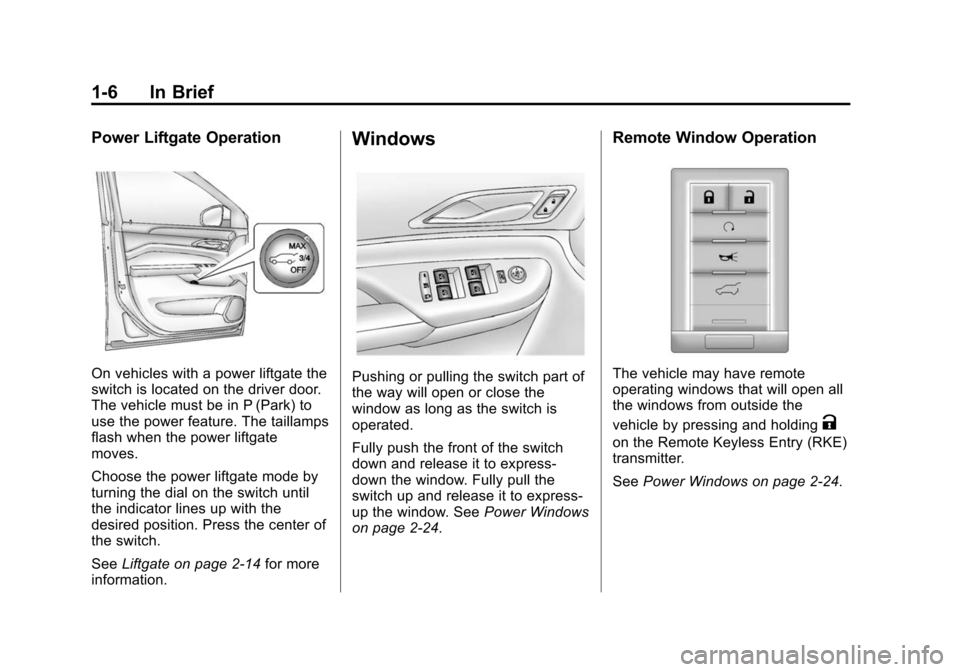

Power Liftgate Operation
On vehicles with a power liftgate the
switch is located on the driver door.
The vehicle must be in P (Park) to
use the power feature. The taillamps
flash when the power liftgate
moves.
Choose the power liftgate mode by
turning the dial on the switch until
the indicator lines up with the
desired position. Press the center of
the switch.
SeeLiftgate on page 2‑14 for more
information.
Windows
Pushing or pulling the switch part of
the way will open or close the
window as long as the switch is
operated.
Fully push the front of the switch
down and release it to express‐
down the window. Fully pull the
switch up and release it to express‐
up the window. See Power Windows
on page 2‑24.
Remote Window Operation
The vehicle may have remote
operating windows that will open all
the windows from outside the
vehicle by pressing and holding
K
on the Remote Keyless Entry (RKE)
transmitter.
See Power Windows on page 2‑24.
Page 13 of 502
Black plate (7,1)Cadillac SRX Owner Manual (Include Mex) - 2012
In Brief 1-7
Seat Adjustment
Manual Seats
To adjust a manual seat:
1. Pull the handle at the front of theseat cushion.
2. Move the seat forward or rearward to adjust the seat
position.
3. Release the handle to stop the seat from moving. 4. Try to move the seat back and
forth to be sure it is locked in
place.
To raise or recline the seatback, use
the lever on the outboard side of
the seat.
See Seat Adjustment on page 3‑4
and Reclining Seatbacks on
page 3‑6 for more information.
Power Seats
A. Seat Position Control
B. Seatback Adjustment Control
C. Lumbar Adjustment Control To adjust a power seat, if equipped:
.Slide control (A) forward or
rearward, and up or down to
adjust the power seat.
See
Power Seat Adjustment on
page 3‑4.
.Raise or recline the seatback by
tilting control (B) forward or
rearward.
See Reclining Seatbacks on
page 3‑6.
.Increase or decrease the lumbar
support by pressing and holding
the front or rear of control (C).
See Lumbar Adjustment on
page 3‑5.
Page 14 of 502
Black plate (8,1)Cadillac SRX Owner Manual (Include Mex) - 2012
1-8 In Brief
Memory Features
On vehicles with the memory
feature, the“1”and “2”buttons on
the outboard side of the driver seat
are used to manually save and
recall the positions of the driver
seat, outside mirrors, and adjustable
throttle and brake pedals,
if available. These manually stored
positions are referred to as Button
Memory positions. The vehicle will also automatically
save driver seat, outside mirror, and
adjustable throttle and brake pedal
positions to the current driver
Remote Keyless Entry (RKE)
transmitter when the ignition is
turned off. These automatically
stored positions are referred to as
RKE Memory positions.
Storing Button Memory Positions
To save positions into Button
Memory:
1. Adjust the driver seat, seatback
recliner, both outside mirrors,
and adjustable pedals,
if available, to the desired driving
positions.
2. Press and hold MEM (Memory) and “1”at the same time until a
beep sounds.
3. Repeat Steps 1 and 2 for a second driver using “2.”To recall the manually saved Button
Memory positions, press and hold
“1”
or“2.” The driver seat, outside
mirrors, and adjustable pedals,
if available, move to the positions
stored to those buttons when
pressed. Releasing “1”or“2” before
the stored positions are reached
stops the recall.
To automatically recall RKE Memory
positions, unlock the driver door
with the RKE transmitter, and open
the driver door. On vehicles with
Keyless Access, opening the driver
door when an RKE transmitter is
present will activate the RKE
Memory recall. If the driver door is
already open, pressing the RKE
transmitter Kbutton will also
activate the RKE Memory recall.
The driver seat, outside mirrors, and
pedals, if available, will move to the
previously saved RKE Memory
positions.
See Memory Seats on page 3‑7 for
more information.
Page 15 of 502
Black plate (9,1)Cadillac SRX Owner Manual (Include Mex) - 2012
In Brief 1-9

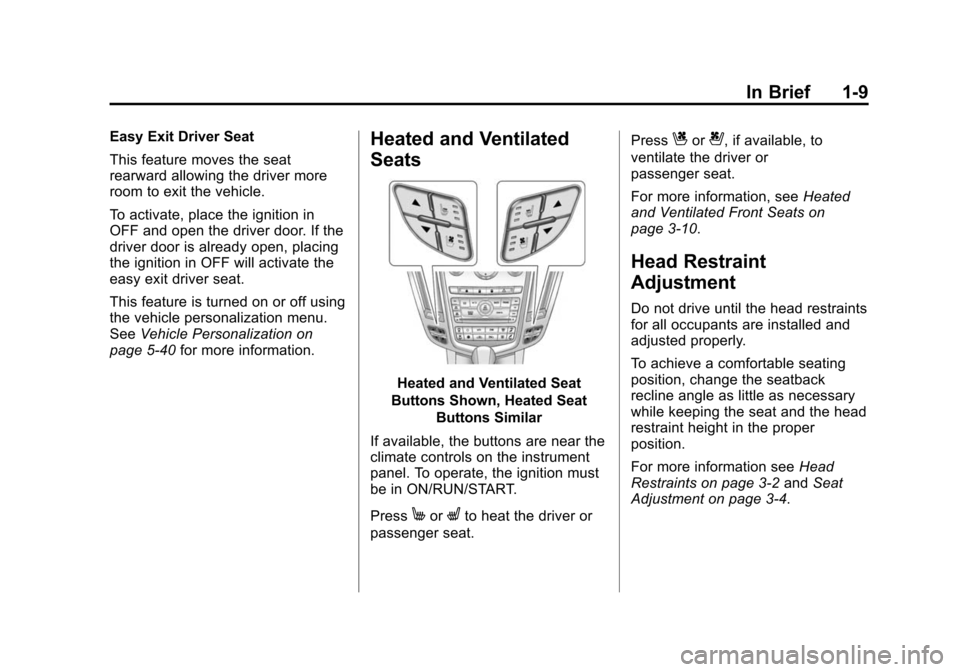

Easy Exit Driver Seat
This feature moves the seat
rearward allowing the driver more
room to exit the vehicle.
To activate, place the ignition in
OFF and open the driver door. If the
driver door is already open, placing
the ignition in OFF will activate the
easy exit driver seat.
This feature is turned on or off using
the vehicle personalization menu.
SeeVehicle Personalization on
page 5‑40 for more information.Heated and Ventilated
Seats
Heated and Ventilated Seat
Buttons Shown, Heated Seat Buttons Similar
If available, the buttons are near the
climate controls on the instrument
panel. To operate, the ignition must
be in ON/RUN/START.
Press
MorLto heat the driver or
passenger seat. Press
Cor{, if available, to
ventilate the driver or
passenger seat.
For more information, see Heated
and Ventilated Front Seats on
page 3‑10.
Head Restraint
Adjustment
Do not drive until the head restraints
for all occupants are installed and
adjusted properly.
To achieve a comfortable seating
position, change the seatback
recline angle as little as necessary
while keeping the seat and the head
restraint height in the proper
position.
For more information see Head
Restraints on page 3‑2 andSeat
Adjustment on page 3‑4.
Page 16 of 502
Black plate (10,1)Cadillac SRX Owner Manual (Include Mex) - 2012
1-10 In Brief

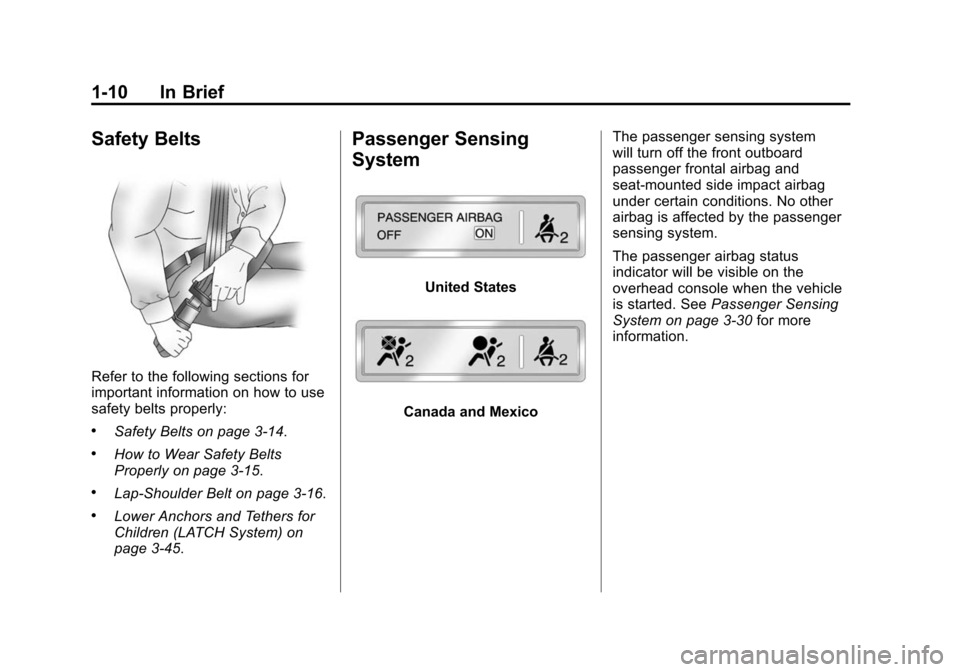

Safety Belts
Refer to the following sections for
important information on how to use
safety belts properly:
.Safety Belts on page 3‑14.
.How to Wear Safety Belts
Properly on page 3‑15.
.Lap-Shoulder Belt on page 3‑16.
.Lower Anchors and Tethers for
Children (LATCH System) on
page 3‑45.
Passenger Sensing
System
United States
Canada and MexicoThe passenger sensing system
will turn off the front outboard
passenger frontal airbag and
seat-mounted side impact airbag
under certain conditions. No other
airbag is affected by the passenger
sensing system.
The passenger airbag status
indicator will be visible on the
overhead console when the vehicle
is started. See
Passenger Sensing
System on page 3‑30 for more
information.
Page 17 of 502
Black plate (11,1)Cadillac SRX Owner Manual (Include Mex) - 2012
In Brief 1-11
Mirror Adjustment
Exterior
To adjust the mirror:
1. Move the selector switch toL (left) or R (right) to choose the
driver or passenger mirror.
2. Press the arrows on the control pad to move each mirror to the
desired position.
3. Return the selector switch to the center position.
Manual Folding Mirrors
Vehicles with manual fold mirrors
are folded inward toward the vehicle
to prevent damage when going
through an automatic car wash.
Push the mirror outward to return it
to the original position.
Power Folding Mirrors
Vehicles with power folding mirrors,
to fold the mirrors:
1. With the selector switch in the
)
position, press the down arrow
on the control pad. Both mirrors
will automatically fold.
2. Pressing the down arrow again will return the mirrors to their
original position.
See Folding Mirrors on page 2‑21.
Automatic Dimming Mirror
If the vehicle has the automatic
dimming mirror, the driver outside
mirror and the inside rearview mirror
automatically adjust for the glare of
headlamps behind you. See
Automatic Dimming Mirror on
page 2‑21 orAutomatic Dimming
Rearview Mirror on page 2‑22.
Page 18 of 502
Black plate (12,1)Cadillac SRX Owner Manual (Include Mex) - 2012
1-12 In Brief
Steering Wheel
Adjustment
To adjust the steering wheel:
1. Pull the lever down.
2. Move the steering wheel upor down.
3. Pull or push the steering wheel closer or away from you.
4. Pull the lever up to lock the steering wheel in place.
Do not adjust the steering wheel
while driving.
Throttle and Brake Pedal
Adjustment
If the vehicle has this feature, the
position of the throttle and brake
pedals can be adjusted.
The switch used to adjust the
pedals is located on the right side of
the steering column, below the
wiper stalk. Pull the switch toward
you to move the pedals further from
the floor, or push the switch away
from you to move the pedals closer
to the floor.
See Adjustable Throttle and Brake
Pedal on page 9‑17.
Interior Lighting
Dome Lamps
The dome lamp controls are located
in the overhead console.
To change the dome lamp settings,
press the following:
*: Turns the lamp off, even when
a door is open.
1: The lamp comes on
automatically when a door is
opened.
+: Turns the dome lamp on.
Reading Lamps
There are reading lamps located on
the overhead console and over the
rear passenger doors. These lamps
come on automatically when any
door is opened.
To manually turn the reading lamps
on or off:
.For the overhead console
reading lamps, press the button
next to each lamp.
.For the rear passenger reading
lamps, press the lamp lens.
For more information on interior
lighting, see Instrument Panel
Illumination Control on page 6‑7.
Page 19 of 502
Black plate (13,1)Cadillac SRX Owner Manual (Include Mex) - 2012
In Brief 1-13
Exterior Lighting
The exterior lamps control is located
on the instrument panel to the left of
the steering column.
The exterior lamps control has four
positions:
O:Briefly turn to this position to
turn the automatic light control off or
on again.
AUTO: Turns the headlamps on
automatically at normal brightness,
together with the parking lamps,
taillamps, license plate lamps, and
instrument panel lights.
;: Turns the parking lamps on
together with the taillamps, license
plate lamps, and instrument panel
lights.
5: Turns the headlamps on
together with the parking lamps,
taillamps, license plate lamps, and
instrument panel lights.
#: For vehicles with fog lamps,
press to turn the lamps on or off.
For more information, see:
.Exterior Lamp Controls on
page 6‑1.
.Daytime Running Lamps (DRL)
on page 6‑3.
Windshield Wiper/Washer
The windshield wiper/washer lever
is located on the right side of the
steering column. With the ignition in
ACC/ACCESSORY or ON/RUN/
START, move the windshield wiper
lever to select the wiper speed.
HI: Use for fast wipes.
LO: Use for slow wipes.
Page 20 of 502
Black plate (14,1)Cadillac SRX Owner Manual (Include Mex) - 2012
1-14 In Brief
INT: (Intermittent Wipes):Move
the lever up to INT for intermittent
wipes, then turn the
xINT band
up for more frequent wipes or down
for less frequent wipes. If the
vehicle has Rainsense™, see the
following Rainsense information.
OFF: Use to turn the wipers off.
8:For a single wipe, briefly move
the wiper lever down. For several
wipes, hold the wiper lever down.
Windshield Washer
Pull the windshield wiper lever
toward you to spray windshield
washer fluid and activate the wipers.
See Windshield Wiper/Washer on
page 5‑4 andRear Window Wiper/
Washer on page 5‑6, if equipped.
Rainsense™
For vehicles with Rainsense:
INT (Rainsense Wipe Sensitivity
Control): Move the windshield
wiper lever to INT. Turn the
xINT
band on the wiper lever to adjust the
sensitivity.
.Turn the band up for more
sensitivity to moisture.
.Turn the band down for less
sensitivity to moisture.
.Move the windshield wiper lever
out of the
Gposition to
deactivate Rainsense.
Rear Window Wiper/Washer
The rear wiper controls are on the
end of the windshield wiper lever.
ON: Press the upper portion of the
button for continuous rear window
wipes.
OFF: The rear wiper turns off when
the button is returned to the middle
position.
INT (Intermittent Rear Wipes):
Press the lower portion of the button
to set a delay between wipes.
=: Push the windshield wiper
lever forward to spray washer fluid
on the rear window.
See Windshield Wiper/Washer on
page 5‑4 andRear Window Wiper/
Washer on page 5‑6.
