24 Keys, Doors, and Windows
Keys, Doors, and
Windows
Keys and Locks
Keys . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Remote Keyless Entry (RKE)System . . . . . . . . . . . . . . . . . . . . . . . 25
Remote Keyless Entry (RKE) System Operation . . . . . . . . . . . . 25
Remote Vehicle Start . . . . . . . . . . 30
Door Locks . . . . . . . . . . . . . . . . . . . . 31
Power Door Locks . . . . . . . . . . . . . 32
Delayed Locking . . . . . . . . . . . . . . . 32
Automatic Door Locks . . . . . . . . . 32
Lockout Protection . . . . . . . . . . . . . 33
Safety Locks . . . . . . . . . . . . . . . . . . . 33
Doors
Liftgate . . . . . . . . . . . . . . . . . . . . . . . . 33
Vehicle Security
Vehicle Security . . . . . . . . . . . . . . . . 37
Vehicle Alarm System . . . . . . . . . 37
Immobilizer Operation . . . . . . . . . 39
Exterior Mirrors
Convex Mirrors . . . . . . . . . . . . . . . . 40
Power Mirrors . . . . . . . . . . . . . . . . . . 40
Folding Mirrors . . . . . . . . . . . . . . . . . 40 Heated Mirrors . . . . . . . . . . . . . . . . . 41
Automatic Dimming Mirror . . . . . 41
Reverse Tilt Mirrors . . . . . . . . . . . . 41
Interior Mirrors
Interior Rearview Mirrors . . . . . . . 42
Manual Rearview Mirror . . . . . . . . 42
Automatic Dimming Rearview
Mirror . . . . . . . . . . . . . . . . . . . . . . . . . 42
Windows
Windows . . . . . . . . . . . . . . . . . . . . . . . 42
Power Windows . . . . . . . . . . . . . . . 42
Sun Visors . . . . . . . . . . . . . . . . . . . . . 44
Roof
Sunroof . . . . . . . . . . . . . . . . . . . . . . . . 45
Keys and Locks
Keys
{Warning
Leaving children in a vehicle with
a Remote Keyless Entry (RKE)
transmitter is dangerous and
children or others could be
seriously injured or killed. They
could operate the power windows
or other controls or make the
vehicle move. The windows will
function with the RKE transmitter
in the vehicle, and children or
others could be caught in the path
of a closing window. Do not leave
children in a vehicle with an RKE
transmitter.

Cadillac SRX Owner Manual (GMNA-Localizing-MidEast-9369636) - 2016 -
crc - 6/1/15
42 Keys, Doors, and Windows
Interior Mirrors
Interior Rearview Mirrors
Adjust the rearview mirror for a clear
view of the area behind your
vehicle.
Do not spray glass cleaner directly
on the mirror. Use a soft towel
dampened with water.
Manual Rearview Mirror
Push the tab forward for daytime
use and pull it rearward for
nighttime use to avoid glare of the
headlamps from behind.
Automatic Dimming
Rearview Mirror
If equipped, automatic dimming
reduces the glare of headlamps
from behind. The dimming feature
comes on when the vehicle is
started.
Windows
{Warning
Never leave a child, a helpless
adult, or a pet alone in a vehicle,
especially with the windows
closed in warm or hot weather.
They can be overcome by the
extreme heat and suffer
permanent injuries or even death
from heat stroke.
The vehicle aerodynamics are
designed to improve fuel economy
performance. This may result in apulsing sound when either rear
window is down and the front
windows are up. To reduce the
sound, open either a front window
or the sunroof, if equipped.
Power Windows
{Warning
Children could be seriously
injured or killed if caught in the
path of a closing window. Never
leave the Remote Keyless Entry
(RKE) transmitter in a vehicle with
children. When there are children
in the rear seat, use the window
lockout switch to prevent
operation of the windows. See
Keys
024.

Cadillac SRX Owner Manual (GMNA-Localizing-MidEast-9369636) - 2016 -
crc - 6/1/15
Keys, Doors, and Windows 45

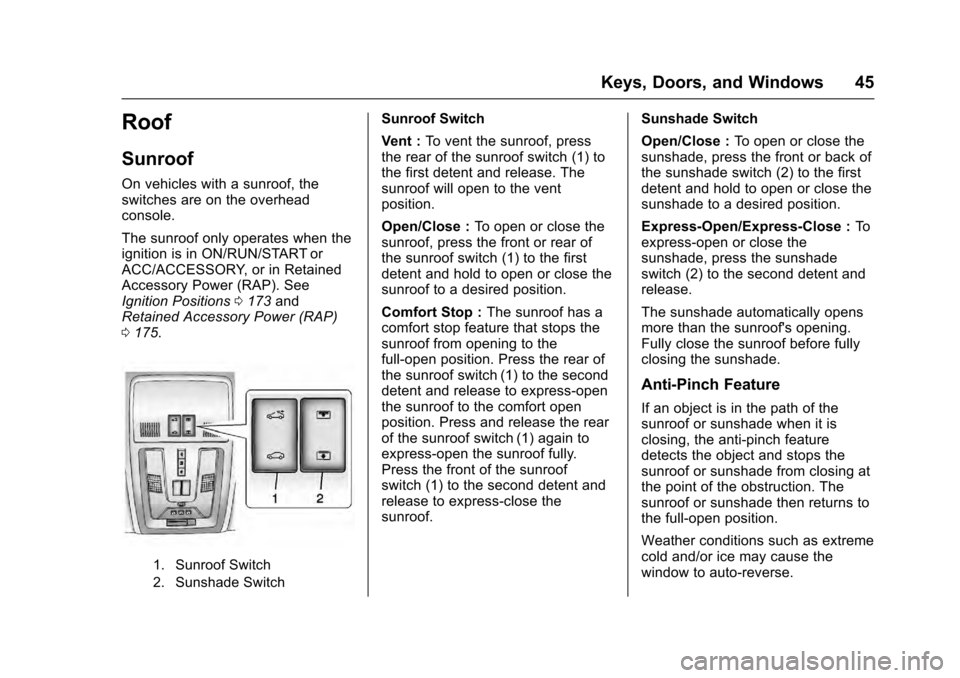

Roof
Sunroof
On vehicles with a sunroof, the
switches are on the overhead
console.
The sunroof only operates when the
ignition is in ON/RUN/START or
ACC/ACCESSORY, or in Retained
Accessory Power (RAP). See
Ignition Positions0173 and
Retained Accessory Power (RAP)
0 175.
1. Sunroof Switch
2. Sunshade Switch
Sunroof Switch
Vent : To vent the sunroof, press
the rear of the sunroof switch (1) to
the first detent and release. The
sunroof will open to the vent
position.
Open/Close : To open or close the
sunroof, press the front or rear of
the sunroof switch (1) to the first
detent and hold to open or close the
sunroof to a desired position.
Comfort Stop : The sunroof has a
comfort stop feature that stops the
sunroof from opening to the
full-open position. Press the rear of
the sunroof switch (1) to the second
detent and release to express-open
the sunroof to the comfort open
position. Press and release the rear
of the sunroof switch (1) again to
express-open the sunroof fully.
Press the front of the sunroof
switch (1) to the second detent and
release to express-close the
sunroof. Sunshade Switch
Open/Close :
To open or close the
sunshade, press the front or back of
the sunshade switch (2) to the first
detent and hold to open or close the
sunshade to a desired position.
Express-Open/Express-Close : To
express-open or close the
sunshade, press the sunshade
switch (2) to the second detent and
release.
The sunshade automatically opens
more than the sunroof's opening.
Fully close the sunroof before fully
closing the sunshade.
Anti-Pinch Feature
If an object is in the path of the
sunroof or sunshade when it is
closing, the anti-pinch feature
detects the object and stops the
sunroof or sunshade from closing at
the point of the obstruction. The
sunroof or sunshade then returns to
the full-open position.
Weather conditions such as extreme
cold and/or ice may cause the
window to auto-reverse.

Cadillac SRX Owner Manual (GMNA-Localizing-MidEast-9369636) - 2016 -
crc - 6/1/15
46 Keys, Doors, and Windows
Dirt and debris may collect on the
sunroof seal or in the track. This
could cause an issue with sunroof
operation or noise. It could also plug
the water drainage system.
Periodically open the sunroof and
remove any obstacles or loose
debris. Wipe the sunroof seal and
roof sealing area using a clean
cloth, mild soap, and water. Do not
remove grease from the sunroof.

Cadillac SRX Owner Manual (GMNA-Localizing-MidEast-9369636) - 2016 -
crc - 6/1/15
Driving and Operating 175
Caution
If you add electrical parts or
accessories, you could change
the way the engine operates. Any
resulting damage would not be
covered by the vehicle warranty.
SeeAdd-On Electrical Equipment
0 220.
To start the vehicle:
Starting Procedure 1. With the Keyless Access system, the RKE transmitter
must be in the vehicle. Press
the ENGINE START/STOP
button with the brake pedal
applied. When the engine
begins cranking, let go of the
button. The idle speed will go
down as the engine warms up.
Do not race the engine
immediately after starting it.
If the RKE transmitter is not in
the vehicle, if there is
interference, or the RKE
battery is low, a Driver
Information Center (DIC) message will display. See
Driver Information Center (DIC)
0
123 andRemote Keyless
Entry (RKE) System Operation
0 25.
Caution
Cranking the engine for long
periods of time, by pressing the
ENGINE START/STOP button
immediately after cranking has
ended, can overheat and damage
the cranking motor, and drain the
battery. Wait at least 15 seconds
between each try, to let the
cranking motor cool down.
2. If the engine does not start after five to 10 seconds,
especially in very cold weather
(below −18 °C or 0 °F), it could
be flooded with too much
gasoline. Try pushing the
accelerator pedal all the way to
the floor and holding it there as
you press the ENGINE START/
STOP button, for up to a
maximum of 15 seconds. Wait
at least 15 seconds between each try, to allow the cranking
motor to cool down. When the
engine starts, let go of the
button and the accelerator.
If the vehicle starts briefly but
then stops again, do the same
thing. This clears the extra
gasoline from the engine. Do
not race the engine
immediately after starting it.
Operate the engine and
transmission gently until the oil
warms up and lubricates all
moving parts.
Retained Accessory
Power (RAP)
These accessories can be used
after the engine is turned off:
.
Infotainment system (up to
10 minutes or until the driver
door is opened).
. Power windows, sunroof (if
equipped), and power outlets (up
to 10 minutes or until any door is
opened).

Cadillac SRX Owner Manual (GMNA-Localizing-MidEast-9369636) - 2016 -
crc - 6/1/15
254 Vehicle Care

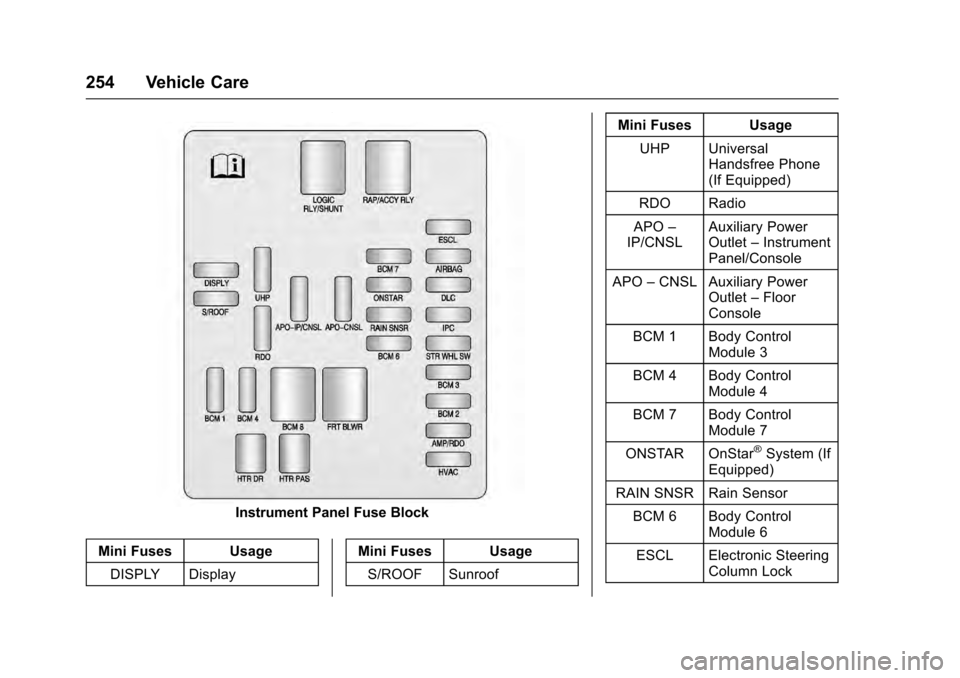

Instrument Panel Fuse Block
Mini Fuses Usage DISPLY Display Mini Fuses Usage
S/ROOF Sunroof Mini Fuses Usage
UHP Universal Handsfree Phone
(If Equipped)
RDO Radio
APO –
IP/CNSL Auxiliary Power
Outlet
–Instrument
Panel/Console
APO –CNSL Auxiliary Power
Outlet–Floor
Console
BCM 1 Body Control Module 3
BCM 4 Body Control Module 4
BCM 7 Body Control Module 7
ONSTAR OnStar
®System (If
Equipped)
RAIN SNSR Rain Sensor BCM 6 Body Control Module 6
ESCL Electronic Steering Column Lock

Cadillac SRX Owner Manual (GMNA-Localizing-MidEast-9369636) - 2016 -
crc - 6/1/15
298 Service and Maintenance
.Tire wear inspection. See Tire
Inspection 0265.
. Rotate tires if necessary. See
Tire Rotation 0266.
. Fluids visual leak check (or
every 12 months, whichever
occurs first). A leak in any
system must be repaired and the
fluid level checked.
. Engine air cleaner filter
inspection. See Engine Air
Cleaner/Filter 0229.
. Brake system inspection (or
every 12 months, whichever
occurs first). See Exterior Care
0 287.
. Steering and suspension
inspection. Visual inspection for
damaged, loose, or missing
parts or signs of wear.
. Body hinges and latches, key
lock cylinders, folding seat
hardware, and sunroof (if
equipped) lubrication. See
Recommended Fluids and
Lubricants 0301. More frequent
lubrication may be required
when the vehicle is exposed to a corrosive environment. Applying
silicone grease on weatherstrips
with a clean cloth makes them
last longer, seal better, and not
stick or squeak.
. Restraint system component
check. See Safety System
Check 063.
. Fuel system inspection for
damage or leaks.
. Exhaust system and nearby heat
shields inspection for loose or
damaged components.
Additional Required Services
Every Service
.Rotate tires. Tires should be
rotated every service. See Tire
Rotation 0266.
At Each Fuel Stop
. Engine oil level check. See
Engine Oil 0225.
. Engine coolant level check. See
Engine Coolant 0231.
. Windshield washer fluid level
check. See Washer Fluid 0237. Once a Month
.
Tire inflation check. See Tire
Pressure 0260.
. Tire wear inspection. See Tire
Inspection 0265.
. Sunroof track and seal
inspection, if equipped. See
Sunroof 045.
Once a Year
. See Starter Switch Check 0240.
. See Automatic Transmission
Shift Lock Control Function
Check 0240.
. See Park Brake and P (Park)
Mechanism Check 0241.
. Accelerator pedal check for
damage, high effort, or binding.
Replace if needed.
. Underbody flushing service.
. Hood/Decklid/Liftgate/Liftglass
Support Gas Strut Service:
Visually inspect gas strut,
if equipped, for signs of wear,
cracks, or other damage. Check

Cadillac SRX Owner Manual (GMNA-Localizing-MidEast-9369636) - 2016 -
crc - 6/1/15
316 Index
Rear Seats . . . . . . . . . . . . . . . . . . . . . . 55Heated . . . . . . . . . . . . . . . . . . . . . . . . . 56
Rear Window Washer/Wiper . . . . 104
Rearview Mirrors . . . . . . . . . . . . . . . . 42 Automatic Dimming . . . . . . . . . . . . . 42
Reclining Seatbacks . . . . . . . . . . . . . 50
Recommended Fluids and Lubricants . . . . . . . . . . . . . . . . . . . . . 301
Records Maintenance . . . . . . . . . . . . . . . . . . 303
Recreational Vehicle Towing . . . . 284
Remote Keyless Entry (RKE)
System . . . . . . . . . . . . . . . . . . . . . . . . . 25
Remote Vehicle Start . . . . . . . . . . . . 30
Replacement Bulbs . . . . . . . . . . . . . 249
Replacement Parts Airbags . . . . . . . . . . . . . . . . . . . . . . . . . 72
Maintenance . . . . . . . . . . . . . . . . . . 302
Replacing Airbag System . . . . . . . . 72
Replacing LATCH System Parts after a Crash . . . . . . . . . . . . . 84
Replacing Safety Belt System Parts after a Crash . . . . . . . . . . . . . 63
Restraints Where to Put . . . . . . . . . . . . . . . . . . . 78
Retained Accessory Power (RAP) . . . . . . . . . . . . . . . . . . 175
Reverse Tilt Mirrors . . . . . . . . . . . . . . 41 Ride Control Systems
Limited Slip Rear Axle . . . . . . . . 187
Messages . . . . . . . . . . . . . . . . . . . . 133
Selective . . . . . . . . . . . . . . . . . . . . . 188
Roads Driving, Wet . . . . . . . . . . . . . . . . . . 165
Roof
Sunroof . . . . . . . . . . . . . . . . . . . . . . . . . 45
Roof Rack System . . . . . . . . . . . . . . . 99
Rotation, Tires . . . . . . . . . . . . . . . . . . 266
Routing, Engine Drive Belt . . . . . . 306
Running the Vehicle While Parked . . . . . . . . . . . . . . . . . . . . . . . . 178
S
Safety Belts . . . . . . . . . . . . . . . . . . . . . 57Care . . . . . . . . . . . . . . . . . . . . . . . . . . . . 63
How to Wear Safety Belts
Properly . . . . . . . . . . . . . . . . . . . . . . . 58
Lap-Shoulder Belt . . . . . . . . . . . . . . 59
Reminders . . . . . . . . . . . . . . . . . . . . . 111
Replacing after a Crash . . . . . . . . 63
Use During Pregnancy . . . . . . . . . . 62
Safety Locks . . . . . . . . . . . . . . . . . . . . . 33
Safety System Check . . . . . . . . . . . . 63
Seats Head Restraints . . . . . . . . . . . . . . . . 48
Heated and Ventilated Front . . . . 53
Heated, Rear . . . . . . . . . . . . . . . . . . . 56 Seats (cont'd)
Lumbar Adjustment, Front . . . . . . 50
Memory . . . . . . . . . . . . . . . . . . . . . . . . . 52
Power Adjustment, Front . . . . . . . 49
Rear . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55
Reclining Seatbacks . . . . . . . . . . . . 50
Securing Child Restraints . . . . 84, 86
Security Light . . . . . . . . . . . . . . . . . . . . . . . . . . 121
Messages . . . . . . . . . . . . . . . . . . . . 134
Vehicle . . . . . . . . . . . . . . . . . . . . . . . . . 37
Vehicle Alarm . . . . . . . . . . . . . . . . . . . 37
Selective Ride Control . . . . . . . . . . 188
Service Accessories andModifications . . . . . . . . . . . . . . . . 222
Doing Your Own Work . . . . . . . . 223
Engine Soon Light . . . . . . . . . . . . .115
Maintenance Records . . . . . . . . 303
Maintenance, General Information . . . . . . . . . . . . . . . . . . 296
Parts Identification Label . . . . . 304
Vehicle Messages . . . . . . . . . . . . 134
Service Electric Parking Brake Light . . . . . . . . . . . . . . . . . . . . 117
Servicing the Airbag . . . . . . . . . . . . . 71

Cadillac SRX Owner Manual (GMNA-Localizing-MidEast-9369636) - 2016 -
crc - 6/1/15
Index 317
Shift Lock Control FunctionCheck, Automatic
Transmission . . . . . . . . . . . . . . . . . . 240
Shifting Into Park . . . . . . . . . . . . . . . . . . . . . . 176
Out of Park . . . . . . . . . . . . . . . . . . . 176
Side Blind Zone Alert (SBZA) . . . 206
Signals, Turn and
Lane-Change . . . . . . . . . . . . . . . . . 148
Spare Tire Compact . . . . . . . . . . . . . . . . . . . . . . 278
Specifications and Capacities . . . . . . . . . . . . . . . . . . . . . 305
Speedometer . . . . . . . . . . . . . . . . . . . 109
StabiliTrak OFF Light . . . . . . . . . . . . . . . . . . . . . .119
Start Assist, Hills . . . . . . . . . . . . . . . 185
Start Vehicle, Remote . . . . . . . . . . . 30
Starter Switch Check . . . . . . . . . . . 240
Starting the Gasoline Engine . . . 174
Starting the Vehicle Messages . . . . . . . . . . . . . . . . . . . . . 134
Steering . . . . . . . . . . . . . . . . . . . . . . . . 163 Fluid, Power . . . . . . . . . . . . . . . . . . 236
Heated Wheel . . . . . . . . . . . . . . . . 102
Wheel Adjustment . . . . . . . . . . . . 102
Wheel Controls . . . . . . . . . . . . . . . 102 Storage Areas
Armrest . . . . . . . . . . . . . . . . . . . . . . . . . 91
Cargo Cover . . . . . . . . . . . . . . . . . . . . 92
Cargo Management System . . . . 94
Center Console . . . . . . . . . . . . . . . . . 92
Convenience Net . . . . . . . . . . . . . . . 99
Front . . . . . . . . . . . . . . . . . . . . . . . . . . . 91
Glove Box . . . . . . . . . . . . . . . . . . . . . . 90
Roof Rack System . . . . . . . . . . . . . . 99
Storage Compartments . . . . . . . . . . 90
Stuck Vehicle . . . . . . . . . . . . . . . . . . . 167
Summer Tires . . . . . . . . . . . . . . . . . . 259
Sun Visors . . . . . . . . . . . . . . . . . . . . . . . 44
Sunroof . . . . . . . . . . . . . . . . . . . . . . . . . . 45
Switches Airbag On-Off . . . . . . . . . . . . . . . . . . . 69
Symbols . . . . . . . . . . . . . . . . . . . . . . . . . . 3
System Forward CollisionAlert (FCA) . . . . . . . . . . . . . . . . . . 202
Infotainment . . . . . . . . . . . . . 152, 308
Roof Rack . . . . . . . . . . . . . . . . . . . . . . 99
Systems Driver Assistance . . . . . . . . . . . . . 198T
Tachometer . . . . . . . . . . . . . . . . . . . . . 110
Theft-Deterrent Systems . . . . . . . . . 39
Thigh Support Adjustment . . . . . . . 50
Throttle, Adjustable . . . . . . . . . . . . . 172
Time . . . . . . . . . . . . . . . . . . . . . . . . . . . . 105
Tires . . . . . . . . . . . . . . . . . . . . . . . . . . . . 258All-Season . . . . . . . . . . . . . . . . . . . . 259
Buying New Tires . . . . . . . . . . . . . 268
Chains . . . . . . . . . . . . . . . . . . . . . . . . 270
Changing . . . . . . . . . . . . . . . . . . . . . 272
Compact Spare . . . . . . . . . . . . . . . 278
Different Size . . . . . . . . . . . . . . . . . 269
If a Tire Goes Flat . . . . . . . . . . . . 271
Inspection . . . . . . . . . . . . . . . . . . . . 265
Messages . . . . . . . . . . . . . . . . . . . . 134
Pressure . . . . . . . . . . . . . . . . . . . . . . 261
Pressure Light . . . . . . . . . . . . . . . . 120
Pressure Monitor Operation . . 263
Pressure Monitor System . . . . . 262
Rotation . . . . . . . . . . . . . . . . . . . . . . 266
Wheel Alignment and TireBalance . . . . . . . . . . . . . . . . . . . . . 269
Wheel Replacement . . . . . . . . . . 270
When It Is Time for New
Tires . . . . . . . . . . . . . . . . . . . . . . . . 267
Winter . . . . . . . . . . . . . . . . . . . . . . . . 259
