Power Windows
The power window switches are located on the armrest
near each window. Press the front of the switch to
the rst position to open the window to the desired level.
Lift up the front of the switch to the rst position to
close the window.
Your vehicle has Retained Accessory Power (RAP) that
allows you to use the power windows once the engine
has been turned off. For more information, seeRetained
Accessory Power (RAP) on page 2-23.
Express-Down Window
This feature is on all windows. It allows you to lower
the window all the way without continuously pressing
the switch.Press the front of the switch to the second position
and release. If you want to stop the window as it
is lowering, briey pull up the switch.
Express-Up Window
This feature is on all windows. It allows you to raise
the window all the way without continuously lifting the
switch. Lift the front of the switch briey to activate
the express-up feature. If you want to stop the window
as it is raising, briey press the switch.
Programming the Power Windows
If the battery on your vehicle has been recharged,
disconnected, or is not working, you will need to
reprogram each window for the express-up feature
to work.
To program each window, follow these steps:
1. With the ignition on or in ACC, or while RAP is
active, close all doors.
2. Press and hold the power window switch until the
window has fully opened.
3. Continue holding the switch for approximately
two seconds.
4. Pull up the power window switch until the window
is fully closed.
The window is now programmed. Repeat the process
for all windows.
2-17

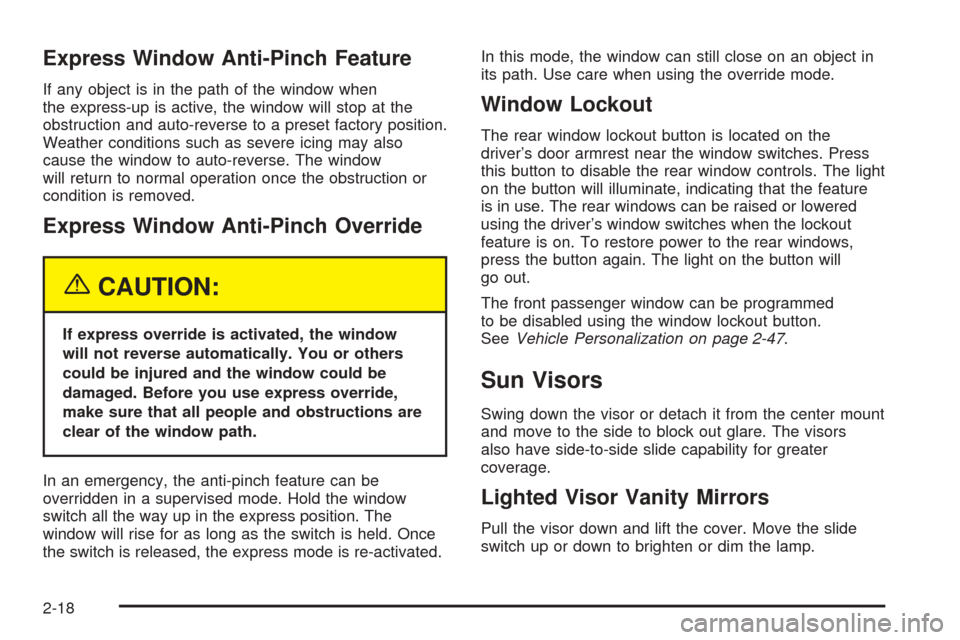

Express Window Anti-Pinch Feature
If any object is in the path of the window when
the express-up is active, the window will stop at the
obstruction and auto-reverse to a preset factory position.
Weather conditions such as severe icing may also
cause the window to auto-reverse. The window
will return to normal operation once the obstruction or
condition is removed.
Express Window Anti-Pinch Override
{CAUTION:
If express override is activated, the window
will not reverse automatically. You or others
could be injured and the window could be
damaged. Before you use express override,
make sure that all people and obstructions are
clear of the window path.
In an emergency, the anti-pinch feature can be
overridden in a supervised mode. Hold the window
switch all the way up in the express position. The
window will rise for as long as the switch is held. Once
the switch is released, the express mode is re-activated.In this mode, the window can still close on an object in
its path. Use care when using the override mode.
Window Lockout
The rear window lockout button is located on the
driver’s door armrest near the window switches. Press
this button to disable the rear window controls. The light
on the button will illuminate, indicating that the feature
is in use. The rear windows can be raised or lowered
using the driver’s window switches when the lockout
feature is on. To restore power to the rear windows,
press the button again. The light on the button will
go out.
The front passenger window can be programmed
to be disabled using the window lockout button.
SeeVehicle Personalization on page 2-47.
Sun Visors
Swing down the visor or detach it from the center mount
and move to the side to block out glare. The visors
also have side-to-side slide capability for greater
coverage.
Lighted Visor Vanity Mirrors
Pull the visor down and lift the cover. Move the slide
switch up or down to brighten or dim the lamp.
2-18

Theft-Deterrent Systems
Vehicle theft is big business, especially in some cities.
Although your vehicle has a number of theft-deterrent
features, we know that nothing we put on it can make it
impossible to steal.
Theft-Deterrent System
Your vehicle has a theft-deterrent alarm system.
The security light
is located on the
instrument panel
cluster.
If the ignition is off and a door is open, the security light
will ash, reminding you to arm the theft-deterrent
system.
To arm the system, do one of the following:
Press the lock button on the keyless access
transmitter. If the door is closed when the lock button
is pressed, the security light will stay illuminated for
30 seconds. After the security light goes off, the
theft-deterrent system is armed. Pressing the lock
button twice will arm the system immediately.If the vehicle is locked using the keyless access
transmitter and the trunk lid, hood or a door is open
or not closed completely, the security light will ash
for 60 seconds and then turn off. At this time, the
theft-deterrent system is armed but the alarm will not
sound if the trunk lid, hood or door that was not
closed completely is tampered with or opened. The
alarm will sound for the trunk lid, hood or a door that
was completely closed at the time the vehicle was
locked using the keyless access transmitter.
Open the door. Lock the door with the power door
lock switch or lock button on the keyless access
transmitter. The security light should ash. Close the
door. The security light will stop ashing and stay on.
After 30 seconds the light should turn off, the
theft-deterrent system is armed.
Passive Arming, if activated through the vehicle
personalization feature, will arm the system
automatically after you close the door and take at
least one keyless access transmitter with you. The
security light will turn on. After 60 seconds the light
should turn off. The theft-deterrent system is armed.
SeeVehicle Personalization on page 2-47.
If a door, hood, or the trunk is opened without the
keyless access transmitter, the horn will sound for
30 seconds and the lamps will ash for two minutes.
The vehicle cannot be started without a keyless access
transmitter.
2-19

The Theft-Deterrent system will not arm if:
The key is used to lock the driver’s door.
The driver’s door is locked using the power door
lock switch after the doors are closed.
If the vehicle is locked using the keyless access
transmitter and the trunk lid, hood or a door is open or
not closed completely, the security light will ash for
60 seconds and then turn off. At this time, the
theft-deterrent system is armed but the alarm will not
sound if the trunk lid, hood or door that was not closed
completely is tampered with or opened. The alarm
will sound for the trunk lid, hood or a door that was
completely closed at the time the vehicle was locked
using the keyless access transmitter.
The vehicle can be programmed to automatically unlock
the doors and disarm the theft-deterrent system when
you approach the vehicle and the keyless access
transmitter is with you. SeeVehicle Personalization
on page 2-47.
Pressing the unlock button on the keyless access
transmitter or using the key to unlock the driver’s door
disarms the theft-deterrent system. Unlocking a door
any other way while the system is armed will activate
the alarm.
Testing the Alarm
1. From inside the vehicle, roll down the window, then
get out of the vehicle, keeping the door open.
2. From outside of the vehicle, with the door open,
lock the vehicle using the power door lock switch
or the keyless access transmitter and close the
door. Wait approximately 30 seconds until the
security light goes off.
3. Reach in and open the door using the inside door
handle. The horn will sound and the exterior lamps
will ash.
You can turn off the alarm by pressing the unlock
button on the keyless access transmitter or by starting
the car.
If the alarm does not sound when it should, check to
see if the horn works. The horn fuse may be blown.
To replace the fuse, seeFuses and Circuit Breakers on
page 5-95. If the fuse does not need to be replaced,
you may need to have your vehicle serviced.
To reduce the possibility of theft, always arm the
Theft-Deterrent system when leaving your vehicle.
2-20

Valet Lockout Switch
The valet lockout switch
is located inside the
glove box.
9(Off):Press the left side of the valet lockout switch
to turn the lockout feature off. When the lockout
feature is off, you can open the trunk using either the
keyless access transmitter or the trunk release
button located on the driver’s door.
R(On):Press the right side of the valet lockout switch
to turn the lockout feature on. When the lockout
feature is turned on, the trunk cannot be unlocked with
the keyless access transmitter or the trunk release
button located on the driver’s door. If the valet lockout
feature is on it will also disable the remote start
feature and the HomeLink
®transmitter, if equipped.
Locking the glove box with your key will also help
to secure your vehicle.
SeeKeyless Access System Operation on page 2-4and
Trunk on page 2-14for additional information.
2-21

Starting and Operating Your
Vehicle
New Vehicle Break-In
Notice:Your vehicle does not need an elaborate
break-in. But it will perform better in the long run if
you follow these guidelines:
Do not drive at any one speed, fast or slow, for
the rst 500 miles (805 km). Do not make
full-throttle starts.
Avoid making hard stops for the rst 200 miles
(322 km) or so. During this time your new
brake linings are not yet broken in. Hard stops
with new linings can mean premature wear
and earlier replacement. Follow this breaking-in
guideline every time you get new brake
linings.
Do not tow a trailer during break-in. SeeTowing
a Trailer on page 4-37for more information.
Ignition Positions
Your vehicle has an
electronic keyless ignition
with pushbutton start.
/(START):Press this button while your foot is on
the brake to start the engine. The shifter must be
in PARK (P) or NEUTRAL (N) to start the engine and
the keyless access transmitter must be in the vehicle for
the ignition to work.
2-22

9ACC (OFF/ACCESSORY):When the engine is on
or in accessory mode, press this button to turn the
engine off and place the vehicle in RAP. SeeRetained
Accessory Power (RAP) on page 2-23for more
information. The shifter must be in PARK (P) for the
engine to turn off.
When the engine is off, press this button to place the
vehicle in accessory mode. ACCESSORY ACTIVE will
display on the Driver Information Center (DIC). This mode
allows you to use things like the radio and the windshield
wipers while the engine is off. Use accessory mode if you
must have your vehicle in motion while the engine is off,
for example, if your vehicle is being pushed or towed. If
the door is open while in accessory mode, the key in
reminder chime will sound continuously.
If the push-button start is not working, your vehicle may
be near a strong radio antenna signal causing the keyless
access system to be jammed. SeeDIC Warnings and
Messages on page 3-78for more information.Retained Accessory Power (RAP)
The following accessories on your vehicle may be used
for up to 20 minutes after the engine is turned off:
Radio
Power Windows
Audio Steering Wheel Controls
Power to these accessories stops after 20 minutes or if
one of the front doors is opened. If you want power
for another 20 minutes, close all the doors and press the
OFF/ACCESSORY button to place the vehicle in
accessory mode. Press the button again and the vehicle
will return to RAP.
2-23

Starting the Engine
Move your shift lever to PARK (P) or NEUTRAL (N).
Your engine will not start in any other position — that is
a safety feature. To restart when you are already
moving, use NEUTRAL (N) only.
The keyless access transmitter must be in the vehicle
for the ignition to work.
Notice:Do not try to shift to PARK (P) if your
vehicle is moving. If you do, you could damage the
transmission. Shift to PARK (P) only when your
vehicle is stopped.
1. With your foot on the brake pedal, press the
START button. If no keyless access transmitter
is present, the DIC will display NO FOB
DETECTED. When the engine begins cranking, let
go of the button. The idle speed will go down as
your engine gets warm.
If the battery in the keyless access transmitter is
weak, the DIC will display FOB BATTERY
LOW. You can still drive the vehicle. See “Battery
Replacement” underKeyless Access System
Operation on page 2-4for more information.Notice:Holding the button in for longer than
15 seconds at a time will cause the vehicle’s battery
to be drained much sooner. This can also cause
damage to the starter motor. Wait 15 seconds
between each try to avoid draining your vehicle’s
battery or damaging the starter.
2. If the engine does not start and no DIC message is
displayed, wait 15 seconds before trying again.
Notice:Your engine is designed to work with the
electronics in your vehicle. If you add electrical
parts or accessories, you could change the way the
engine operates. Before adding electrical equipment,
check with your dealer. If you do not, your engine
might not perform properly.
Stopping Your Engine
Move the shift lever to PARK (P) and press the
OFF/ACCESSORY button. If the shifter is not in
PARK (P), the vehicle will go into accessory mode
and the DIC will display SHIFT TO PARK. Once the
shifter is moved to PARK (P), the vehicle will turn off.
If the keyless access transmitter is not detected
while going to off, the DIC will display NO FOB – OFF
OR RUN?.
SeeDIC Warnings and Messages on page 3-78for
more information.
2-24

Engine Coolant Heater
Your vehicle may be equipped with an engine coolant
heater.
In very cold weather, 0°F (−18°C) or colder, the engine
coolant heater can help. You will get easier starting
and better fuel economy during engine warm-up.
Usually, the coolant heater should be plugged in a
minimum of four hours prior to starting your vehicle.
At temperatures above 32°F (0°C), use of the coolant
heater is not required.
To Use the Engine Coolant Heater
1. Turn off the engine.
2. Open the hood and unwrap the electrical cord.
The cord is located in the engine compartment
on the driver’s side of the vehicle near the engine
oil dipstick. SeeEngine Compartment Overview
on page 5-12for more information on location.
You must remove the plastic cap to access the plug.
3. Plug it into a normal, grounded 110-volt AC outlet.
{CAUTION:
Plugging the cord into an ungrounded outlet
could cause an electrical shock. Also, the
wrong kind of extension cord could overheat
and cause a re. You could be seriously
injured. Plug the cord into a properly grounded
three-prong 110-volt AC outlet. If the cord will
not reach, use a heavy-duty three-prong
extension cord rated for at least 15 amps.
4. Before starting the engine, be sure to unplug and
store the cord as it was before to keep it away
from moving engine parts. If you do not, it could be
damaged.
How long should you keep the coolant heater plugged
in? The answer depends on the outside temperature, the
kind of oil you have, and some other things. Instead
of trying to list everything here, we ask that you contact
your dealer in the area where you will be parking
your vehicle. The dealer can give you the best advice
for that particular area.
2-25

Automatic Transmission Operation
The shift lever is located on the center console between
the front seats.
There are several different
positions for the shift lever.
PARK (P):This position locks the rear wheels.
It is the best position to use when you start the
engine because your vehicle cannot move easily.{CAUTION:
It is dangerous to get out of your vehicle if
the shift lever is not fully in PARK (P) with the
parking brake rmly set. Your vehicle can roll.
Do not leave your vehicle when the engine is
running unless you have to. If you have left
the engine running, the vehicle can move
suddenly. You or others could be injured. To
be sure your vehicle will not move, even when
you are on fairly level ground, always set your
parking brake and move the shift lever to
PARK (P). SeeShifting Into Park (P) on
page 2-30. If you are pulling a trailer, see
Towing a Trailer on page 4-37.
2-26
