If you have additional transmitters to program, this
process can be repeated until four transmitters have been
programmed. The DIC will then display MAX # FOBS
LEARNED and will exit the programming mode.
When you are done programming transmitters, press
the unlock button on each keyless access transmitter
twice. After performing this process, transmitters
previously programmed will no longer work with your
vehicle and must be reprogrammed.
Battery Replacement
Under normal use, the battery in your keyless access
transmitter should last about three years.
You can tell the battery is weak if the transmitter will not
work at the normal range in any location. If you have
to get close to your vehicle before the transmitter works,
it is probably time to change the battery. The DIC
may display KEY FOB BATTERY LOW.
A weak battery may also cause the DIC to display
NO FOBS DETECTED when you try to start the vehicle.
If this happens, place the transmitter in the center
console storage area transmitter pocket with the buttons
facing to the front of the vehicle. Then, with the vehicle in
PARK (P) or NEUTRAL (N), press the brake pedal and
the start button. SeeStarting the Engine on page 2-25,
for additional information about your vehicle’s electronic
keyless ignition with push button start.Although this will start the vehicle, it is recommended that
you replace the transmitter battery as soon as possible.
Notice:When replacing the battery, use care not
to touch any of the circuitry. Static from your body
transferred to these surfaces may damage the
transmitter.
To replace the battery, do the following:
1. Insert a coin or similar object into the slot on the
back of the transmitter and carefully pry apart the
front and back.
2. Carefully pull the battery out of the transmitter.
2-9

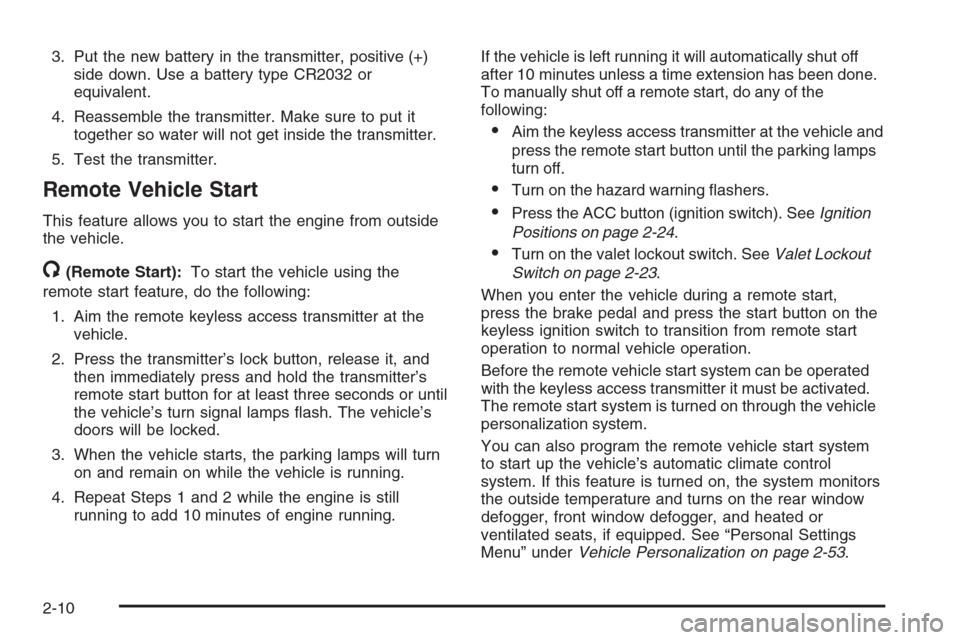

3. Put the new battery in the transmitter, positive (+)
side down. Use a battery type CR2032 or
equivalent.
4. Reassemble the transmitter. Make sure to put it
together so water will not get inside the transmitter.
5. Test the transmitter.
Remote Vehicle Start
This feature allows you to start the engine from outside
the vehicle.
/(Remote Start):To start the vehicle using the
remote start feature, do the following:
1. Aim the remote keyless access transmitter at the
vehicle.
2. Press the transmitter’s lock button, release it, and
then immediately press and hold the transmitter’s
remote start button for at least three seconds or until
the vehicle’s turn signal lamps ash. The vehicle’s
doors will be locked.
3. When the vehicle starts, the parking lamps will turn
on and remain on while the vehicle is running.
4. Repeat Steps 1 and 2 while the engine is still
running to add 10 minutes of engine running.If the vehicle is left running it will automatically shut off
after 10 minutes unless a time extension has been done.
To manually shut off a remote start, do any of the
following:
Aim the keyless access transmitter at the vehicle and
press the remote start button until the parking lamps
turn off.
Turn on the hazard warning ashers.
Press the ACC button (ignition switch). SeeIgnition
Positions on page 2-24.
Turn on the valet lockout switch. SeeValet Lockout
Switch on page 2-23.
When you enter the vehicle during a remote start,
press the brake pedal and press the start button on the
keyless ignition switch to transition from remote start
operation to normal vehicle operation.
Before the remote vehicle start system can be operated
with the keyless access transmitter it must be activated.
The remote start system is turned on through the vehicle
personalization system.
You can also program the remote vehicle start system
to start up the vehicle’s automatic climate control
system. If this feature is turned on, the system monitors
the outside temperature and turns on the rear window
defogger, front window defogger, and heated or
ventilated seats, if equipped. See “Personal Settings
Menu” underVehicle Personalization on page 2-53.
2-10

Laws in some local communities may restrict the use of
remote starters, for example, requiring a person using
remote start to have the vehicle in view when doing so.
Check local regulations for any requirements on remote
starting of vehicles.
Do not use the remote start feature if your vehicle is low
on fuel. Your vehicle may run out of fuel.
The remote start feature provides two separate starts,
each with 10 minutes of engine running. If you press
the lock button and then hold the remote start button
on the keyless access transmitter again for at least
three seconds before the rst 10 minutes of engine
running time has expired, 10 minutes is added to the
remaining minutes. For example, if the remote start is
initiated again after ve minutes of the engine run time,
10 minutes is added and you now have 15 minutes with
the engine running. Once two remote starts or 20 minutes
of the engine running have been provided, the vehicle
must be started using the keyless access with pushbutton
start feature, if the engine needs to be restarted. See
Starting the Engine on page 2-25for more information
regarding the keyless ignition.The remote start feature will not operate if any of the
following occur:
The check engine light is displayed. See “Check
Engine Light” underMalfunction Indicator Lamp
on page 3-67.
The valet lockout switch is on.
The keyless access transmitter is in the vehicle.
The vehicle’s hood is open.
The vehicle personalization feature is not enabled.
An unauthorized vehicle entry or a vehicle theft
was attempted.
Your keyless access transmitter, with the remote
start button, provides an increased range of operation.
However, the range may be less while the vehicle is
running. As a result, you may need to be closer to your
vehicle to turn it off than you were to turn it on.
There are other conditions which can affect the
performance of the transmitter, seeKeyless Access
System on page 2-4.
2-11

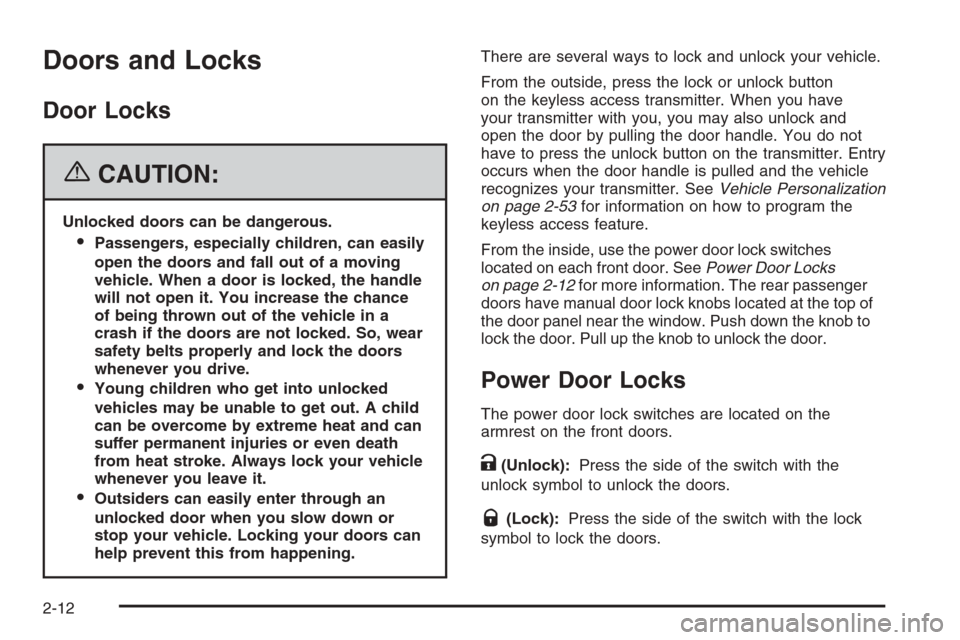

Doors and Locks
Door Locks
{CAUTION:
Unlocked doors can be dangerous.
Passengers, especially children, can easily
open the doors and fall out of a moving
vehicle. When a door is locked, the handle
will not open it. You increase the chance
of being thrown out of the vehicle in a
crash if the doors are not locked. So, wear
safety belts properly and lock the doors
whenever you drive.
Young children who get into unlocked
vehicles may be unable to get out. A child
can be overcome by extreme heat and can
suffer permanent injuries or even death
from heat stroke. Always lock your vehicle
whenever you leave it.
Outsiders can easily enter through an
unlocked door when you slow down or
stop your vehicle. Locking your doors can
help prevent this from happening.There are several ways to lock and unlock your vehicle.
From the outside, press the lock or unlock button
on the keyless access transmitter. When you have
your transmitter with you, you may also unlock and
open the door by pulling the door handle. You do not
have to press the unlock button on the transmitter. Entry
occurs when the door handle is pulled and the vehicle
recognizes your transmitter. SeeVehicle Personalization
on page 2-53for information on how to program the
keyless access feature.
From the inside, use the power door lock switches
located on each front door. SeePower Door Locks
on page 2-12for more information. The rear passenger
doors have manual door lock knobs located at the top of
the door panel near the window. Push down the knob to
lock the door. Pull up the knob to unlock the door.
Power Door Locks
The power door lock switches are located on the
armrest on the front doors.
K(Unlock):Press the side of the switch with the
unlock symbol to unlock the doors.
Q(Lock):Press the side of the switch with the lock
symbol to lock the doors.
2-12

Programmable Automatic
Door Locks
Your vehicle was programmed from the factory so that
when the doors are closed, the ignition is on and the shift
lever is moved out of PARK (P), all the doors will lock.
The front doors can still be opened from the inside while
the doors are locked. If a rear passenger needs to exit
the vehicle, have that person use the manual knob or use
the power door lock switch on either front door. When the
door is closed again, it will not lock automatically. Use
the manual knob or the power door lock switch to lock
the door.
The doors were also programmed from the factory to
unlock every time the shift lever is moved back into
PARK (P).
The power door locks can be programmed through the
radio display. The radio display allows you to choose
various lock and unlock settings. For more information
on programming, seeVehicle Personalization on
page 2-53.
Rear Door Security Locks
Your vehicle is equipped with rear door security locks
that prevent passengers from opening the rear doors on
your vehicle from the inside.
The rear door security locks
are located on the inside
edge of each rear door.
You must open the rear
doors to access them.
To use these locks, do the following:
1. Insert your key into the slot next to the rear door
security lock label and turn it to engage the lock.
2. Close the door.
3. Repeat the steps for the other rear door.
The rear doors on your vehicle cannot be opened from
the inside when this feature is in use.
2-13

When you want to open a rear door when the security
lock is on, do the following:
1. Unlock the door using the remote keyless entry
transmitter, the front door power lock switch or
by lifting the rear door manual lock.
2. Then open the door from the outside.
To cancel the rear door security lock, do the following:
1. Unlock the door and open it from the outside.
2. Insert your key into the slot next to the rear door
security lock label and turn it to disengage the lock.
3. Repeat the steps for the other lock.
The rear door locks will now work normally.
Lockout Protection
Your vehicle can be programmed to sound the horn
three times and unlock the driver’s door when all doors
are closed and there is a keyless access transmitter
inside the interior of the vehicle. When the driver’s door
is reopened, the key in reminder chime will sound
continuously. The vehicle will remain locked only when
at least one transmitter has been removed from the
vehicle and both doors are closed. SeeVehicle
Personalization on page 2-53.
Trunk
{CAUTION:
It can be dangerous to drive with the trunk lid
open because carbon monoxide (CO) gas can
come into your vehicle. You cannot see or
smell CO. It can cause unconsciousness and
even death. If you must drive with the trunk lid
open or if electrical wiring or other cable
connections must pass through the seal
between the body and the trunk lid:
Make sure all other windows are shut.
Turn the fan on your heating or cooling
system to its highest speed and select the
control setting that will force outside air
into your vehicle. See Climate Control
System.
If you have air outlets on or under the
instrument panel, open them all the way.
SeeEngine Exhaust on page 2-39.
2-14

Trunk Lid Release
There are several ways to release the trunk lid.
V(Trunk Lid Release):Press this button
located on the driver’s door. The vehicle must be
in PARK (P) or NEUTRAL (N) and the valet mode
turned off. To disable valet mode, seeValet Lockout
Switch on page 2-23.
Press the trunk lid release button on the keyless
access transmitter. SeeKeyless Access System
Operation on page 2-5. The vehicle must be in
PARK (P) or NEUTRAL (N) and the valet mode
turned off.
Squeeze the trunk release button located on the
rear of the trunk lid above the license plate, as
long as you have your keyless access transmitter
with you. Entry occurs when the button is being
pressed and the vehicle recognizes the transmitter.
The vehicle must be in PARK (P) and the valet
mode turned off.
If your vehicle has lost battery power, you can still
access the trunk by unlocking and lowering the rear seat
pass-through door and pulling the emergency trunk
release handle.
2-15

Rear Seat Pass-Through Door
This feature allows you to access the trunk without
opening the trunk lid. If the vehicle ever loses power,
the trunk can be accessed and opened through
this door.
To open the door, do the following:
1. Pull the rear seat armrest down.
2. If the door is locked, insert the key into the lock and
turn it counterclockwise.
3. Press the button above the lock.
4. Lower the door.
To open the trunk lid, pull the emergency trunk release
handle located in the trunk on the other side of the door
opening. See “Emergency Trunk Release Handle”
following.
Emergency Trunk Release Handle
Notice:Do not use the emergency trunk release
handle as a tie-down or anchor point when securing
items in the trunk as it could damage the handle.
The emergency trunk release handle is only
intended to aid a person trapped in a latched trunk,
enabling them to open the trunk from the inside.
There is a glow-in-the-dark trunk release handle located
inside the trunk near the back of the rear seats. This
handle will glow following exposure to light. Pull down
the release handle to open the trunk from the inside of
the vehicle.
2-16

Windows
{CAUTION:
Leaving children, helpless adults, or pets in a
vehicle with the windows closed is dangerous.
They can be overcome by the extreme heat
and suffer permanent injuries or even death
from heat stroke. Never leave a child, a
helpless adult, or a pet alone in a vehicle,
especially with the windows closed in warm or
hot weather.
2-17

Power Windows
The power window switches are located on the armrest
near each window. Press the front of the switch to the
rst position to open the window to the desired level.
Lift up the front of the switch to the rst position to close
the window.
Your vehicle has Retained Accessory Power (RAP) that
allows you to use the power windows once the engine
has been turned off. For more information, seeRetained
Accessory Power (RAP) on page 2-25.
Express-Down Window
This feature is on all windows. It allows you to lower
the window all the way without continuously pressing
the switch.
Press the front of the switch to the second position and
release. If you want to stop the window as it is lowering,
briey pull up the switch.
Express-Up Window
This feature is on all windows. It allows you to raise
the window all the way without continuously lifting the
switch. Lift the front of the switch briey to activate the
express-up feature. If you want to stop the window as it
is raising, briey press the switch.
2-18
