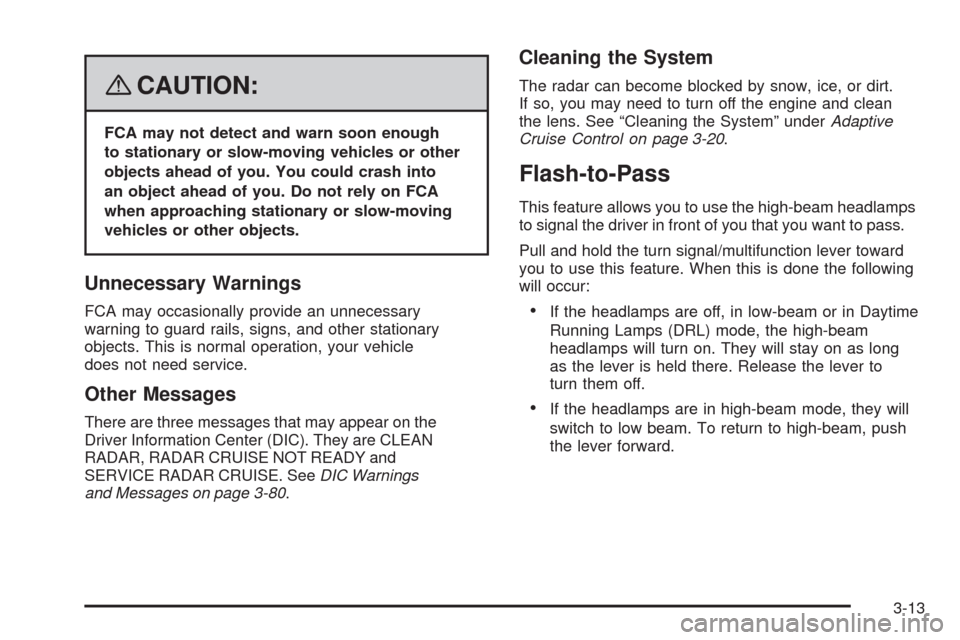

{CAUTION:
FCA may not detect and warn soon enough
to stationary or slow-moving vehicles or other
objects ahead of you. You could crash into
an object ahead of you. Do not rely on FCA
when approaching stationary or slow-moving
vehicles or other objects.
Unnecessary Warnings
FCA may occasionally provide an unnecessary
warning to guard rails, signs, and other stationary
objects. This is normal operation, your vehicle
does not need service.
Other Messages
There are three messages that may appear on the
Driver Information Center (DIC). They are CLEAN
RADAR, RADAR CRUISE NOT READY and
SERVICE RADAR CRUISE. SeeDIC Warnings
and Messages on page 3-80.
Cleaning the System
The radar can become blocked by snow, ice, or dirt.
If so, you may need to turn off the engine and clean
the lens. See “Cleaning the System” underAdaptive
Cruise Control on page 3-20.
Flash-to-Pass
This feature allows you to use the high-beam headlamps
to signal the driver in front of you that you want to pass.
Pull and hold the turn signal/multifunction lever toward
you to use this feature. When this is done the following
will occur:
If the headlamps are off, in low-beam or in Daytime
Running Lamps (DRL) mode, the high-beam
headlamps will turn on. They will stay on as long
as the lever is held there. Release the lever to
turn them off.
If the headlamps are in high-beam mode, they will
switch to low beam. To return to high-beam, push
the lever forward.
3-13

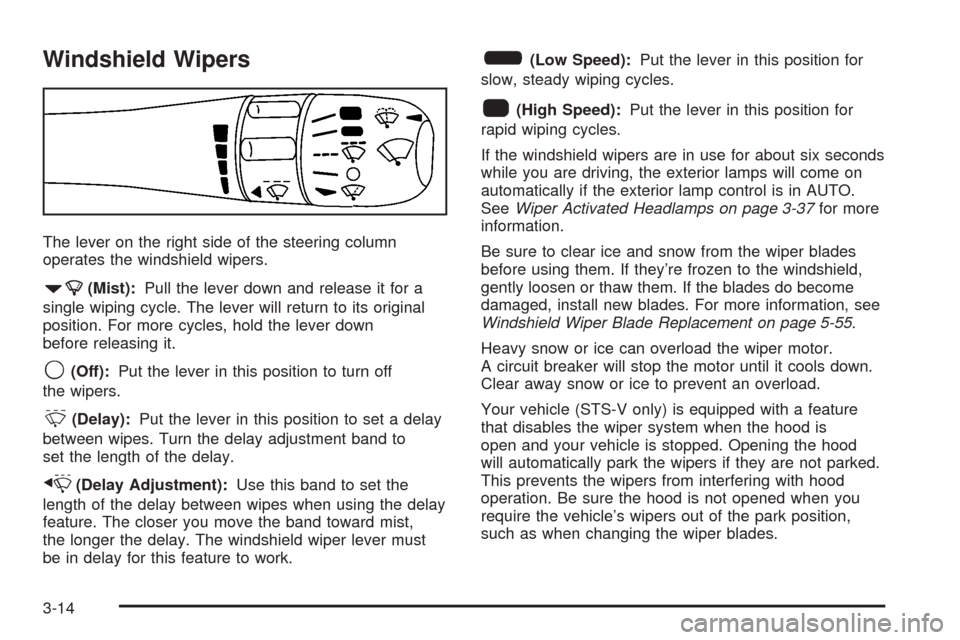

Windshield Wipers
The lever on the right side of the steering column
operates the windshield wipers.
7(Mist):Pull the lever down and release it for a
single wiping cycle. The lever will return to its original
position. For more cycles, hold the lever down
before releasing it.
9(Off):Put the lever in this position to turn off
the wipers.
&(Delay):Put the lever in this position to set a delay
between wipes. Turn the delay adjustment band to
set the length of the delay.
x(Delay Adjustment):Use this band to set the
length of the delay between wipes when using the delay
feature. The closer you move the band toward mist,
the longer the delay. The windshield wiper lever must
be in delay for this feature to work.
6(Low Speed):Put the lever in this position for
slow, steady wiping cycles.
1(High Speed):Put the lever in this position for
rapid wiping cycles.
If the windshield wipers are in use for about six seconds
while you are driving, the exterior lamps will come on
automatically if the exterior lamp control is in AUTO.
SeeWiper Activated Headlamps on page 3-37for more
information.
Be sure to clear ice and snow from the wiper blades
before using them. If they’re frozen to the windshield,
gently loosen or thaw them. If the blades do become
damaged, install new blades. For more information, see
Windshield Wiper Blade Replacement on page 5-55.
Heavy snow or ice can overload the wiper motor.
A circuit breaker will stop the motor until it cools down.
Clear away snow or ice to prevent an overload.
Your vehicle (STS-V only) is equipped with a feature
that disables the wiper system when the hood is
open and your vehicle is stopped. Opening the hood
will automatically park the wipers if they are not parked.
This prevents the wipers from interfering with hood
operation. Be sure the hood is not opened when you
require the vehicle’s wipers out of the park position,
such as when changing the wiper blades.
3-14

Rainsense™ II Wipers
If your vehicle has this feature, the moisture sensor is
mounted on the interior side of the windshield behind
the rearview mirror. It is used to automatically operate
the wipers by monitoring the amount of moisture
build-up on the windshield. Wipes occur as needed to
clear the windshield depending on driving conditions
and the sensitivity setting. In light rain or snow,
fewer wipes will occur. In heavy rain or snow, wipes
will occur more frequently. The Rainsense™ wipers
operate in a delay mode as well as a continuous low
or high speed as needed. If the system is left on for long
periods of time, occasional wipes may occur without
any moisture on the windshield. This is normal and
indicates that the Rainsense™ system is activated.
To activate the Rainsense™ system, turn the wiper band
to delay mode and select one of the four sensitivity
levels indicated on the wiper stalk. The position closest
to off is the lowest sensitivity setting, level one. This
allows more rain or snow to collect on the windshield
between wipes. Turning the wiper band away from
you to higher sensitivity levels increases the sensitivity
of the system and frequency of wipes. The highest
sensitivity setting, level four, is closest to low.A single wipe will occur each time you turn the wiper
stalk to a higher sensitivity level to indicate that the
sensitivity level has been increased.
Notice:Going through an automatic car wash with
the wipers on can damage them. Turn the wipers
off when going through an automatic car wash.
The mist and wash cycles operate as normal and
are not affected by the Rainsense™ function. The
Rainsense™ system can be overridden at any time by
manually turning the wiper band to low or high speed.
When Rainsense™ is active, the headlamps will turn
on automatically. The headlamps will turn off again
once the wipers turn off if it is light enough outside.
If it is dark, they will remain on. SeeWiper Activated
Headlamps on page 3-37.
Notice:Do not place stickers or other items on
the exterior glass surface directly in front of
the moisture sensor. Doing this could cause the
moisture sensor to malfunction.
3-15

Windshield Washer
K(Washer Fluid):The lever on the right side of the
steering column also controls the windshield washer.
There is a button at the end of the lever. To spray
washer uid on the windshield, press the button and
hold it. The washer will spray until you release the
button. The wipers will continue to clear the window
for about six seconds after the button is released and
then stop or return to your preset speed.
{CAUTION:
In freezing weather, do not use your washer
until the windshield is warmed. Otherwise the
washer uid can form ice on the windshield,
blocking your vision.
If the uid in the windshield washer uid reservoir is
low, the message CHECK WASHER FLUID will appear
on the Driver Information Center (DIC) display. It will
take 60 seconds after the bottle is relled for this
message to turn off. For information on the correct
washer uid mixture to use, seeWindshield Washer
Fluid on page 5-40andRecommended Fluids and
Lubricants on page 6-13.
Headlamp Washer
Your vehicle may have headlamp washers. The headlamp
washers clear debris from the headlamp lenses.
The headlamp washers are located to the inside of
the headlamps.
To wash the headlamps, press the washer button
located at the end of the windshield wiper lever.
Both the headlamps and the windshield will be washed.
After the rst wash, the headlamps will be washed
after the fth press of the windshield washer button.
3-16

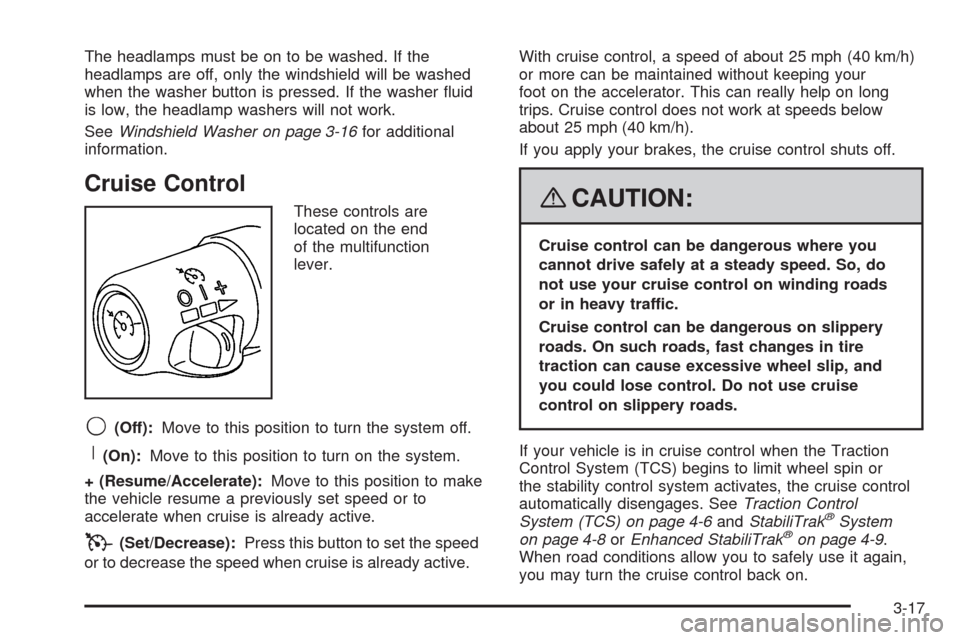

The headlamps must be on to be washed. If the
headlamps are off, only the windshield will be washed
when the washer button is pressed. If the washer uid
is low, the headlamp washers will not work.
SeeWindshield Washer on page 3-16for additional
information.
Cruise Control
These controls are
located on the end
of the multifunction
lever.
9(Off):Move to this position to turn the system off.
R(On):Move to this position to turn on the system.
+ (Resume/Accelerate):Move to this position to make
the vehicle resume a previously set speed or to
accelerate when cruise is already active.
T(Set/Decrease):Press this button to set the speed
or to decrease the speed when cruise is already active.With cruise control, a speed of about 25 mph (40 km/h)
or more can be maintained without keeping your
foot on the accelerator. This can really help on long
trips. Cruise control does not work at speeds below
about 25 mph (40 km/h).
If you apply your brakes, the cruise control shuts off.
{CAUTION:
Cruise control can be dangerous where you
cannot drive safely at a steady speed. So, do
not use your cruise control on winding roads
or in heavy traffic.
Cruise control can be dangerous on slippery
roads. On such roads, fast changes in tire
traction can cause excessive wheel slip, and
you could lose control. Do not use cruise
control on slippery roads.
If your vehicle is in cruise control when the Traction
Control System (TCS) begins to limit wheel spin or
the stability control system activates, the cruise control
automatically disengages. SeeTraction Control
System (TCS) on page 4-6andStabiliTrak
®System
on page 4-8orEnhanced StabiliTrak®on page 4-9.
When road conditions allow you to safely use it again,
you may turn the cruise control back on.
3-17

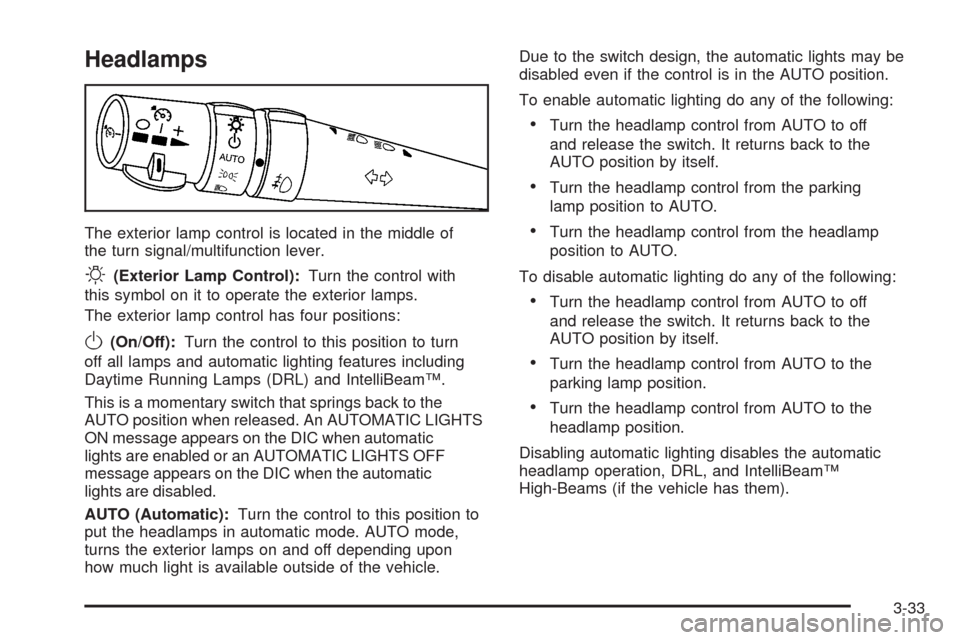

Headlamps
The exterior lamp control is located in the middle of
the turn signal/multifunction lever.
O(Exterior Lamp Control):Turn the control with
this symbol on it to operate the exterior lamps.
The exterior lamp control has four positions:
O(On/Off):Turn the control to this position to turn
off all lamps and automatic lighting features including
Daytime Running Lamps (DRL) and IntelliBeam™.
This is a momentary switch that springs back to the
AUTO position when released. An AUTOMATIC LIGHTS
ON message appears on the DIC when automatic
lights are enabled or an AUTOMATIC LIGHTS OFF
message appears on the DIC when the automatic
lights are disabled.
AUTO (Automatic):Turn the control to this position to
put the headlamps in automatic mode. AUTO mode,
turns the exterior lamps on and off depending upon
how much light is available outside of the vehicle.Due to the switch design, the automatic lights may be
disabled even if the control is in the AUTO position.
To enable automatic lighting do any of the following:
Turn the headlamp control from AUTO to off
and release the switch. It returns back to the
AUTO position by itself.
Turn the headlamp control from the parking
lamp position to AUTO.
Turn the headlamp control from the headlamp
position to AUTO.
To disable automatic lighting do any of the following:
Turn the headlamp control from AUTO to off
and release the switch. It returns back to the
AUTO position by itself.
Turn the headlamp control from AUTO to the
parking lamp position.
Turn the headlamp control from AUTO to the
headlamp position.
Disabling automatic lighting disables the automatic
headlamp operation, DRL, and IntelliBeam™
High-Beams (if the vehicle has them).
3-33

;(Parking Lamps):Turn the control to this position
to turn on the parking lamps together with the following:
Sidemarker Lamps
Taillamps
License Plate Lamps
Instrument Panel Lights
5(Headlamps):Turn the control to this position to
turn on the headlamps, together with the previously
listed lamps and lights.
IntelliBeam™ Intelligent High-Beam
Headlamp Control System
If your vehicle has this feature, be sure to read this
entire section before using it.
IntelliBeam™ is an enhancement to the vehicle’s
headlamp system. Using a digital light sensor located
on the back of the rearview mirror, this system turns
the high-beam headlamps on and off according to
surrounding traffic conditions.
The IntelliBeam™ system turns the high-beam
headlamps on when it is dark enough, there is no other
traffic present, and the IntelliBeam™ system is enabled.
Turning On and Enabling IntelliBeam™
AUTO3(IntelliBeam™ On/Off):Press and release
the IntelliBeam™ button on the inside rear view mirror.
The IntelliBeam™ indicator on the mirror turns on.
Once the system has been turned on, it remains on each
time the vehicle is started. Additionally, the IntelliBeam™
system must be enabled.
To enable the IntelliBeam™ System, turn the exterior
lamp control to AUTO, with the turn signal/multifunction
lever in its neutral position. The High-Beam On
Light appears on the instrument panel cluster when
the high-beams are on. SeeHighbeam On Light
on page 3-72. Your vehicle has variable intensity
high-beams. The high-beam indicator on the instrument
panel cluster comes on as soon as the high-beams
start to come on, and remains on until the high-beams
have completely turned off. All vehicles that have
IntelliBeam™, however, quickly turn off the high-beams
if the system detects the sudden presence of vehicle
lights ahead.
Driving with IntelliBeam™
IntelliBeam™ only activates the high-beams when
driving over 20 mph (32 km/h).
3-34

The high-beam headlamps remain on, under the
control of IntelliBeam™, until any of the following
situations occur:
The system detects an approaching vehicle’s
headlamps.
The system detects a preceding vehicle’s taillamps.
The outside light is bright enough that high-beam
headlamps are not required.
The high-beam headlamps are manually
turned on or you use the ash-to-pass feature.
SeeHeadlamp High/Low-Beam Changer on
page 3-9andFlash-to-Pass on page 3-13.
When either of these conditions occur, the
IntelliBeam™ feature is temporarily disabled until
the high-beam stalk is returned to the neutral
position. If either of these conditions occur and
IntelliBeam™ already has the high-beam headlamps
on, the IntelliBeam™ feature is disabled and the
IntelliBeam™ light in the mirror turns off.
The exterior lamp control is turned to any setting
except AUTO.
When this occurs, IntelliBeam™ is disabled until
the control is turned back to the AUTO position
and the AUTOMATIC LIGHTS ON message
displays on the DIC.
The IntelliBeam™ system is turned off at the inside
rearview mirror.
The vehicle’s speed drops below 15 mph (24 km/h).
IntelliBeam™ may not turn off the high-beams if the
system cannot detect other vehicle’s lamps because
of any of the following:
The others vehicle’s lamp(s) are missing, damaged,
obstructed from view, or otherwise undetected.
The other vehicle’s lamp(s) are covered with dirt,
snow and/or road spray.
The other vehicle’s lamp(s) cannot be detected due
to dense exhaust, smoke, fog, snow, road spray,
mist, or other airborne obstructions.
Your vehicle’s windshield is dirty, cracked,
or obstructed by something that blocks the view
of the IntelliBeam™ light sensor.
Your vehicle’s windshield is covered with ice,
dirt, haze, or other obstructions.
Your vehicle is loaded such that the front end of
the vehicle points upward, causing the IntelliBeam™
sensor to aim high and not detect headlamps
and taillamps.
You are driving on winding or hilly roads.
You might need to manually disable or cancel the
high-beam headlamps by turning the low-beam
headlamps on, if any of the above conditions exist.
3-35

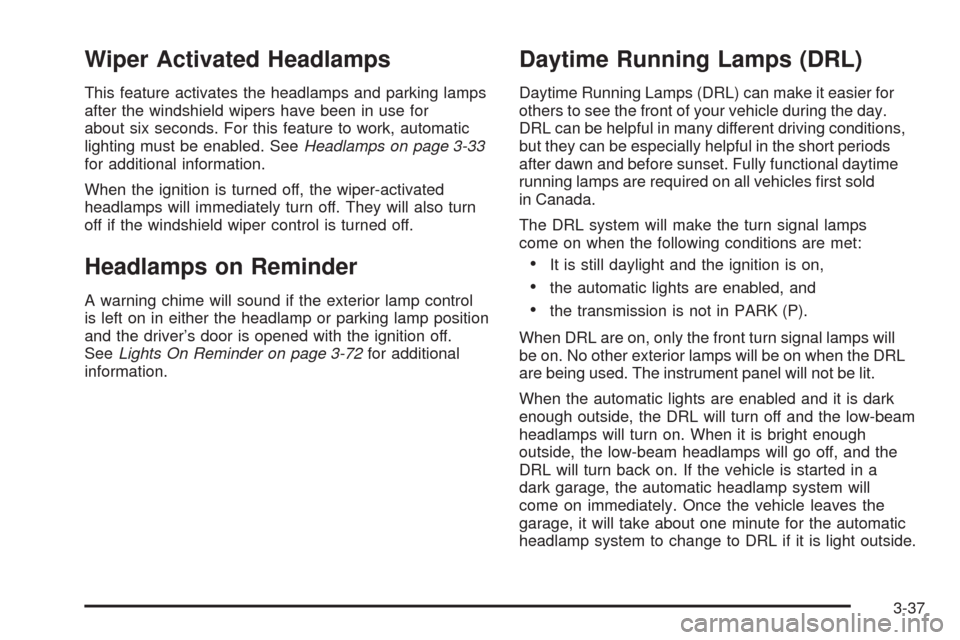

Wiper Activated Headlamps
This feature activates the headlamps and parking lamps
after the windshield wipers have been in use for
about six seconds. For this feature to work, automatic
lighting must be enabled. SeeHeadlamps on page 3-33
for additional information.
When the ignition is turned off, the wiper-activated
headlamps will immediately turn off. They will also turn
off if the windshield wiper control is turned off.
Headlamps on Reminder
A warning chime will sound if the exterior lamp control
is left on in either the headlamp or parking lamp position
and the driver’s door is opened with the ignition off.
SeeLights On Reminder on page 3-72for additional
information.
Daytime Running Lamps (DRL)
Daytime Running Lamps (DRL) can make it easier for
others to see the front of your vehicle during the day.
DRL can be helpful in many different driving conditions,
but they can be especially helpful in the short periods
after dawn and before sunset. Fully functional daytime
running lamps are required on all vehicles rst sold
in Canada.
The DRL system will make the turn signal lamps
come on when the following conditions are met:
It is still daylight and the ignition is on,
the automatic lights are enabled, and
the transmission is not in PARK (P).
When DRL are on, only the front turn signal lamps will
be on. No other exterior lamps will be on when the DRL
are being used. The instrument panel will not be lit.
When the automatic lights are enabled and it is dark
enough outside, the DRL will turn off and the low-beam
headlamps will turn on. When it is bright enough
outside, the low-beam headlamps will go off, and the
DRL will turn back on. If the vehicle is started in a
dark garage, the automatic headlamp system will
come on immediately. Once the vehicle leaves the
garage, it will take about one minute for the automatic
headlamp system to change to DRL if it is light outside.
3-37

During that delay, the instrument panel cluster may
not be as bright as usual. Make sure the instrument
panel brightness lever is in the full bright position.
SeeInstrument Panel Brightness on page 3-41.
To operate your vehicle with the DRL off, turn
the exterior lamp control off and then do one of
the following:
Turn the exterior lamp control to the parking
lamp position.
Turn the exterior lamp control to the headlamp
position.
Turn the exterior lamp control from AUTO to
off and back to AUTO.
An AUTOMATIC LIGHTS OFF message will appear
on the DIC, showing that automatic lighting has
been disabled. SeeDIC Warnings and Messages
on page 3-80.
The regular headlamp system should be turned
on when needed.
Light Sensor
The light sensor for the DRL is located on top of
the instrument panel. If the sensor is covered, it will
read dark, and the exterior lamps may come on
when they are not needed.
3-38
