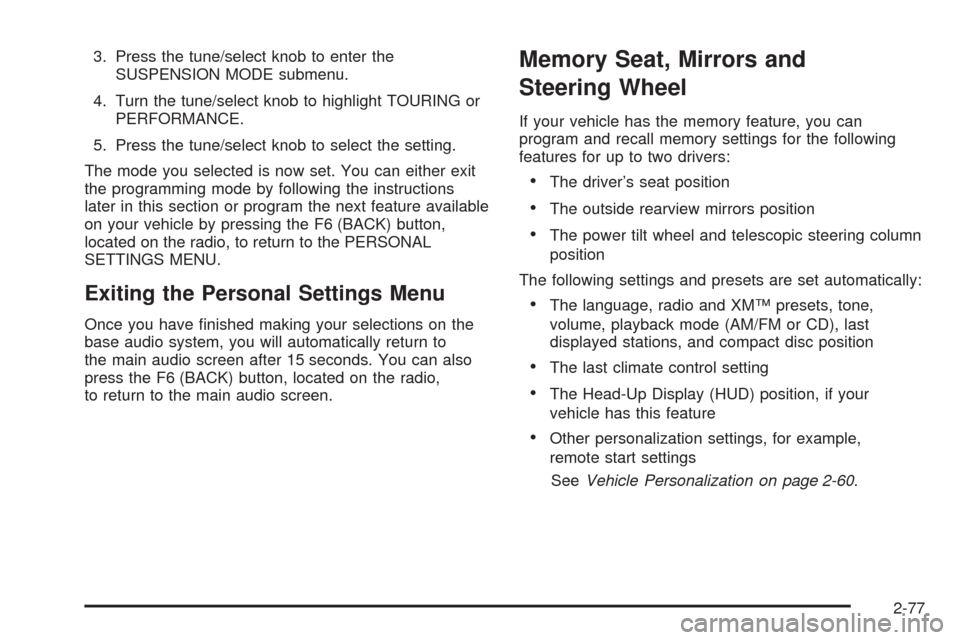

3. Press the tune/select knob to enter the
SUSPENSION MODE submenu.
4. Turn the tune/select knob to highlight TOURING or
PERFORMANCE.
5. Press the tune/select knob to select the setting.
The mode you selected is now set. You can either exit
the programming mode by following the instructions
later in this section or program the next feature available
on your vehicle by pressing the F6 (BACK) button,
located on the radio, to return to the PERSONAL
SETTINGS MENU.
Exiting the Personal Settings Menu
Once you have nished making your selections on the
base audio system, you will automatically return to
the main audio screen after 15 seconds. You can also
press the F6 (BACK) button, located on the radio,
to return to the main audio screen.
Memory Seat, Mirrors and
Steering Wheel
If your vehicle has the memory feature, you can
program and recall memory settings for the following
features for up to two drivers:
The driver’s seat position
The outside rearview mirrors position
The power tilt wheel and telescopic steering column
position
The following settings and presets are set automatically:
The language, radio and XM™ presets, tone,
volume, playback mode (AM/FM or CD), last
displayed stations, and compact disc position
The last climate control setting
The Head-Up Display (HUD) position, if your
vehicle has this feature
Other personalization settings, for example,
remote start settings
SeeVehicle Personalization on page 2-60.
2-77

Driver Selection Submenu Items
DRIVER 1/DRIVER 2
The numbers on the back of each keyless access
transmitter correspond to DRIVER 1 and DRIVER 2.
If you would like to recall or store driver settings for
the driver that does not correspond to the number on
the back of the keyless access transmitter that you
are using:
1. Enter the memory programming mode for your
driver settings by following the instructions listed
previously under “Entering the Driver Selection
Submenu.”
2. From the DRIVER SELECTION submenu, turn the
tune/select knob to highlight the driver number that
you want, either DRIVER 1 or DRIVER 2.
3. Set your choice by pressing in the tune/select knob.
If you would like to recall or store driver settings for
the selected driver, see “RECALL DRIVER SETTINGS”
or “STORE DRIVER SETTINGS” later in this section.
If you would like to recall or store exit settings for
the selected driver, see “RECALL EXIT SETTINGS” or
“STORE EXIT SETTINGS” later in this section.
RECALL DRIVER SETTINGS
To recall driver settings:
1. Enter the memory programming mode for your
driver settings by following the instructions listed
previously under “Entering the Driver Selection
Submenu.”
2. From the DRIVER SELECTION submenu, turn the
tune/select knob to scroll to RECALL DRIVER
SETTINGS and press in the knob.
If the vehicle is in PARK (P), one beep will sound
and your previously saved driving position will
then be recalled.
If the vehicle is not in PARK (P), three beeps will
sound and your previously saved driving position will
not be recalled.
A memory recall can be stopped by pressing any
memory seat or mirror position button.
If you would like the stored driving positions to be
recalled when unlocking your vehicle with the keyless
access transmitter or when starting your vehicle,
see “REMOTE RECALL MEMORY” or “START
BUTTON RECALL” underVehicle Personalization
on page 2-60.
2-79

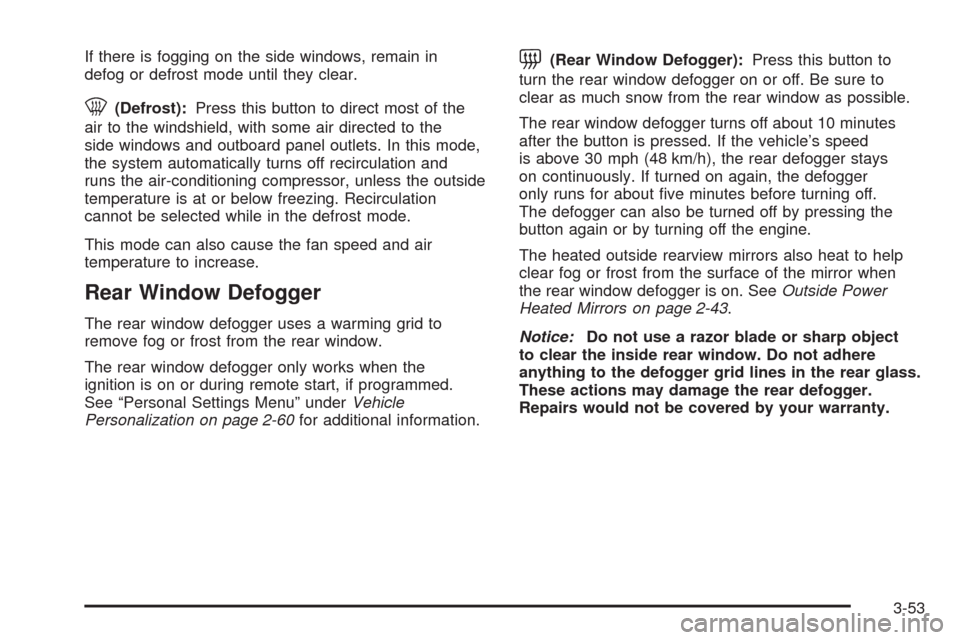

If there is fogging on the side windows, remain in
defog or defrost mode until they clear.
0(Defrost):Press this button to direct most of the
air to the windshield, with some air directed to the
side windows and outboard panel outlets. In this mode,
the system automatically turns off recirculation and
runs the air-conditioning compressor, unless the outside
temperature is at or below freezing. Recirculation
cannot be selected while in the defrost mode.
This mode can also cause the fan speed and air
temperature to increase.
Rear Window Defogger
The rear window defogger uses a warming grid to
remove fog or frost from the rear window.
The rear window defogger only works when the
ignition is on or during remote start, if programmed.
See “Personal Settings Menu” underVehicle
Personalization on page 2-60for additional information.
=(Rear Window Defogger):Press this button to
turn the rear window defogger on or off. Be sure to
clear as much snow from the rear window as possible.
The rear window defogger turns off about 10 minutes
after the button is pressed. If the vehicle’s speed
is above 30 mph (48 km/h), the rear defogger stays
on continuously. If turned on again, the defogger
only runs for about ve minutes before turning off.
The defogger can also be turned off by pressing the
button again or by turning off the engine.
The heated outside rearview mirrors also heat to help
clear fog or frost from the surface of the mirror when
the rear window defogger is on. SeeOutside Power
Heated Mirrors on page 2-43.
Notice:Do not use a razor blade or sharp object
to clear the inside rear window. Do not adhere
anything to the defogger grid lines in the rear glass.
These actions may damage the rear defogger.
Repairs would not be covered by your warranty.
3-53

{CAUTION:
If the airbag readiness light stays on after you
start your vehicle, it means the airbag system
may not be working properly. The airbags in
your vehicle may not inate in a crash, or they
could even inate without a crash. To help avoid
injury to yourself or others, have your vehicle
serviced right away if the airbag readiness light
stays on after you start your vehicle.
The airbag readiness light should ash for a
few seconds when you start the engine. If the light
does not come on then, have it xed immediately.
If there is a problem with the airbag system,
an airbag Driver Information Center (DIC) message
may also come on. SeeDIC Warnings and Messages
on page 3-80for more information.
Passenger Airbag Status Indicator
Your vehicle has the passenger sensing system.
Your overhead console has a passenger airbag
status indicator.
When you start the vehicle, the passenger airbag
status indicator will light ON and OFF, or the symbol
for on and off, for several seconds as a system check.
If you use remote start to start your vehicle from a
distance, if your vehicle has this feature, you may not
see the system check.United States
Canada
3-61

NO FOBS DETECTED
This message displays if the vehicle does not detect
the presence of a keyless access transmitter when you
have attempted to start the vehicle or a vehicle door
has just closed. The following conditions may cause
this message to appear:
Driver-added equipment plugged into the accessory
power outlet on the center console is causing
interference. Examples of these devices are cell
phones and cell phone chargers, two-way radios,
power inverters, or similar items. Try moving
the keyless access transmitter away from these
devices when starting the vehicle. In addition,
PDA devices and remote garage and gate openers
may also generate Electromagnetic Interference
(EMI) that may interfere with the keyless access
transmitter. Do not carry the keyless access
transmitter in the same pocket or bag as these
devices.
The vehicle is experiencing Electromagnetic
Interference (EMI). Some locations, such as
airports, automatic toll booths, and some gas
stations, have EMI elds which may interfere
with the keyless access transmitter.If moving the transmitter
to different locations
within the vehicle does not
help, place the transmitter
in the center console
transmitter pocket with
the buttons facing
forward and then press
the START button.
The vehicle’s battery voltage is low. The battery
voltage must be above 10 volts for the keyless
access transmitter to be detected properly.
NO FOB OFF OR RUN?
This message displays when the keyless access
transmitter is not detected inside the vehicle while
you are trying to turn the ignition off. Your vehicle may
be near a strong radio antenna signal causing the
keyless access system to be jammed. The vehicle
remains in ACCESSORY until OFF or START has
been pressed or 10 minutes has expired. If you turn the
ignition off and you cannot nd the keyless access
transmitter, you will not be able to restart the vehicle.
3-88

SERVICE TIRE MONITOR
This message displays if a part on the Tire Pressure
Monitor System (TPMS) is not working properly. The tire
pressure light also ashes and then remains on during
the same ignition cycle. SeeTire Pressure Light on
page 3-67. Several conditions may cause this message
to appear. SeeTire Pressure Monitor Operation on
page 5-70for more information. If the warning comes on
and stays on, there may be a problem with the TPMS.
See your dealer/retailer.
SERVICE THEFT SYSTEM
This message displays when there is a problem with
the hood open and closed switches. The switches may
need to be replaced. When this message is displayed,
the theft-deterrent system will still be protecting the
interior of the vehicle, however, the hood area will not
be protected at this time. Also, the remote start function
will not work when this message appears. See your
dealer/retailer for service.
SERVICE TRANSMISSION
This message displays when there is a problem with
the transmission. Have your vehicle serviced by
your dealer/retailer.
SERVICE VEHICLE SOON
This message displays when a non-emissions related
malfunction occurs. Have your vehicle serviced by your
dealer/retailer as soon as possible.
SIDE BLIND ZONE ALERT
SYSTEM OFF
If your vehicle has the Side Blind Zone Alert (SBZA)
system, this message displays when the SBZA system
has been turned off. See the Index in the Navigation
manual andDIC Operation and Displays on page 3-74
for more information.
SPEED LIMITED TO XXX
This message displays when the vehicle speed is
limited to XXX, mph in English mode and km/h in
Metric mode, because the vehicle detects a problem
in the steering, stability control, or suspension system.
Have your vehicle serviced by your dealer/retailer.
3-93

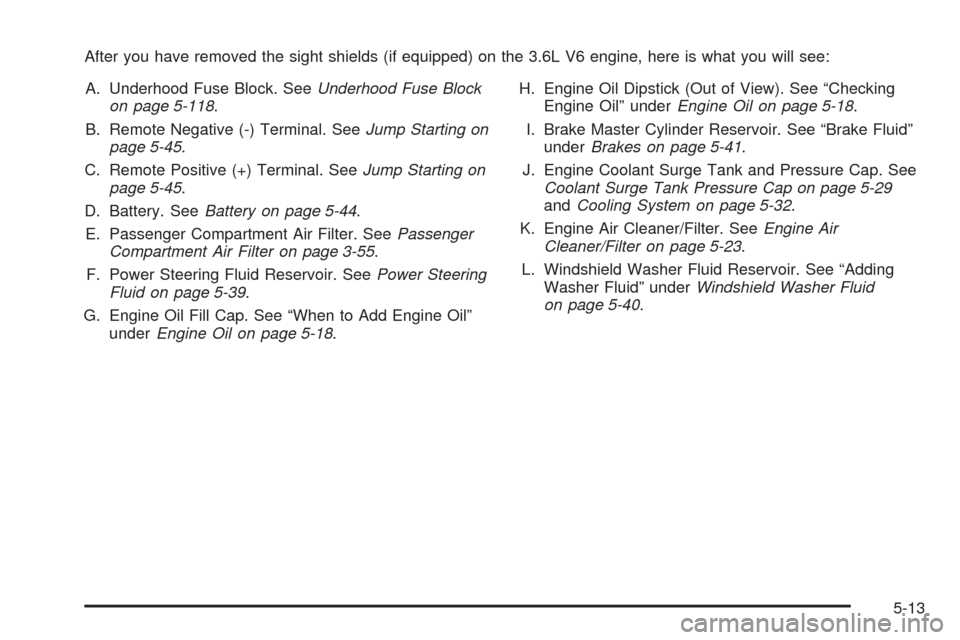

After you have removed the sight shields (if equipped) on the 3.6L V6 engine, here is what you will see:
A. Underhood Fuse Block. SeeUnderhood Fuse Block
on page 5-118.
B. Remote Negative (-) Terminal. SeeJump Starting on
page 5-45.
C. Remote Positive (+) Terminal. SeeJump Starting on
page 5-45.
D. Battery. SeeBattery on page 5-44.
E. Passenger Compartment Air Filter. SeePassenger
Compartment Air Filter on page 3-55.
F. Power Steering Fluid Reservoir. SeePower Steering
Fluid on page 5-39.
G. Engine Oil Fill Cap. See “When to Add Engine Oil”
underEngine Oil on page 5-18.H. Engine Oil Dipstick (Out of View). See “Checking
Engine Oil” underEngine Oil on page 5-18.
I. Brake Master Cylinder Reservoir. See “Brake Fluid”
underBrakes on page 5-41.
J. Engine Coolant Surge Tank and Pressure Cap. See
Coolant Surge Tank Pressure Cap on page 5-29
andCooling System on page 5-32.
K. Engine Air Cleaner/Filter. SeeEngine Air
Cleaner/Filter on page 5-23.
L. Windshield Washer Fluid Reservoir. See “Adding
Washer Fluid” underWindshield Washer Fluid
on page 5-40.
5-13

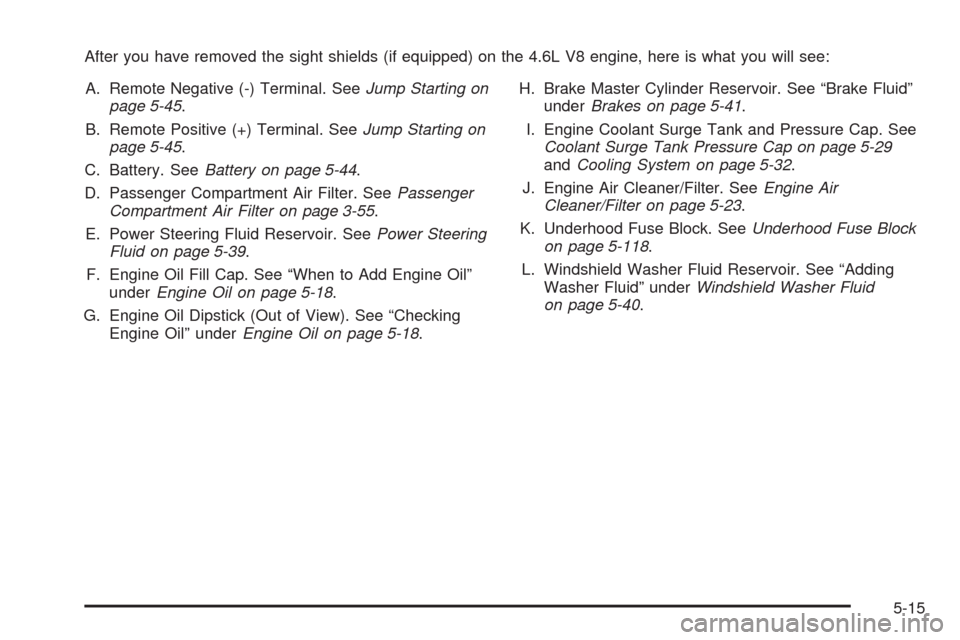

After you have removed the sight shields (if equipped) on the 4.6L V8 engine, here is what you will see:
A. Remote Negative (-) Terminal. SeeJump Starting on
page 5-45.
B. Remote Positive (+) Terminal. SeeJump Starting on
page 5-45.
C. Battery. SeeBattery on page 5-44.
D. Passenger Compartment Air Filter. SeePassenger
Compartment Air Filter on page 3-55.
E. Power Steering Fluid Reservoir. SeePower Steering
Fluid on page 5-39.
F. Engine Oil Fill Cap. See “When to Add Engine Oil”
underEngine Oil on page 5-18.
G. Engine Oil Dipstick (Out of View). See “Checking
Engine Oil” underEngine Oil on page 5-18.H. Brake Master Cylinder Reservoir. See “Brake Fluid”
underBrakes on page 5-41.
I. Engine Coolant Surge Tank and Pressure Cap. See
Coolant Surge Tank Pressure Cap on page 5-29
andCooling System on page 5-32.
J. Engine Air Cleaner/Filter. SeeEngine Air
Cleaner/Filter on page 5-23.
K. Underhood Fuse Block. SeeUnderhood Fuse Block
on page 5-118.
L. Windshield Washer Fluid Reservoir. See “Adding
Washer Fluid” underWindshield Washer Fluid
on page 5-40.
5-15

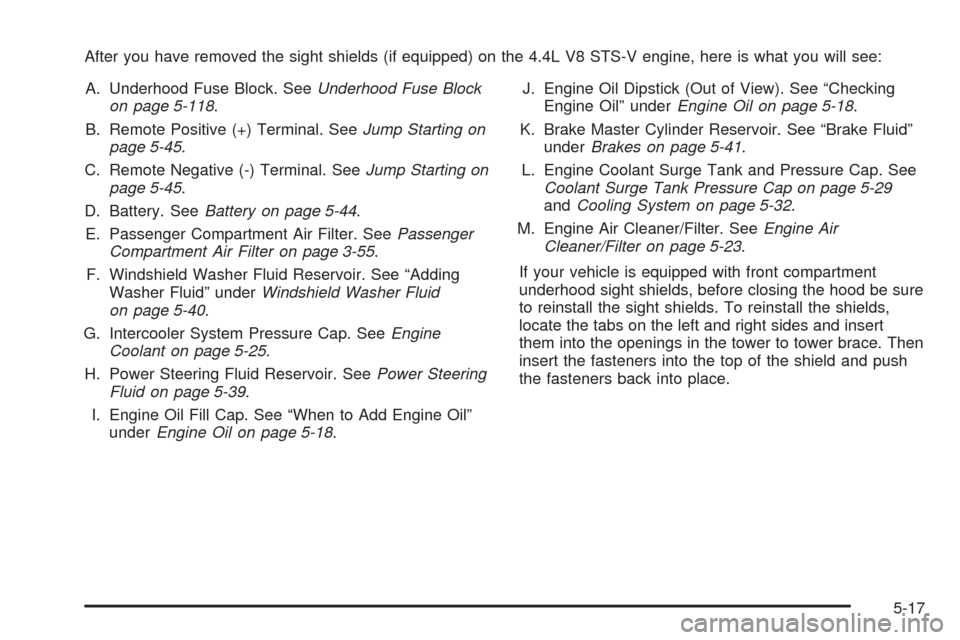

After you have removed the sight shields (if equipped) on the 4.4L V8 STS-V engine, here is what you will see:
A. Underhood Fuse Block. SeeUnderhood Fuse Block
on page 5-118.
B. Remote Positive (+) Terminal. SeeJump Starting on
page 5-45.
C. Remote Negative (-) Terminal. SeeJump Starting on
page 5-45.
D. Battery. SeeBattery on page 5-44.
E. Passenger Compartment Air Filter. SeePassenger
Compartment Air Filter on page 3-55.
F. Windshield Washer Fluid Reservoir. See “Adding
Washer Fluid” underWindshield Washer Fluid
on page 5-40.
G. Intercooler System Pressure Cap. SeeEngine
Coolant on page 5-25.
H. Power Steering Fluid Reservoir. SeePower Steering
Fluid on page 5-39.
I. Engine Oil Fill Cap. See “When to Add Engine Oil”
underEngine Oil on page 5-18.J. Engine Oil Dipstick (Out of View). See “Checking
Engine Oil” underEngine Oil on page 5-18.
K. Brake Master Cylinder Reservoir. See “Brake Fluid”
underBrakes on page 5-41.
L. Engine Coolant Surge Tank and Pressure Cap. See
Coolant Surge Tank Pressure Cap on page 5-29
andCooling System on page 5-32.
M. Engine Air Cleaner/Filter. SeeEngine Air
Cleaner/Filter on page 5-23.
If your vehicle is equipped with front compartment
underhood sight shields, before closing the hood be sure
to reinstall the sight shields. To reinstall the shields,
locate the tabs on the left and right sides and insert
them into the openings in the tower to tower brace. Then
insert the fasteners into the top of the shield and push
the fasteners back into place.
5-17

Notice:If you leave your radio or other accessories
on during the jump starting procedure, they could
be damaged. The repairs would not be covered
by your warranty. Always turn off your radio and
other accessories when jump starting your vehicle.
3. Turn off the ignition on both vehicles. Unplug
unnecessary accessories plugged into the cigarette
lighter or the accessory power outlets. Turn off
the radio and all lamps that are not needed. This
will avoid sparks and help save both batteries.
And it could save the radio!
4. Open the hoods and locate the positive (+) and
negative (−) terminal locations or the remote
positive (+) and remote negative (−) terminals of the
other vehicle. Then locate the remote positive (+)
location on your vehicle. SeeEngine Compartment
Overview on page 5-11for more information on
locations the terminals.Your vehicle has a remote negative (−) ground
location, as shown in the illustration. It is located
on the passenger side front shock tower. See
Engine Compartment Overview on page 5-11. You
should always use this remote ground location,
instead of the terminal on the battery.
5-46
