Radio Message
THEFTLOCK:This message displays when the
THEFTLOCK®system has been activated. Take
the vehicle to the dealer/retailer for service.
XM™ Satellite Radio Service
XM™ is a satellite radio service that is based in
the 48 contiguous United States and 10 Canadian
provinces. XM™ Satellite Radio has a wide variety
of programming and commercial-free music,
coast-to-coast, and in digital-quality sound. During
your trial or when you subscribe, you will get unlimited
access to XM™ Radio Online for when you are not
in your vehicle. A service fee is required to receive
the XM™ service. For more information, contact XM™
at www.xmradio.com or call 1-800-929-2100 in the
U.S. and www.xmradio.ca or call 1-877-438-9677
in Canada.
Radio Messages for XM™ Only
SeeXM Radio Messages on page 3-116later in
this section for further detail.
Using the Single CD Player
Insert a CD partway into the slot, label side up. The
player pulls it in. If the ignition and the radio are on,
the CD begins playing. A CD can be loaded with
the radio off, but it does not start playing until the
radio is on.
If the ignition or radio is turned off with a CD in the
player, it stays in the player. While the ignition or radio
is turned on, the CD starts to play where it stopped,
if it was the last selected audio source.
When the CD is inserted, CD displays. As each new
track starts to play, the track number displays.
The CD player can play the smaller 3 inch (8 cm)
single CDs with an adapter ring. Full-size CDs and
the smaller CDs are loaded in the same manner.
When a CD is inserted, the CD functions display
above the pushbuttons, in place of the preset stations
(if programmed).
F1
{(Reverse):Press and hold to reverse quickly
within a track. Release to play the passage. The elapsed
time of the track displays.
F2
|(Forward):Press and hold to advance quickly
within a track. Release to play the passage. The elapsed
time of the track displays.
3-107

F3 RDM (Random):Press to listen to the tracks in
random, rather than sequential, order. RANDOM
displays. Press again to turn off random play.
RANDOM disappears from the display.
F4 RPT (Repeat):Press to hear a track over again.
REPEAT displays. Press again to turn off repeat
play. REPEAT disappears from the display.
F6 DISP (Display):Press to display the time of the
track. Press again to remove the time of the track from
the display.
©¨(Seek):Press the left arrow to go to the previous
or press the right arrow button to go to the next track
on the CD.
©¨(Scan):Press the arrows to listen to each track
for 10 seconds. The CD goes to a track, plays for
10 seconds, then goes to the next track. Press the
arrows again to stop scanning.
SRCE (Source):Press to select a source, either radio or
CD. The CD must be loaded to select the source and to
play. CD displays if a CD is loaded. If a CD is not loaded,
the display does not change from the radio source.
Z(Eject):Press to stop a CD when it is playing
or to eject a CD when it is not playing. Eject can
be activated with the ignition and the radio off.
Using the Six-Disc CD Changer
M
(Load):Press to load CDs into the CD player.
This CD player holds up to six CDs.
To insert one CD, do the following:
1. The ignition and the radio can be on or off.
2. Press and release the load button.
Please Wait displays.
3. Load the CD, when INSERT displays, insert
a CD partway into the slot, label side up.
The player pulls the CD in.
When a CD is inserted, CD displays and the number of
the CD and the track number displays if the radio is on.
If the radio is on, the CD begins to play automatically.
To insert multiple CDs, do the following:
1. The ignition and the radio can be on or off.
2. Press and hold the load button for two seconds.
Please Wait displays and a beep sounds.
3. Load the CD, when INSERT displays, insert
a CD partway into the slot, label side up.
The player pulls the CD in.
Do not load a CD until INSERT displays. The CD
player takes up to six CDs. If you want to load less
than six CDs, load the desired amount. The CD
player times out when it does not receive any more
CDs and the last CD loaded begins to play.
3-108

Care of Your CDs
If playing a CD-R, the sound quality can be reduced
due to CD-R quality, the method of recording, the
quality of the music that has been recorded, and the
way the CD-R has been handled. Handle them carefully.
Store CD-R(s) in their original cases or other protective
cases and away from direct sunlight and dust. The
CD player scans the bottom surface of the disc. If the
surface of a CD is damaged, such as cracked, broken,
or scratched, the CD does not play properly or not
at all. Do not touch the bottom side of a CD while
handling it; this could damage the surface. Pick up CDs
by grasping the outer edges or the edge of the hole
and the outer edge.
If the surface of a CD is soiled, take a soft, lint free
cloth or dampen a clean, soft cloth in a mild, neutral
detergent solution mixed with water, and clean it.
Make sure the wiping process starts from the center
to the edge.
Care of Your CD Player
Do not add any label to a CD, it could get caught in the
CD player. If a CD is recorded on a personal computer
and a description label is needed, try labeling the top
of the recorded CD with a marking pen.The use of CD lens cleaners for CDs is not advised,
due to the risk of contaminating the lens of the CD optics
with lubricants internal to the CD player mechanism.
Notice:If a label is added to a CD, or more than one
CD is inserted into the slot at a time, or an attempt
is made to play scratched or damaged CDs, the
CD player could be damaged. While using the CD
player, use only CDs in good condition without
any label, load one CD at a time, and keep the CD
player and the loading slot free of foreign materials,
liquids, and debris.
If an error displays, see “CD Messages” later in this
section.
If the radio is on, the last CD loaded begins to play
automatically.
F1 DISC
n(Down):Press to go to the previous CD.
F2 DISC
m(Up):Press to go to the next CD.
F3 CD REV
{(Reverse):Press to go to the previous
track. Press and hold to reverse quickly within the track.
Release to play the passage. The elapsed time of the
track displays.
F4 CD FWD
|(Forward):Press to go to the next
track. Press and hold to advance quickly within the track.
Release to play the passage. The elapsed time of the
track displays.
3-109

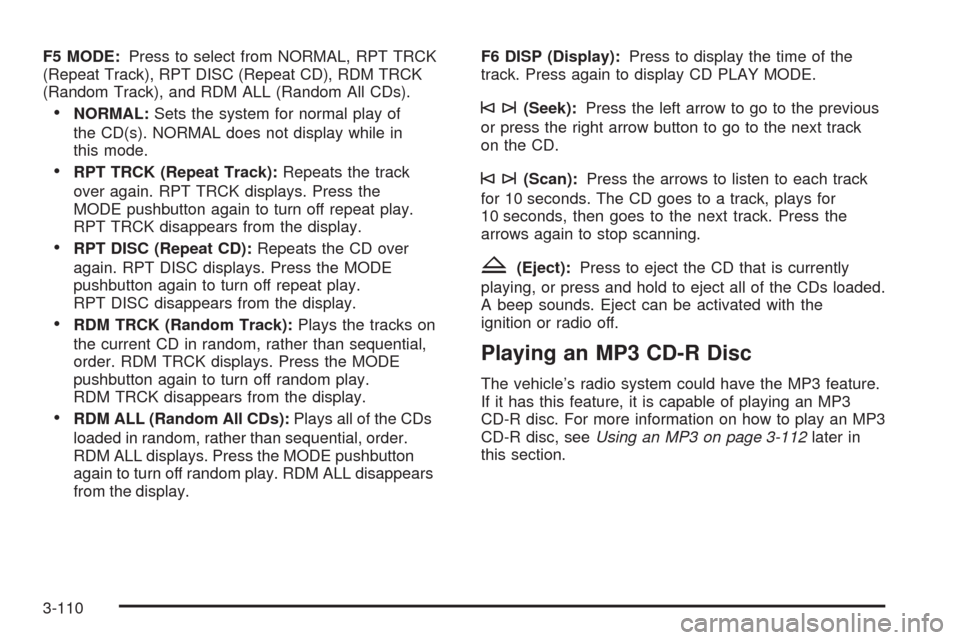

F5 MODE:Press to select from NORMAL, RPT TRCK
(Repeat Track), RPT DISC (Repeat CD), RDM TRCK
(Random Track), and RDM ALL (Random All CDs).
NORMAL:Sets the system for normal play of
the CD(s). NORMAL does not display while in
this mode.
RPT TRCK (Repeat Track):Repeats the track
over again. RPT TRCK displays. Press the
MODE pushbutton again to turn off repeat play.
RPT TRCK disappears from the display.
RPT DISC (Repeat CD):Repeats the CD over
again. RPT DISC displays. Press the MODE
pushbutton again to turn off repeat play.
RPT DISC disappears from the display.
RDM TRCK (Random Track):Plays the tracks on
the current CD in random, rather than sequential,
order. RDM TRCK displays. Press the MODE
pushbutton again to turn off random play.
RDM TRCK disappears from the display.
RDM ALL (Random All CDs):Plays all of the CDs
loaded in random, rather than sequential, order.
RDM ALL displays. Press the MODE pushbutton
again to turn off random play. RDM ALL disappears
from the display.F6 DISP (Display):Press to display the time of the
track. Press again to display CD PLAY MODE.
©¨(Seek):Press the left arrow to go to the previous
or press the right arrow button to go to the next track
on the CD.
©¨(Scan):Press the arrows to listen to each track
for 10 seconds. The CD goes to a track, plays for
10 seconds, then goes to the next track. Press the
arrows again to stop scanning.
Z(Eject):Press to eject the CD that is currently
playing, or press and hold to eject all of the CDs loaded.
A beep sounds. Eject can be activated with the
ignition or radio off.
Playing an MP3 CD-R Disc
The vehicle’s radio system could have the MP3 feature.
If it has this feature, it is capable of playing an MP3
CD-R disc. For more information on how to play an MP3
CD-R disc, seeUsing an MP3 on page 3-112later in
this section.
3-110

CD Messages
If the CD comes out, it could be for one of the following
reasons:
If it is very hot. When the temperature returns to
normal, the CD should play.
If you are driving on a very rough road. When the
road becomes smoother, the CD should play.
The CD is dirty, scratched, wet, or upside down.
The air is very humid. If so, wait about an hour and
try again.
The format of the CD might not be compatible. See
Using an MP3 on page 3-112later in this section.
There could have been a problem while burning
the CD.
The label could be caught in the CD player.
If the CD is not playing correctly, for any other reason,
try a known good CD.
If any error occurs repeatedly or if an error cannot be
corrected, contact your dealer/retailer. If the radio
displays an error message, write it down and provide it
to your dealer/retailer when reporting the problem.
Congurable Radio Display Keys
The four keys, located on each side of the radio display,
can be congured to make it easier to adjust the radio
features and other non-radio related features can also
be customized.
To program the congurable radio display keys,
perform the following steps:
1. Press the
wknob to enter the main menu.
2. Turn this knob until SETUP displays.
3. Press this knob to enter into SETUP.
4. Turn the same knob until CONFIGURE
DISPLAY KEYS displays.
5. Press this knob to enter into CONFIGURE
DISPLAY KEYS.
6. Turn this knob to select which of the four
congurable keys you would like to change.
The currently assigned feature displays.
7. Press the same knob to select the congurable
key to change.
8. Turn this knob to nd the feature that will be
stored to the key.
9. Press this knob when you have found the feature
to be stored. The display updates, by showing
the symbol of the feature selected next to the
congurable key.
10. Repeat the previous steps for each congurable key.
3-111

Once a feature is programmed to a key, the feature
does not display when programming the remaining
congurable keys. The congurable keys can be
changed at any time.
Using an MP3
MP3 CD-R Disc
MP3 Format
If you burn your own MP3 disc on a personal computer:
Make sure the MP3 les are recorded on a
CD-R disc.
Do not mix standard audio and MP3 les on one disc.
Make sure playlists have a .mp3 or .wpl extension,
other le extensions might not work.
Files can be recorded with a variety of xed or
variable bit rates. Song title, artist name, and album
are available for display by the radio when recorded
using ID3 tags version 1 and 2.
Create a folder structure that makes it easy to nd
songs while driving. Organize songs by albums using
one folder for each album. Each folder or album
should contain 18 songs or less.
Make sure to nalize the disc when burning an MP3
disc, using multiple sessions. It is usually better to
burn the disc all at once.
The player is able to read and play a maximum of
50 folders, 50 playlists, 10 sessions, and 255 les.
Long le names, folder names, or playlist names
might use more disc memory space than necessary.
To conserve space on the disc, minimize the length
of the le, folder, or playlist names. You can also play
an MP3 CD that was recorded using no le folders.
The system can support up to 11 folders in depth,
though, keep the depth of the folders to a minimum
in order to keep down the complexity and confusion
in trying to locate a particular folder during playback.
If a CD contains more than the maximum of 50 folders,
50 playlists, 10 sessions, and 255 les the player
lets you access and navigate up to the maximum,
but all items over the maximum are ignored.
3-112

Root Directory
The root directory is treated as a folder. If the root
directory has compressed audio les, the directory
is displayed as F1 ROOT. All les contained directly
under the root directory are accessed prior to any root
directory folders. However, playlists (Px) are always
accessed before root folders or les.
Empty Directory or Folder
If a root directory or a folder exists somewhere in the le
structure that contains only folders/subfolders and no
compressed les directly beneath them, the player
advances to the next folder in the le structure that
contains compressed audio les. The empty folder is
not displayed.
No Folder
When the CD contains only compressed les, the les
are located under the root folder. The next and previous
folder functions do not function on a CD that was
recorded without folders or playlists. When displaying
the name of the folder the radio displays ROOT.
When the CD contains only playlists and compressed
audio les, but no folders, all les are located under the
root folder. The folder down and the folder up buttons
search playlists (Px) rst and then go to the root folder.
When the radio displays the name of the folder the
radio displays ROOT.
Order of Play
Tracks are played in the following order:
Play begins from the rst track in the rst playlist
and continues sequentially through all tracks in
each playlist. When the last track of the last playlist
has played, play continues from the rst track of
the rst playlist.
If the CD does not contain any playlists, then play
begins from the rst track under the root directory.
When all tracks from the root directory have
played, play continues from les according to
their numerical listing. After playing the last track
from the last folder, play begins again at the
rst track of the rst folder or root directory.
When play enters a new folder, the display does not
automatically show the new folder name. The new track
name displays.
File System and Naming
The song name that is displayed is the song name that is
contained in the ID3 tag. If the song name is not present
in the ID3 tag, then the radio displays the le name
without the extension (such as .mp3) as the track name.
Track names longer than 32 characters or four pages
are shortened. Parts of words on the last page of
text and the extension of the lename does not display.
3-113

Preprogrammed Playlists
Preprogrammed playlists that were created using
WinAmp™, MusicMatch™, or Real Jukebox™ software
can be accessed, however, they cannot be edited
using the radio. These playlists are treated as special
folders containing compressed audio song les.
Playing an MP3
Insert a CD partway into the slot, label side up. The
player pulls it in, and LOADING CD displays. The CD
should begin playing and the CD symbol displays.
If the ignition and the radio are on, the CD begins
playing. A CD can be loaded with the radio off,
but it does not start playing until the radio is on.
F1
r(Previous Folder):Press this button to go
to the rst track in the previous folder.
Press and hold this button to reverse quickly within a
track. Release this button to play the passage. REV
and the elapsed time of the track displays.
Pressing this button while in folder random mode goes
to the previous folder and plays the tracks in that
folder in random order.F2
[(Next Folder):Press this button to go to the
rst track in the next folder.
Press and hold this button to advance quickly within a
track. Release this button to play the passage. FWD and
the elapsed time of the track displays.
Pressing this button while in folder random mode takes
you to the next folder and plays the tracks in that
folder in random order.
F3 RDM (Random):To play the tracks on the CD in
random, rather than sequential order, press and release
this pushbutton until RDM TRCK displays. Once all
of the tracks in the current folder or playlist have played,
the system moves on to the next folder or playlist and
plays all of the tracks in random order.
To play the tracks in the current folder in random, rather
than sequential order, press and release this button
until RDM FLDR displays. This feature does not work
with playlists.
While in random, pressing and releasing either
©¨seek arrow goes to the previous or to the
next random track.
3-114

Press and release this pushbutton until NORMAL
displays to turn off random play.
F4 RPT (Repeat):To repeat the current track, press
and release this pushbutton until RPT TRCK displays.
To repeat the tracks in the current folder, press and
release this pushbutton until RPT FLDR displays.
Press and release this pushbutton until NORMAL
displays to turn off repeated play.
F6 DISP (Display):Press this pushbutton to switch
between the elapsed time of the track and the MP3
playback information.
©¨(Seek):Press the left seek arrow to go to the
start of the previous track. Press the right seek arrow to
go to the start of the next track. Pressing either seek
arrow for more than two seconds searches the previous
or next tracks at two tracks per second. Release the
seek arrows to stop searching and to play the track.
©¨(Scan):Press the scan arrows to scan the
tracks in each folder. The radio goes to the next track,
plays for 10 seconds, then goes to the next track.
Press the scan arrows again to stop scanning.
w(Tune):Turning this knob fast tracks reverse or
advance through the tracks in all folders or playlists.
The track number and le name displays for each track.
Turning this knob while in random fast tracks reverse
or advances the tracks in sequential order.
4(Information):Press this button, while an MP3 CD
is loaded, to view the Title, Artist, Album, or Folder
names. To view this information, perform the following:
1. Press the
wknob to enter the main menu.
2. Turn this knob until INFO displays.
3. Press the same knob to select INFO. The display
changes to show the additional MP3 information.
4. Press one of the following pushbuttons to view that
specic information.
F1 TTLE (Title):Displays the title name.
F2 ATST (Artist):Displays the artist name.
F3 ALBM (Album):Displays the album name.
F4 FLDR (Folder):Displays the folder name.
5. Press the BACK (F6) button to exit the display. To
return to the original display, repeatedly press the
BACK (F6) button or wait for the display to time out.
3-115

XM Radio Messages
XL (Explicit Language Channels):These channels,
or any others, can be blocked at a customer’s request,
by calling 1-800-852-XMXM (9696).
XM Updating:The encryption code in the receiver is
being updated, and no action is required. This process
should take no longer than 30 seconds.
No XM Signal:The system is functioning correctly,
but the vehicle is in a location that is blocking the XM™
signal. When the vehicle is moved into an open area,
the signal should return.
Loading XM:The audio system is acquiring and
processing audio and text data. No action is needed.
This message should disappear shortly.
Channel Off Air:This channel is not currently in
service. Tune in to another channel.
Channel Unavail:This previously assigned channel
is no longer assigned. Tune to another station.
If this station was one of the presets, choose another
station for that preset button.
No Artist Info:No artist information is available at this
time on this channel. The system is working properly.No Title Info:No song title information is available at
this time on this channel. The system is working
properly.
No CAT Info:No category information is available at this
time on this channel. The system is working properly.
No Information:No text or informational messages are
available at this time on this channel. The system is
working properly.
CAT Not Found:There are no channels available for
the selected category. The system is working properly.
XM Theftlocked:The XM™ receiver in your vehicle
could have previously been in another vehicle. For
security purposes, XM™ receivers cannot be swapped
between vehicles. If this message is received after having
your vehicle serviced, check with your dealer/retailer.
XM Radio ID:If tuned to channel 0, this message
alternates with the XM™ Radio 8 digit radio ID label.
This label is needed to activate the service.
Unknown:If this message is received when tuned to
channel 0, there could be a receiver fault. Consult
with your dealer/retailer.
Check XM Receivr:If this message does not clear
within a short period of time, the receiver could have a
fault. Consult with your dealer/retailer.
3-116
