7. Once the transmitter is programmed, a beep will
sound. The DIC will display READY FOR X,
where X can be 3 or 4, or MAX # FOBS LEARNED.
8. Remove the transmitter from the transmitter pocket
and press the unlock button on the keyless access
transmitter two times.
The Canadian immobilizer standard requires Canadian
owners to see their dealer/retailer for matching new
transmitters when two recognized transmitters are not
available. United States owners are permitted to match a
new transmitter to their vehicle when a recognized
transmitter is not available.The procedure will require three, ten minute cycles to
complete the matching process. Do the following:
1. The vehicle must be off.
2. Place the new, unrecognized transmitter into the
transmitter pocket with the transmitter buttons facing
the front of the vehicle. The transmitter pocket is
inside the center console storage area located
between the driver and front passenger seats.
3. Insert the vehicle key into the key lock cylinder
located on the driver’s door.
2-9

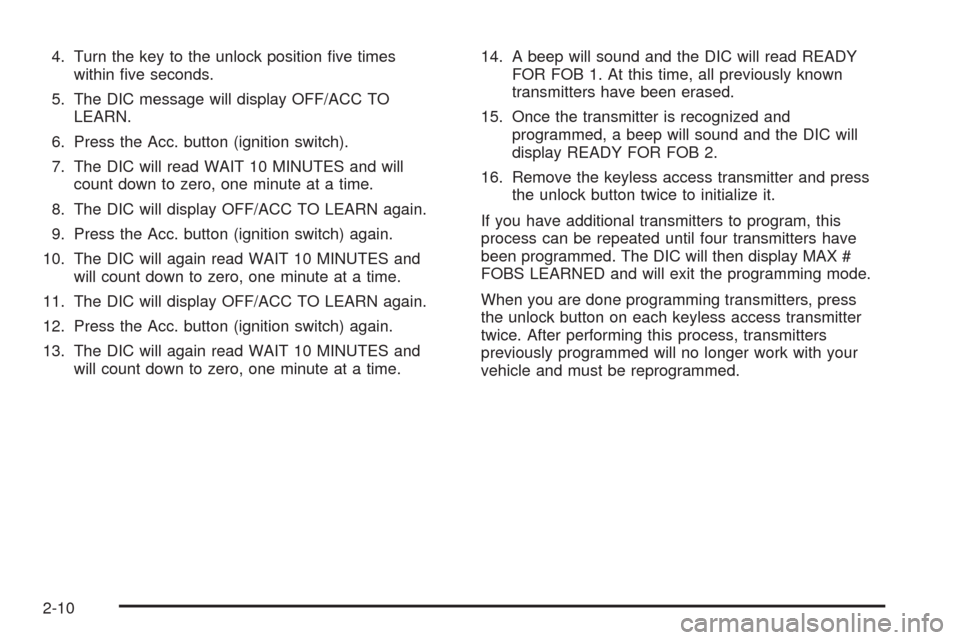

4. Turn the key to the unlock position ve times
within ve seconds.
5. The DIC message will display OFF/ACC TO
LEARN.
6. Press the Acc. button (ignition switch).
7. The DIC will read WAIT 10 MINUTES and will
count down to zero, one minute at a time.
8. The DIC will display OFF/ACC TO LEARN again.
9. Press the Acc. button (ignition switch) again.
10. The DIC will again read WAIT 10 MINUTES and
will count down to zero, one minute at a time.
11. The DIC will display OFF/ACC TO LEARN again.
12. Press the Acc. button (ignition switch) again.
13. The DIC will again read WAIT 10 MINUTES and
will count down to zero, one minute at a time.14. A beep will sound and the DIC will read READY
FOR FOB 1. At this time, all previously known
transmitters have been erased.
15. Once the transmitter is recognized and
programmed, a beep will sound and the DIC will
display READY FOR FOB 2.
16. Remove the keyless access transmitter and press
the unlock button twice to initialize it.
If you have additional transmitters to program, this
process can be repeated until four transmitters have
been programmed. The DIC will then display MAX #
FOBS LEARNED and will exit the programming mode.
When you are done programming transmitters, press
the unlock button on each keyless access transmitter
twice. After performing this process, transmitters
previously programmed will no longer work with your
vehicle and must be reprogrammed.
2-10

Battery Replacement
Under normal use, the battery in your keyless access
transmitter should last about three years.
The battery is weak if the transmitter will not work at the
normal range in any location. If you have to get close
to your vehicle before the transmitter works, it is
probably time to change the battery. The DIC may
display KEY FOB BATTERY LOW.
A weak battery may also cause the DIC to display NO
FOBS DETECTED when you try to start the vehicle.
If this happens, place the transmitter in the center
console storage area transmitter pocket with the buttons
facing to the front of the vehicle. Then, with the
vehicle in PARK (P) or NEUTRAL (N), press the brake
pedal and the start button. SeeStarting the Engine
on page 2-29, for additional information about your
vehicle’s electronic keyless ignition with push button
start. Although this will start the vehicle, it is
recommended that you replace the transmitter battery
as soon as possible.
Notice:When replacing the battery, use care not to
touch any of the circuitry. Static from your body
transferred to these surfaces may damage the
transmitter.To replace the battery:
1. Insert a at object with a thin edge into the slot on
the side of the transmitter and separate the bottom
half from the top half.
2. Carefully pull the battery out of the transmitter.
3. Put the new battery in the transmitter, positive (+)
side down. Use a battery type CR2032 or
equivalent.
4. Reassemble the transmitter. Make sure to put it
together so water will not get inside the transmitter.
5. Test the transmitter.
2-11

Remote Vehicle Start
This feature allows you to start the engine from outside
the vehicle.
Before the remote vehicle start system can be operated,
it must be turned on through the vehicle personalization
system.
You can also program the remote vehicle start system to
start up the vehicle’s automatic climate control system. If
this feature is turned on, the system monitors the outside
temperature and turns on the rear window defogger, front
window defogger, and heated or ventilated seats, if your
vehicle has them. See “Personal Settings Menu” under
Vehicle Personalization on page 2-60.
/(Remote Start):This button will be on the RKE
transmitter if you have remote start.
To start the vehicle using the remote start feature:
1. Aim the remote keyless access transmitter at the
vehicle.
2. Press the transmitter’s lock button, release it, and
then immediately press and hold the transmitter’s
remote start button for at least three seconds or until
the vehicle’s turn signal lamps ash. The vehicle’s
doors will be locked.
When the vehicle starts, the parking lamps will turn
on and remain on while the vehicle is running.3. If it is the rst remote start since the vehicle has been
driven, repeat these steps, while the engine is still
running, to extend the engine running time by
10 minutes. Remote start can be extended one time.
If the vehicle is left running it will automatically shut off
after 10 minutes unless a time extension has been
done. To manually shut off a remote start, do one of the
following:
Aim the keyless access transmitter at the vehicle
and press the remote start button until the parking
lamps turn off.
Turn on the hazard warning ashers.
Press the Acc. button (ignition switch). SeeIgnition
Positions on page 2-28.
Turn on the valet lockout switch. SeeValet Lockout
Switch on page 2-25.
When you enter the vehicle during a remote start, press
the brake pedal and press the start button on the
keyless ignition switch to transition from remote start
operation to normal vehicle operation.
2-12

Laws in some local communities may restrict the use of
remote starters. For example, laws may require a
person using remote start to have the vehicle in view
when doing so. Check local regulations for any
requirements on remote starting of vehicles.
Do not use the remote start feature if your vehicle is low
on fuel. Your vehicle may run out of fuel.
The remote start feature provides two separate starts,
each with 10 minutes of engine running. If you press the
lock button and then hold the remote start button on
the keyless access transmitter again for at least
three seconds before the rst 10 minutes of engine
running time has expired, 10 minutes is added to the
remaining minutes. For example, if the remote start
is initiated again after ve minutes of the engine
run time, 10 minutes is added and you now have
15 minutes with the engine running. Once two remote
starts or 20 minutes of the engine running have
been provided, the vehicle must be started using the
keyless access with pushbutton start feature, if the
engine needs to be restarted. SeeStarting the Engine
on page 2-29for more information regarding the
keyless ignition.The remote start feature will not operate if any of the
following occur:
The check engine light is displayed. See “Check
Engine Light” underMalfunction Indicator Lamp
on page 3-68.
The valet lockout switch is on.
The keyless access transmitter is in the vehicle.
The vehicle’s hood is open.
The vehicle personalization feature is not enabled.
An unauthorized vehicle entry or a vehicle theft
was attempted.
Your keyless access transmitter, with the remote start
button, provides an increased range of operation.
However, the range may be less while the vehicle is
running. As a result, you may need to be closer to your
vehicle to turn it off than you were to turn it on.
There are other conditions which can affect the
performance of the transmitter, seeKeyless Access
System on page 2-5.
2-13

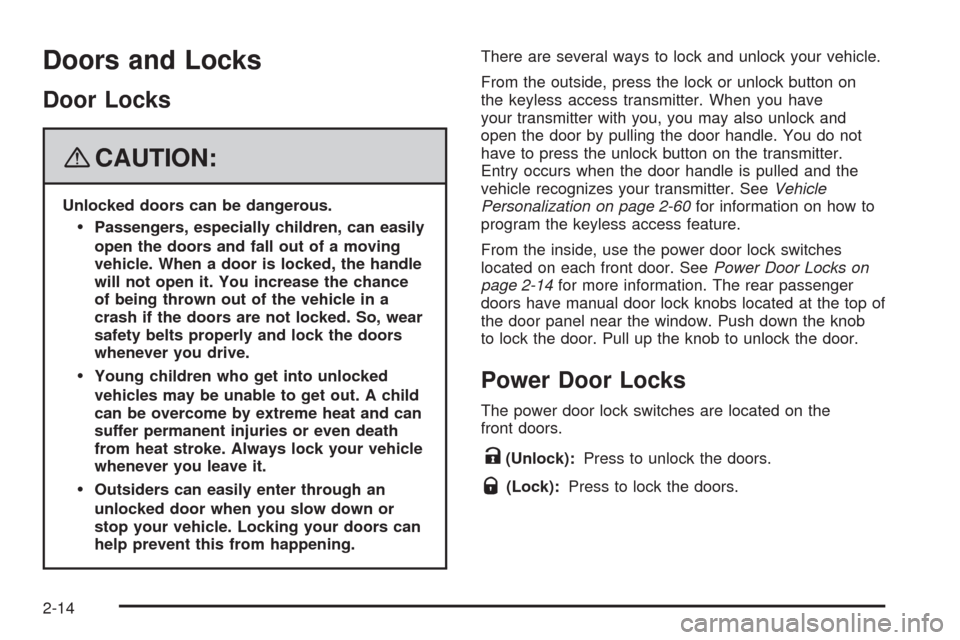

Doors and Locks
Door Locks
{CAUTION:
Unlocked doors can be dangerous.
Passengers, especially children, can easily
open the doors and fall out of a moving
vehicle. When a door is locked, the handle
will not open it. You increase the chance
of being thrown out of the vehicle in a
crash if the doors are not locked. So, wear
safety belts properly and lock the doors
whenever you drive.
Young children who get into unlocked
vehicles may be unable to get out. A child
can be overcome by extreme heat and can
suffer permanent injuries or even death
from heat stroke. Always lock your vehicle
whenever you leave it.
Outsiders can easily enter through an
unlocked door when you slow down or
stop your vehicle. Locking your doors can
help prevent this from happening.There are several ways to lock and unlock your vehicle.
From the outside, press the lock or unlock button on
the keyless access transmitter. When you have
your transmitter with you, you may also unlock and
open the door by pulling the door handle. You do not
have to press the unlock button on the transmitter.
Entry occurs when the door handle is pulled and the
vehicle recognizes your transmitter. SeeVehicle
Personalization on page 2-60for information on how to
program the keyless access feature.
From the inside, use the power door lock switches
located on each front door. SeePower Door Locks on
page 2-14for more information. The rear passenger
doors have manual door lock knobs located at the top of
the door panel near the window. Push down the knob
to lock the door. Pull up the knob to unlock the door.
Power Door Locks
The power door lock switches are located on the
front doors.
K(Unlock):Press to unlock the doors.
Q(Lock):Press to lock the doors.
2-14

Programmable Automatic
Door Locks
Your vehicle was programmed from the factory so that
when the doors are closed, the ignition is on and the shift
lever is moved out of PARK (P), all the doors will lock.
The front doors can still be opened from the inside while
the doors are locked. If a rear passenger needs to
exit the vehicle, have that person use the manual knob
or use the power door lock switch on either front
door. When the door is closed again, it will not lock
automatically. Use the manual knob or the power door
lock switch to lock the door.
The doors were also programmed from the factory to
unlock every time the shift lever is moved back into
PARK (P).
The power door locks can be programmed through the
radio display. The radio display allows you to choose
various lock and unlock settings. For more information on
programming, seeVehicle Personalization on page 2-60.
Rear Door Security Locks
Your vehicle has rear door security locks. These
prevent passengers from opening the rear doors from
the inside.
The rear door security
locks are located on the
inside edge of each
rear door. The rear doors
must be open to access
them. The label showing
lock and unlock positions is
located near the lock.
To set the locks, do the following:
1. Insert the key into the security lock slot and turn it
so the slot is in the horizontal position.
2. Close the door.Lock Label shown
2-15

When you want to open a rear door when the security
lock is on, do the following:
1. Unlock the door using the remote keyless entry
transmitter, if the vehicle has one, the power
door lock switch, or the rear door manual lock.
2. Open the door from the outside.
To cancel the rear door security lock, do the following:
1. Unlock the door and open it from the outside.
2. Insert the key into the security lock slot and turn it
so the slot is in the vertical position.
Lockout Protection
Your vehicle can be programmed to sound the horn
three times and unlock the driver’s door when all doors
are closed and there is a keyless access transmitter
inside the interior of the vehicle. When the driver’s door
is reopened, the key in reminder chime will sound
continuously. The vehicle will remain locked only when
at least one transmitter has been removed from the
vehicle and both doors are closed. SeeVehicle
Personalization on page 2-60.
Trunk
{CAUTION:
It can be dangerous to drive with the trunk lid
open because carbon monoxide (CO) gas can
come into your vehicle. You cannot see or
smell CO. It can cause unconsciousness and
even death. If you must drive with the trunk lid
open or if electrical wiring or other cable
connections must pass through the seal
between the body and the trunk lid:
Make sure all other windows are shut.
Turn the fan on your heating or cooling
system to its highest speed and select the
control setting that will force outside air
into your vehicle. See Climate Control
System.
If you have air outlets on or under the
instrument panel, open them all the way.
SeeEngine Exhaust on page 2-38.
2-16

Trunk Lid Release
There are three ways to open the trunk lid.
V(Trunk Lid Release):Press this button located
on the driver’s door. The vehicle must be in
PARK (P) or NEUTRAL (N) and the valet mode
turned off. To disable valet mode, seeValet Lockout
Switch on page 2-25.
Press the trunk lid release button on the keyless
access transmitter. SeeKeyless Access System
Operation on page 2-6. The vehicle must be
in PARK (P) or NEUTRAL (N) and the valet mode
turned off.
Squeeze the trunk release button located on the
rear of the trunk lid above the license plate, as
long as you have your keyless access transmitter
with you. Entry occurs when the button is being
pressed and the vehicle recognizes the transmitter.
The vehicle must be in PARK (P) and the valet
mode turned off.
If your vehicle has lost battery power, you can still
access the trunk by unlocking and lowering the rear seat
pass-through door and pulling the emergency trunk
release handle.
2-17

Rear Seat Pass-Through Door
To open the door:
1. Pull the rear seat armrest down.
2. If the door is locked, insert the key into the lock and
turn it counterclockwise.
3. Press the button above the lock and lower the door.
To open the trunk lid, pull the emergency trunk release
handle located in the trunk on the other side of the
door opening. See “Emergency Trunk Release Handle”
following.
Emergency Trunk Release Handle
Notice:Do not use the emergency trunk release
handle as a tie-down or anchor point when securing
items in the trunk as it could damage the handle.
There is a glow-in-the-dark trunk release handle
located inside the trunk near the back of the rear
seats. This handle will glow following exposure to light.
Pull down the release handle to open the trunk from
the inside of the vehicle.
2-18
